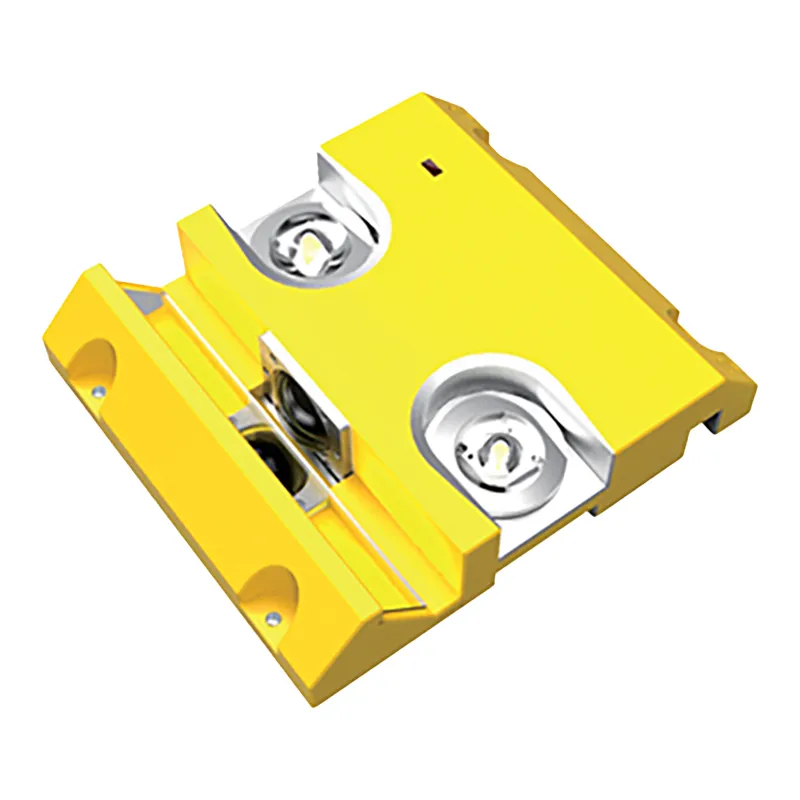

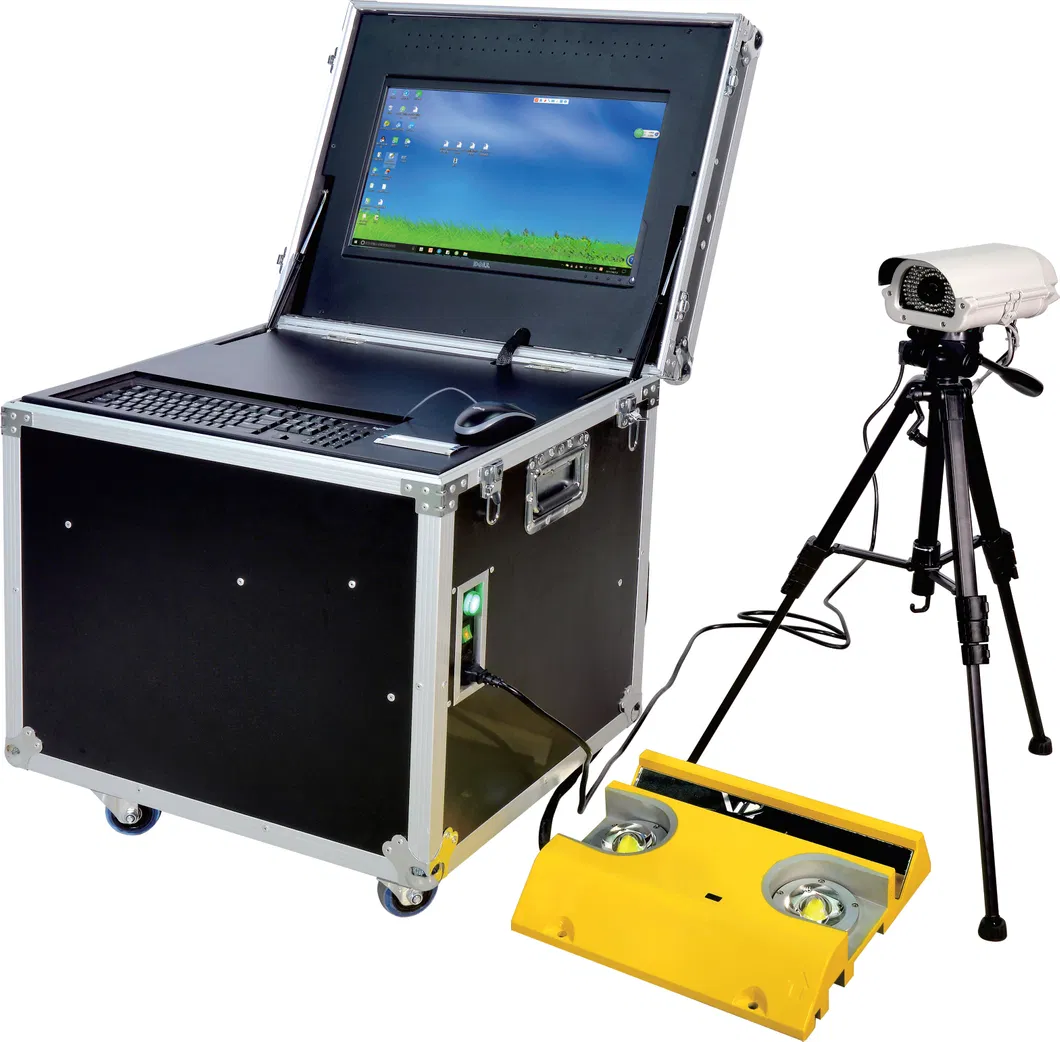

VAD-UVSS-II Vehicle Chassis Security Inspection System
The VAD-UVSS-II Vehicle Chassis Security Inspection System is a cutting-edge information management solution designed to enhance security at critical locations. This system is built to automatically capture, display, compare, and alert on images of the vehicle chassis, effectively preventing the entry and exit of explosives, weapons, hazardous materials, and unauthorized individuals from sensitive areas.
Performance and Characteristics
Using black and white linear CCD scanning technology to image dynamically.
Scan resolution: 2048 line CCD.
Chassis storage or loading time: < 1 second.
Magnification of local magnifying glass for under body image: > 2 times.
Vehicle bottom image display mode: Large format horizontal display.
Chassis image storage format: Standard BMP image format or JPEG.
System Interface Language: Customizable.
Display resolution: Adapting to various display resolutions.
Vehicle bottom image data transmission interface: Network RJ45.
Image retrieval should be able to according to the date, time, license plate number and other information retrieval to store the car and license plate images.
Resolution: Let the car pass at 70km/h, with standard resolution test card, as for the position 7.9cm from the ground, test its horizontal and vertical resolution requirements: Level > 600tvl; Vertical > 600TVL.
Vehicle speed sensing function: The imaging shall be complete after the vehicle travels at a non-uniform speed or stops, and then continues to travel through the prototype.
What are the primary applications of the VAD-UVSS-II system?
The VAD-UVSS-II system is designed to inspect vehicle undercarriages at high-security checkpoints such as border crossings, government buildings, military installations, and transit hubs. It automatically captures and analyzes chassis images to prevent the entry of explosives, weapons, or unauthorized materials.
What is the maximum vehicle speed supported for scanning?
The system dynamically images vehicles passing over the scanner at speeds ranging from 1 km/h up to 70 km/h, ensuring seamless scanning without slowing down normal traffic flows.
How does the system perform in extreme weather conditions?
The VAD-UVSS-II is built with an IP68 waterproof and weatherproof grade, operating reliably in temperatures ranging from -40 °C to +75 °C, making it highly suitable for harsh outdoor environments.
What is the maximum bearing weight capacity of the scanner?
The scanner features a robust structural design capable of safely bearing vehicle weights exceeding 30 tons, accommodating everything from passenger cars to heavy-duty cargo trucks.
What imaging technology is used in the VAD-UVSS-II?

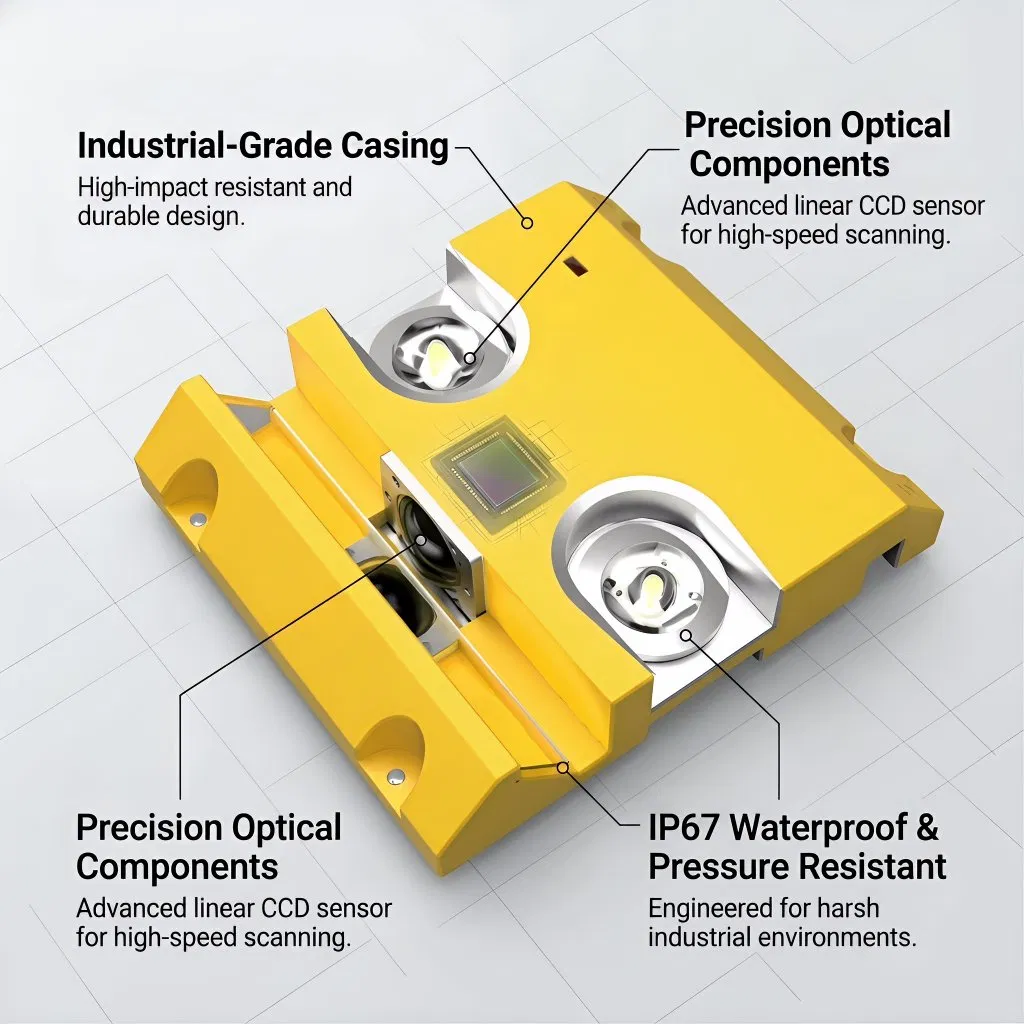

The system utilizes high-definition, black-and-white linear CCD scanning technology (2048 line CCD) with a 160-degree wide field of view angle to capture complete and detailed vehicle undercarriage layouts.
How quickly can the system display and load scanned chassis images?
The chassis image storage or loading time is less than 1 second, allowing security personnel to conduct real-time monitoring and threat assessment with minimal delay.
