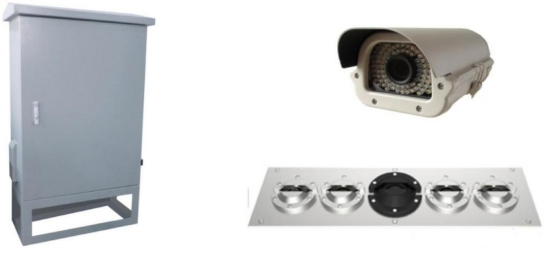

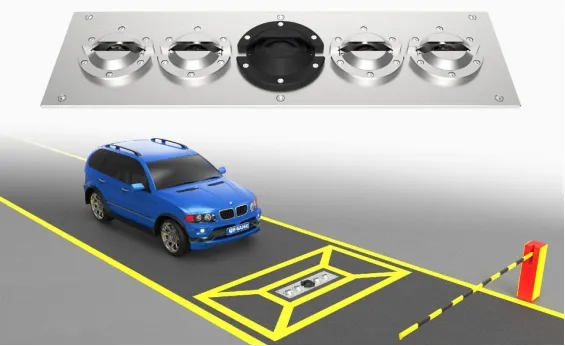

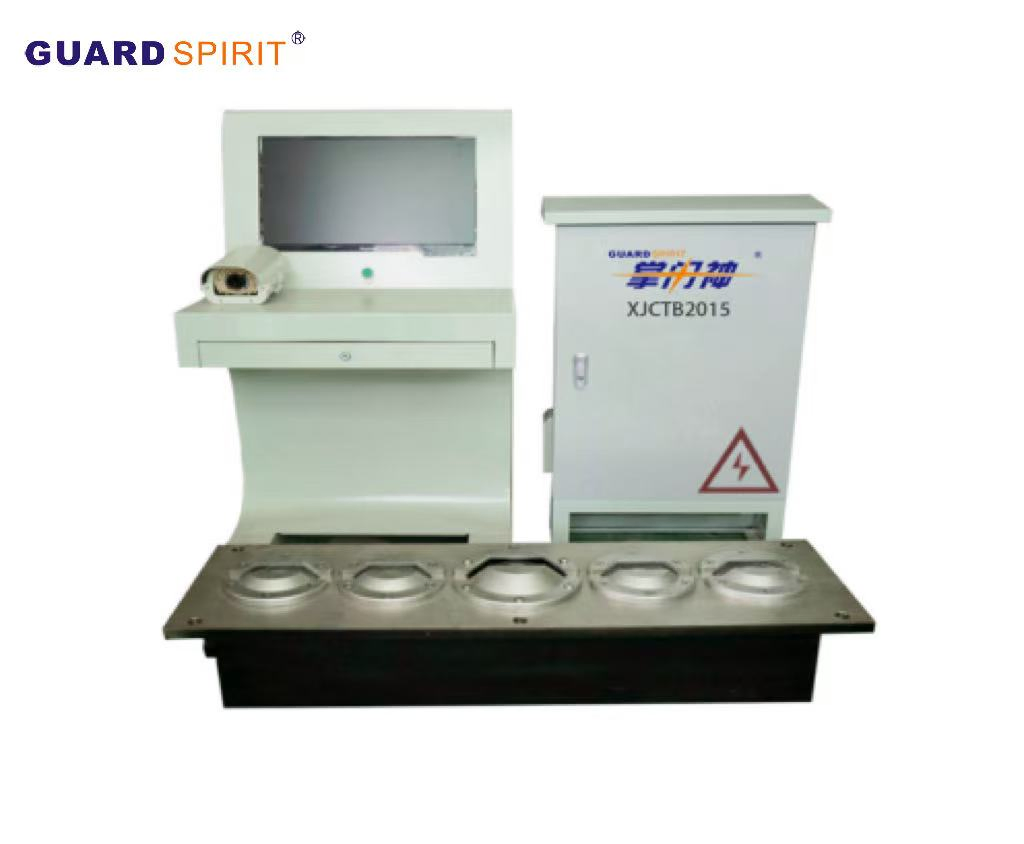

CCD Line Scan Camera
- The maximum scanning rate: 18kHz
- Type: B/W image
- Resolution: 5000* 2048 pixels
- Image: Black/white (color optional)
- Power Supply: 24VDC, 3A
- Transfer interface/distance: Gigabit Ethernet/100m
- Sealed unit to protect against heat, dust, water and vibration
- Operating Temperature Range: -25 ℃ to +60 ℃
- One-way scanning /Double-way scanning
LED Illumination
- Power Supply: 24VDC, 320W
- LED light service life: 50,000 hours
- Operating Temperature Range: -25 ℃ to +60 ℃
Vehicle Plate Number Capture Camera
- Features: Night vision, water proof and antifogging function
- The imaging element: 1/3″SONY ICX673 CCD
- Resolution: 752(H)*582(V) & Horizontal resolution: 700TVL
- Signal to Noise Ratio: >48dB
- Electrical shutter: 1/50—1/10,0000/s
- White balance: Auto
- Size: 8inch (292*140*102)
Distribution Box
- Input: 2 channels induction coil
- Output: 1 Channel switch type 12VDC
- Communication port: RS485, 1000M Ethernet (Optional)
- Operating Temperature: -25℃ to 60℃
Computer
- Brand: Grantech (SYM76941 VGGA)
- CPU: Intel (R) Core Processor, 2.6GHz/2.59GHz
- Memory: 2G (optional 4G)
- Graphics: 512M
- Hard Disk: SATA2 Hard Disk 500G
Manata Scanner
