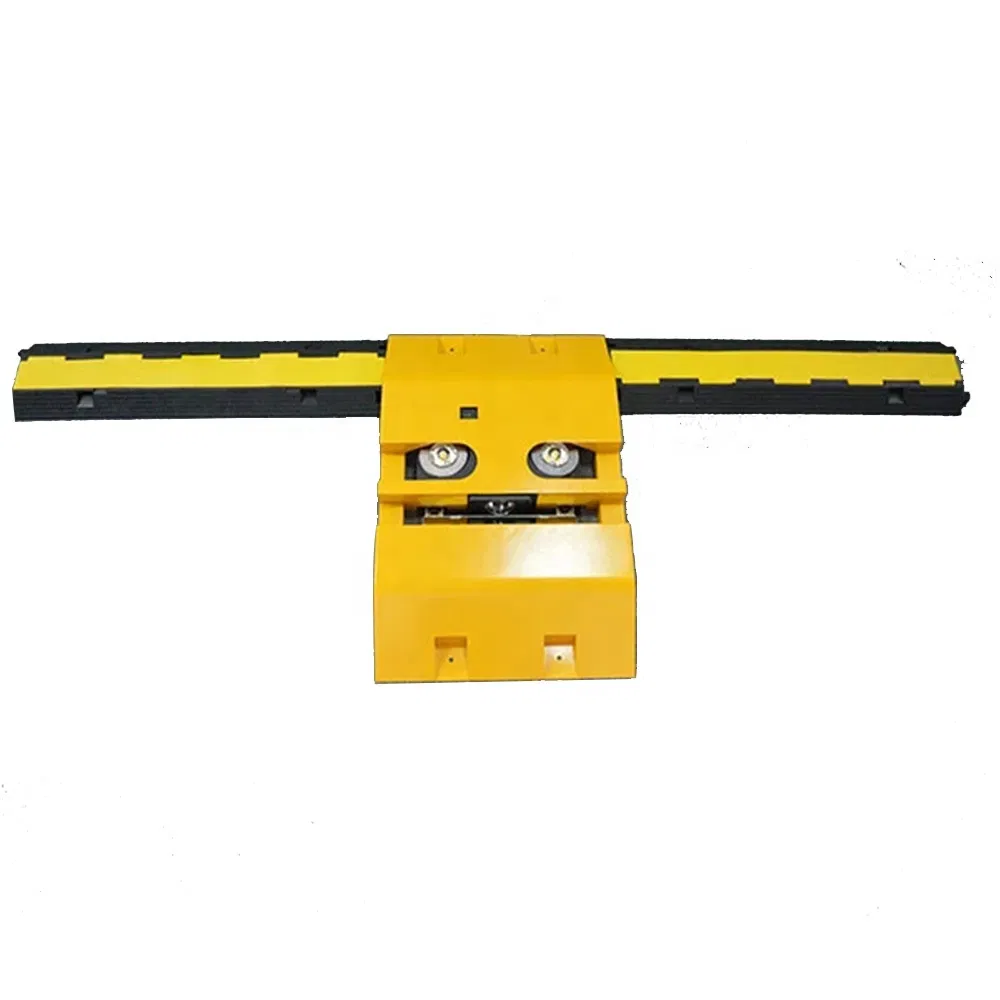

| NAME: |
Under Vehicle Surveillance System |
USING: |
Checking Under Vehicle |
| SCAN RESOLUTION: |
2048 Line CCD |
CHASSIS STORAGE / LOADING TIME: |
< 1 Second |
| DISPLAY OF SCENE IMAGE: |
≥1 Road |
RESOLUTION OF THE BOTTOM IMAGE: |
>12000 * 6144 |
| THE MAXIMUM OF SCAN RATE: |
18kHz |
FIELD OF VIEW: |
170 Degrees |
| AUXILIARY LIGHTING: |
160W |
SCANNING DEVICE VOLUME: |
450 X 400 X 88mm |
| MONITOR: |
22 Bits Real Colors |

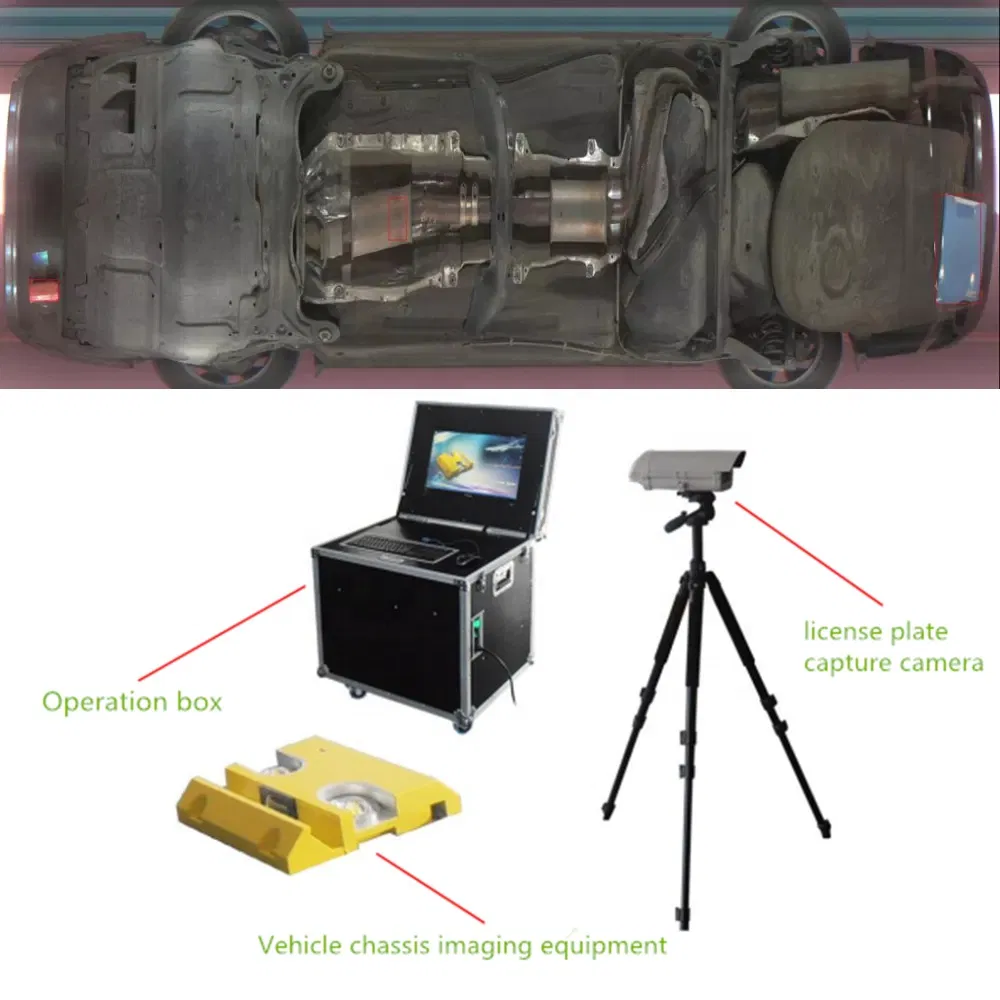

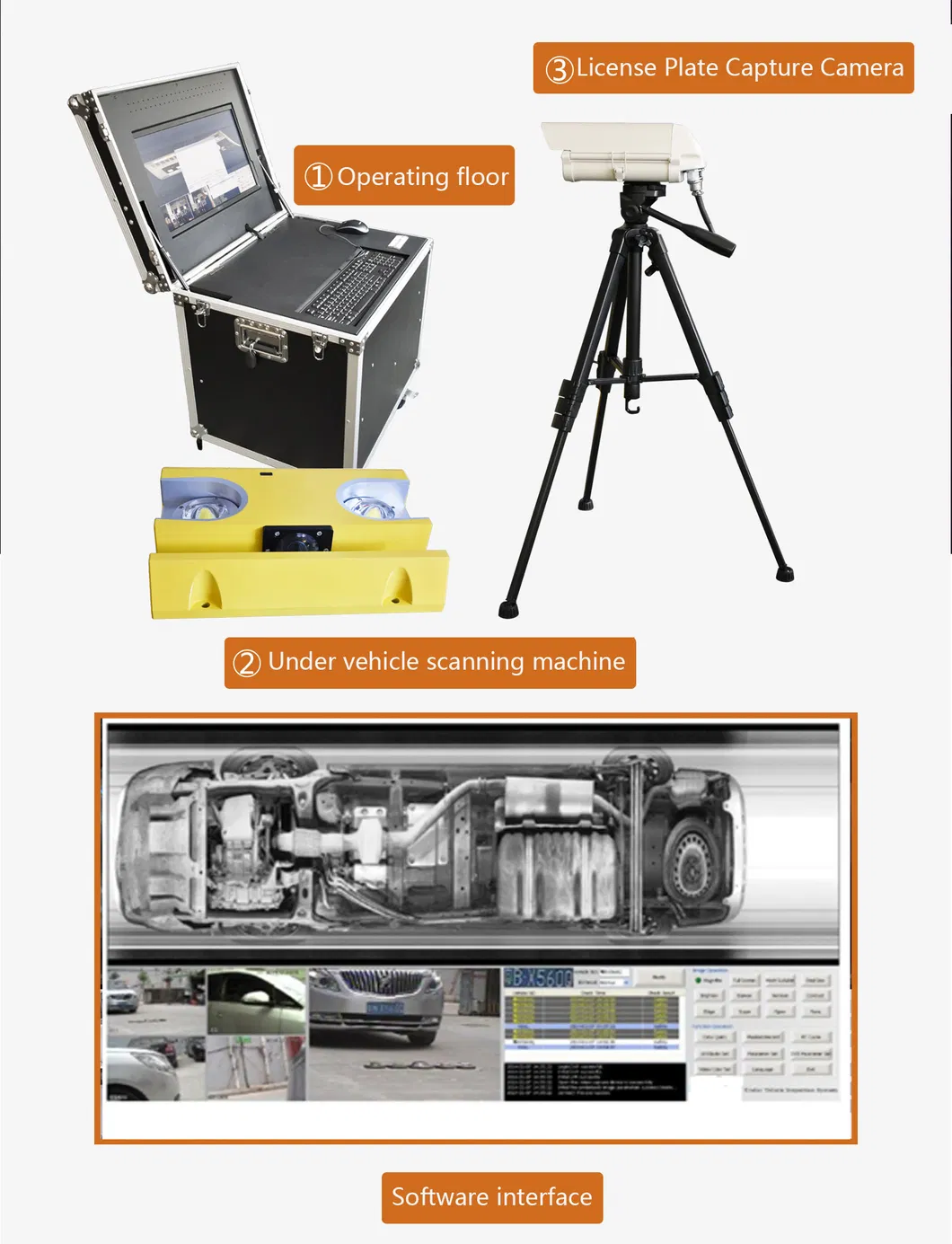

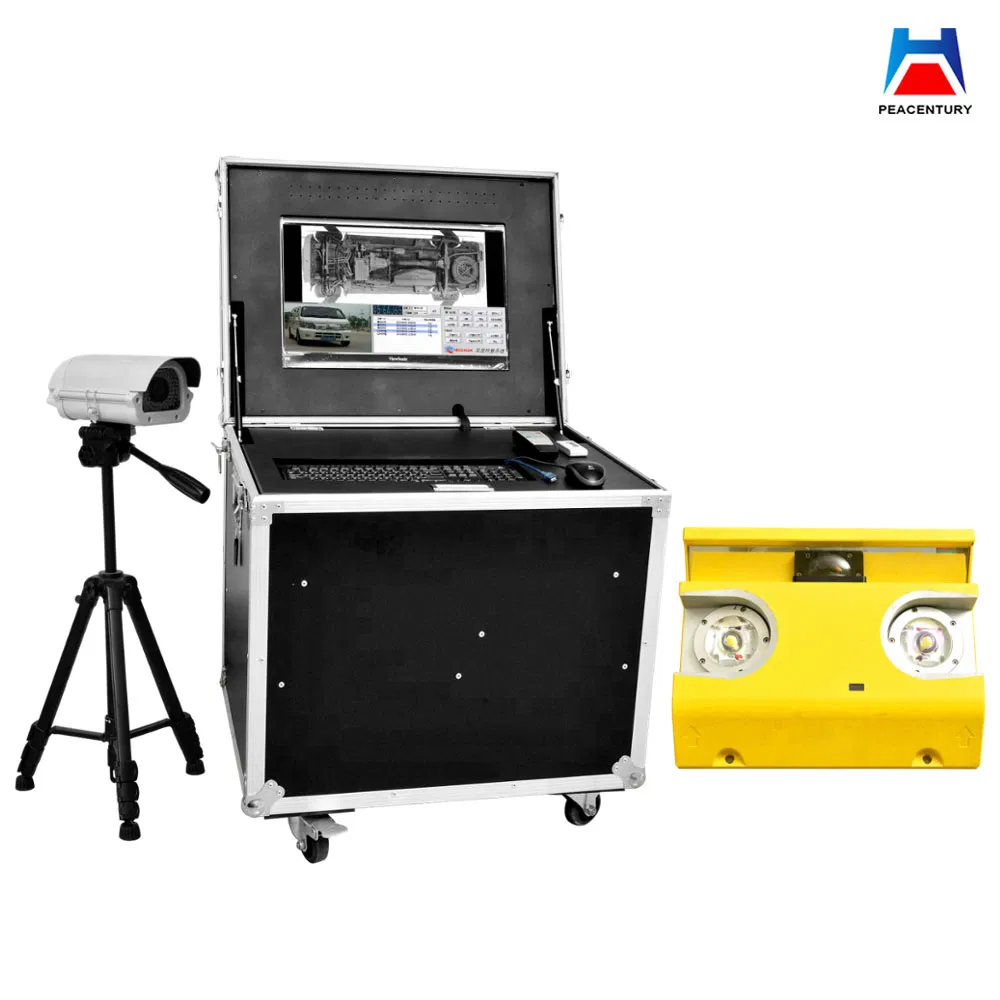

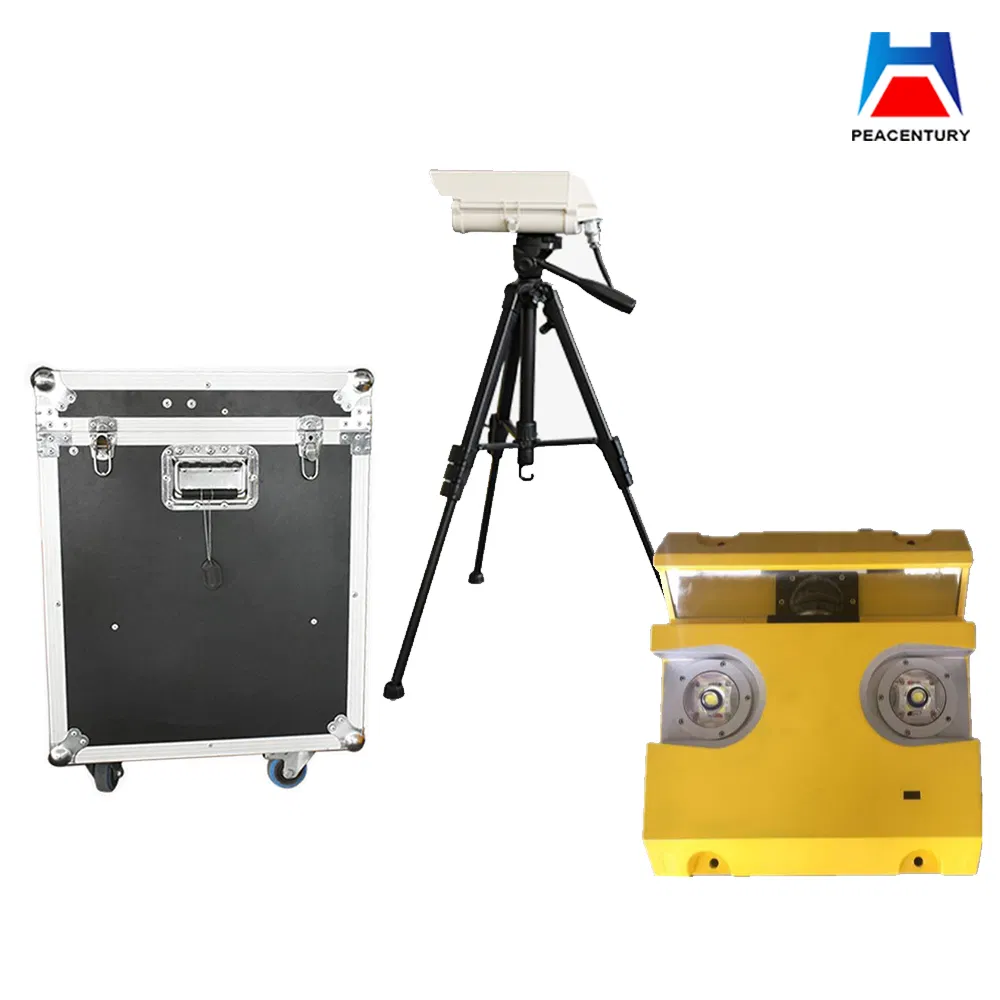

Under vehicle surveillance system with ANPR camera in border, checkpoints.

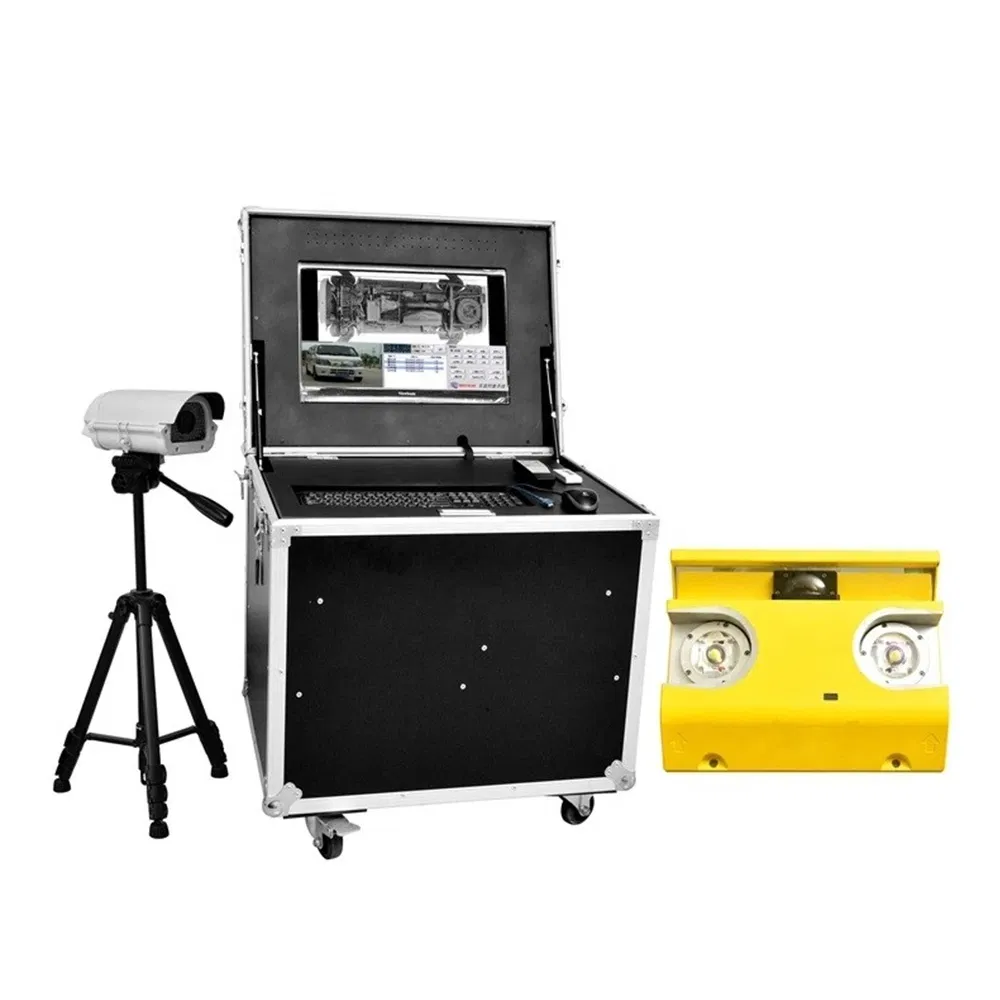

Main Features
- Auto digital line scan, high-resolution undercarriage imaging.
- High automation, easy to be used.
- Applicable to variety of vehicles, wide vision.

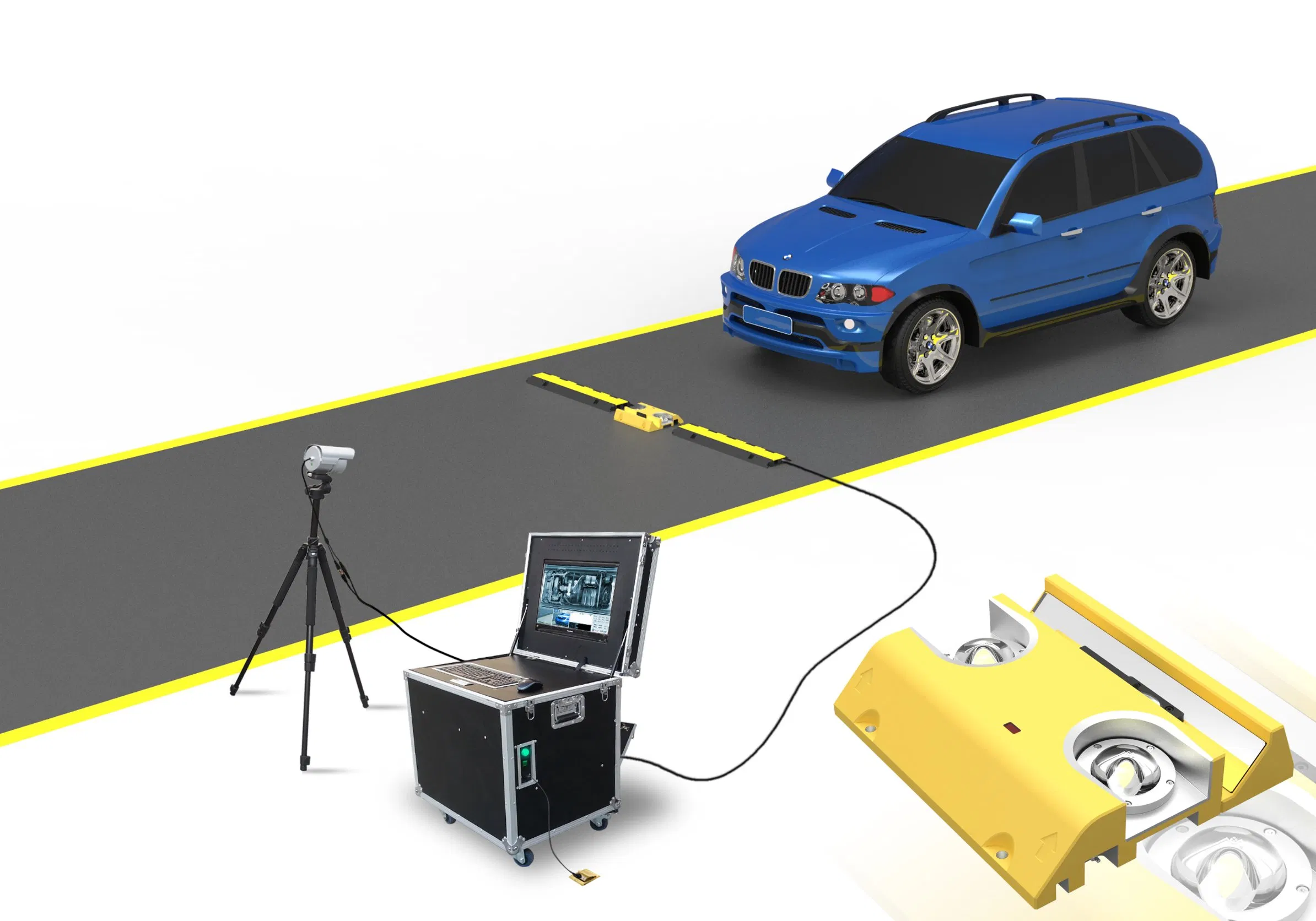

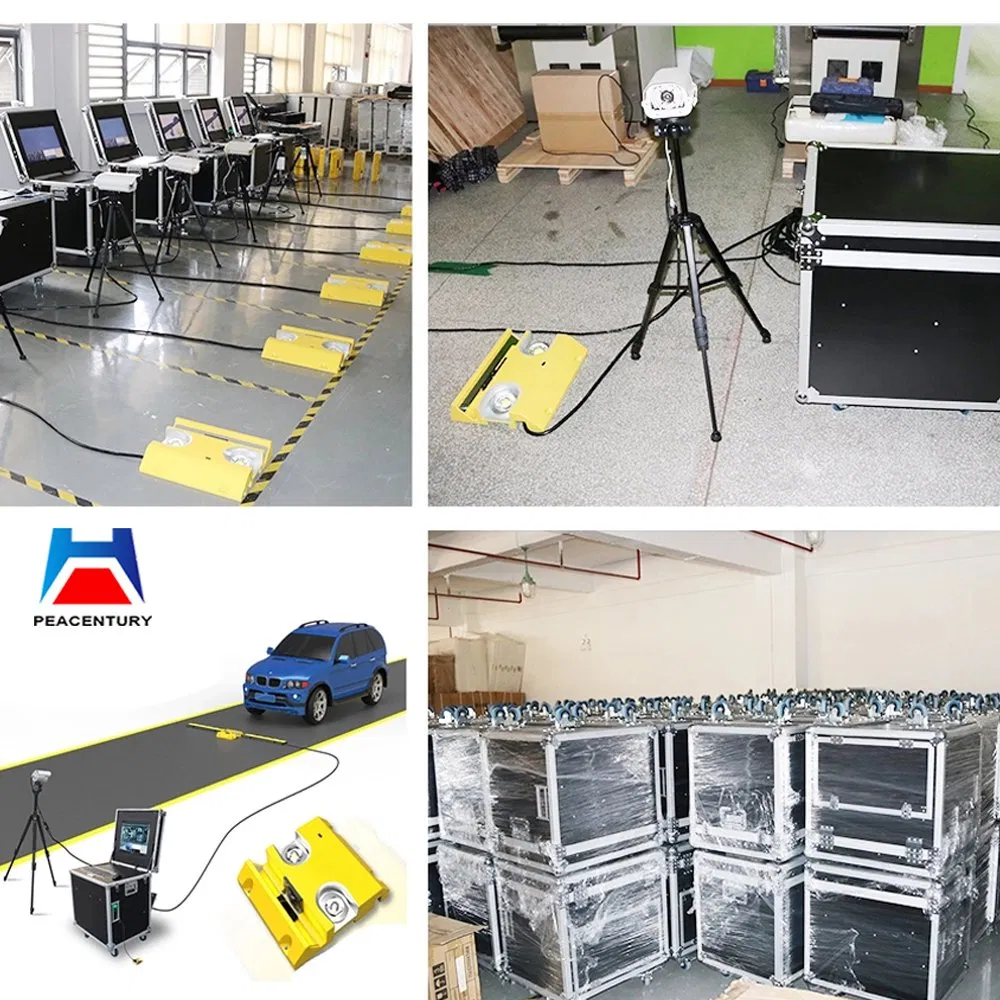

- Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
- Undercarriage image can be stored, retrieved, searched or compared with other images.
- Variety of image processing methods: enlarge, stretching and cutting.
- (Optional) ALPR-Automatic License Plate Recognition and RFID technology; associative storage of various vehicle information and undercarriage images.
HPC-M Parameters
| HPC-M specifications |
| Parameters |
Store or load time |
< |
1 second |
| Vehicle Image local magnification |
> |
2 times |
| Vehicle Image scaling |
times |
16 |
| Main Performance Parameters |
System interface language |
(can be customized) |
English |
| Scene image display |
≥ |
1 channel |
| Vehicle speed |
1-60km/h, suggest speed |
less than 30km/h |
| Hydraulic System |
View angle |
degrees |
175 |
| Image Longitudinal resolution |
pixels CCD |
2048 |
| Power Supply |
Hz |
AC110V-240V/50-60 |
Computer System Specifications
| Display |
22 inch color LCD Screen |
| CPU |
INTEL core Quad-Core Processor |
| Motherboard |
Dedicated motherboard |
| Memory |
DDR3, more than 4GB |
| Hard Disk |
500G high-speed hard disk |
| Graphics Card |
DDR3, 192BIT independent graphics |
| Appearance |
Stainless steel composite material |
| Working Current |
3A |
| Working Temperature |
-20 ºC ~ 55 ºC |
Frequently Asked Questions
What is the main purpose of the Under Vehicle Surveillance System?
The Under Vehicle Surveillance System (UVSS) is primarily used for security checks to inspect the undercarriage of various vehicles at borders, checkpoints, and high-security areas to detect potential threats.
How long does it take to store and display the scanned undercarriage image?
The system features high automation and fast processing speeds, allowing vehicle chassis images to be loaded or stored in less than 1 second.
What speed should a vehicle maintain while passing through the inspection machine?
The system can perform scanning while the vehicle is in motion at speeds between 1 and 60 km/h. However, a speed of less than 30 km/h is highly recommended for optimal image capture results.
What are the camera resolution and field of view specifications?
The inspection machine uses a 2048 Line CCD scan resolution, delivering bottom images with a resolution greater than 12000 * 6144, and offers a wide-angle field of view of 170 to 175 degrees.
What options are available for image processing in the software?
The system provides several image processing methods, including local magnification greater than 2 times, overall image scaling up to 16 times, stretching, cutting, and comparison with other stored images.
Can this system integrate with license plate recognition?
Yes, the system optionally supports ALPR (Automatic License Plate Recognition) and RFID technology, enabling the associative storage of license plate information alongside undercarriage images.
