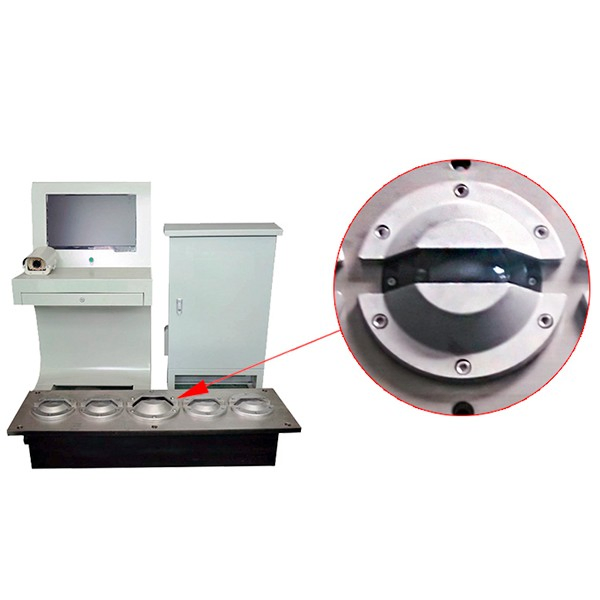

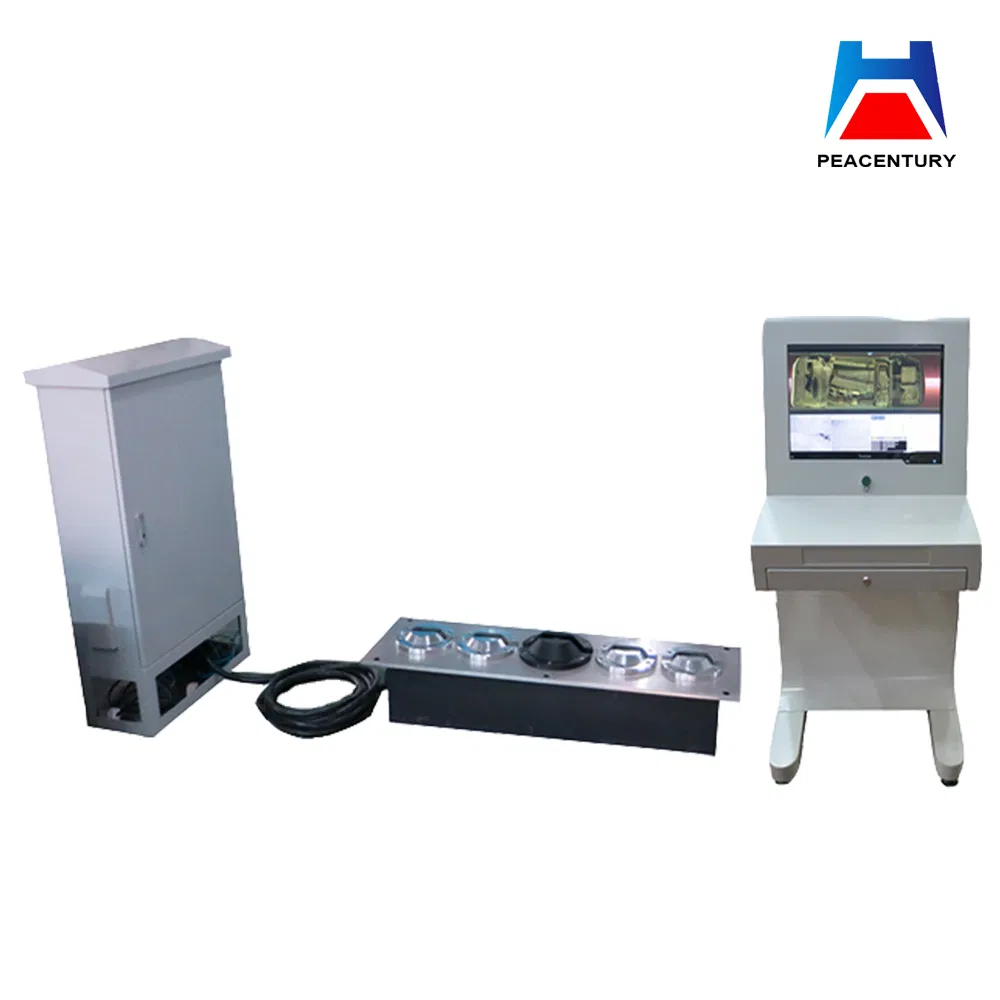

High-Resolution Security Use Under Vehicle Inspection System UVSS

Basic Info.

Model NO.	HPC-F
Feature	Waterproof / Weatherproof, High Definition, Auto BLC, Vandal-proof
Video Capture System	Video Camera
Software Function	Monitoring+Control
Software Usage	Vehicle Monitoring Software, Computer Monitoring Software
Client Software	Without Client Software
Model	Surveillance
Sensor	CCD
Kind	Autofocus Lens
Technology	Senser
Horizontal Resolution	1024
Name	Under Vehicle Inspection System
Useing	Checking Under Vehicle
Scan Resolution	2048 Line CCD
Chassis Storage or Loading Time	< 1 Second
Resolution of The Bottom Image	>12000 * 6144
The Maximum of Scan Rate	18kHz
Field of View	170 Degrees
Auxiliary Lighting	160W
Scanning Device Volume	450 X 400 X 88mm
Monitor	22 Bits Real Colors
Waterproof Degree	IP68
Transport Package	Wooden Case
Origin	China (Mainland)
HS Code	7009920000
Production Capacity	200PCS/Month

Product Description

Under Vehicle Surveillance System and UVSS:
Access security control for vehicles at important locations: Airports, government buildings, prisons, bank depots, seaports, offices, customs, border control, car park entrance checkpoints to important building's Toll station checkpoints, and Checkpoints for entering and exiting vehicles attending conferences.

Product Parameters

System Specifications
Product Name	Fix Under Vehicle Inspection System
Use ambient temperature	-20 degrees-+60 degrees
Scanner weight	105kg
Scanning device volume	1100 × 280 × 180mm
Operating Voltage	DC24V
System power	AC110-240V / 50-60Hz
Chassis storage or loading time	< 1 second
Imaging method	Dynamic method of linear CCD scanning technology
scanning method	Linear scan, ground sense coil trigger
Scanner data cable	10 meters as standard; (customizable length)
Undercarriage image scanner	Open wide field of view image acquisition technology
Lighting components	Four single sealed LED surface light sources
Car bottom image display method	Large format horizontal display
Vehicle bottom image vertical resolution	≥2048 pixels CCD

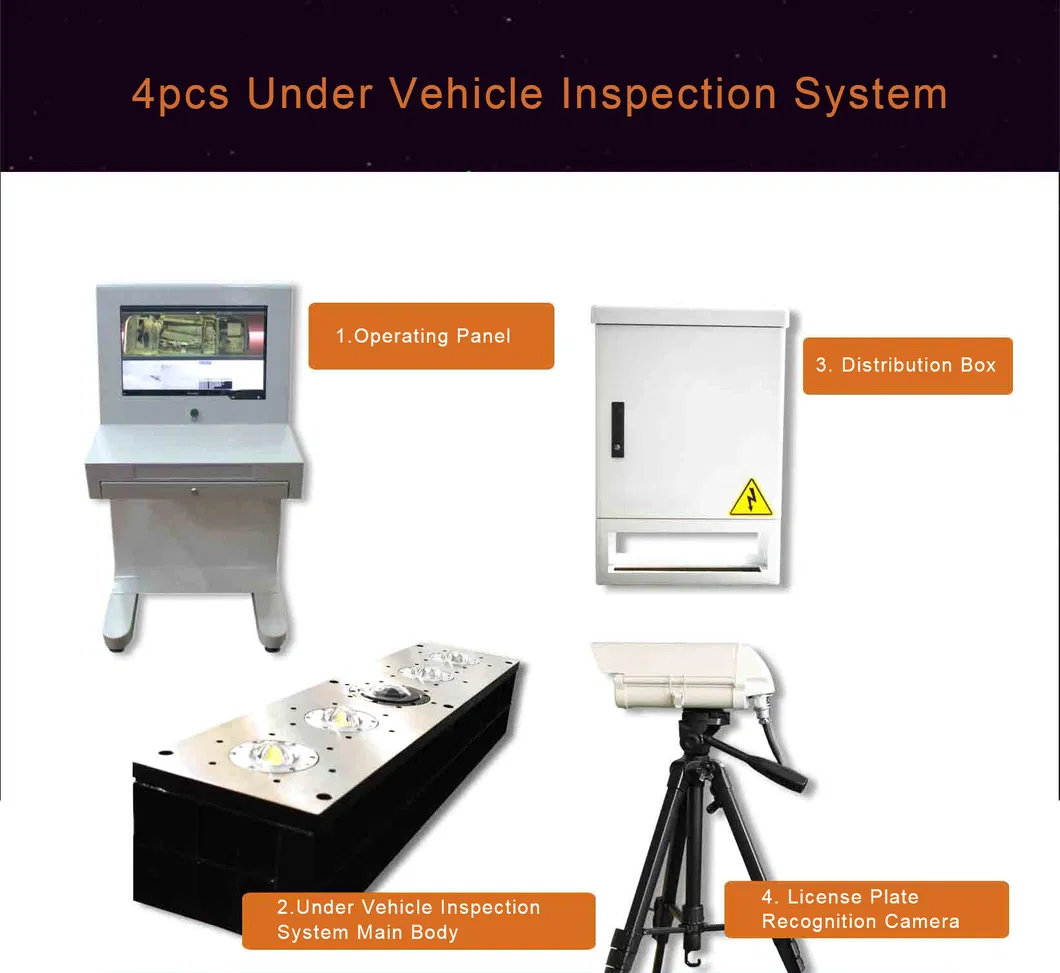

Detailed System Components

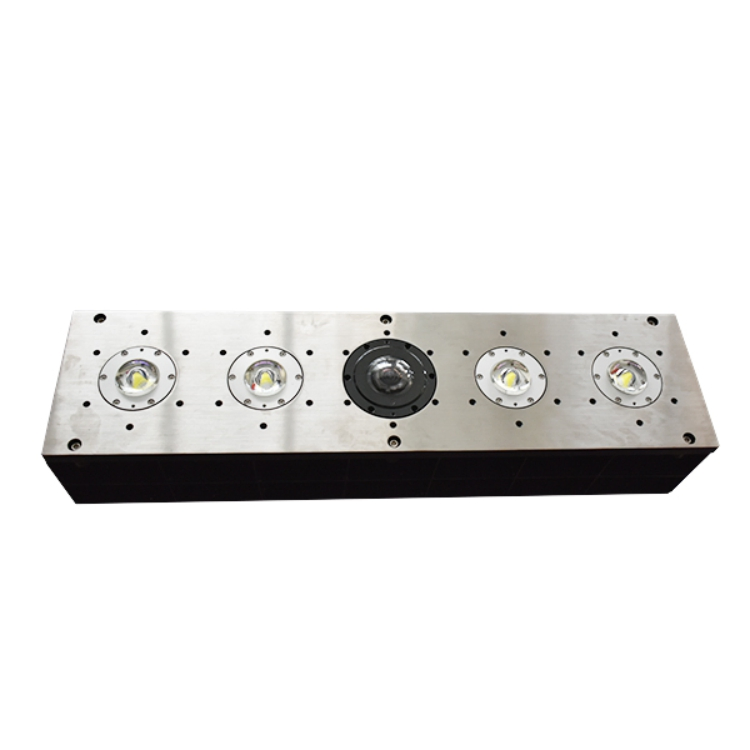

Embedded Frame

Material: Stainless Steel
Dimension: 1200mm x 350mm
Water-proof grade: IP68
Load bearing Weight: 50T
Image resolution: 12000 * 6144

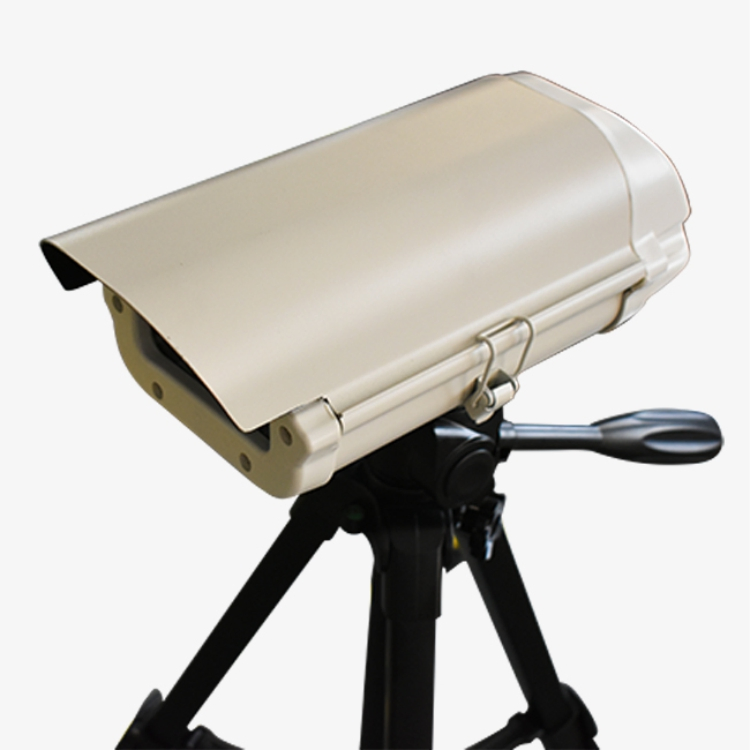

CCD Line Scan Camera

Type: B/W image (color optional)
Resolution: 5000 * 2048 pixels
Camera view: > 170°
Pixels size: 14μm * 14μm
Power Supply: 24VDC, 3A
Transfer interface: Gigabit Ethernet/100m
Operating Temp: -25 ºC to +60 ºC
Store or load time: <1 second
Vehicle Image scaling: 16 times
Storage format: BMP or JPEG
Vehicle speed: 1-60km/h (Suggest < 30km/h)

LED Illumination

Power Supply: 24VDC, 320W
LED light service life: 50,000 hours

Distribution box

Input: 2 channels induction coil
Output: 1 Channel switch type 12VDC
Communication port: RS485, 1000M Ethernet (Optional)

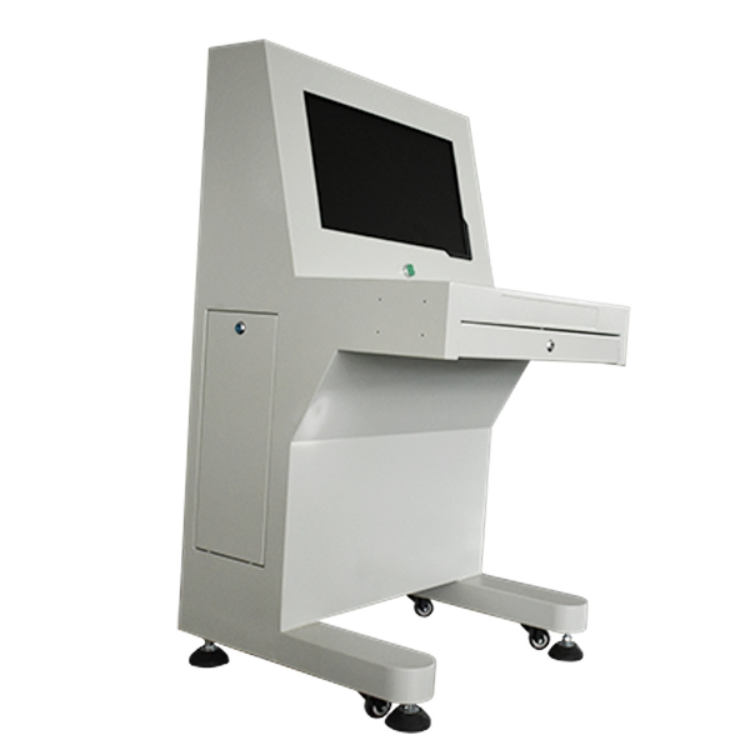

Computer (Control Host)

Brand: Grantech (SYM76941 VGGA)
CPU: Intel (R) Core Processor, 2.6GHz/2.59GHz
Memory: 2G (optional 4G)
Graphics: 512M
Hard Disk: SATA2 Hard Disk 500G Dual LAN (at least one Intel Gigabit)
USB: 2.0 (Up to 2 pieces)
Monitor: 22" LCD, resolution up to 1920*1080
Scene Video Record: 4 channels, Compression algorithm: H264 (optional)
Operational system: Windows XP or Windows 7 (32 bit) (optional)

Popular mobile under vehicle alarming system is also hot sale. More detail, welcome send me inquiry.

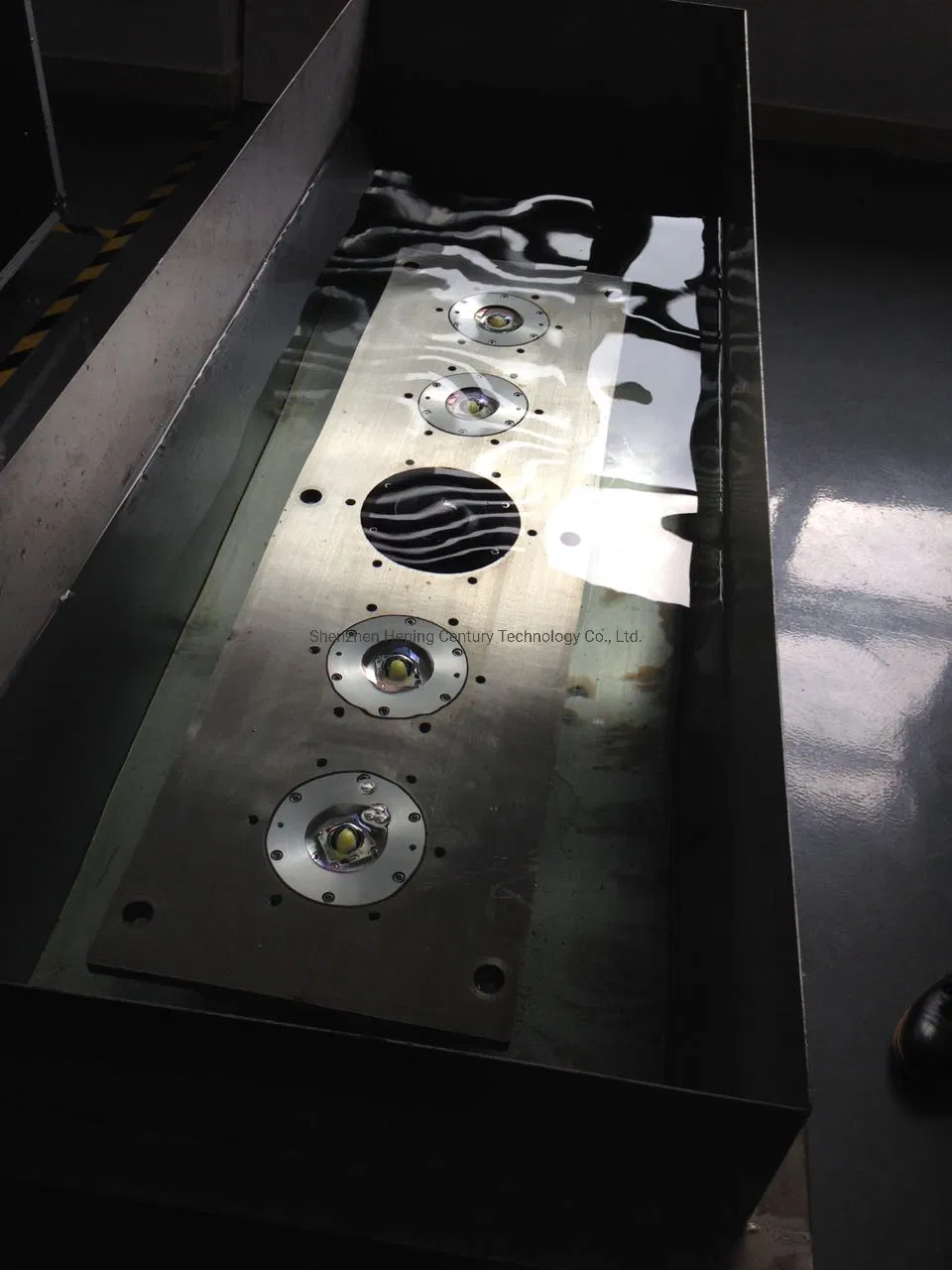

Under Vehicle Inspection System Waterproof Testing

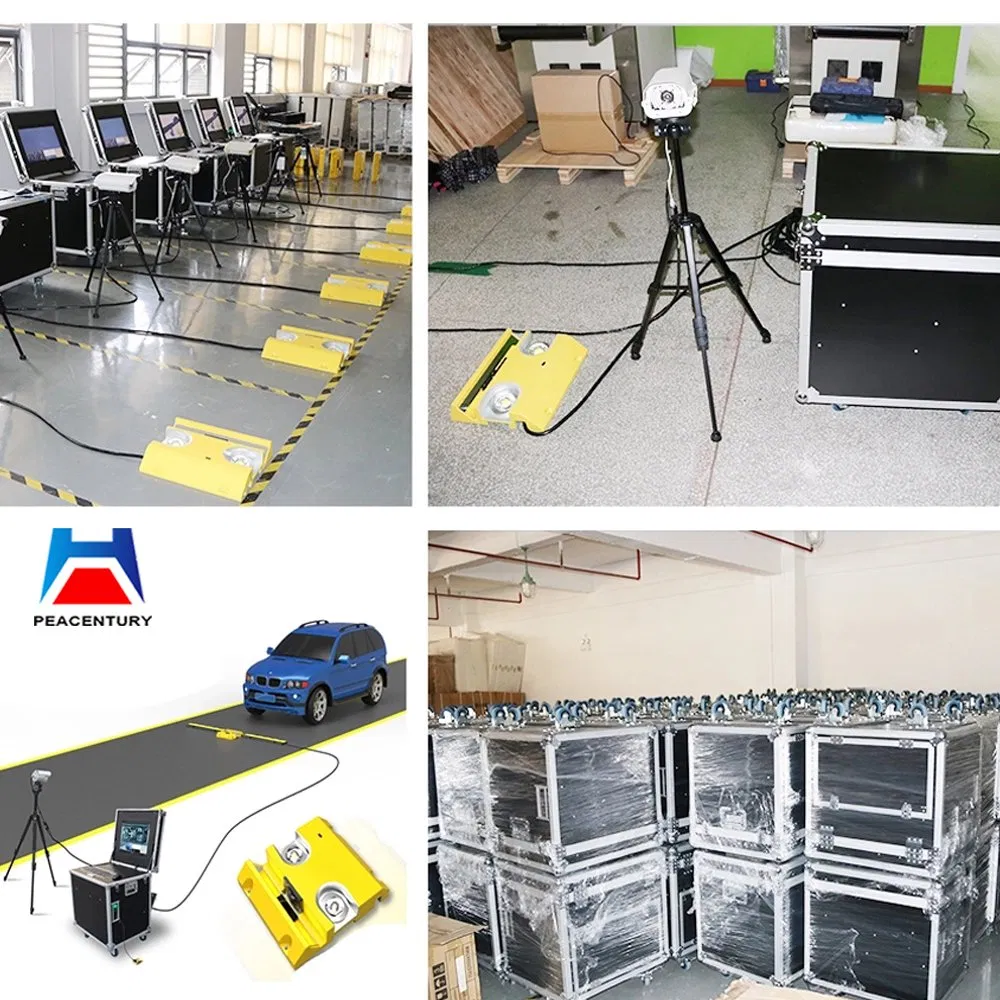

Under Vehicle Inspection System Waterproof Testing 3

Application Fields

Airport, prison, custom and other government departments
Large public parking spot entrances and exits
Events, exhibitions, and major global assemblies
Prison and other key border security checkpoints

Frequently Asked Questions (FAQ)

What is the waterproof rating of this Under Vehicle Inspection System?

The scanner has a robust IP68 waterproof rating. It undergoes strict waterproof testing to ensure stable and reliable operation even under challenging weather conditions and flooded environments.

What is the maximum load weight the embedded frame can support?

The embedded frame is made of high-grade stainless steel and designed to support a load bearing weight of up to 50 tons (50T), making it safe for heavy trucks and cargo vehicles.

How fast can a vehicle pass through the scanner?

The system scans vehicles traveling at speeds ranging from 1 to 60 km/h. For the highest image resolution and inspection quality, we suggest a driving speed of less than 30 km/h.

What is the image capture resolution and field of view of the CCD camera?

The camera uses advanced dynamic linear CCD scanning technology, offering a resolution of >12000 * 6144 pixels and an open wide field of view greater than 170 degrees for comprehensive undercarriage coverage.

How long does it take to store or load the vehicle bottom image?

Thanks to Gigabit Ethernet transfer interfaces and high-performance processing software, the storage or loading time of the complete chassis image is less than 1 second.
