CCTV Underwater Pipe Inspection Crawler Robot
(Model: X5-HT)
Series of X5 Product
Product Description
X5-HT pipeline CCTV Inspection robot is a product designed on the basis of industrial personal computer (IPC) system, using a laptop instead of the traditional controller. During the testing, defect pictures are acquired; afterward, a testing report can be obtained immediately. In addition, a pipeline gradient curve can be obtained in time during the testing to determine the sediment condition inside pipeline. Fish-eye lens is used, integrating "PipePano pipeline panorama testing video analysis software", so as to generate the panorama image of inner wall of the pipeline, analyze and determine more finely and quantitatively measurement on pipe diameter, crack width and so on.
Product Advantages
High-Definition Light Source
Optimized illumination system for clear underground imaging.
Quick & Efficient Detection
Convenient field deployment saving time and labor.
Digital Transmission
Innovative digital technology for lossless signal transfer.
Stable Performance
Reliable construction built to withstand harsh sewer environments.
Technical Parameters
| Component |
Specifications & Features |

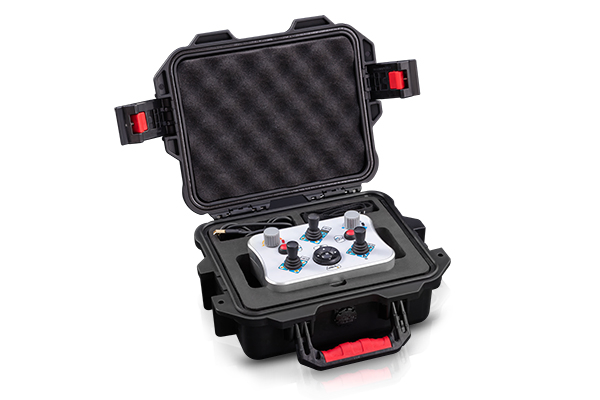

| Main Controller |
- Available in any notebook computer as the control system
- Wireless control
- Real-time display of date, time, travel distance, and crawling attitude info
- Front and rear sights display on the same interface simultaneously
|
| Electric Cable Reel |
- Standard cable length: 120M
- Two-core cable, greatly reducing joint failure rates
- Automatic retractable cord
|

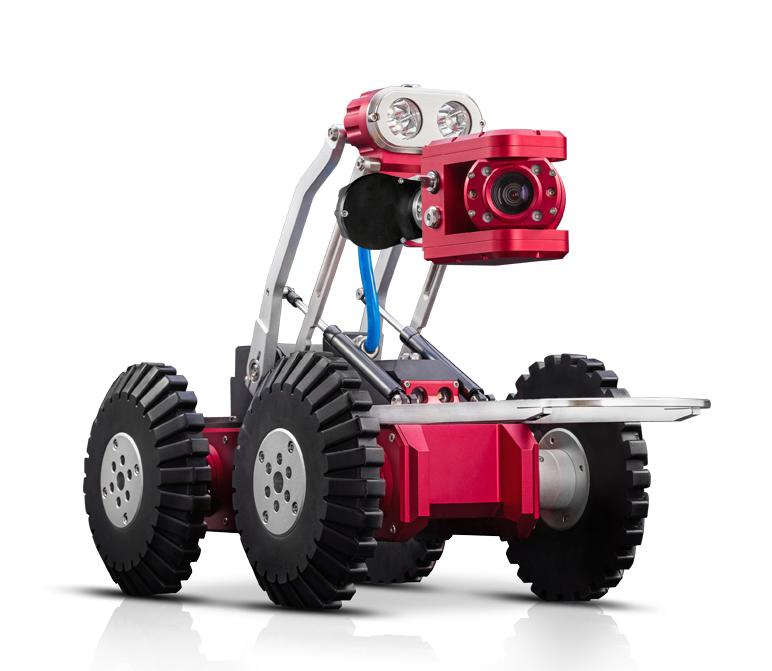

| Crawler |
- IP68 waterproof rating up to 10 meters water depth
- Diameter compatibility: DN250mm - DN650mm
- Material: brass, stainless steel, aluminum alloy
- Electric lift frame, removable
- Six forward bright condenser LED lights; one rear highlight LED; adjustable brightness
|
| Camera |
- IP68 waterproof rating up to 10m water depth
- High resolution: 2592*1520
- Electric rotation: 360° radial limitless rotation, one click reset
- Four LED lights
- Sensitivity: 0.1Lux
|
Product Application
In collaboration with the Joint Center for Trenchless R&D, our products are widely applied to infrastructure development including geophysical prospecting, urban development, municipal construction, national defense, water conservancy, and hydro power.
Product Details

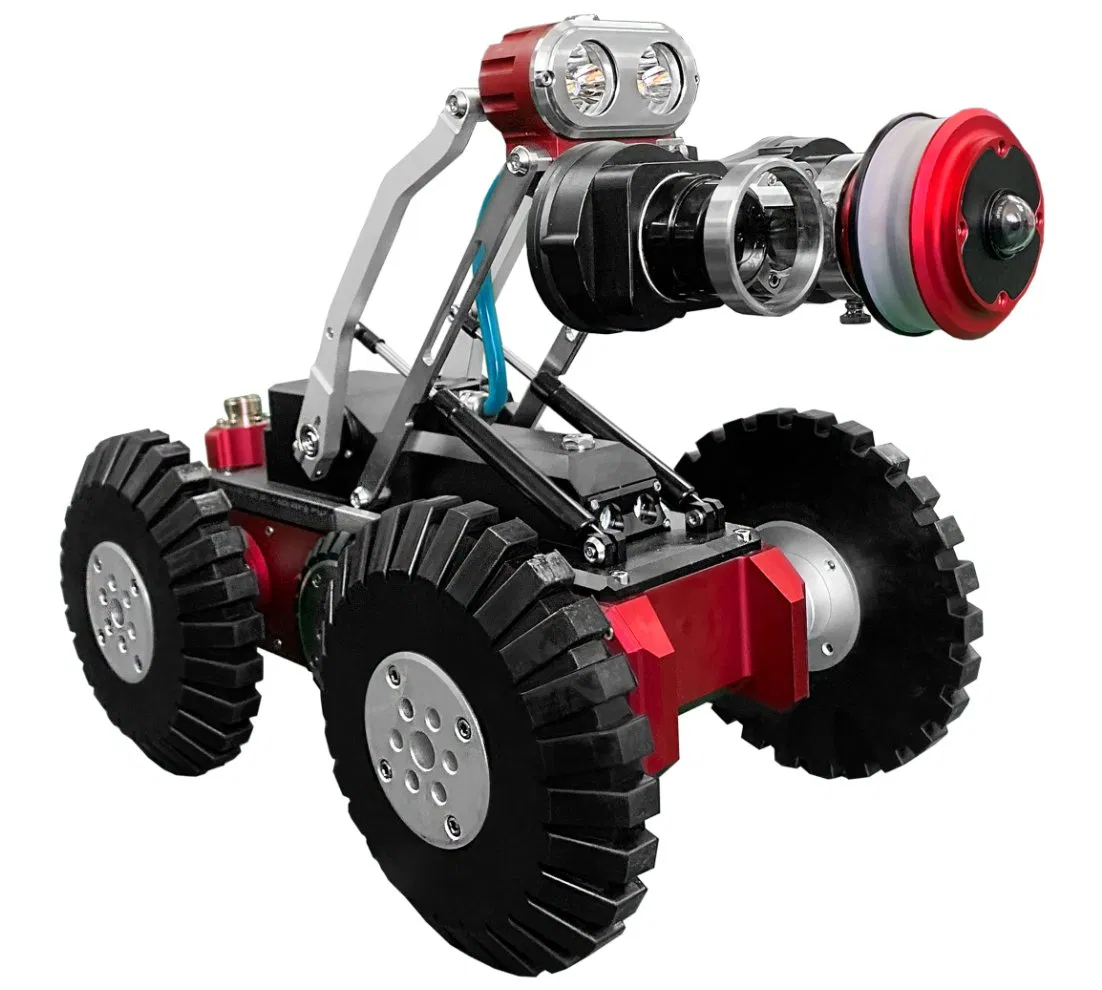

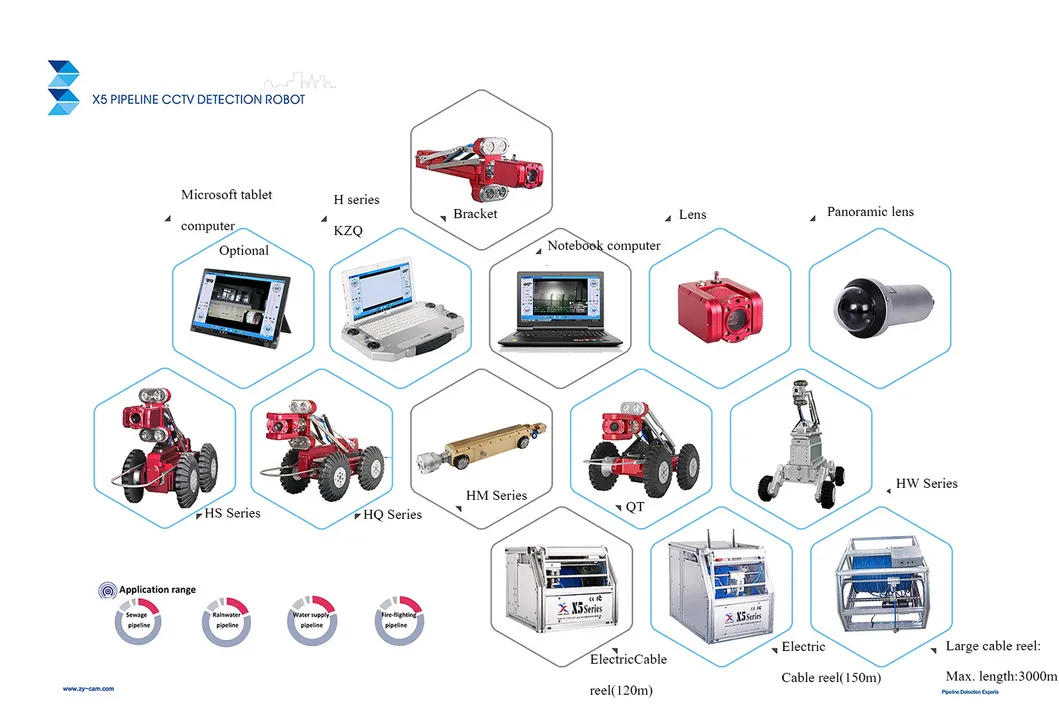

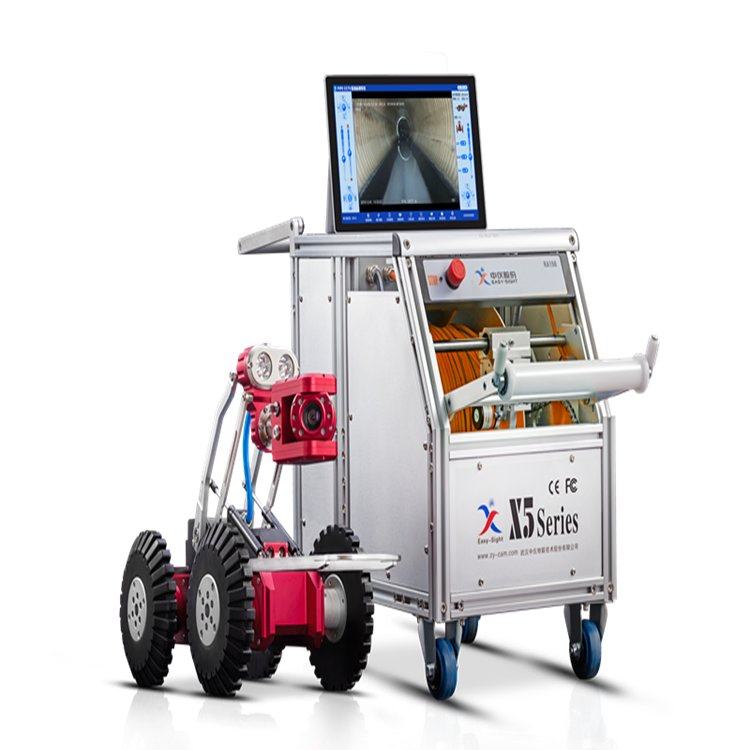

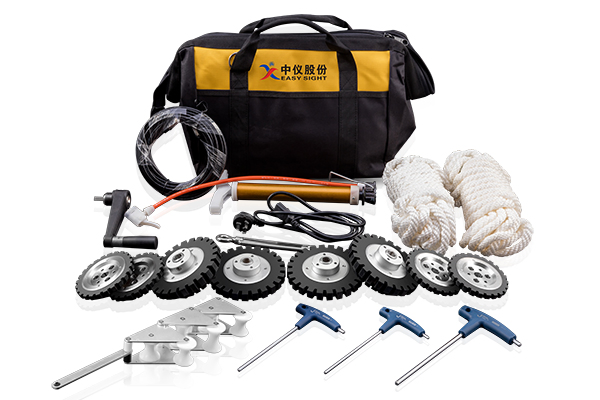

X5-HT pipeline CCTV Inspection robot is composed of a crawler, lens, cable reel, and main controller. Thereinto, the crawler can be overlapped with different models of lenses (i.e., rotary lens, direct-view lens, fish-eye lens) to respond to the operation orders of the main controller after connecting the cable reel. Functionalities include crawler advance, reverse, turning, stopping, and speed adjustment; lens bracket lifting/falling; lighting adjustment; lens horizontal/vertical rotation, focusing, magnification, and forward/backward switching. During testing, the main controller displays and records real-time images and crawler status data, allowing operators to input remark information on the touch screen.
Exhibitions & Certificates
Core Performance Highlights
1. Lightweight Design
Lightweight master control, cable reel, and crawler. Uses a laptop or tablet as the primary host.
2. Fast Setup
Quick assembly on site. High-speed data transmission without complicated cable setups.
3. High Synchronization
Synchronous display of front and rear video screens on a single control interface.
4. HD Highlight
High-definition camera system combined with adjustable highlight LED light sources.
5. Stable & Waterproof
The entire system features certified waterproof and explosion-proof components with low failure rates.
Packing & Shipping
Our Service Policy
SUPPORTAfter-Sales Service
We rely on our technical strength, advanced equipment, and outstanding professionals to provide stable support and bring you satisfactory returns.
TECHNICALTechnical Assistance
We provide comprehensive pipeline detection, maintenance, repair, and technical services focused on efficient, environmentally-friendly drainage network solutions.
WARRANTYWarranty Policy
A 12-month warranty is offered from the date of arrival at the destination port, alongside lifelong maintenance services. Replacement parts caused by non-human factors are provided free of charge during the warranty.
QUALITYQuality Assurance & OEM
Each machine is strictly tested before packaging to ensure perfect operation. OEM services are supported with free customer brand logo printing.
Frequently Asked Questions
What packaging standard is used for transport?
We adopt standard plywood packing cases. The exterior utilizes a wooden craft case. The middle layer uses custom foam protection to secure the machine, and the innermost layer is wrapped in thick plastic waterproofing bags.
Will the package get damaged during transportation?
Our packaging takes all potential transit damages into account. Combined with experienced shipping agents, we ensure your parcel arrives safely and in excellent condition.
How is the crawler system installed and operated?
Our technicians fully pre-assemble the machine before shipping. For minor parts, we send detailed training videos and operational manuals. Most users can learn to run it independently. We also provide free training support.
What should I do if the machine encounters operational issues?
If you experience problems, please contact us immediately. We request that you do not attempt manual repairs yourself. We will respond within 24 hours to troubleshoot and resolve the issue.
What pipeline diameters is the X5-HT crawler suitable for?
The X5-HT pipeline inspection crawler is specifically designed to operate efficiently within pipe diameters ranging from DN250mm to DN650mm.
What is the waterproof rating and max depth limit of this crawler?
Both the crawler unit and the integrated camera system carry a certified IP68 waterproof rating, allowing safe operation at depths of up to 10 meters.
