| Model |
Surveillance |
| Sensor |
CCD |
| Kind |
Autofocus Lens |
| Technology |
Senser |
| Horizontal Resolution |
1024 |
| Name |
Under Vehicle Inspection System |
| Useing |
Checking Under Vehicle |
| Scan Resolution |
2048 Line CCD |
| Chassis Storage or Loading Time |
< 1 Second |
| Resolution of The Bottom Image |
>12000 * 6144 |
| The Maximum of Scan Rate |
18kHz |
| Field of View |
170 Degrees |
| Auxiliary Lighting |
160W |
| Scanning Device Volume |
450 X 400 X 88mm |
| Monitor |
22 Bits Real Colors |
| Waterproof Degree |
IP68 |
| Transport Package |
Wooden Case |
| Origin |
China (Mainland) |
| HS Code |
7009920000 |
| Production Capacity |
200PCS/Month |
Product Description

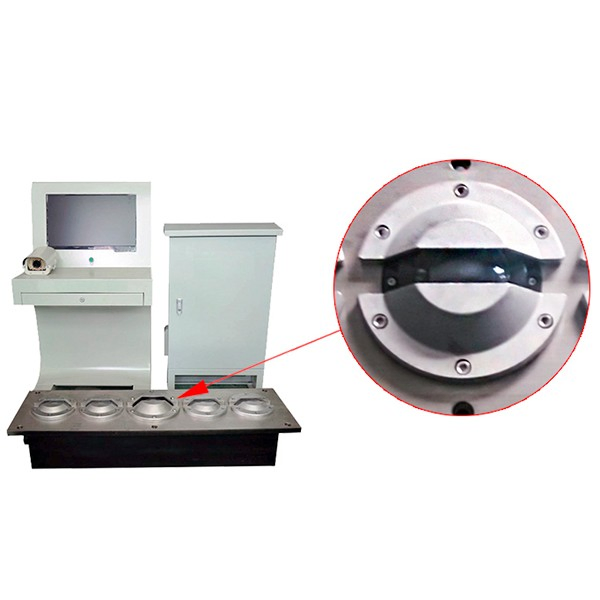

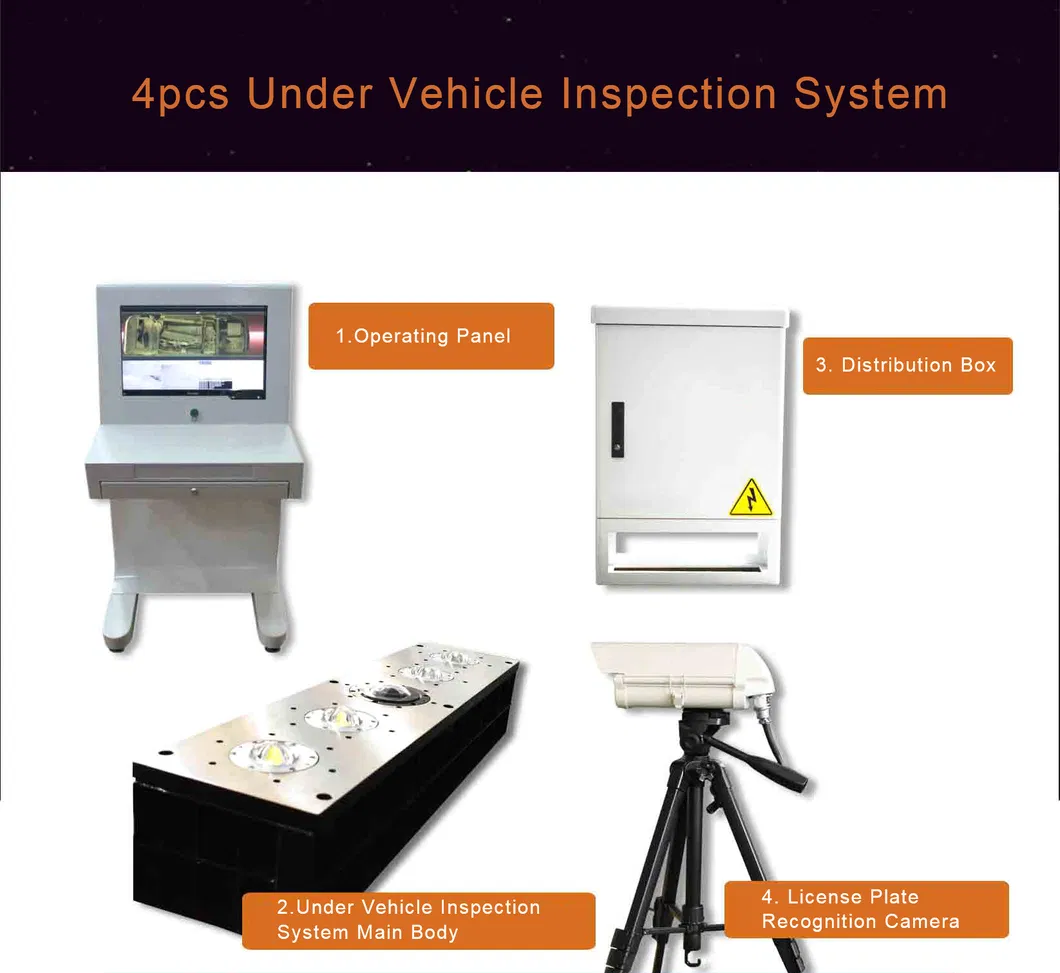

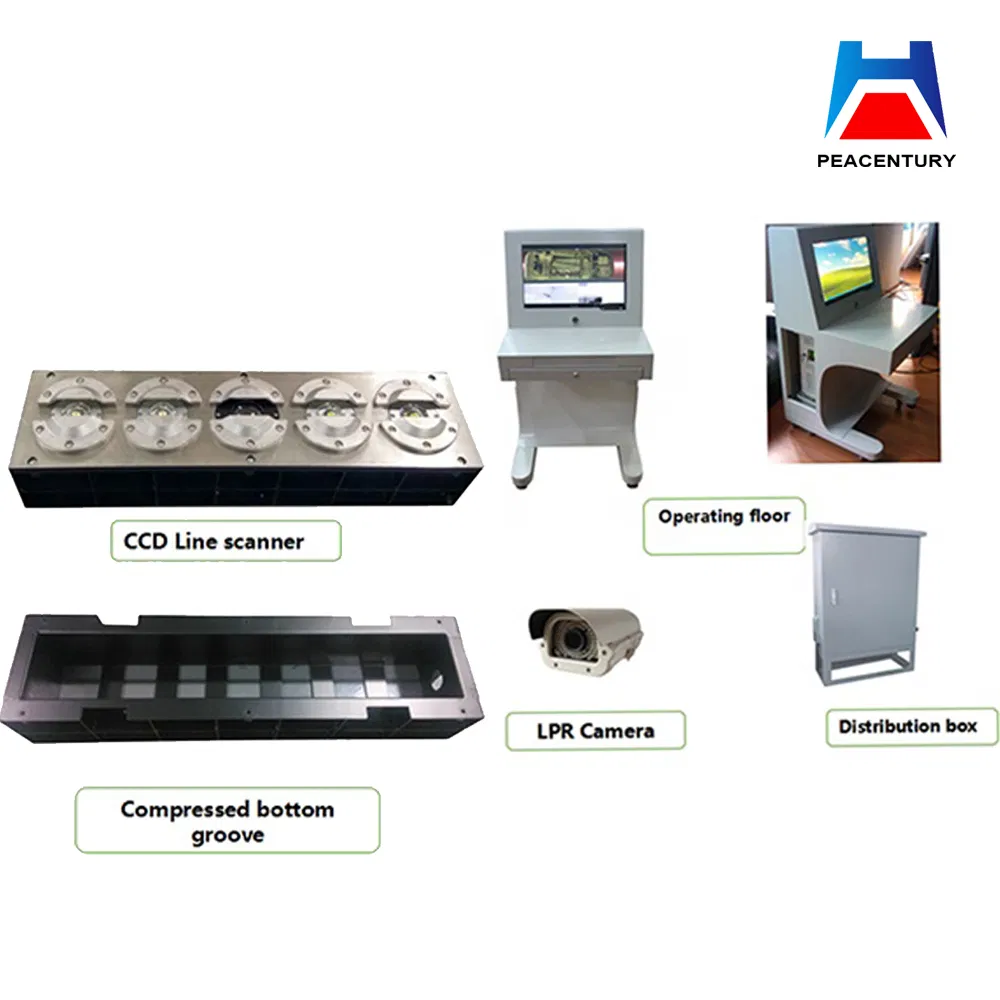

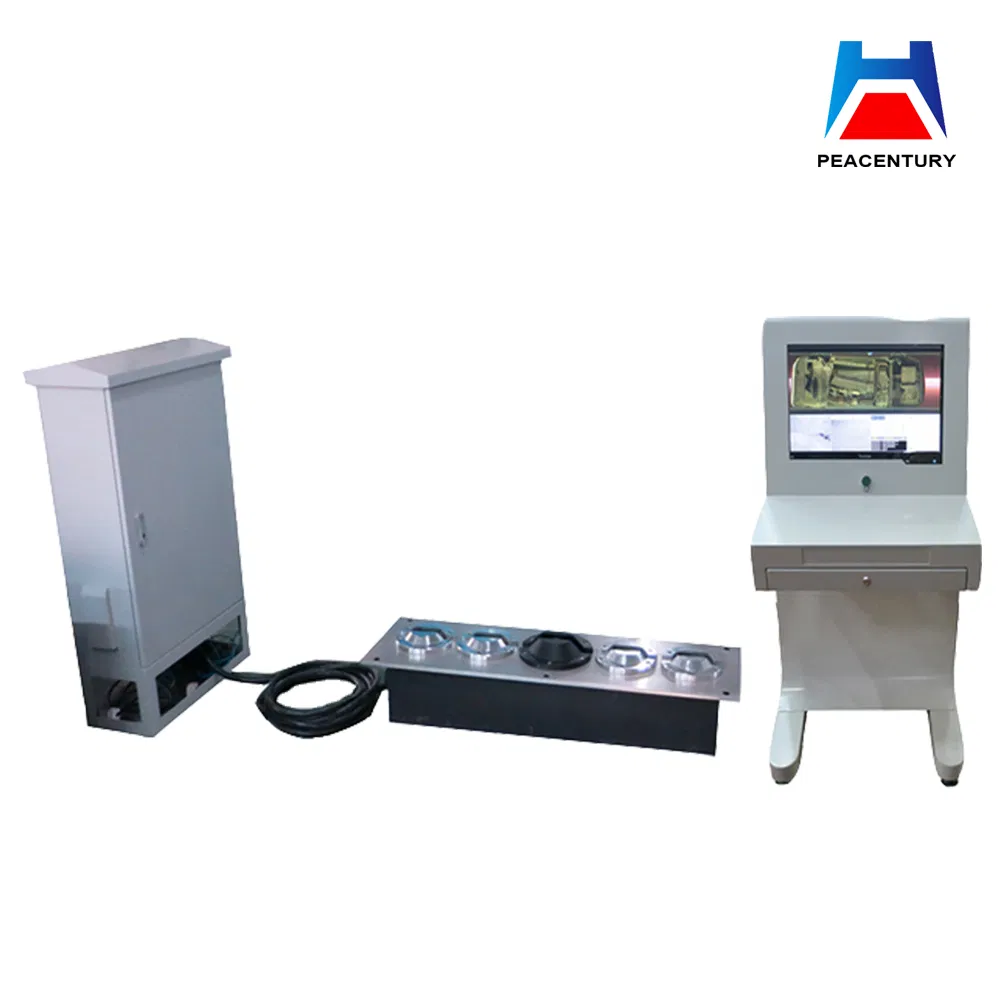

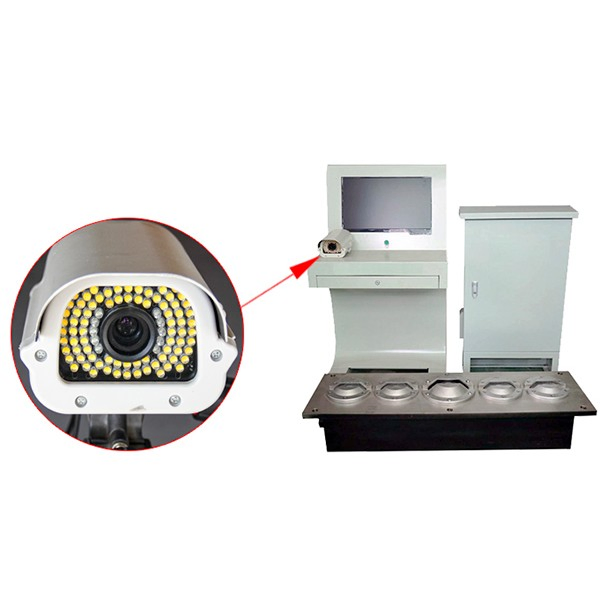

Under Vehicle Surveillance System Vehicle Inspection Scanning System Security Equipment
Product Parameters
| Product Name |
Fix Under Vehicle Inspection System |
| Use ambient temperature |
-20 degrees-+60 degrees |
| Scanner weight |
105kg |
| Scanning device volume |
1100 × 280 × 180mm |
| Operating Voltage |
DC24V |
| System power |
AC110-240V / 50-60Hz |
| Chassis storage or loading time |
< 1 second |
| Imaging method |
Dynamic method of linear CCD scanning technology |
| scanning method |
Linear scan, ground sense coil trigger |
| Scanner data cable |
10 meters as standard; (customizable length) |
| Undercarriage image scanner |
Open wide field of view image acquisition technology |
| Lighting components |
Four single sealed LED surface light sources; |
| Car bottom image display method |
Large format horizontal display |
| Vehicle bottom image vertical resolution |
≥2048 pixels CCD |
Product Description:
Under Vehicle Surveillance System and UVSS -Model:
Access security control for vehicles at important locations: Airports, government buildings, prisons, bank depots, seaports, offices, customs, border controls, car park entrance checkpoints to important building's Toll station checkpoints, checkpoints for entering and exiting vehicles attending conferences.
Embedded Frame
- Material: Stainless Steel
- Dimension: 1200mm x 350mm
- Water-proof grade: IP68
- Load bearing Weight: 50T
- Image resolution: 12000 * 6144

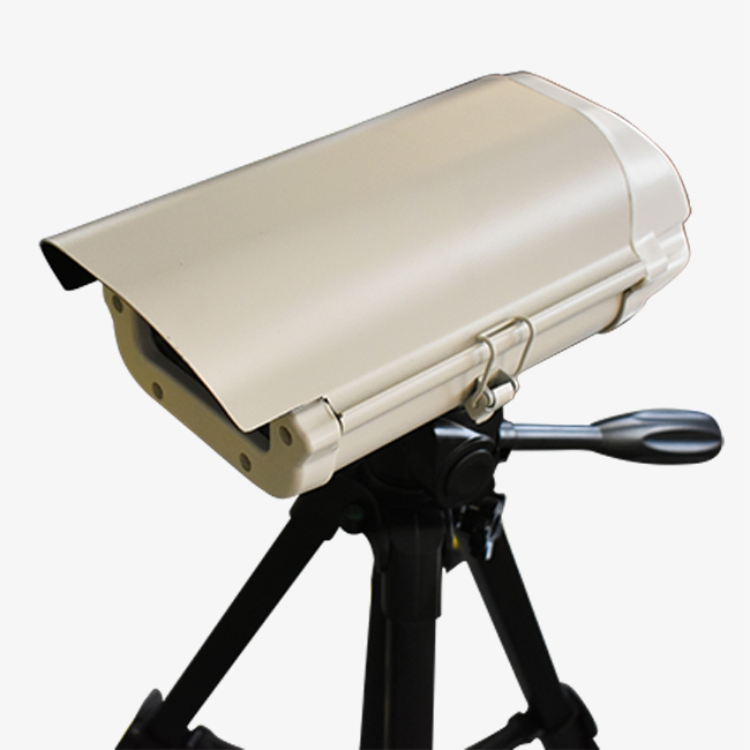

CCD Line Scan Camera
- Type: B/W image
- Resolution: 5000 * 2048 pixels
- Camera view: > 170°
- Pixels size: 14μm * 14μm
- Image: Black/white (color optional)
- Power Supply: 24VDC, 3A
- Transfer interface: Gigabit Ethernet/100m
- Operating Temperature: -25 ºC to +60 ºC
- Store or load time: < 1 second
- Vehicle Image scaling: 16 times
- Vehicle image storage format: BMP or JPEG
- Vehicle speed: 1-60km/h
- Suggest speed: less than 30km/h
LED Illumination
- Power Supply: 24VDC, 320W
- LED light service life: 50,000 hours
Distribution box
- Input: 2 channels induction coil
- Output: 1 Channel switch type 12VDC
- Communication port: RS485, 1000M Ethernet (Optional)

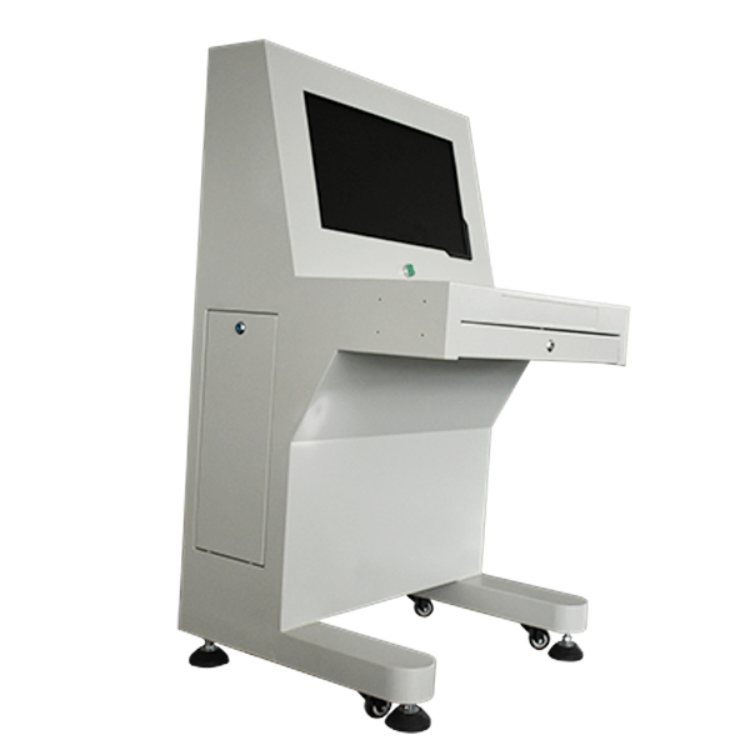

Computer
- Brand Grantech (SYM76941 VGGA)
- CPU Intel (R) Core Processor, 2.6GHz/2.59GHz
- Memory 2G (optional 4G)
- Graphics 512M
- Hard Disk SATA2 Hard Disk 500G Dual LAN (at least one Intel Gigabit)
- USB 2.0 (Up to 2 pieces)
- Monitor 22" LCD, resolution up to 1920*1080
- Scene Video Record 4 channels, Compression algorithm of scene video: H264 (optional)
- Operational system Windows XP or Windows 7 (32 bit) (optional)
Popular mobile under vehicle alarming system is also hot sale.

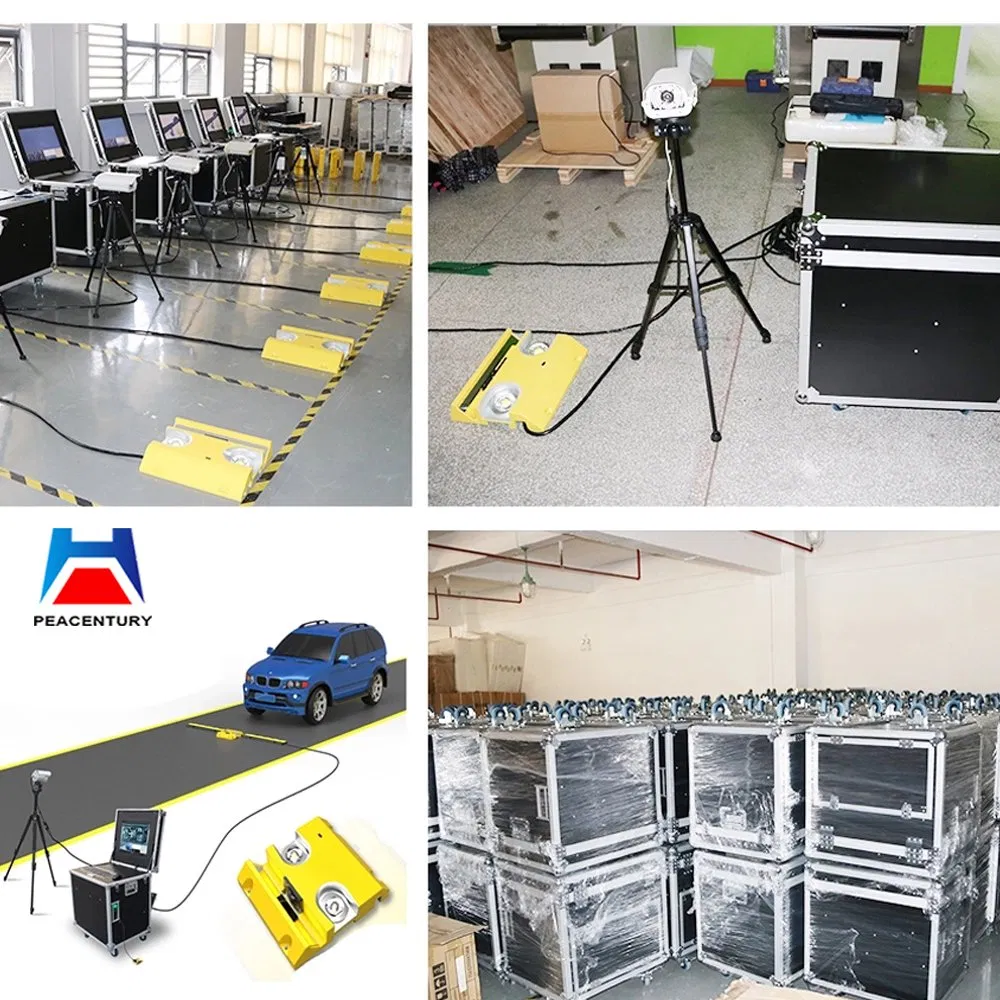

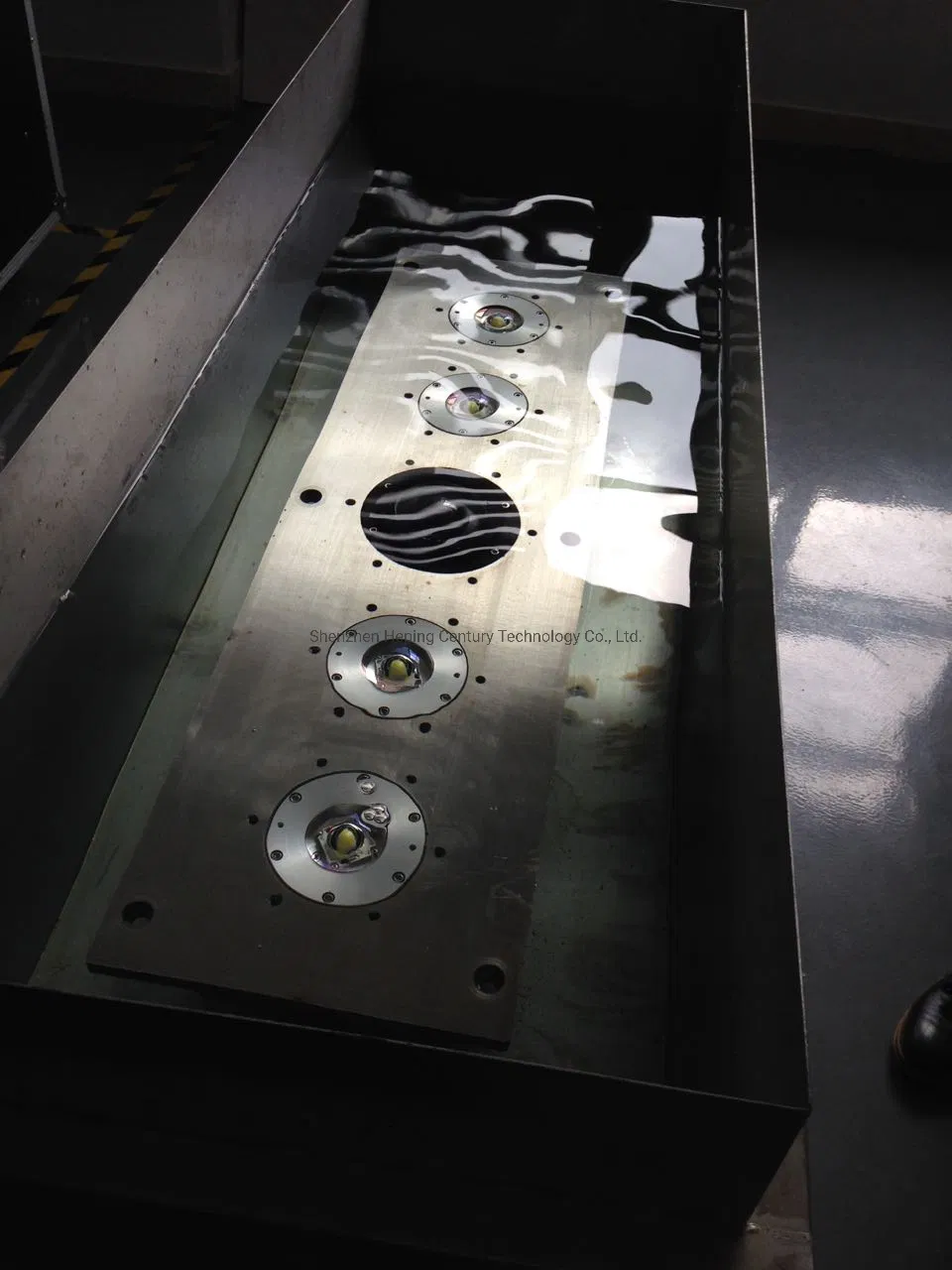

Under Vehicle Inspection System waterproof testing:
Application
- Airport, prison, custom and other government department
- Large public parking spot entrance and exit
- Events, exhibition
- Prison and other important checkpoints
Frequently Asked Questions
What is the waterproof rating of the under vehicle surveillance system?
The system features an IP68 waterproof rating, ensuring high durability and reliable operation in wet or harsh weather conditions.
What speed range is supported for vehicle scanning?
The system supports vehicle speeds ranging from 1 to 60 km/h, with a recommended speed of less than 30 km/h for optimal image scanning accuracy.
How long does it take to store or load the vehicle chassis image?
The chassis storage and loading time is extremely fast, taking less than 1 second to retrieve and process.
What is the load-bearing capacity of the embedded frame?
The stainless steel embedded scanning frame is designed for heavy-duty security applications and can bear a load weight of up to 50 tons.
What is the resolution of the scanned bottom image?
The system captures high-definition images using linear CCD scanning technology, delivering bottom image resolutions of over 12000 * 6144 pixels.
