Basic Info.
Model NO.
SPV3000
Light Source
LED
Image Transmission
100/1000m Ethernet
Dimensions
550*360*85mm
Operating Temp. Range
-10°C to +60°C
Power Supply
24VDC 5A
Environmental Protection
IP68
Display
22'' LCD Screen
Mobile Model
for Rental
Transport Package
Wooden Packing
Specification
CE, ISO
Origin
China
HS Code
903180909
Production Capacity
500 Sets/Month
Product Description

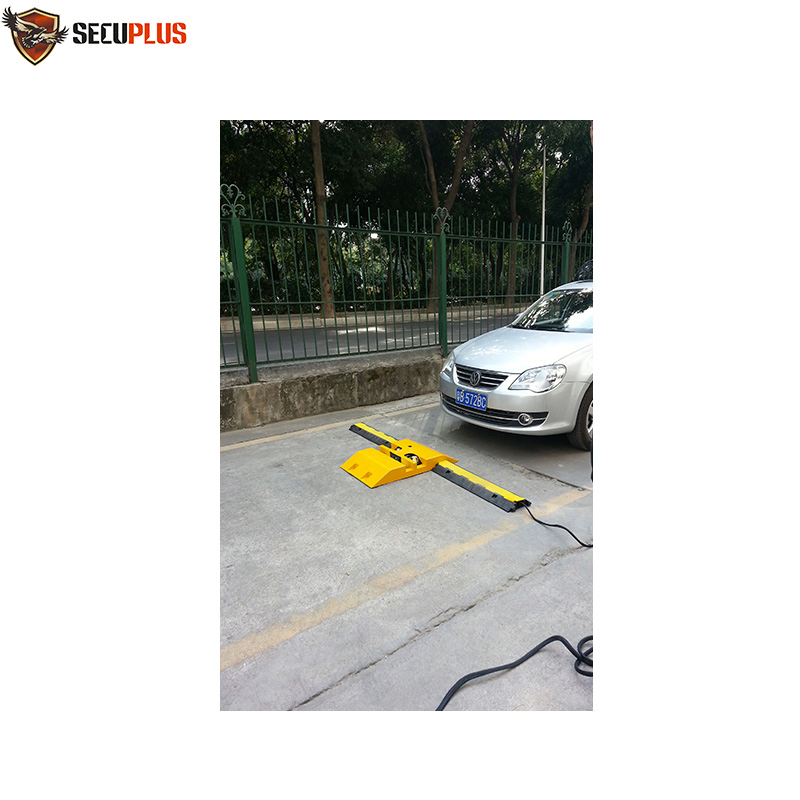

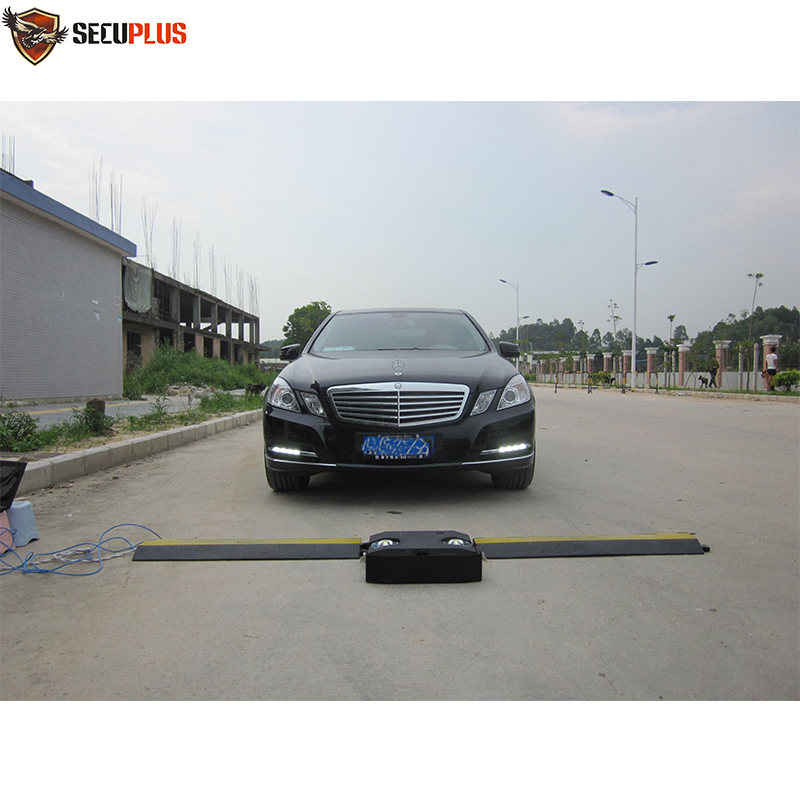

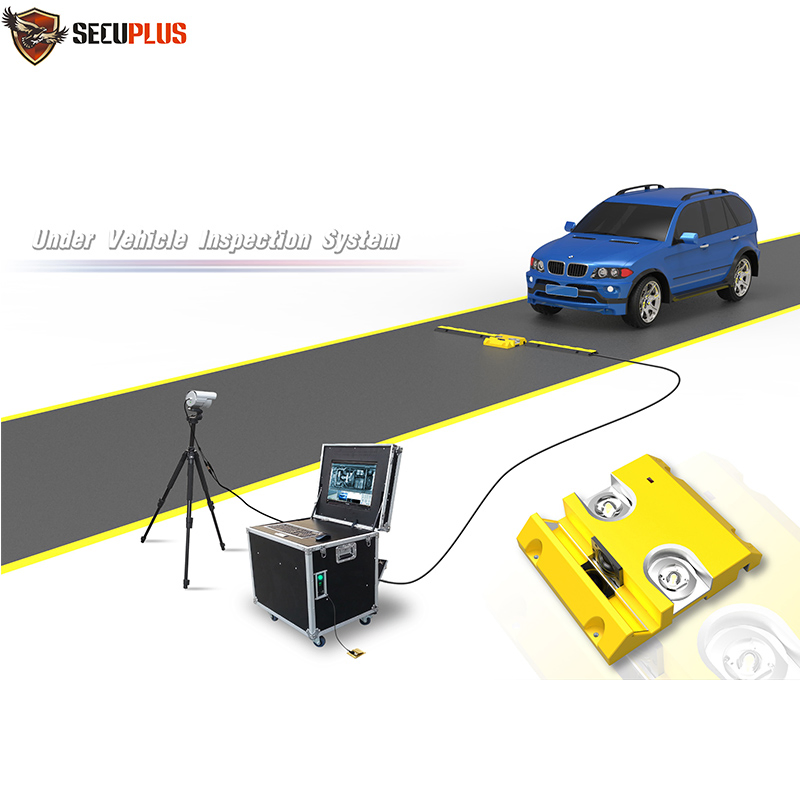

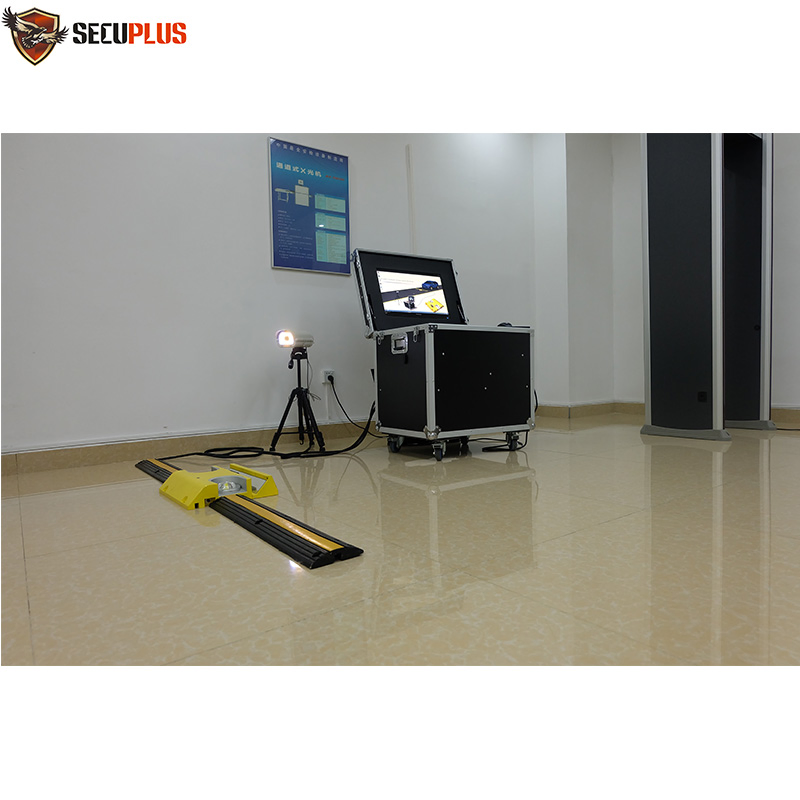

Mobile Under Vehicle Inspection Machine and Vehicle Undercarriage Monitoring System
- Automatic digital line scan camera, with high-resolution and clarity of the image.
- The complete image of under vehicle scanning, without any omissions. The image is clear, complete, and without distortion, allowing objects of not less than 2mm in diameter to be clearly observed.
- Preparation of inspection processes to meet a variety of on-site needs.
- Multiple scene image monitoring and recording function.
- Multi-language user interface design.
- Strong scalability to easily achieve a variety of system linkage control.
- (Optional) ALPR (Automatic Licence Plate Recognition) integration (e.g., anti-collision system, barrier, etc.).
- (Optional) Multiple devices networked control functions.
- The under vehicle surveillance system is mainly adopted to inspect the beneath part of a variety of vehicles.
- It can quickly and accurately identify threats, contraband, or smuggling of persons hiding at the bottom.
- The system greatly improves vehicle safety inspection speed and accuracy, reducing investment in human resources.
General & Technical Specifications
| Category |
Specifications & Parameters |
| Technical Parameters |
1. Vertical resolution of the image: 5000*2048 pixels
2. Check the width viewing angle: < 4 meters
3. Speed of vehicle: < 30km/h with ALPR (Automatic Licence Plate Recognition); < 70km/h without ALPR
4. Effective Field of View (FOV): Less than 170°
5. Auxiliary light: 100W
6. Weight capacity: < 20T
7. Water-proof grade: IP68
8. Scanning device weight: 24KG
9. Scanning device volume: 450mm × 400mm × 88mm
10. Communication interface: RS232/RS422
11. Operating Temperature: -10°C to 55°C
12. Storage temperature: -40°C to +75°C
13. Operating voltage: 110-240V AC, 50-60Hz
|
| System Host |
1. CPU: Intel® Core(TM) 2 Duo CPU or higher
2. Memory: 2G (optional 4G)
3. Graphics: Intel(R) Gen 5.0 Integrated Graphics Engine
4. Hard Disk: SATA2 Hard Disk 500G
5. Dual LAN (At least one Intel Gigabit)
6. USB 2.0 (Up to 4 ports)
7. Monitor: 22inch LCD, resolution up to 1920*1080
|
Frequently Asked Questions (FAQ)
Are you a professional manufacturer?
Yes, we are a professional manufacturer of security threat detection systems. Stable quality and foremost service are always the key areas we focus on.
What is the delivery time after payment is confirmed?
Normally, for units in stock, the leading time is only 3-5 days. If the items are out of stock, it takes 10-15 days to complete production. Both sea and air delivery options are available.
What kind of warranty and technical support do you offer?
We provide a one-year warranty and lifetime technical support. We also support on-site engineer training at an additional cost, or free one-on-one training at our factory facility.
What is the waterproof rating of the scanning unit?
The scanning unit is designed with an IP68 environmental protection grade, ensuring it is fully dustproof and waterproof for reliable outdoor operation.
Can the system integrate with license plate recognition systems?
Yes, the system has an optional Automatic License Plate Recognition (ALPR) feature, allowing it to integrate with anti-collision barriers, gates, and other security management systems.
What size of objects can the scanning camera detect?

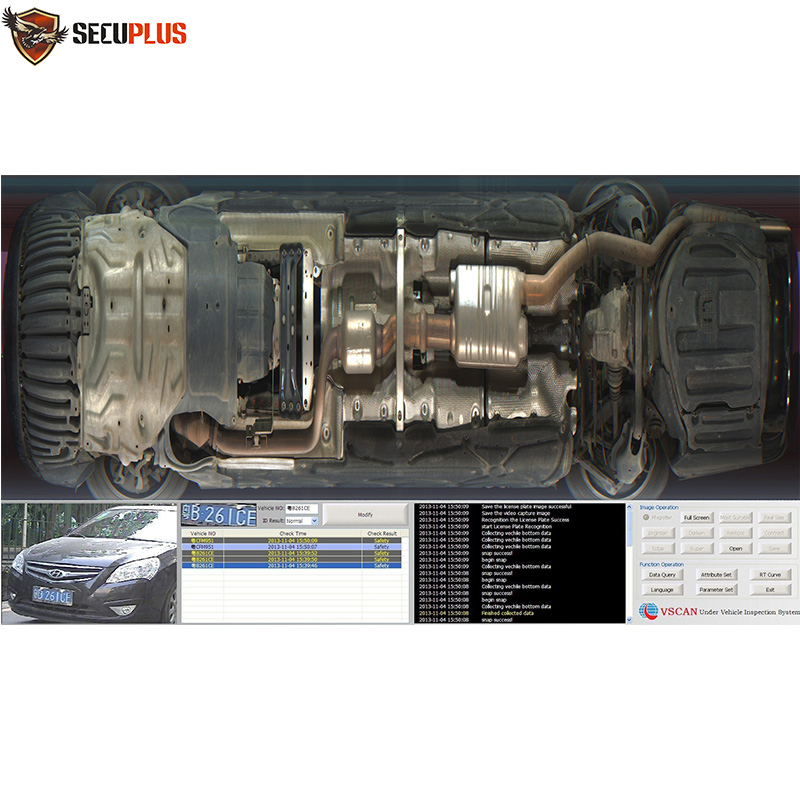

The high-resolution digital line scan camera generates a complete, distortion-free image of the vehicle's underside, enabling operators to clearly observe objects as small as 2mm in diameter.
