Product Description

Product Brief

IWILDT AN-48002800 Rail Mobile Vehicle Security Inspection System is specially designed for the safety inspection of container loading cargo at customs, ports and border ports. It alleviates the time-consuming and laborious safety inspection of trucks, containers and vehicles. Through X-ray fluoroscopy, it generates images of materials, volumes and quantities of goods loaded in containers that are consistent with the checklist and checks for the presence of explosives, drugs, weapons of mass destruction (WMDs) and contraband.

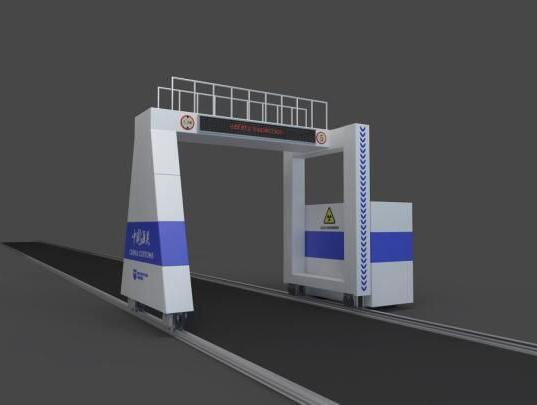

IWILDT AN-48002800 track mobile large vehicle security inspection system uses adjustable electronic accelerator from 4 MeV to 7.5 MeV, penetrating force of 330mm steel plate. In mobile scanning mode, up to 60 vehicles can be inspected hourly, and in through scanning mode, up to 100 vehicles can be inspected hourly.

IWILDT AN-48002800 Rail Movable Large Vehicle Safety Inspection System X-ray Array Image Detection and Imaging System has a high-speed image data acquisition circuit up to 0.80 meters per second. After image processing by computer software, the different densities and shapes of cargo loaded in containers are displayed in pseudo-color gray level. Operators can quickly and reliably examine and analyze images through high resolution LCD monitors.

The selected equipment has automatic radioactivity detection (ARDmu), which can simultaneously perform X-ray examination and analysis to detect the presence of radioactive gamma and/or neutron materials.

Product Parameters

Electron Induction Accelerator

• Radiation energy: 4-7.5 MeV.
• Irradiation direction: side illumination.
• Penetrating steel plate: maximum 330mm thick steel plate.
• Heat dissipation modes: air conditioning, ventilation, pipeline and oil immersion.
• Radiation protection: 200 mm thick lead tank.
• Scattering angle: 80 degrees.
• Control mode: RJ45 communication code control.
• Collimator: Electric "shutter" device for ultra-narrow slit beam exit.

Detection System

• Structural design: modular, removable and secondary handling.
• Color painting: mirror blue-gray or military camouflage.
• Appearance size: 6.60m(L) x 3.3m(W) x 5.8m(H).
• Channel size: 2.8m(W) x 4.8m(H).
• Equipment weight: 2 tons.
• Detection crystal: CDWO4.
• Photoelectric conversion: CMOS.
• Number of pixels: 1920.
• Pixel Arrangement: L-shaped Line Array.
• Cascade mode: RJ45 communication mode.

Image Processing

• Image workstation: I7 / 8G / 4TB hard disk / 24 inch 20000:1 / LCD.
• Software functions: edge enhancement sharpening, image inversion, histogram equalization, storage image review, color/black and white, local increase, excessive increase, organic matter removal/ion/inorganic matter removal, brightening/darkening, enlargement/reduction, real-time video.
• Picture format: JPG, image name according to scanning time.
• License Plate Recognition and Image Classification and Archiving.
• Data storage: 500,000 images as standard.
• Printer: color laser printer.

Equipment Performance

• Track length: standard rail 60 meters.
• Equipment weight: 8 tons.
• Motor power: 4 kW * 4 sets.
• Vehicles tested: less than 18m(long) x 2.5m(wide) x 4.6m(high).
• Scanning mode: mobile and through scanning mode of detection frame.
• Pass rate: 60 vehicles per hour, 100 vehicles per hour in the mode of passing.
• The absorbed dose was less than 1 uSv/time.
• Scanning speed: 5 km/h; 10 km/h in fast detection mode.
• Penetration force: After penetrating 320mm steel plate, the outline of 200x200x100mm lead field can be seen.
• Spatial wire resolution: steel wire with diameter less than 1.5mm.
• Wire penetration resolution: steel wire less than 3mm can be seen after 100mm steel plate.
• Contrast sensitivity: 100 mm steel plate can be seen less than 1 mm steel sheet.
• Workplace: 55m(long) x 30m(wide).
• Working temperature: -20 °C to +43 °C (-25 °C to 50 °C in option).
• Storage temperature: -30 °C to +55 °C.
• Relative humidity: Up to 95%.
• Waterproof grade: IP45.
• Power consumption: average 34 kW.
• Monitoring: Camera (including a PTZ) + radio intercom.
• Warning: Tri-color safety lights + sirens.
• Standards: Compliance with World Health Organization, ICRP 103-2007, China, EU and US regulations.
