Uvis04 Under Vehicle Inspection Camera System

1 / 5

Uvis04 Under Vehicle Inspection Camera System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.UVIS04

TypeNormal

SensorCMOS

HDMI Format480P

Horizontal Resolution480tvl

KindSecurity Camera

CertificationCE, RoHS

FeatureHigh Definition

Effective DistanceN/M

Sensor SizeN/M

Remote ControlWithout Remote Control

ModelUvis04 Under Vehicle Inspection Camera

Telescopic Pole2m

Monitor7-Inch HD Screen with Sun Visor

HD Video Output InterferenceFpd-Linkiii

Video Storage Pixels1920* 1080

Video Compression FormatH.264

Photo FormatJPG 5.0mega 3200(H) x 1800(V)

BatteryBuilt-in 5000mAh High Capacity Li-Battery

Working Voltage5-24V

StorageSupports up to 64GB TF Card

LanguageChinese and English

Supports Power-Saving ModeAutomatic Shutdown, Automatic off-Screen

Automatic UpgradeSupports System Automatic Upgrade

Video OutputHDMI, AV-out

Aluminum Alloy CaseFully Preservation

Transport PackageCarton Box Package

Specification1pcs per carton

OriginChina

HS Code8543903000

Production Capacity30000 Piece / Month

Product Overview

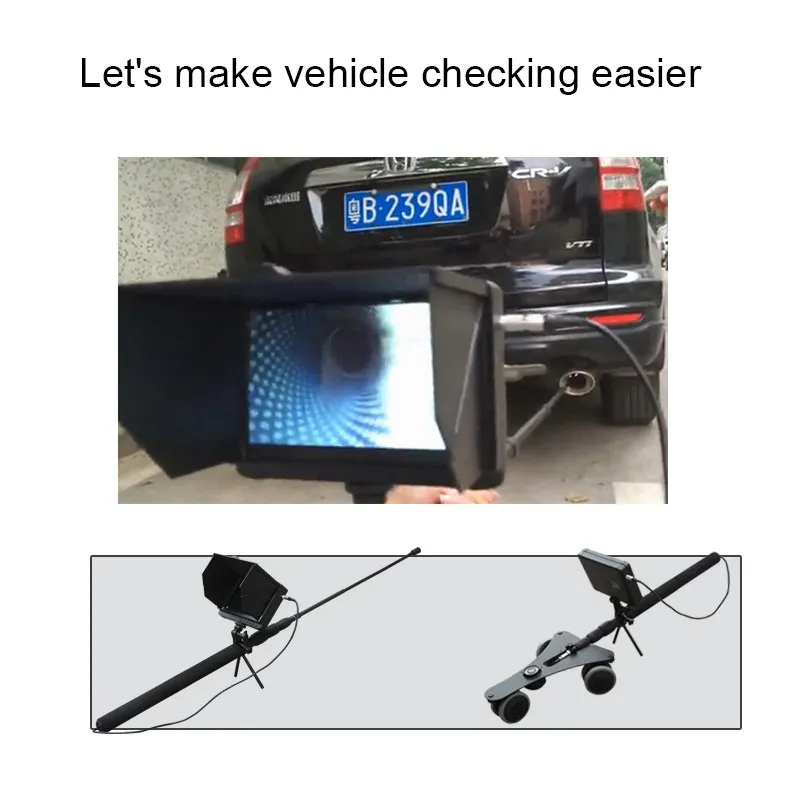

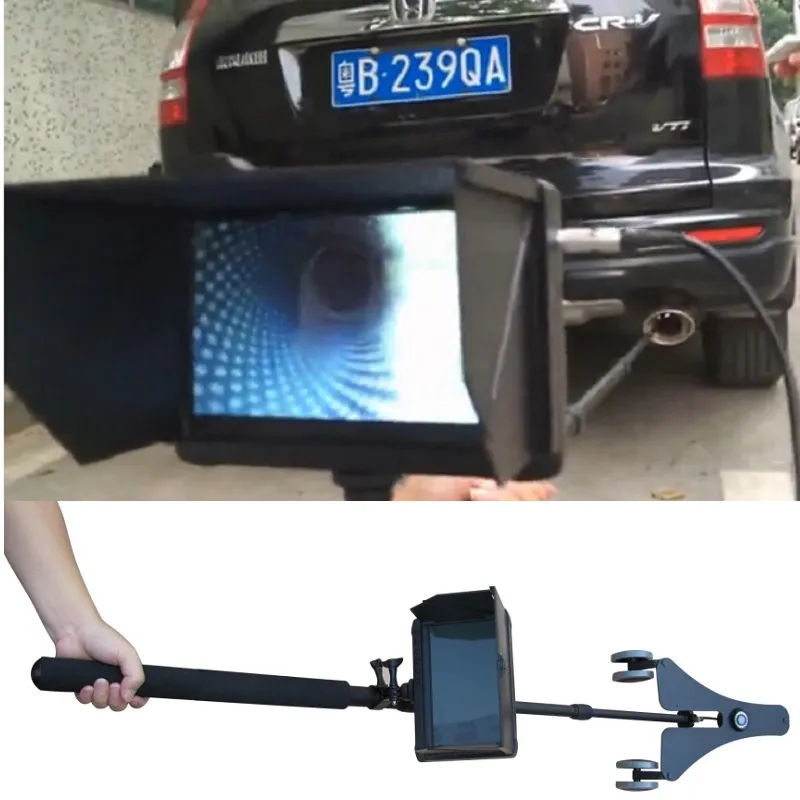

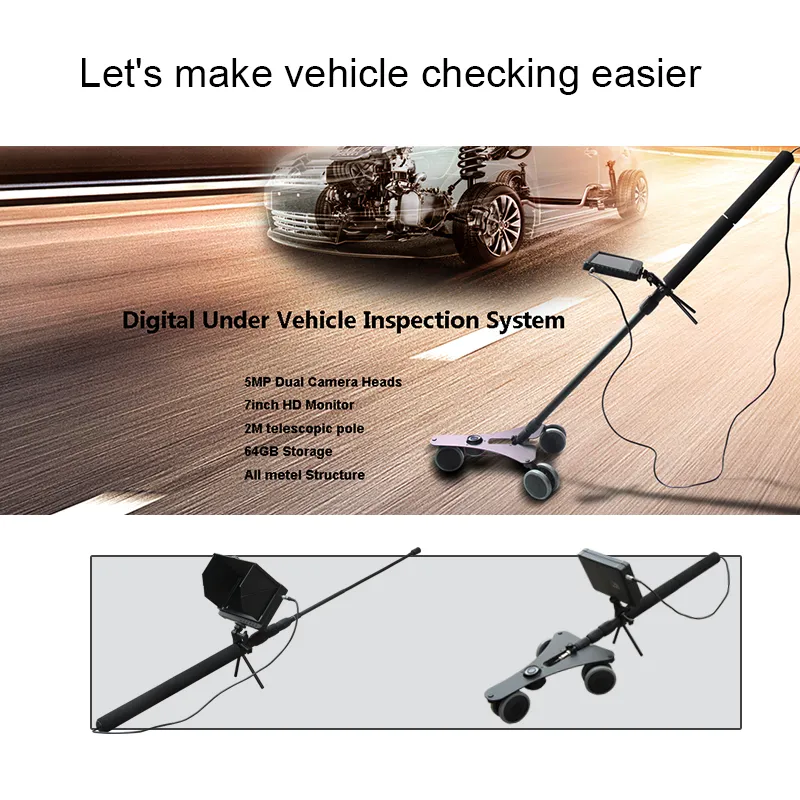

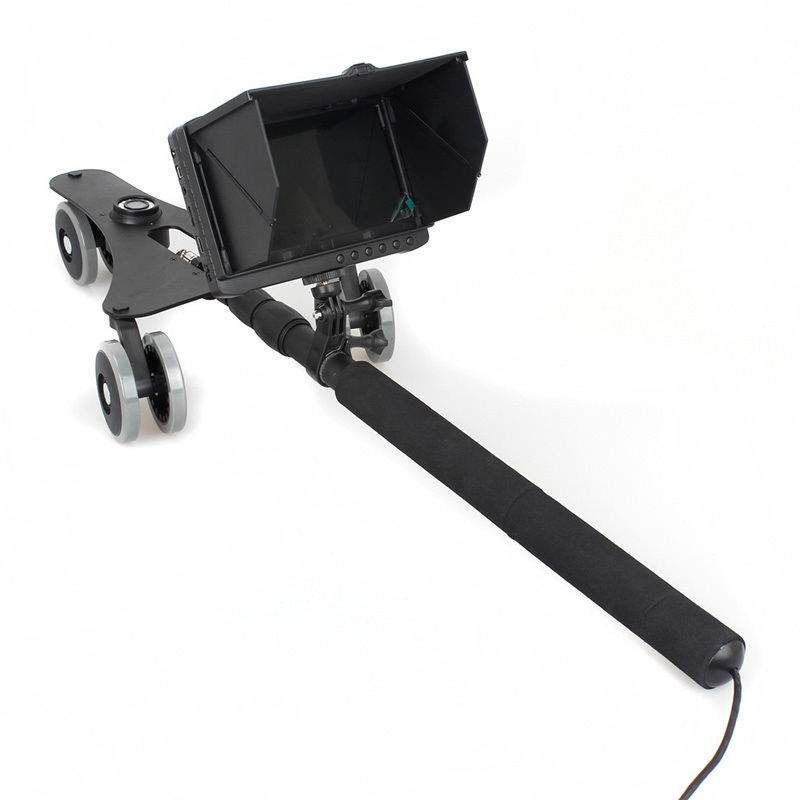

The latest UVIS04 is a multifunctional 360 degree rotating 7" pipe inspection camera monitor system.

It is real 1080P full HD endoscopy camera with 7" HD color LCD screen.

Support up to 64GB SD card storage and replay.

One-button style sunshade and 5000mAh battery support 10 hours working time, making your outdoor working easier and more comfortable.

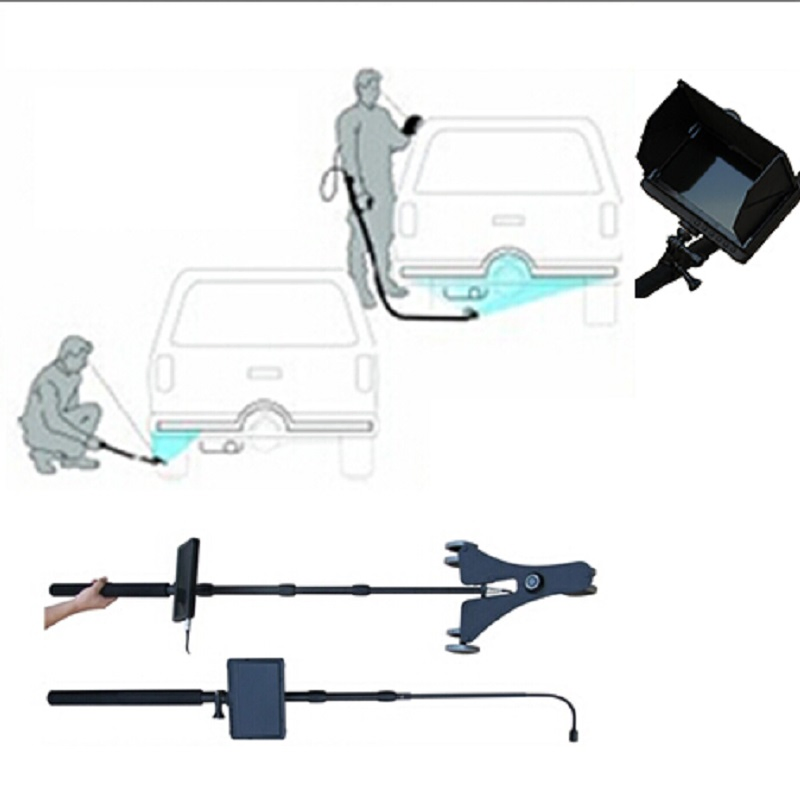

For high or low places, we prepared 2 kinds of cameras that you can exchange conveniently according to your application.

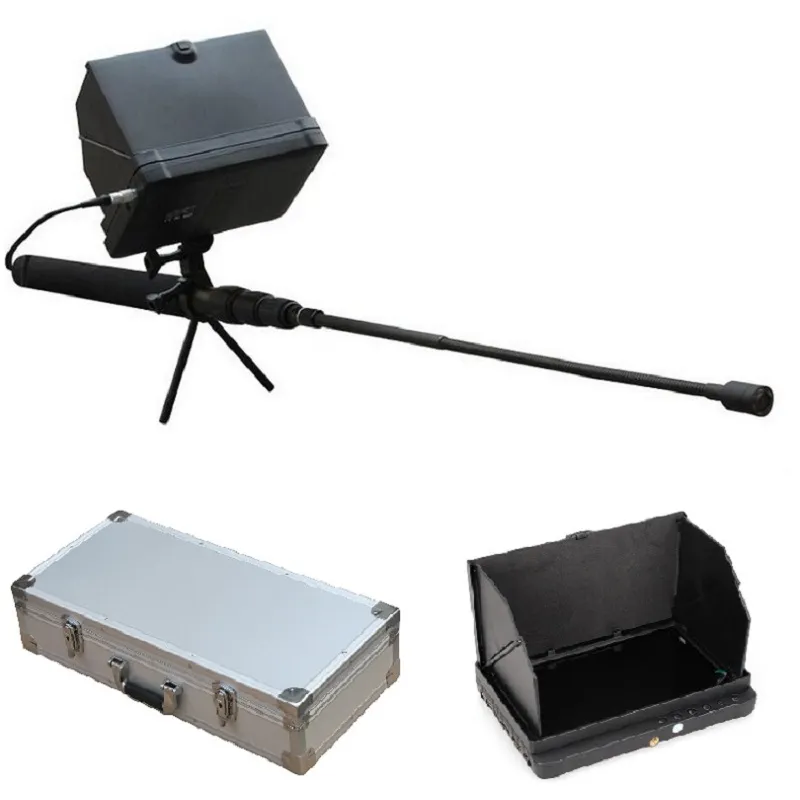

One camera comes with a gooseneck pipe, allowing you to inspect attics, lofts, narrow pipes, and so on.

Another comes with 360-degree all-terrain wheels, allowing you to easily probe under cars, under boats, and in many other places.

Applications of UVIS04 HD Inspection Camera System

Industrial Machine & Gutter Endoscopy: Inspect boilers, heat exchangers, and inner parts.
Petrochemical Pipeline Systems: Portable tube imaging systems for chemical pipeline security.
Gas Pipeline Inspection: HD camera solution to verify corruption, damage, or rust.
Infrastructure Inspection: 3.5 Megapixel digital full HD inspection for buildings and bridges.
Residential Maintenance: Home roof and pipe inspection camera DVR system.

Key Features

1080P HD mini under vehicle inspection camera DVR system.
Double HD digital cameras for comprehensive inspection.

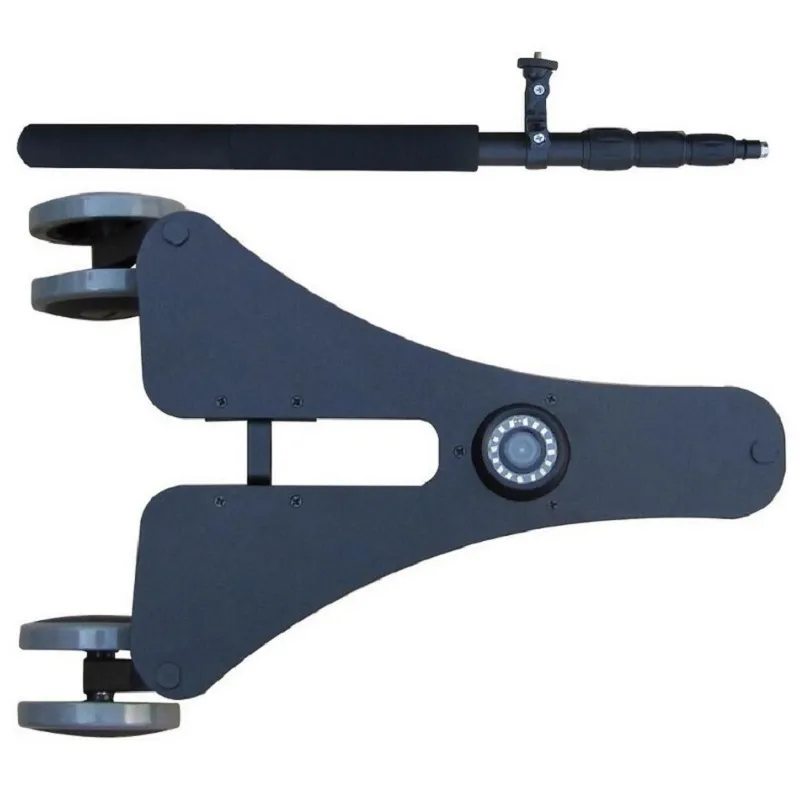

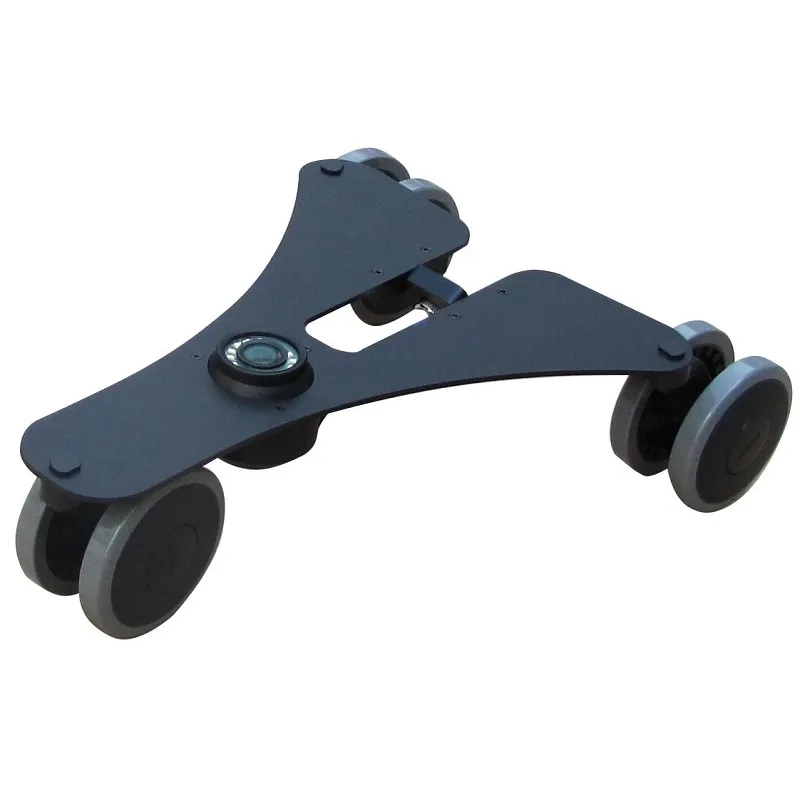

1st Camera: 5.0 Mega 16 LED camera with universal wheel tray.

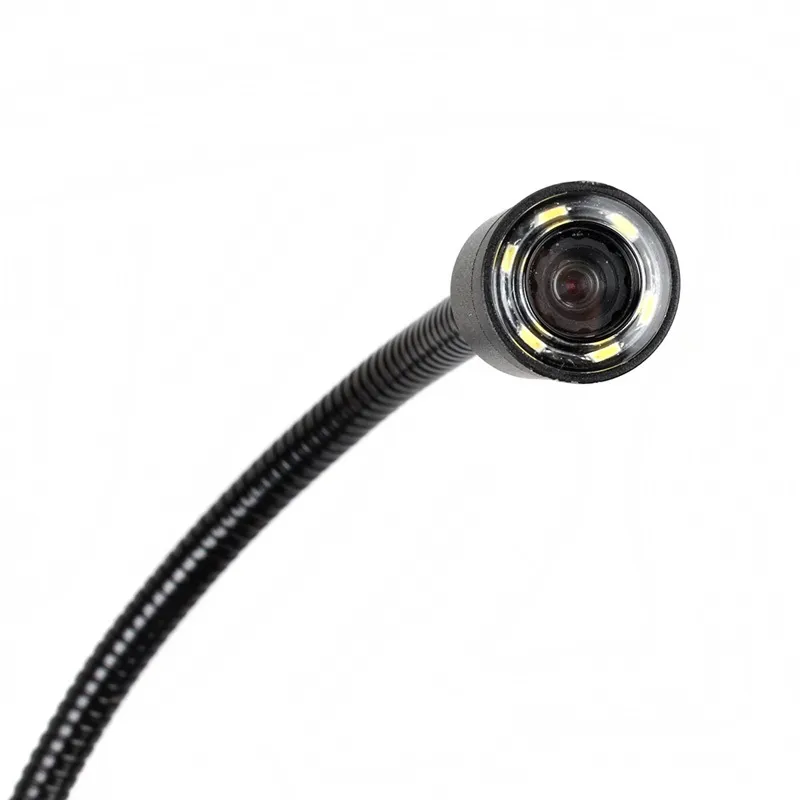

2nd Camera: 5.0 Mega 6 LED camera (Φ18mm) with a 0.25m flexible pole.
Universal wheel design featuring wear-resistant tires.
Reinforced structure designed to pass 10,000 times crash testing.
7-inch color monitor with integrated sunshade.
Supports up to 64GB storage capacity.
HDMI video output support.
Advanced H.264 Video Compression Format.
5000mAh Li-battery provides 8 hours of active operation.
2m Telescopic survey pole for versatile multi-purpose operations.
Top-grade aluminum alloy protective carrying case.

Camera & Monitor Specifications

Wheel Camera Specifications

Optical Element1/2.5 CMOS Sensor SONY

Optical Total Pixels5.0MP : 3200(H)×1800(V)

CMOS Sensor Size5.6mm(H)×3.14mm(V)

LED Lamps16 pcs High Luminance LEDs

Sensitivity0.08Lux/F1.2

Lens & View Angle3.6mm F1.2 (H) 120°

HD Video InterfaceFPD-LinkIII

Tray WheelsOmni-directional wheel

Dimension & Weight37 x 46mm, 35g (camera only)

Cable Specification4 Cores High-Speed, Diameter: 3.5mm, Length: 3m

Secondary Sensor1/3 CMOS Sensor

Secondary Pixels5.0 MP: 3200(H)×1800(V)

Secondary Sensor Size5.07mm(H)×3.38mm(V)

Monitor & Pole Technical Data
Telescopic Pole	Constriction Length: 58cm	Unfolded Length: 228cm
HD Video Output	HDMI: 1920*1080	Resolution: 1280*720
Video Compression	H.264
Video Storage Format	AVI
Video Input Interface	FPD-LinkIII HD Digital Input
Audio Frequency Range	20HZ-20KHz AAC
Audio Compression	AAC
Photo Format	JPG 5.0MP: 3200(H)×1800(V)
Storage Options	TF card 1GB-64GB (Optional)
Operating System	Windows & Mac OS
7" HD DVR Monitor Port	USB 2.0
Language	Multiple Support
Voltage Requirements	DC: 7-24V, USB DC: 5V
Current (Monitor Mode)	600 mA
Current (Video Mode)	700 mA
AC Adapter	DC 12V 1A
Built-in Battery	Li-battery 5000mAh
Record Time Capacity	8 hours working duration
Monitor Dimensions	177mm x 120mm x 20mm
Sunshade	One-press quick-open sunshade

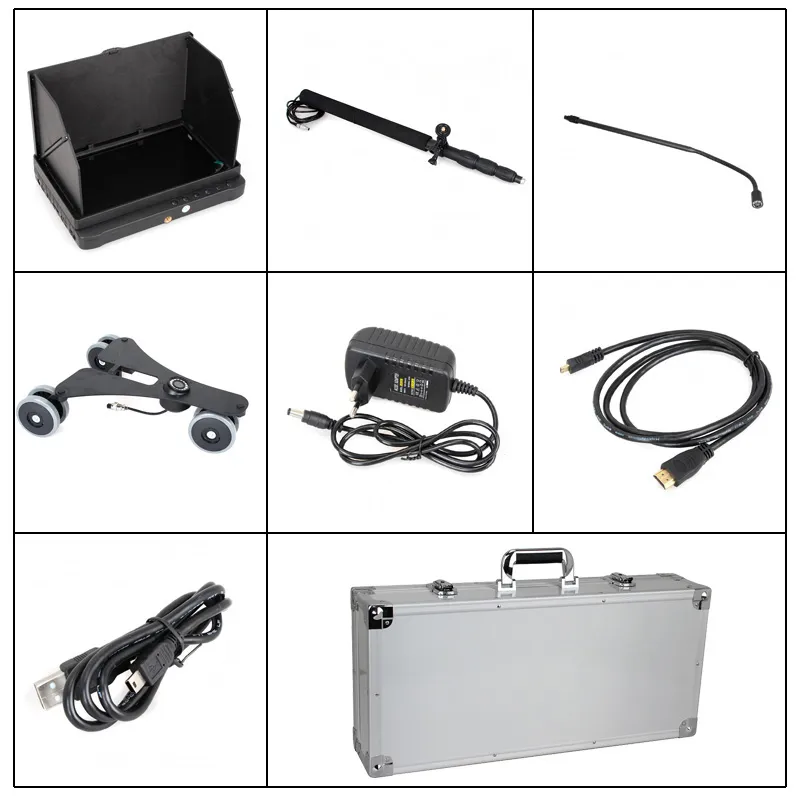

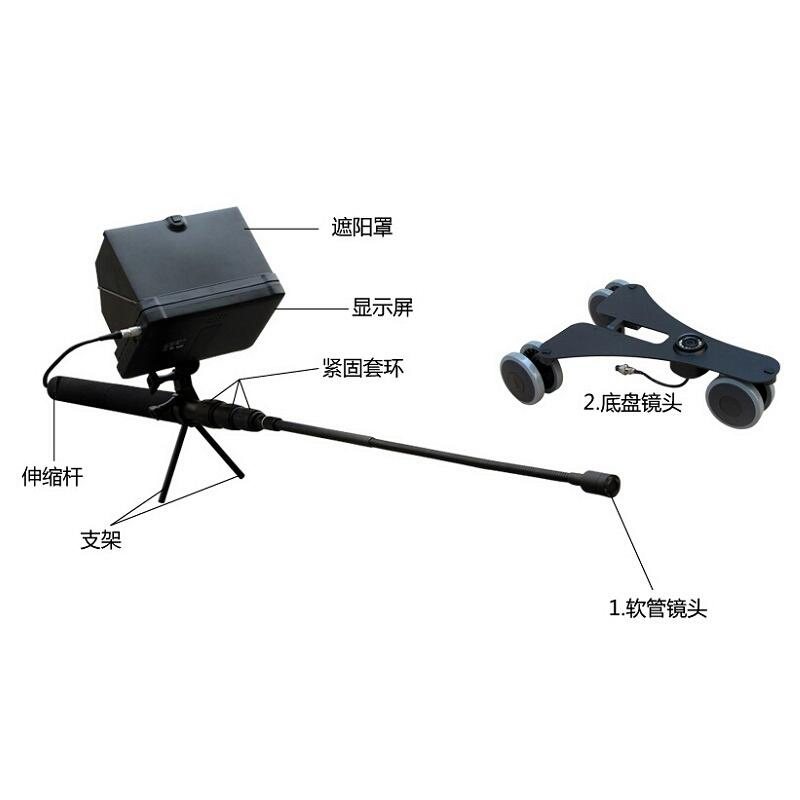

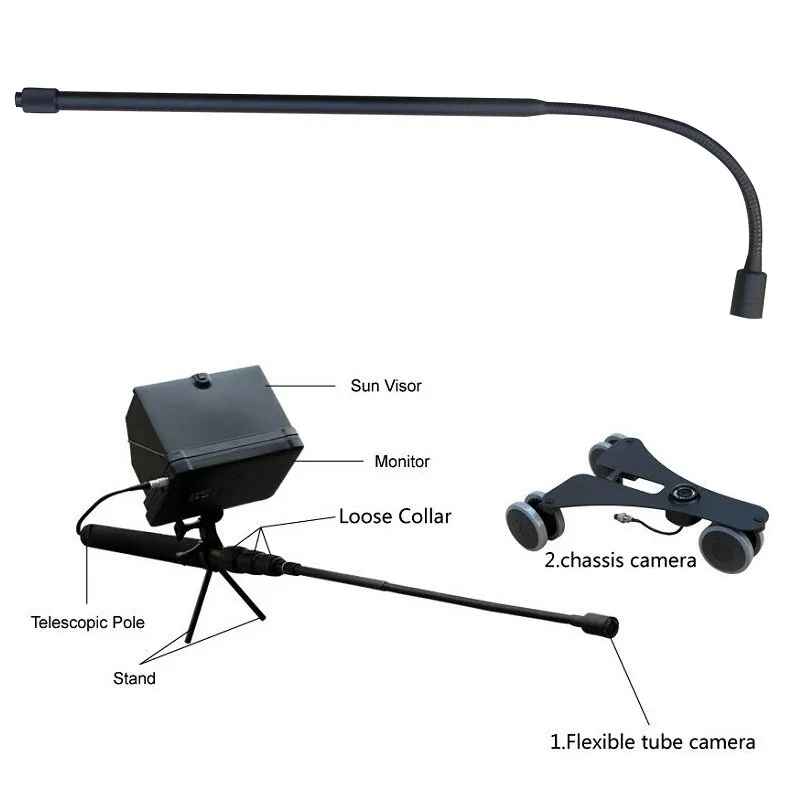

Packing List

1080P HD Camera with Wheels x1
Waterproof Camera with Gooseneck Pole x1
7" HD Monitor x1
2m Extendable Pole x1
AC Adapter x1
User Manual x1
Brushed Aluminum Protective Carrying Case x1

Frequently Asked Questions (FAQ)

What are the primary applications of the UVIS04 inspection camera?

The UVIS04 is ideal for security checks under vehicles, pipeline inspections in industrial boilers or petrochemical systems, structural assessments of buildings and bridges, and home roof or gutter maintenance.

Does the package include different camera attachments?

Yes, it comes with two specialized cameras: a 5.0 Mega 16 LED camera mounted on a universal wheel tray for under-carriage vehicle checks, and a 5.0 Mega 6 LED camera with a flexible gooseneck pole for hard-to-reach or narrow spaces.

How long does the built-in battery last on a full charge?

The monitor is equipped with a built-in 5000mAh high-capacity Li-battery, which supports up to 8 to 10 hours of continuous field operations.

What is the storage capacity limit for saving recorded files?

The UVIS04 system supports external storage via TF (MicroSD) cards up to 64GB in capacity for storing 1080P videos and 5.0MP images.

Can the display monitor be used under direct sunlight?

Yes. The 7-inch HD color monitor features a quick-access, one-press open sunshade designed to prevent glare and ensure clear outdoor visibility.
