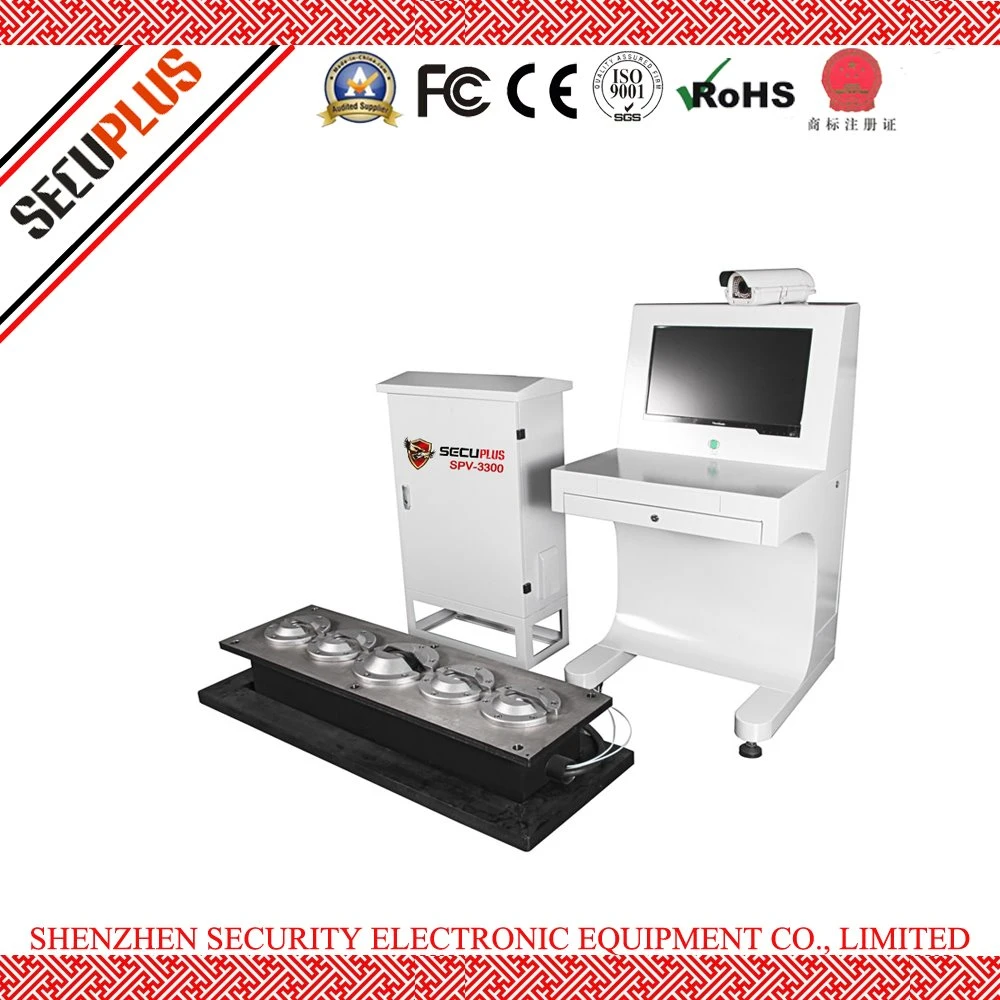

UVIS UVSS Under Vehicle Inspection and Surveillance System SPV-3300

Customization:	Available
Under Vehicle System:	for Embassy, Hotel, Villa, Airport
Under Vehicle Inspection:	Without Stop The Vehicle

Basic Info.

Model NO. SPV-3300

Camera Sensor Line Scans CCD

Under Vehicle Camera Resolution 2048

Under Vehicle Scanner Power Supply 24 VDC, 5A

Illumination LED

Scanner Size 1200mm * 350mm

Operating Temperature Range -40 Degree to +70 Degree

Intelligent Io Control 1 Set

Display 22'' LCD

Transport Package Wooden Packing

Specification CE, ISO

Origin China

HS Code 903180909

Production Capacity 500 Sets/Month

Product Description

UVIS UVSS Under Vehicle Inspection and Surveillance System SPV-3300

Features:

Multi entrance management model, management, and statistics of entering and exiting vehicles
Auto digital line scan, high-resolution undercarriage imaging.
High automation, easy to be used.
Applicable to variety of vehicles, wide vision.
Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
Undercarriage image can be stored, retrieved, searched or compared with other images.
A variety of image processing methods: enlarge, stretching and cutting.
ALPR-Automatic License Plate Recognition and RFID technology, associative storage of various vehicle information and undercarriage images (Optional).

Advantages of UVIS Under Vehicle Scanner:

No need to park vehicle, can bear speed below 50km/h.
Whole image display on monitor.
Operator can zoom and save image.
Under vehicle surveillance system mainly adopts to inspect the beneath part of a variety of vehicles.
It can quickly and accurately identify threats, contraband, or smuggling of persons hiding at the bottom.
UVSS greatly improved vehicle safety inspection speed and accuracy, reducing investment in human resources.

General Specifications

System Specifications Details
Features	Automatic digital line scan camera, with high-resolution and clarity of the image. The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter. Preparation of inspection processes to meet a variety of on-site needs. Multiple scene image monitoring, recording function. Multi-language user interface design. Strong scalability to easily achieve a variety of system linkage control. ALPR (Automatic Licence Plate Recognition) (Optional) Multiple devices networked control functions (Optional)
Technical Parameters	Embedded screening parts: Camera Sensor: line scan CCD Resolution: 50002048 pixels Power Supply: 24VDC, 3A Illumination: LED, Power Supply: 24VDC, 150W Size: 1200mm x 350mm Storage Temperature Range: -25 degree to +70 degree Controller:* Input: 2 channels induction coil Output: 1 Channel switch type 12VDC Communication port: RS485, Ethernet (Optional) Operating Temperature: -10ºC to 55ºC
System Host	CPU: Intel® Core(TM) 2 Duo CPU 2.0GHz or higher Memory: 2G (optional 4G) Graphics: Integrated Graphics Engine Hard Disk: SATA2 Hard Disk 500G Dual LAN (At least one Gigabit) USB2.0 (Up to 4 pieces) Monitor: 22inch LCD, resolution up to 1920*1080 Scene Video Record: 4 channel, Compression algorithm of scene video: H264

Product Gallery

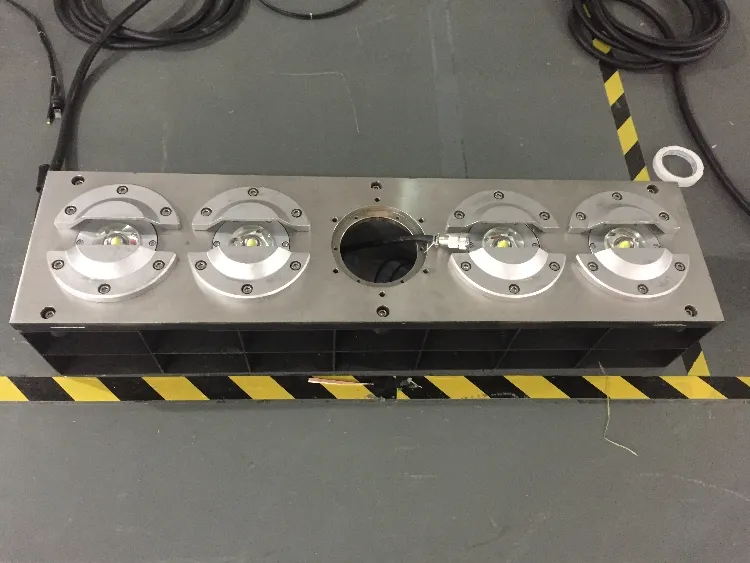

UVIS UVSS Under Vehicle Inspection and Surveillance System SPV-3300 Diagram 1

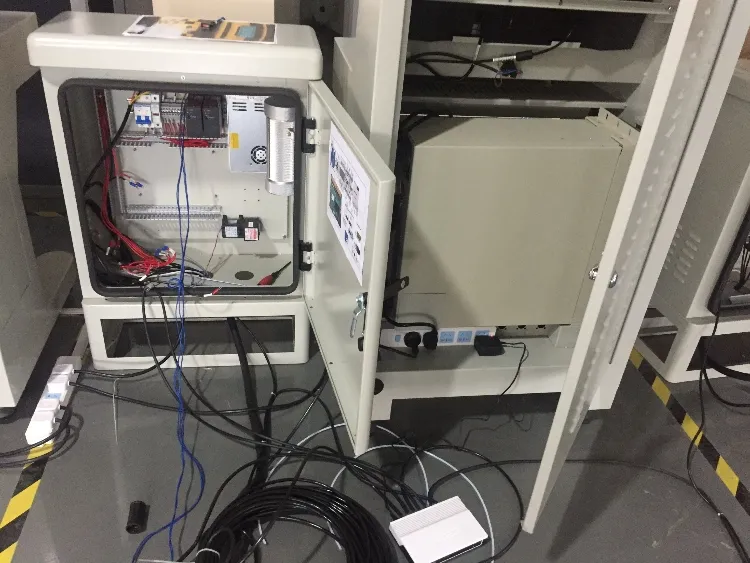

UVIS UVSS Under Vehicle Inspection and Surveillance System SPV-3300 Diagram 2

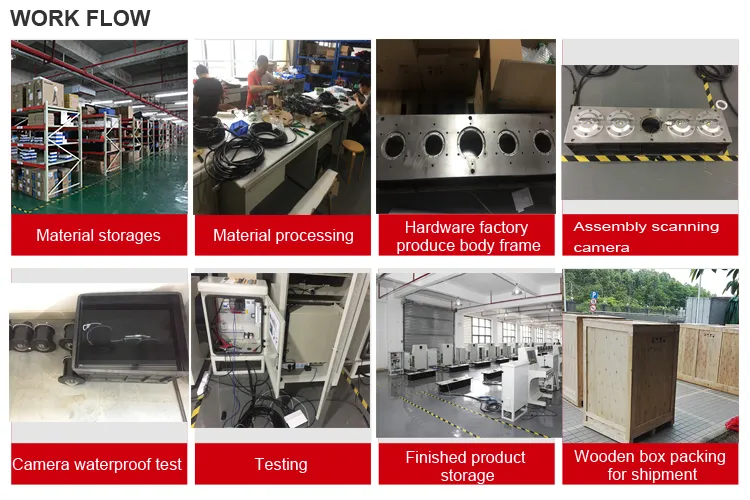

UVIS UVSS Under Vehicle Inspection and Surveillance System SPV-3300 Diagram 3

UVIS UVSS Under Vehicle Inspection and Surveillance System SPV-3300 Diagram 4

Frequently Asked Questions

What is the scanning speed limit for the SPV-3300 system?

The vehicle does not need to stop during inspection. The system can capture complete, high-resolution undercarriage images at vehicle speeds below 50 km/h.

What is the image resolution of the under vehicle camera?

The system uses an embedded line scan CCD camera that delivers a high resolution of 5000 * 2048 pixels, allowing operators to clearly observe threats or objects as small as 2mm in diameter.

What is the operating temperature range of the scanner?

The scanner is built to withstand harsh weather conditions, offering an operating temperature range from -40 Degree to +70 Degree.

What are the lead time options for orders?

For standard models in stock, the lead time is typically 3-5 days. If production is required, the lead time is 10-15 days. Delivery can be arranged via sea or air transport.

What warranty and support services do you provide?

The system is backed by a one-year warranty along with lifetime technical support. Remote training options as well as factory training are available.

Does the system support License Plate Recognition (ALPR)?

Yes, ALPR (Automatic License Plate Recognition) and RFID technology are available as optional features to associate vehicle information with undercarriage scans.
