IWILDT™ AN-48002800HMG X-ray Security Inspection System for Track Mobile / Container Vehicles

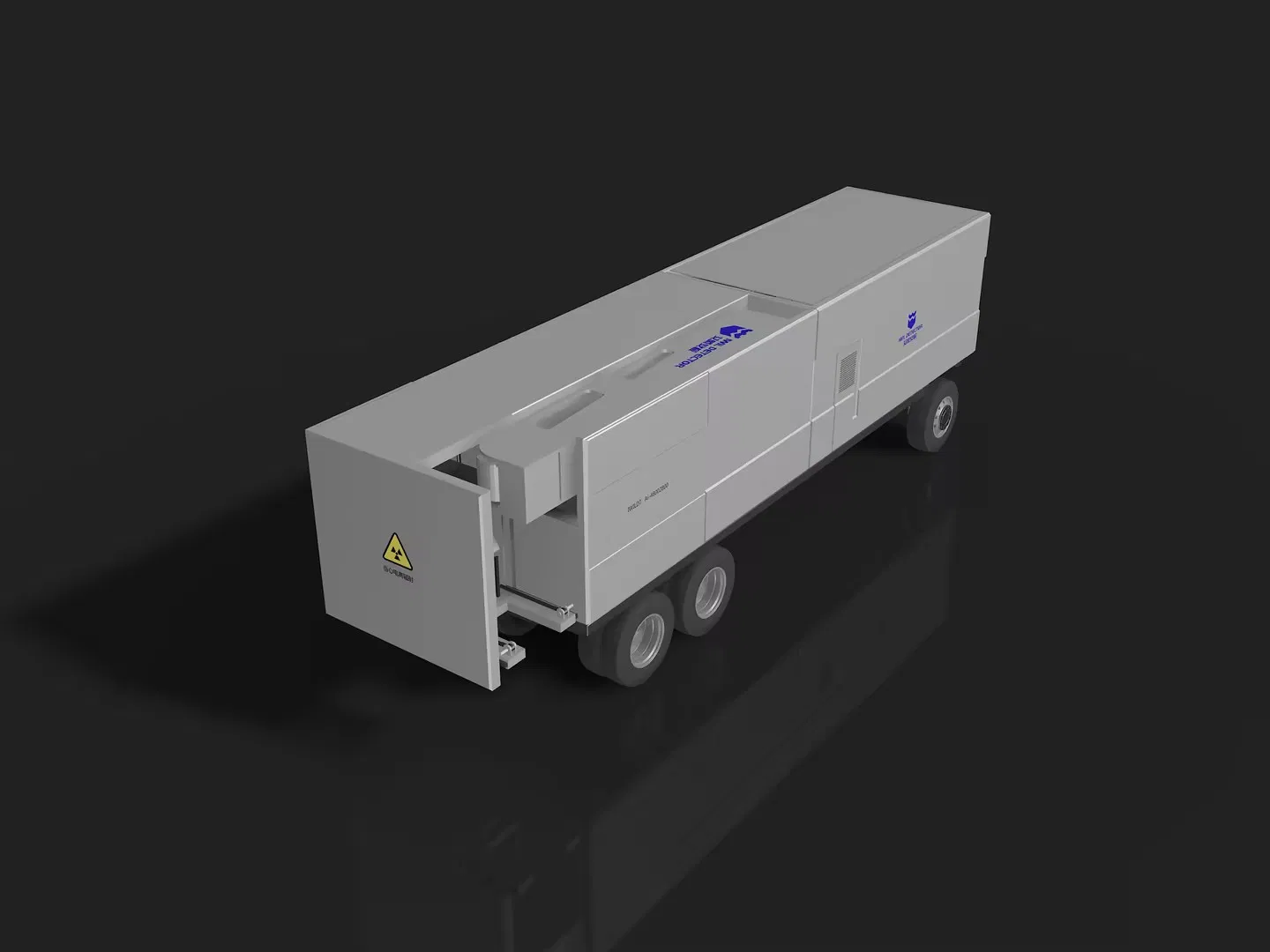

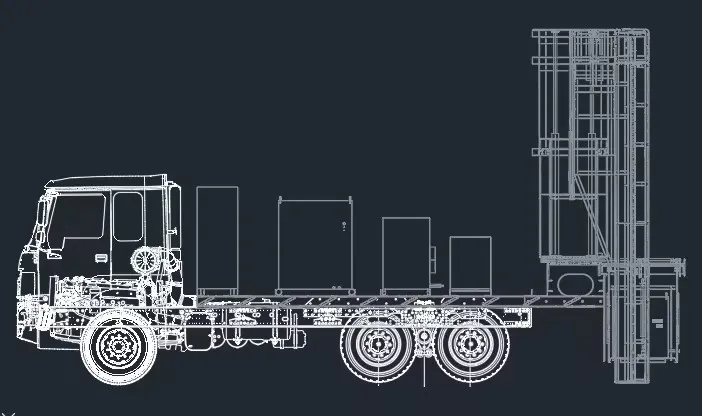

High Energy Mobile X-Ray Series
1. Product Brief
The Rail Mobile Vehicle Security Inspection System is specially designed for the security inspection of container vehicles in customs, ports, military bases and border ports. It reduces the manual time-consuming and laborious touch type safety inspection of trucks, containers and vehicles. Through X-ray fluoroscopy scanning, the images of the material, volume and quantity of the goods in the container are generated to check whether they are consistent with the checklist, and whether there are threats of terrorists, gunpowder, toxic substances, weapons of mass destruction (WMDs), prohibited goods and dangerous chemicals.
The system adopts an adjustable electron accelerator from 4MeV to 7.5MeV, and the penetration force can reach 350mm steel plate. Up to 30 vehicles can be checked per hour in mobile scanning mode, and 100 vehicles per hour in through scan mode.
The X-ray array image detection and imaging system has a high-speed image data acquisition circuit up to 0.8m per second. After the data is processed by computer software, the different density and shape of the cargo in the container are displayed layer by layer according to the pseudo color gray level. The operator can quickly and reliably check and analyze images through high-resolution IPS LCD.
The system is easy to operate and occupies a small area, with low external infrastructure requirements, which can meet the most stringent international safety inspection standards. The optional equipment has automatic radioactive material detection (ARD μ), which can simultaneously carry out X-ray inspection and analysis to detect the presence of radioactive gamma and / or neutron materials.
2. Product Parameters
Electron induction accelerator
Ray energy: 4-7.5mev;
Irradiation direction: side illumination type;
Penetration: 350 mm thick steel plate;
Heat dissipation mode: air conditioning ventilation pipe type;
Radiation protection: 200 mm thick lead tank;
Scattering angle: 80 degrees;
Control mode: H high energy pulsed fiber-optical output / L low energy pulsed fiber-optical output;
Collimator: Electric "shutter" device, ultra narrow slit beam;
3. Detection System

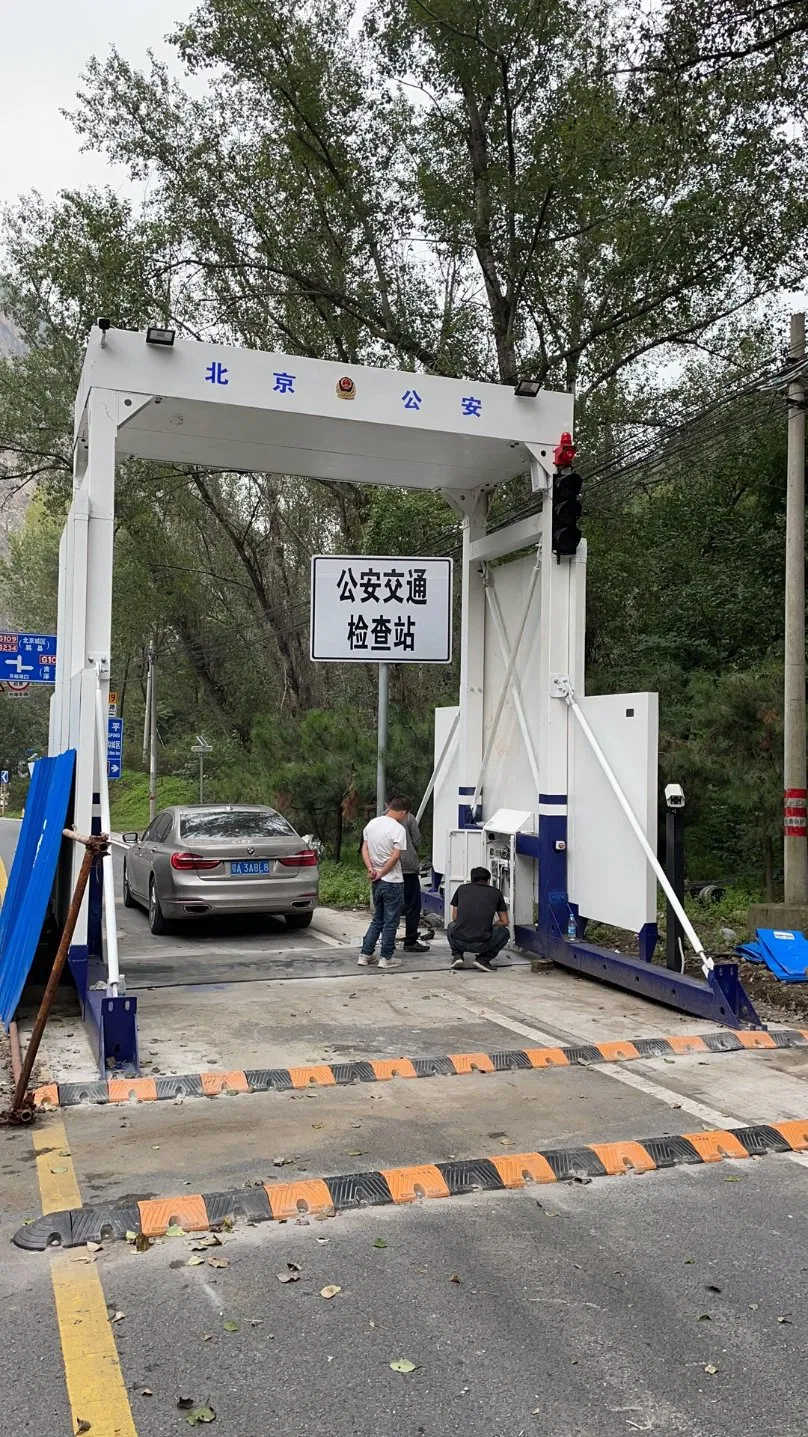

Structure design: Track mobile gantry structure;
Color coating: Mirror blue gray or military digital camouflage;
External dimension: 9m (L) x 2.8m (W) x 5m (H) (not including track);
Channel size: 5M (W) x 4.8m (H);
Track length: 30m;
Equipment weight: 40 tons;
Detection crystal: BGO;
Photoelectric conversion: SIPM photon counter;
Number of pixels: 2048;
Pixel arrangement: L-shaped line array;
Cascade mode: BNC differential mode communication mode;
4. Image Processing
Image workstation: i7 / 8g / 4tb hard disk / 24 inch 20000:1 / IPS LCD;
Software functions: edge enhancement and sharpening, image inversion, histogram equalization, storage image retrieval, color / black and white, local increase, super increase, organic matter removal / inorganic matter removal, light / dark reduction, amplification / reduction, real-time video;
Light and shadow tracking: color restoration curve correction, black and white pseudo color image synchronous display;
Networking function: 1920x1080 real-time image H.264 encoding safe city video function;
Dual energy scanning: front end asynchronous acquisition of high energy data and low energy data, multi energy images;
Material analysis: THz terahertz detection system, Pullman detection system, spectrum detection system (optional);
Container number identification: container code recognition, scanning image watermark overlay;
Box measurement: Volume Measurement and weight data acquisition sensor;
Image format: JPG, BMP and TIFF images are named according to scanning time;
License plate recognition: license plate recognition and image classification and archiving;
Car bottom scanning: 4K high-definition linear array camera for chassis color imaging security scanning;
Data storage: 500000 images as standard;
Data archiving: DVD recorder (standard);
Printer: color printer;
5. Equipment Performance
Function introduction: Adopt Gantry Crane Track Mobile Type large-scale scanning structure, three rails are 30 meters long respectively, adopt 8 drive motors to provide mobile power, reciprocating drive gantry crane scanning device to scan the container vehicle security.
Basic structure: Electronic Linear Accelerator Cabinet, scan drive control cabinet, horizontal detection frame, vertical detection frame, track device, radiation protection facilities, etc.
Vehicles to be inspected: less than 18m (length) x 2.5m (width) x 4.6m (height);
Scanning height: 4.8m;

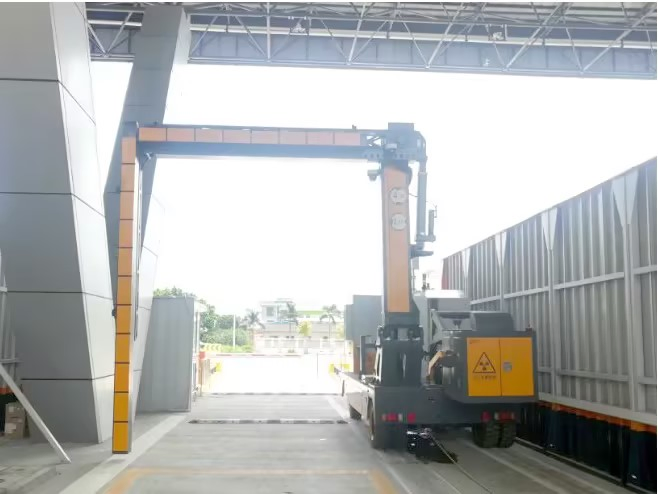

Active scanning mode: The scanned container vehicle is stationary, and the gantry-type detection frame moves along the track for security inspection and scanning.

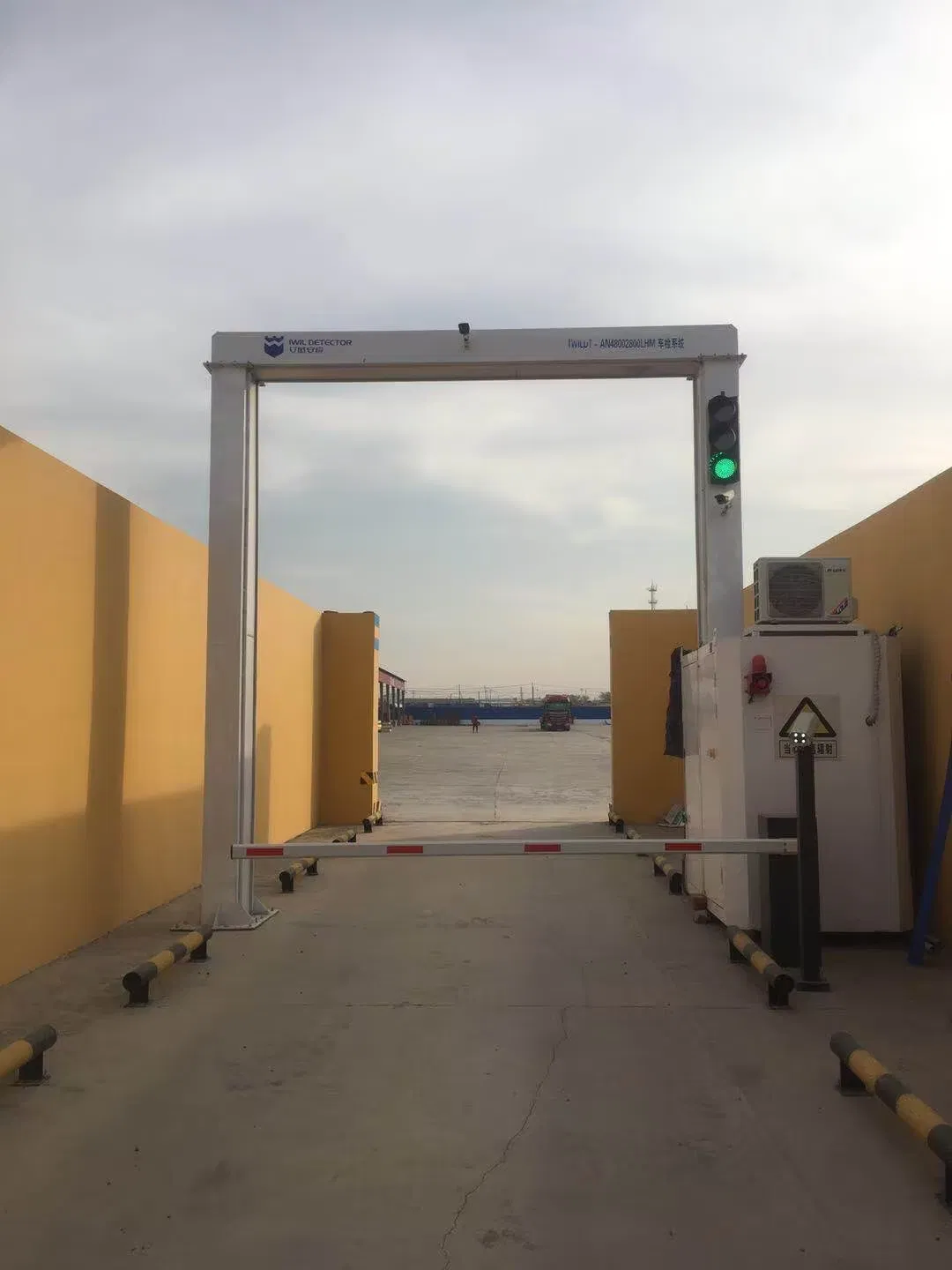

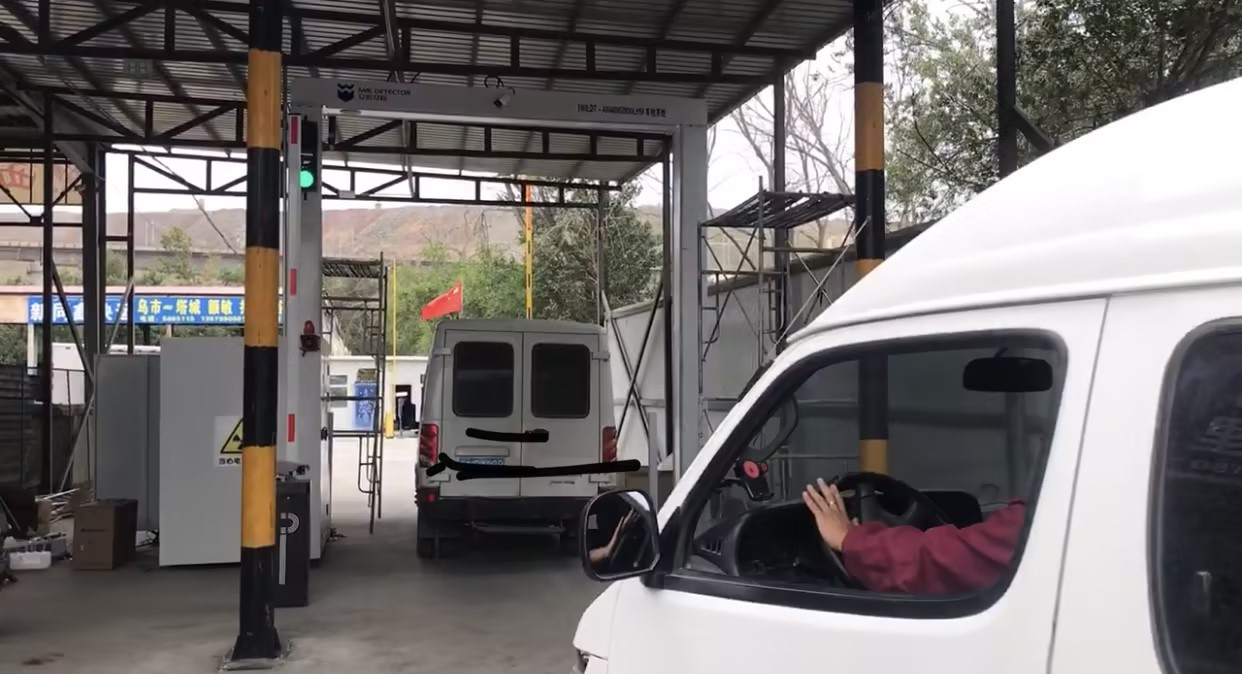

Passive scanning mode: The gantry-type detection frame is stationary, the driver drives the scanned container vehicle through the gantry-type detection frame security inspection channel, adopts automatic avoidance control technology to scan and image the container part, and the driver's cab avoids irradiation to reduce radiation harm to the human body;
Passing rate: active scanning 30 vehicles / hour; 100 vehicles / hour in passing mode;
Radiation index: annual effective radiation dose of operators: ≤ 2msv / year; Maximum boundary dose rate: ≤ 2.5usv/h;
Scanning speed: active scanning 0.8m/s; fast detection mode can reach 10km / h;
Spatial resolution (line pair diameter): Active scanning mode: SR ≤ 5.0 mm (scanning speed 0.8 m / s); Passive scanning mode: SR ≤ 8.0 mm (behind steel plate) (scanning speed 10km / h);
Material identification function: organic and inorganic substances are classified and identified according to different colors;
Material resolution: mass thickness (g / cm2): 10 ≤ Ti ≤ 140, scanning speed: 0.8m/s; Graphite thickness mm 10 ≤ Ti ≤ 140, scanning speed: 0.8m/s; Steel thickness mm 10 ≤ Ti ≤ 140, scanning speed: 0.8m/s;
Image stripping function: peel off the background material in the selected area, so as to correctly identify the material properties of the occluded material;
Safety boundary: 40m (length) x 50m (width);
Working temperature: - 40 ° C to + 50 ° C; Storage temperature: - 50 ° C to + 55 ° C;
Relative humidity: 0 to 99%; Waterproof grade: IP45;
Input voltage: AC380V / 50Hz; three phase five wire system;
Working time: 24-hour continuous operation;
Three prevention measures: windproof operation state (no less than Grade 7 wind), outdoor storage state (no less than level 2 wind);
Rain and snow proof: Can be operated under moderate rain and snow, stored under heavy rain and heavy snow;
Protective device: safety interlock device + radiation dosimeter + video monitoring system + voice broadcasting system;
Warning: three color safety light + siren;
Standard: in accordance with WHO, ICRP 103-2007, China, EU and US regulations;
