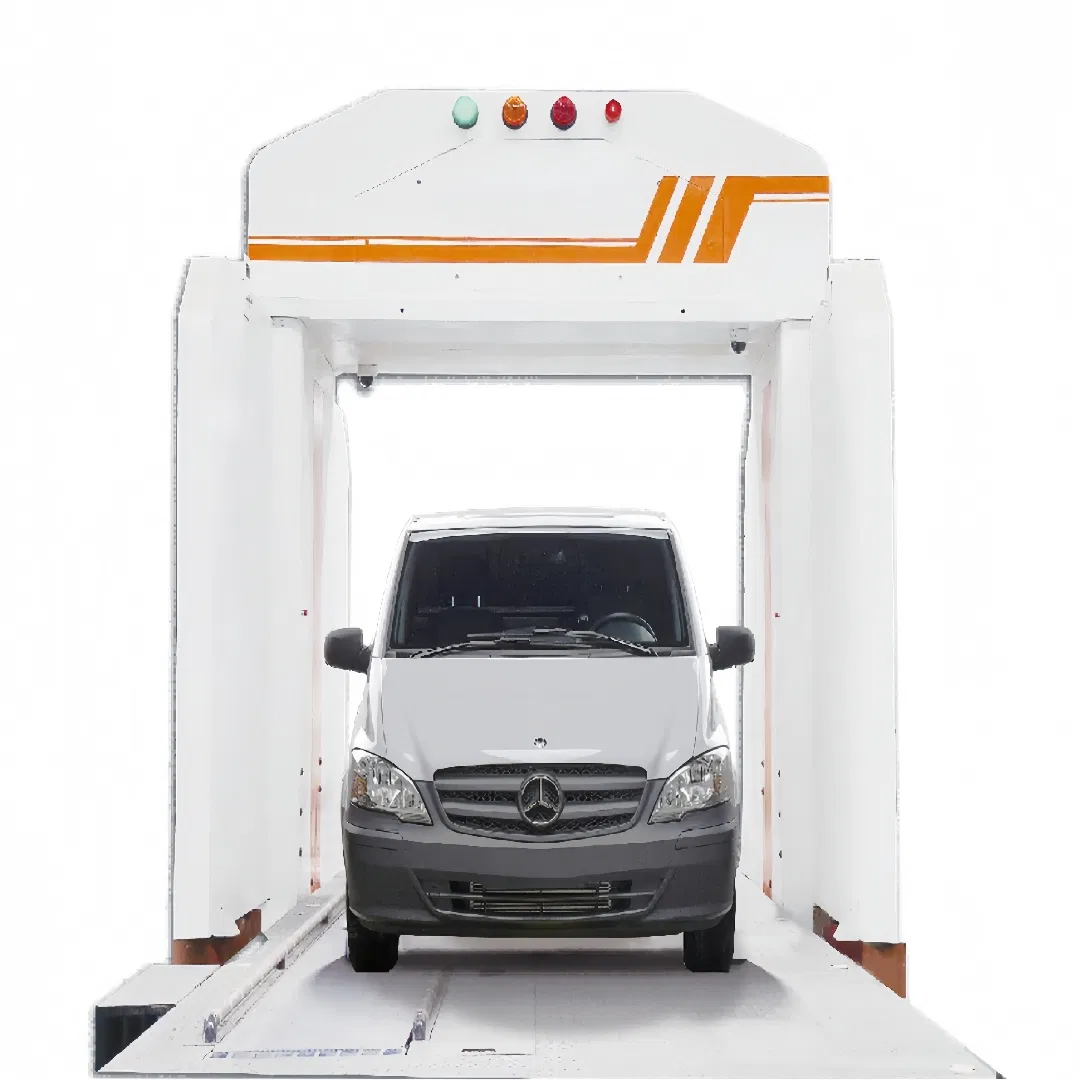

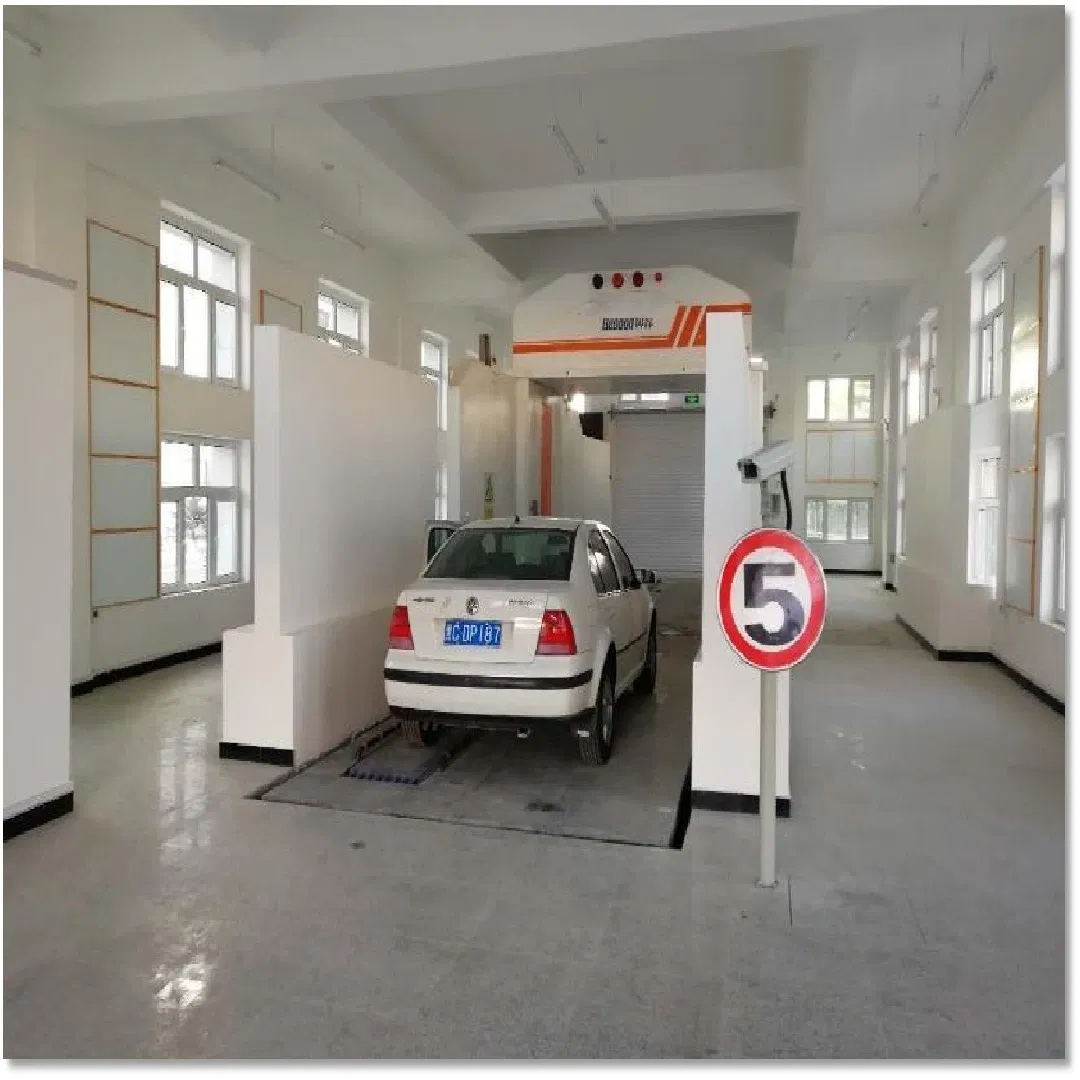

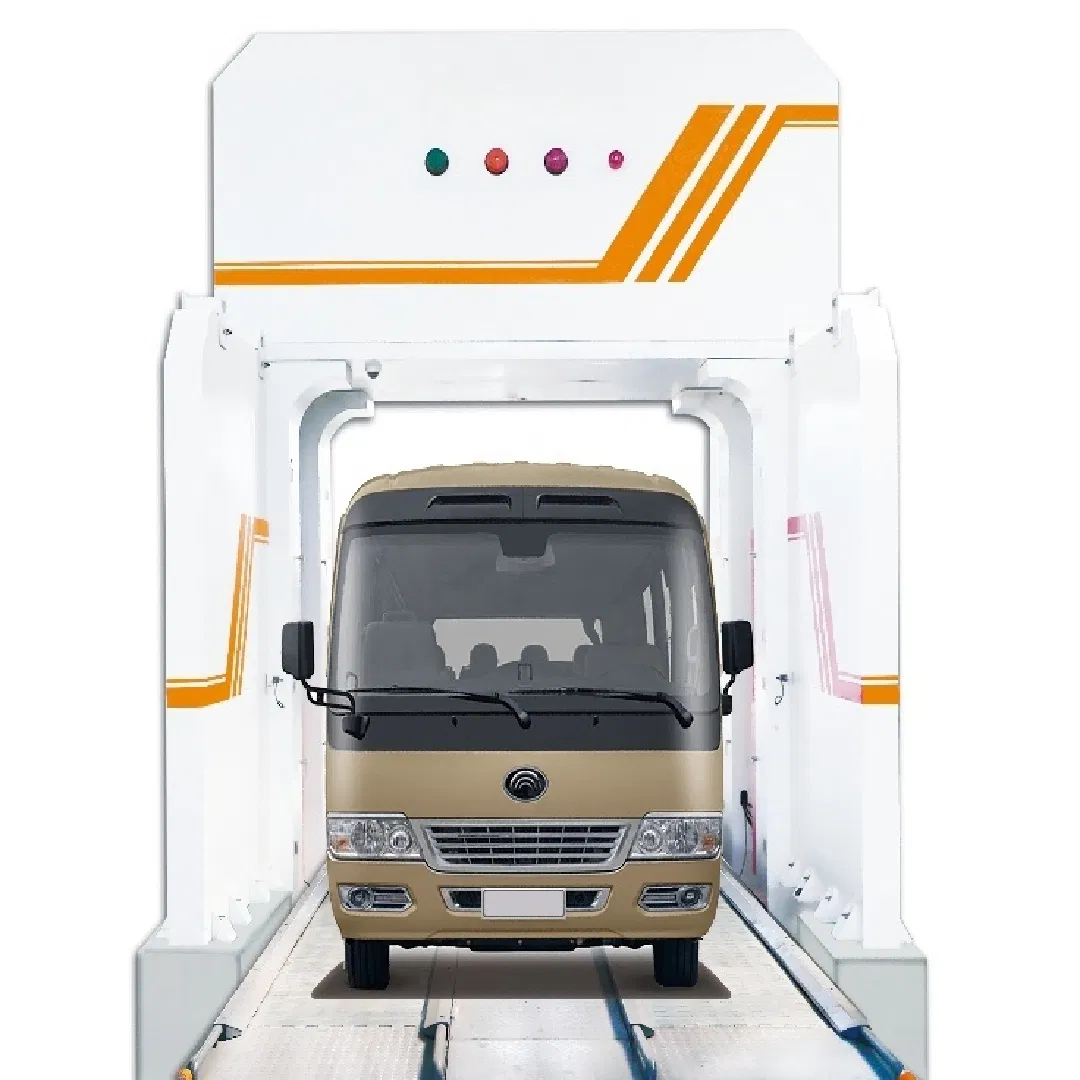

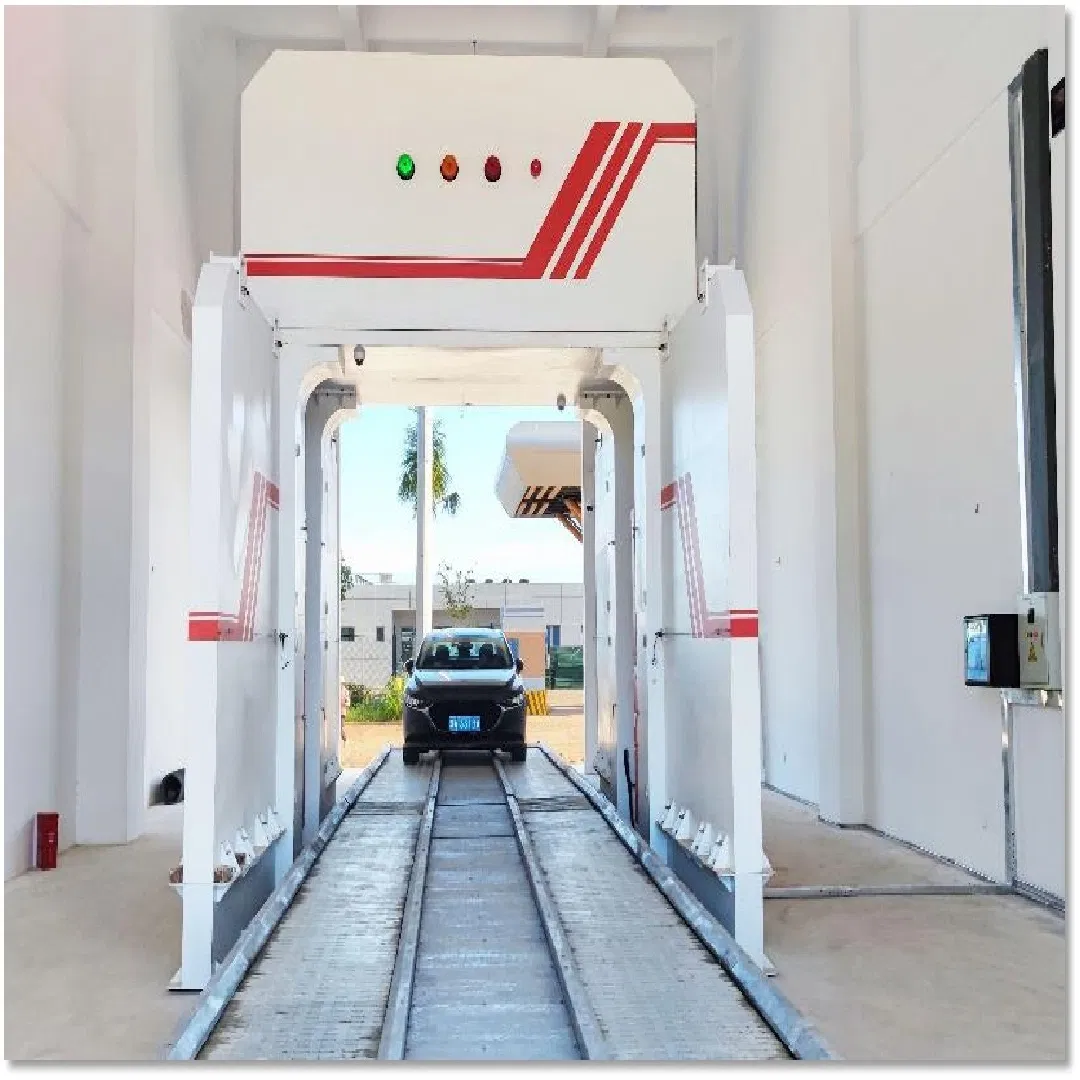

BGV-3000/3200 Small Vehicle X-Ray Inspection System - Dual-Energy Drive-Through Scanner for Rapid Security Screening at Customs, Ports, and Prisons
Product Overview:
The BGV-3000/3200 series is a state-of-the-art small vehicle X-ray inspection system developed by a leader in radiation detection and imaging technology. Designed for high-throughput security screening, these systems utilize advanced dual-energy X-ray transmission imaging to provide real-time, non-intrusive inspection of passenger cars, SUVs, MPVs, pickup trucks, minibuses, and small commercial vehicles. The drive-through design allows vehicles to pass through the scanning tunnel at normal speed, enabling rapid screening without disrupting traffic flow.
Equipped with high-penetration X-ray sources and high-sensitivity detectors, the BGV-3000/3200 series delivers exceptional image clarity and material discrimination, allowing operators to easily identify concealed contraband, weapons, explosives, and other prohibited items. The systems are widely deployed at customs checkpoints, port entrances, prison facilities, and transportation hubs, providing reliable security with minimal operational impact.
Key Features:
| Feature | Benefit |
|---|---|
| Dual-Energy X-Ray Technology | Enables material discrimination, clearly distinguishing organic, inorganic, and mixed substances. |
| High Penetration Power | Penetrates up to 50 mm steel, ensuring visibility of dense objects inside vehicles. |
| Rapid Drive-Through Scanning | Vehicles pass through at up to 1.0 m/s, achieving throughput of 60+ vehicles per hour. |
| Large Tunnel Size | Accommodates a wide range of vehicles, from compact cars to minibuses and small trucks. |
| Real-Time Imaging | High-resolution images appear instantly on the operator console for immediate threat assessment. |
| Advanced Image Processing | Edge enhancement, pseudo-color, zoom, and material highlighting for clear interpretation. |
| Radiation Safety | Fully interlocked with leakage <1 µSv/h at 5cm; meets international safety standards. |
| Robust & Weather-Resistant | Designed for 24/7 outdoor operation in harsh environments (-20°C to +50°C). |
| User-Friendly Software | Intuitive interface with automated threat detection, image archiving, and reporting. |
| Modular Design | Easy installation, maintenance, and future upgrades. |
Technical Specifications:
| Parameter | BGV-3000 | BGV-3200 |
|---|---|---|
| Detection Technology | Dual-Energy X-Ray Transmission | Dual-Energy X-Ray Transmission |
| X-Ray Source | 160 kV - 320 kV X-ray tube | 220 kV - 450 kV X-ray tube |
| Penetration (Steel) | Up to 40 mm | Up to 50 mm |
| Tunnel Size (W×H) | 3.2 m × 2.8 m | 3.5 m × 3.0 m |
| Scan Speed | 0.5 m/s - 1.0 m/s | 0.5 m/s - 1.0 m/s |
| Wire Resolution | <1.5 mm | <1.5 mm |
| Detector Type | High-sensitivity linear array | High-sensitivity linear array |
| Image Processing | Real-time, edge enhancement, pseudo-color, material discrimination | Real-time, edge enhancement, pseudo-color, material discrimination |
| Data Storage | Up to 100,000 images | Up to 100,000 images |
| Radiation Leakage | <1 µSv/h at 5cm | <1 µSv/h at 5cm |
| Safety Features | Interlocks, warning lights, emergency stop | Interlocks, warning lights, emergency stop |
| Operating Temperature | -20°C to +50°C | -20°C to +50°C |
| Power Supply | 220/380V AC, 50/60Hz, 3-phase | 220/380V AC, 50/60Hz, 3-phase |
| Power Consumption | <10 kW | <12 kW |
| Dimensions (L×W×H) | Customizable | Customizable |
| Weight | Approx. 6000 kg | Approx. 6500 kg |
System Components:
| Component | Description |
|---|---|
| X-Ray Generator | High-energy X-ray source with collimator |
| Detector Array | High-sensitivity linear detector for clear imaging |
| Control Cabin | Operator workstation with radiation shielding |
| Scanning Gantry | Robust steel structure supporting X-ray and detector |
| Vehicle Sensors | Automatic triggering and speed monitoring |
| Software Suite | Image acquisition, processing, storage, and reporting |
| Safety System | Interlocks, warning lights, emergency stops |
Applications:
| Sector | Specific Use Cases |
|---|---|
| Customs | Inspect passenger vehicles at border crossings for contraband, weapons, and smuggled goods. |
| Ports | Screen vehicles entering/exiting port facilities for security threats. |
| Prisons | Check vehicles entering prison grounds for concealed contraband. |
| Transportation Hubs | Airports, train stations, bus terminals - secondary inspection of suspicious vehicles. |
| Government Facilities | Secure entrances for embassies, courthouses, and official buildings. |
Why Choose BGV-3000/3200 Series:
A: The system is designed to perform rapid, non-intrusive inspection of passenger cars, SUVs, MPVs, pickup trucks, minibuses, and small commercial vehicles.
A: The rapid drive-through design allows drivers to pass through the scanning tunnel at normal speed (up to 1.0 m/s), enabling efficient security screening without disrupting the traffic flow.
A: The system utilizes advanced Dual-Energy X-Ray Transmission technology. This distinguishes material density, allowing operators to clearly differentiate organic, inorganic, and mixed substances.
A: Depending on the model, it provides high steel penetration up to 40 mm (BGV-3000) or 50 mm (BGV-3200) with a wire detectability resolution of less than 1.5 mm.
A: Yes, radiation safety is ensured with fully interlocked systems keeping radiation leakage under 1 µSv/h at a 5cm distance, strictly meeting international safety protocols.
A: Yes, the rugged and weather-resistant design is fully optimized for 24/7 continuous outdoor operations within an operating temperature range of -20°C to +50°C.
