Basic Info.
Model NO.
an-48002800
Certification
CE, ISO
Customized
Customized
Form
Flatbed
Application
Security Check
Portable
Non Portable
Type
Industrial High-Definition X-ray Detector
Alarm Form
Display Alarm
Equipment Weight
2 Tons
Detection Crystal
Cdwo4
Photoelectric Conversion
CMOS
Number of Pixels
1920
Pixel Arrangement
L-Shaped Line Array
Transport Package
Strong Ploywood Case
Specification
Direction of exposure: side exposure
Origin
China
HS Code
9002909090
Production Capacity
2000pieces/Year
Product Description

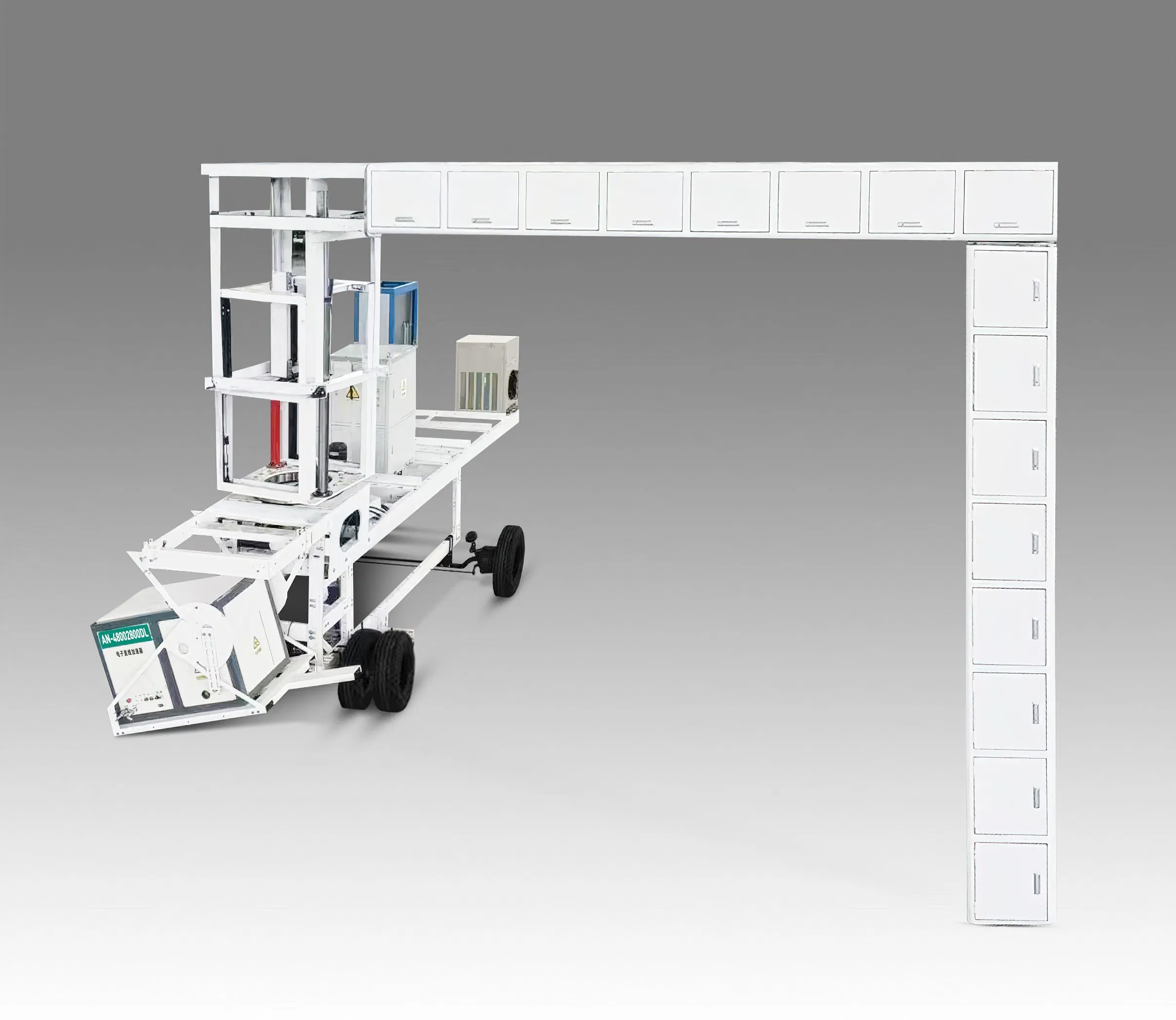

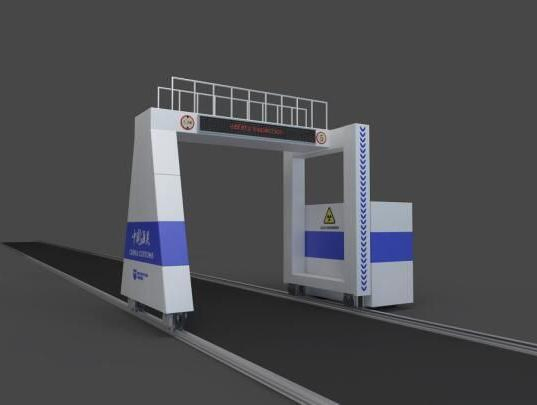

Safety Inspection System for Rail Moving Large Vehicles
HIGH ENERGY MOBILE X-RAY SERIES
Product Brief
The Rail Mobile Vehicle Security Inspection System is specially designed for the safety inspection of container loading cargo at customs, ports and border ports. It alleviates the time-consuming and laborious safety inspection of trucks, containers and vehicles. Through X-ray fluoroscopy, it generates images of materials, volumes and quantities of goods loaded in containers that are consistent with the checklist and checks for the presence of explosives, drugs, weapons of mass destruction (WMDs) and contraband.
The track mobile large vehicle security inspection system uses an adjustable electronic accelerator from 4 MeV to 7.5 MeV, offering a penetrating force of 330mm steel plate. In mobile scanning mode, up to 60 vehicles can be inspected hourly, and in through scanning mode, up to 100 vehicles can be inspected hourly.
The X-ray Array Image Detection and Imaging System features a high-speed image data acquisition circuit up to 0.80 meters per second. After image processing by computer software, the different densities and shapes of cargo loaded in containers are displayed in pseudo-color gray level. Operators can quickly and reliably examine and analyze images through high resolution LCD monitors.
The selected equipment has automatic radioactivity detection (ARD), which can simultaneously perform X-ray examination and analysis to detect the presence of radioactive gamma and/or neutron materials.
Product Parameters
Electron Induction Accelerator
- Radiation energy: 4-7.5 MeV.
- Irradiation direction: side illumination.
- Penetrating steel plate: maximum 330mm thick steel plate.
- Heat dissipation modes: air conditioning, ventilation, pipeline and oil immersion.
- Radiation protection: 200 mm thick lead tank.
- Scattering angle: 80 degrees.
- Control mode: RJ45 communication code control.
- Collimator: Electric "shutter" device for ultra-narrow slit beam exit.
Detection System
- Structural design: modular, removable and secondary handling.
- Color painting: mirror blue-gray or military camouflage.
- Appearance size: 6.60m(L) x 3.3m(W) x 5.8m(H).
- Channel size: 2.8m(W) x 4.8m(H).
- Equipment weight: 2 tons.
- Detection crystal: CDWO4.
- Photoelectric conversion: CMOS.
- Number of pixels: 1920.
- Pixel Arrangement: L-shaped Line Array.
- Cascade mode: RJ45 communication mode.
Image Processing
- Image workstation: I7/8G/4TB hard disk/24 inch 20000:1/LCD.
- Software functions: edge enhancement sharpening, image inversion, histogram equalization, storage image review, color/black and white, local increase, excessive increase, organic matter removal/ion/inorganic matter removal, brightening/darkening, enlargement/reduction, real-time video.
- Picture format: JPG, image name according to scanning time.
- License Plate Recognition and Image Classification and Archiving.
- Data storage: 500,000 images as standard.
- Printer: color laser printer.
Equipment Performance
- Track length: standard rail 60 meters.
- Equipment weight: 8 tons.
- Motor power: 4 kW * 4 sets.
- Vehicles tested: less than 18m(L) x 2.5m(W) x 4.6m(H).
- Scanning mode: mobile and through scanning mode of detection frame.
- Pass rate: 60 vehicles per hour, 100 vehicles per hour in fast mode.
- Absorbed dose: less than 1 uSv/time.
- Scanning speed: 5 km/h; 10 km/h in fast detection mode.
- Penetration force: Outline of 200x200x100mm lead field visible after penetrating 320mm steel plate.
- Spatial wire resolution: steel wire with diameter less than 1.5mm.
- Wire penetration resolution: steel wire less than 3mm visible after 100mm steel plate.
- Contrast sensitivity: less than 1mm steel sheet visible against 100mm steel plate.
- Workplace: 55m(L) x 30m(W).
- Working temperature: -20°C to +43°C (-25°C to 50°C optional).
- Storage temperature: -30°C to +55°C.
- Relative humidity: Up to 95%.
- Waterproof grade: IP45.
- Power consumption: average 34 kW.
- Monitoring & Warning: Camera + PTZ, radio intercom, tri-color safety lights + sirens.
- Standards: Compliance with WHO, ICRP 103-2007, and EU/US regulations.
Why Choose Us?
- National high-tech enterprise.
- Renowned industry brand products.
- Comprehensive customer service system providing high-quality pre-sale, in-sale, and after-sales support with professional technical assistance.
Product Gallery
Service & Support
Pre-sales Technical Consulting Service
We provide tailored reports according to customer needs, helping in product selection, process plan analysis, sample cutting, and functional configuration adjustments.
After-sales Service
- Installation and Debugging: Free on-site installation and debugging. We provide comprehensive operational and maintenance training (minimum 1 working day theoretical, 3 working days practical training).
- Technical Support: Optimization of processing procedures, parameter tuning, and design/application support for specific components.
- Warranty Period: 12 months free warranty post-acceptance, including free parts and timely services.
- Service Commitments: Response team departs for site within 10 hours of receiving fault report.
- Post-Warranty Support: Free soft technical consulting for 5 years after the warranty expires. Comprehensive, cost-price spare parts supply.
Frequently Asked Questions
Are you a factory or trading company?
We are the largest professional manufacturer of security equipment with almost 15 years of industry experience.
What is your Minimum Order Quantity (MOQ)?
Normally, our MOQ is 1 piece, and the price is negotiable for larger quantities.
What is the lead time for shipment?
The standard lead time is 3 to 7 working days after receipt of payment.
How do you manage quality control?
Every step of our production process is strictly controlled and fully certified in accordance with ISO9001, ISO14001, ISO18001, CE, and radiation safety guidelines.
What after-sales service do you provide?
We provide a 100% guarantee on our products, including installation instructions, video tutorials, remote system debugging support, and a standard 2-year warranty for the main unit.
What support is available after the warranty period?
Within 5 years after the warranty expires, we continue to provide free software technical consulting. Replacement parts are supplied to the buyer at our direct cost price.
