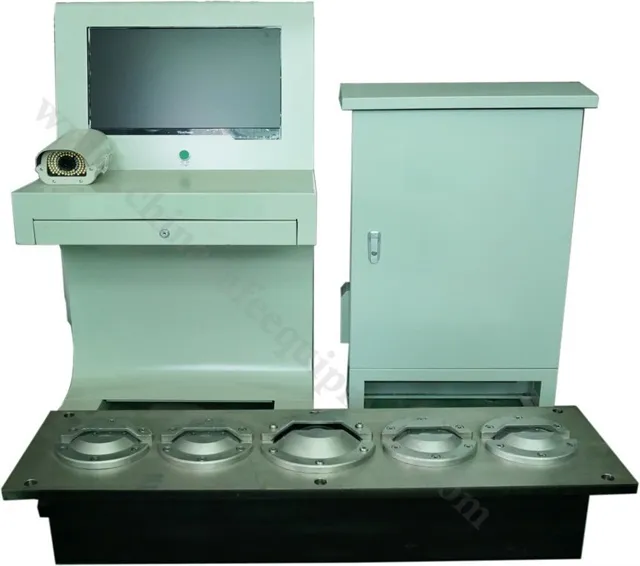

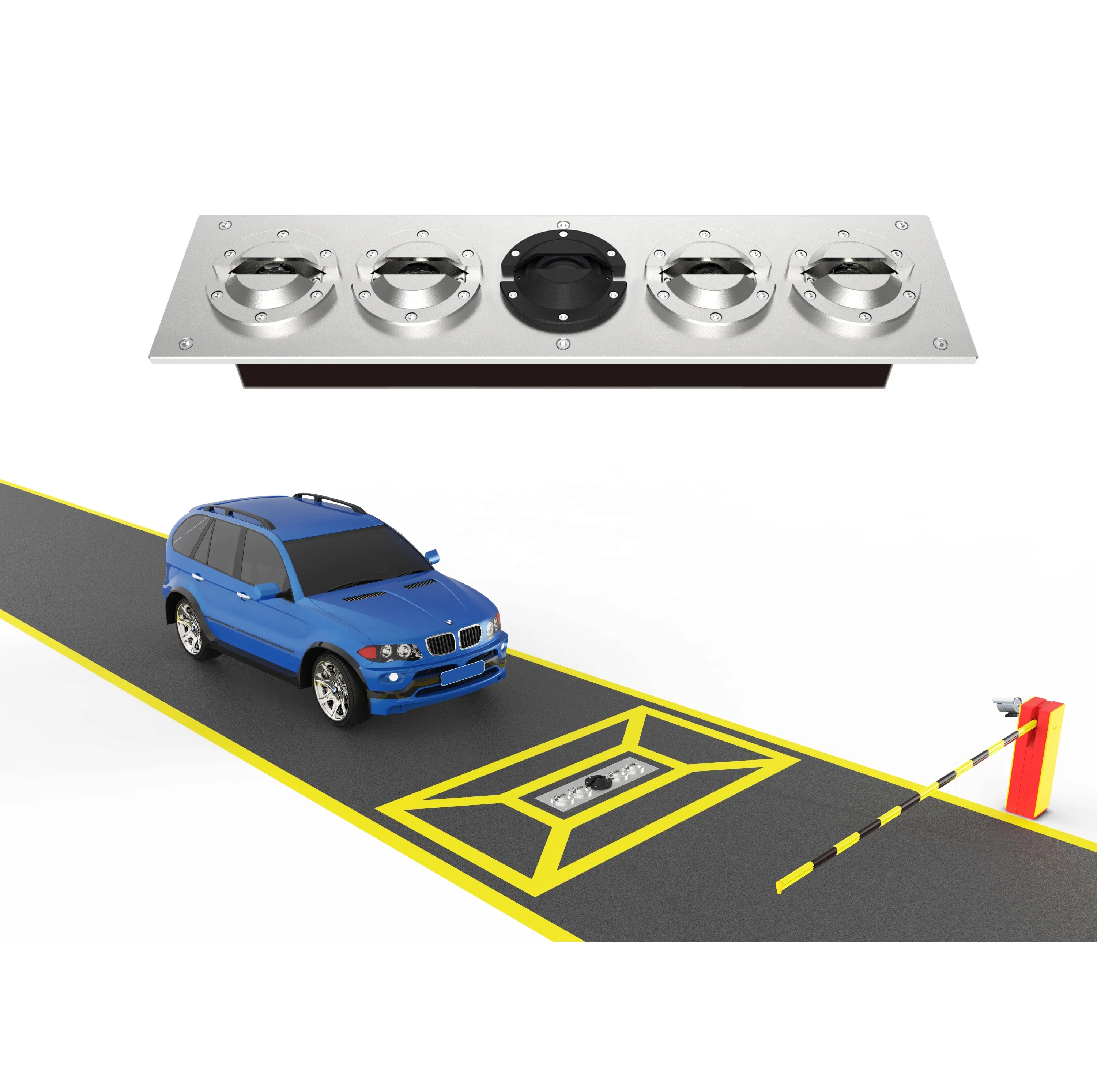

Under Vehicle Surveillance System / Inspection System
Features
Automatic digital line scan camera, with high-resolution and clarity of the image.
The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.
Preparation of inspection processes to meet a variety of on-site needs.
Multiple scene image monitoring, recording function.
Multi-language user interface design.
Strong scalability to easily achieve a variety of system linkage control.
Multiple devices networked control functions (Optional)

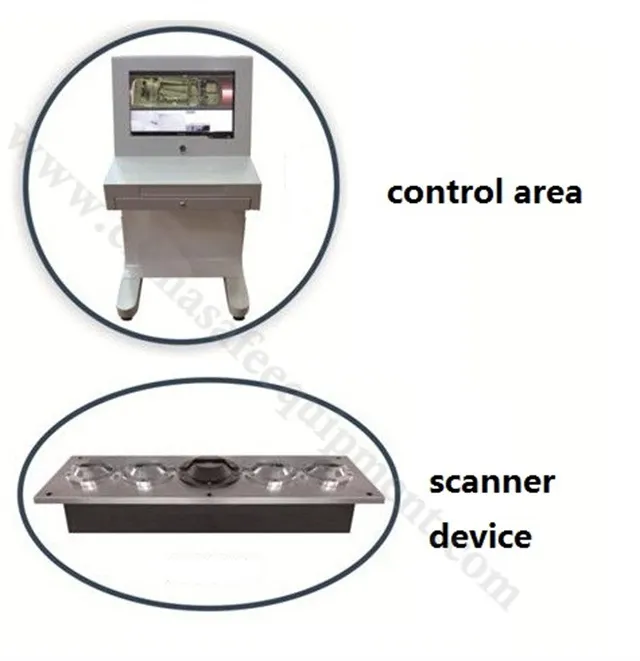

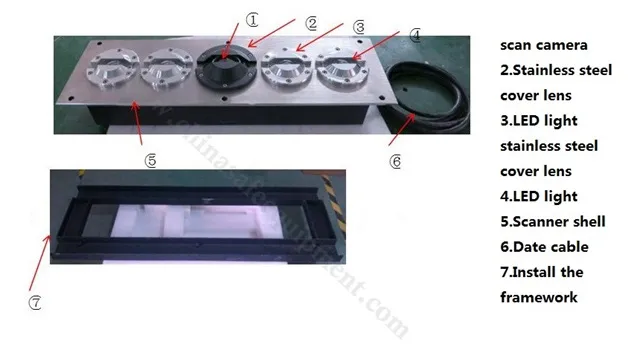

Embedded Screening Parts
Camera
Sensor: line scan CCD
Resolution
5000 * 2048 pixels
Power Supply
24VDC, 3A
Illumination
LED, Power Supply: 24VDC, 150W
Size
1200mm x 350mm
Storaging Temperature
Range -25 degree to +70 degree

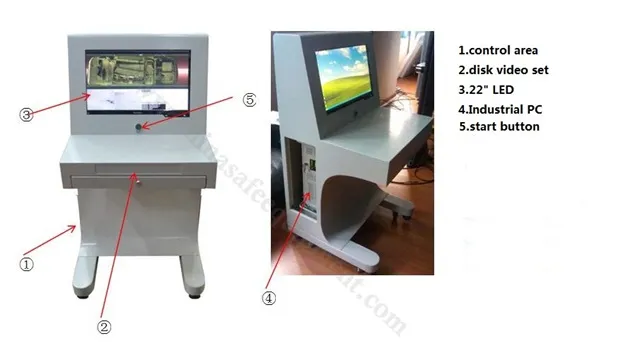

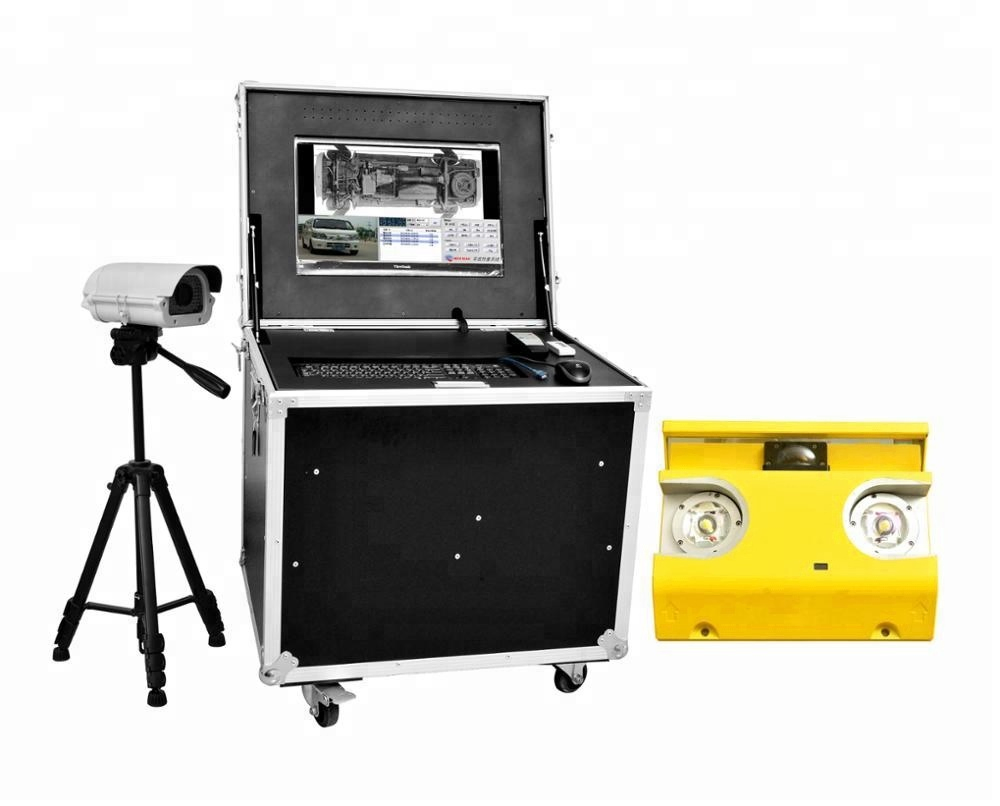

System Host
Brand
Grantech (UFO6377H-SP1-953)
CPU
Intel Core(TM) 2 Duo CPU P8600 @ 2.4GHz or higher
Memory
2G (optional 4G)
Graphics
Intel(R) Gen 5.0 Integrated Graphics Engine
Hard Disk
SATA2 Hard Disk 500G, Dual LAN (At least one Intel Gigabit), USB2.0 (Up to 4 pieces)
Monitor
22inch LCD, resolution up to 1920*1080

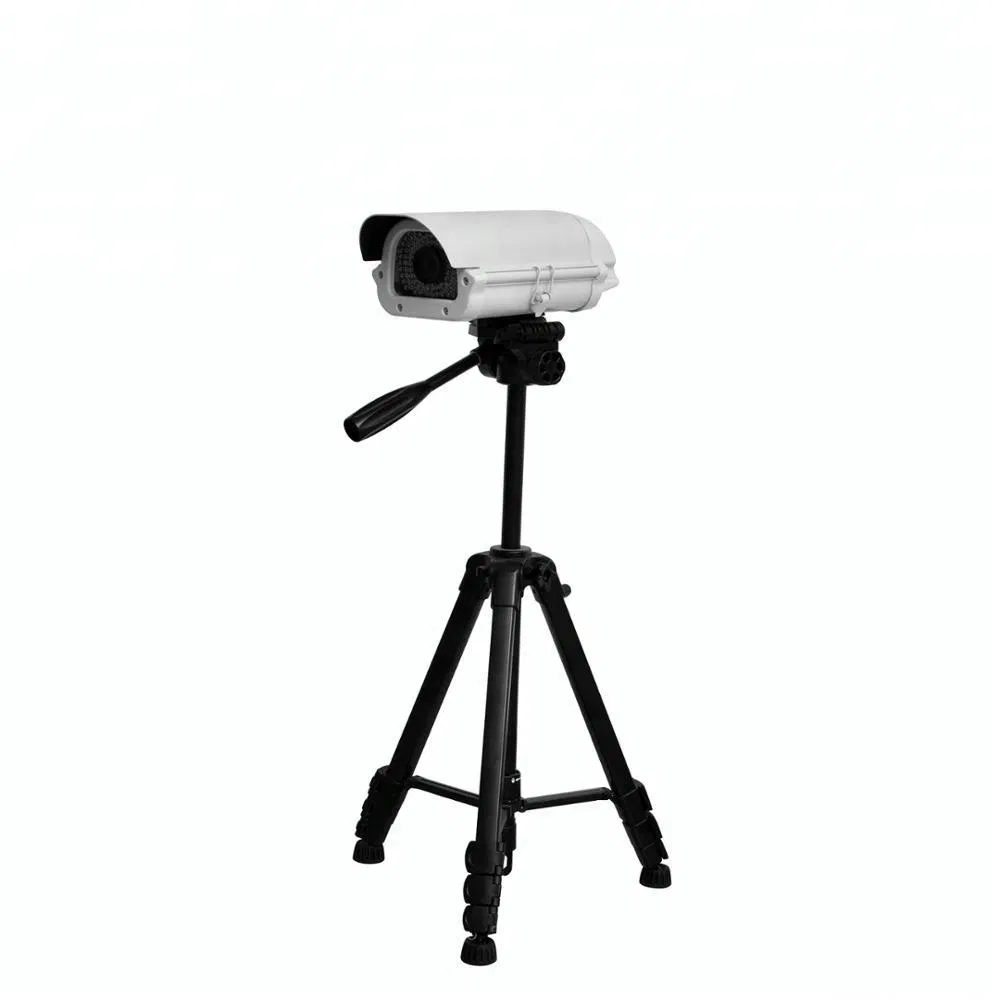

Scene Video Record
4 channel, Compression algorithm of scene video: H264
Controller
Input
2 channels induction coil
Output
1 Channel switch type 12VDC
Communication port
RS485, Ethernet (Optional)
Operating Temperature
-10 to 55 Degree
Certifications
Our Services
Frequently Asked Questions
What is the scanning speed limit for vehicles using this system?
The system supports vehicle speeds ranging from 1 km/h up to 65 km/h, making it highly versatile for various entry point checks.
What level of image resolution does the camera provide?
The system utilizes an automatic digital line scan CCD camera with a resolution of 5000 * 2048 pixels, delivering high-resolution, undistorted, and complete images of the under-vehicle area.
What is the smallest object size the scanner can clearly identify?
Thanks to its high-resolution scan engine, objects as small as 2mm in diameter under the vehicle can be clearly observed.
Is the Automatic License Plate Recognition (ALPR) system included?
Automatic License Plate Recognition (ALPR) is available as an optional feature to integrate license plate data directly with the scanned under-carriage images.
What are the environmental limits for the embedded screening parts?
The embedded screening hardware is designed to withstand harsh environments, with a storaging temperature range of -25 degrees to +70 degrees Celsius.
What warranty terms are provided with this system?
We offer a standard 1-year warranty on the under vehicle surveillance system to ensure reliable and sustained performance.
