Basic Info.
Camera
Sensor: Line Scan CCD
Storaging Temperature
-25°C to +70°C
Transport Package

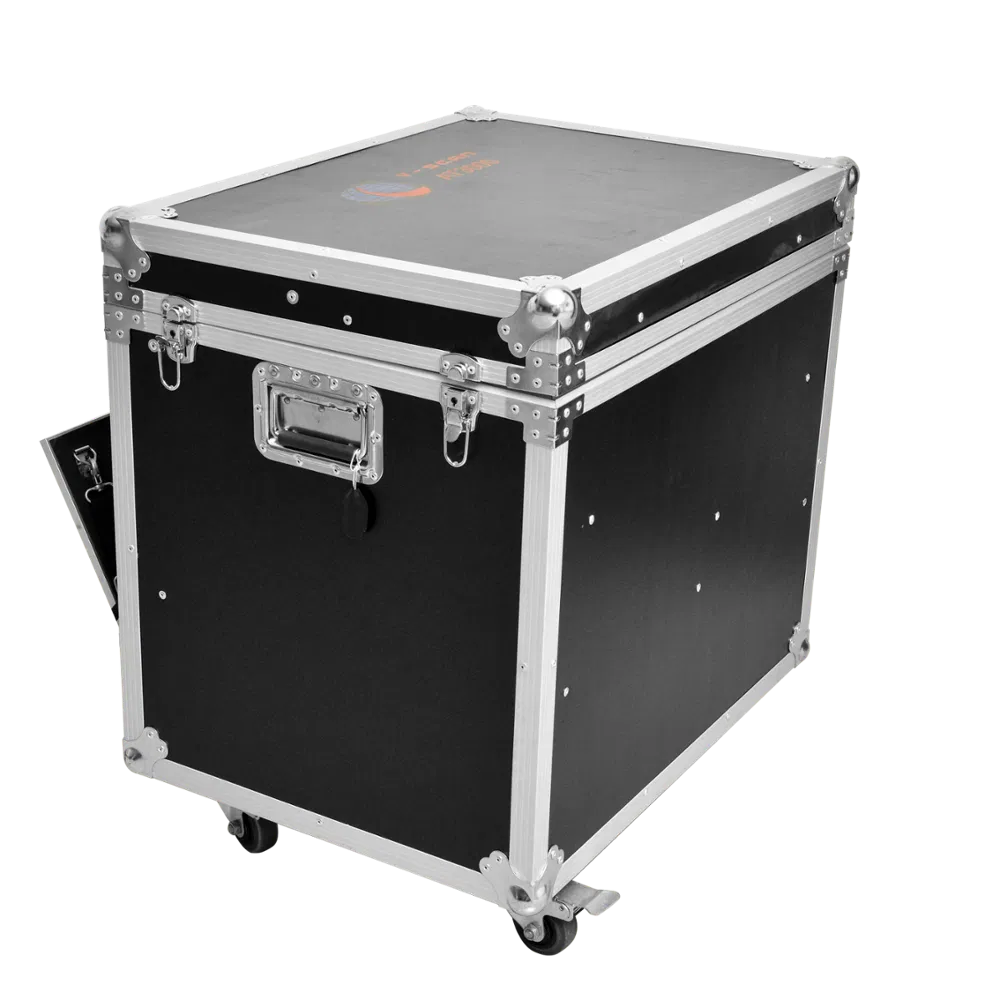

Wooden/Carton
Product Description

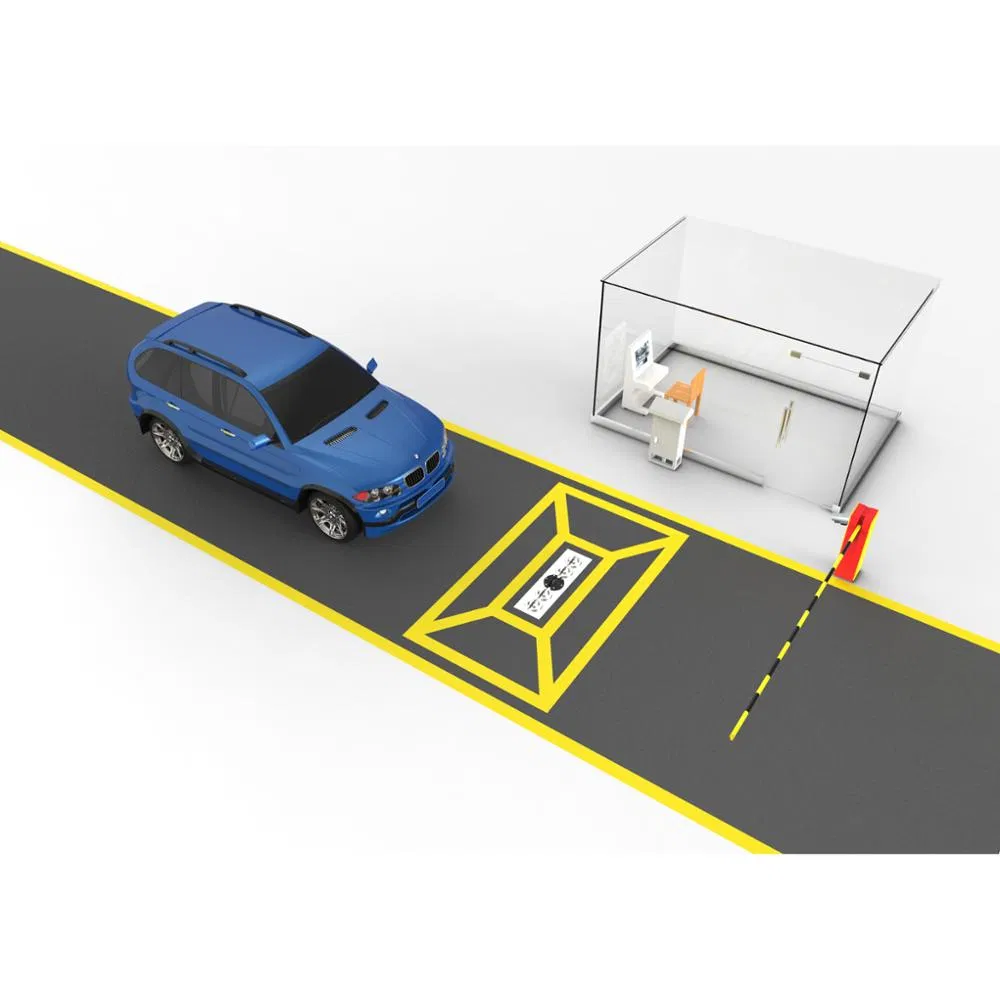

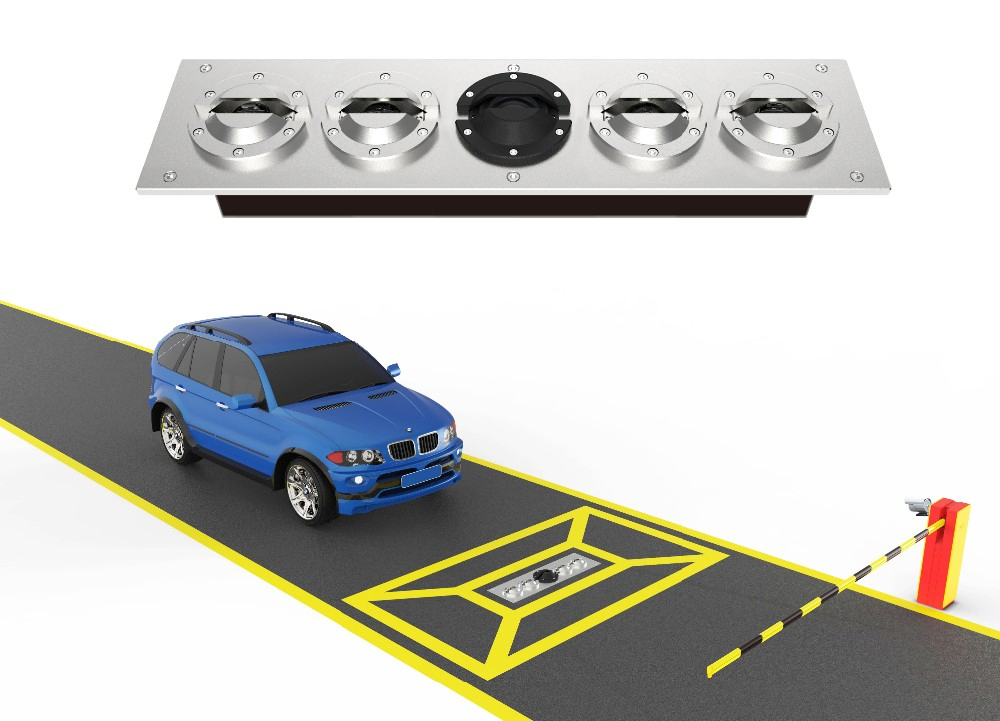

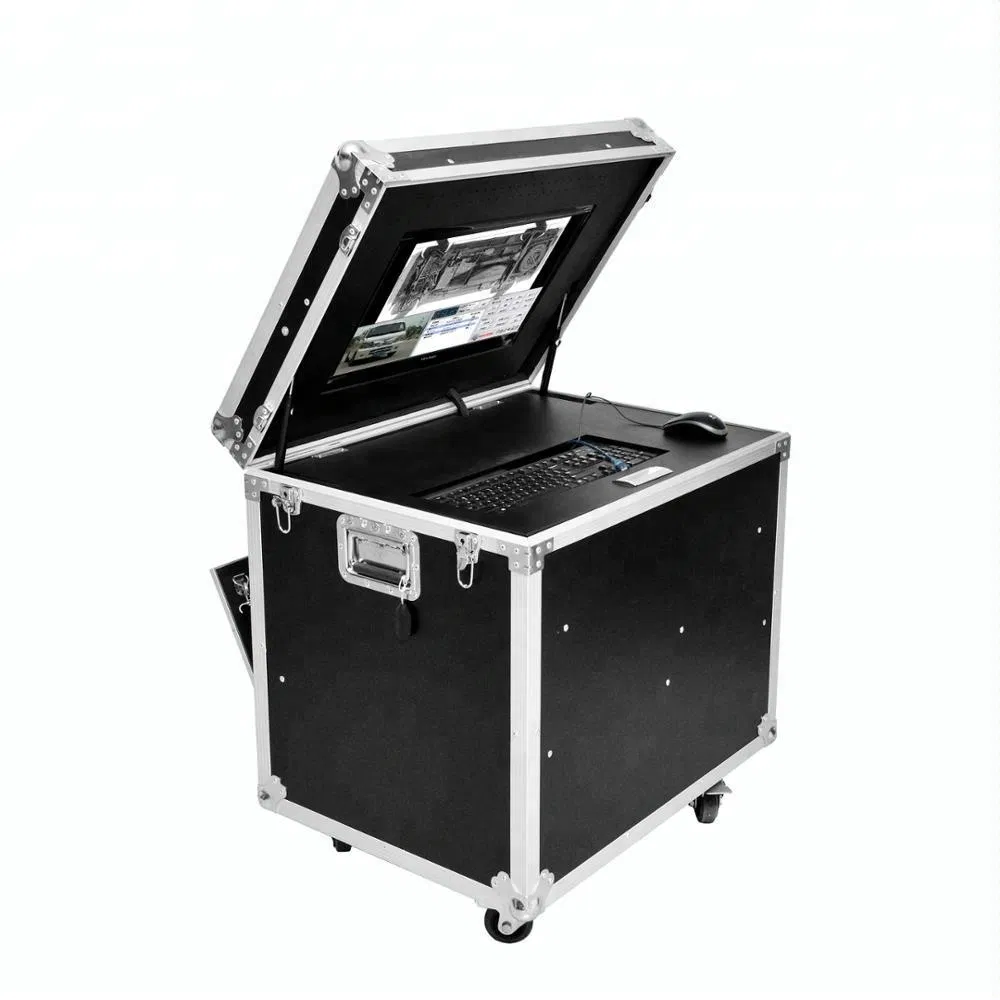

Hot Sale Under Vehicle Surveillance System, Mobile Under Vehicle Inspection System
Key Features:
| Automatic digital line scan camera, with high-resolution and clarity of the image. |
| The complete image of under vehicle scanning, without any omissions. The image is clear, complete, and free of distortion. Objects not less than 2mm in diameter can be clearly observed. |
| Preparation of inspection processes to meet a variety of on-site needs. |
| Multiple scene image monitoring and recording functions. |
| Multi-language user interface design. |
| Strong scalability to easily achieve a variety of system linkage control. |
| ALPR (Automatic Licence Plate Recognition) (Optional) |
| Multiple devices networked control functions (Optional) |

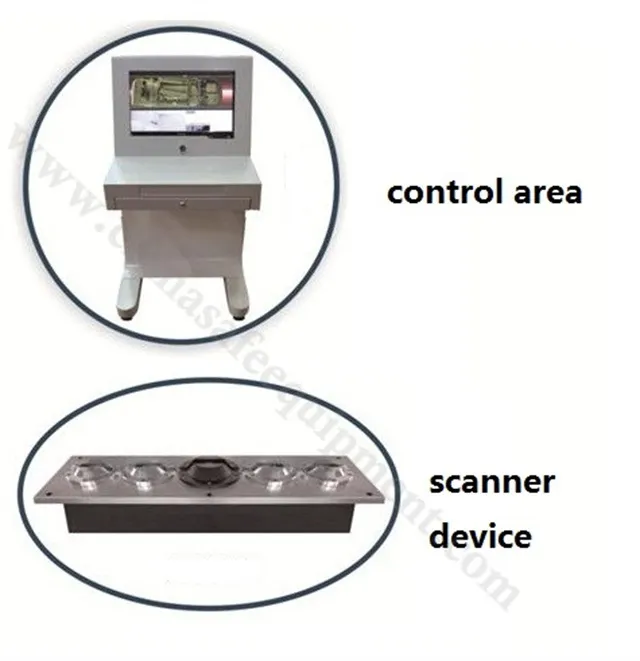

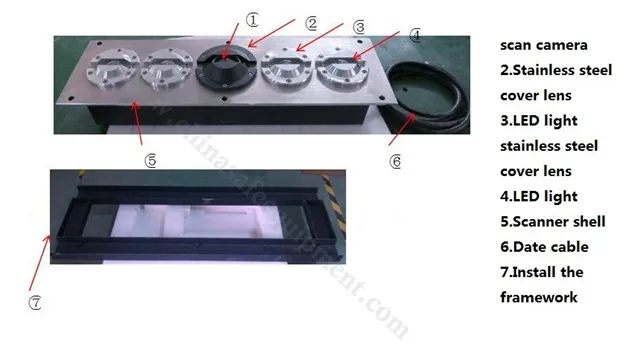

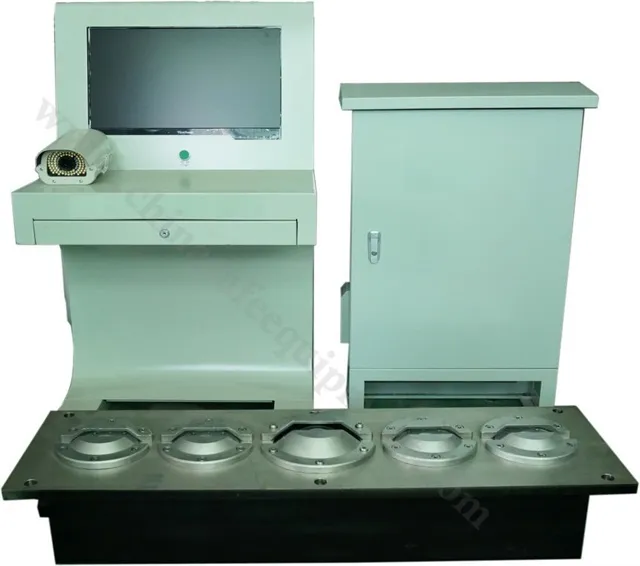

Embedded screening parts
| Camera: |
Sensor: line scan CCD |
| Resolution: |
5000*2048 pixels |
| Power Supply: |
24VDC, 3A |
| Illumination: |
LED, Power Supply: 24VDC, 150W |
| Size: |
1200mm x 350mm |
| Storaging Temperature: |
Range -25 degree to +70 degree |

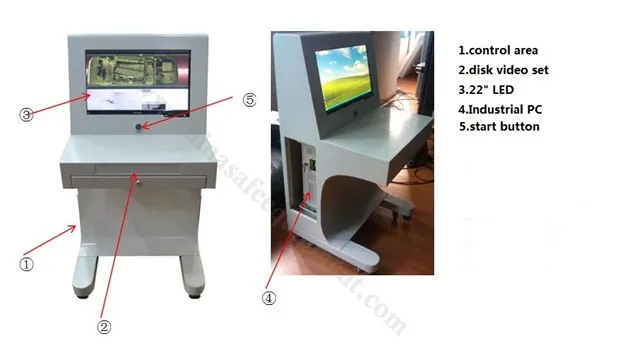

System host
| Brand: |
Grantech (UFO6377H-SP1-953) |
| CPU: |
Intel Core(TM) 2 Duo CPU P8600 @ 2.4GHz or higher |
| Memory: |
2G (optional 4G) |
| Graphics: |
Intel(R) Gen 5.0 Integrated Graphics Engine |
| Hard Disk: |
SATA2 Hard Disk 500G, Dual LAN (At least one Intel Gigabit), USB2.0 (Up to 4 pieces) |
| Monitor: |
22inch LCD, resolution up to 1920*1080 |
| Scene Video Record: |
4 channel, Compression algorithm of scene video: H264 |
Controller
| Input: |
2 channels induction coil |
| Output: |
1 Channel switch type 12VDC |
| Communication port: |
RS485, Ethernet(Optional) |
| Operating Temperature: |
-10 to 55 |
Certifications
Manufacturing & R&D Capability
As a major anti-explosive and security inspection supplier, our manufacturer's self-developed X-ray baggage scanners have a significant market share, and walk-through metal detectors are utilized globally. The enterprise is dedicated to the R&D, production, and sales of high-performance X-ray inspection equipment, security devices, and anti-explosive solutions.
With a robust team including numerous Doctors and Masters specializing in security technology, multiple product lines have been developed. These include X-Ray Scanning Systems, Metal Detectors, Explosive and Narcotics Detectors, Dangerous Liquid Scanners, and Vehicle Inspection Devices. These models have received high recognition and praise from international customers.
Product quality is treated as the lifetime of the enterprise. Every manufacturing process is strictly controlled according to international ISO standards to deliver top-tier security products.
Global Project Cases
We offer comprehensive security solutions and full support for both domestic and international large-scale events to guarantee safe and smooth operations.
Our security solutions have successfully served major global events, international expositions, sports games, national celebrations, and critical transit hubs, delivering high-tech security devices and dedicated on-site services to venues, media centers, and logistics warehouses worldwide.
Our Services
Technical FAQ References
What is the primary function of the Under Vehicle Surveillance System (UVSS)?
The UVSS is designed to scan, inspect, and record the complete undercarriage of various vehicles. It enables security personnel to quickly and accurately identify hidden threats, contraband, explosives, or unauthorized modifications without causing delays at checkpoints.
What vehicle speed range does the scanning system support?
The system is highly flexible and can capture complete, high-resolution under-vehicle images at driving speeds ranging from 1 km/h up to 65 km/h, making it suitable for both slow checkpoints and fast-moving transit lanes.
Is the system image quality clear enough to detect small objects?
Yes, the system utilizes a high-resolution digital line scan CCD camera with up to 5000*2048 pixels. The captured image is complete, clear, and free from distortion, allowing operators to easily observe details or objects as small as 2mm in diameter.
Can the Under Vehicle Inspection System integrate with License Plate Recognition (LPR)?
Yes, Automatic License Plate Recognition (ALPR) is available as an optional add-on. When integrated, the system links the scanned under-vehicle image directly with the vehicle's license plate number for comprehensive database tracking.
How does the system perform under extreme weather conditions?
The embedded screening components are built for durability, featuring an operational storage temperature range from -25°C up to +70°C. The structure is designed to withstand harsh outdoor environments and heavy vehicle loads.
