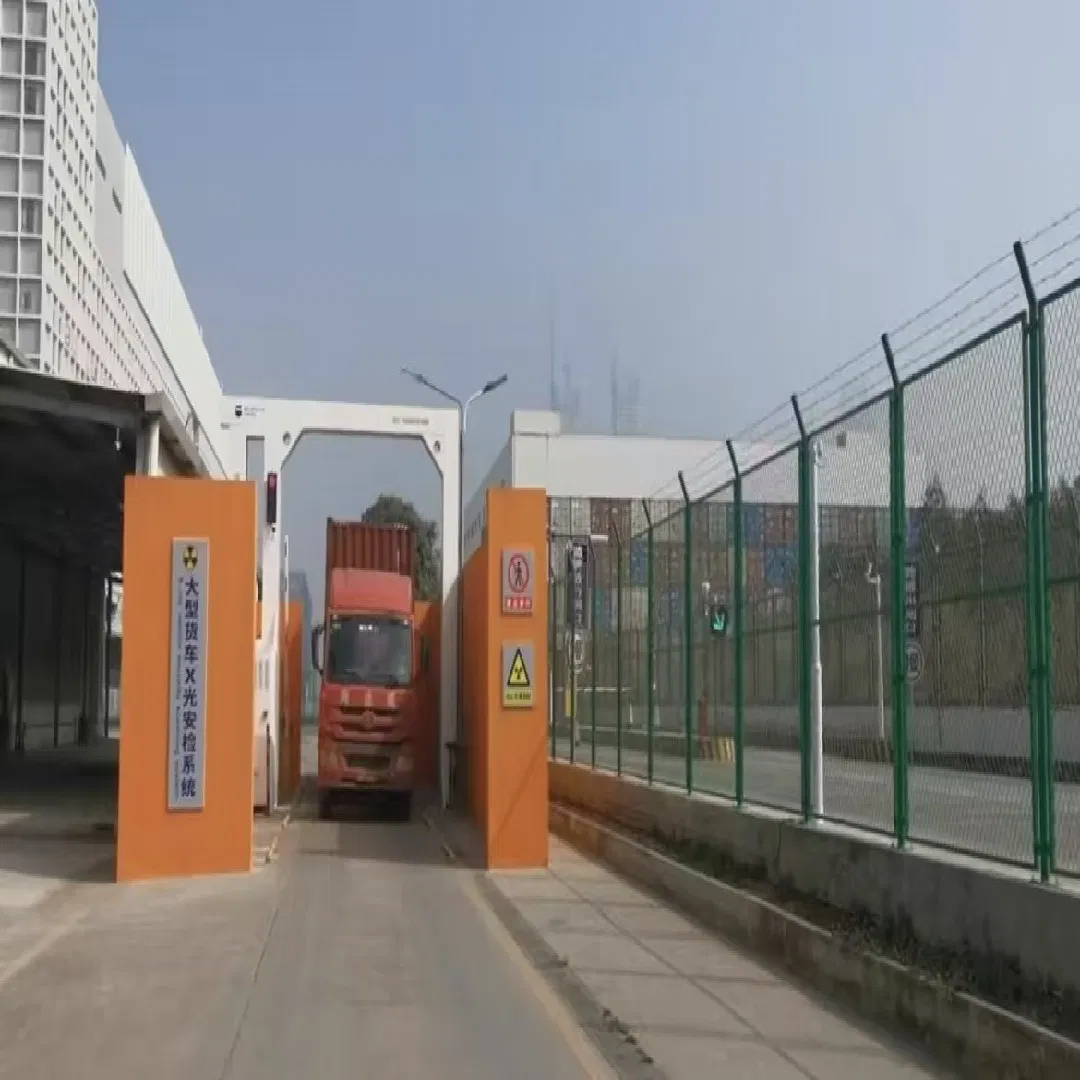

The Ai48002800H is a stateoftheart fixed highenergy Xray inspection system designed for the rapid and thorough screening of trucks, containers, and cargo vehicles at customs, ports, and border crossings. Powered by a 4-6.5 MeV linear accelerator (LINAC), it delivers exceptional penetration of up to 350 mm of steel, enabling operators to detect threats such as explosives, narcotics, weapons of mass destruction (WMDs), and other contraband concealed within dense cargo. The system's Lshaped detector array, featuring CdWO crystals and CMOS conversion, ensures highresolution imaging with clear material discrimination.
Engineered for highthroughput environments, the Ai48002800H achieves scanning speeds of 5 km/h in normal mode and up to 15 km/h in quickcheck mode, processing 120-200 vehicles per hour. Its driverfriendly design allows vehicles to remain in the scanning lane with the driver staying inside - automatic cabavoidance technology ensures radiation safety. The system is modular, easy to install, and requires minimal infrastructure, meeting the most demanding international security standards while offering a compact footprint.
| Feature | Benefit |
|---|---|
| HighEnergy LINAC (4-6.5 MeV) | Penetrates up to 350 mm steel - ideal for dense containers and fully loaded trucks. |
| Exceptional Image Quality | Lshaped CdWOCMOS detector with 1920 pixels, 10bit data width; edge enhancement, pseudocolor, and organic/inorganic stripping. |
| High Throughput | Scans up to 15 km/h, processing 120-200 vehicles per hour - keeps traffic flowing. |
| DriverFriendly & Safe | Cabavoidance scanning allows drivers to remain in the vehicle; radiation dose <1 µSv per scan. |
| Modular & Relocatable | Foldable design for easy transport and reassembly at different sites. |
| AllWeather Operation | IP45 rated, operates from -20°C to +43°C, withstands wind and rain. |
| Comprehensive Safety | 200 mm lead shielding, safety interlocks, 6camera video surveillance, 200W voice broadcast, threecolor warning lights, and siren. |

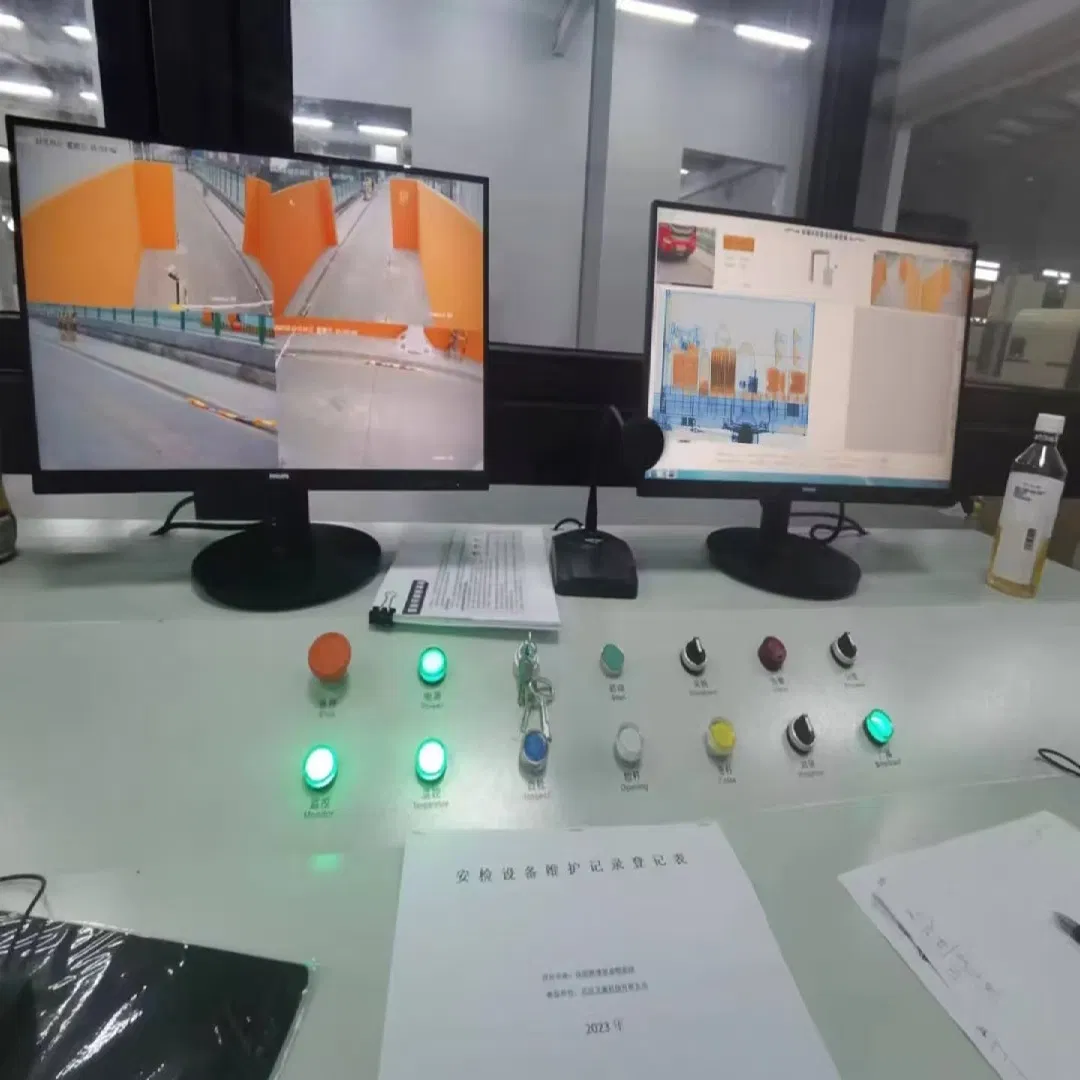

| Advanced Image Processing | Realtime video, histogram equalization, local/super enhancement, brightness/contrast adjustment, zoom, and image retrieval. |
| License Plate Recognition | Automatically captures and archives plate numbers with images for traceability. |
| Large Storage Capacity | 500,000 images standard; HDD backup for data archiving. |
| Global Compliance | Meets WHO, ICRP1032007, China, EU, and US regulations; CE, ISO9001, ISO14001, OHSAS certified. |
| Component | Parameter | Specification |
|---|---|---|
| XRay Source | Type | Linear Accelerator (LINAC) |
| Energy | 4 - 6.5 MeV | |
| Irradiation Direction | Sideilluminated | |
| Cooling | Watercooled constant temperature | |
| Radiation Protection | 200 mm thick lead shielding | |
| Collimator | Electric shutter, ultranarrow slit | |
| Detector System | Detector Type | Lshaped linear array |
| Crystal | CdWO (tungstate) | |
| Photoelectric Conversion | CMOS | |
| Number of Pixels | 1920 | |
| Data Width | 10 bits | |
| Pixel Arrangement | Lshaped line array | |
| Communication | RJ45 Ethernet | |
| Image Processing | Workstation | I7/8G/4TB HDD / 24″ LCD, 20000:1 |
| Software Functions | Edge enhancement, inversion, histogram equalization, color/B&W, organic/inorganic removal, zoom, realtime video | |
| Image Format | JPG, named by scan time | |
| License Plate Recognition | Yes | |
| Data Storage | 500,000 images standard; HDD backup | |
| Equipment Performance | Tunnel Size (W×H) | 5.3 m × 4.4 m |
| Max Vehicle Size (L×W×H) | 18 m × 2.5 m × 4.6 m | |
| Scanning Mode | Cabavoidance; driver stays inside | |
| Throughput | 120 - 200 vehicles/hour | |
| Scanning Speed | 5 km/h (normal); up to 15 km/h (quick check) | |
| Steel Penetration | Up to 350 mm | |
| Spatial Resolution (bare) | <1.5 mm wire | |
| Penetrating Wire Resolution | <3 mm wire behind 100 mm steel | |
| Contrast Sensitivity | <1 mm steel sheet behind 100 mm steel | |
| Radiation Dose | <1 µSv per scan | |
| Operating Temperature | -20°C to +43°C | |
| Storage Temperature | -30°C to +55°C | |
| Humidity | 0 - 95% | |
| Protection Rating | IP45 | |
| Power Consumption | 35 kW (average) | |
| Monitoring | 2MP cameras (6 units) + NVR | |
| Voice Broadcast | 200W microphone, 50W amplifier | |
| Warning | Threecolor safety light + siren | |
| Dimensions & Weight | Overall Size (W×H) | 8.7 m × 7.3 m |
| Weight | 4 tons |
| Sector | Specific Use Cases |
|---|---|
| Customs | Inspect trucks, containers, and cargo for contraband, weapons, and explosives. |
| Ports & Container Terminals | Highthroughput screening of import/export vehicles. |
| Border Crossings | Nonintrusive inspection to detect smuggling and human trafficking. |
| Logistics Hubs | Rapid verification of cargo manifests. |
| Critical Infrastructure | Security screening at entry points of highsecurity facilities. |
