Product Description

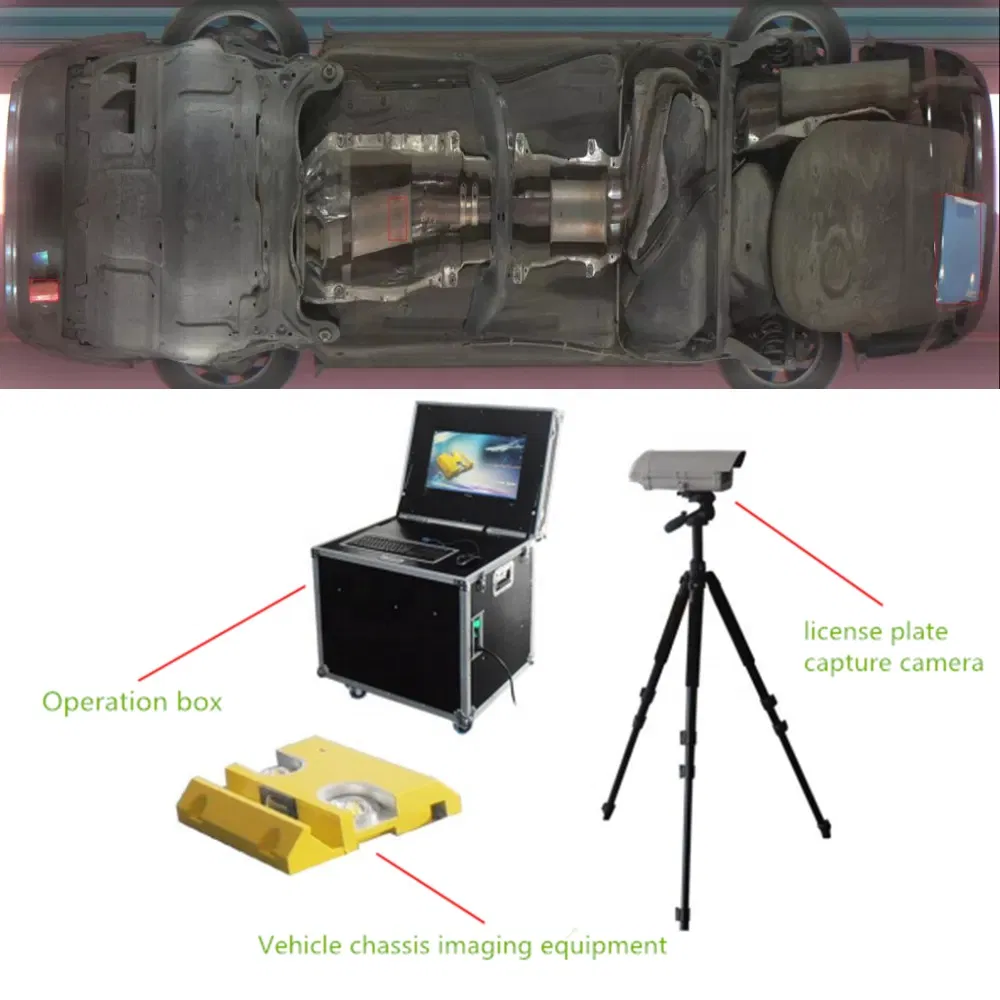

Under Vehicle Inspection System Overview

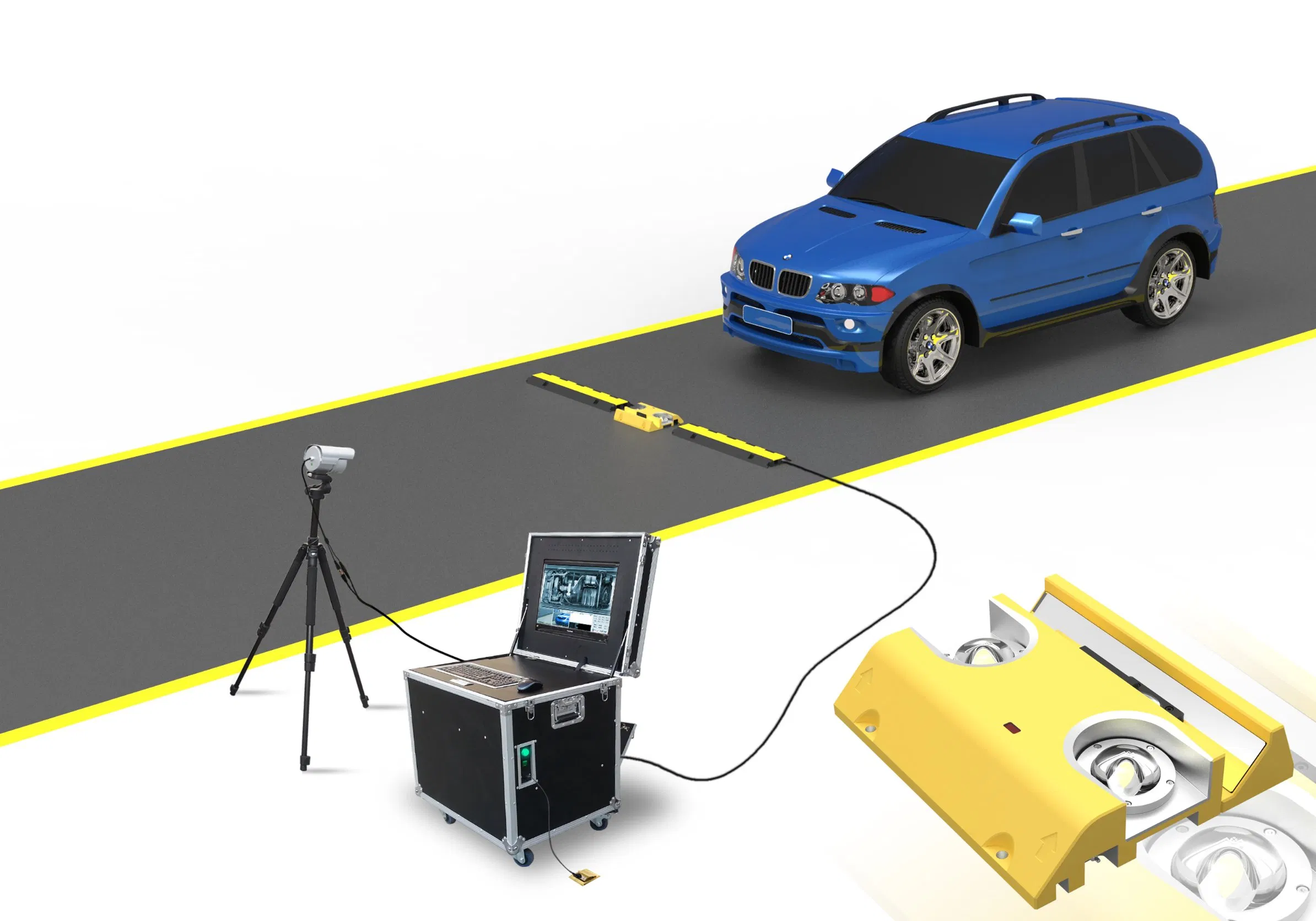

Under vehicle surveillance system with ANPR camera designed for security checks at borders and checkpoints.

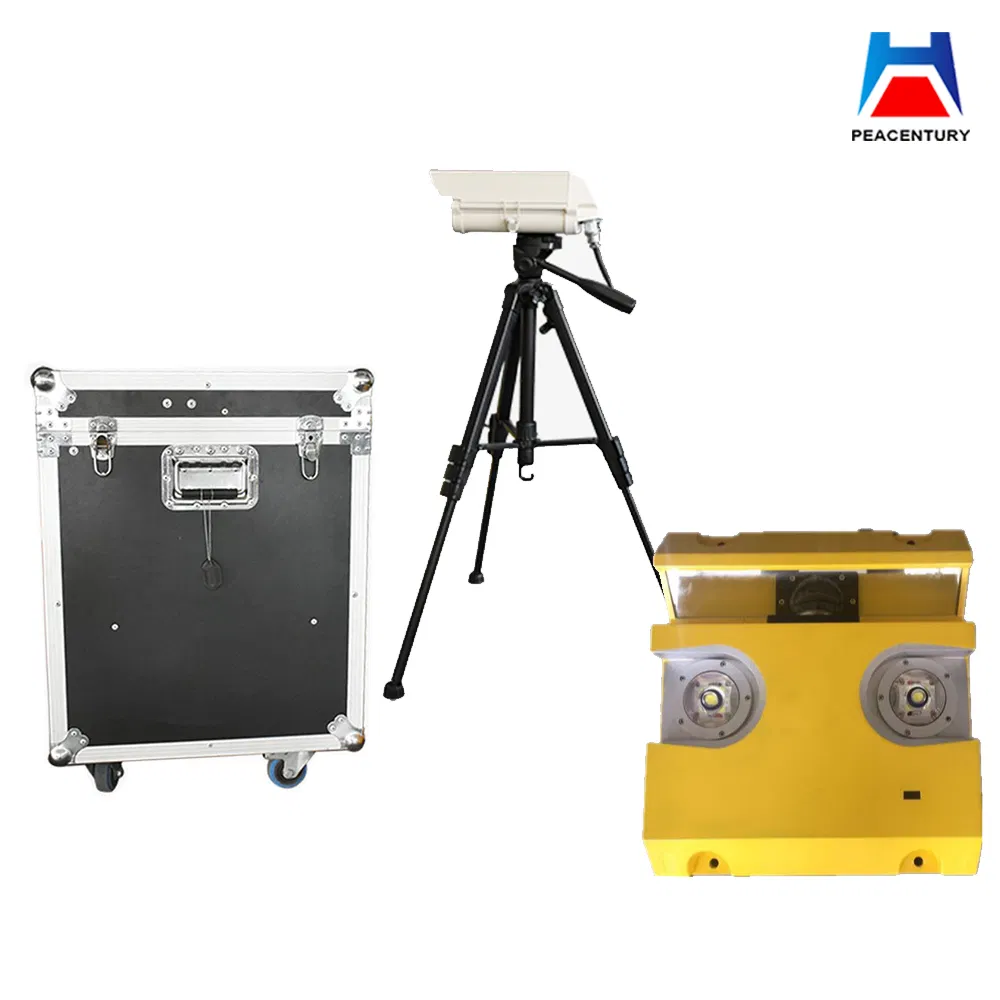

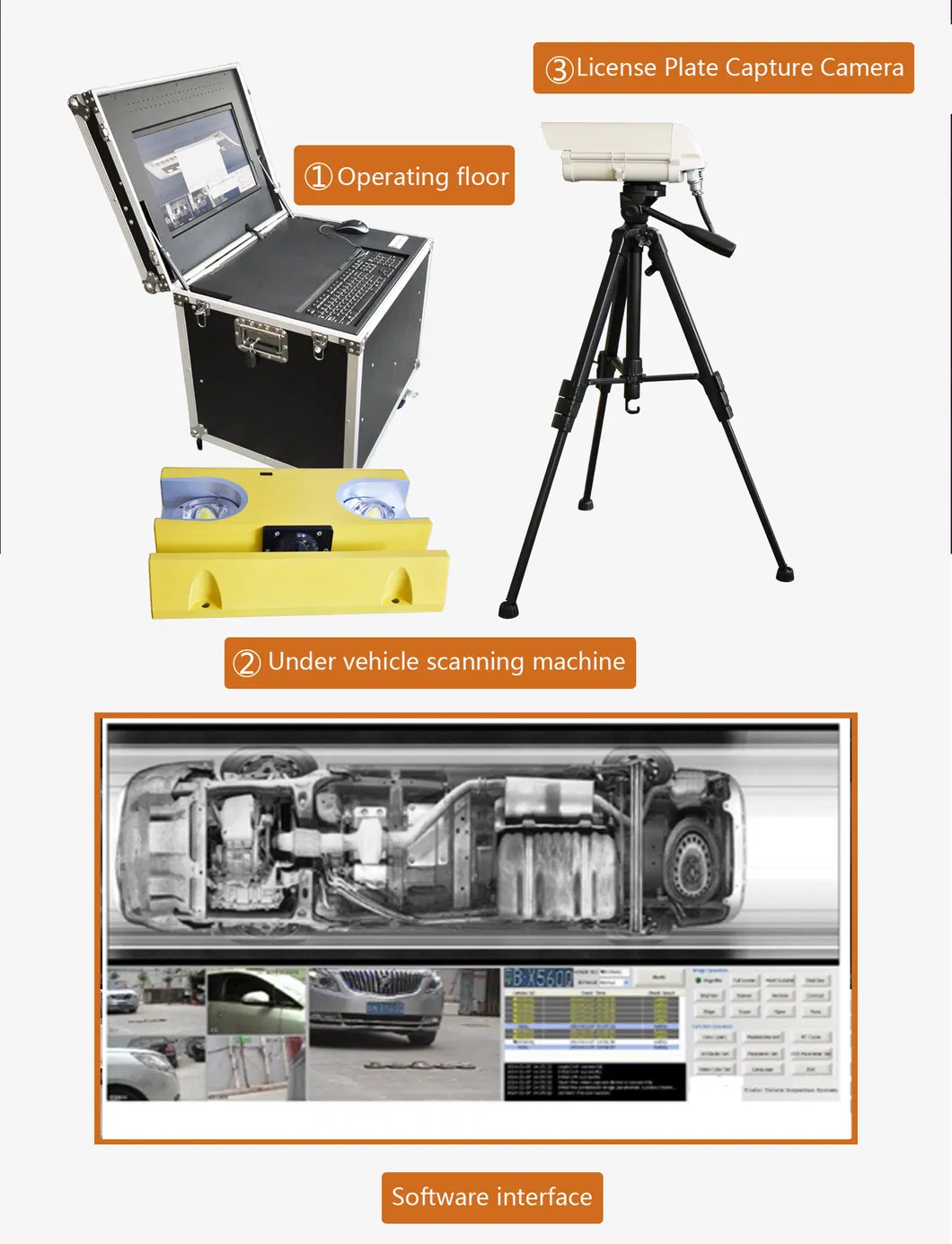

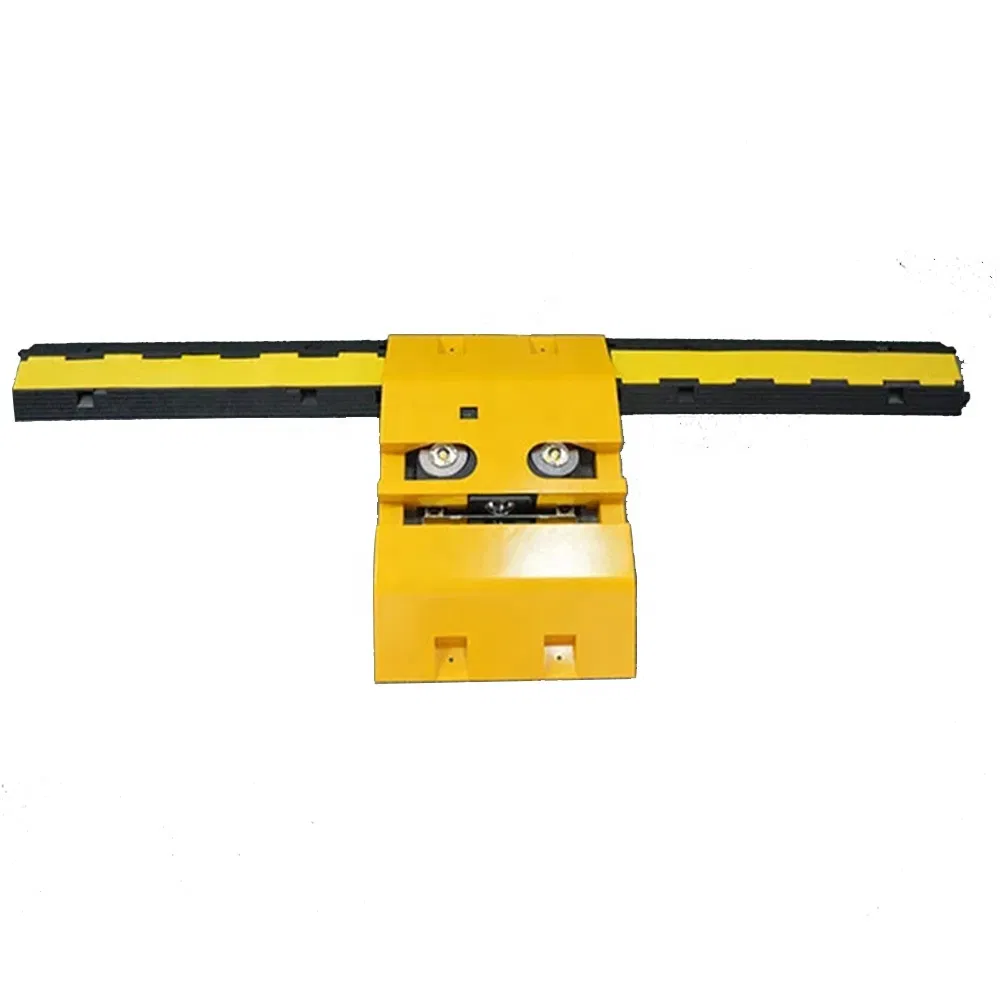

Under Vehicle Inspection System Main Unit

Key Features

Auto digital line scan, high-resolution undercarriage imaging.

High automation, easy to operate and deploy.

Applicable to a wide variety of vehicles with wide vision.

Maneuver scanning completed without vehicle stopping, adapted to different speeds.

Undercarriage images can be stored, retrieved, searched, or compared.

Image processing capabilities: enlarge, stretching, and cutting.

(Optional) ALPR-Automatic License Plate Recognition and RFID technology association.

Technical Specifications

General Specifications
NAME:	Under Vehicle Surveillance System	USING:	Checking Under Vehicle
SCAN RESOLUTION:	2048 Line CCD	CHASSIS LOADING TIME:	< 1 Second
DISPLAY OF SCENE IMAGE:	≥1 Road	RESOLUTION OF BOTTOM IMAGE:	>12000 * 6144
THE MAXIMUM OF SCAN RATE:	18kHz	FIELD OF VIEW:	170 Degrees
AUXILIARY LIGHTING:	160W	SCANNING DEVICE VOLUME:	450 X 400 X 88mm
MONITOR:	22 Bits Real Colors

HPC-M Performance Parameters

Category	Parameter Item	Condition / Unit	Value
Parameters	Store or load time	<	1 second
	Vehicle Image local magnification	>	2 times
	Vehicle Image scaling	times	16
Main Performance	System interface language	(customizable)	English
	Scene image display	≥	1 channel
	Vehicle speed	Suggested speed	1-60km/h (suggest < 30km/h)
Hydraulic System Specs	View angle	degrees	175
	Image Longitudinal resolution	pixels CCD	2048
	Power Supply	Hz	AC110V-240V/50-60

Computer System Specifications

Hardware Component	Details & Specifications
Display	22 inch color LCD Screen
CPU	INTEL core Quad-Core Processor
Motherboard	Dedicated motherboard
Memory	DDR3, more than 4GB
Hard disk	500G high-speed hard disk
Graphics card	DDR3, 192BIT independent graphics
Appearance	Stainless steel composite material
Working current	3A
Working temperature	-20 ºC ~ 55 C

Frequently Asked Questions (FAQ)

1. What is the image scanning speed of this under vehicle surveillance system?

The system features high scanning and loading efficiency, where the undercarriage image store or load time is completed in less than 1 second, supporting vehicles passing through at speeds up to 60 km/h (recommended speed is less than 30 km/h).

2. What kind of image resolution does the system support?

The scanning system utilizes a 2048 Line CCD scan resolution, delivering a high-quality bottom image resolution of greater than 12000 * 6144 pixels.

3. What is the viewing angle of the scanning camera?

The system provides a wide view angle of 170 to 175 degrees, ensuring comprehensive coverage and visibility of the vehicle's entire undercarriage.

4. Can this system integrate with Automatic License Plate Recognition (ALPR)?

Yes, ALPR (Automatic License Plate Recognition) and RFID technology are available as optional additions, allowing for associative storage of vehicle details alongside undercarriage scan records.

5. What are the operating environment requirements for the system?

The computer control system has an operating temperature range of -20 ºC to 55 ºC, and runs on a standard AC110V-240V/50-60Hz power supply.
