Basic Info.
Model NO.H2D-300
Screen Size7"
Waterproof GradeIP66

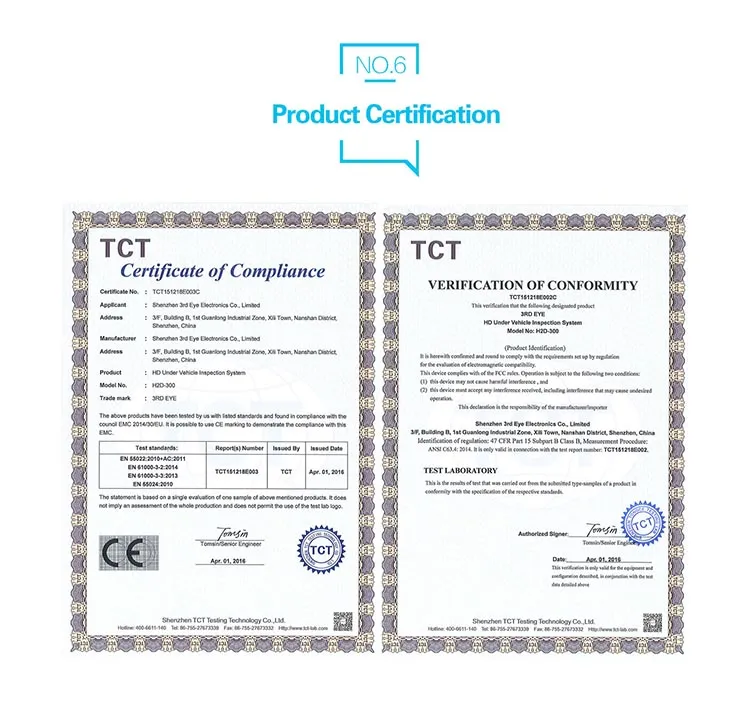

CertificationRoHS, CE, FCC
Warranty24 Months
MaterialAluminum
Product NameDigital HD Inspection Camera System
Sensor 11/3 CCD
Pixel3.0 Mega:2304X1536
Telescopic Pole2m
Display7" HD TFT LCD Screen
HD Video OutputHDMI:1920*1080
Battery7500mAh
Video Compression FormatH.264
Lamps16PCS LED
Camera Numbers2
Transport Package1 PCS/ Color Box
SpecificationCE, RoHS
Production Capacity5000PCS/Month
Product Description
Advanced Portable 5MP Under Vehicle Inspection Camera System for Security Surveillance UVIS
Digital HD inspection camera System/ under vehicle inspection camera system/dual HD camera inspection camera
Model number: H2D-300
Why Choose This Product ?

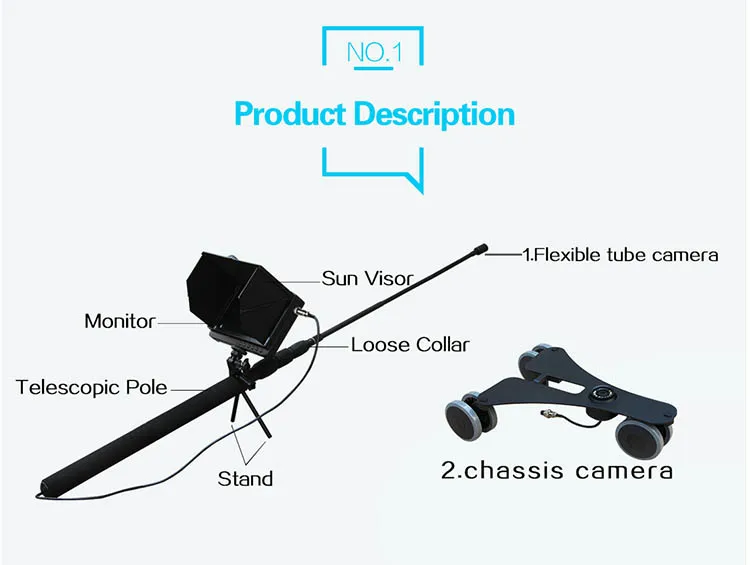

The world's first dual digital camera inspection system
7" 1080P full HD inspection camera dvr for under vehicle and overhead place checking.
1st camera: 3.0 Mega 16 LED camera with shock-resistant design.

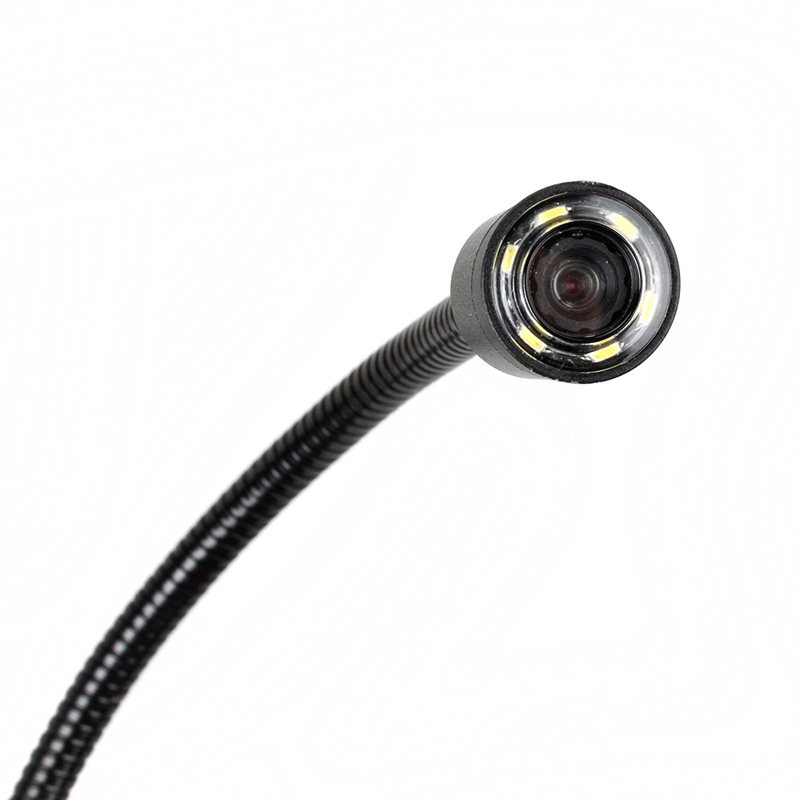

2nd camera: 3.0 Mega 6 LED camera Φ18mm with 0.5m flexible pole.

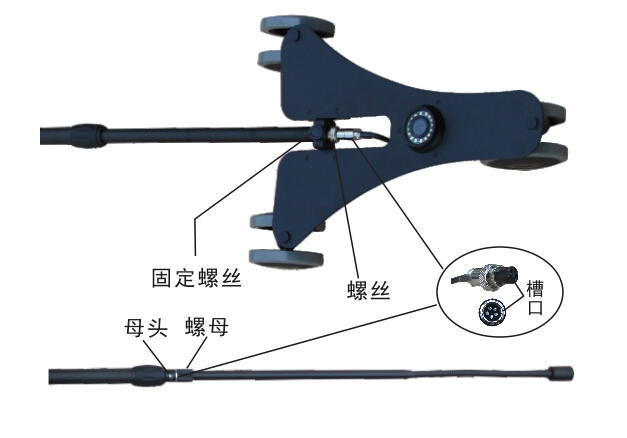

One camera comes with goose neck pipe, thus you can inspect Attic and loft, narrow pipe and so on;

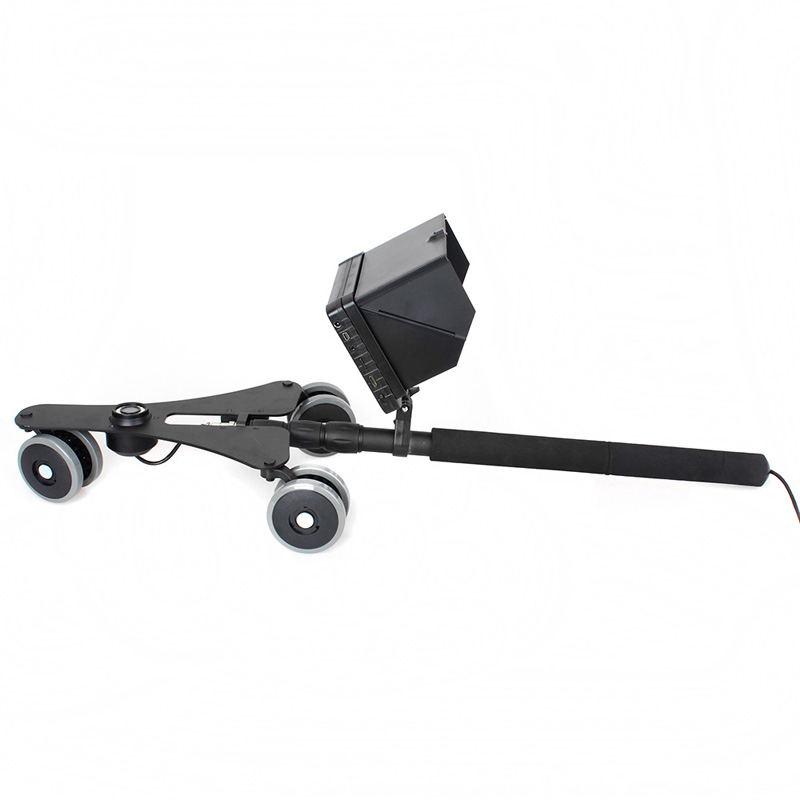

Another comes with 360degree all Terrain wheels, thus you can easily probe under car, under boat...
2m Aluminum telescopic pole without joggle. Get The Door Peephole Camera Kit Now!! This item is not only a machine, its multiple functions extend your hand and eyes for better view.
Description:

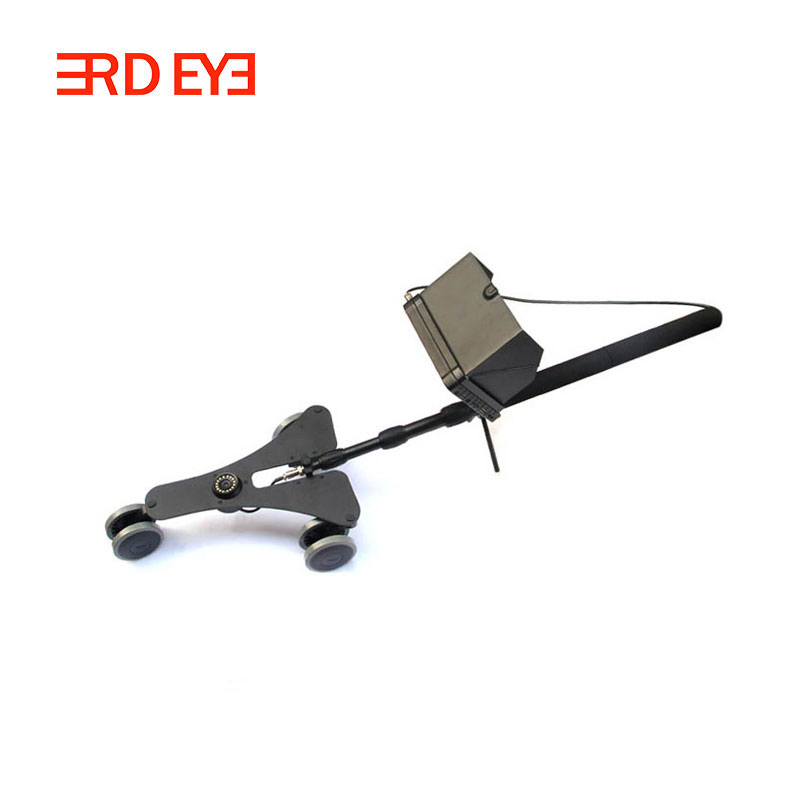

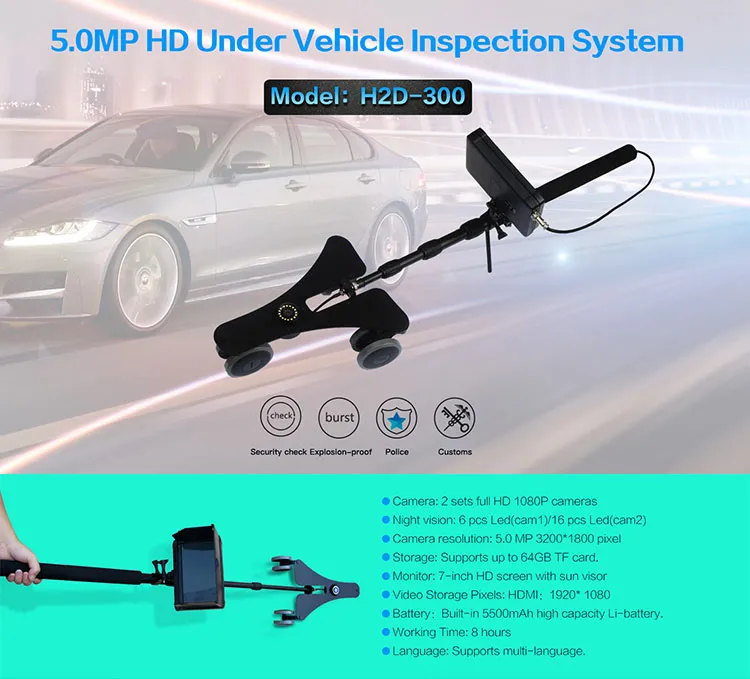

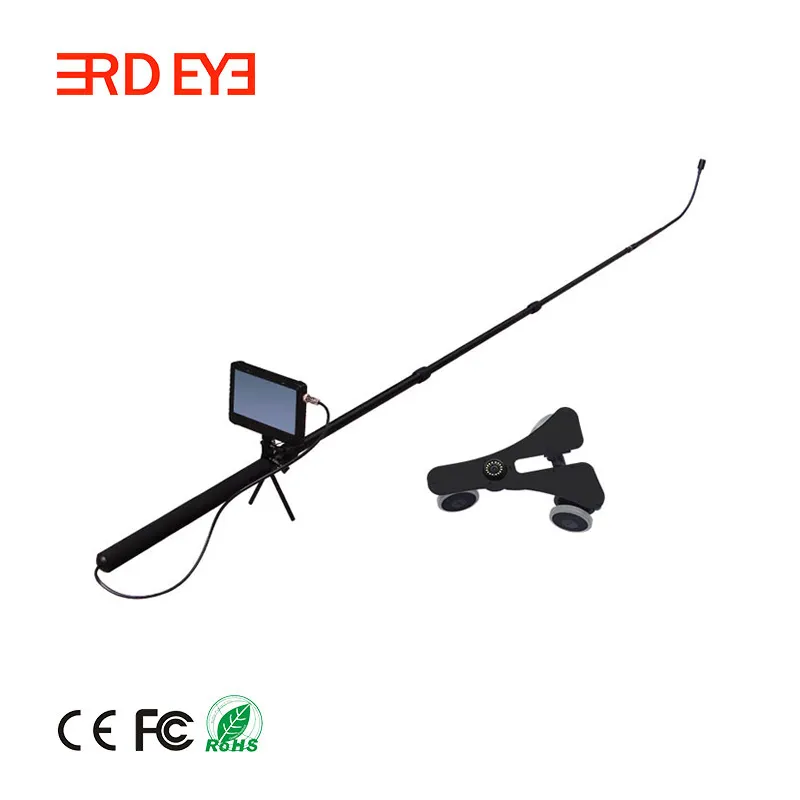

The latest H2D is a multifunctional 360degree rotating 7" Vehicle inspection camera monitor system. It is a real 1080P full hd vehicle checking camera.

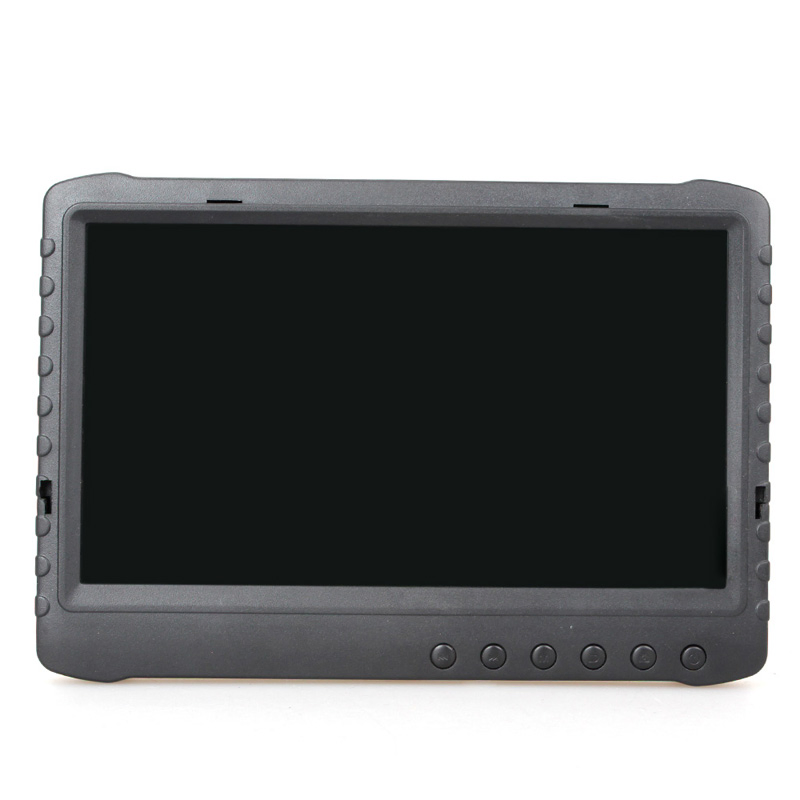

- 7" hd color LCD screen to display live feed at the same time.
- Support 64GB SD card storage.
- Support Photo, Video and Playback, no any delayed. Good photo and video.
- One-button open style patented sunshade and 5000mAh battery+10hours working time make your outdoor working more easy and comfortable.

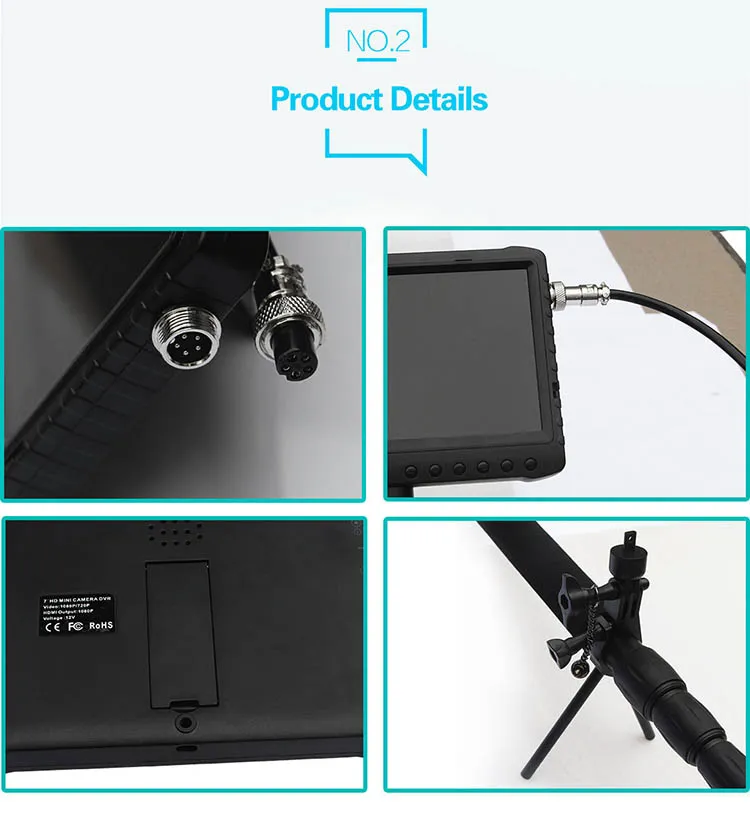

- LEMO HDMI connector, it is durable and won't fall off easily.
- 2 meters telescopic pole camera, extend your hands and eyes to every narrow corner to help to take photo or make video easily.
- 3.0 Mega 16 LED camera with shock-resistant design.
- Durable Omni-directional wheels suit for all kinds roads.
- Pressure-proof aluminium alloy case good for carry.
Features:
- 1080P HD mini under vehicle inspection camera DVR system
- Double HD digital camera for checking.
- 1st camera: 2.5Mega 16 LED camera with universal wheel.
- 2nd camera: 3.0 Mega 6 LED camera Φ18mm with 0.5m flexible pole.
- Universal wheel with wear-resisting tires.
- Reinforced design passed 10000 times crash testing.
- 7 inch monitor with sunshade.
- Support 64GB storage.
- Support HDMI video output.
- Support H.264 Video Compression Format.
- 5000mah li-battery, 8 hours working time.
- 2m Telescopic Survey Pole for all-purpose usage.
- Top grade aluminum alloy case.
- Excellent video and photo.
Specification of H2D-300
| Digital camera for wheels tray |
Optical Element |
1/2.5 CMOS Sensor SONY |
| Optical Total Pixels |
2.5 Mega :2000(H)×1121(V) |
| CMOS Sensor Size |
5.6mm(H)×3.14mm(V) |
| LED lamps |
16 pcs LED lamps high light |
| Sensitivity |
0.08Lux/F1.2 |
| Lens & View angle |
3.6mm F1.2 (H)90° |
| HD Video Output Interface |
FPD-LinkIII |
| Wheels on the tray |
Omni-directional wheel |
| Dimension & Weight |
37 x 46mm, 35g(only camera) |
| Cable(5 Cores High-Speed Line) |
Diameter:3.5mm Length:2.7 meters |
| Mini camera for soft metal pipe |
Optical Element |
1/3 CMOS Sensor |
| Optical Total Pixels |
3.0 Mega:2304(H)×1536(V) |
| CMOS Sensor Size |
5.07mm(H)×3.38mm(V) |
| LED lamps |
6 pcs LED lamps high light |
| Sensitivity |
0.2Lux/F1.2 |
| Lens & View angle |
0.5mm F1.2 90° |
| HD Video Output Interface |
FPD-LinkIII |
| Dimension & Weight |
18 x 28mm, 10g |
| Cable(5Cores High-Speed Line) |
Diameter:3.5mm Length:3meters |
| Flexible pipe length |
162.5px of soft metal pipe (total: 1250px) |
| Telescopic Pole |
Constriction Length:950px |
Unfolded Length:4750px |
| DVR 7" SCREEN |
HD Video Output |
HDMI:1920* 1080;1280*720 |
| Video Storage Pixels(16:9) |
HDMI:1920* 1080;1280*720 |
| Video Compression Format |
H.264 |
| Video Storage |
AVI |
| HD Digital Video Input Interface |
FPD-LinkIII |
| Audio Frequency Range |
20HZ-20KHz AAC |
| Audio Compression Format |
AAC |
| Photo Format |
JPG 3.15 Mega :3200(H)×1800(V) |
| Storage External SD card |
TF card 1GB-64GB(Optional) |
| Operating System |
Windows & Mac OS |
| Port |
USB 2.0 |
| Language |
Multiple |
| Voltage |
DC:7-24V USB DC:5V |
| Current(Monitor mode) |
600 mA |
| Current(Video mode) |
700 mA |
| AC Adapter |
DC 12V 1A |
| Built-in Battery |
Li-battery 5000mAh |
| Record time |
8 hours |
| Dimension: |
177mm x120mm x 20mm |
| Sunshade |
One-press open sunshade |
| Weight |
350 g |

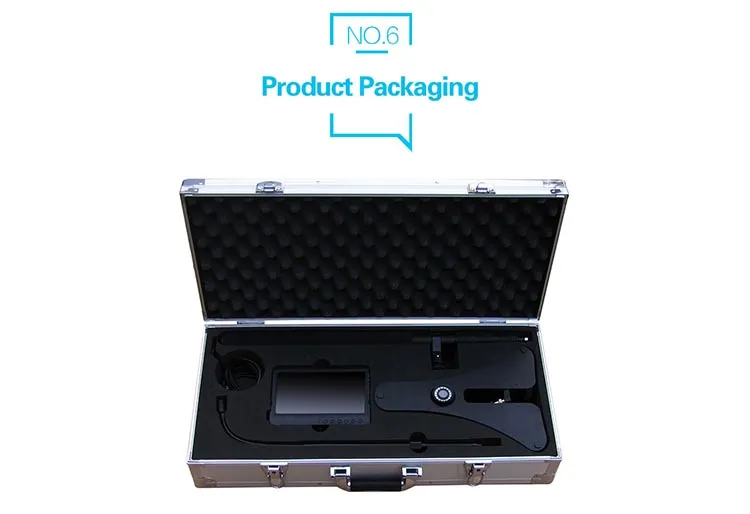

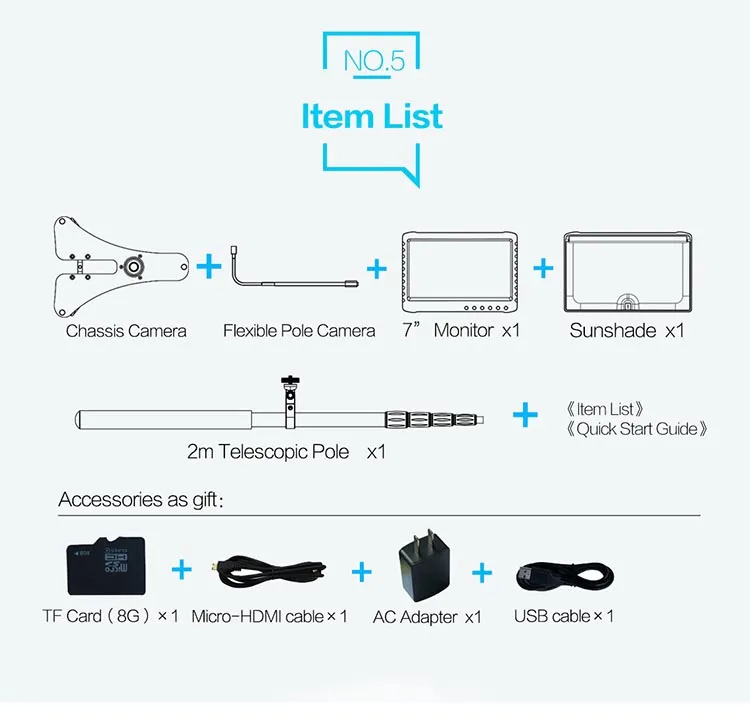

Package Contents
- 1080p hd camera with wheels x1
- Waterproof camera with goose neck pole x1
- 7" HD monitor x1
- 2m Pole x1
- AC adapter x1
- User manual x1
- Brushed aluminum case x1
Frequently Asked Questions

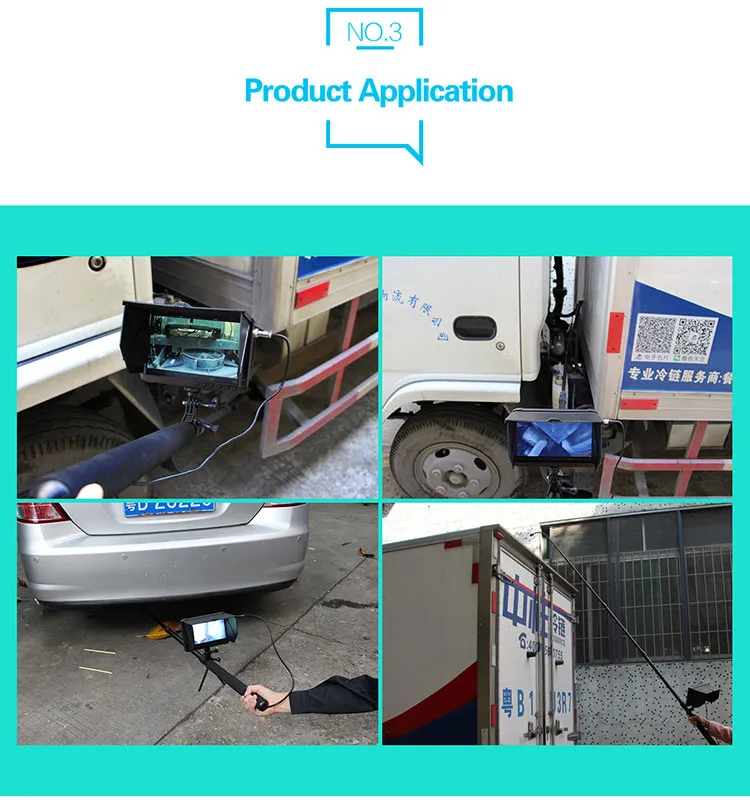

What are the primary applications for this inspection camera system?
This digital HD inspection camera system is highly versatile. It includes one camera with wheels designed specifically for under-vehicle inspections (cars, boats, etc.) and a second camera with a flexible gooseneck pipe for attic, loft, and narrow pipe checking.
What is the battery life and charging specifications?
The DVR system comes equipped with a built-in 5000mAh rechargeable Li-battery, supporting up to 8 hours of continuous video recording and working time. It is charged via a standard DC 12V 1A AC adapter.
How long can the telescopic pole extend?
The lightweight, durable aluminum telescopic pole has a collapsed length of 950px and can unfold to a maximum reach of 4750px (approximately 2 meters), allowing you to safely survey high or hard-to-reach areas.
Does the system support video recording and external storage?
Yes. The system supports full 1080P HD video recording and high-resolution JPG photos. It saves files in AVI format and supports external TF cards from 1GB up to 64GB.
Is the camera waterproof and suitable for rugged environments?
The system features an IP66 waterproof rating for protection against water and dust. The under-vehicle camera is designed with a shock-resistant structural tray and wear-resistant tires, which have passed 10,000 times crash tests.
