Features 4 independent, user-configurable CAN FD channels for simultaneous monitoring and data acquisition from multiple bus lines or vehicle functional domains.
Supports local data logging onto a high-speed SD card. The configuration software allows setup of various intelligent recording modes: long-duration, conditional, pre-trigger, and timed recording.
Recorded data can be saved and converted into nine standard formats (BLF, ASC, CSV, etc.) and is fully compatible with advanced automotive bus analysis software suites ZXDoc/ZCANPRO for in-depth offline analysis, DBC parsing, and diagnostics.
Includes a dedicated Trigger button to mark specific bus message data in real-time during testing, enabling rapid identification and localization of intermittent faults within the recorded files.
Built with a durable metal housing for harsh environments. Features channel isolation for protection and is designed for reliable operation across a wide temperature range with a wide DC input voltage.
The series undergoes rigorous anti-vibration and harsh environment testing, ensuring stable performance in demanding applications like vehicles, ships, and industrial machinery. The series is certified as a High-Tech Product.
Data collection and fault analysis for traditional and New Energy Vehicles (NEVs).
Recording vehicle bus data for maintenance, analytics, and troubleshooting.
Monitoring and fault detection in train control and signaling systems.
CAN(FD) communication logging in wind turbines, elevators, and heavy construction equipment.

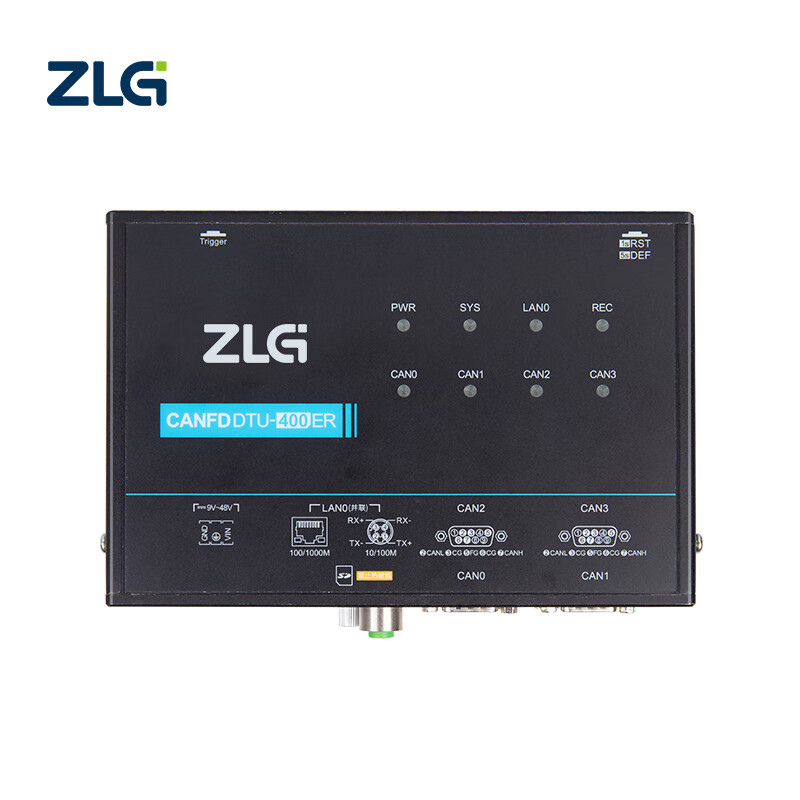

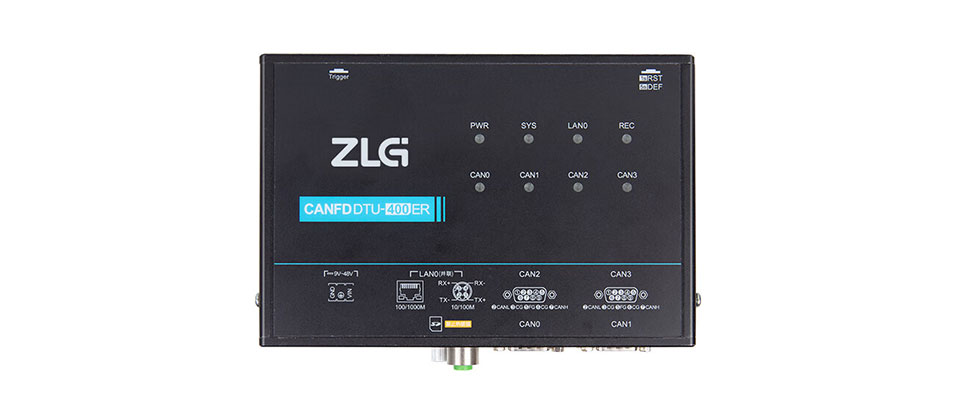

It is an industrial-strength automotive CAN FD data logger designed for long-term, reliable offline recording of CAN(FD)-bus data, functioning as an automotive black box for troubleshooting and system evaluation.
No, this specific model (CANFDDTU-400ER) is designed for high-capacity local logging onto a high-speed SD card and does not feature built-in 4G cellular or WiFi capabilities for real-time cloud data transmission.
The recorded data can be converted into nine standard industrial formats, including BLF, ASC, and CSV, allowing seamless analysis in professional software tools.
The dedicated physical Trigger button allows testing personnel to mark specific events or errors in real-time. This helps engineers easily locate and analyze specific intermittent faults in the recorded logs later.
The device is configured using ZCANConfigTool/CANDTU software, and the recorded data is fully compatible with professional analysis and diagnostic software suites, including ZXDoc and ZCANPRO.
Yes, the CANFDDTU-400ER is built with channel isolation protection and a rugged metal housing, allowing it to perform reliably within a wide temperature range, typically from -40°C to +85°C.
