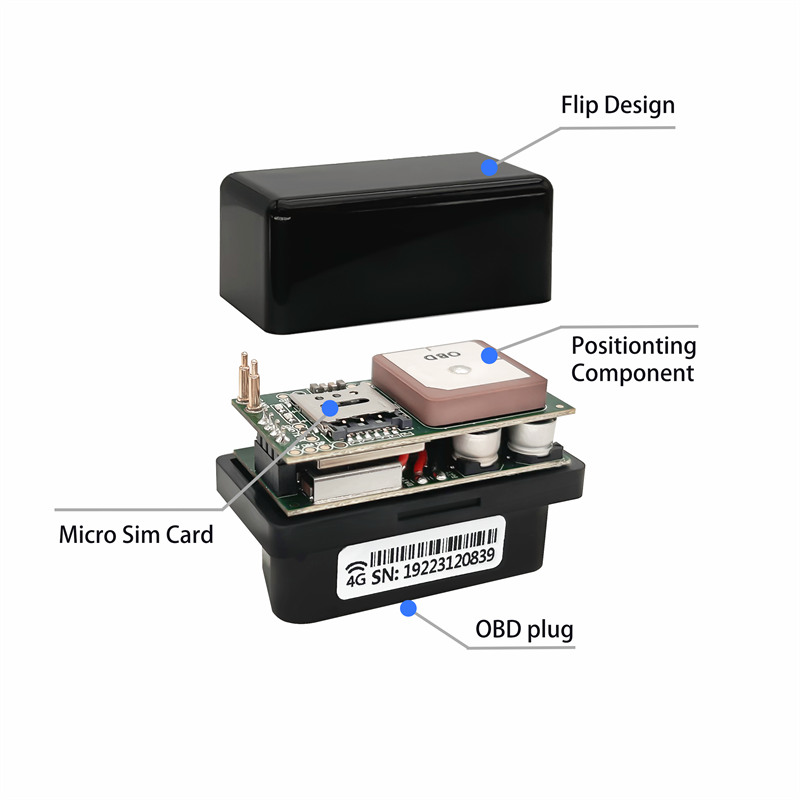

YOGU YG-OBD Customizable Fleet Management Gps Data Logger Gps tracker Made in China tracker 4G

Specification

Item	Value
Type	Wireless, build-in, Mini
Placement	Windshield, Center Console
Positioning Mode	GPS+Beidou+LBS triple positioning
Track View	PC, IOS APP, Android APP
Brand Name	OEM
Model Number	YG-OBD
Use	Motorcycle, Automotive
Working voltage	12-36V DC
First location time	Cold start: 32 seconds average
Battery	55mAH (3.7V)
Transfer Protocol	TCP
electric fence	TBD
Working temperature	-20°C ~ +60°C
Storage temperature	-20°C ~ +70°C

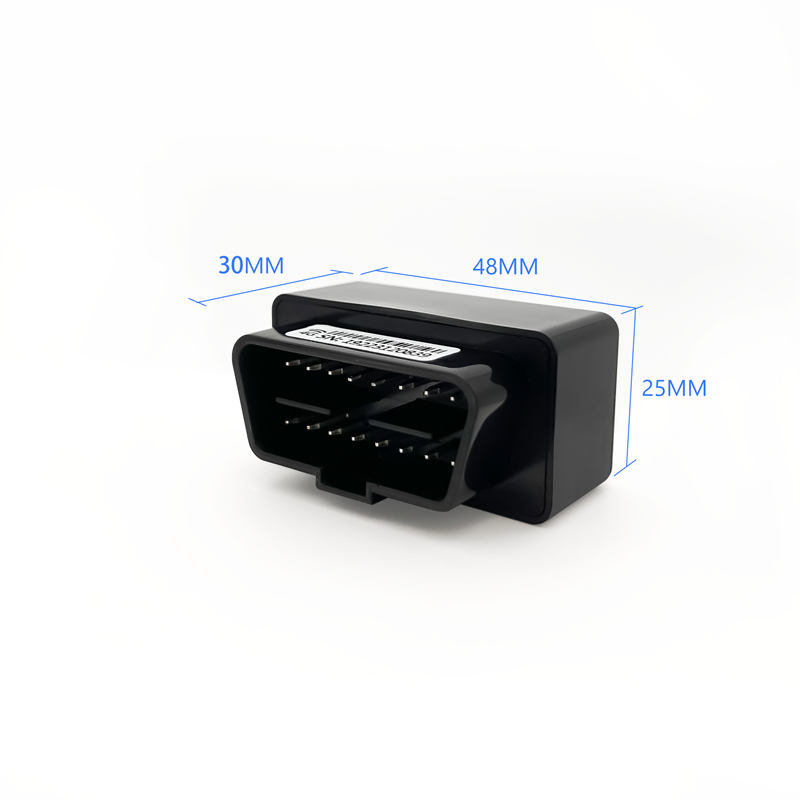

Dimensions	L48MMW25MMH30MM
weight	30.8g (including battery)
Sensitivity	Cold start: -145 dbm Warm boot: -156 dbm Warm start: -145 dbm Navigation: -160dbm Tracking: -162 dbm
Data reporting	Updates GPS data in real time and supports customer customization
GSM/LTE Frequency	LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41

Product Description

About Us

Exhibition

Certificate

Logistics

FAQ

Q1: What positioning modes does this device support?

A1: It supports GPS, Beidou, and LBS triple positioning modes for high-precision and reliable location tracking.

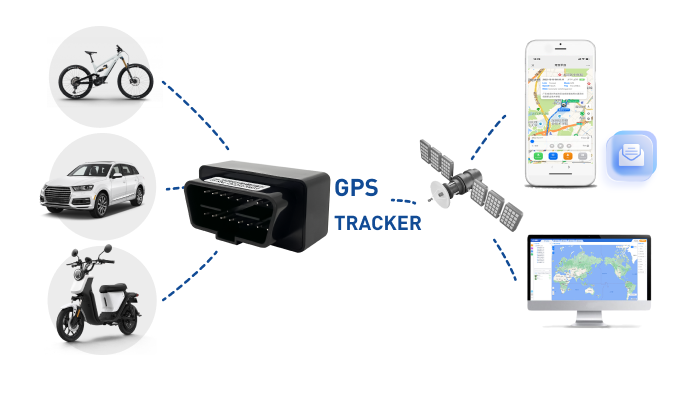

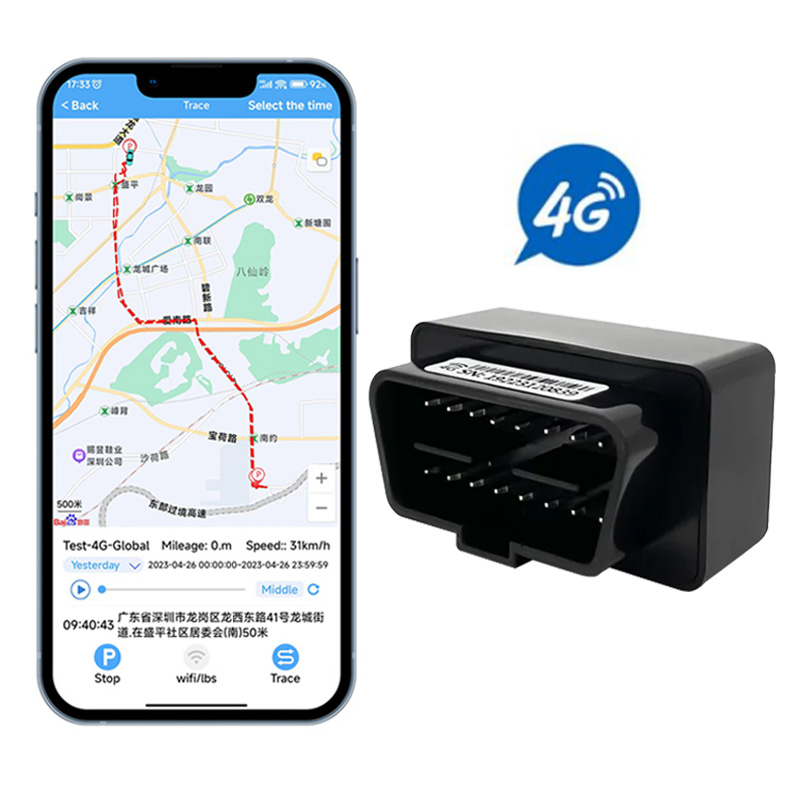

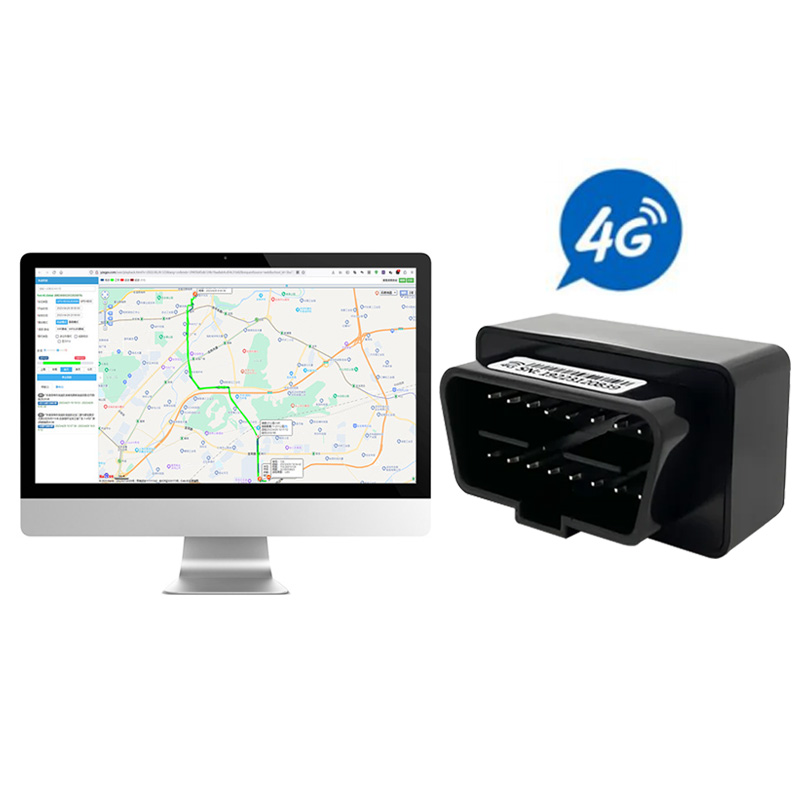

Q2: How can I track my vehicles using this device?

A2: You can easily monitor location details and track view history via PC browsers, iOS apps, and Android applications.

Q3: What is the operating voltage range for installation?

A3: The working voltage range is 12-36V DC, making it highly compatible with both motorcycles and automotive vehicles.

Q4: Does the tracker have a backup power supply?

A4: Yes, it is equipped with a built-in 55mAH (3.7V) rechargeable battery to ensure continuity in case of main power disconnection.

Q5: Which LTE frequency bands does the device support?

A5: It supports LTE-FDD bands B1/B3/B5/B8 and LTE-TDD bands B34/B38/B39/B40/B41 for wide networks coverage.

Q6: Can the data reporting interval be customized?

A6: Absolutely. The tracker updates GPS data in real-time and fully supports custom settings to meet specific customer requirements.
