Multipoint Data Logger Gsm/gprs Gps Tracker Gps Measuring Device 4 Pulse Channels 4G Black Electric Automotive Cloud Storage LTE

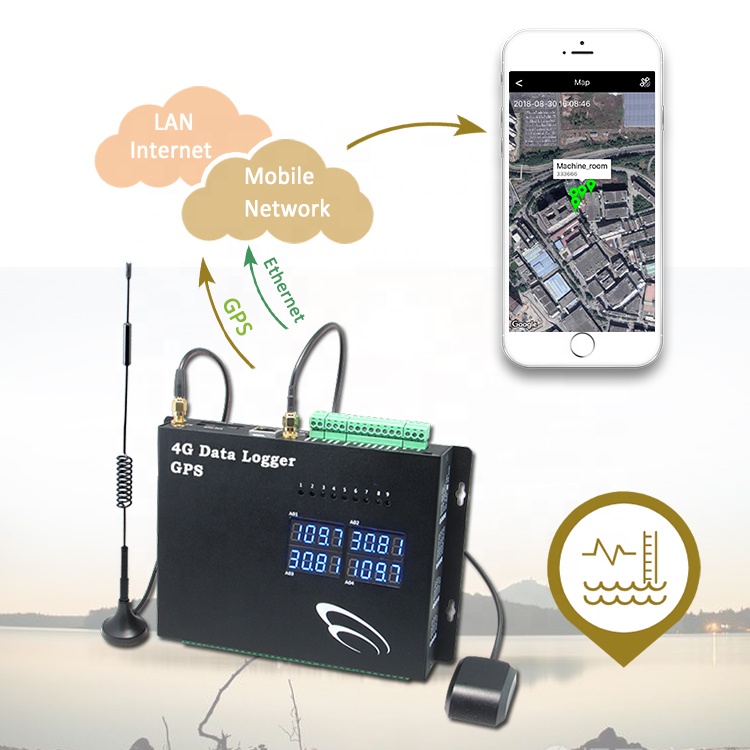

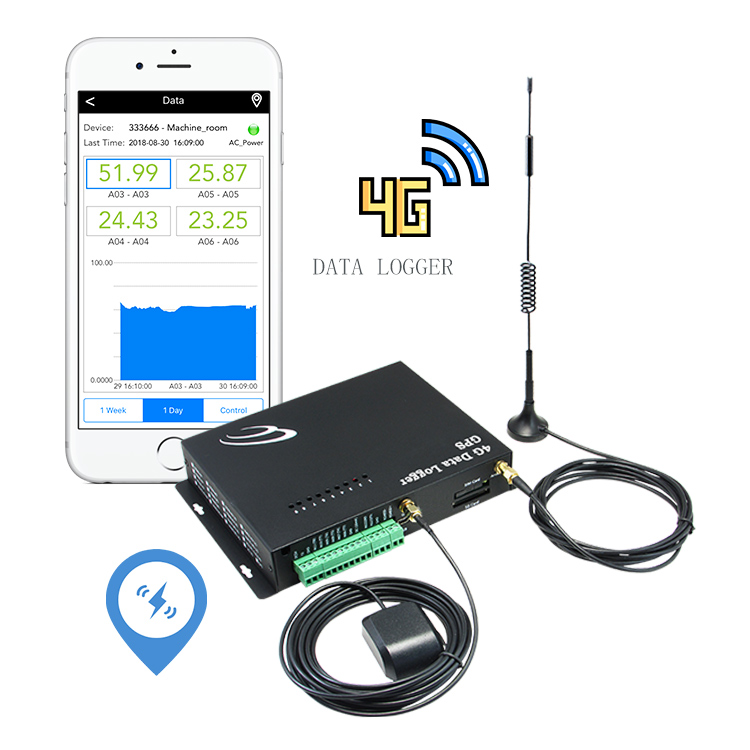

GSX8-HV-4GP is a GPS data logger with multiple channels. It provides data capturing and transmission over 4G network.
Detail

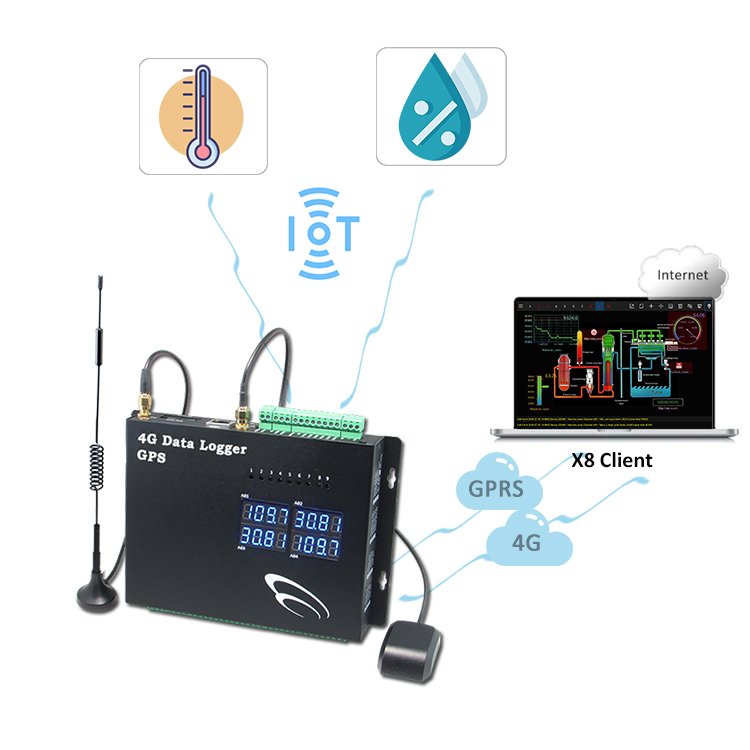

It is a Temperature and Humidity Data Logger with built-in module supporting worldwide 4G mobile network. 4G Data Logger provides faster wireless connection in a more secure and reliable 4G mobile network. Its built-in UPS feature providing user alert of AC power loss. During power loss, operation is backed up by internal rechargeable battery.

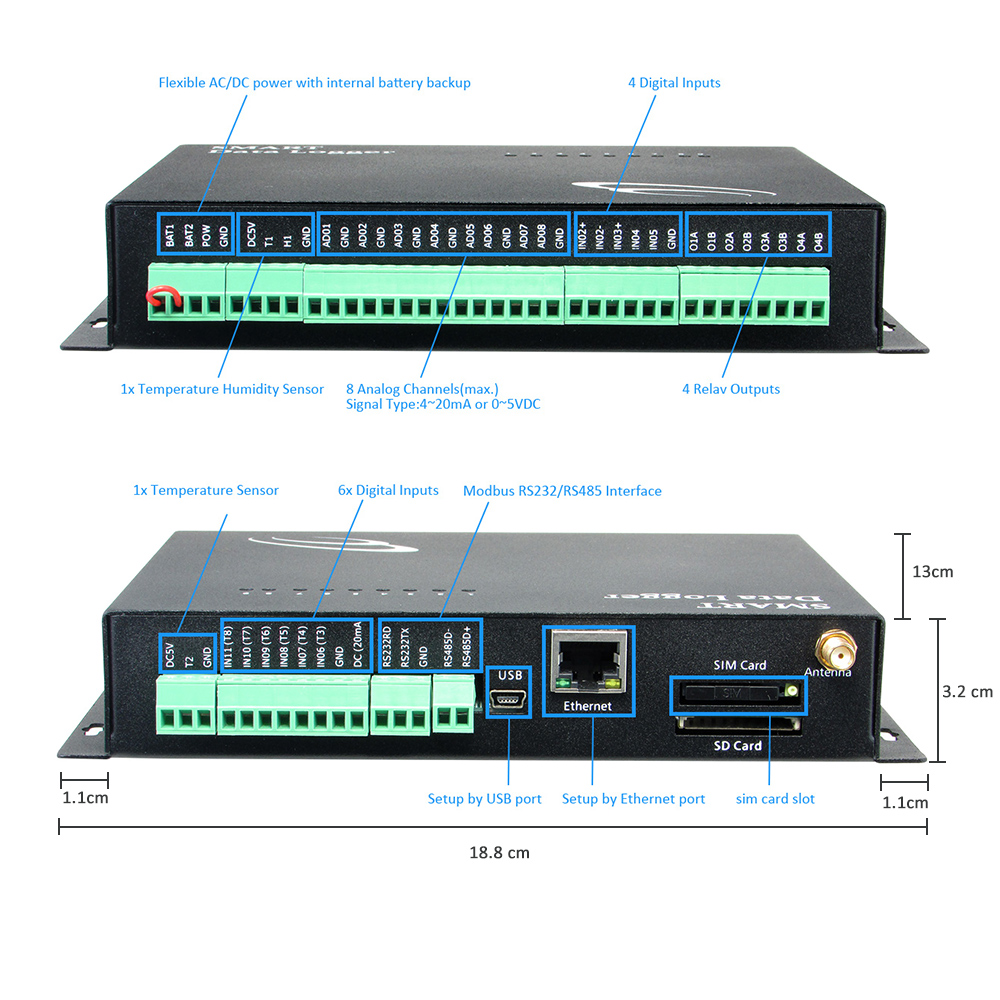

Overview:

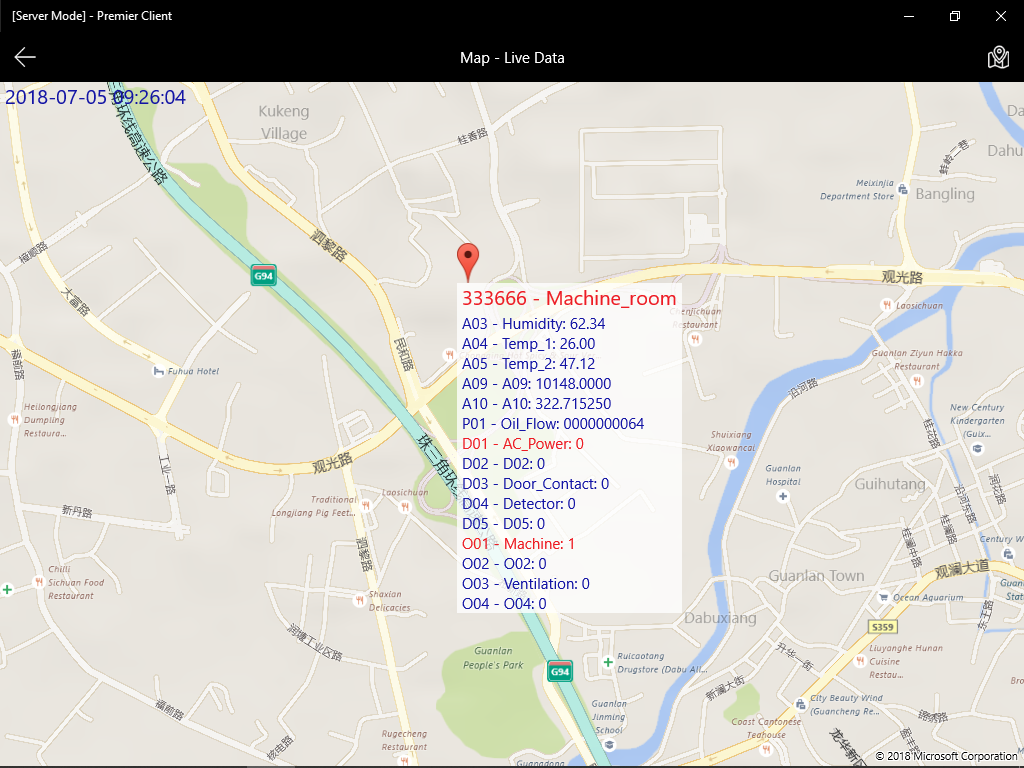

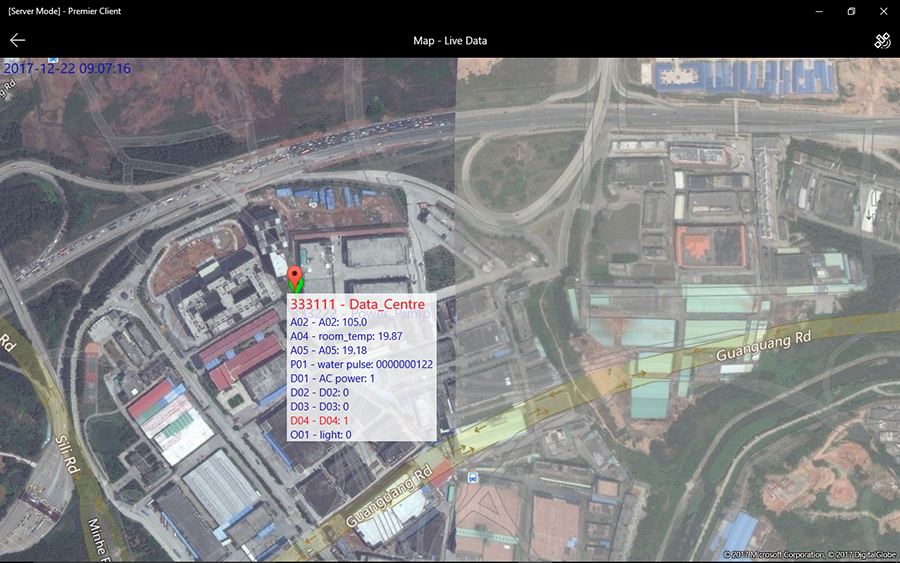

real time GPS data
8 Temperature Sensors (max.)
1 Humidity Sensor
8 Analog Channels (max.)
10 Digital Inputs
4 Pulse Channels
4 Relay Outputs
RS485 Data In
32GB SD memory card slot
Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card. Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power. Programmable data logging interval starts from 1 minute up to 24 hours.
Power Input
9 ~ 15VDC
Display Type
Analog and Digital
Signal Type
4~20mA or 0~5VDC
Output
5VDC
Modbus Device Port
RS485 & RS232
Data Upload Interval
Programmable (1min ~ 24 hours)
Pulse Channel
On/Off Switching
Industrial Protocol
Modbus
Digital Channel
Alarm Dry Contact
Alarm Trigger
Digital Alarm / AD Level High or Low / Power Loss
Temperature Sensors
8 Temperature Sensors (max.)
Humidity Sensor
1 Humidity Sensor
Analog Channels
8 Analog Channels (max.)
Digital Input
10 Digital Inputs
Pulse Channel
4 Pulse Channels
Relay Output
4 Relay Outputs
Features
1Real Time 4G Data Upload with GPS
2Integrated 16 bit MCU & Siemens 4G Module
3Programmable data input type & alert hi/low
4Programmable Data Upload Interval & Logging Interval
5Easy setup via USB port by PC software
6Remote Setup over 4G mobile network
7RS485 Port support data capturing in Modbus protocol
8Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
9Flexible AC/DC power with internal battery backup

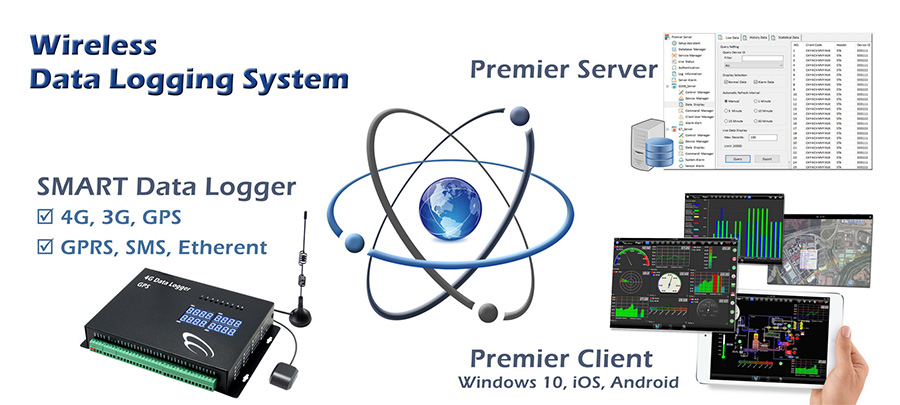

Free Software:
1Setup software is bundled for routine configuration via USB port locally
2Centre software is also provided for receiving data via 4G mobile network.

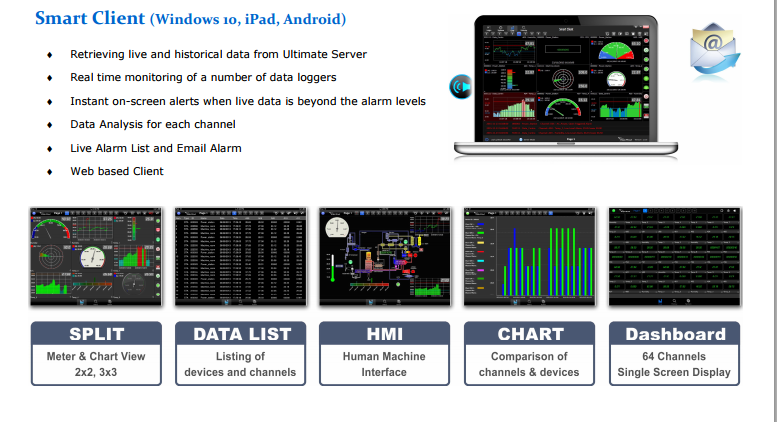

3Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display
Applications
water pipes network real time monitoring - water in and out temperature
oil/gas pipes network, pump stations
underground water level real time monitoring
environmental monitoring system - wind/temperature/humidity/CO2/pressure
remote Industrial equipment monitoring
rural equipment monitoring e.g. power plant, antenna tower
measuring equipment data capture and report via 4G mobile network
food chain, storage, transport industry, building management
agricultural, farming, laboratory, medical industry
Frequently Asked Questions
What is the GSX8-HV-4GP?
It is a multi-channel GPS data logger that captures temperature, humidity, analog, and digital signals, and transmits this data over worldwide 4G mobile networks.
How does the logger handle power failures?
The device has a built-in UPS feature that sends an alert when AC power is lost. During power failures, the internal rechargeable battery takes over to back up operations.
How much data can the device store?
It features an internal 4MB memory that logs approximately 30,000 data records. The storage capacity is expandable up to 32GB via its built-in SD card slot.
Is there any free software included with this data logger?
Yes, three free software tools are provided: configuration software for setup via USB, centre software for receiving data via mobile networks, and the Smart Client Lite app (for Windows, iPad, Android) for easy graphic data displays.
What type of input signals and protocols are supported?
The logger supports analog signals (4-20mA or 0-5VDC), pulse channels, and digital inputs. It also supports RS485 data capturing via the Modbus protocol, and works with both UDP and TCP transmission protocols.
