Products Description

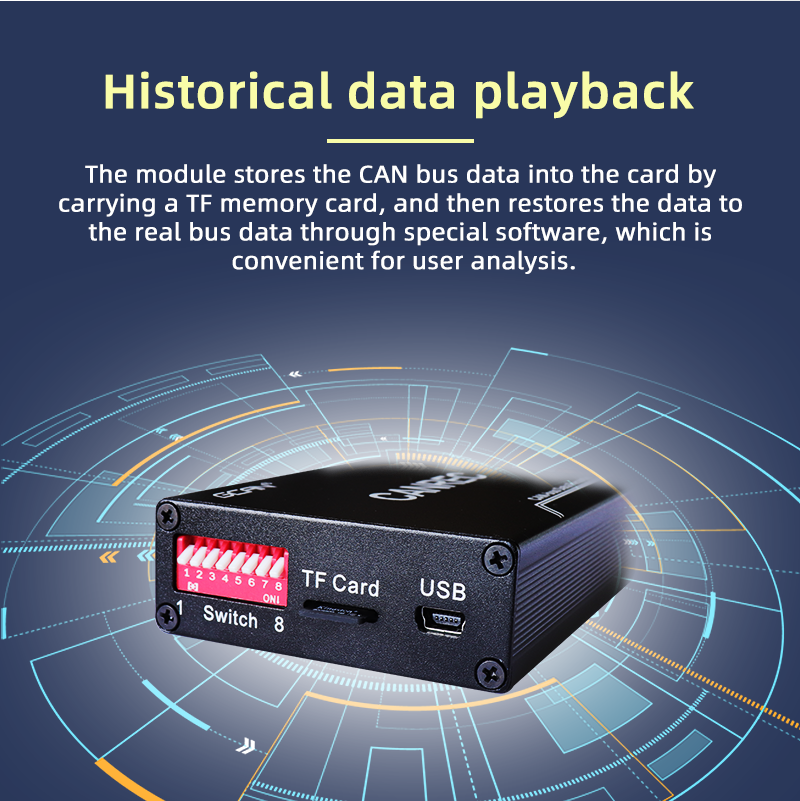

GCAN-402 two channel CAN-Bus data recorder is specially used for offline record CAN-Bus data. This adapter has integrated 2 CAN-bus interface and one TF card port. Users can use TF card record bus data real-time. GCAN-402 is suitable for historical data playback, error message analysis. That can be widely used in automobile, rail vehicle, industry control and others large amount of data and not easy to troubleshoot fault system.
ℹ️ IMPORTANT NOTICE
Please note: GCAN-401/402/406 CAN recorder maximum support of 32G/128G/128G capacity TF memory card and the file system is FAT32 format. If your TF card is not in this format, the memory card must be reformatted into FAT32 format. Formatting the memory card will remove all the data on the card, please operate carefully.
GCAN-401/402/406 CAN recorder has been integrated with a system clock, it can manage data by date, which means it creates a new folder named by the date every day.
Product Parameters
| Functionality |
Data logger and real-time CAN interface |
| LEDs |
Logger status via three externally visible LEDs |
| Firmware |
Supports free firmware updates for adding features |
| Standard |
Compliant with physical layer standard ISO 11898-2 |
| Identifiers |
Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID) |
| Baud Rate |
10K~1Mbps |
| TF Card |
Maximum 128G |
| Real-Time Clock |
Yes (CAN messages are time-stamped with 0.1ms resolution) |
| File Format |
binary files (DAT), text file (TXT), files for Vector's software (ASC), batch file (CAN) |
| Voltage |
9~30V |
| Current |
24V 50mA, typical |
| Temperature |
-40°C ~ +85°C |
| Humidness |
15%~90%RH |
| Electronic Isolate |
1500V |
| EMC test |
EN 55024:2011-09 EN 55022:2011-12 |

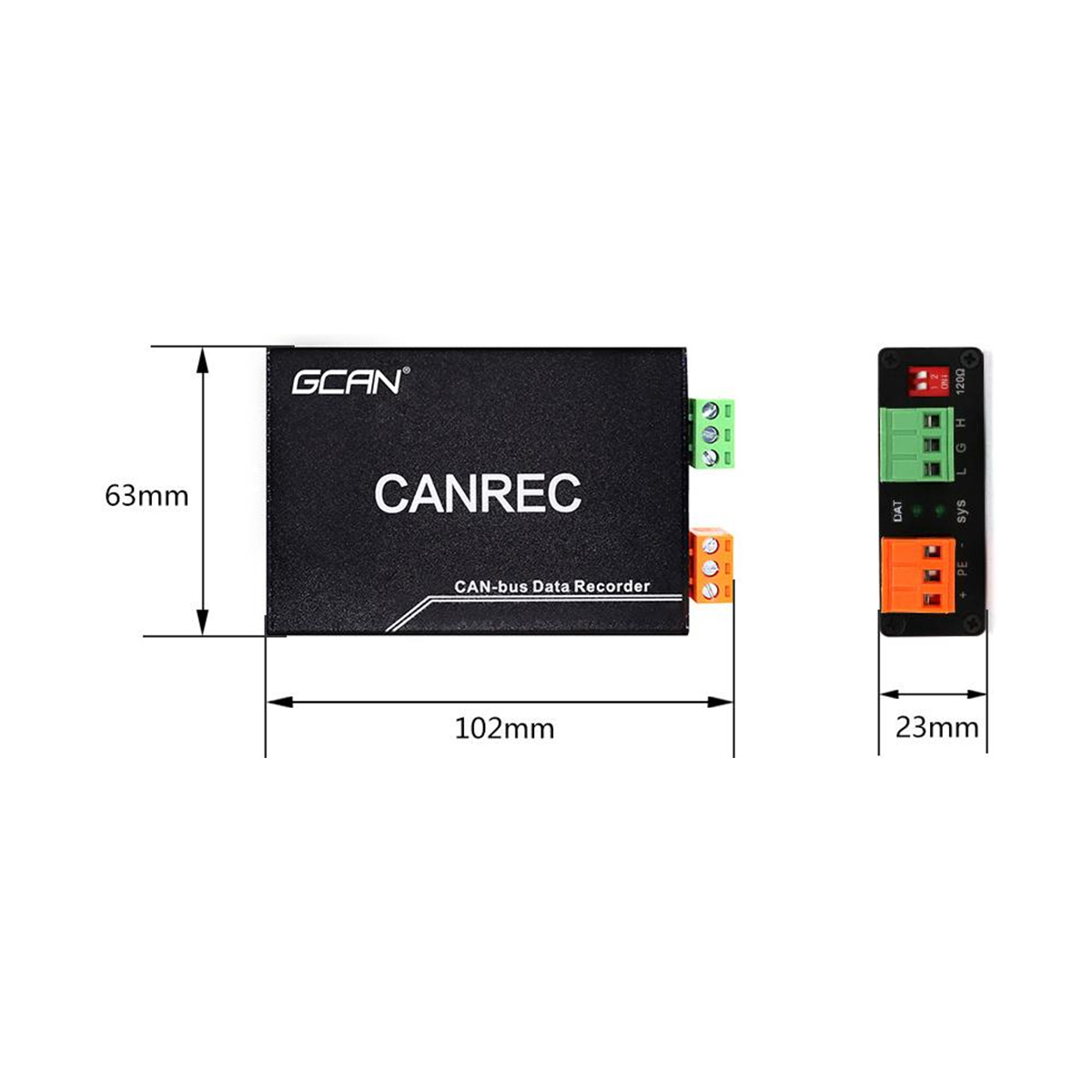

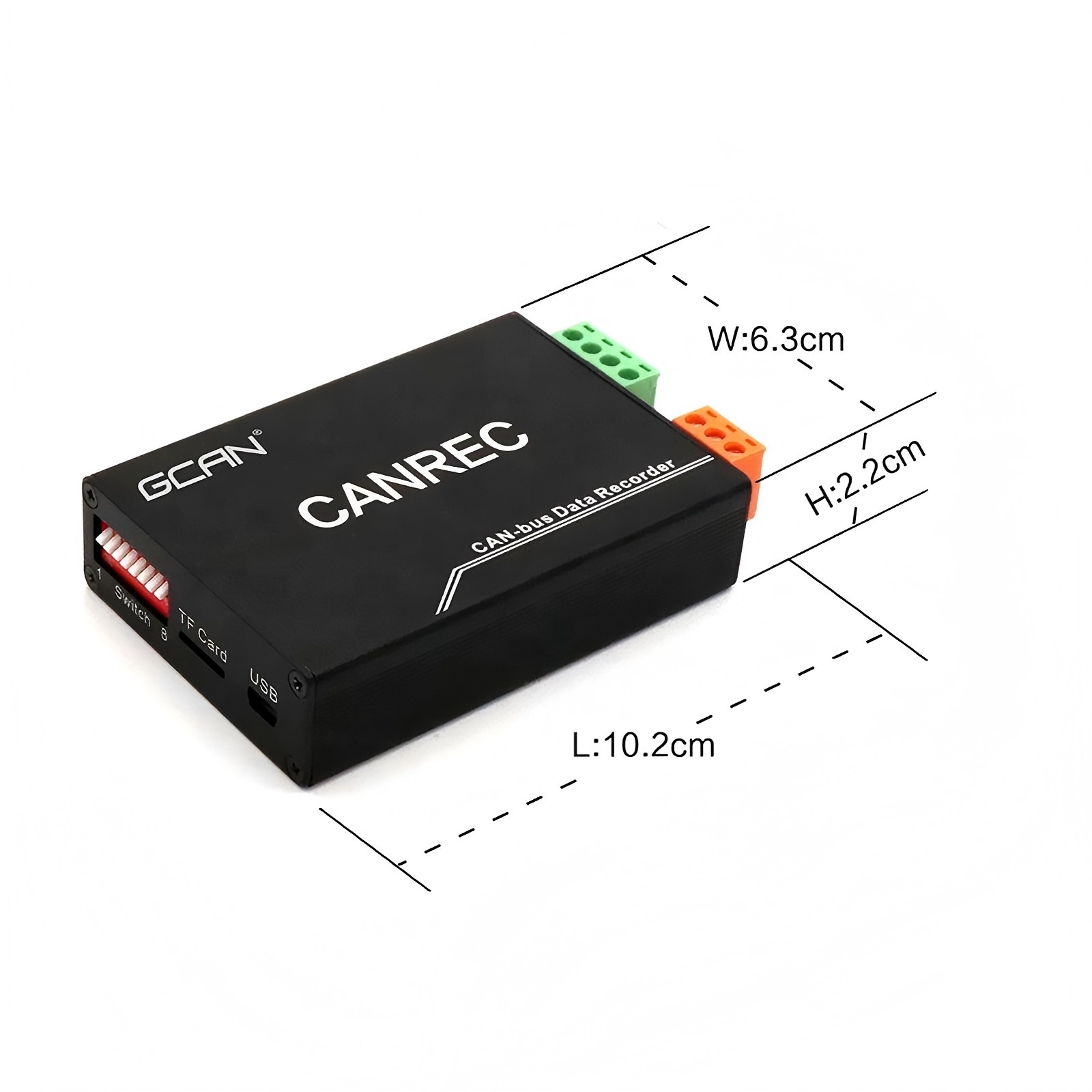

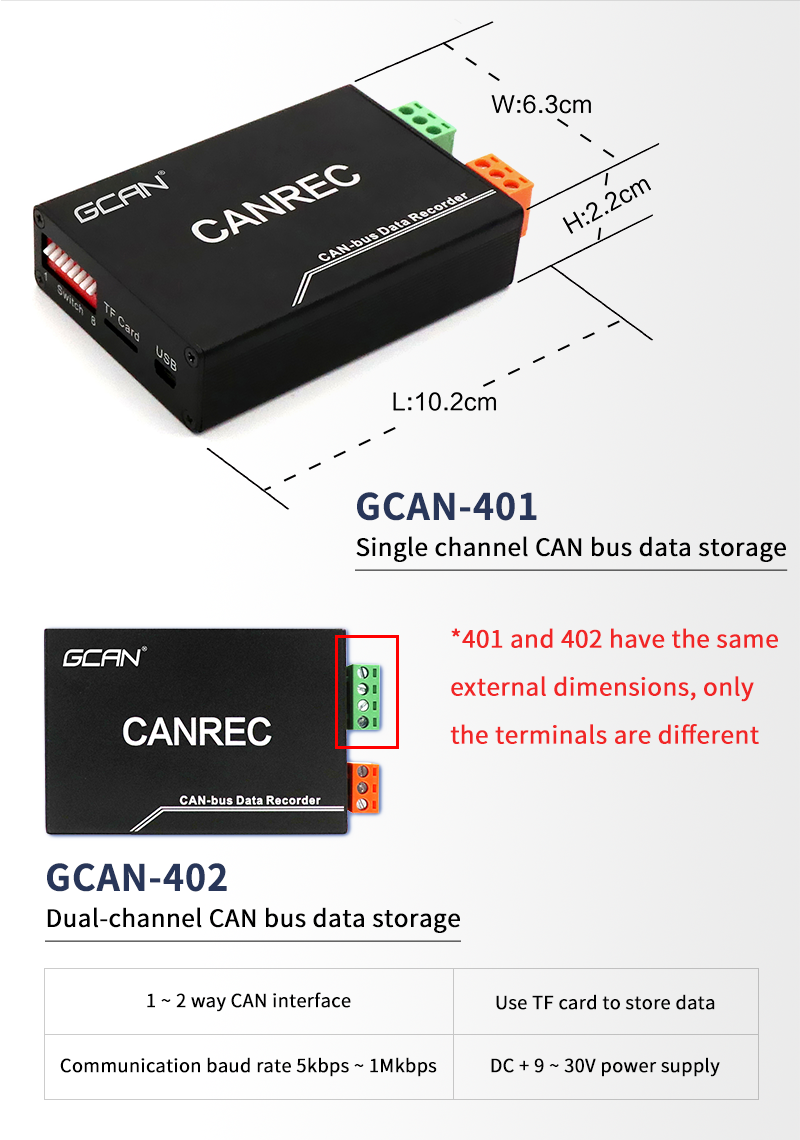

| Dimensions |
102mm * 63mm * 23mm |
| Weight |
130g |
Product Function
Packing & Delivery
📦 Package
Carton Packaging
⚡ Delivery Time
Within 3 days after payment is confirmed.
⏱️ Lead Time
3 to 7 days depending on destination.

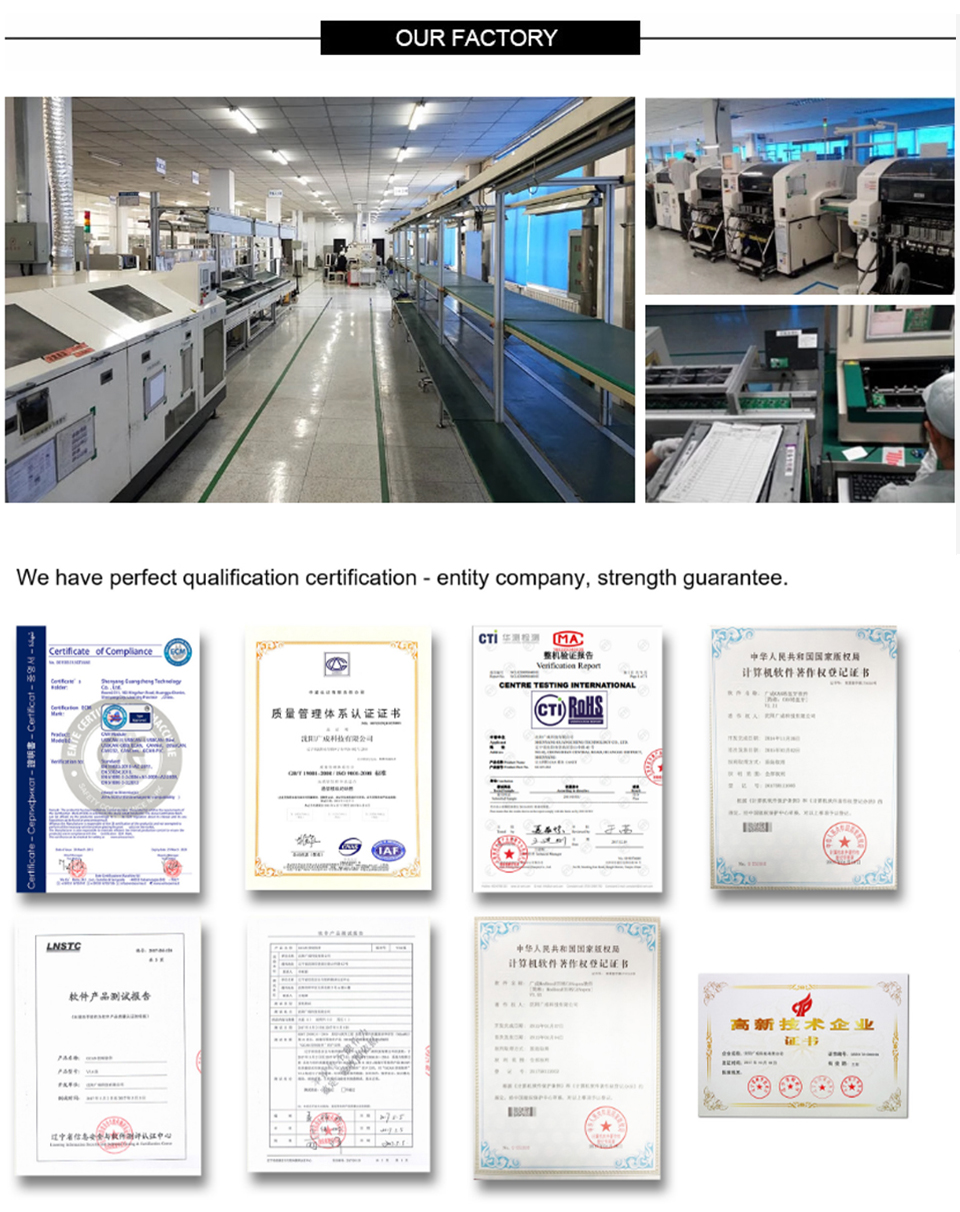

Manufacturing Facility
Frequently Asked Questions
What is the maximum TF card capacity supported by the GCAN-402?
The GCAN-402 supports a maximum TF card capacity of 128G. Please ensure the memory card is formatted to the FAT32 file system format before use.
Does the GCAN-402 record data with timestamps?
Yes, it features an integrated real-time clock that timestamps CAN messages with a high resolution of 0.1ms. It also automatically organizes records daily by creating folders named by the date.
What data formats are supported for the saved log files?

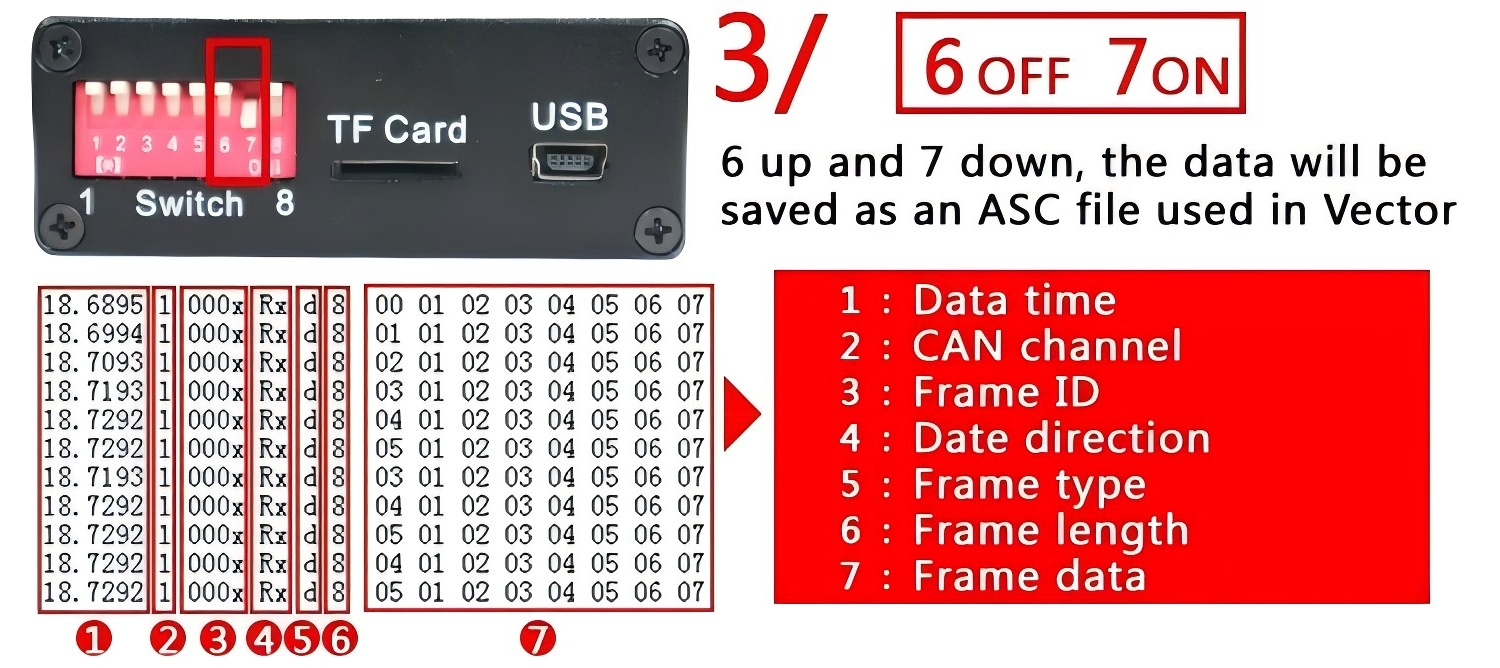

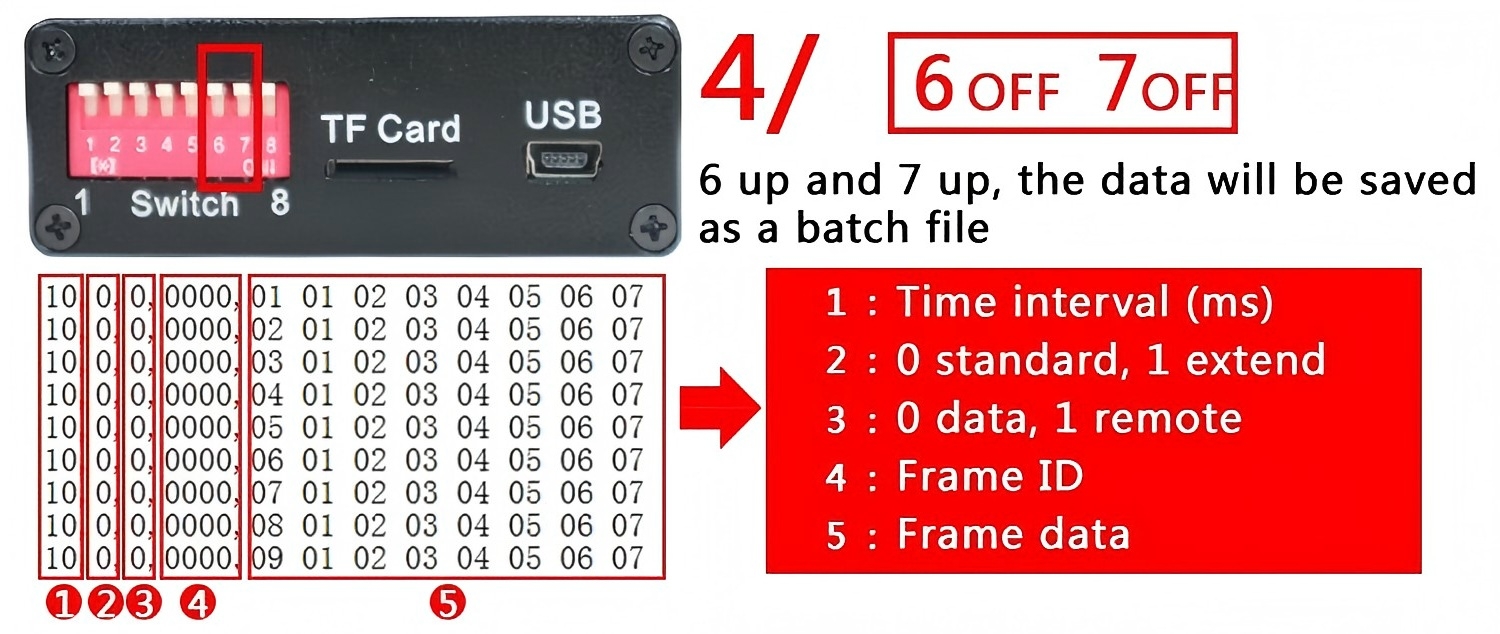

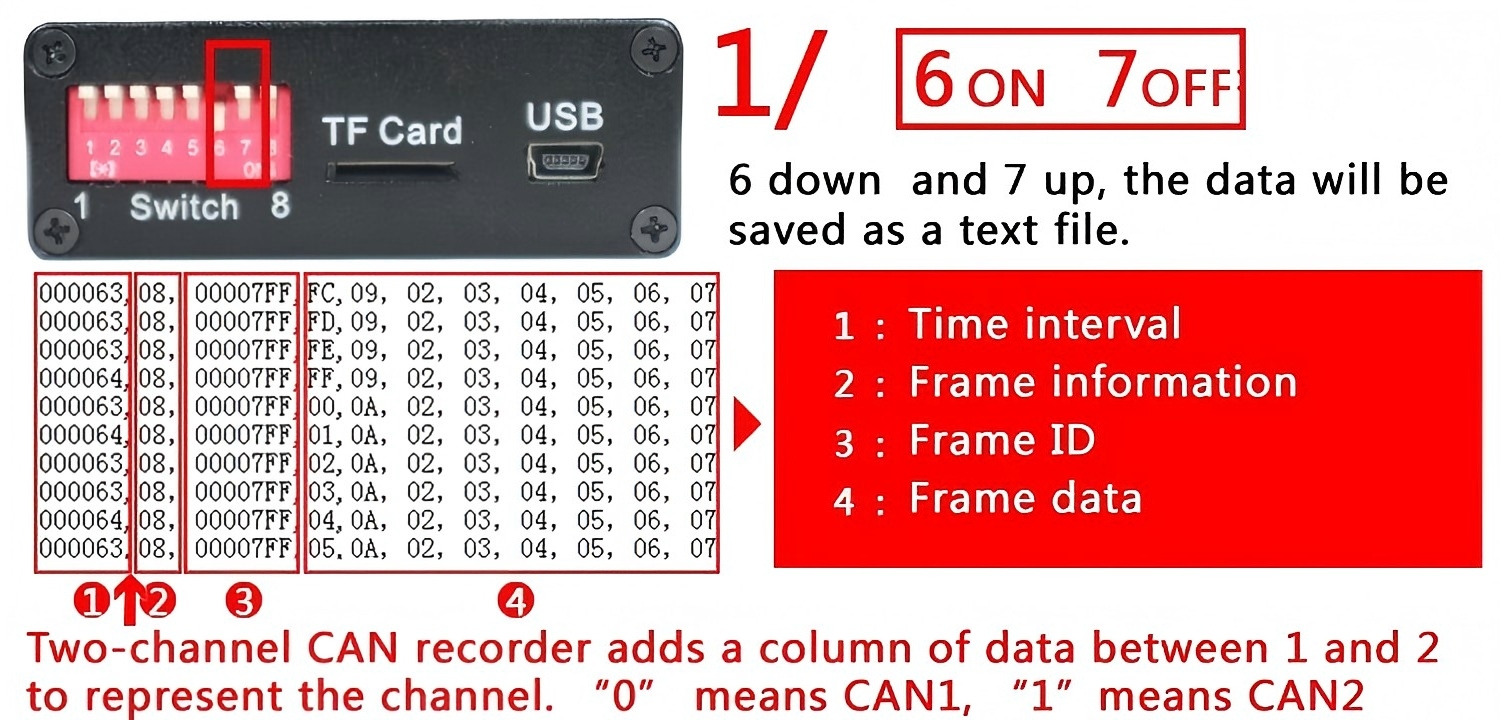

The recorder can save data in multiple standard formats including binary files (DAT), text files (TXT), Vector's software format (ASC), and batch files (CAN).
What CAN-Bus standards and baud rates are compatible with this device?
The device is fully compliant with physical layer standard ISO 11898-2, supports both CAN 2.0A (11-Bit ID) and 2.0B (29-Bit ID) specifications, and operates on baud rates ranging from 10Kbps to 1Mbps.
Is the GCAN-402 suitable for harsh industrial or automotive environments?
Yes, it is designed for heavy-duty applications, featuring 1500V electrical isolation, EMC test compliance (EN 55024, EN 55022), and a wide operating temperature range of -40°C to +85°C.
Are firmware updates available for the GCAN-402?
Yes, the device supports free firmware updates, allowing you to add new features and functions as they become available.
