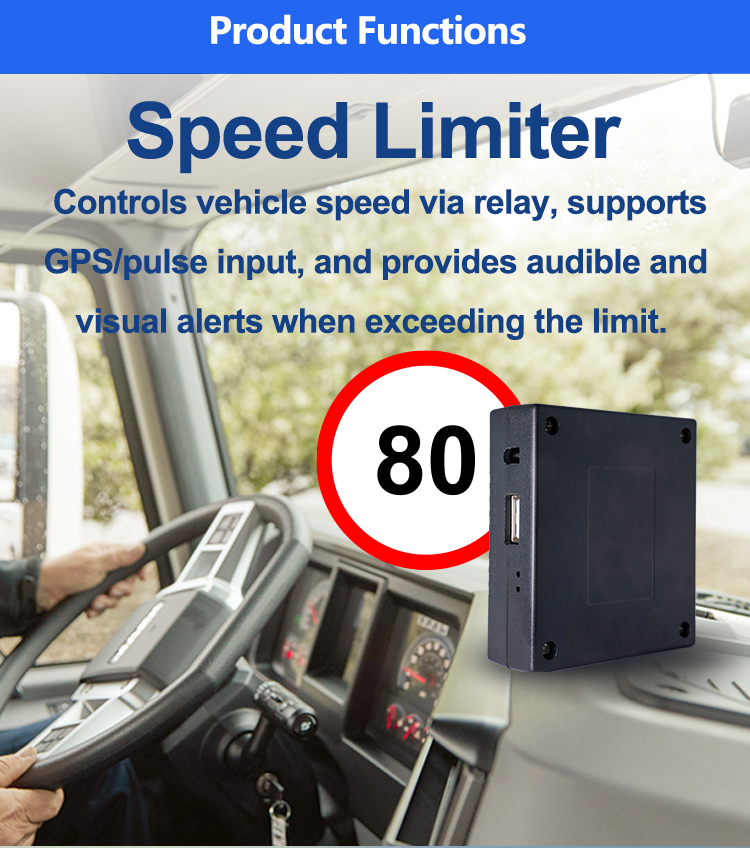

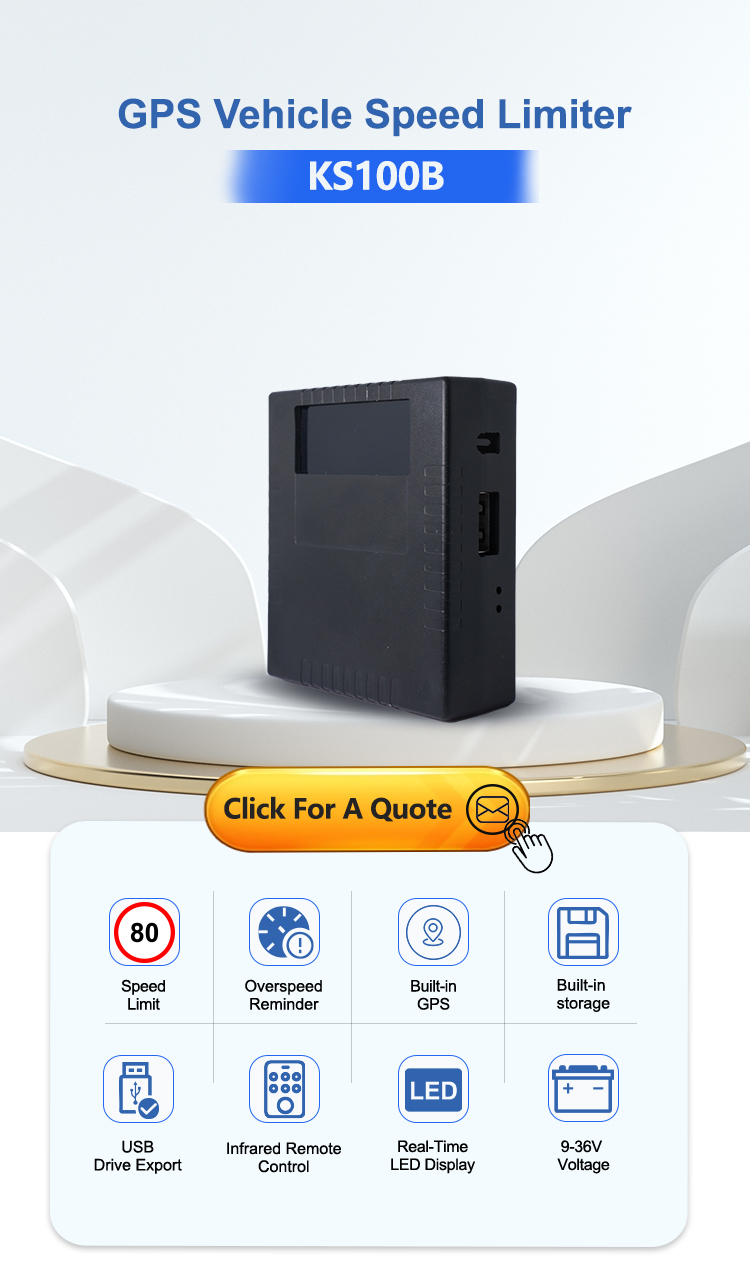

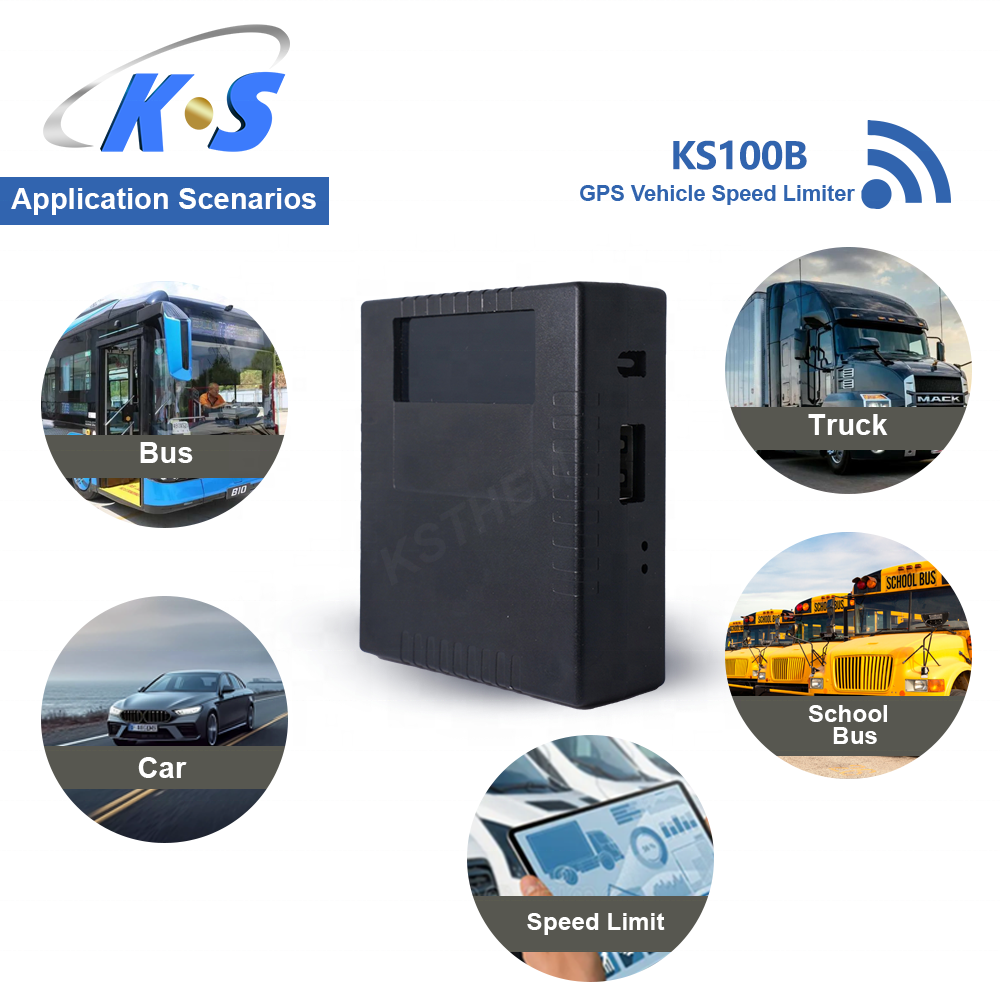

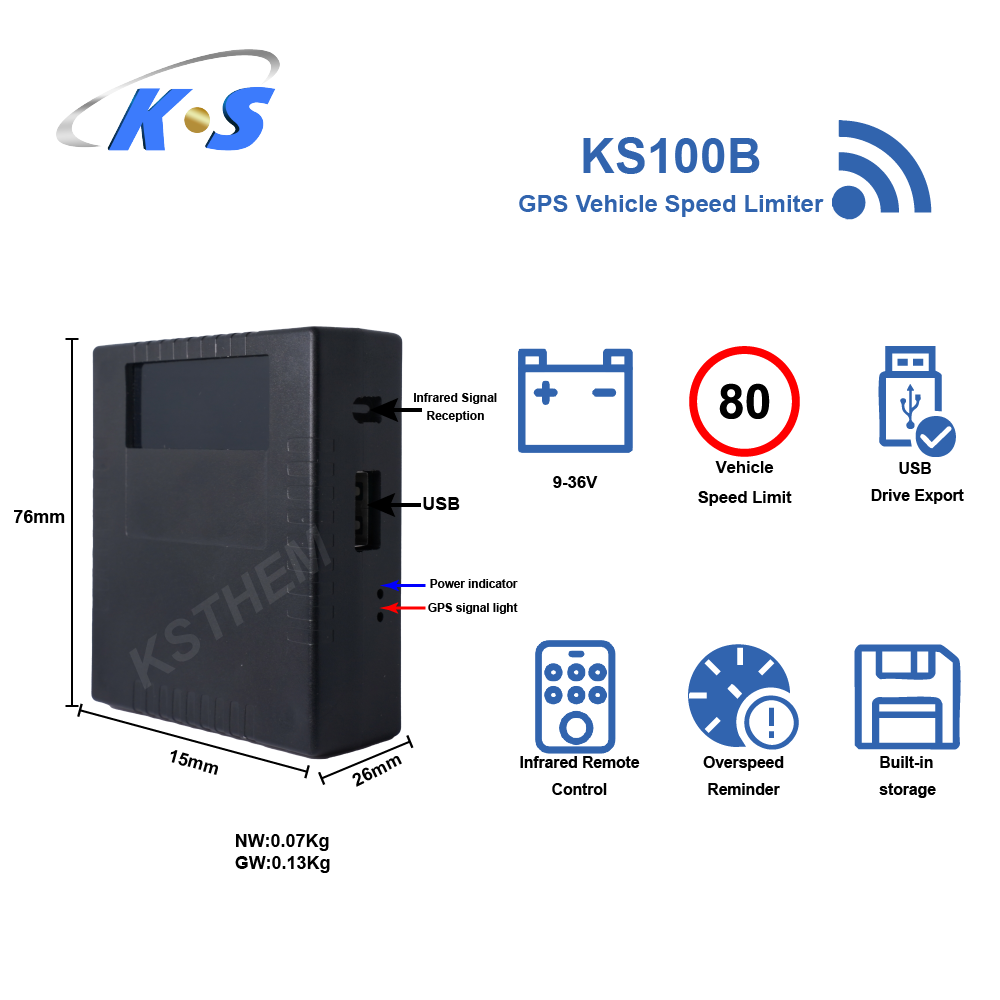

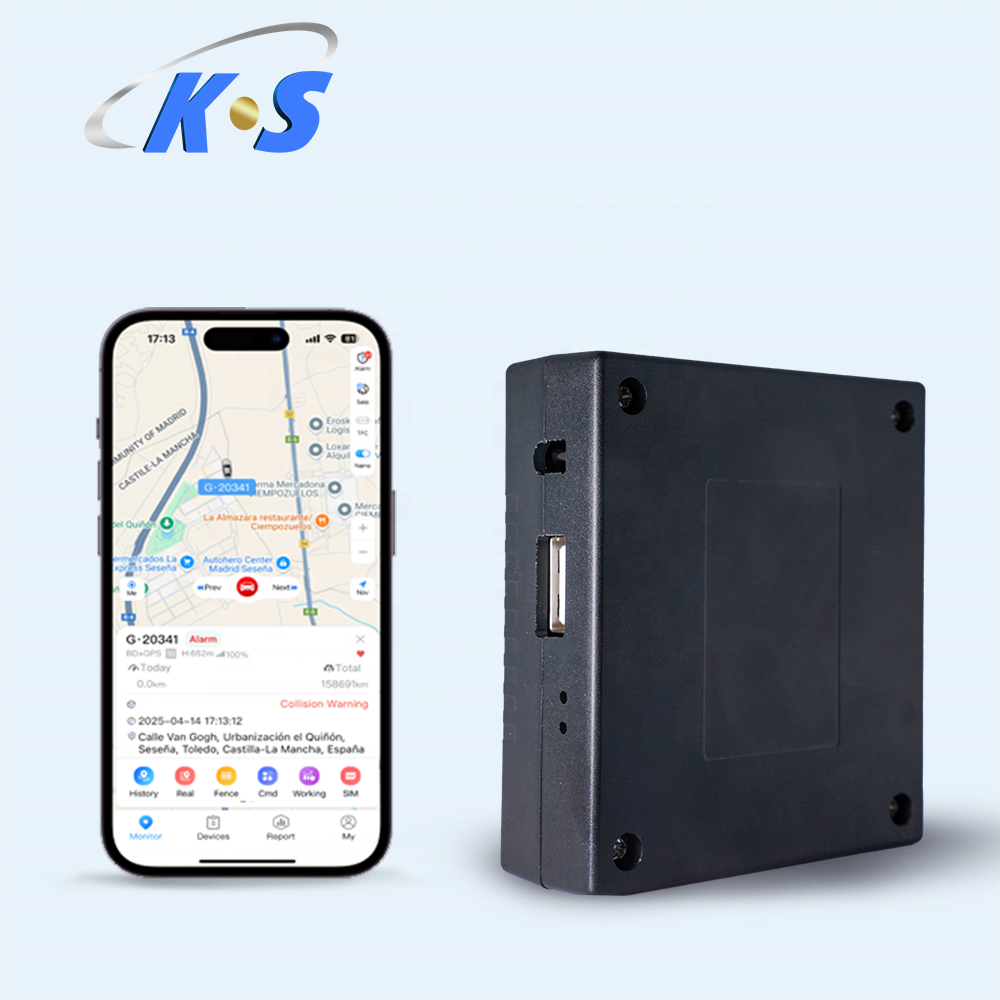

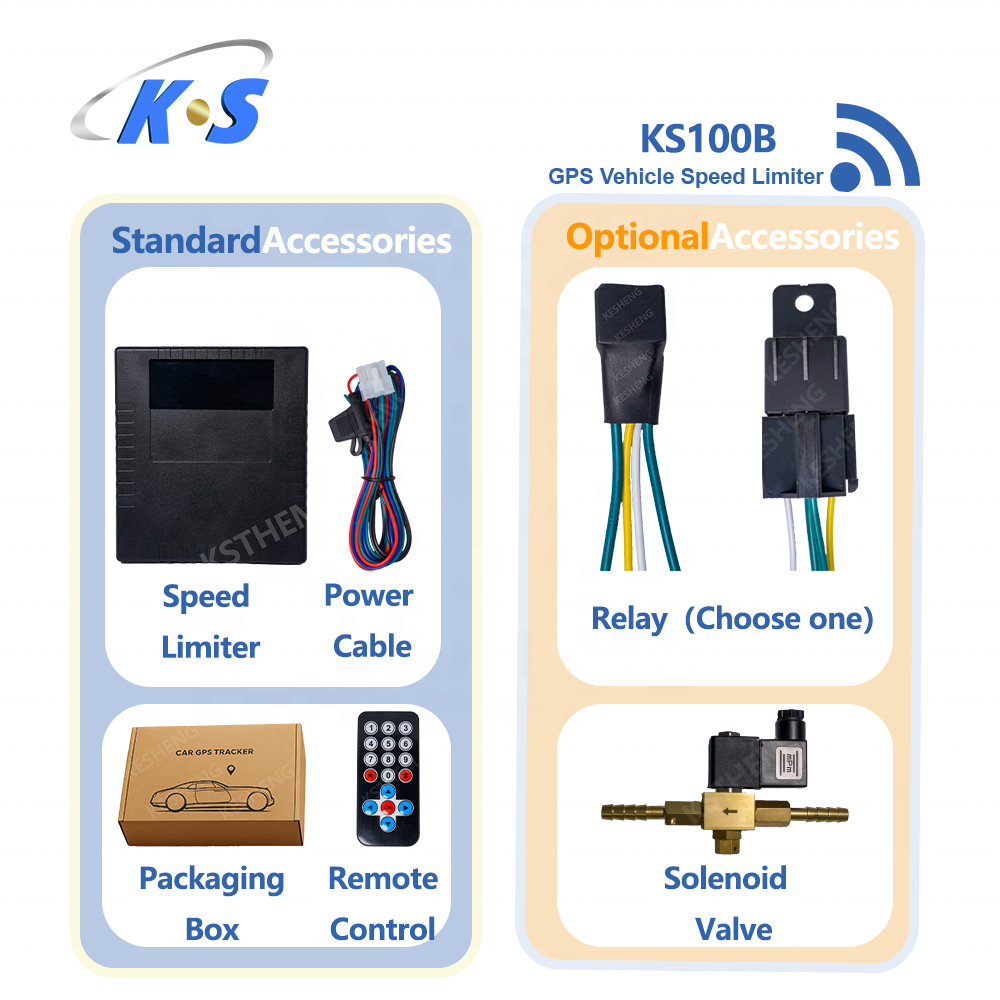

The KS100B Vehicle Speed Limiter with GPS module ensures safe driving by controlling maximum speed with a built-in relay or external relay. Featuring an LED display, overspeed alarm, infrared remote control, and USB data export, it is designed for cars, trucks, and buses to improve road safety and fleet management.
| Parameter | Value Details |
|---|---|
| Type | Built-in |
| Track View | NO |
| View Angle | 0 |
| Placement | Dashboard, Windshield |
| Function | Over-Speed Warning, Speed Limit, GPS Data Record, Infrared Receiver, LED Display |
| Button Battery | No |
| Positioning Mode | AGPS, LBS, GPRS, GPS, GSM, LTE |
| Data Storage | Cloud Storage |
| Communication | Cellular |
| Network | 4G |
| Battery | 0 |
| Warranty | 1 Year |
| Place of Origin | Guangdong |
| Brand Name | OEM/ODM Available |
| Model Number | KS100B |
| Use | Automotive, Motorcycle |
| Battery Capacity (mAh) | 0 |
| Connection | USB |
| Fixed method | Others |
| Power Source | Corded Electric |
| Size | 76*15*26mm |

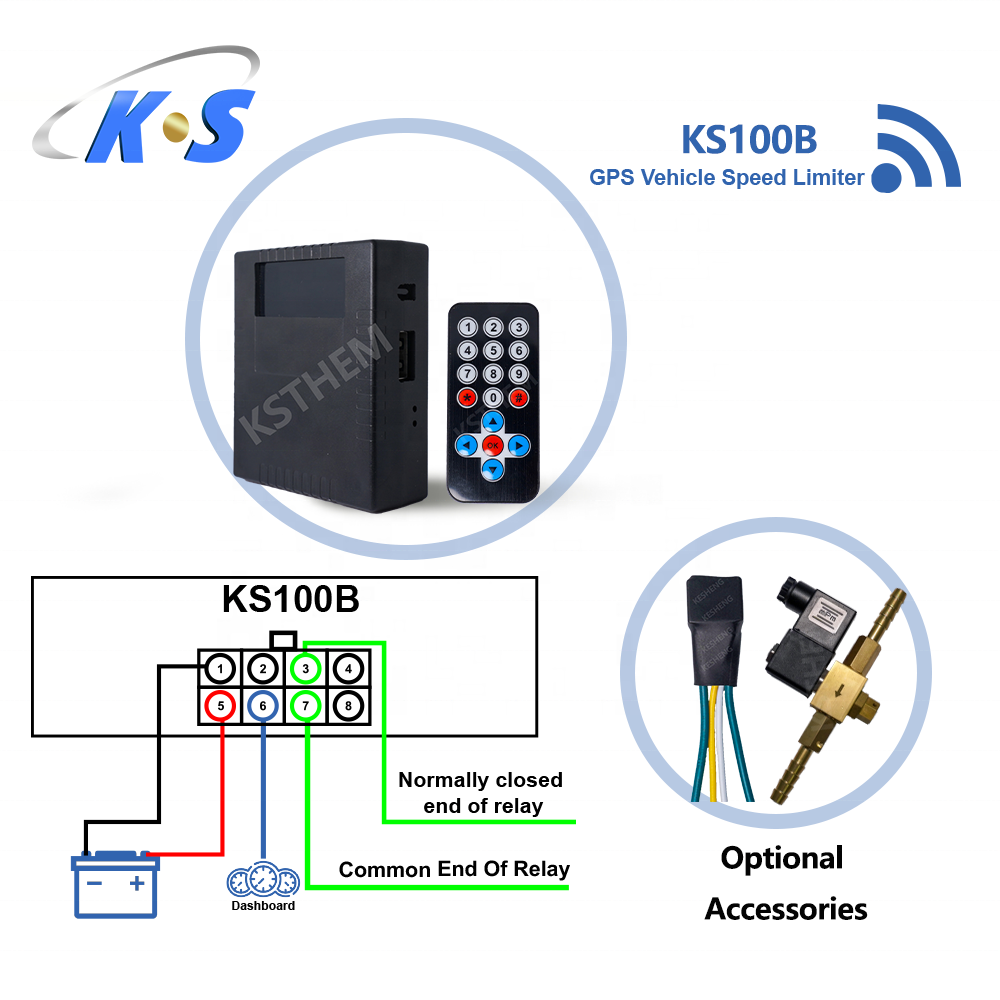

| GPS Feature | Can control the car speed by the built-in relay, set the speed, display the car speed, GPS Data Record |
| GPS module | TGM332D or 1612 Module |
| MCU | AT32F415CBT7 |
| Flash | BY25Q80 |
| GPS Antenna | 25*25*4 Ceramic antenna |
| Power | TD1509PR |
| LDO | ME6211 |
| Relay | HK4100F |
| IC | 74HC595 |
| LED | Four Digital LED |
| Protocol | NEMA0183 |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

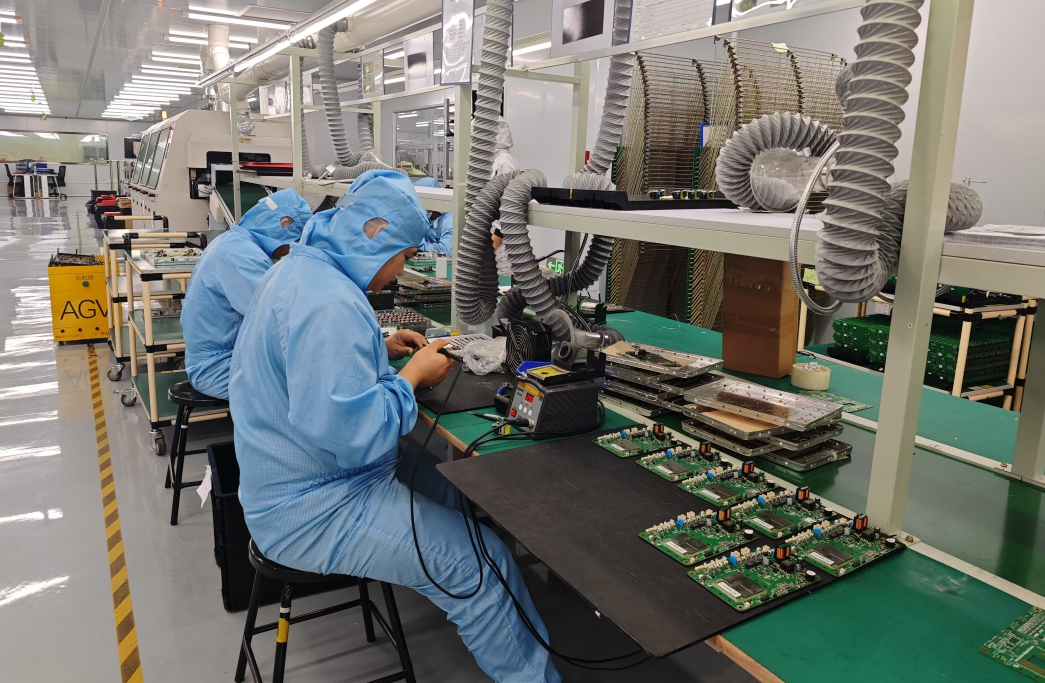

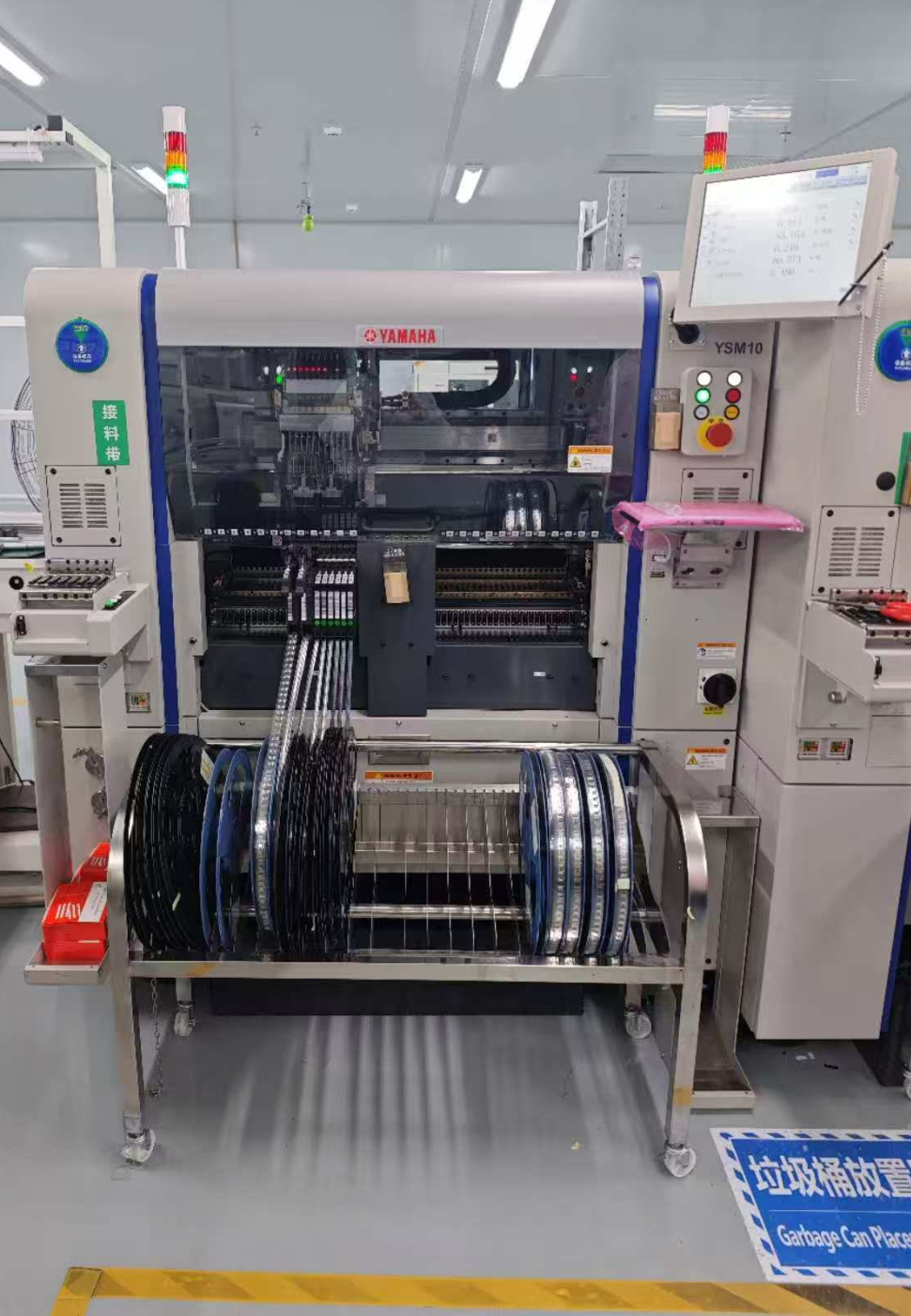

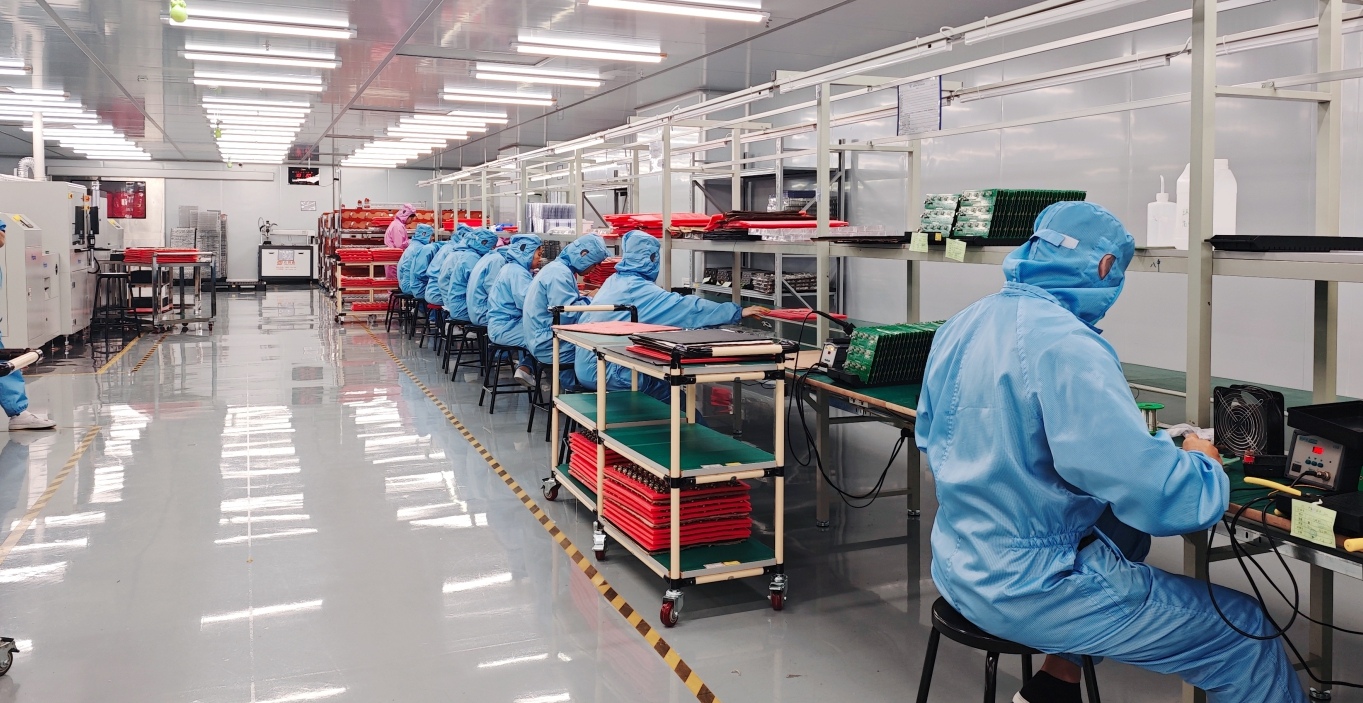

We are a high-tech enterprise which specializes in the R&D, design, production, and sale of GPS/GPSONE products. We possess professional software and hardware development capabilities. Our main products include GSM, GPRS, EDGE, CDMA, TD, EVDO, and WCDMA wireless data transmission terminals, GPS Vehicle Trackers, and GPS Portable/Personal Trackers. Meanwhile, we also supply complete GPS tracking solutions for clients. With customer satisfaction as our core tenet, we have earned a high reputation among clients globally with strong development capabilities and professional after-sales support. Our products are widely applied in logistics management, car rental, digital transportation dispatch, banking system management, and security. We maintain a professional sales team and provide OEM/ODM services for international clients, exporting to over 50 countries and regions worldwide.
