Product Description

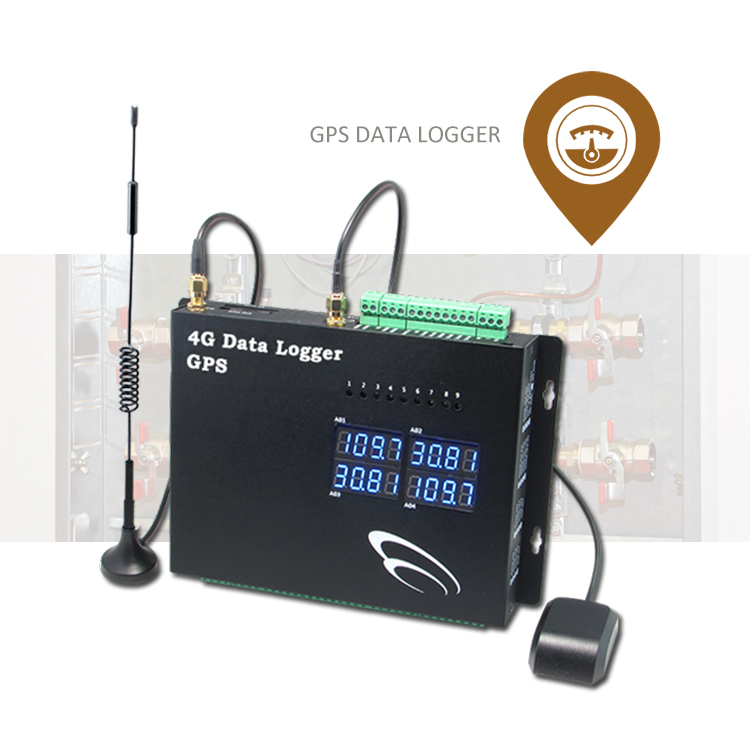

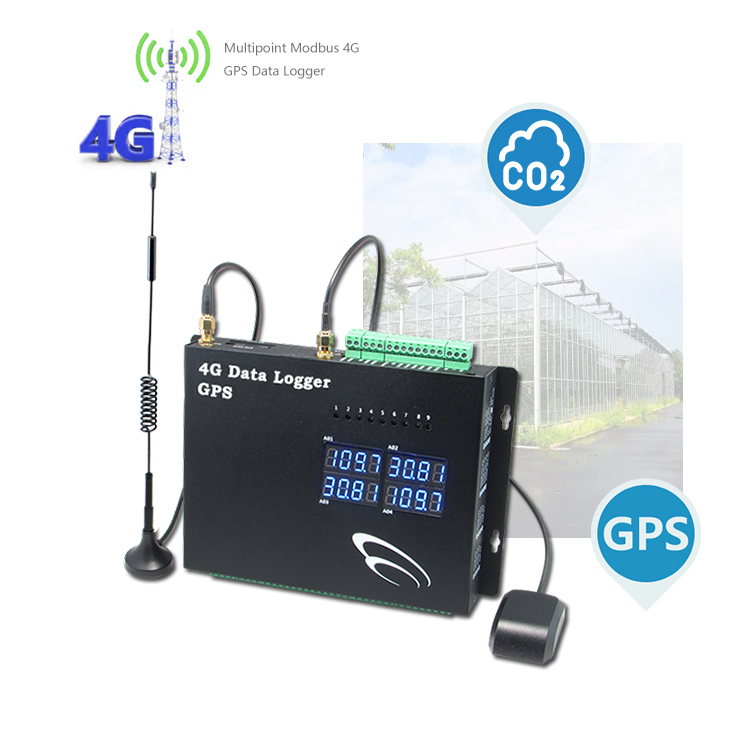

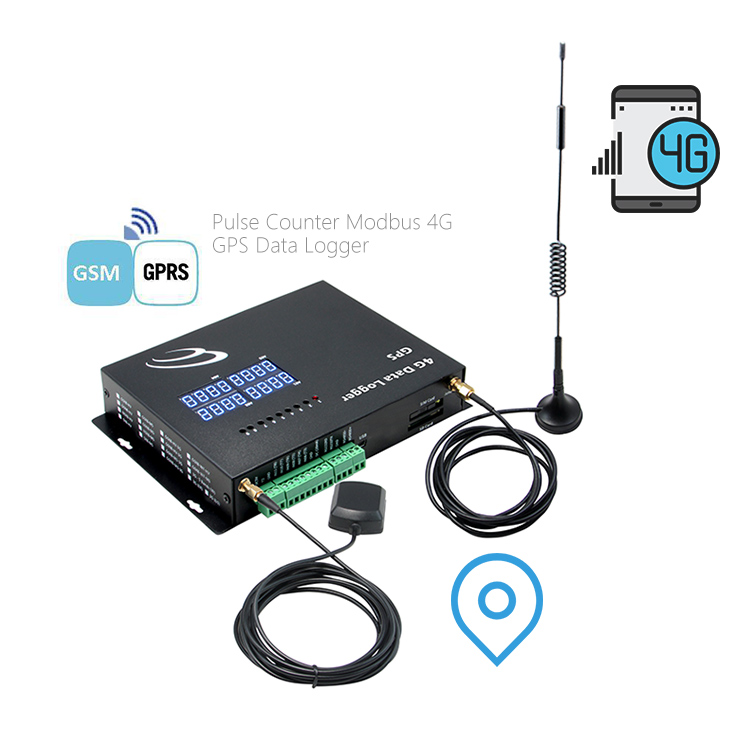

Display Temperature Humidity Data Logger Vehicle 4G GPS Tracker with Fuel Level Sensor
GSX8-MS-4GP

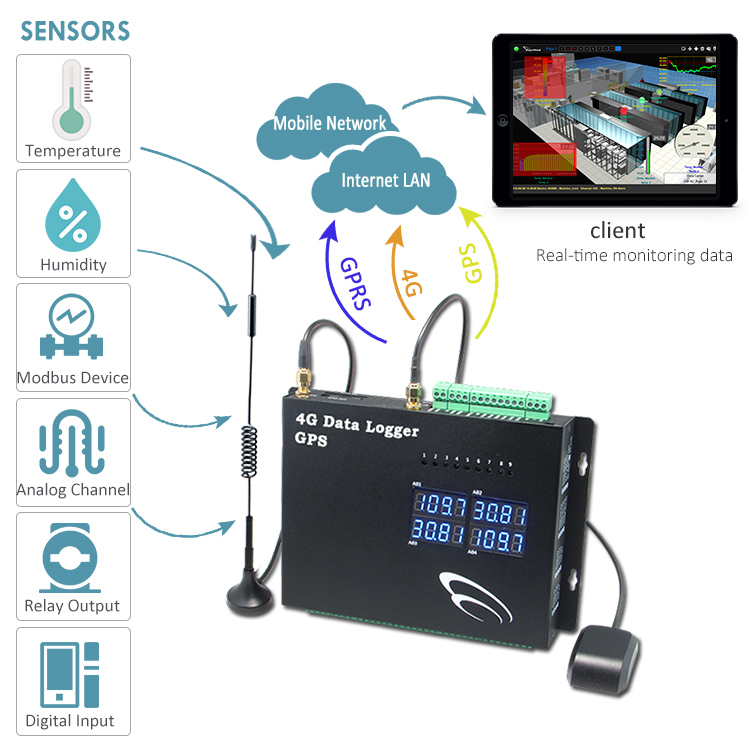

GSX8-MS-4GP uploads Modbus and GPS data via 4G mobile network. All channels can be configured with alarm levels. It is a Modbus data collector with temperature, analog, pulse, digital, GPS channels. Data is delivered via 4G mobile network.
Display temperature humidity data logger Vehicle 4g gps tracker with fuel level sensor
Detail & Power Operation
  • It is a 4G Modbus Data Logger with programmable I/O.
  • 4G Data Logger provides faster wireless connection in a more secure and reliable 4G mobile network.
  • Its built-in UPS feature provides user alert of AC power loss.
  • During power loss, operation is backed up by internal rechargeable battery.
  • Its internal 4MB memory logs ~30000 data records, and is expandable to 32GB with SD card.
  • Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
  • Programmable data logging interval starts from 1 minute up to 24 hours.
Overview Specifications
  • built-in GPS module
  • 2 Temperature Sensors (max.)
  • 1 Humidity Sensor
  • 8 Analog Channels (max.)
  • 10 Digital Inputs
  • 4 Pulse Channels
  • 4 Relay Outputs
  • Modbus RS485 Interface
  • 16 Modbus Data Registers
  • 32GB SD memory card slot
Key Features
  • Real Time 4G and SMS Data Upload with GPS data
  • Integrated 16 bit MCU & Siemens 4G Module
  • Programmable data input type & alert hi/low
  • Programmable Data Upload Interval & Logging Interval
  • Easy setup via USB port by PC software
  • Remote Setup over 4G mobile network
  • RS485 Port support data capturing in Modbus protocol
  • Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
  • Flexible AC/DC power with internal battery backup
Technical Specifications
Power Input 9 ~ 15VDC
Display Type Analog and Digital
Signal Type 4~20mA or 0~5VDC
Output 5VDC
Modbus Device Port RS485 & RS232
Data Upload Interval Programmable (1min ~ 24 hours)
Pulse Channel On/Off Switching
Industrial Protocol Modbus
Digital Channel Alarm Dry Contact
Alarm Trigger Digital Alarm / AD Level High or Low / Power Loss
Temperature Sensors 2 Temperature Sensors (max.)
Humidity Sensor 1 Humidity Sensor
Analog Channels 8 Analog Channels (max.)
Digital Input 10 Digital Inputs
Pulse Channel 4 Pulse Channels
Relay Output 4 Relay Outputs
Free Software Suite
  • [1] Setup software is bundled for routine configuration via USB port locally
  • [2] Centre software is also provided for receiving data via 4G mobile network.

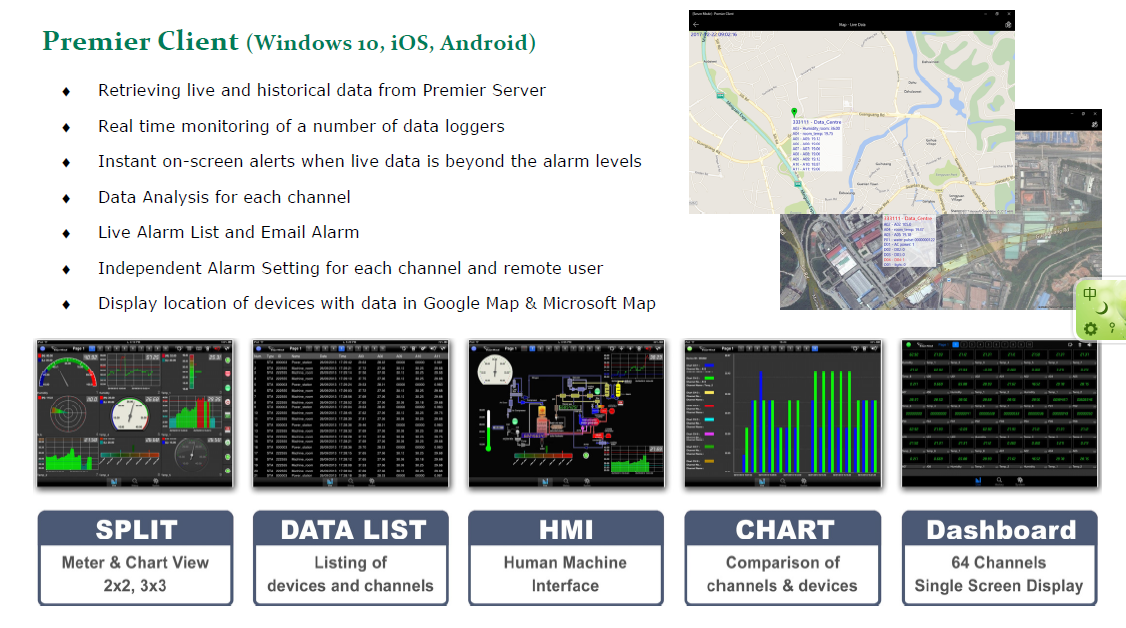

  • [3] Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display

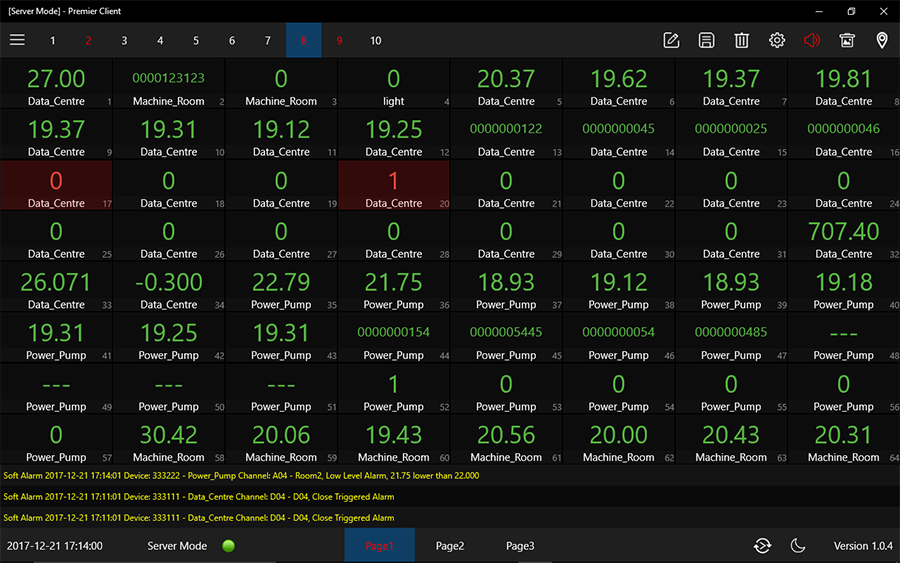

Display temperature humidity data logger Software interface Display temperature humidity data logger Graphics analysis
Applications
Water pipes network real time monitoring - water in/out temp
Oil/gas pipes network, pump stations
Underground water level real time monitoring
Environmental monitoring (wind, temp, humidity, CO2, pressure)
Remote Industrial equipment monitoring
Rural equipment monitoring (power plant, antenna tower)
Measuring equipment data capture & reporting via 4G
Food chain, storage, transport industry, building management
Agricultural, farming, laboratory, medical industry
Frequently Asked Questions
How does the GSX8-MS-4GP transmit data?
It transmits Modbus and sensor data wirelessly over a secure and reliable 4G mobile network to remote servers or center software.
Does the data logger have power loss protection?
Yes, it features a built-in UPS. In the event of an AC power loss, the device sends out user alerts and runs on its internal rechargeable backup battery.
What types of inputs can be connected to the device?
It supports up to 2 temperature sensors, 1 humidity sensor, 8 analog channels (4-20mA or 0-5VDC), 10 digital inputs, 4 pulse channels, and 4 relay outputs.
How much local data storage does the logger support?
It has internal 4MB memory that logs approximately 30,000 records, which can be expanded up to 32GB using the built-in SD memory card slot.
How can I configure the settings of this device?
Configuration can be done locally via a USB connection using the free bundled setup software, or remotely over the 4G mobile network.
What software options are available for data display?
Free software is provided, including Setup software for configuration, Centre software for data reception, and the Smart Client Lite app for graphics data display on Windows, iPad, and Android.
