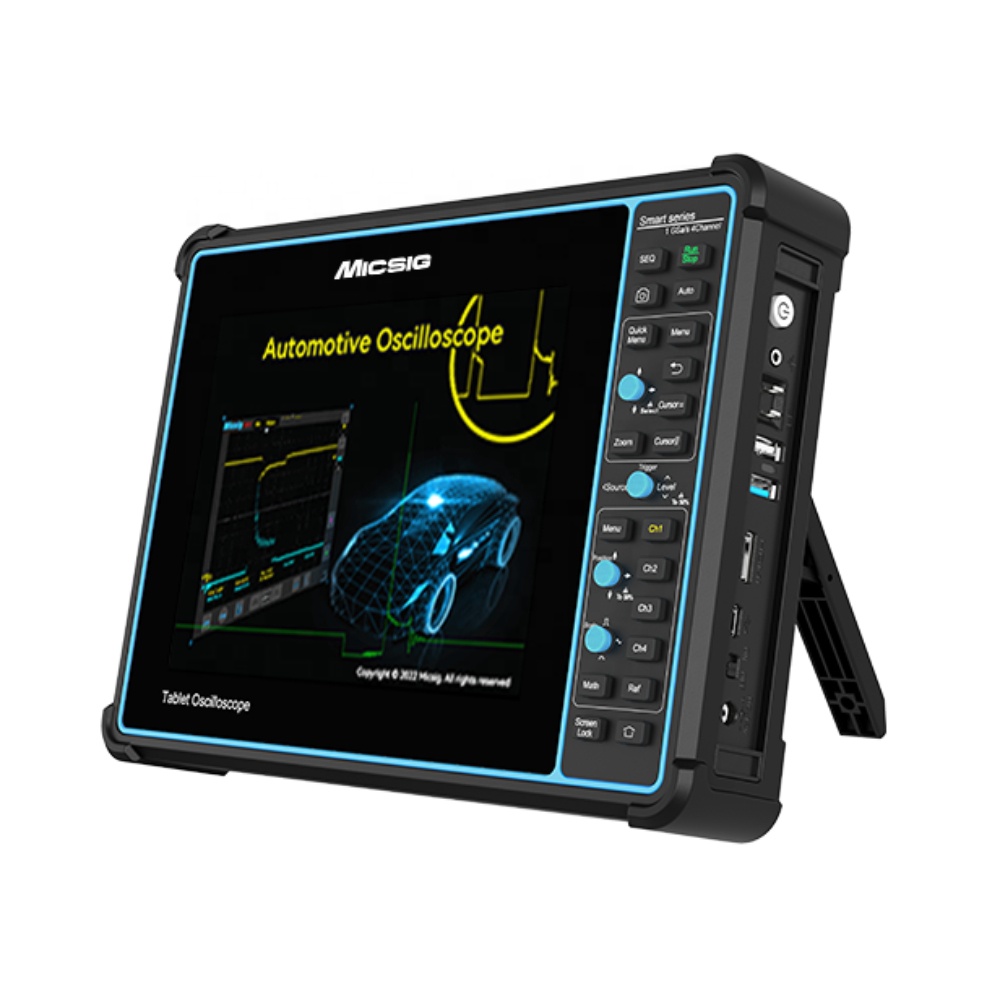

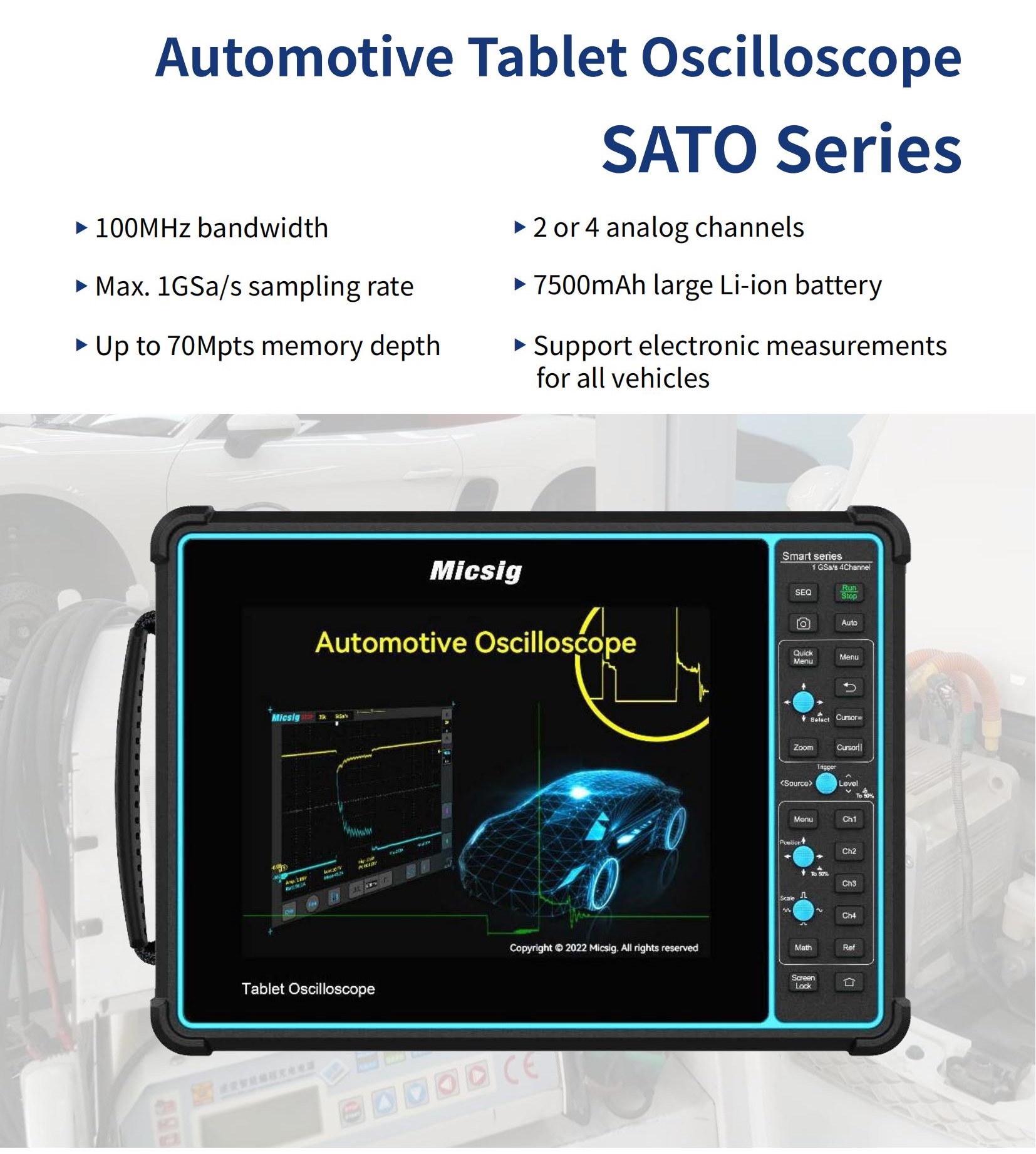

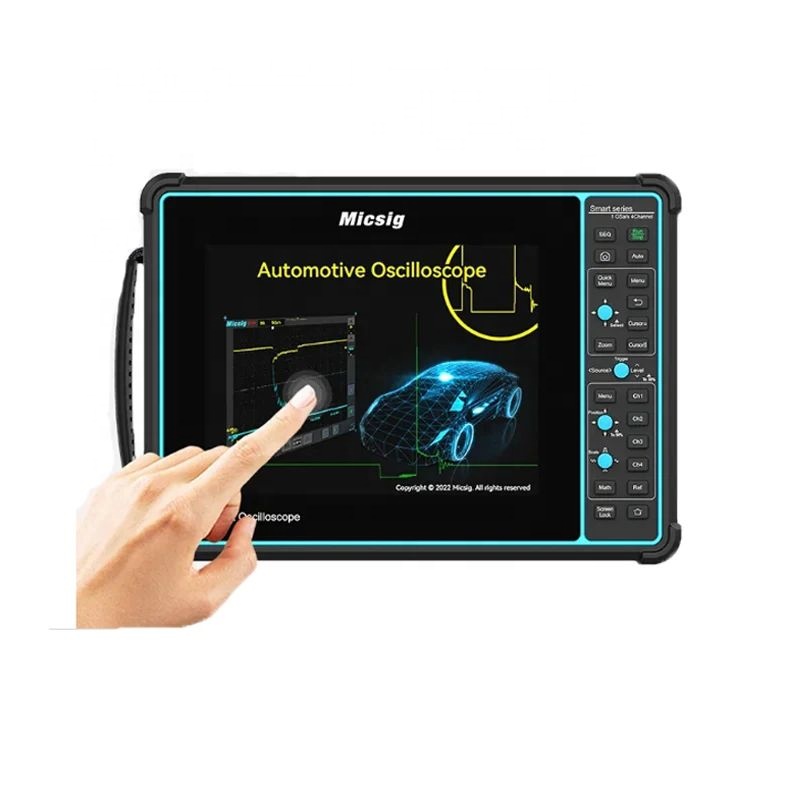

The SATO series Automotive Diagnostic Oscilloscope is specifically designed for automotive maintenance and diagnostics. It features built-in specialized automotive diagnostic functions, an ultra-large 8-inch high-definition screen with 800*600 resolution, a built-in long-lasting lithium battery providing over five hours of operation, 2/4 channels, a maximum bandwidth of 200MHz, a sampling rate of 1GSa/s, and a memory depth of up to 70Mpts. The built-in automotive software package allows one-click setup for relevant test items, making your automotive diagnostic work effortless.
Measures both fuel vehicles and new energy vehicles! The built-in automotive software package enables one-click setup for most measurement projects.
Compact size and lightweight for easy portability. Features a power lock for safer transport and is equipped with a 7500mAh lithium battery providing up to 5 hours of continuous operation.

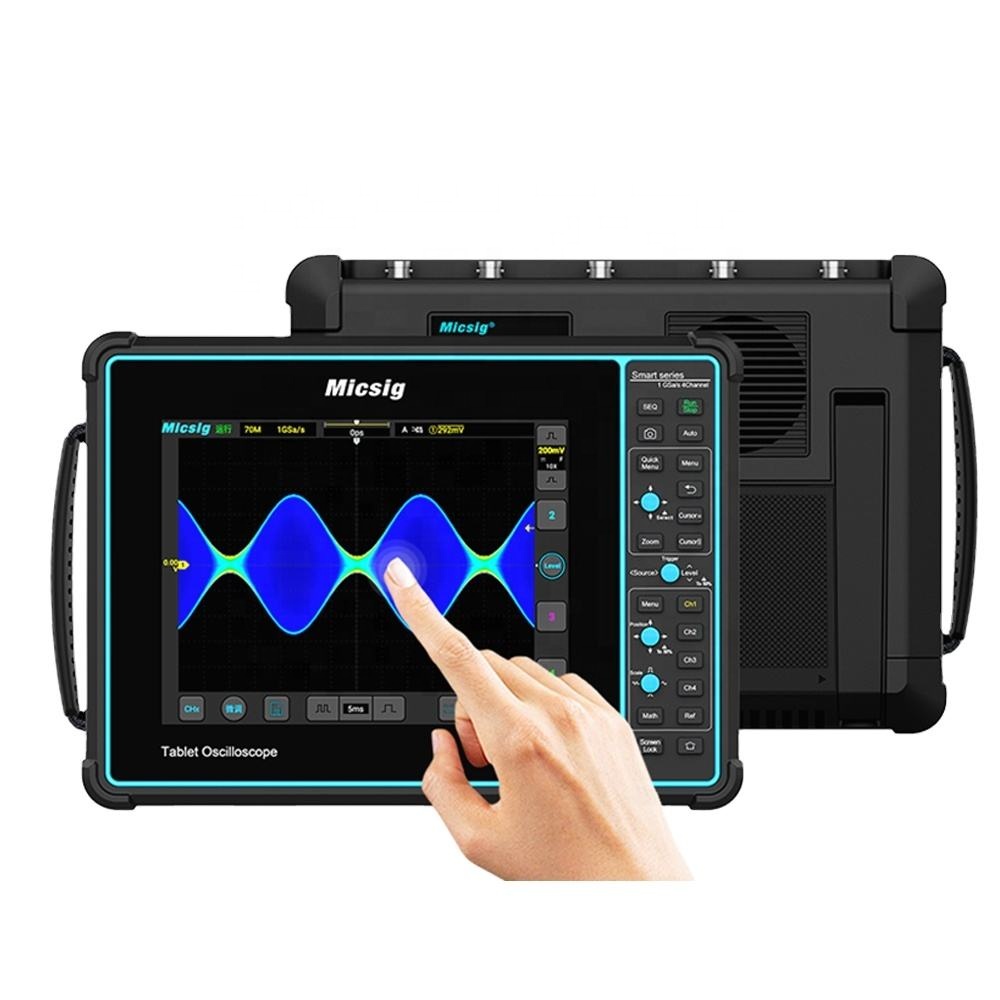

Waveform movement and scaling are synchronized with user perception, making operation simpler. Independent auto-setup for horizontal and vertical systems provides flexible use.
The oscilloscope boasts a high memory depth of 70Mpts, combined with Zoom technology, perfectly displaying both the global overview and fine details.

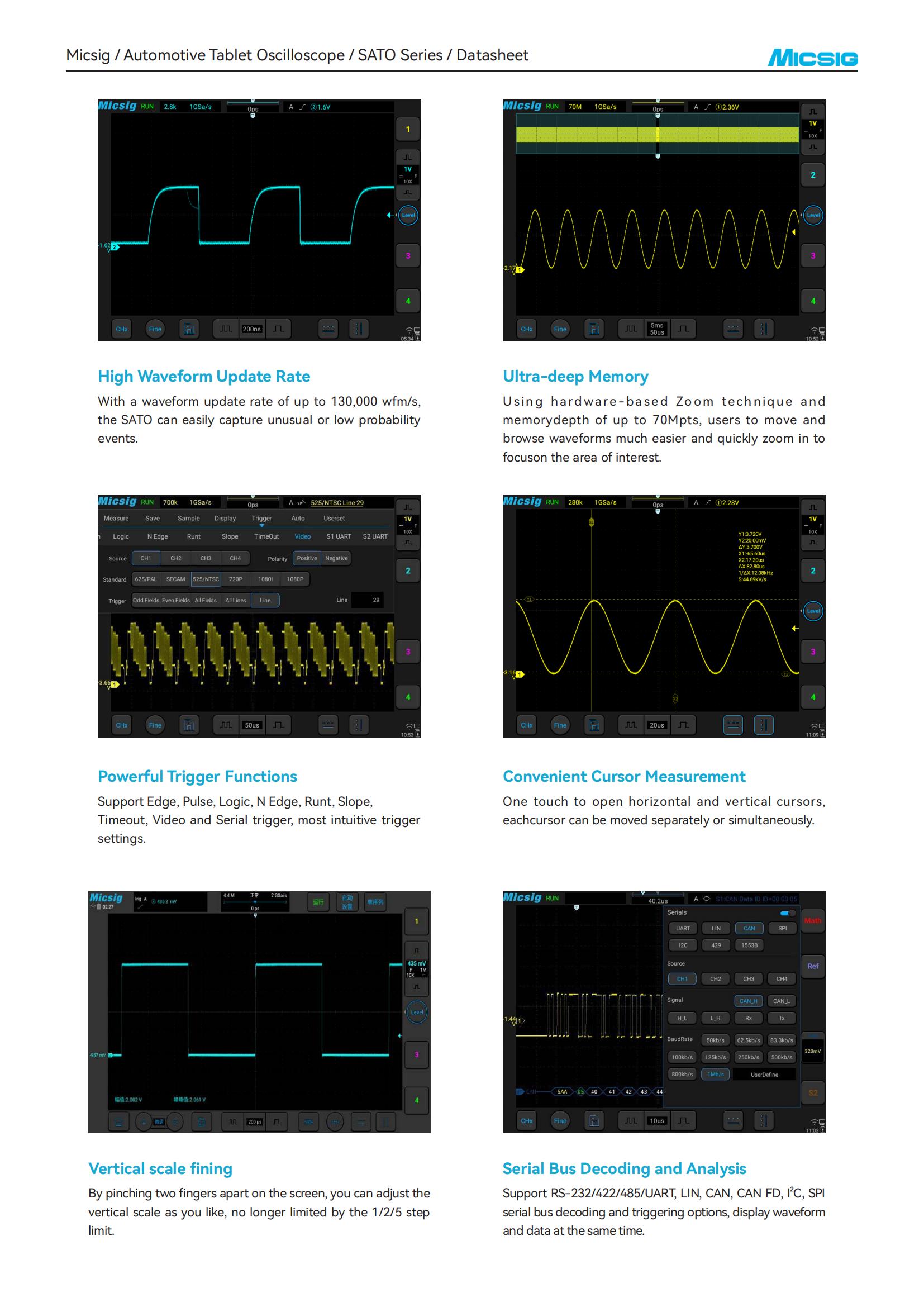

With a maximum waveform capture rate of 130,000 waveforms per second, the oscilloscope can easily capture abnormal waveforms.
Supports decoding for over 6 serial bus types (RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C). Combined with TXT text mode, decoded data can be exported in CSV format.
Supports SCPI (Standard Commands for Programmable Instruments) and remote control via mobile apps (Android, iOS) and PC software.
Supports screen capture, video recording, and waveform data saving. Users can easily access files via PC or mobile phone connections.

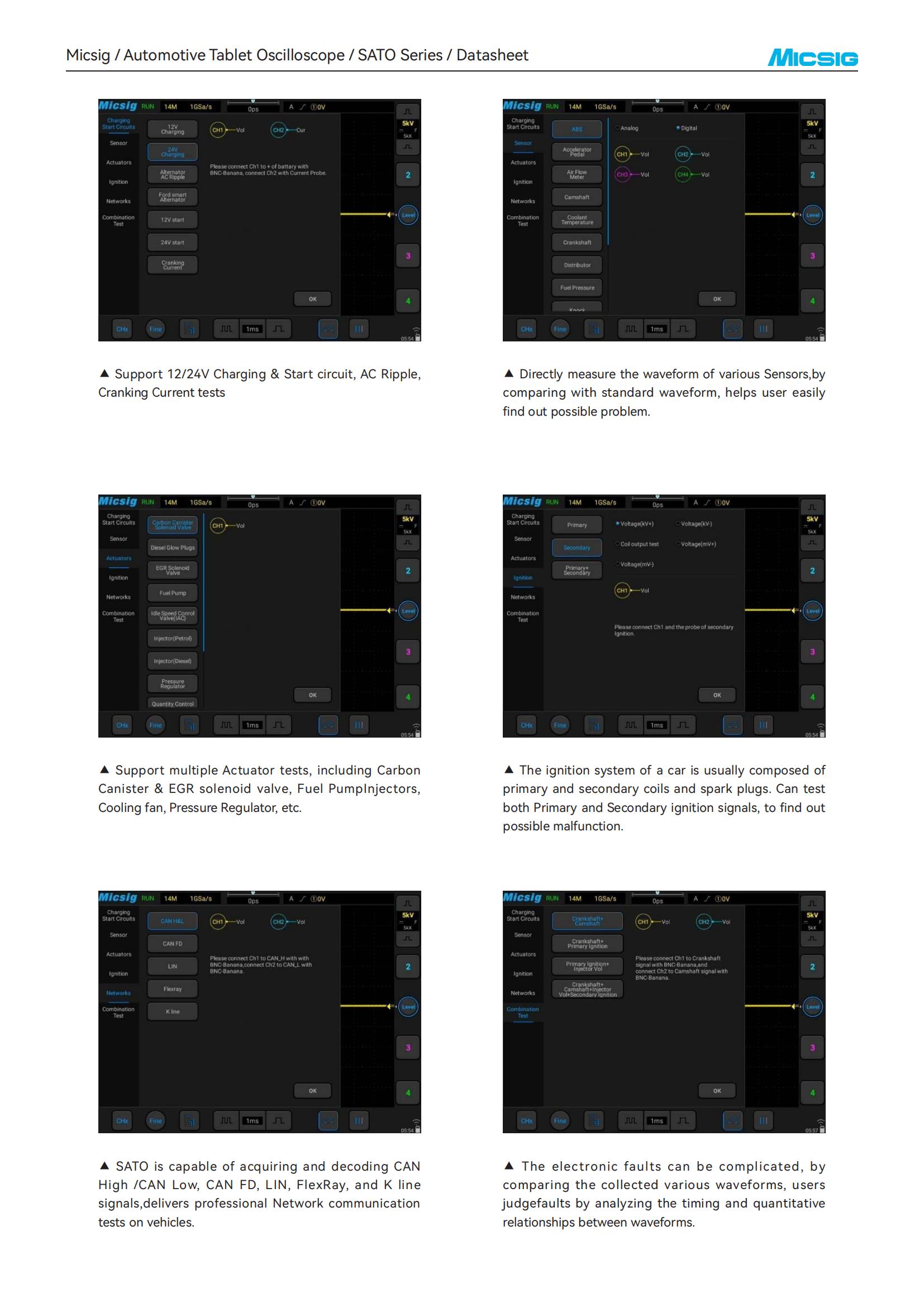

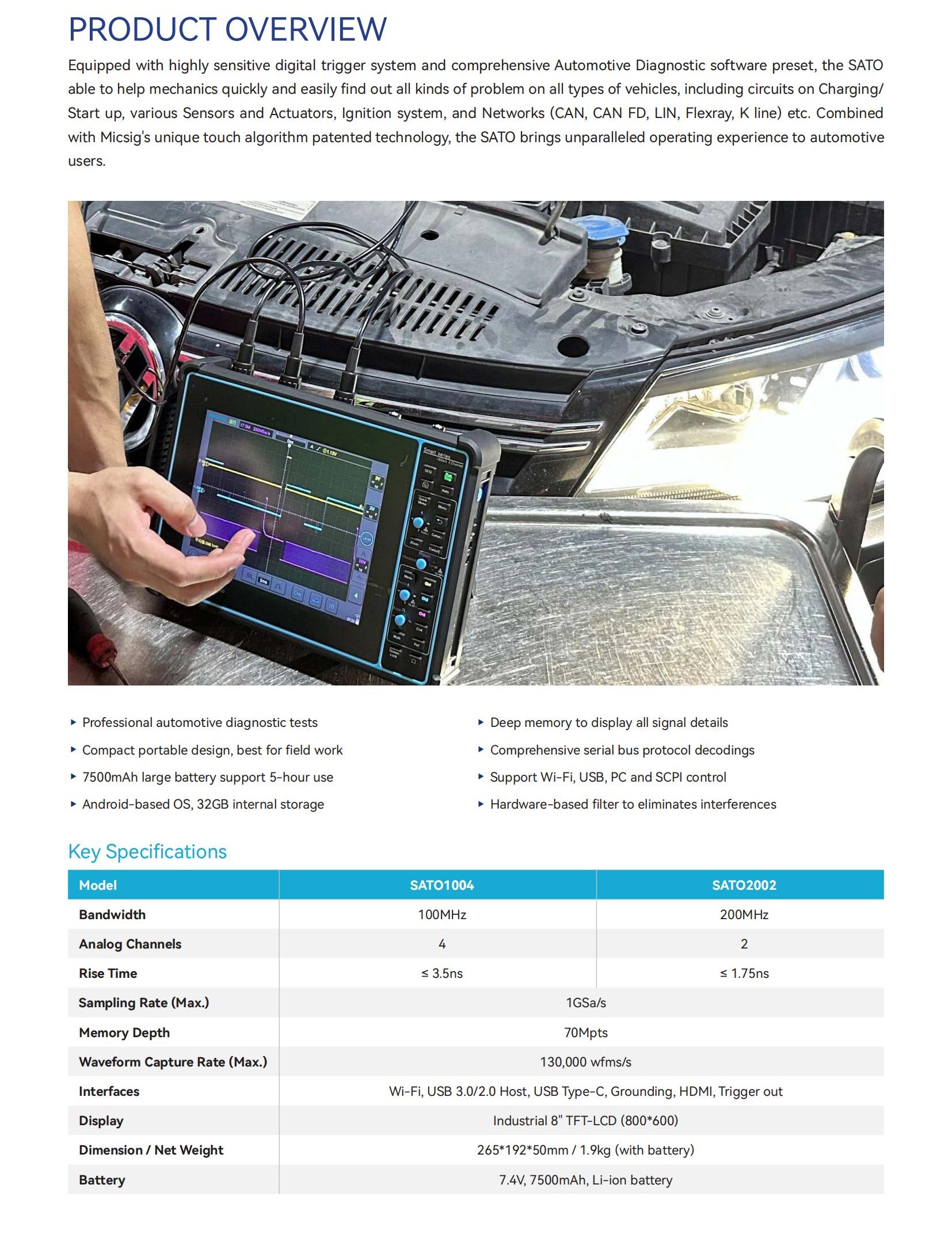

The SATO series diagnostic oscilloscopes support electronic system measurements for all types of vehicles, including traditional fuel-powered vehicles and new energy vehicles.

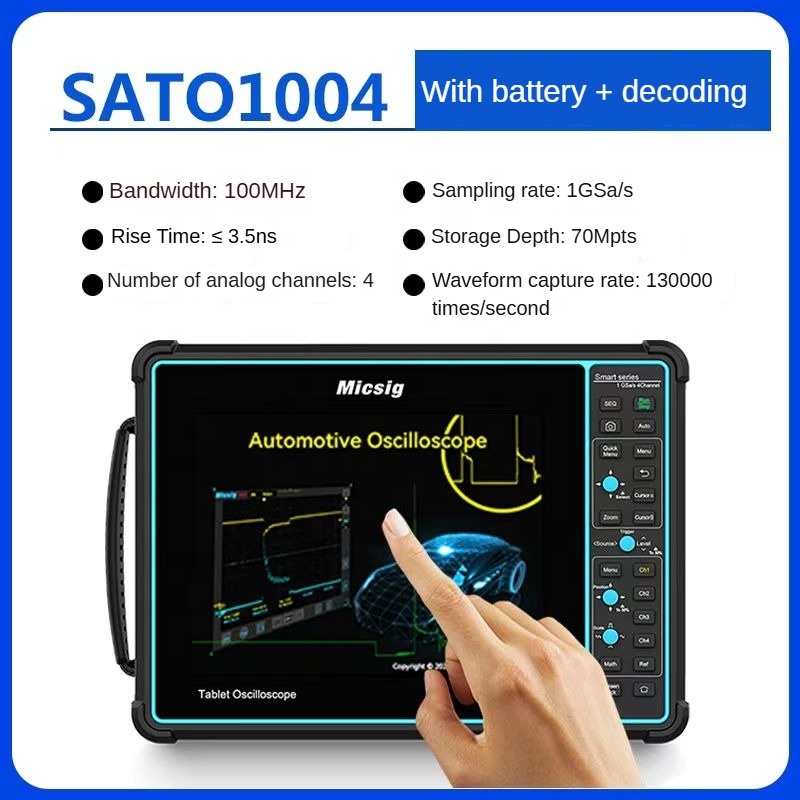

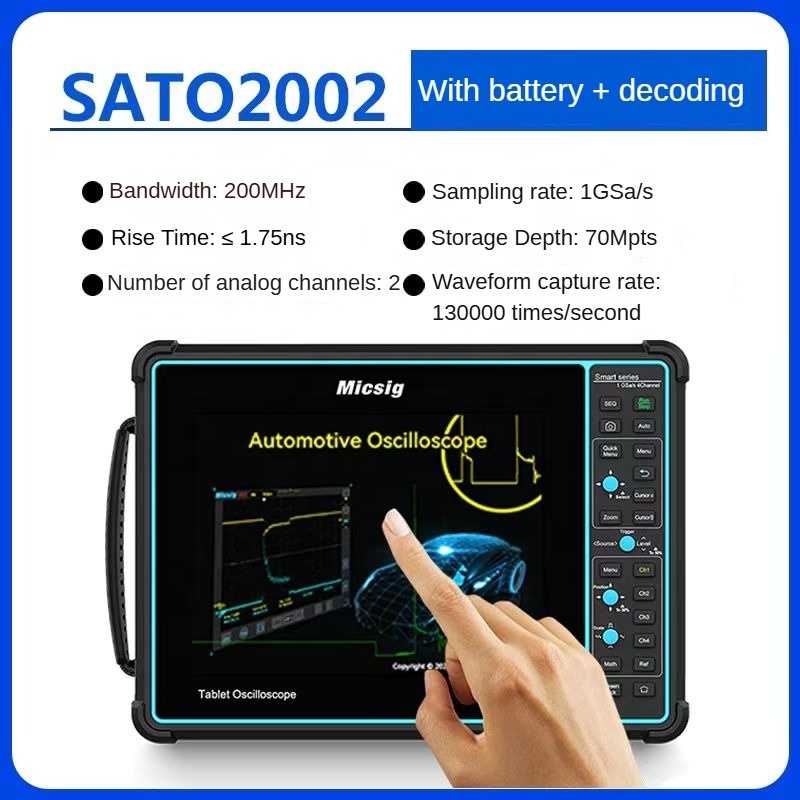

The SATO2002 features a higher bandwidth of 200MHz with 2 analog channels, whereas the SATO1004 features a bandwidth of 100MHz with 4 analog channels to suit different diagnostic testing needs.

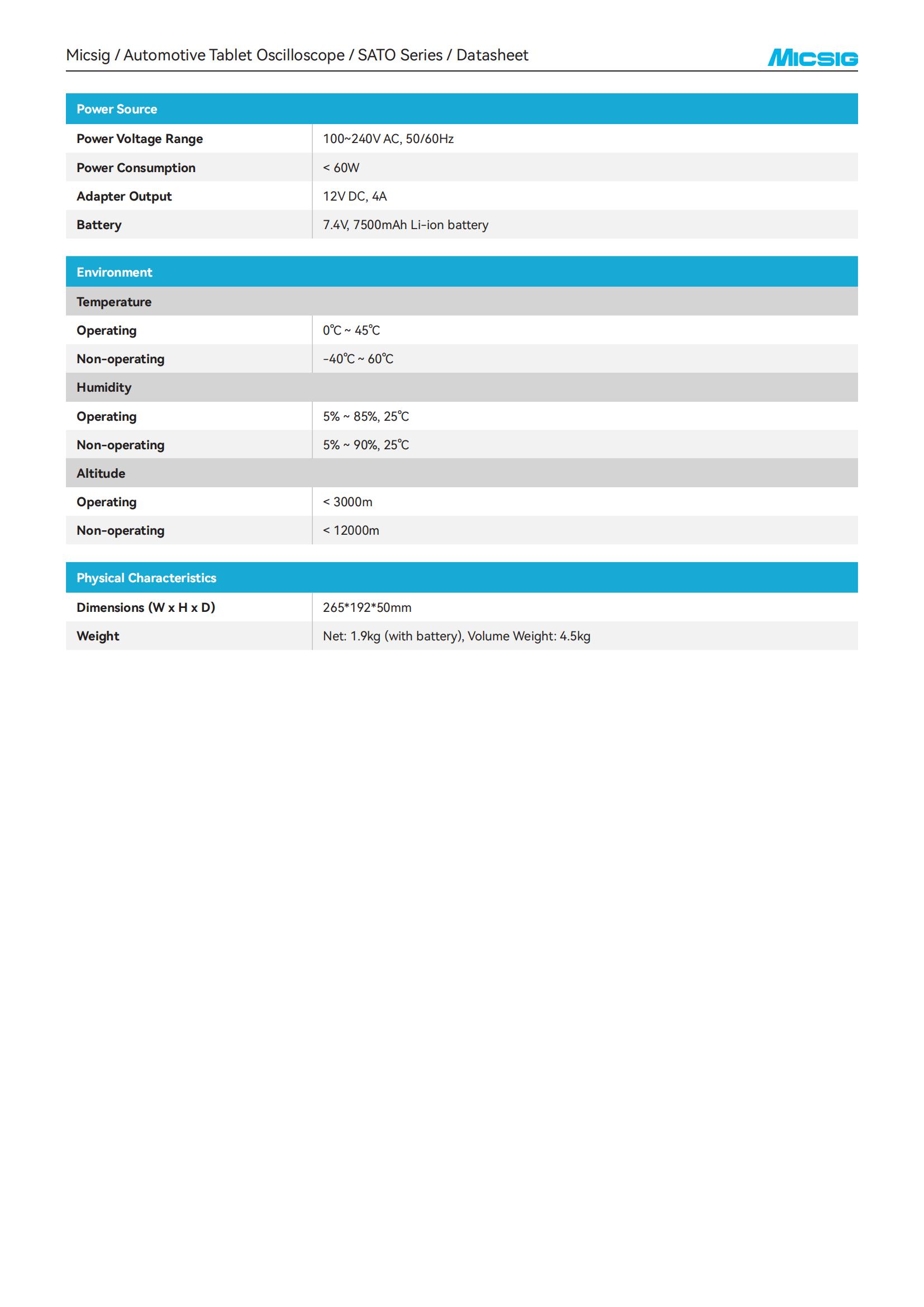

Both models are equipped with a built-in 7500mAh lithium battery that provides up to 5 hours of continuous operation, allowing you to easily test vehicles anywhere without external power.
The oscilloscope supports decoding for more than 6 serial bus types, including CAN, CAN FD, LIN, SPI, I2C, and RS-232/422/485/UART.
Yes, it supports multiple remote control methods including SCPI commands, and remote operation via a mobile app (Android and iOS) or PC software.

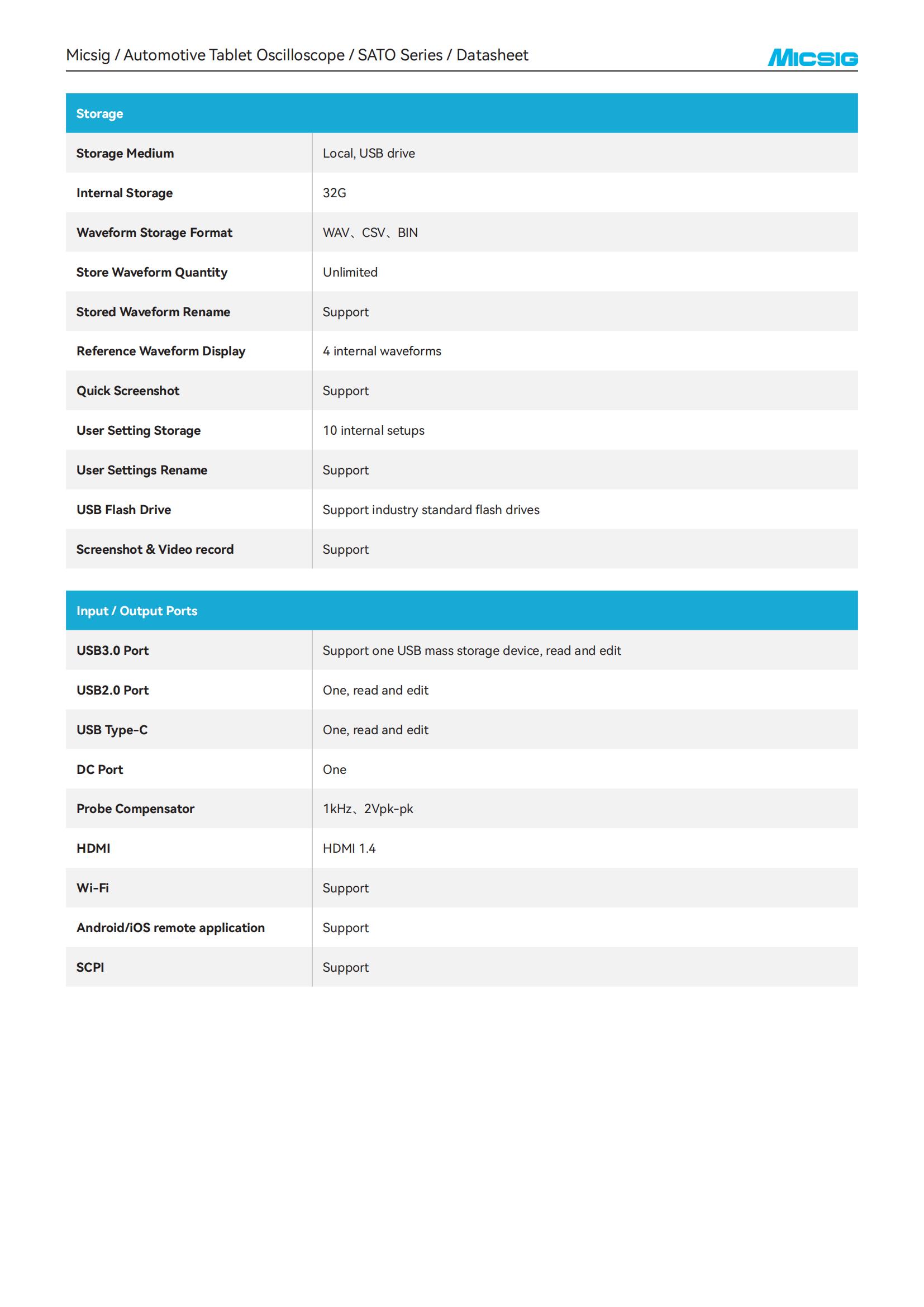

The device comes with 32GB of large capacity internal storage, which allows users to save screen captures, video recordings, and massive waveform data files directly.
