Automobile Diagnostic Oscilloscope
800*600 HD Touchscreen
5+ Hours Battery Life
70Mpts Storage Depth
Up to 200MHz Bandwidth

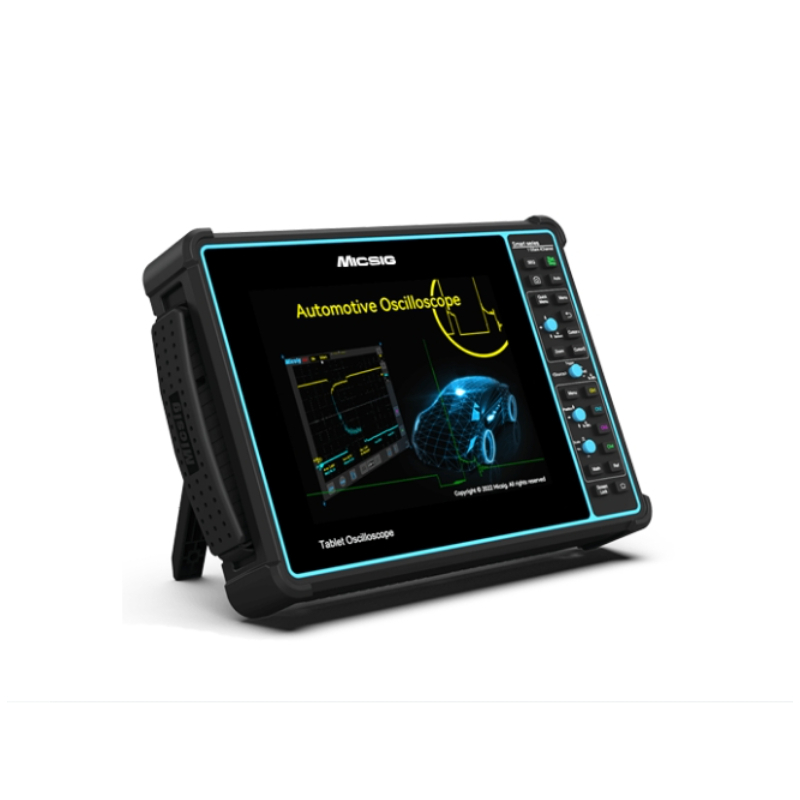

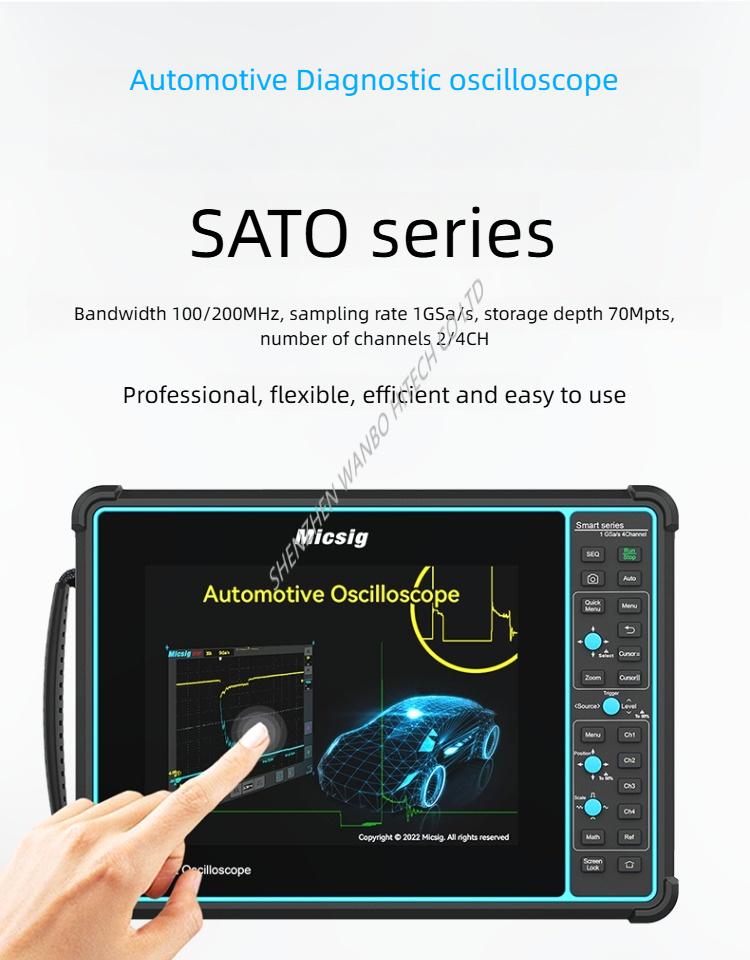

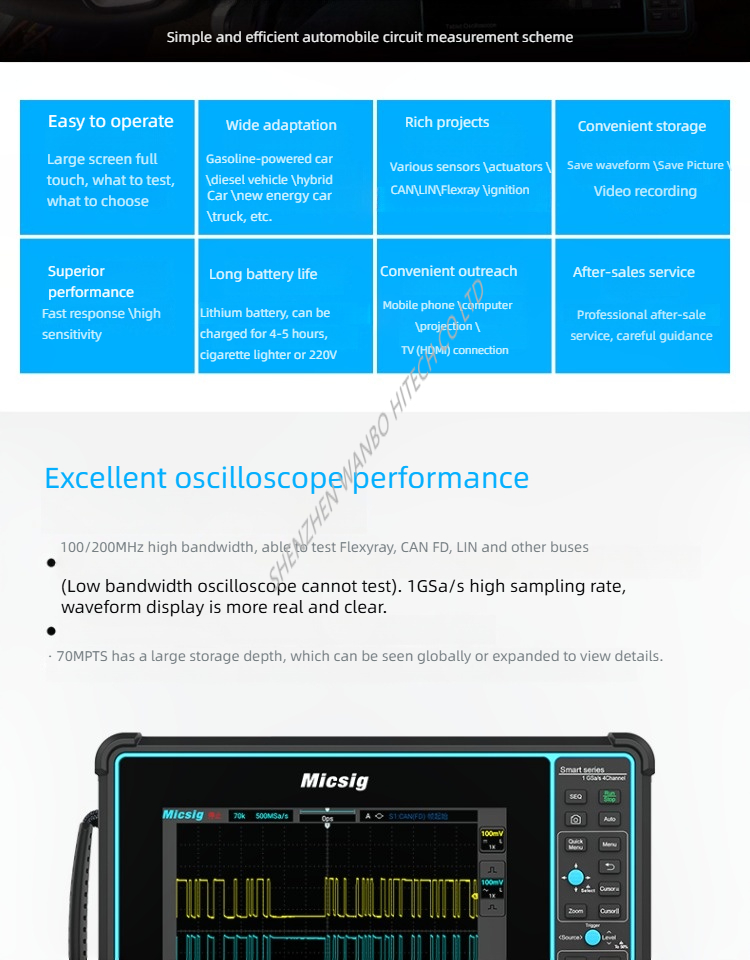

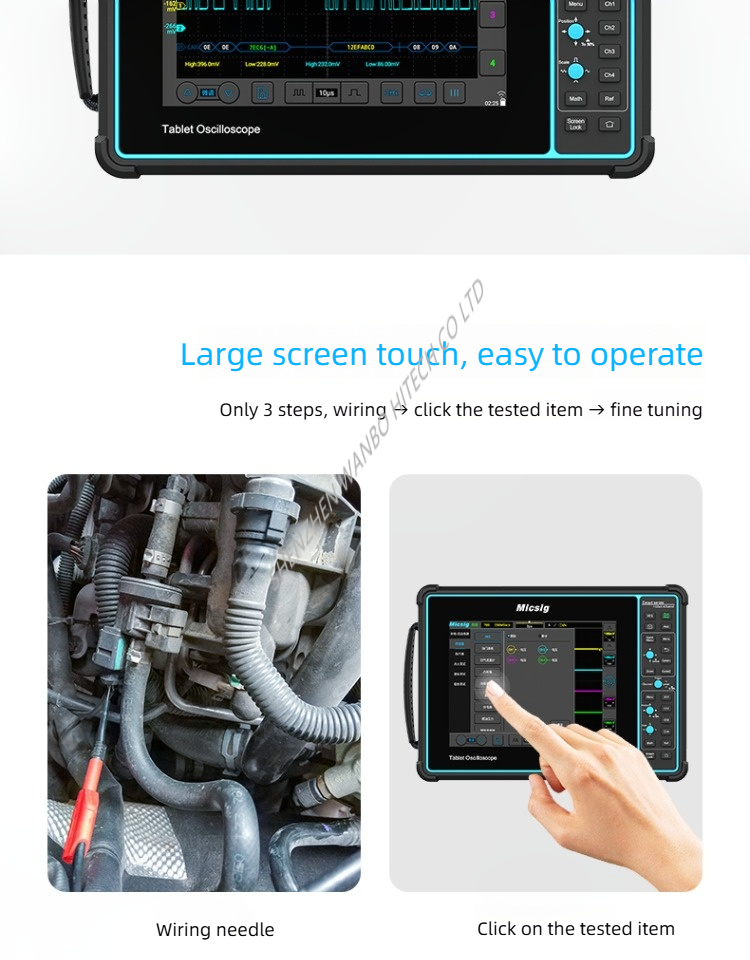

Car diagnostic oscilloscope SATO Series is an oscilloscope specially used for automobile maintenance and diagnosis. It has a variety of built-in professional automobile diagnosis functions and adopts an 8-inch 800*600 ultra-high-resolution HD screen, built-in lithium battery with a battery life of more than five hours, 2/4 road channels, maximum bandwidth of 200MHz, sampling rate of 1GSa/s, and a storage depth reaching 70Mpts. The built-in car software package can complete the setting of relevant test items with one click, allowing your car to perform diagnosis and measurement without worry.

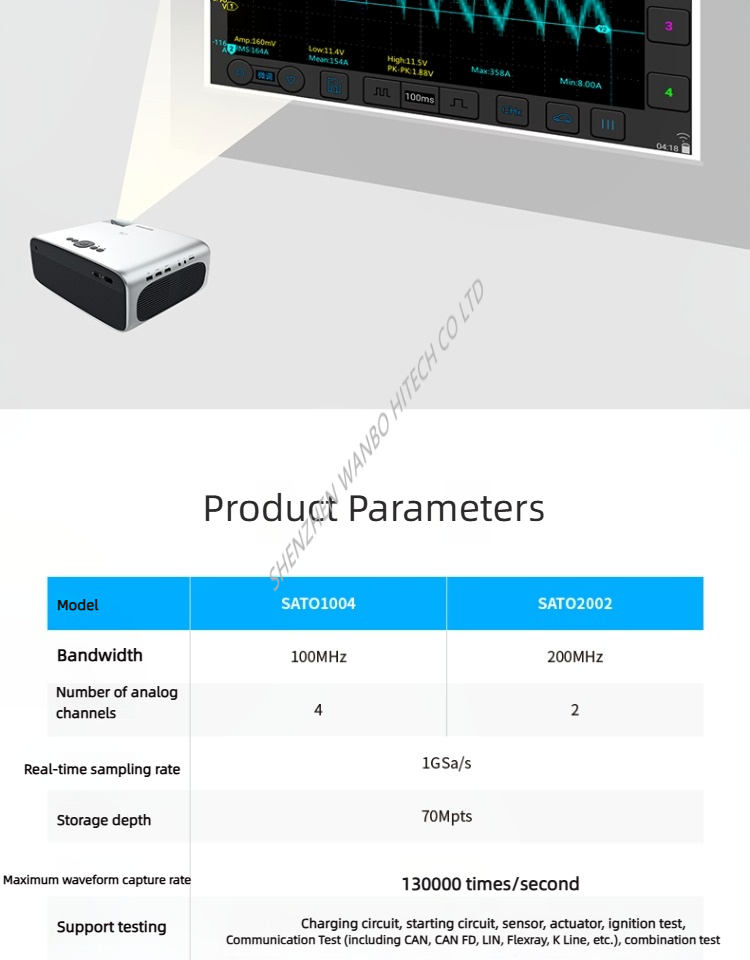

| Model |
SATO1004 |
SATO2002 |
| Bandwidth |
100MHz |
200MHz |
| Number of analog channels |
4 |
2 |
| Rise time |
3.5ns |
1.75ns |
| Real time sampling rate |
1GSa/s |
| Storage depth |
70Mpts |
| Maximum waveform capture rate |
130,000 times/Second |
| Vertical resolution |
8-Bit |
| Support testing |

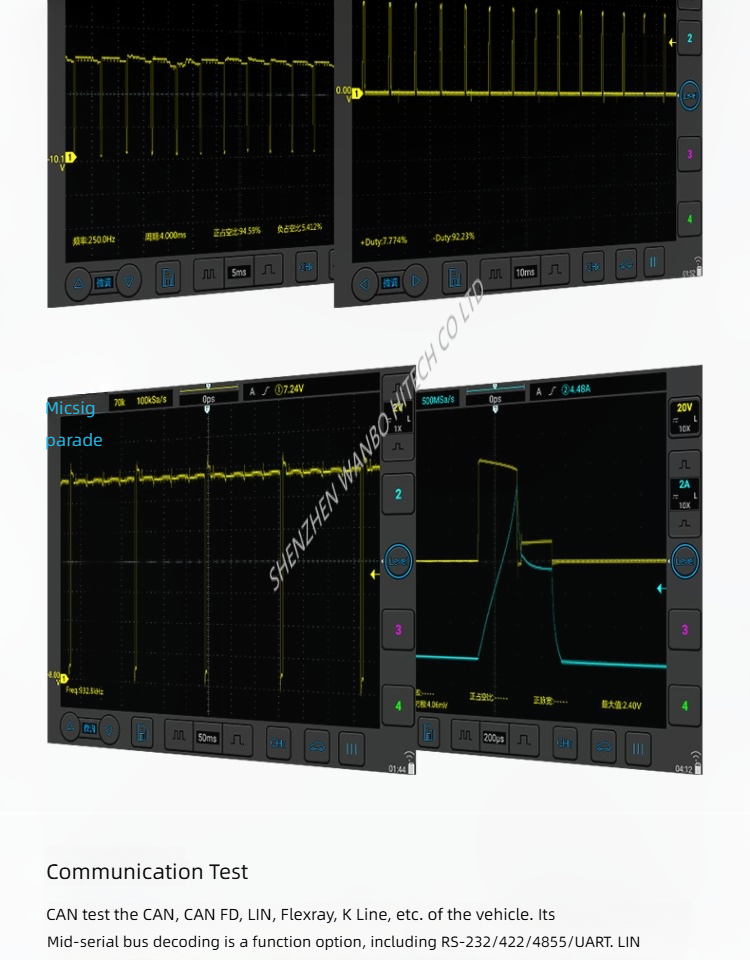

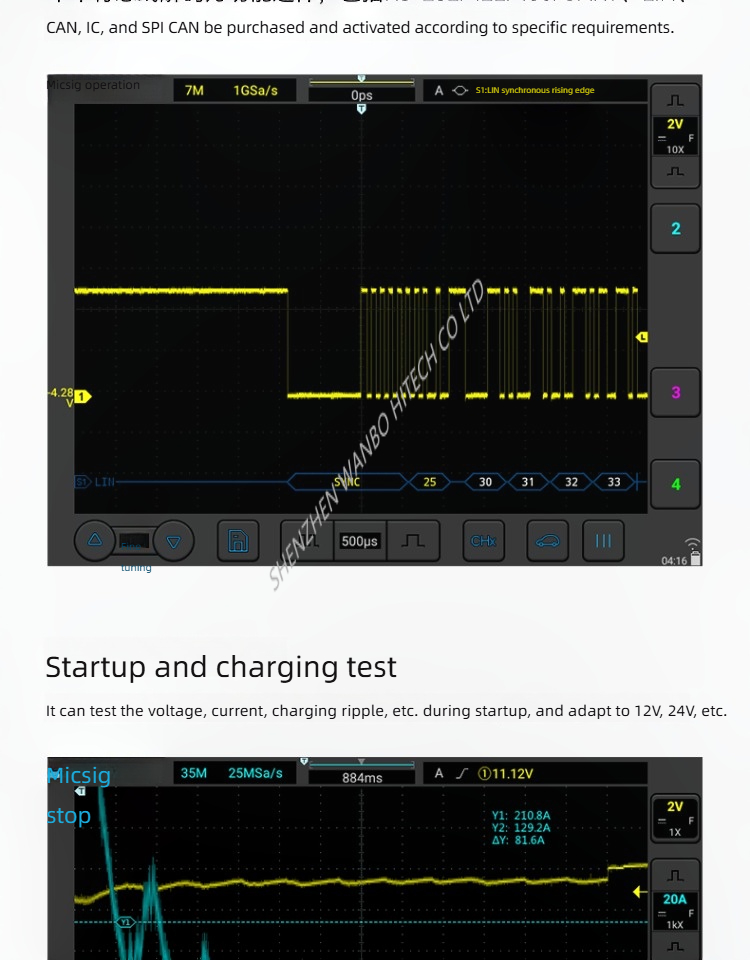

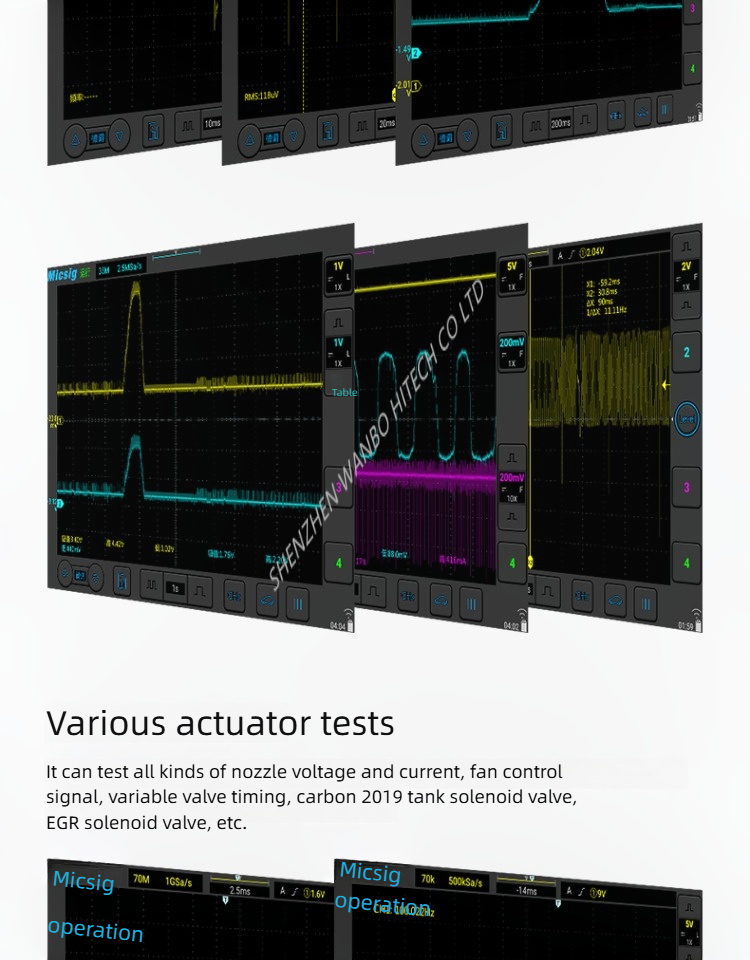

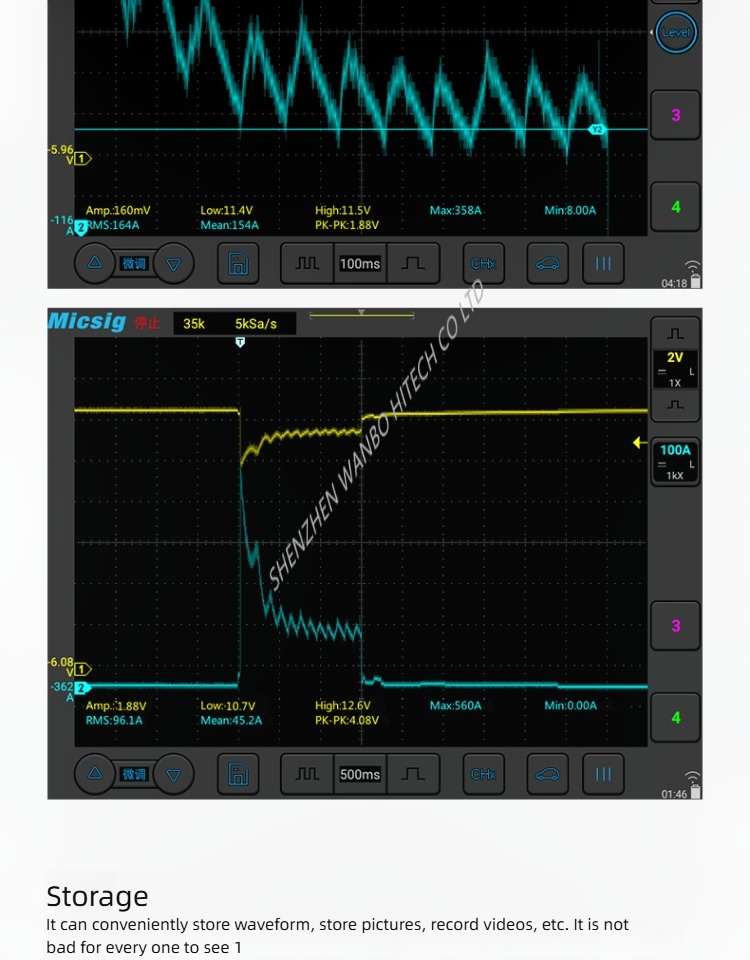

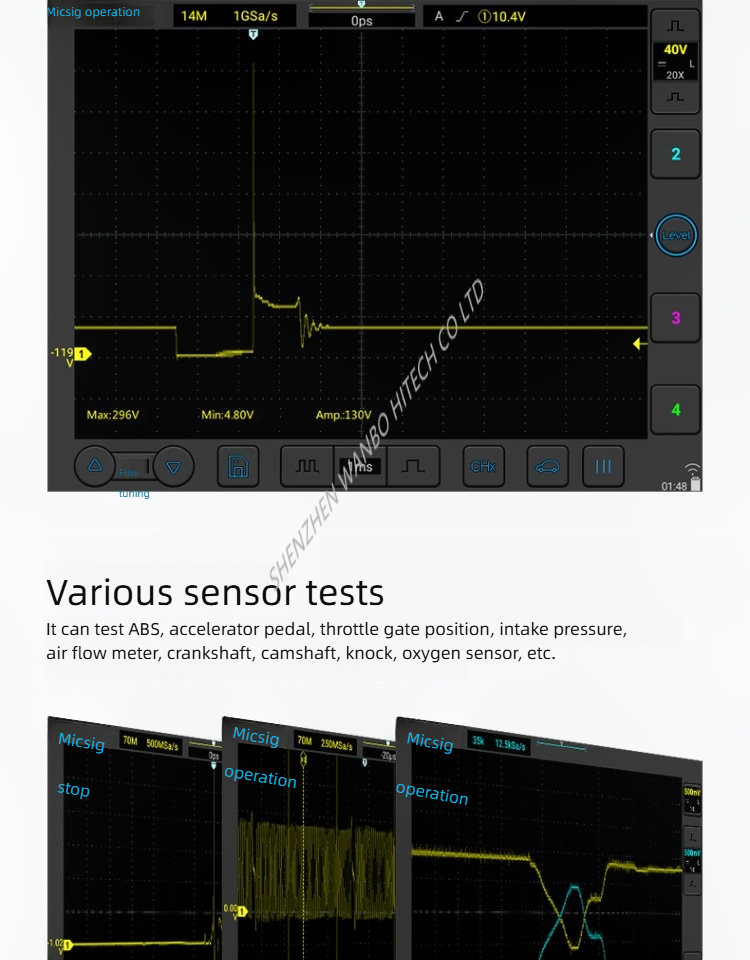

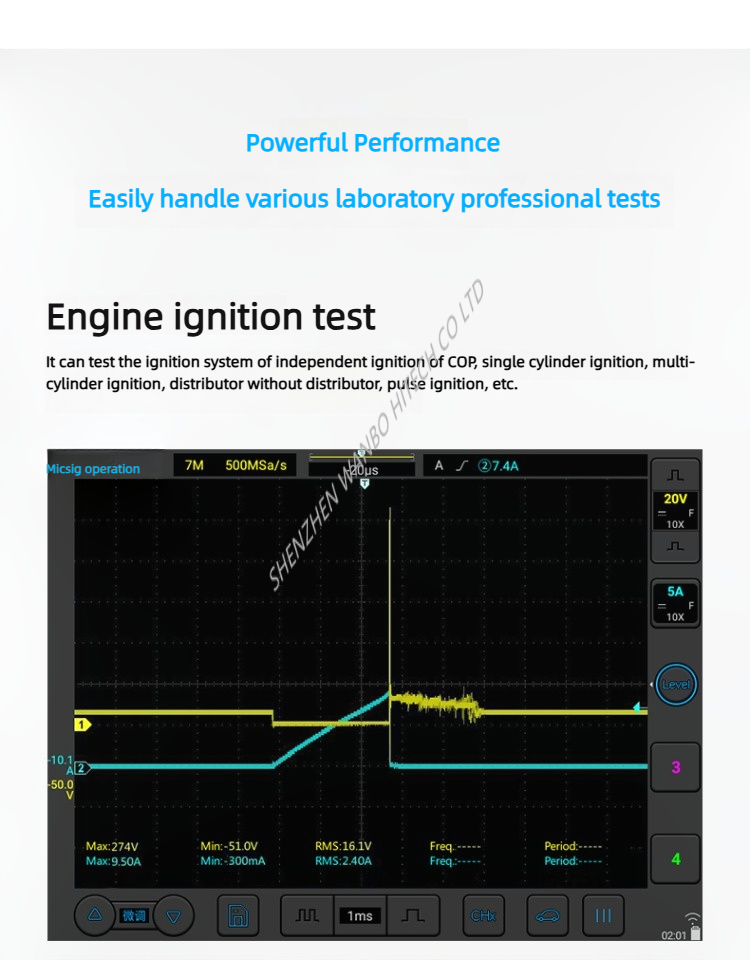

Charging circuit, starting circuit, sensor, actuator, ignition test, communication test (including CAN, CAN FD, LIN, Flexray, K Line, etc.), combined testing |
| Bandwidth limits |
Full bandwidth, low pass |

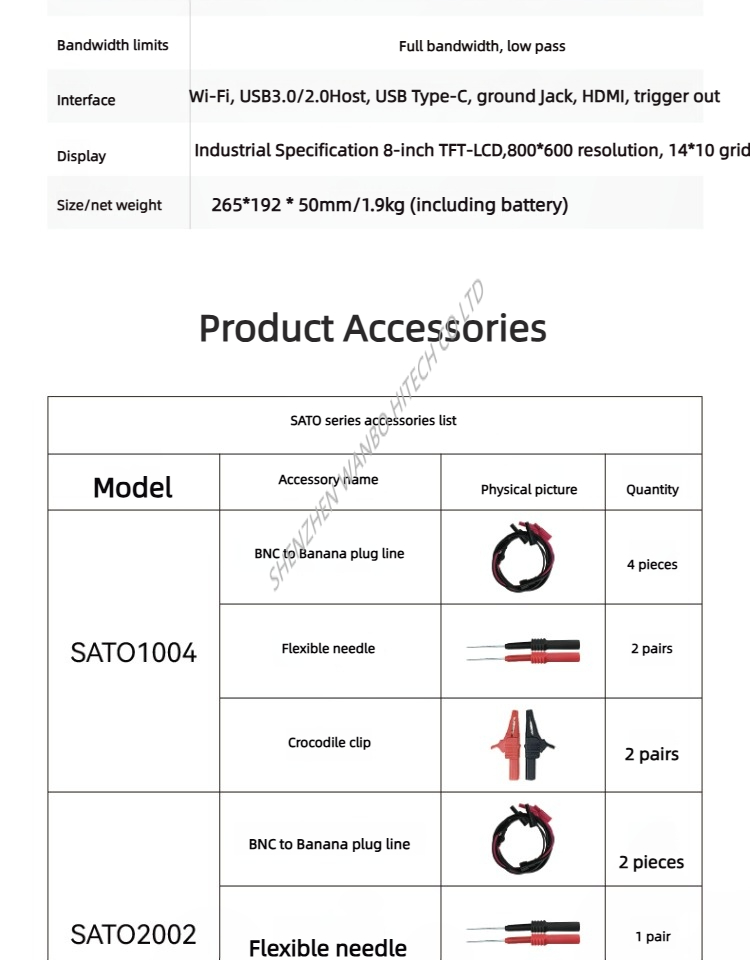

| Interface |

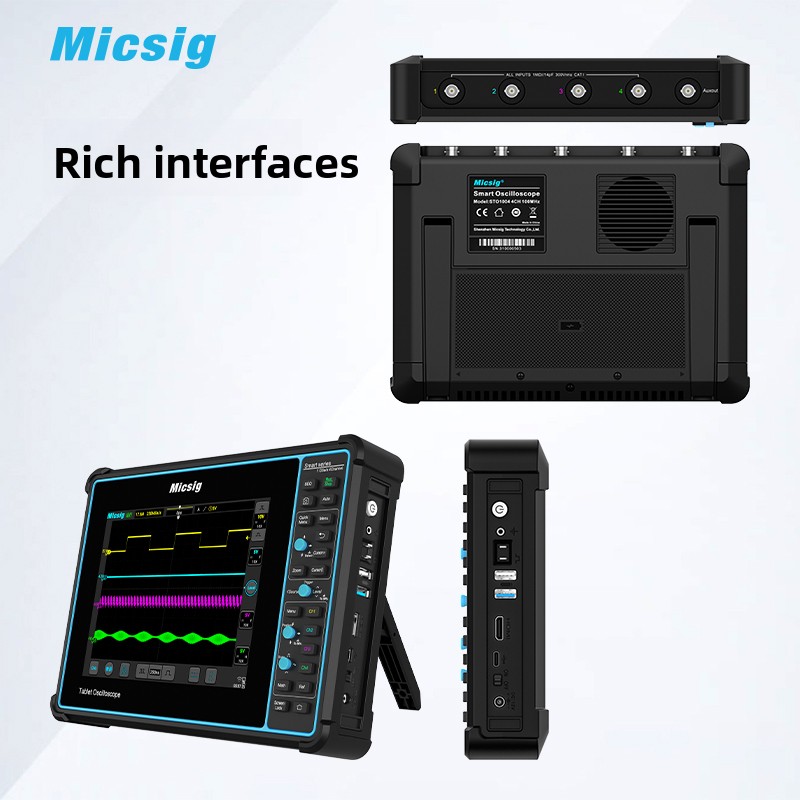

Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger out |
| Display |
Industrial specifications 8-Inch TFT-LCD, 800*600 Resolution, 14*10 Grid |
| Size/Net weight |
265*192*50mm / 1.9kg (battery included) |
| Standard accessories |
2x passive probe, 4x BNC to banana head line (2 for 2-channel version), 2x flexible needles (1 pair for 2-channel version), 2x alligator clips (1 pair for 2-channel version), power cord, adapter, battery (built-in), protective film |
Frequently Asked Questions
What are the main automotive tests supported by the SATO Series?
The SATO series supports charging circuits, starting circuits, sensors, actuators, ignition tests, and communication tests (including CAN, CAN FD, LIN, Flexray, and K Line) as well as combined testing.
What is the difference between SATO1004 and SATO2002?
The SATO1004 features 4 analog channels with a 100MHz bandwidth, whereas the SATO2002 features 2 analog channels with a 200MHz bandwidth. Both share the same real-time sampling rate and storage depth specifications.
How long does the built-in battery last on a full charge?
The SATO series comes with a built-in high-capacity lithium battery that provides more than five hours of continuous operation in the field.
What is the storage depth and real-time sampling rate of these oscilloscopes?
Both models in the SATO series offer a massive storage depth of 70Mpts and a high real-time sampling rate of 1GSa/s, allowing you to capture long duration waveforms with high resolution.

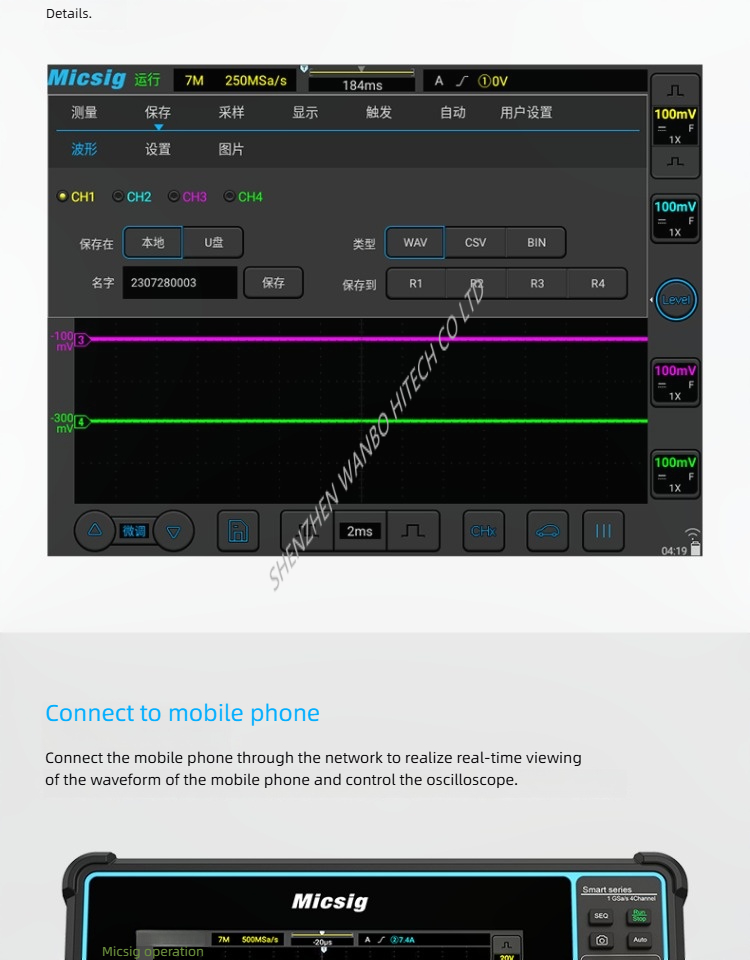

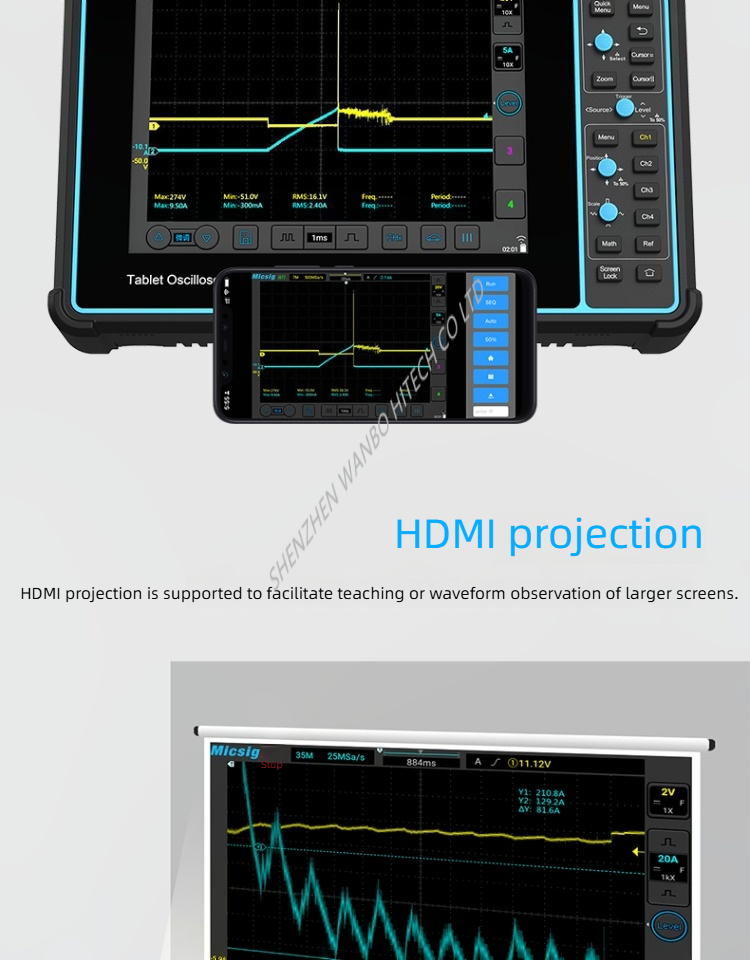

Does the oscilloscope support remote screen output or computer connectivity?
Yes, the device features rich connectivity interfaces including Wi-Fi, USB 3.0/2.0 Host, USB Type-C, and HDMI, allowing for easy external display projection and data transfers.
Is the SATO series suitable for industrial or harsh environment usage?
Yes, it uses an 8-inch industrial specification TFT-LCD screen with a robust build quality designed to withstand the typical working environments of vehicle repair and diagnosis shops.
