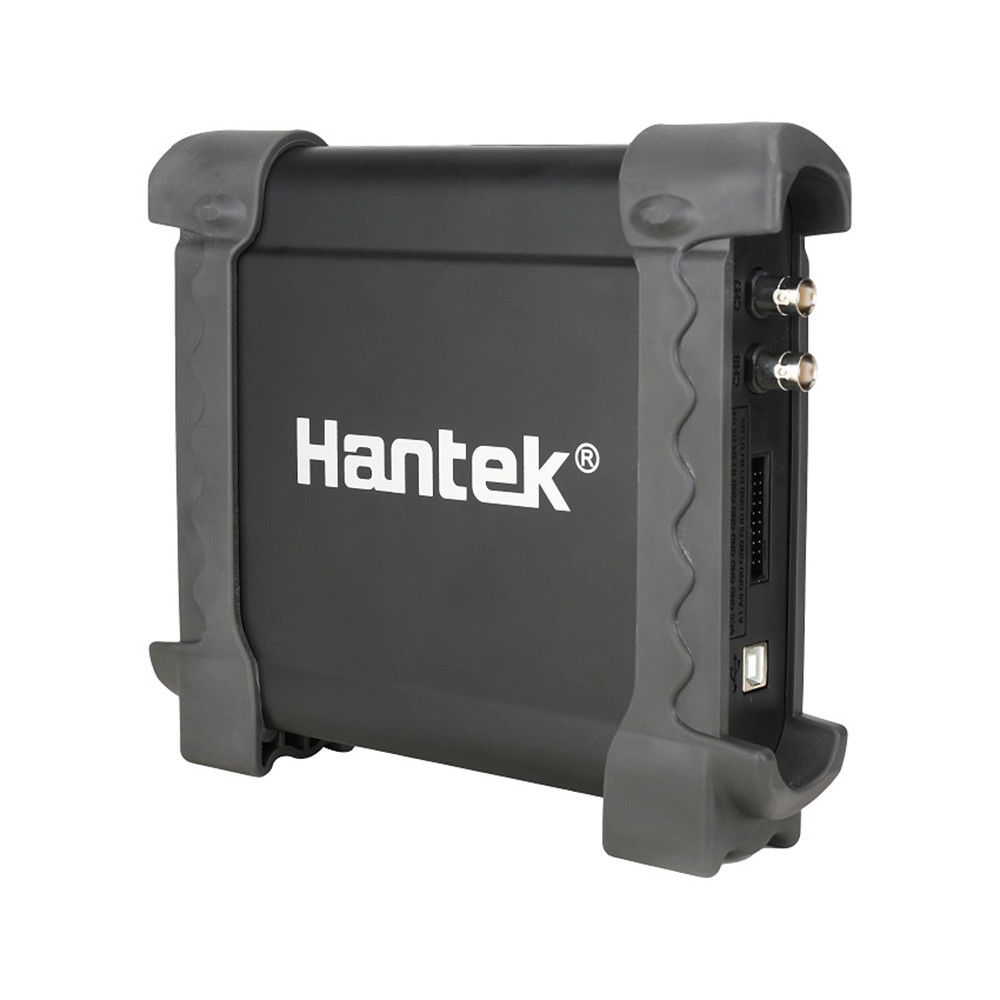

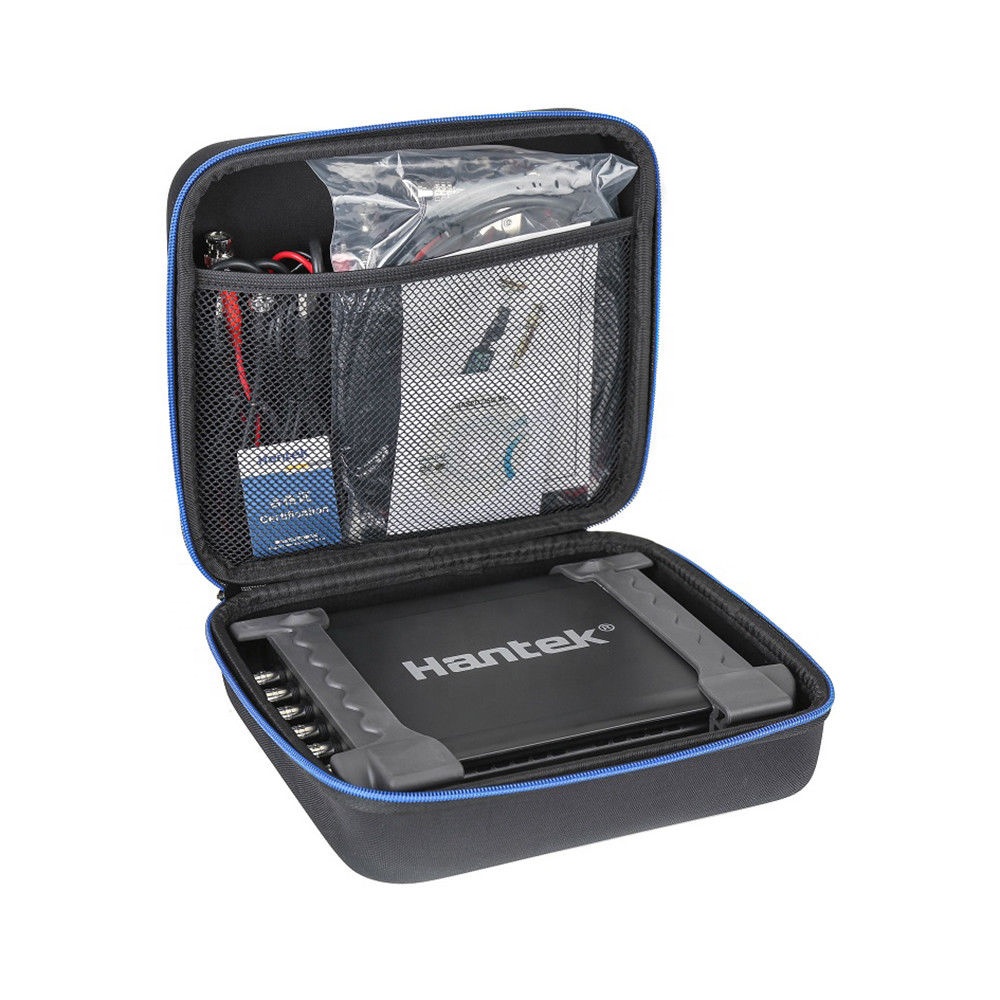

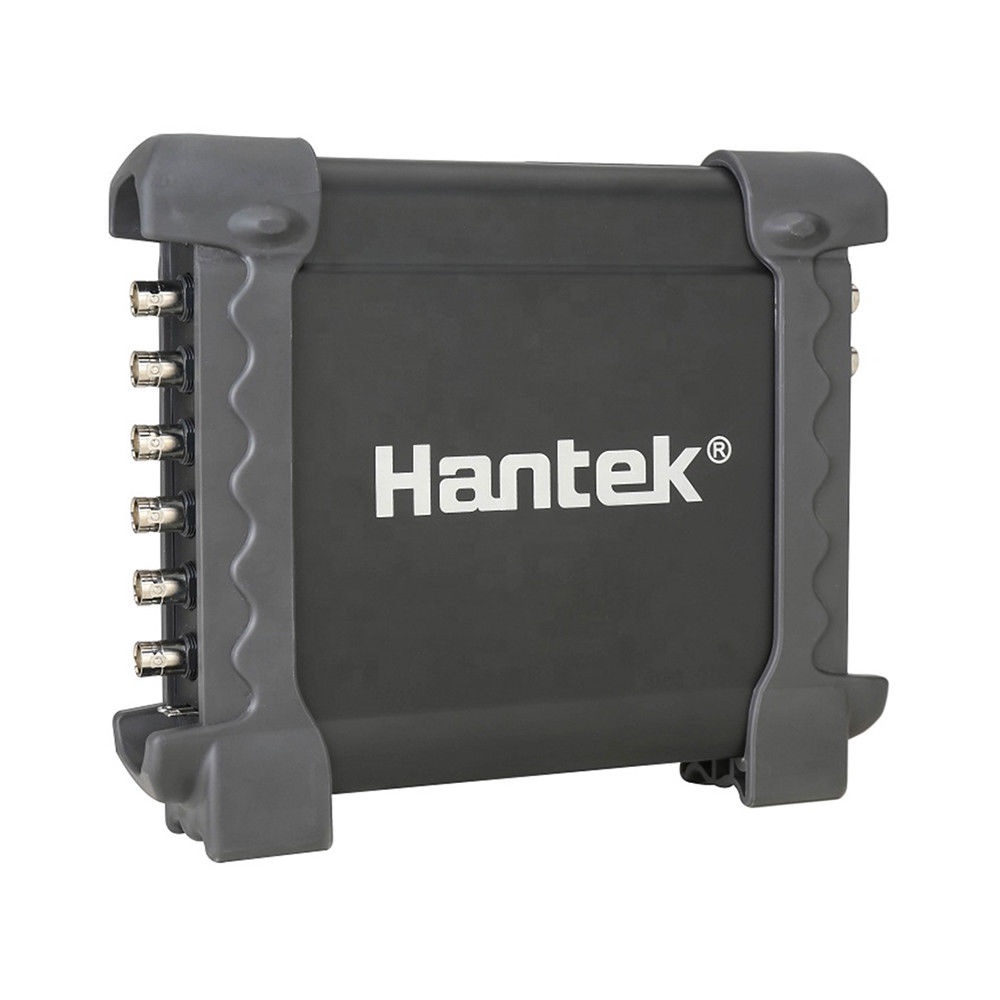

Hantek 1008C Programmable Digital Multimeter Automotive Oscilloscope 8 Channels PC Storage Osciloscopio USB Diagnostic

Product Description

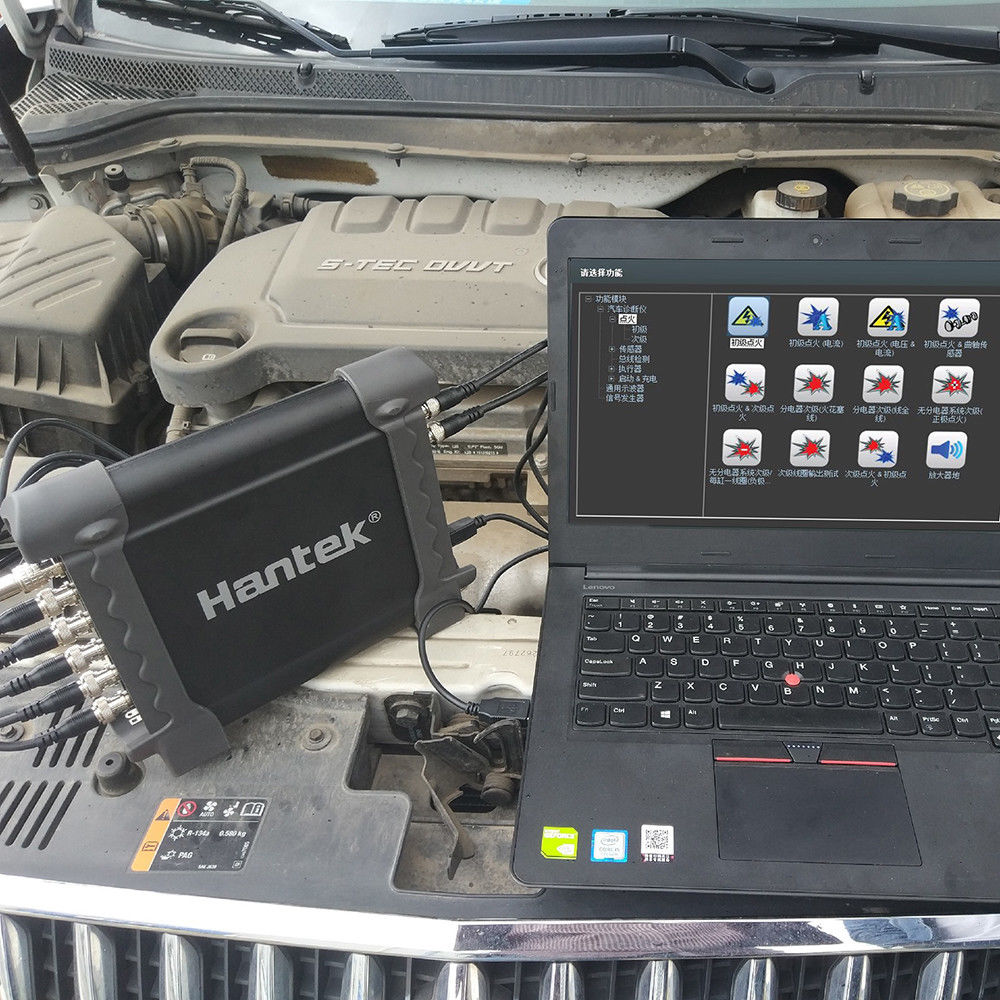

8 channels oscilloscope for vehicle testing. Over 80 types of automotive diagnostic function (Ignition/Sensor/Bus detection/Performance/Starter and charging circuits etc.).
Video Help Function, provides the video help of diagnostic which can be watched online.
The diagnostic result can be generated as a diagnostic report, printed or taken screenshot by pushing one key, many methods to save the data.
Supported to record waveform for a long time. It can simulate camshaft and crankshaft signal.
Transmit signals through USB 2.0 interface, plug and play, and no need extra power supply.

Time Base Precision	±50ppm
Trigger Source	CH1, CH2, CH3, CH4, CH5, CH6, CH7, CH8
Trigger Mode	Edge
X-Axis Input	CH1
Y-Axis Input	CH2
Voltage Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement	Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement	Horizontal, Vertical, Track, Auto Measure Modes
Waveform Signal Process	+, -, x, ÷, FFT, Invert
Voltage Range	10mV to 5V/div @ x 1 probe 100mV to 50V/div @ x 10 probe 10V to 5000V/div @ x 1000 probe 100V to 50000V/div @ x 10000 probe 200mV to 100V/div @ 20:1
Current Range	100mA to 50.0A/div @ CC65(20A) 1000mA to 500.0A/div @ CC65(65A) 1A to 100.0A/div @ CC650(60A) 1A to 200.0A/div @ CC1100(100A) 10A to 2000.0A/div @ CC1100(1100A)
FFT	Rectangular, Hanning, Hamming, Blackman Window
Math	Addition, subtraction, multiplication, division
Interface	USB 2.0(Full Speed)
Power	No need extra power supply
Size	190 x 167 x 35 (mm)
Weight	1.9kg

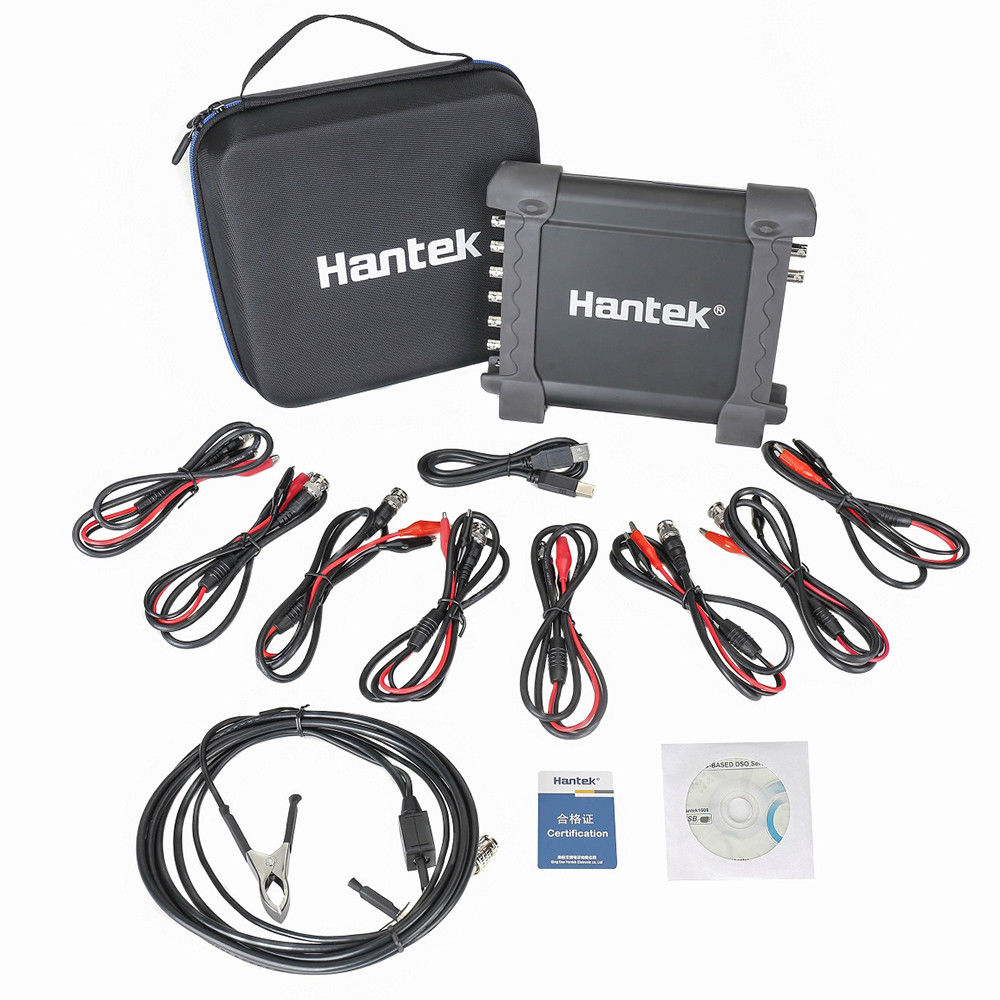

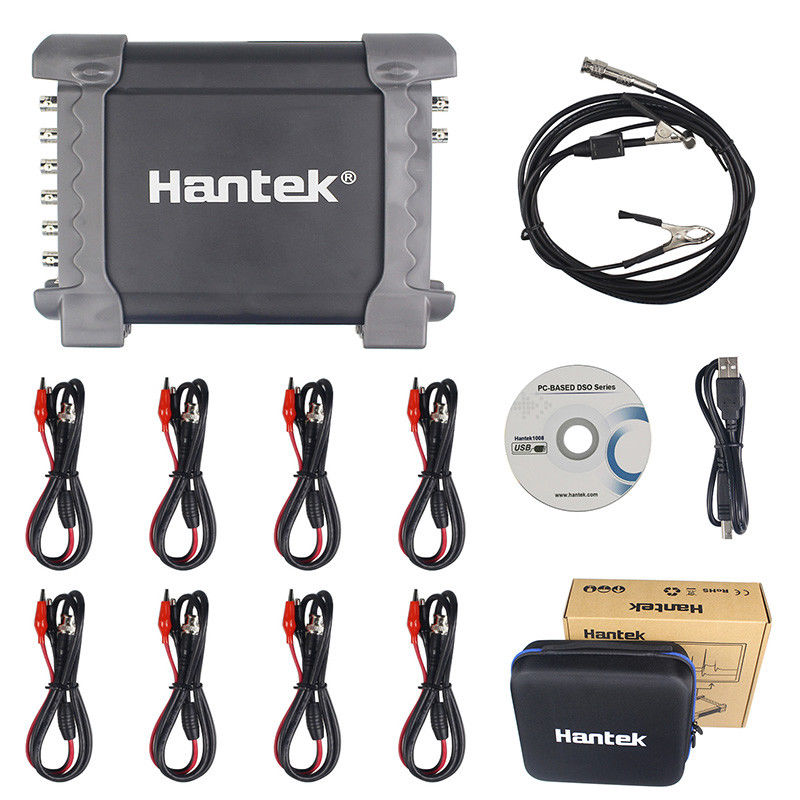

High pressure ignition probe	1

Packaging & Shipping

Package: Normally we use the standard exporting packaging. We also can pack according to clients' request.

Shipping Methods:

By Couriers: DHL, UPS, FEDEX, TNT are the main couriers we cooperate with at present.
By Air: Delivery from the local airport to customers' destination city airport.
By Sea: Delivery from the local sea port.

Our Services

The questions about the encoder will be answered within 24 hours.
One-stop solution will be offered to meet all your requirements on budget, designing and shipment.
We provide updates on the procession of manufacturing.

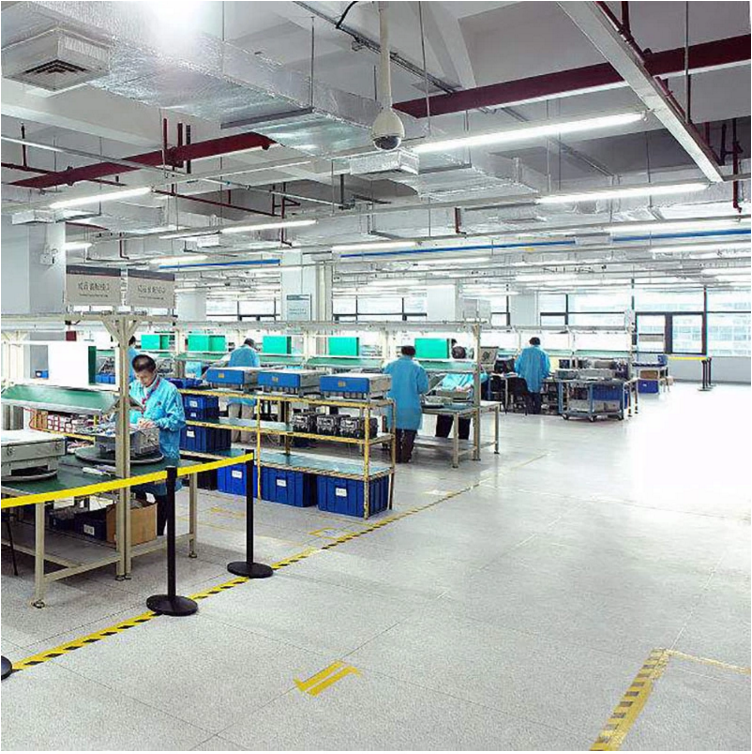

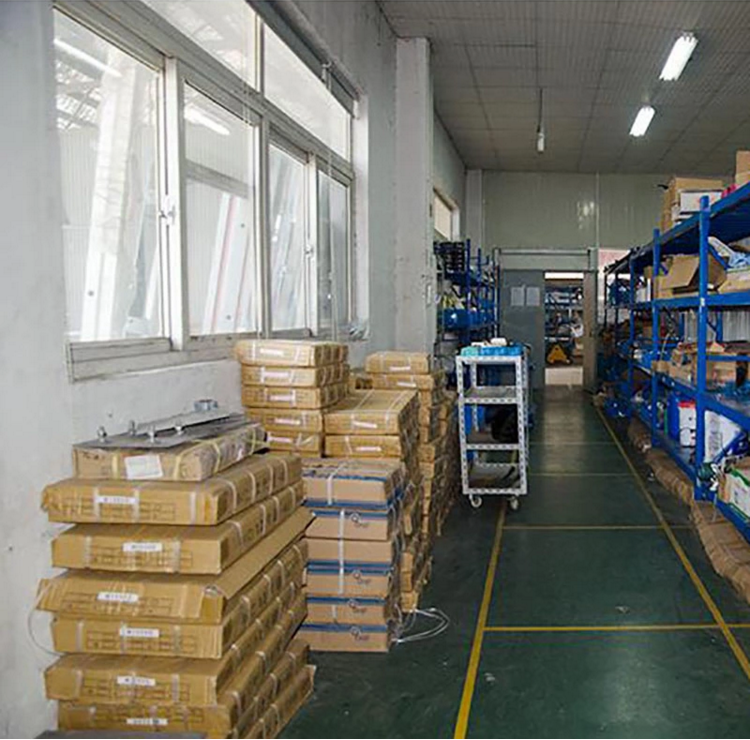

Production Facility

Frequently Asked Questions

What's the MOQ?

MOQ is 1 pc.

How to place the order?

Please contact our team to get the detailed datasheet and confirm the part number of the encoder you need, then you can place the order.

What's the payment term?

We can accept T/T, Western Union, PayPal, etc.

What's the lead time?

Standard items are ready within 7 working days. Customized specifications require 15-20 working days.

Does this automotive oscilloscope require an external power supply?

No, the device transmits signals through a USB 2.0 interface which provides plug-and-play functionality, meaning no extra power supply is needed.

What are the physical dimensions and weight of the device?

The size of the device is 190 x 167 x 35 (mm) and it weighs approximately 1.9kg.
