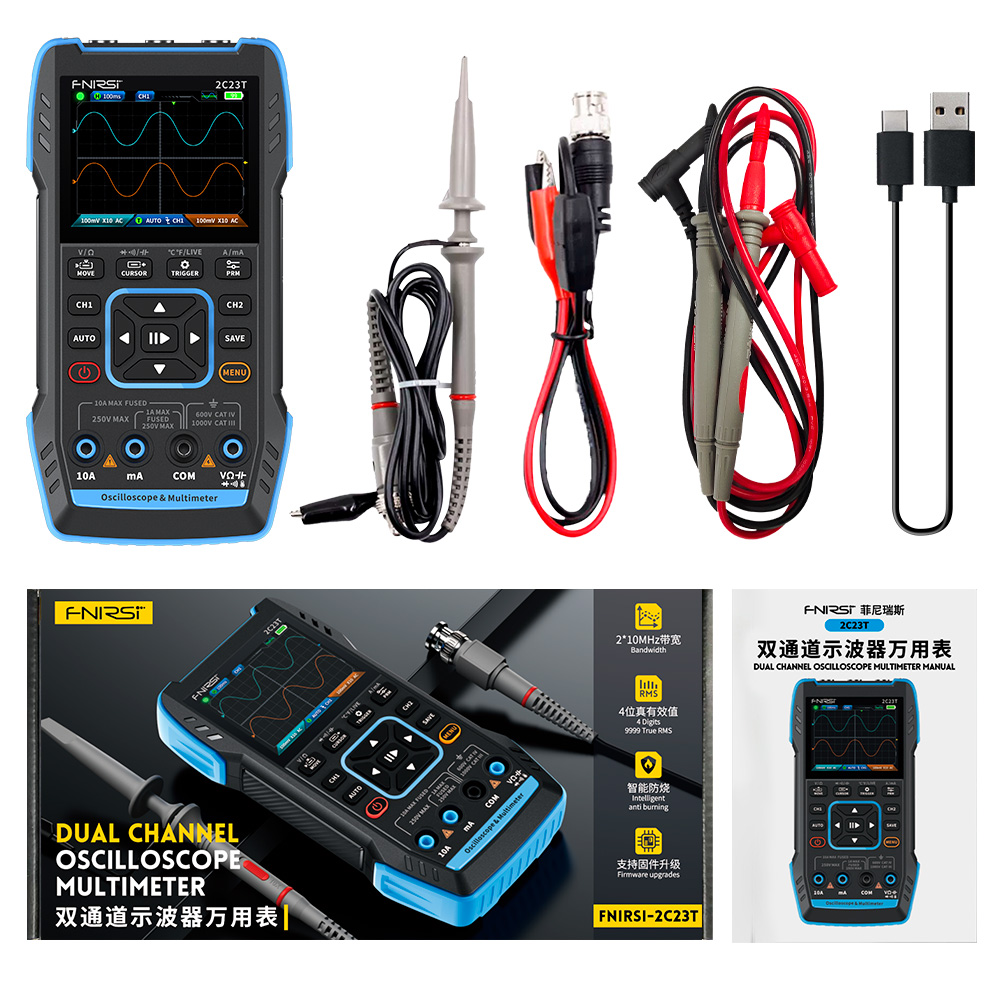

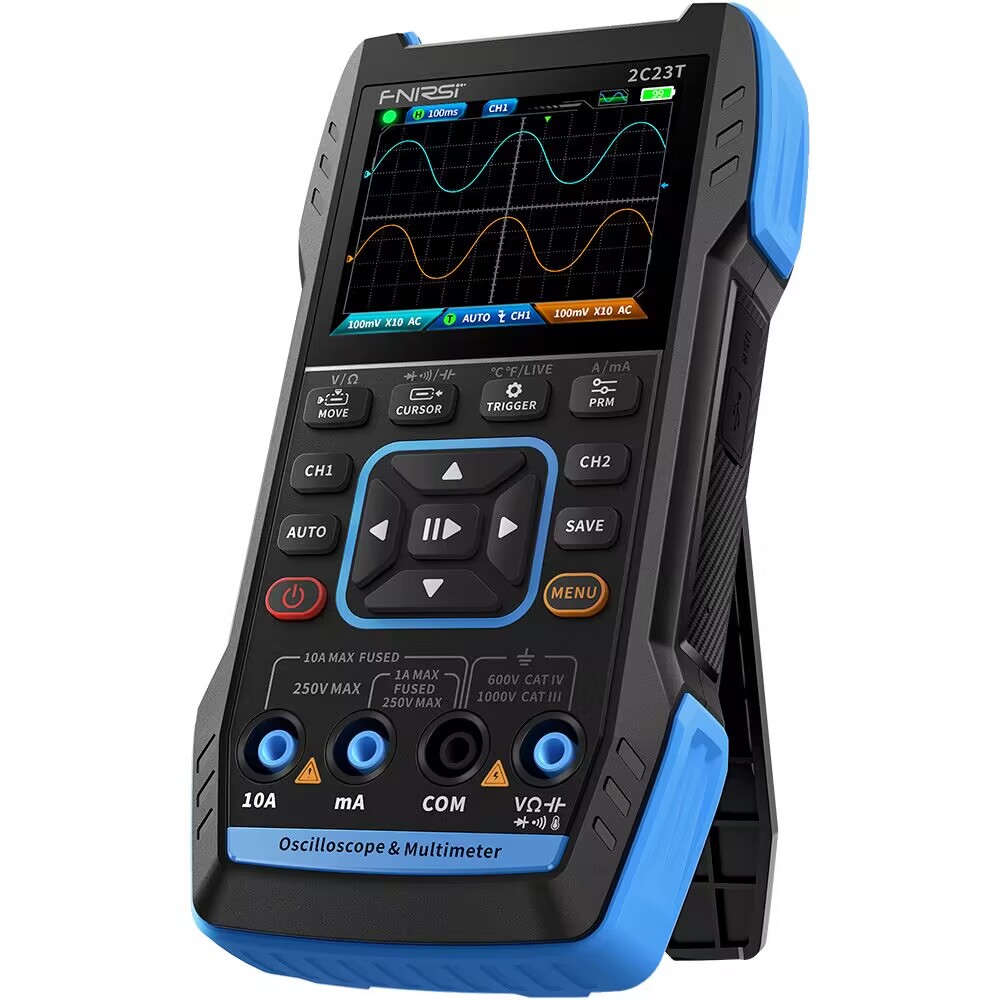

Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope
Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope
Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope
Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope
Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope
1 / 5
Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope
Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope
Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope
Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope
Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope

Automotive Oscilloscope Smart Multimeter Portable Digital Oscilloscope

Send Inquiry

Product Description

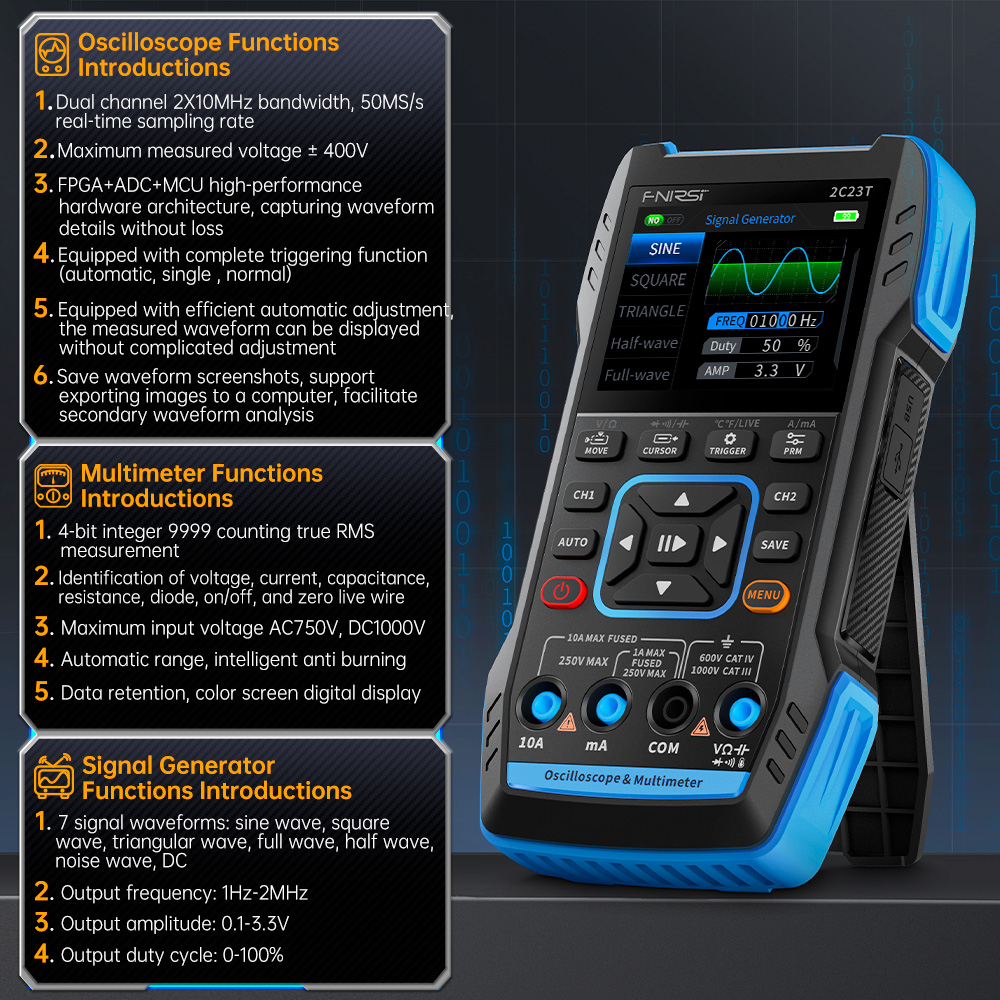

3-in-1 Dual Channel Portable Oscilloscope + Multimeter + Signal Generator
2C23T
Products Description

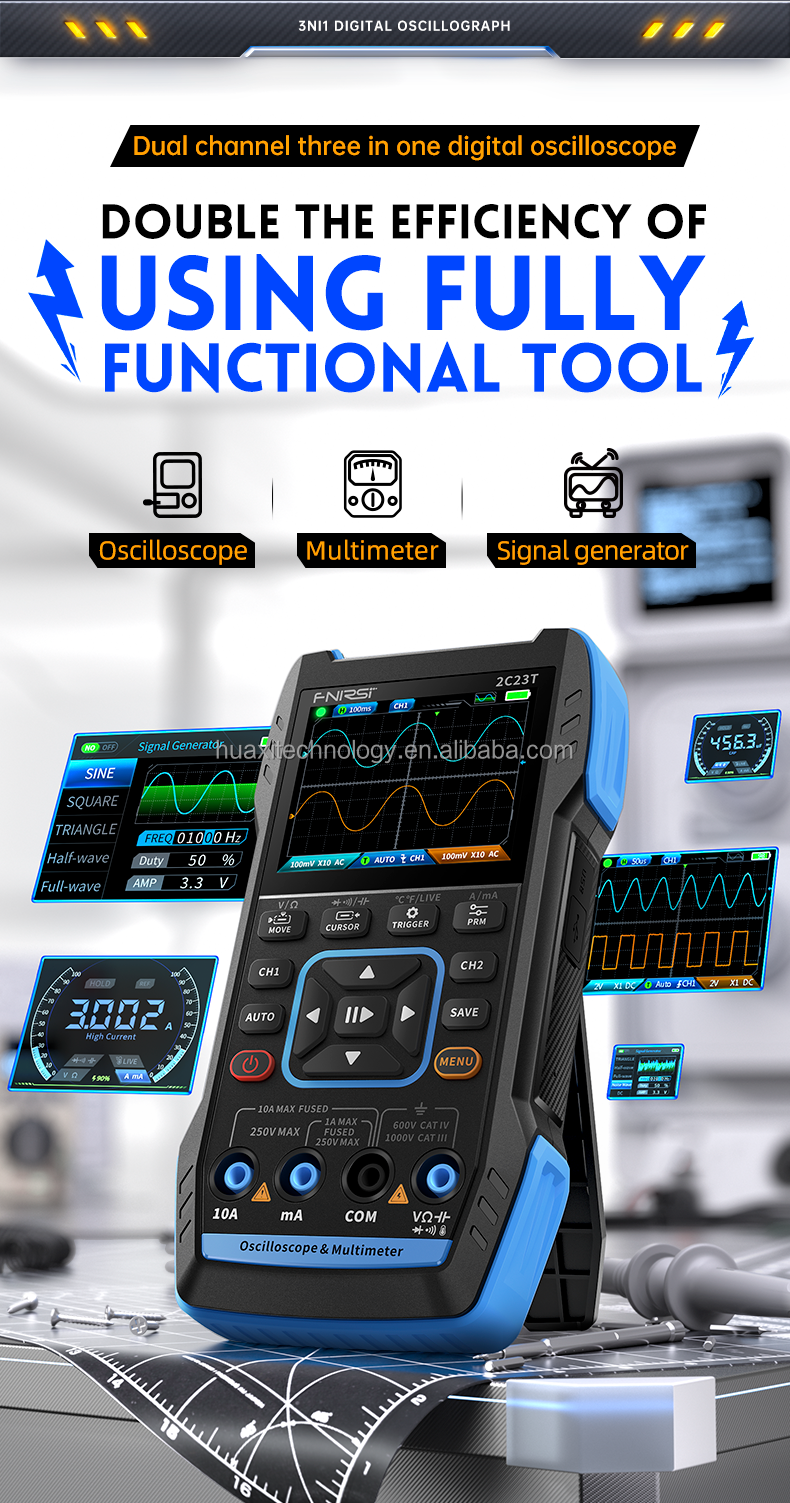

Features Map
Oscilloscope Functions
  • Dual channel 2X10MHz bandwidth, 50MS/s real-time sampling rate
  • Maximum measured voltage ± 400V
  • FPGA+ADC+MCU high-performance hardware architecture, capturing waveform details without loss
  • Equipped with complete triggering function (automatic, single, normal)
  • Equipped with efficient automatic adjustment; the measured waveform can be displayed without complicated adjustment

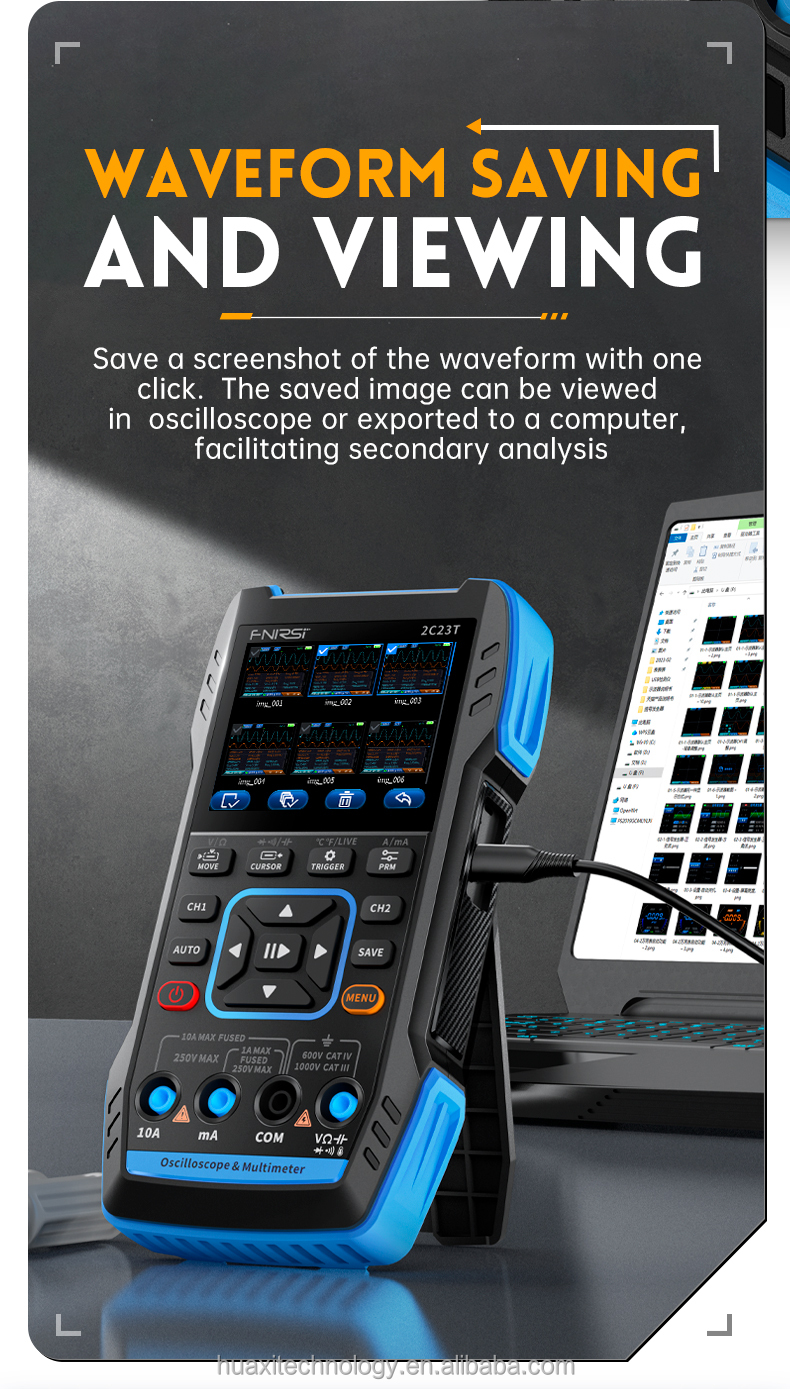

  • Save waveform screenshots, support exporting images to a computer, facilitate secondary waveform analysis
Multimeter Functions
  • 4-bit integer 9999 counting true RMS measurement
  • Identification of voltage, current, capacitance, resistance, diode, on/off, and zero live wire
  • Maximum input voltage AC750V, DC1000V

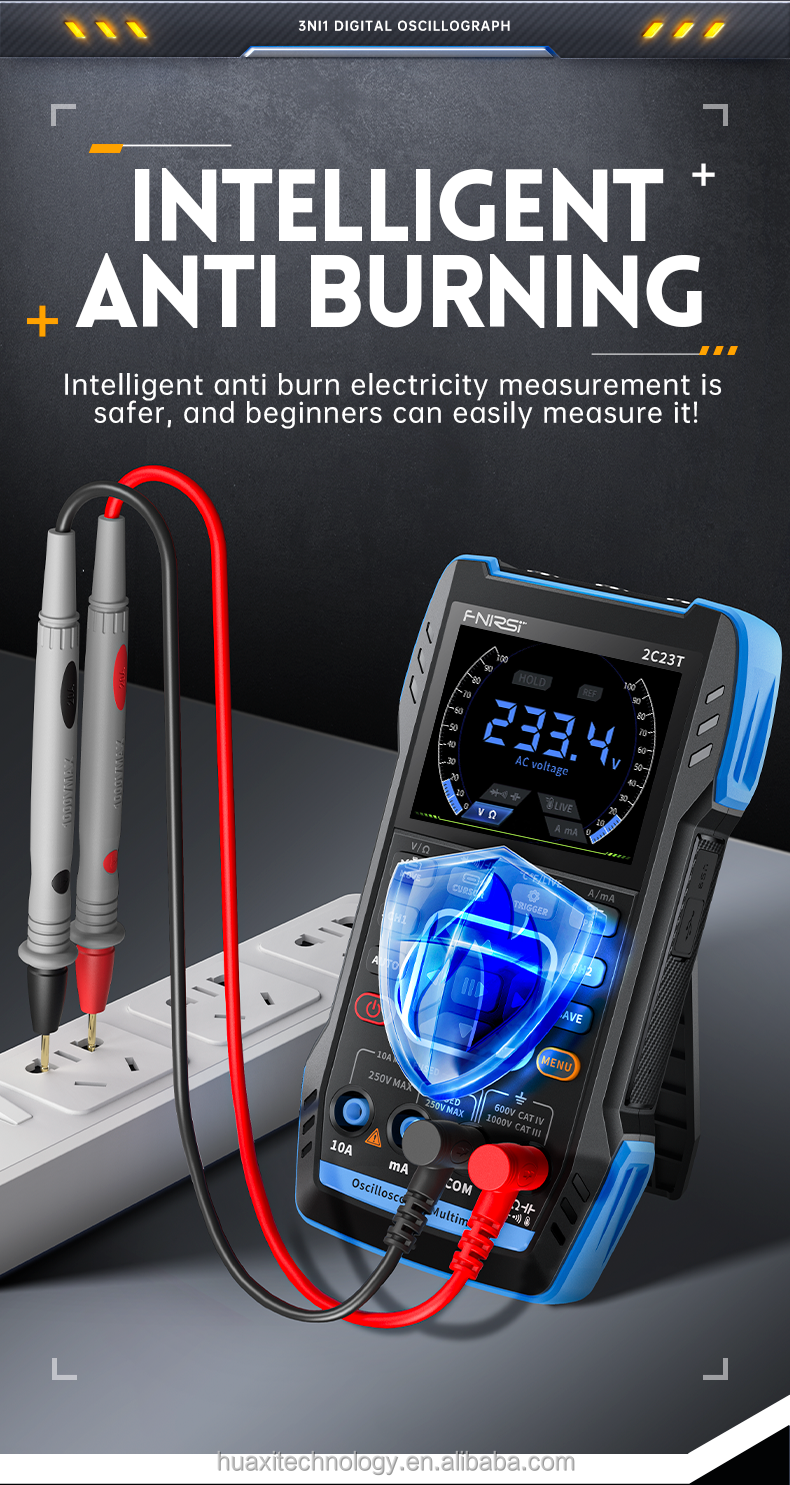

  • Automatic range, intelligent anti-burning
  • Data retention, color screen digital display

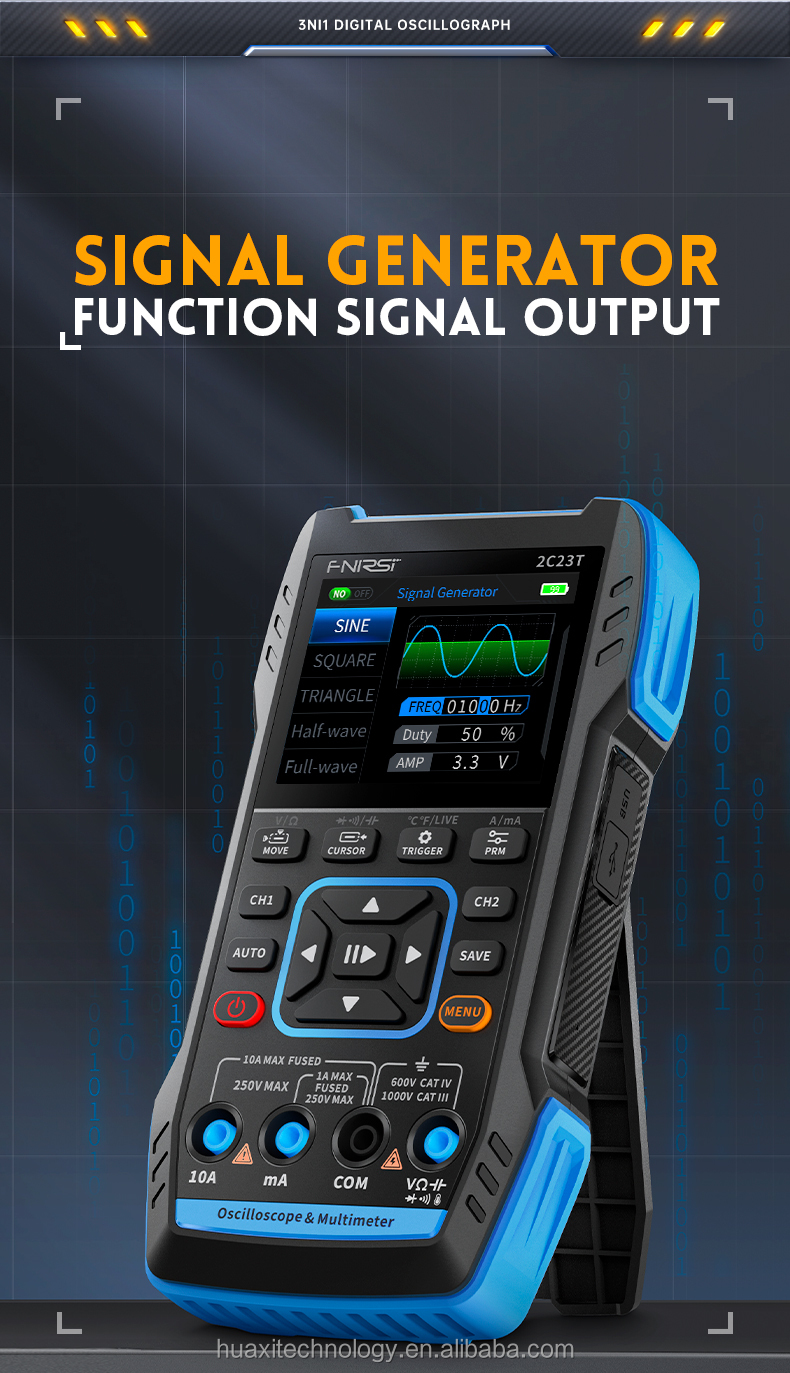

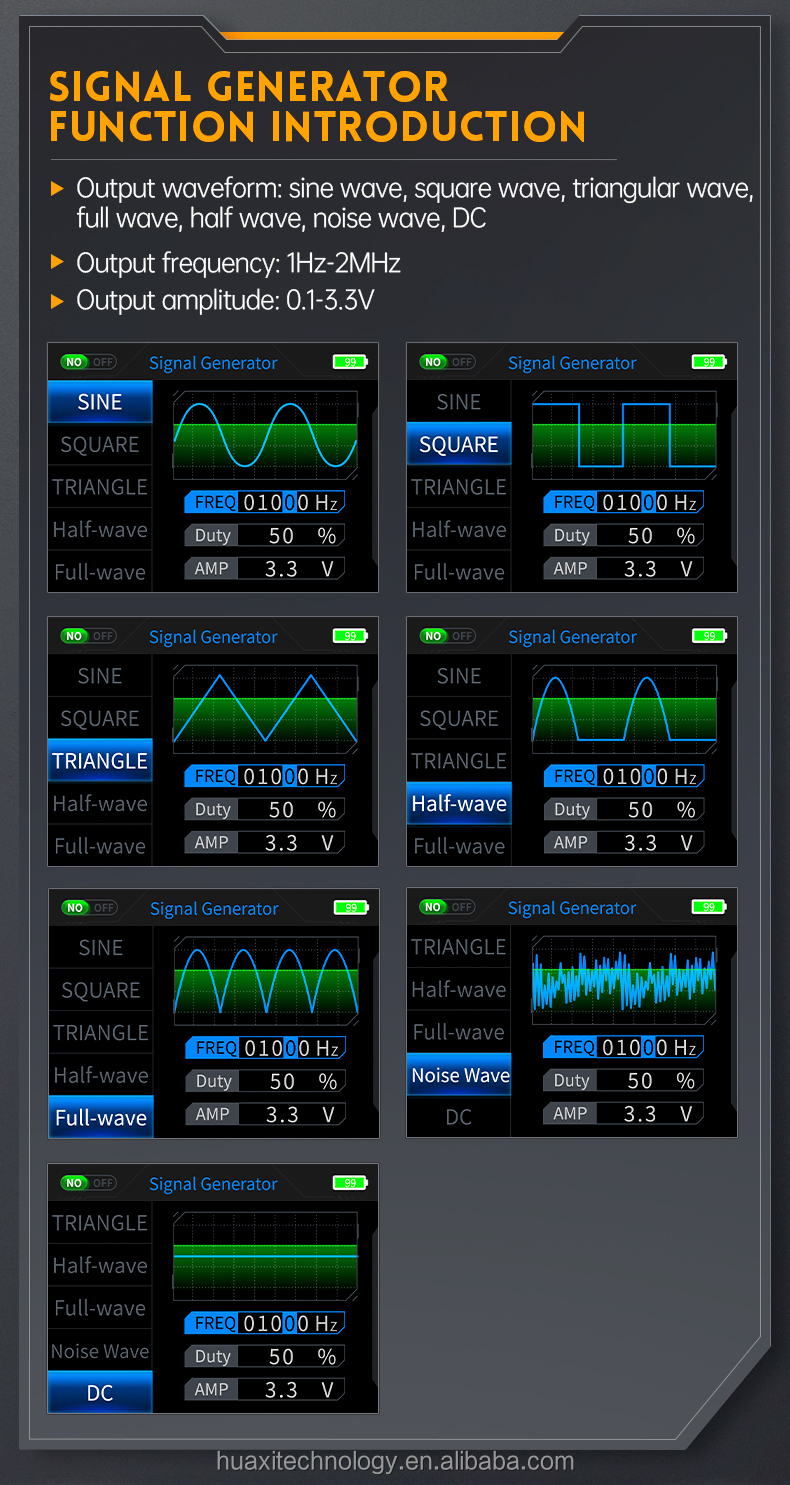

Signal Generator Functions
  • 7 signal waveforms: sine wave, square wave, triangular wave, full wave, half wave, noise wave, DC
  • Output frequency: 1Hz-2MHz
  • Output amplitude: 0.1-3.3V
  • Output duty cycle: 0-100%

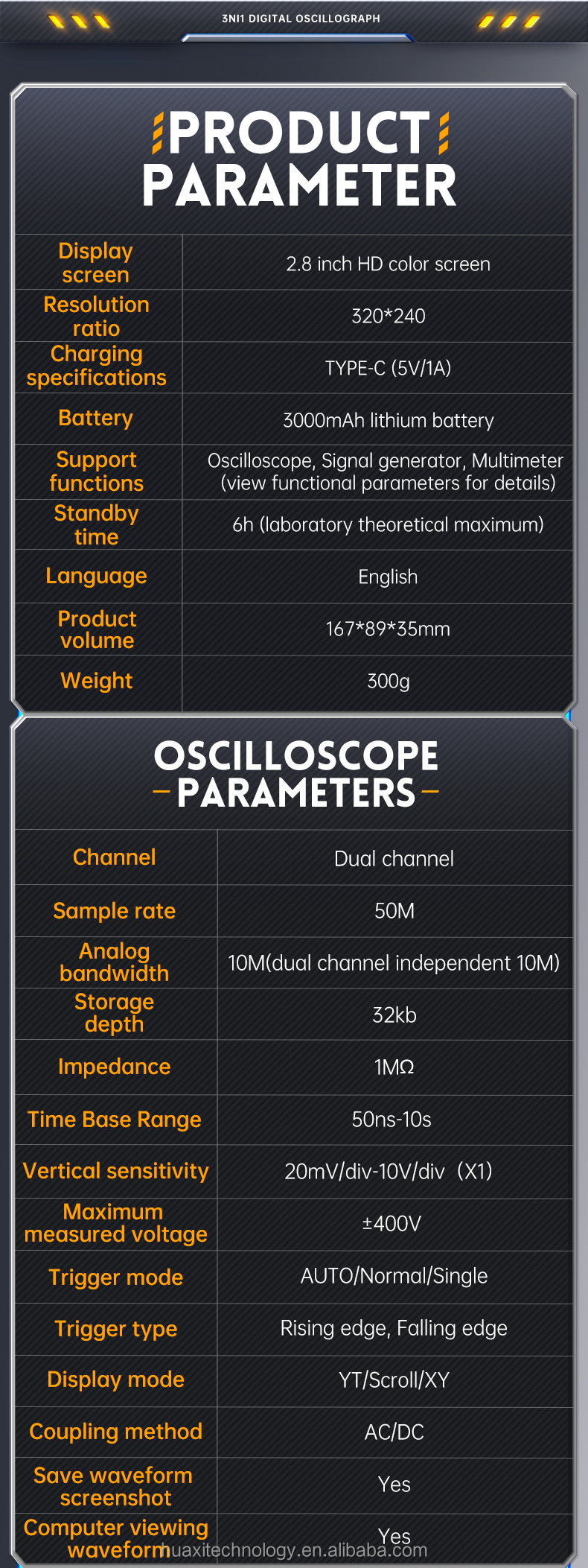

Specification

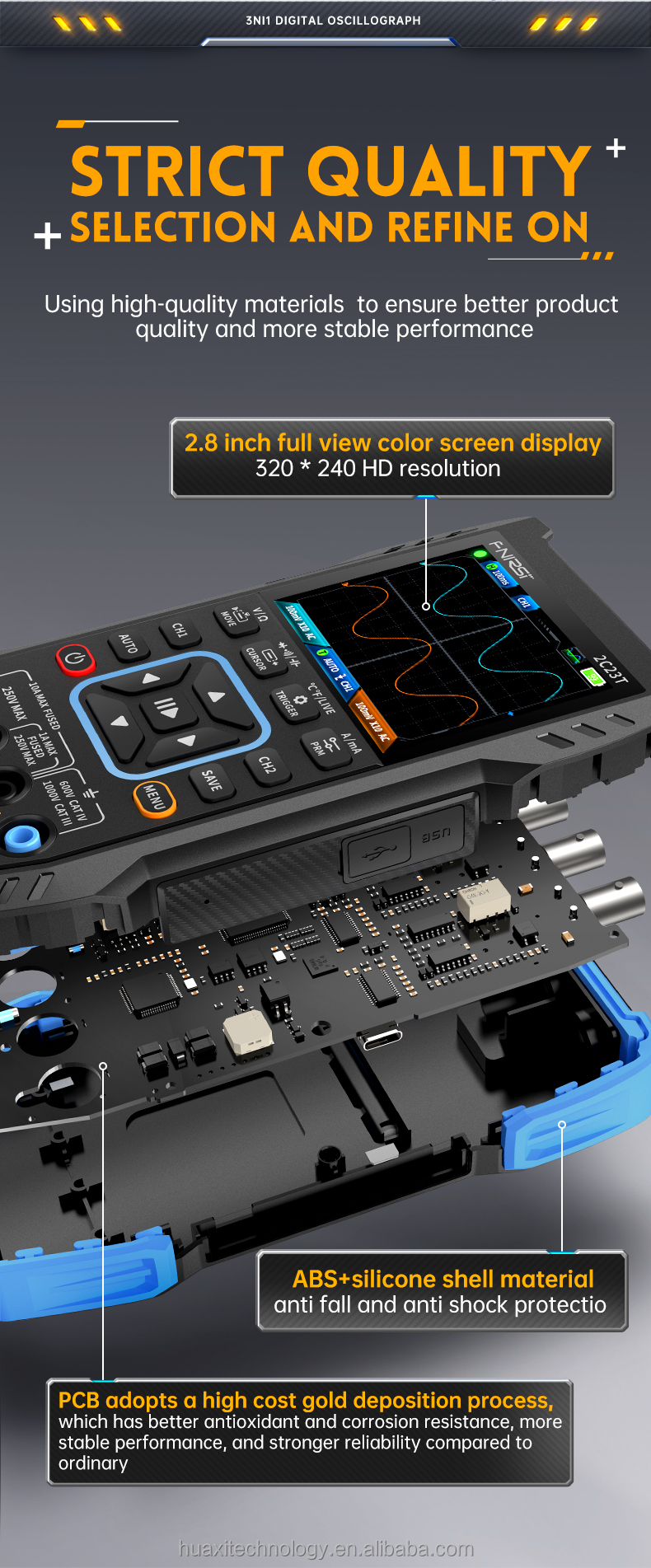

Display screen 2.8 inch HD color screen
Resolution ratio 320*240

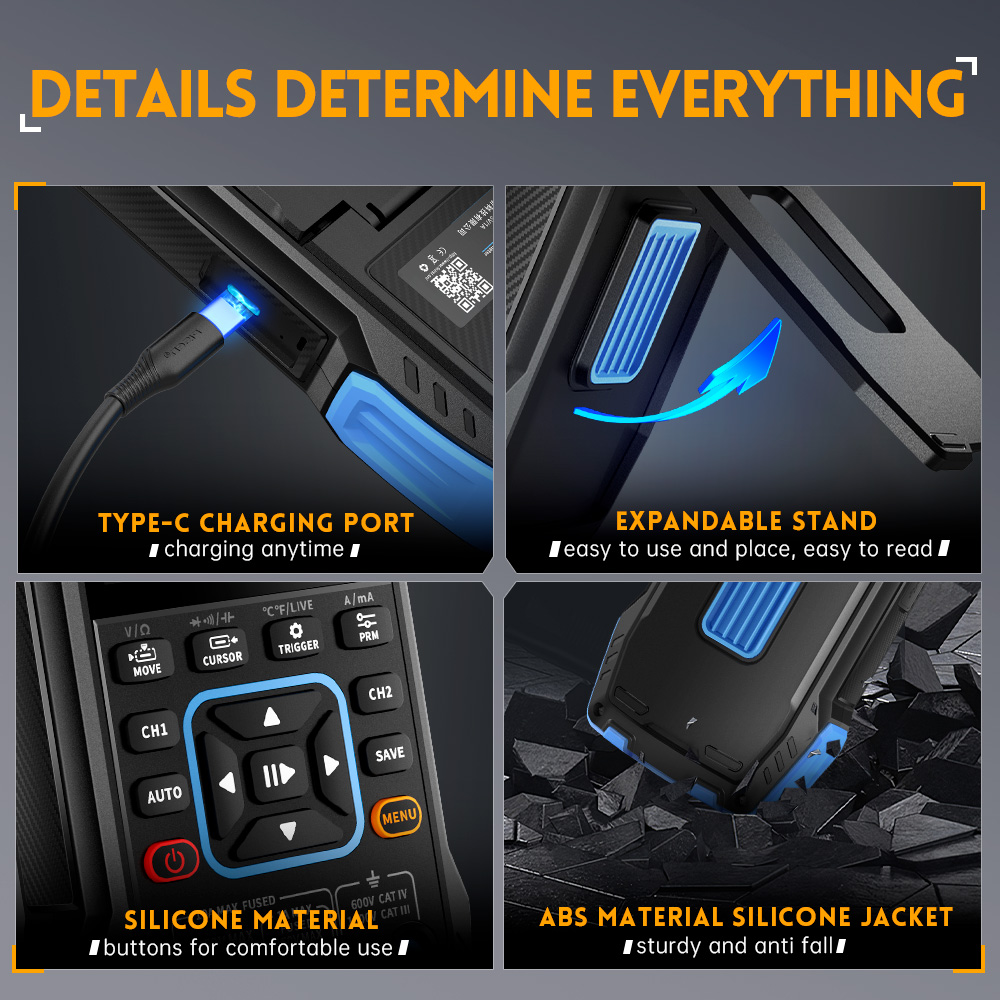

Charging specifications TYPE-C (5V/1A)

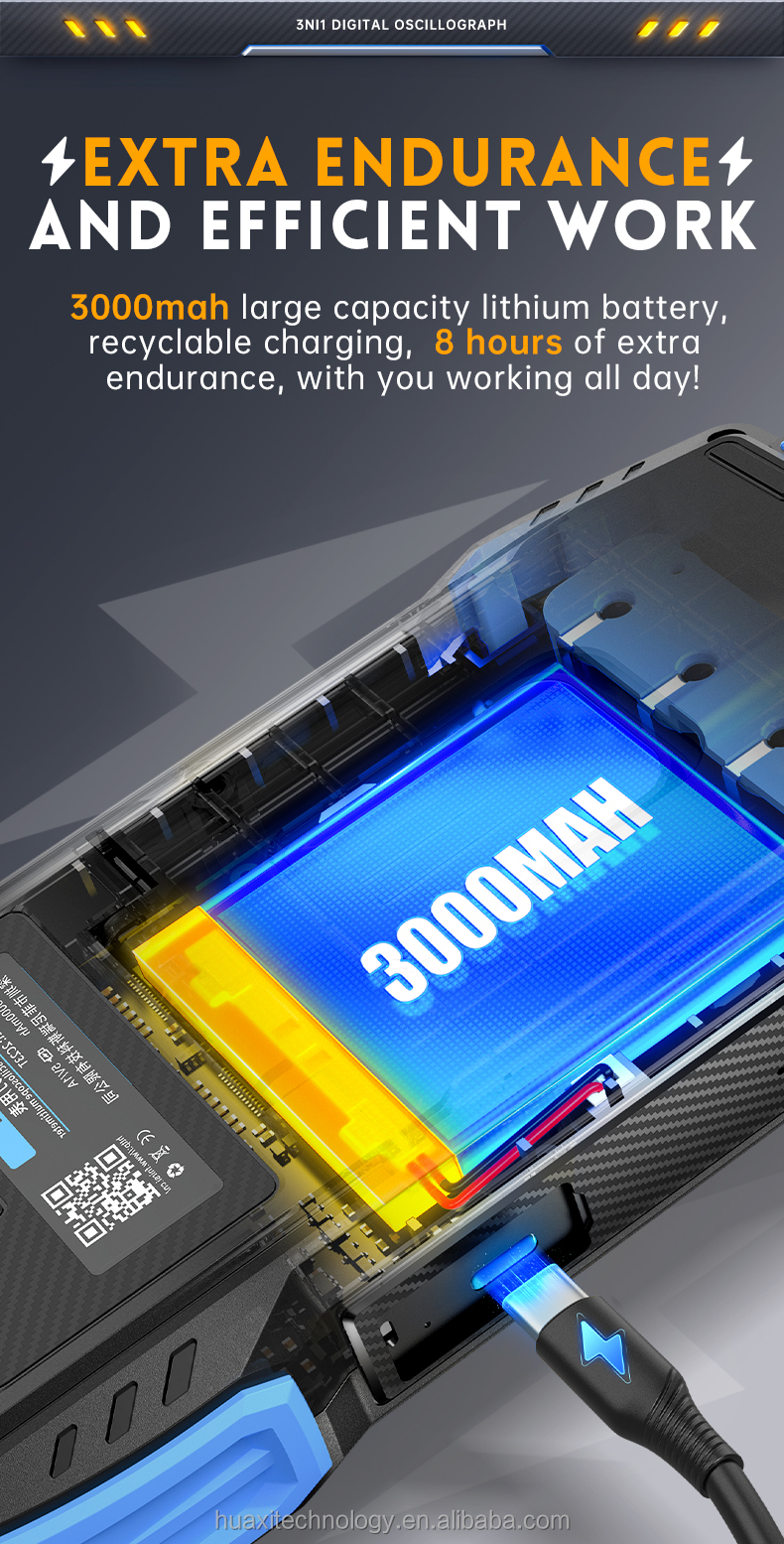

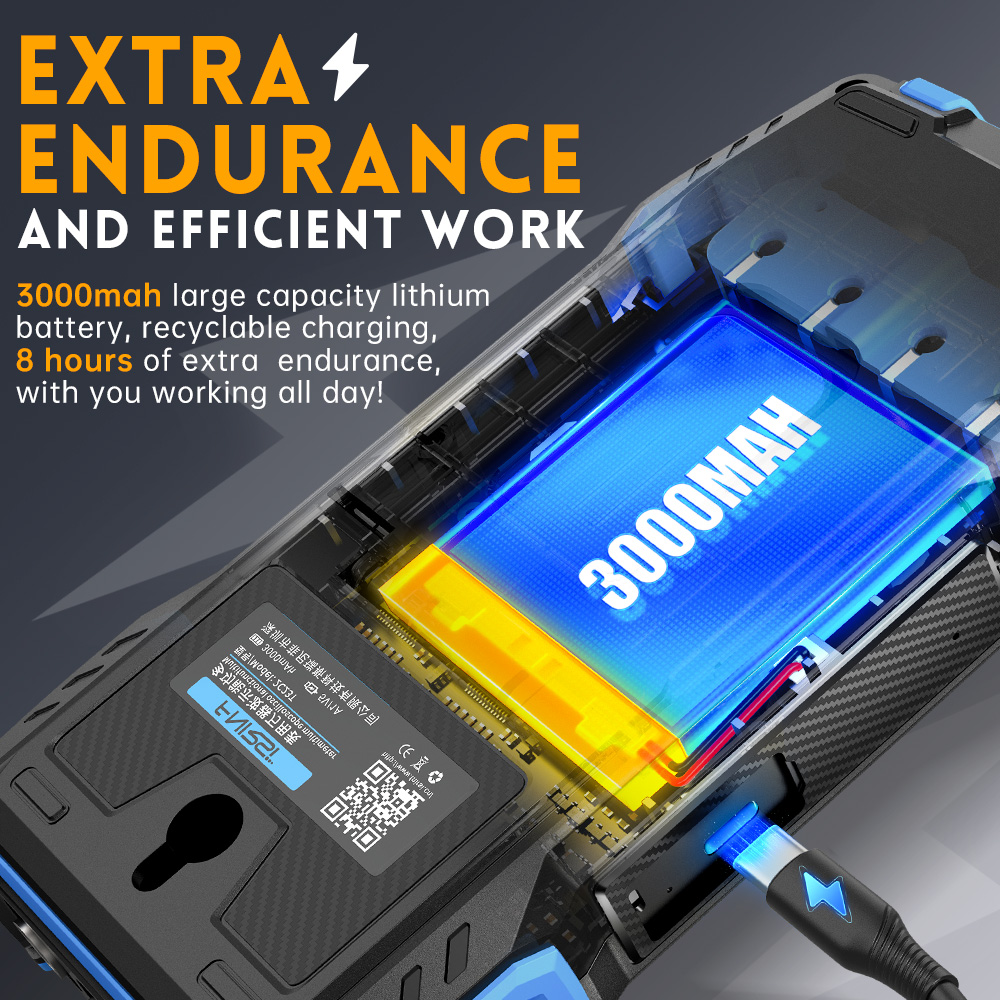

Battery 3000mAh lithium battery
Support functions Oscilloscope, Signal generator, Multimeter (view functional parameters for details)
Standby time 6h (laboratory theoretical maximum)

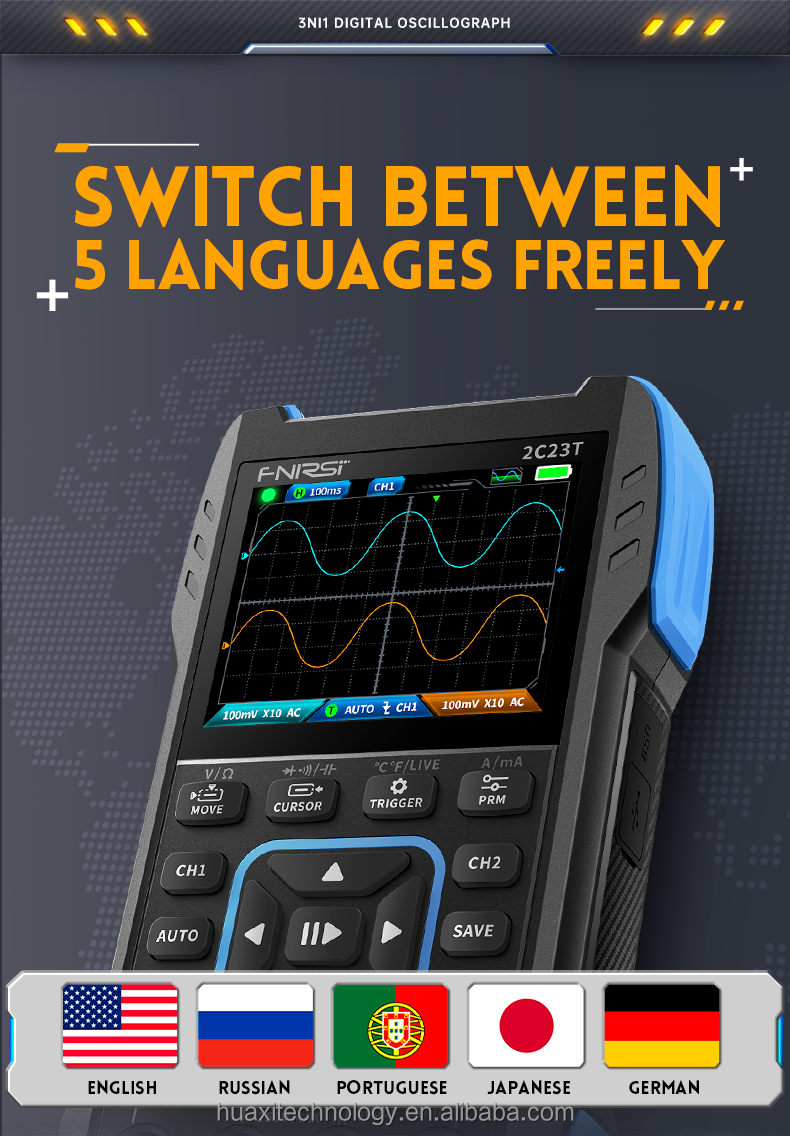

Language English
Product volume 167*89*35mm
Weight 300g

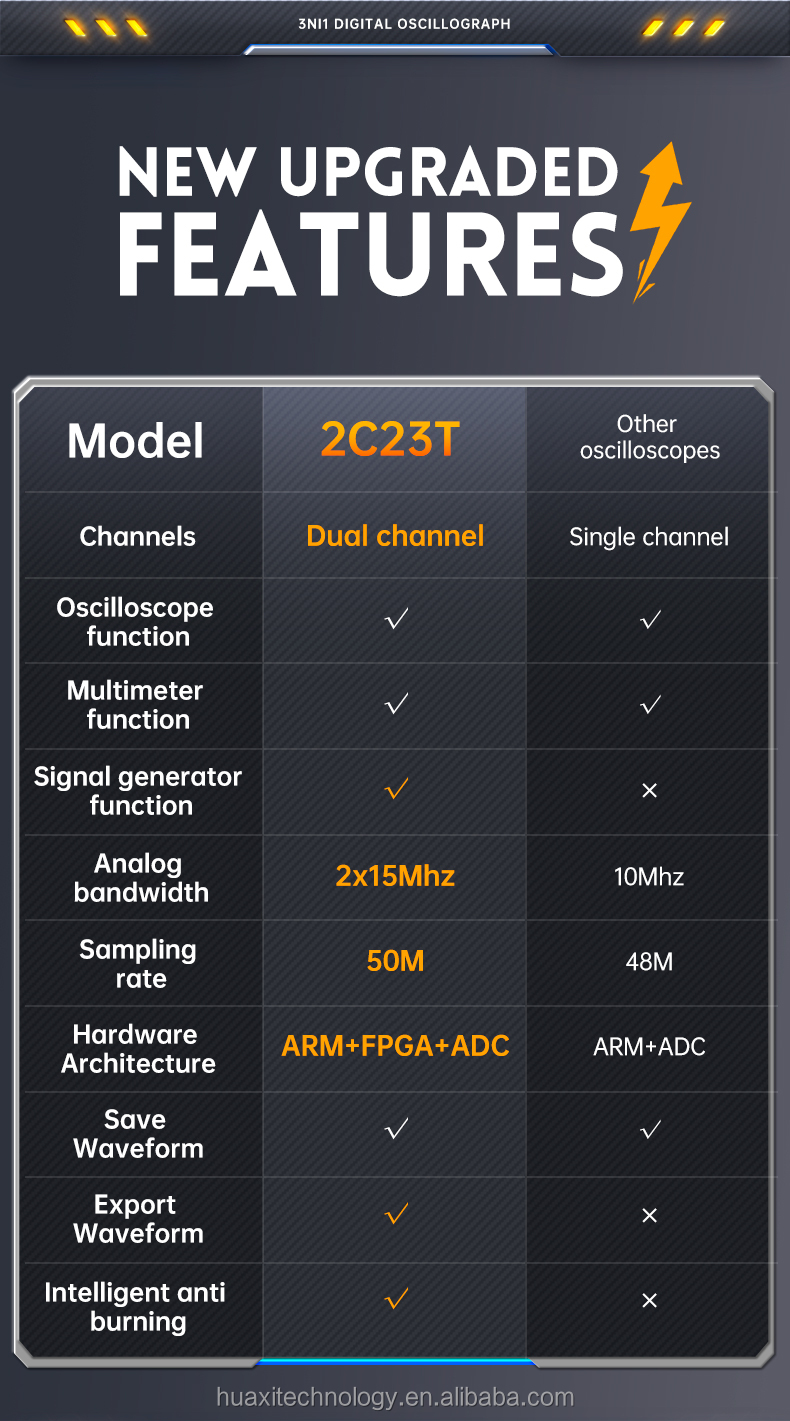

Product Image 1
Product Image 2
Product Image 3
Product Image 4

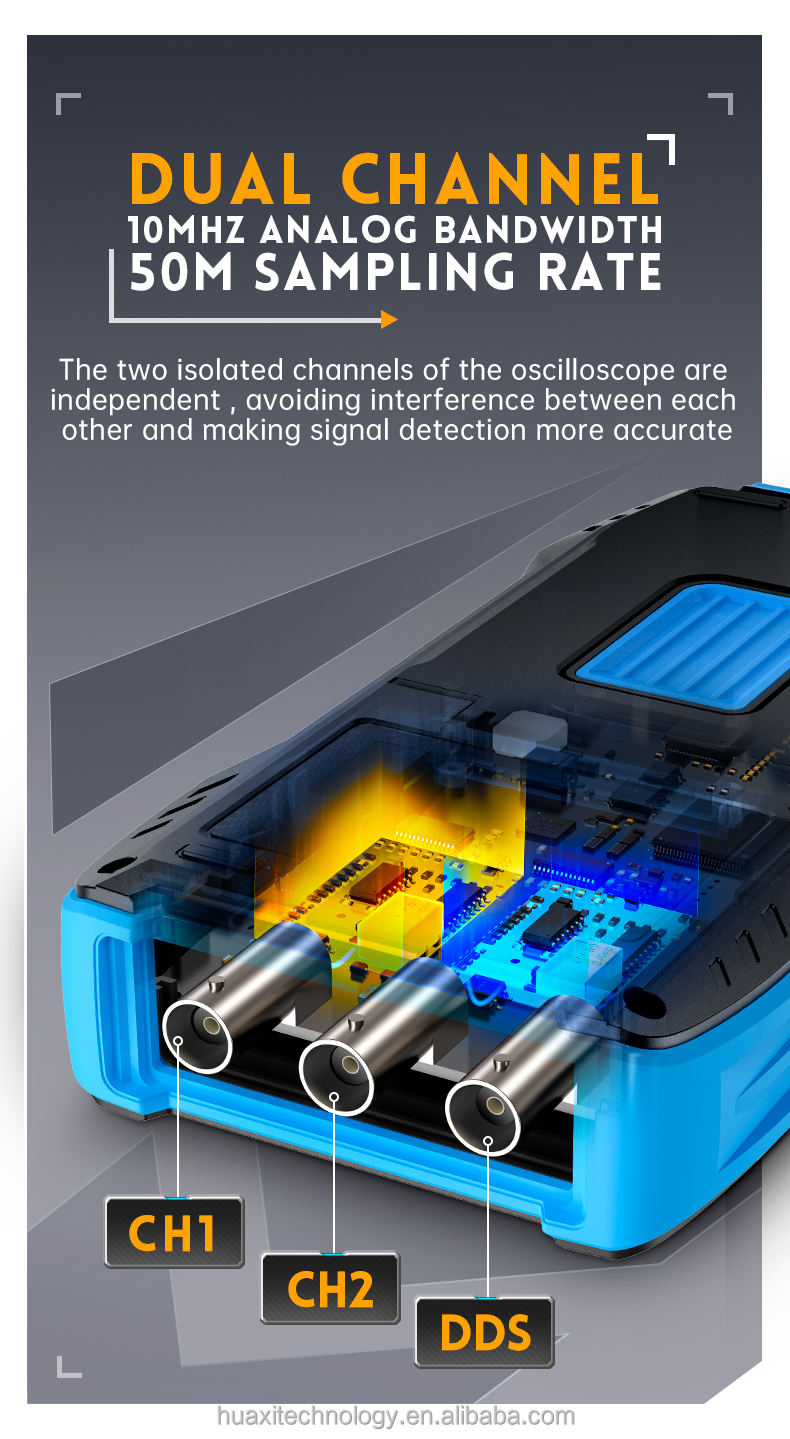

Product Image 5
Product Image 6
Product Image 7
Product Image 8

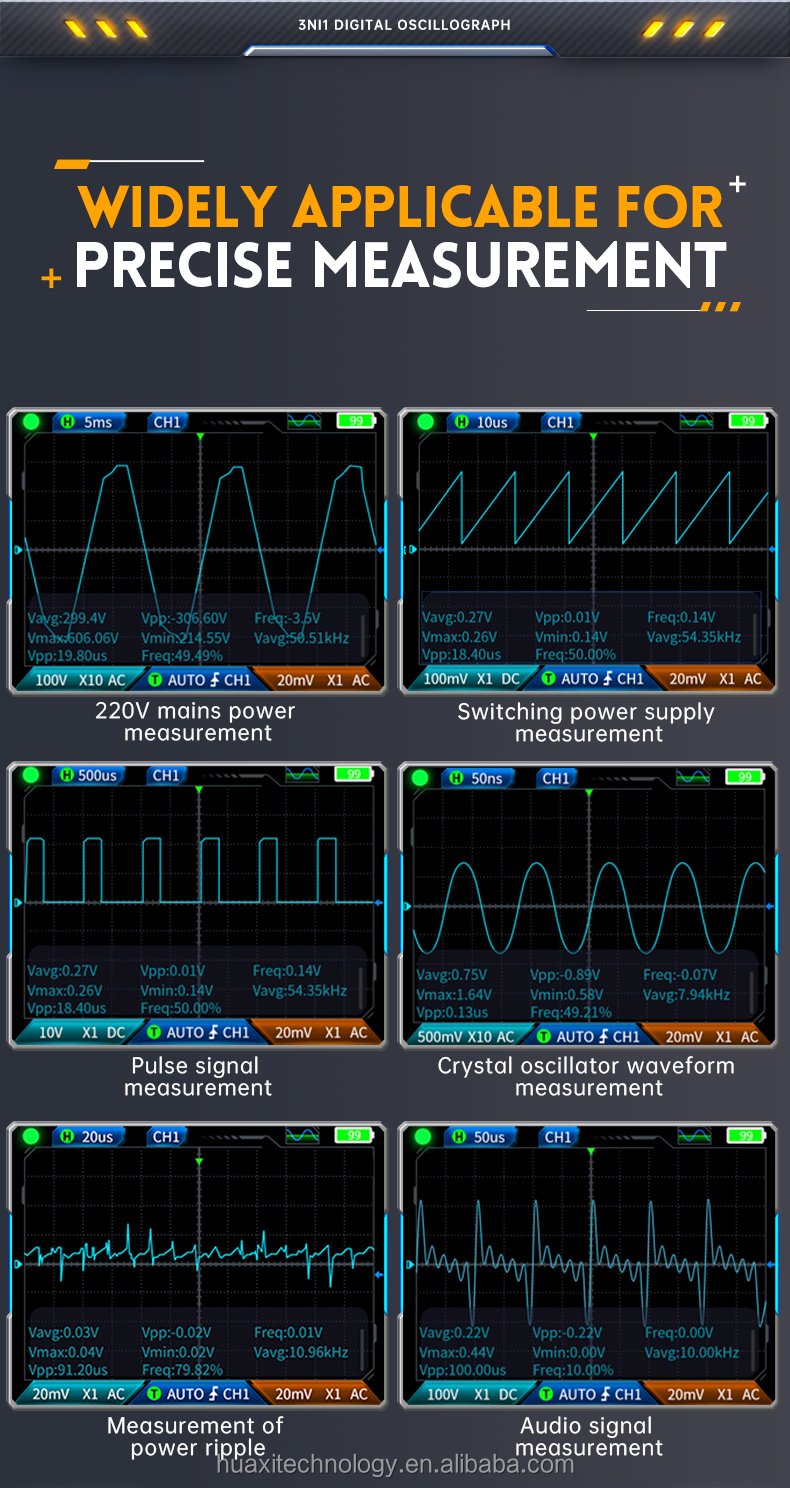

Product Image 9

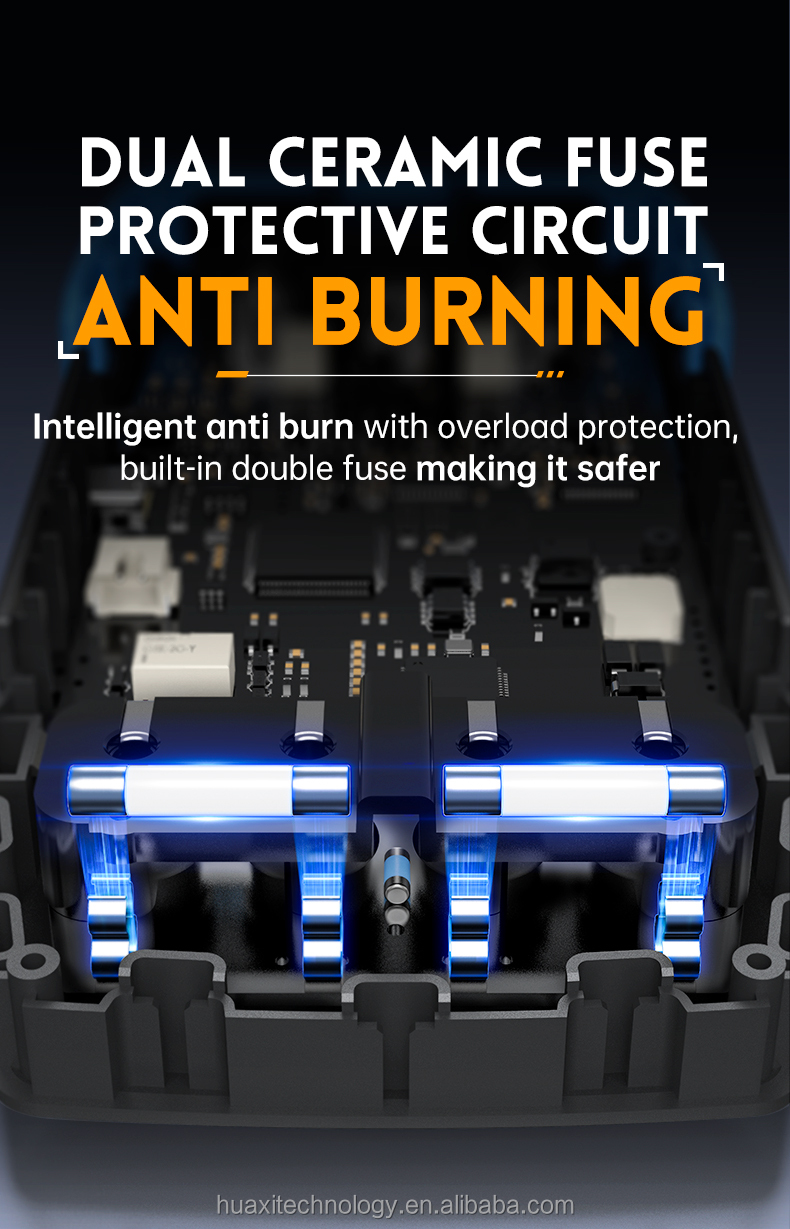

Product Image 10

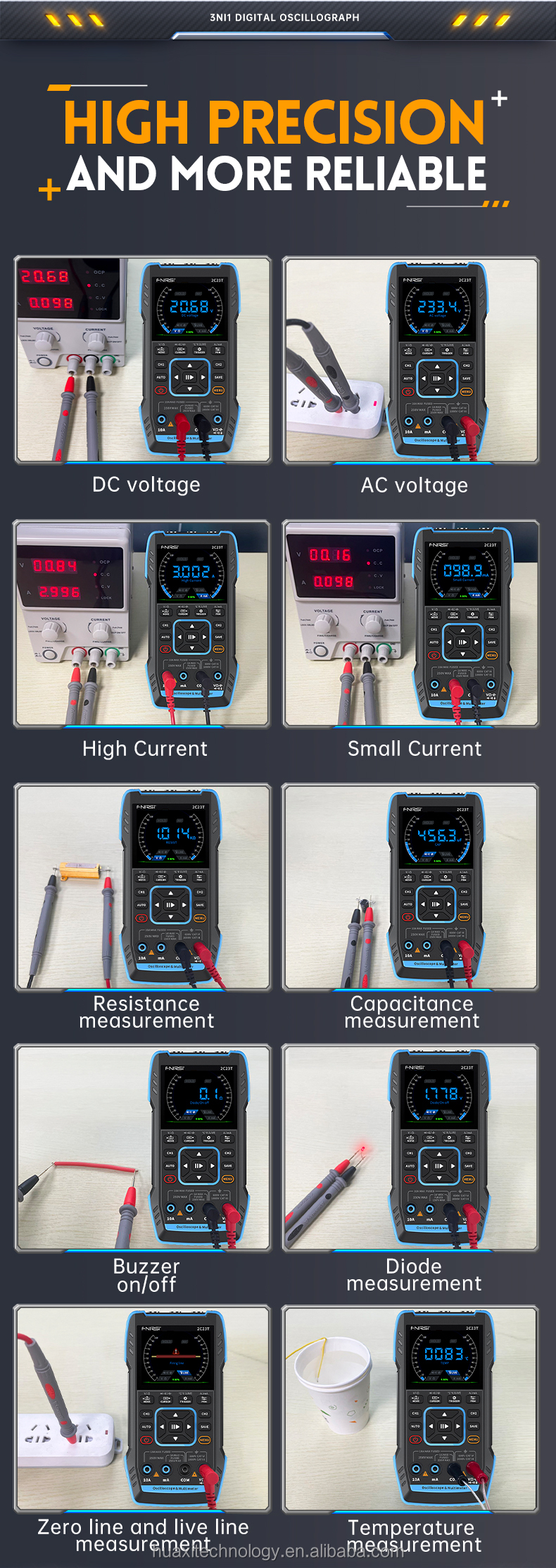

Detailed View 1
Detailed View 2
Detailed View 3
Detailed View 4

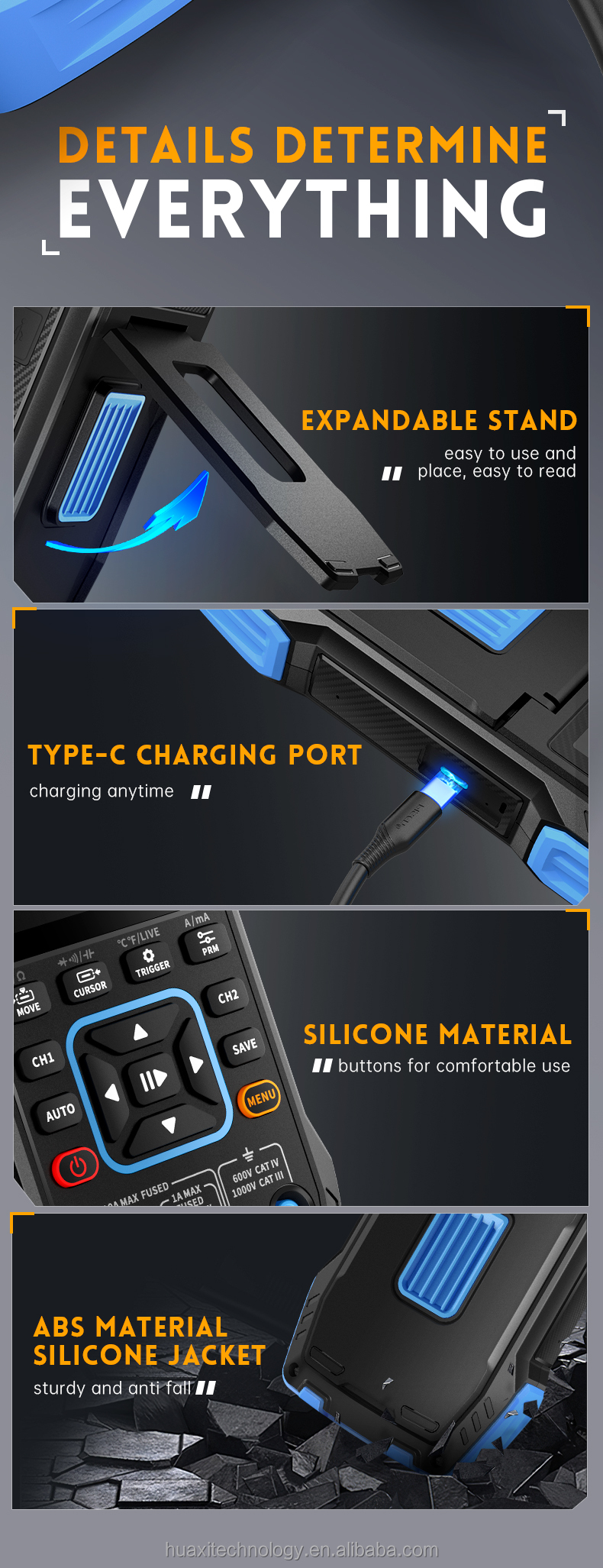

Detailed View 5
Detailed View 6

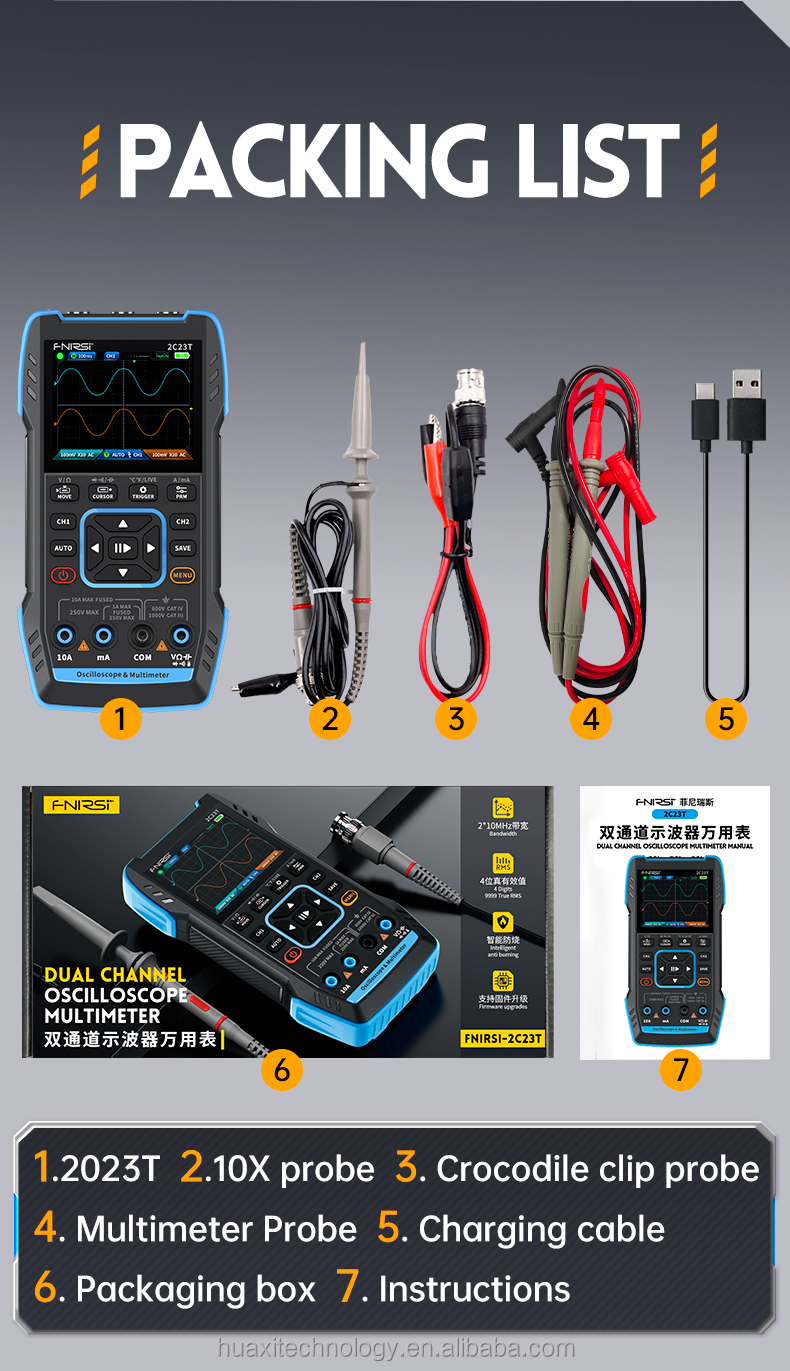

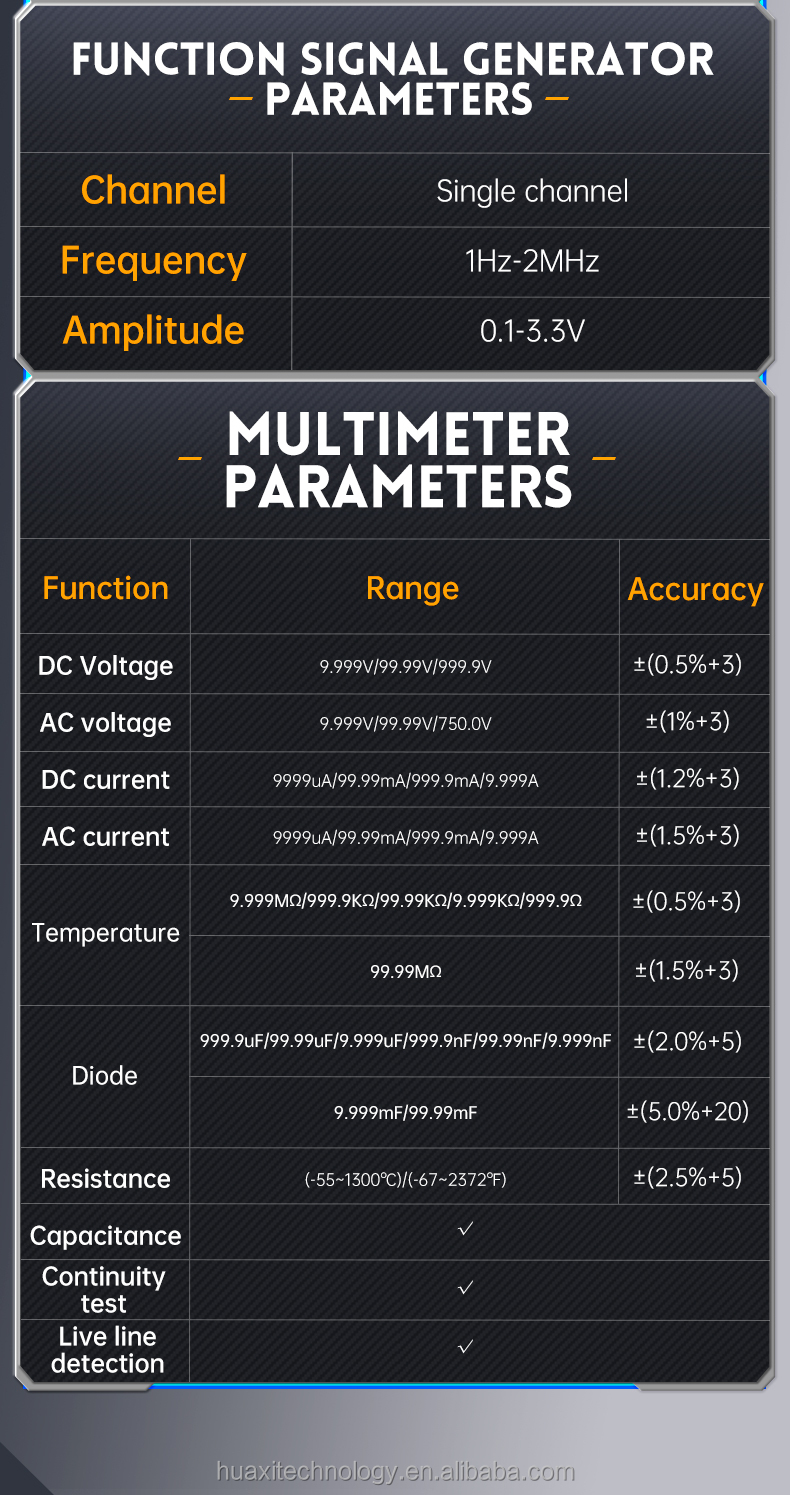

Detailed View 7
Detailed View 8
Order Guide
To better meet your requirements, please tell us the below information:
Range?
Zero bias stability?
Accuracy?
Power supply?
Output?
Working condition?
Application?
Size?
Workshop and Production Line

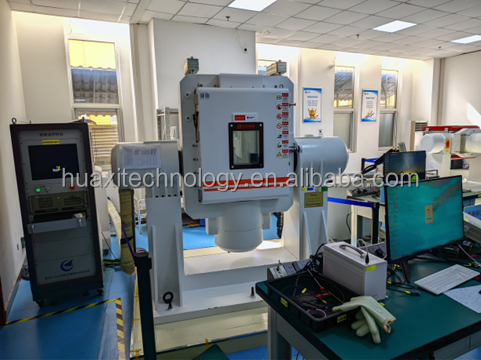

Workshop 1

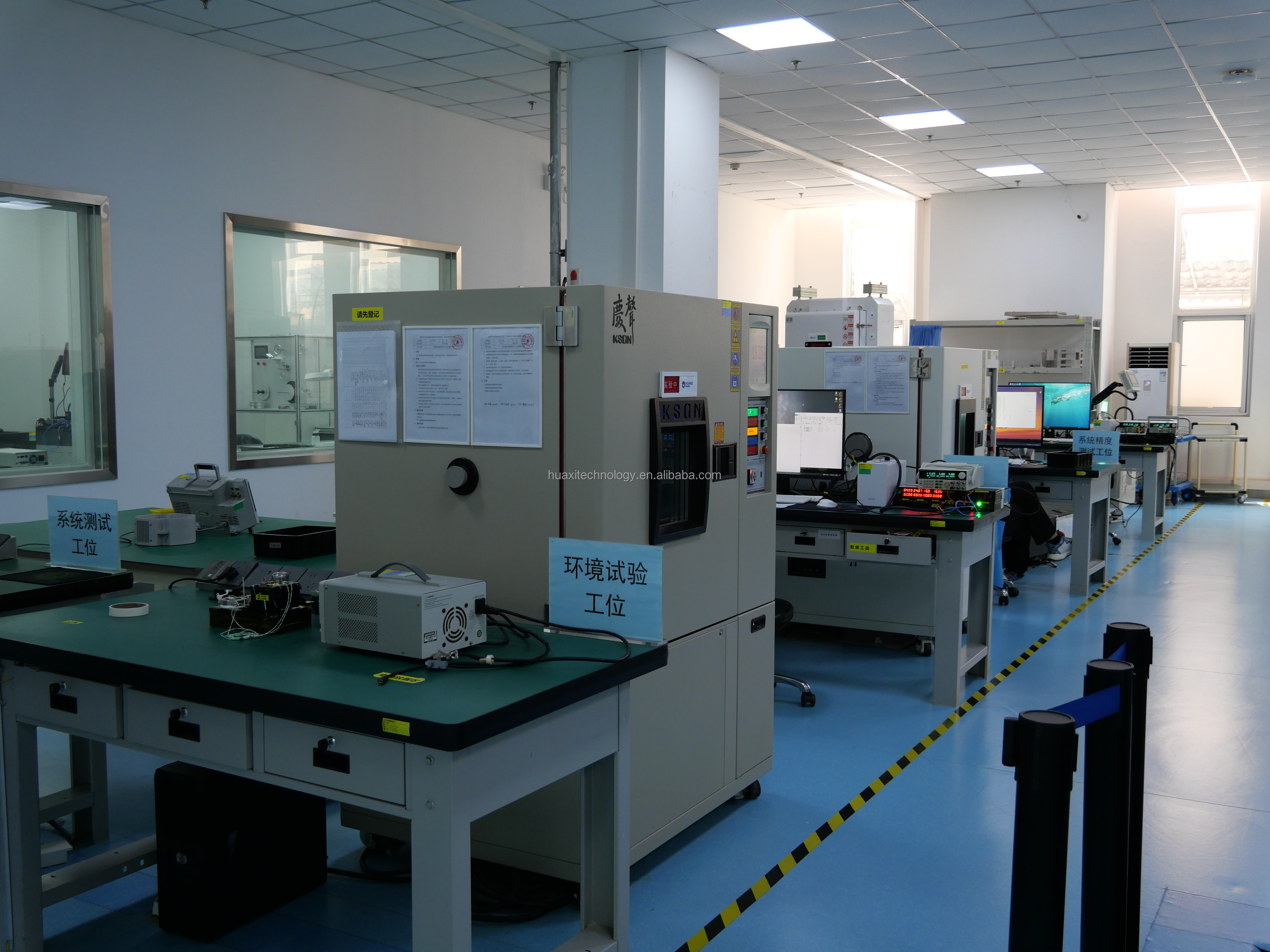

Workshop 2

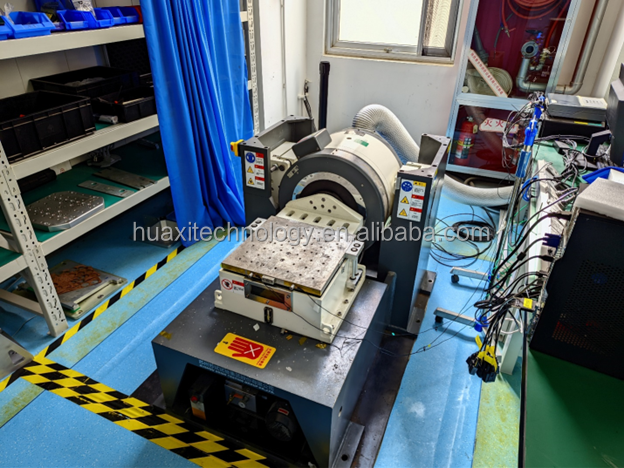

Workshop 3

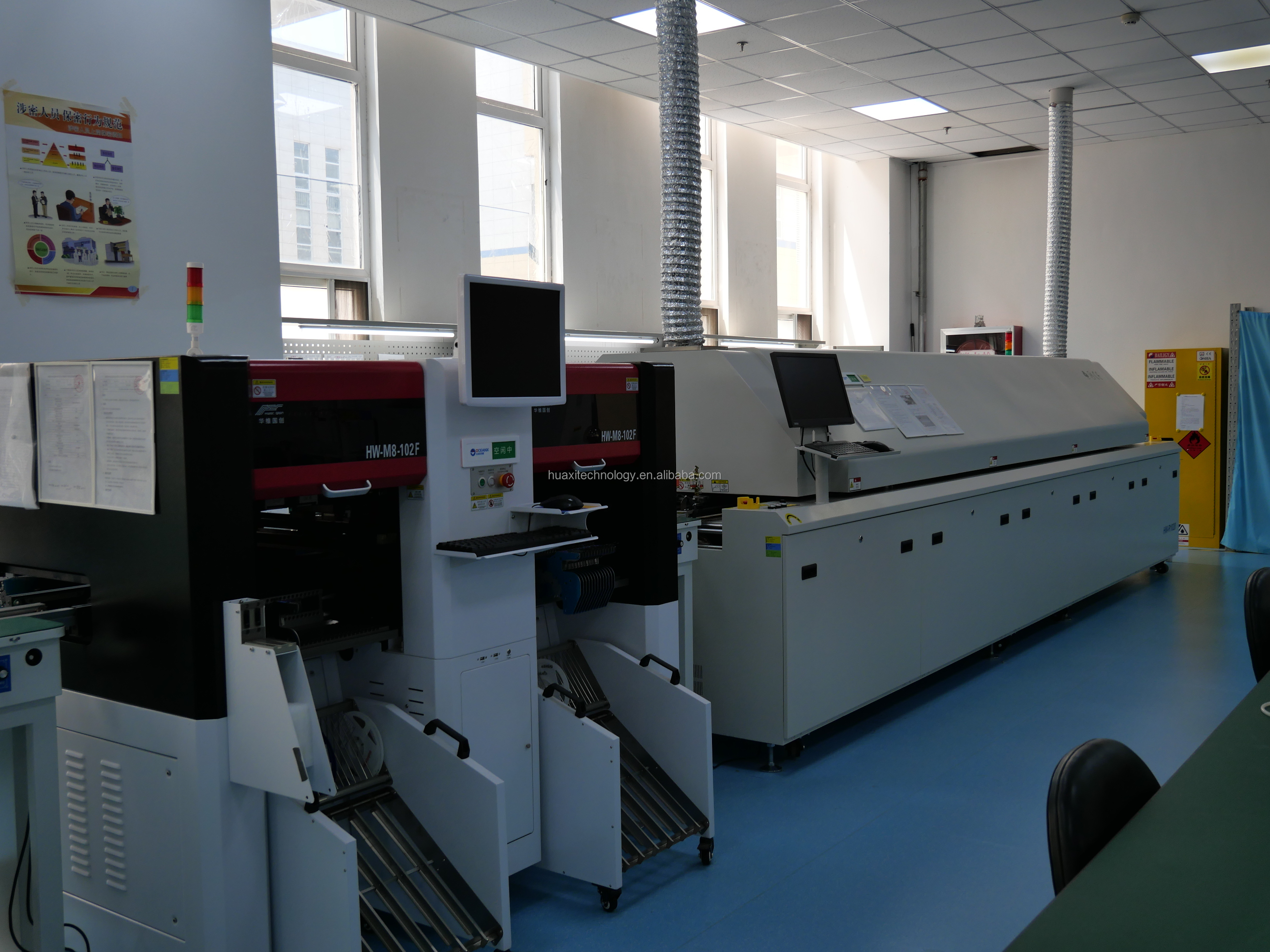

Production Line 1

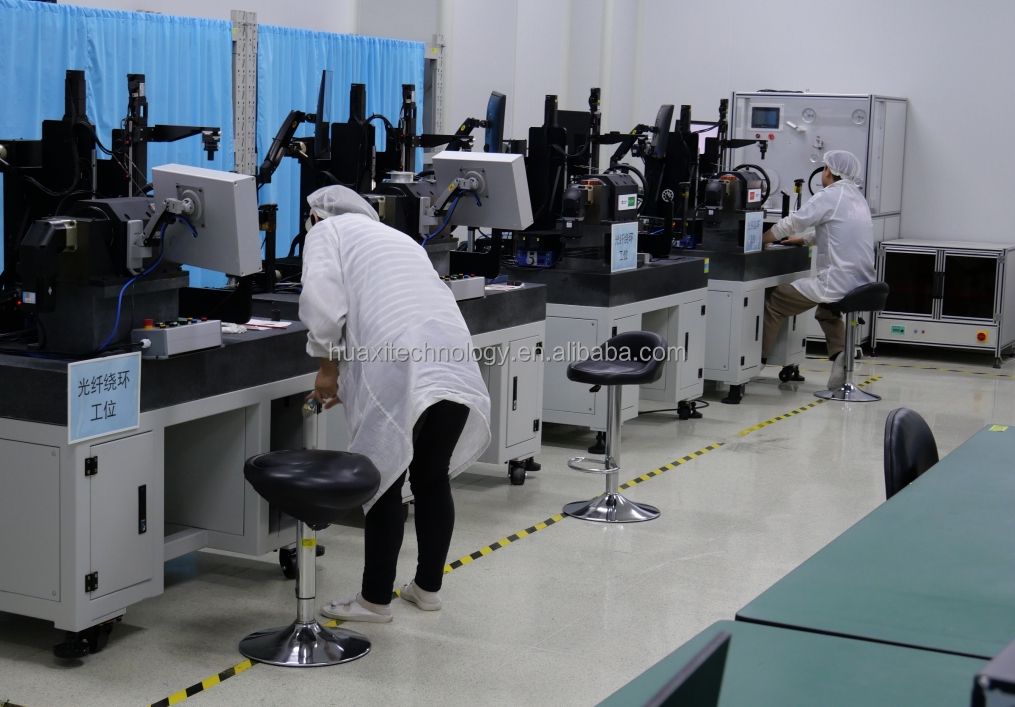

Production Line 2

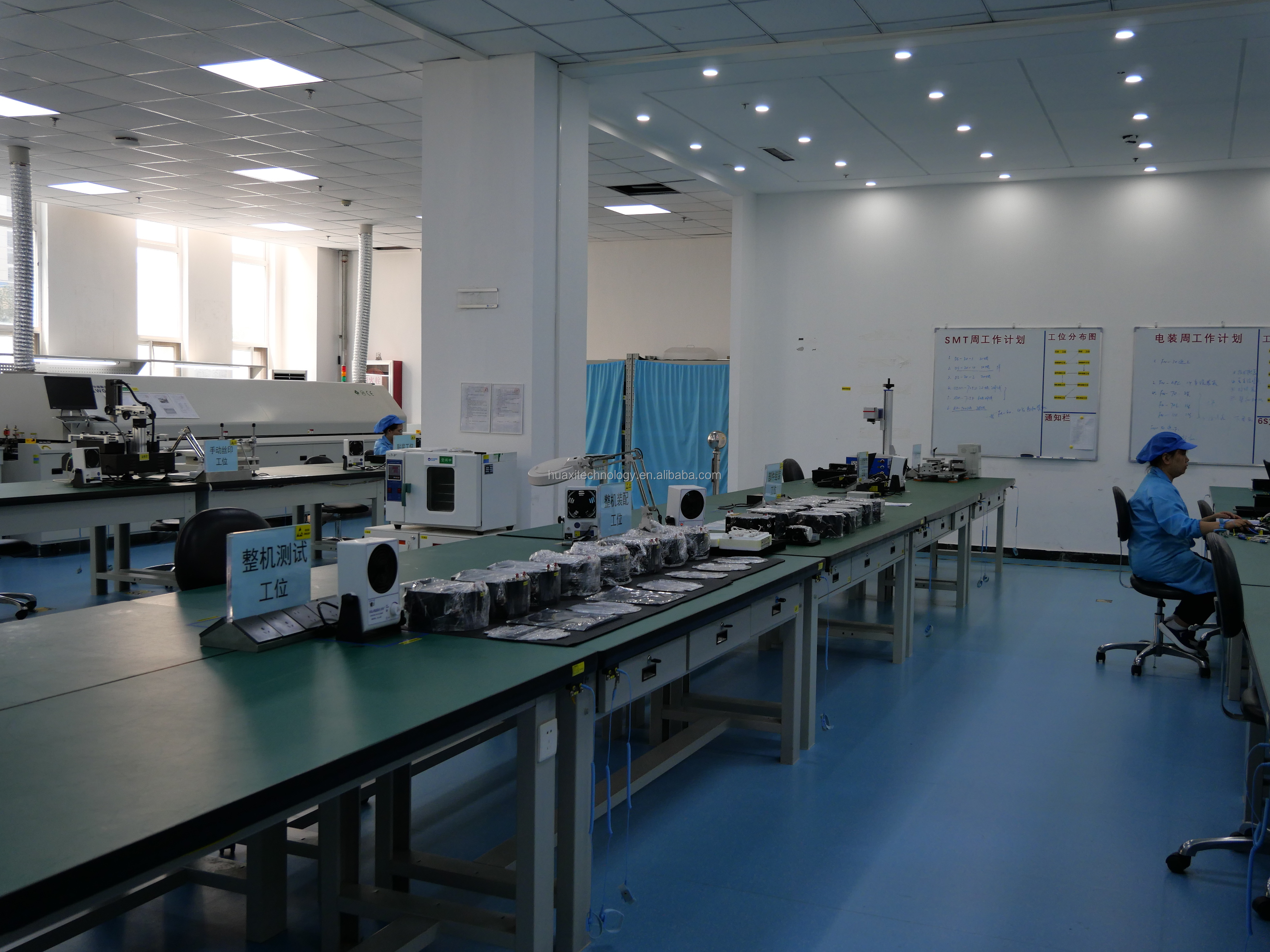

Production Line 3

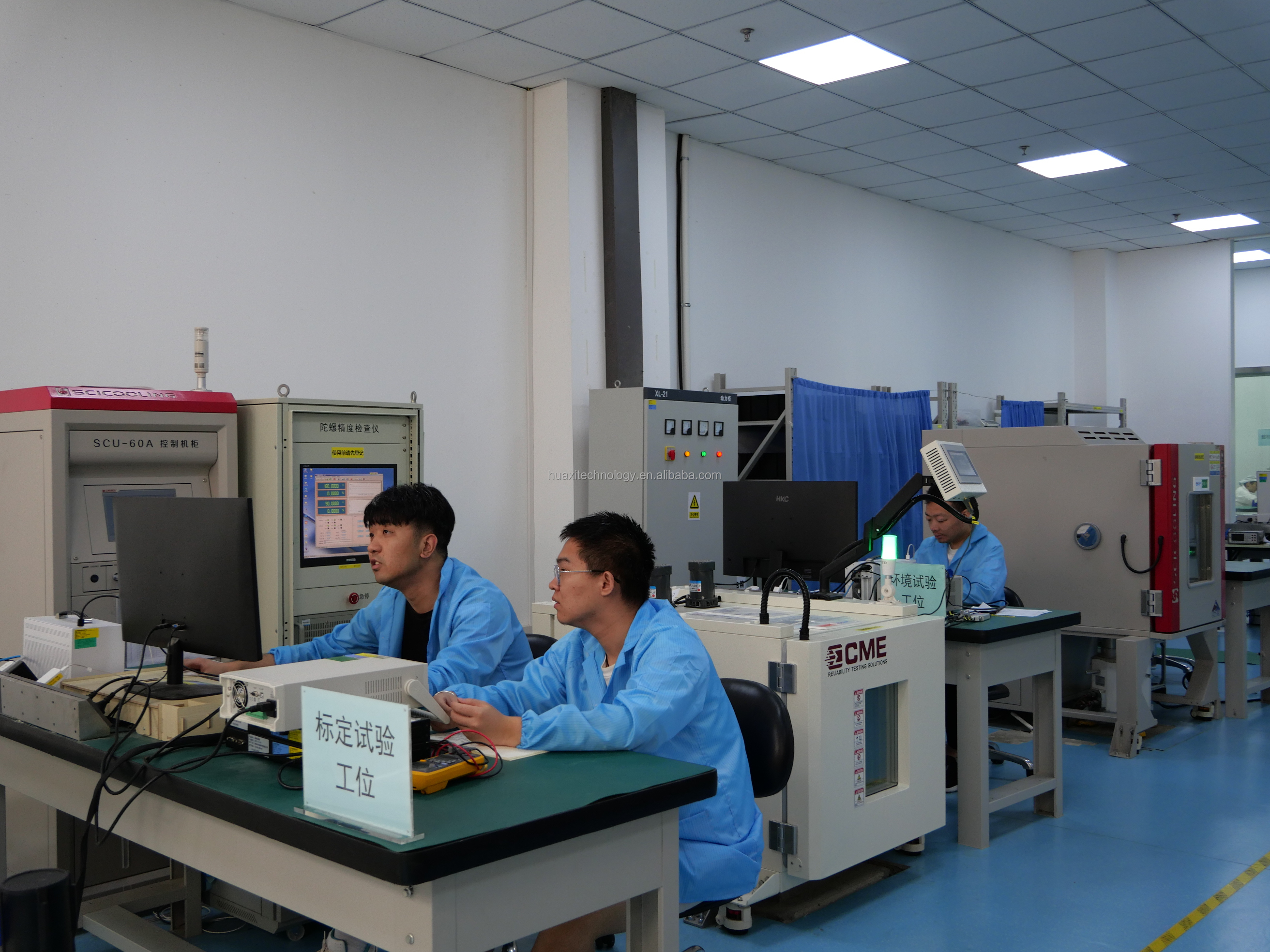

Quality Control 1

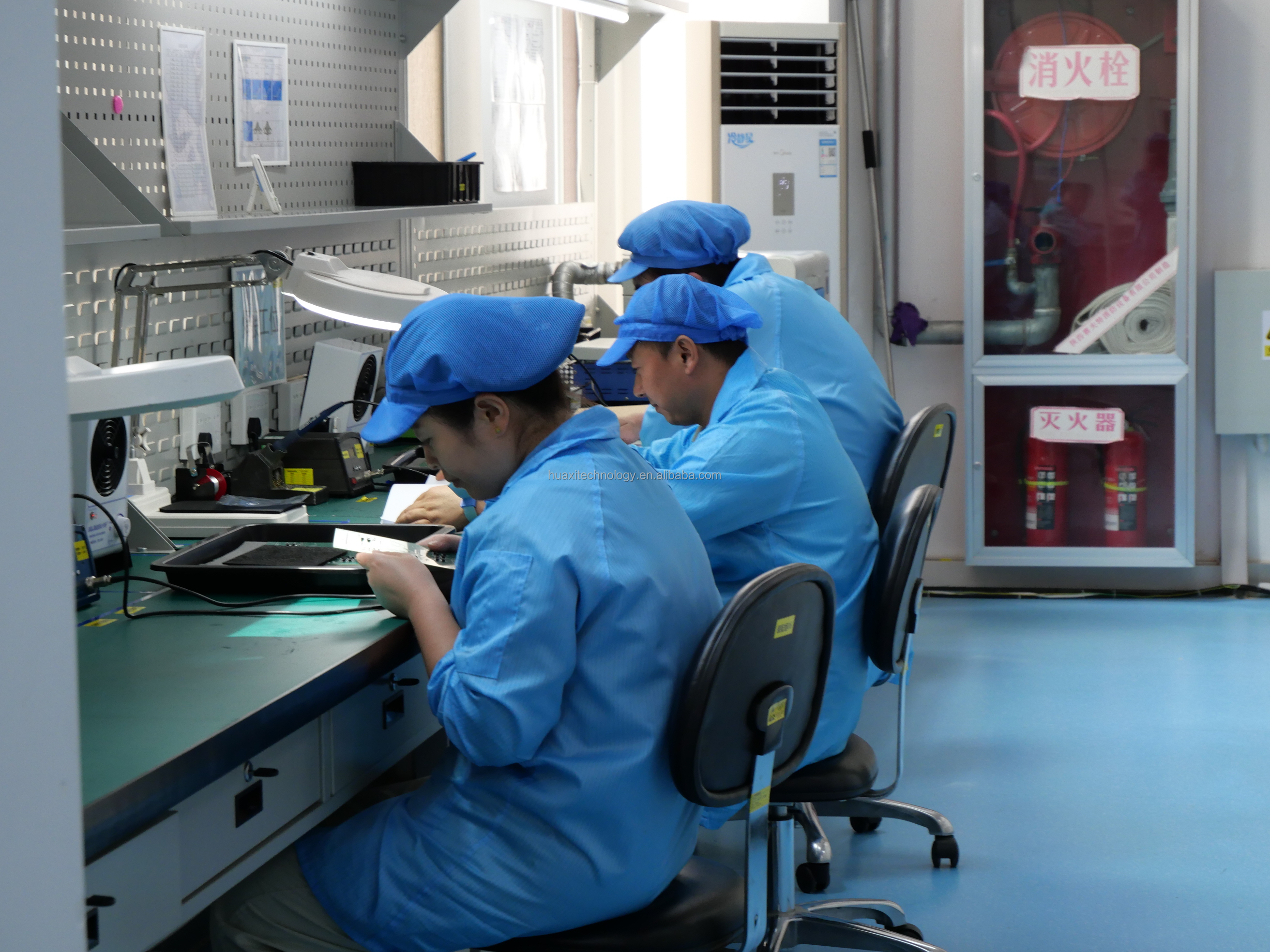

Quality Control 2

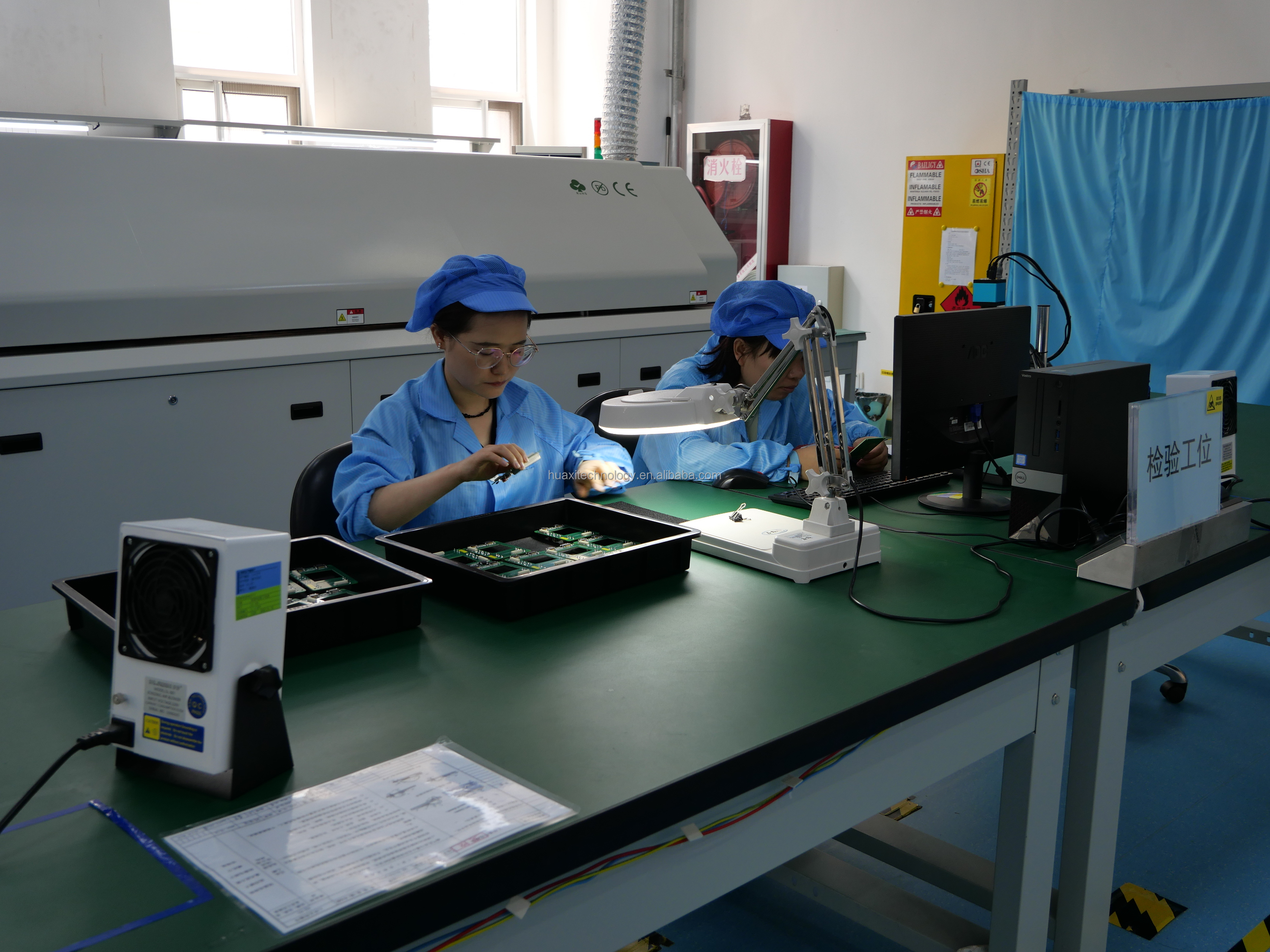

Quality Control 3
Our Certificates
Certificate 1
Certificate 2
Certificate 3
Our Services
Services Map
Packing & Delivery
Packing 1
Packing 2
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Due to the small size and high value of most of our products, we often use international express delivery for transportation, and the goods will be delivered to you quickly and safely.
FAQ
Are you a manufacturer?
Yes, we are a professional manufacturer. Our technical team has more than 20 engineers.
Do you provide OEM service?
Yes, we can put your logo on our products. Please discuss the details with our sales team.
What payment methods do you support?
We support Visa, MasterCard, Western Union, Credit Card, PayPal, and TT.
How long is your quality warranty period?
The quality warranty period is 1 year.
Are the products tested before shipment?
We have a strict quality control system during production. All products are fully tested before shipment. You can also assign a third-party inspection agent to take the final inspection.
What's your shipping methods?
Since our products are small and light, we often use international express (DHL, UPS, TNT, FedEx, EMS, etc.) for fast and secure transportation.
