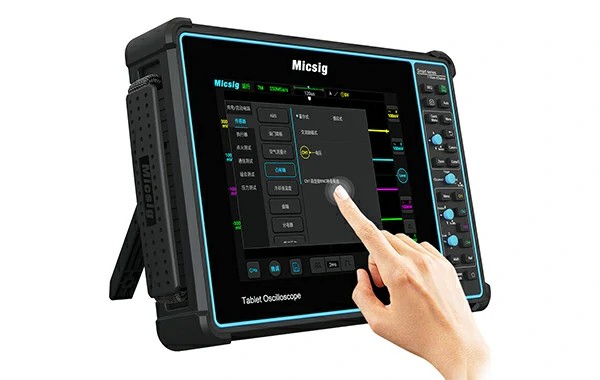

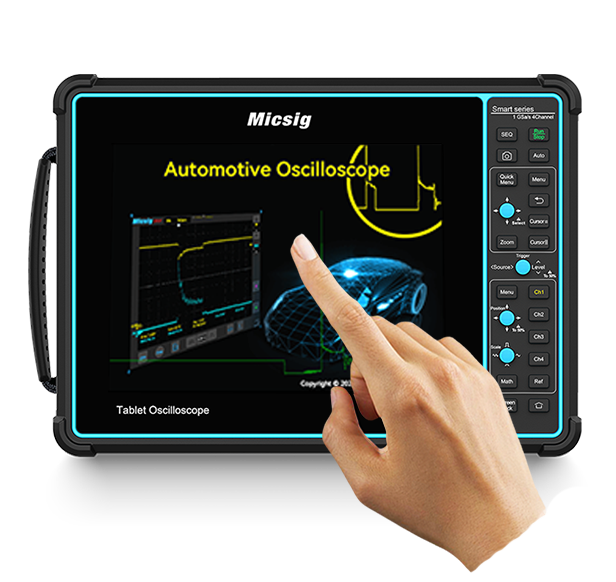

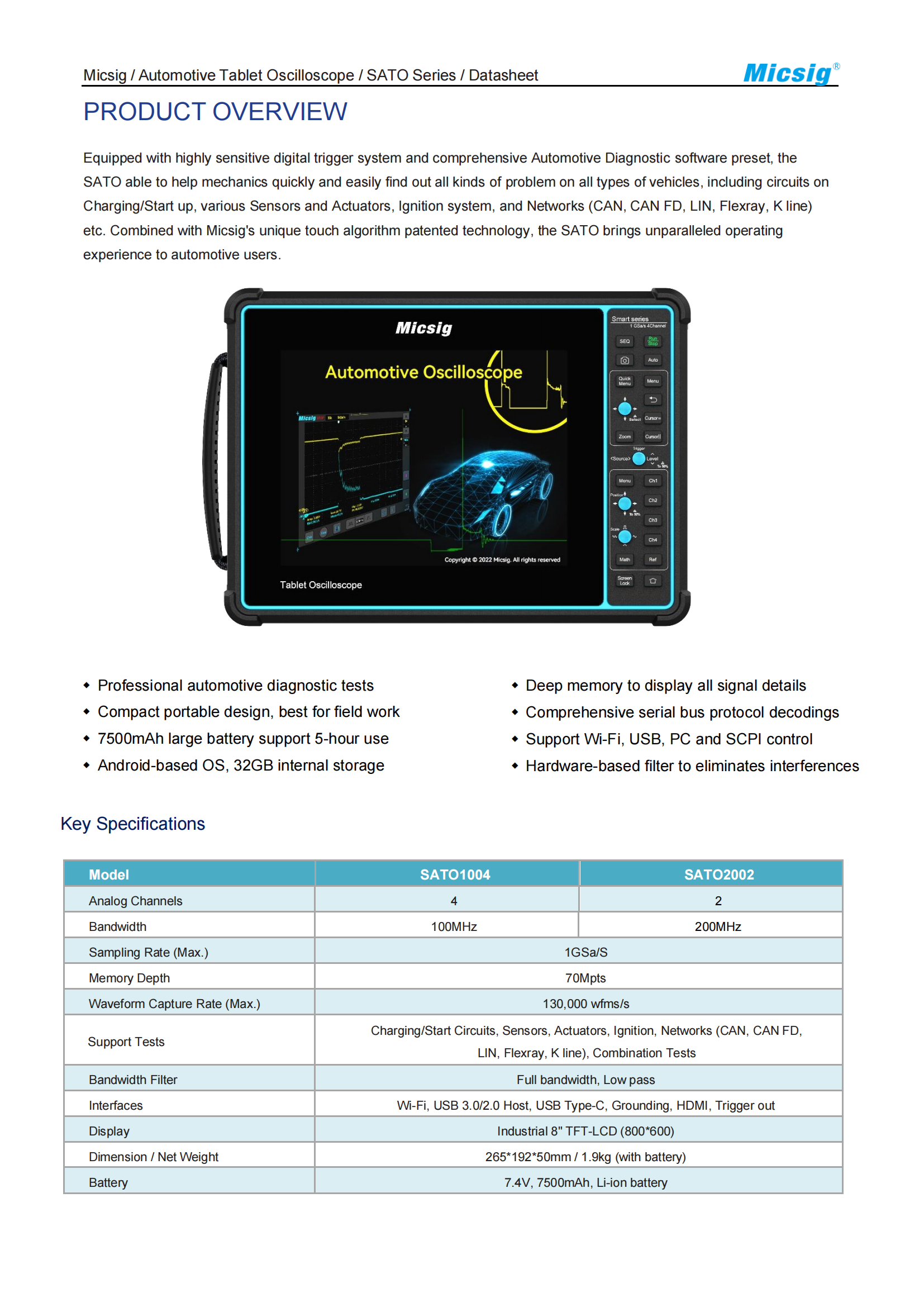

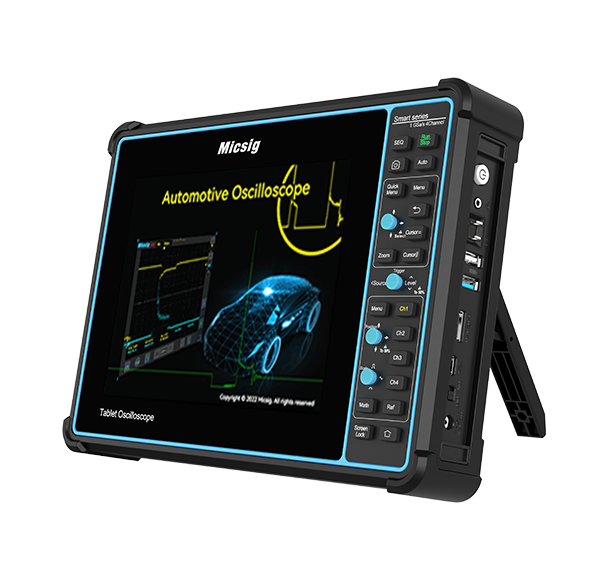

8-inch TFT-LCD capacitive touch screen with 800 * 600 resolution, integrates a new generation of hardware & software technologies.

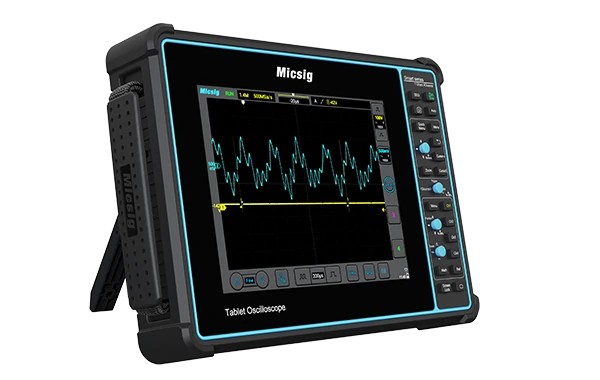

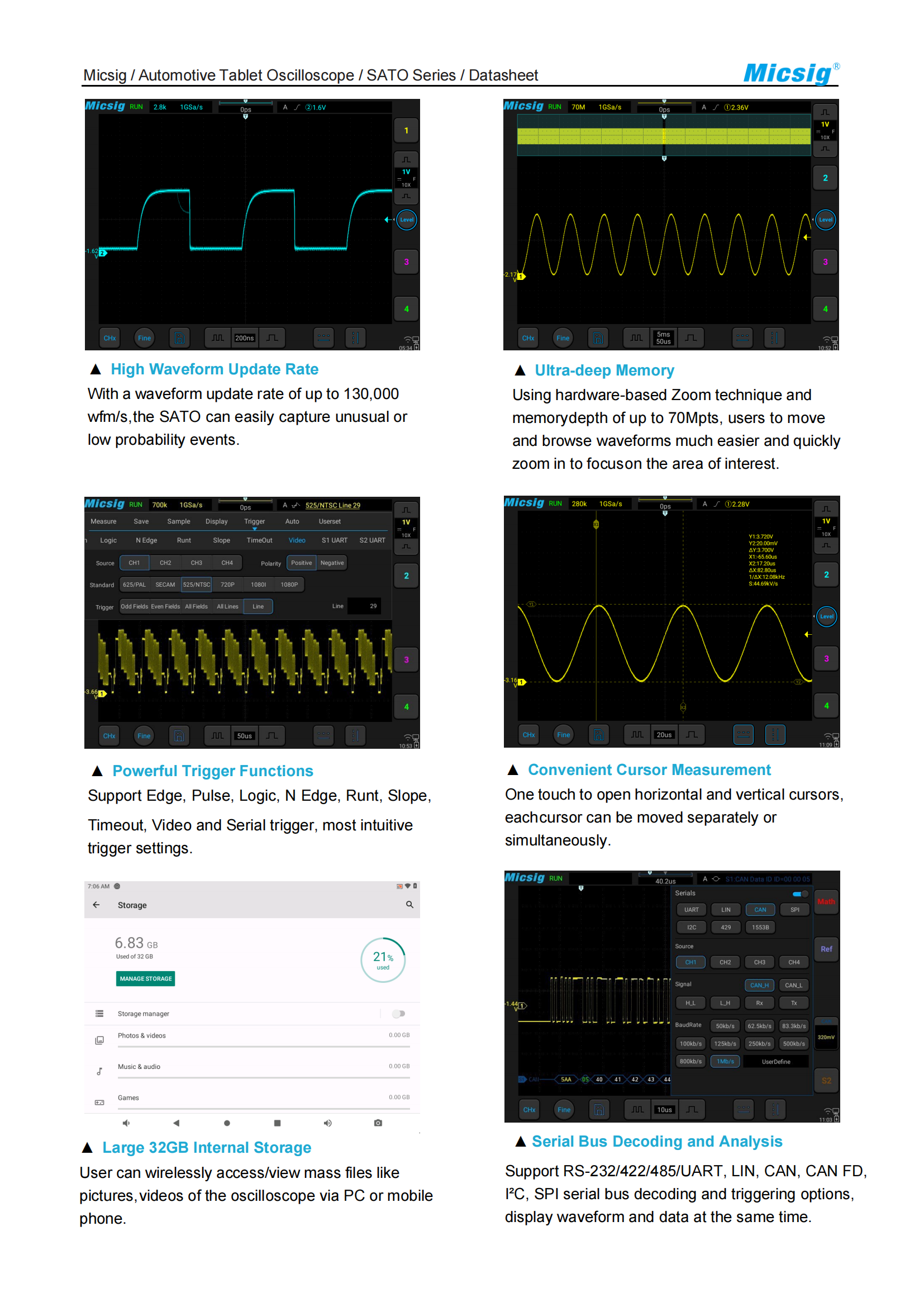

High bandwidth, High sampling rate, Large memory depth, excellent signal capture performance.
Built-in 7500mAh Li-ion battery supports 5 hours of field work; Power-off lock secures safety to carry and store; Triangle link rear stand ensures it sits solidly on the bench.

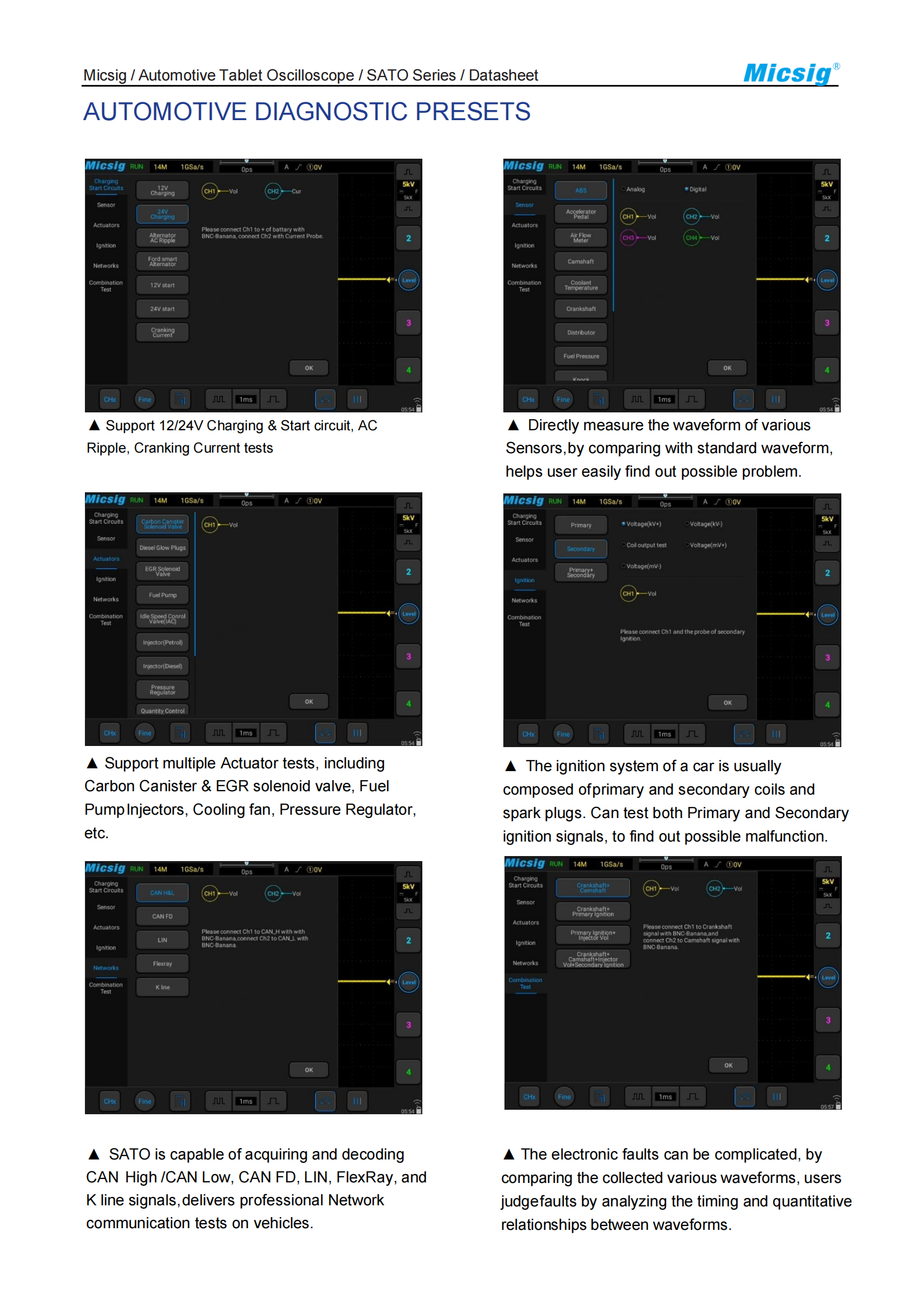

Support 12V & 24V charging/start, Charging Ripple, Cranking Current, and other vital test protocols.
Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.
One-press to get signals, Fast and Easy. Supports various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.
Including Primary ignition, Secondary ignition, and combined Primary+Secondary ignition tests.
CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line analysis compatible.
Multiple channels of the oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, or the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.

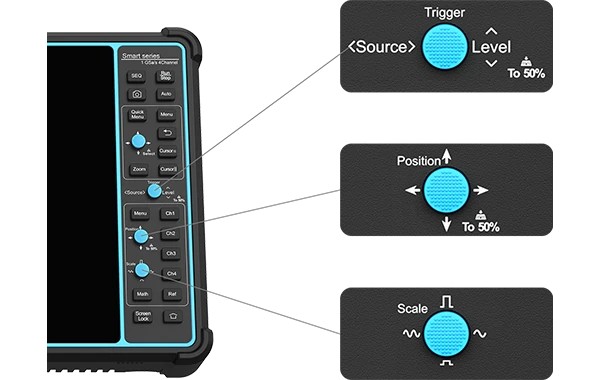

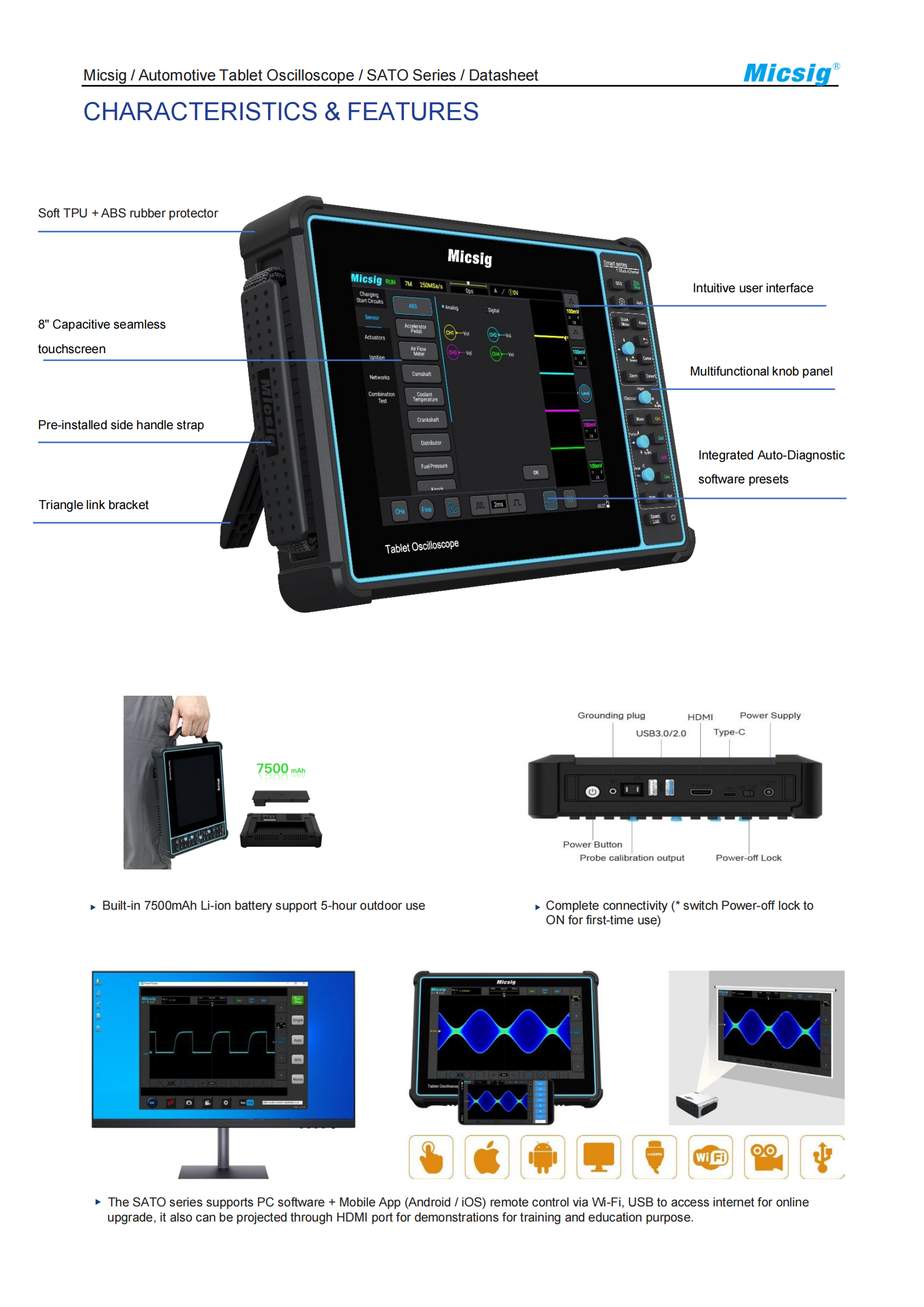

Highly integrated multifunctional buttons, innovative 5-Way navigation sticks, deliver quick & accurate control to various operations.
Allows users to store and access massive files, such as Waveforms, Screenshots, and Recorded Videos.
PC software + Mobile phone App (Android / iOS) remote control via Wi-Fi, USB; Able to access internet for online upgrade; Can be projected via HDMI port for demonstrations for training and education purposes.

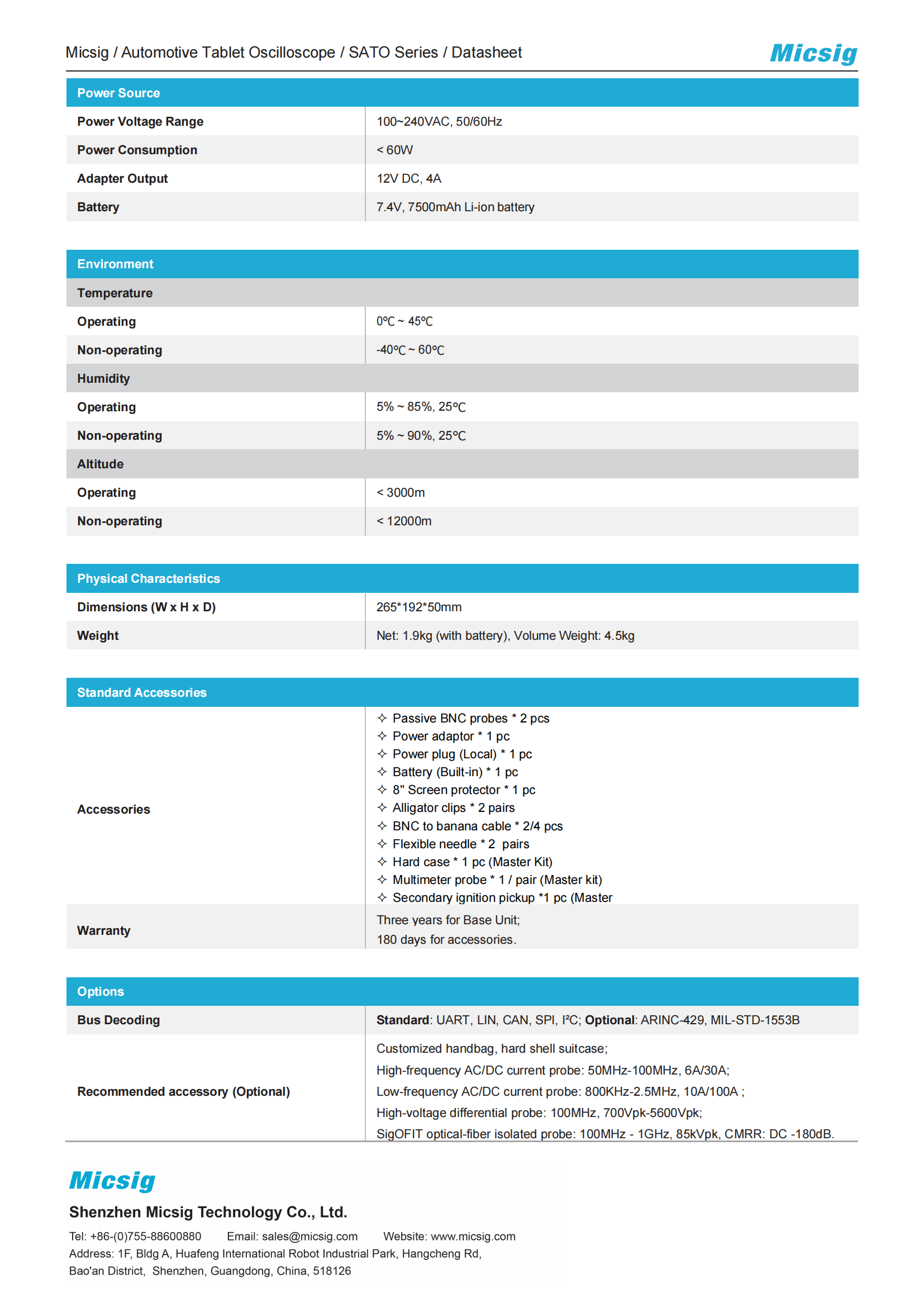

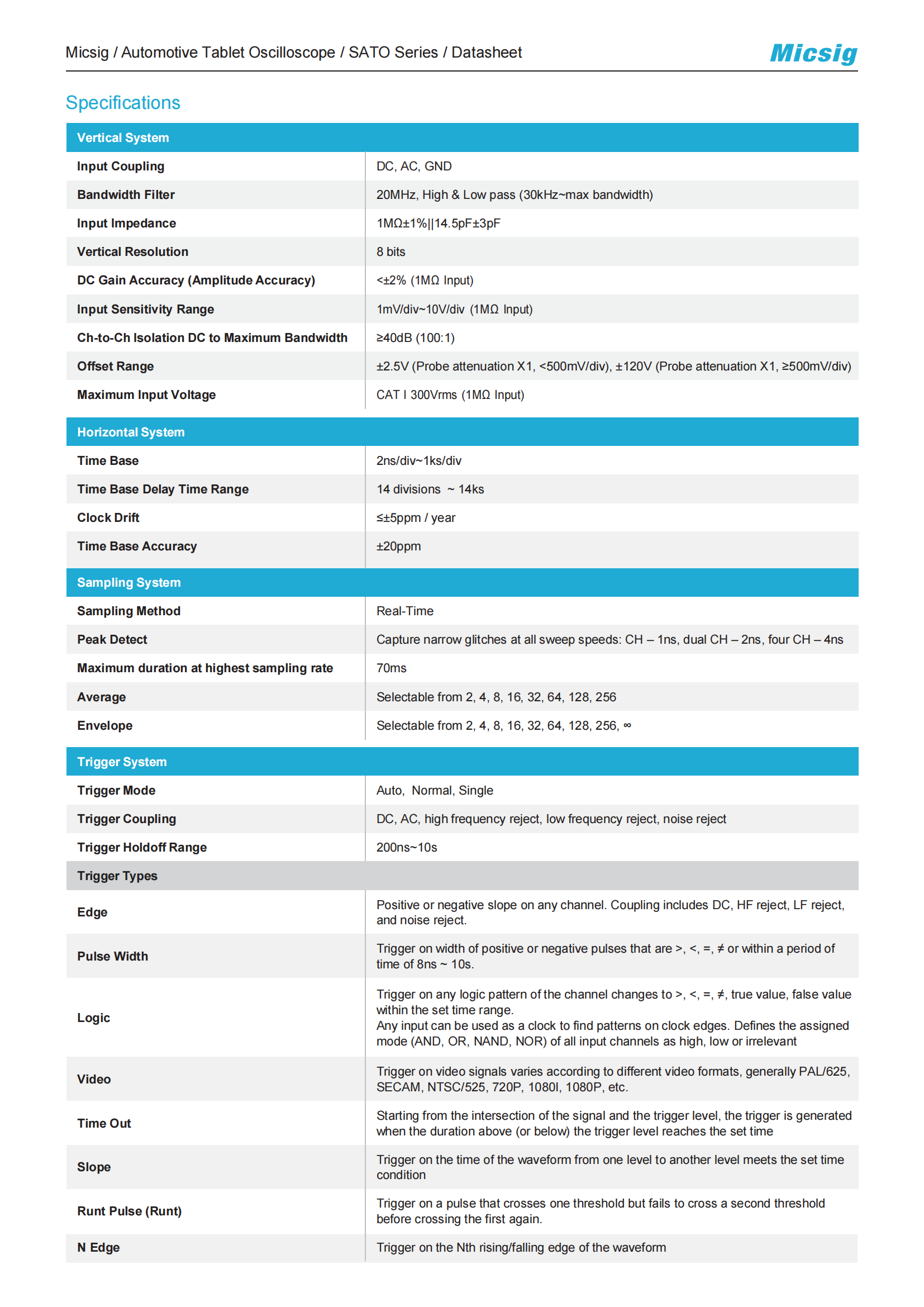

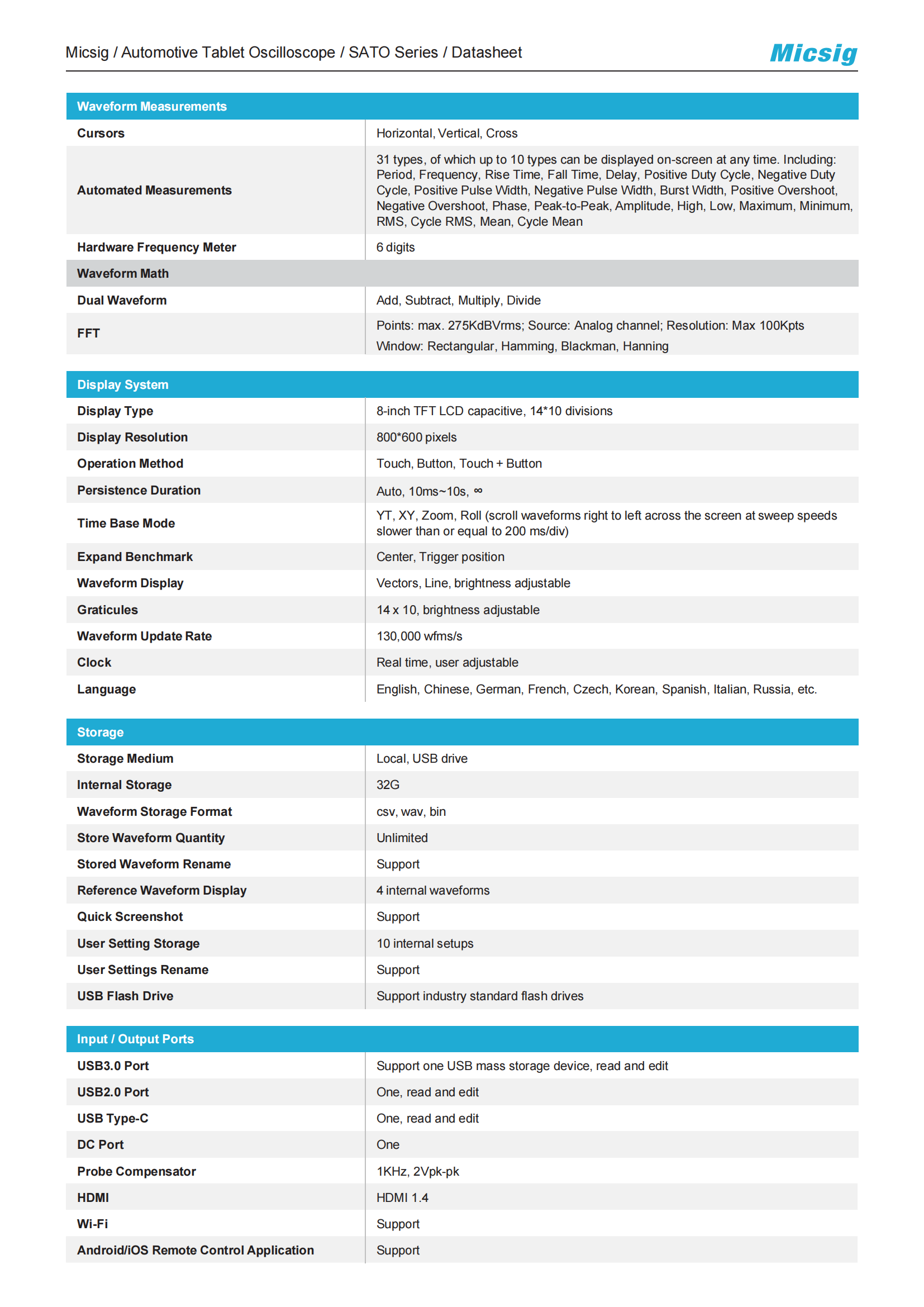

| Model | SATO1004 | SATO2002 |
|---|---|---|
| Bandwidth | 100MHz | 200MHz |
| Analog channels | 4 | 2 |
| Rise Time | ≤3.5ns | ≤1.75ns |
| Real-time sampling rate | 1GSa/s | 1GSa/s |
| Memory depth | 70Mpts | 70Mpts |
| Max. waveform capture rate | 130,000 wfms/s | |
| Vertical Resolution | 8bit | |
| Support Test | Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests |
|
| Bandwidth Filter | Full bandwidth, Low pass | |
| Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger out | |
| Display | 8" TFT LCD capacitive touch screen, 800*600 pixels, 14*10 grids | |
| Dimension / Net Weight | 265*192*50mm / 1.9kg (with battery) | |
The main differences are in bandwidth and analog channels. The SATO1004 features a 100MHz bandwidth with 4 analog channels, while the SATO2002 provides a higher bandwidth of 200MHz but with 2 analog channels.
The SATO series supports an extensive range of automotive tests including 12V/24V charging and starting circuits, actuator tests (such as fuel injectors and EGR valves), sensor tests (such as ABS, crankshaft, and camshaft), primary/secondary ignition tests, and network communication protocols (like CAN, CAN FD, LIN, FlexRay, and K-line).
Yes, it is highly suitable for outdoor and mobile applications. It comes equipped with a built-in 7500mAh Li-ion battery that provides up to 5 hours of continuous operation on a single charge.
The SATO series features an upgraded 32GB internal storage capacity, which allows users to save and easily access large numbers of waveforms, screenshots, and diagnostic video recordings.
It features Smart Connections including Wi-Fi and USB, which enable remote control through a PC software or smartphone application (both Android and iOS). It also includes an HDMI port for screen projection and supports online upgrades when connected to the internet.
