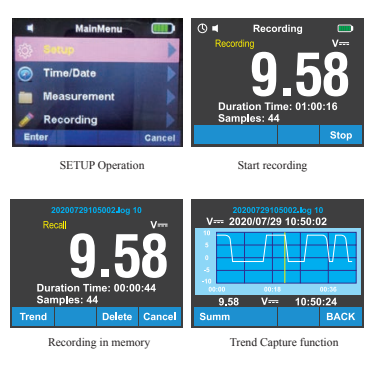

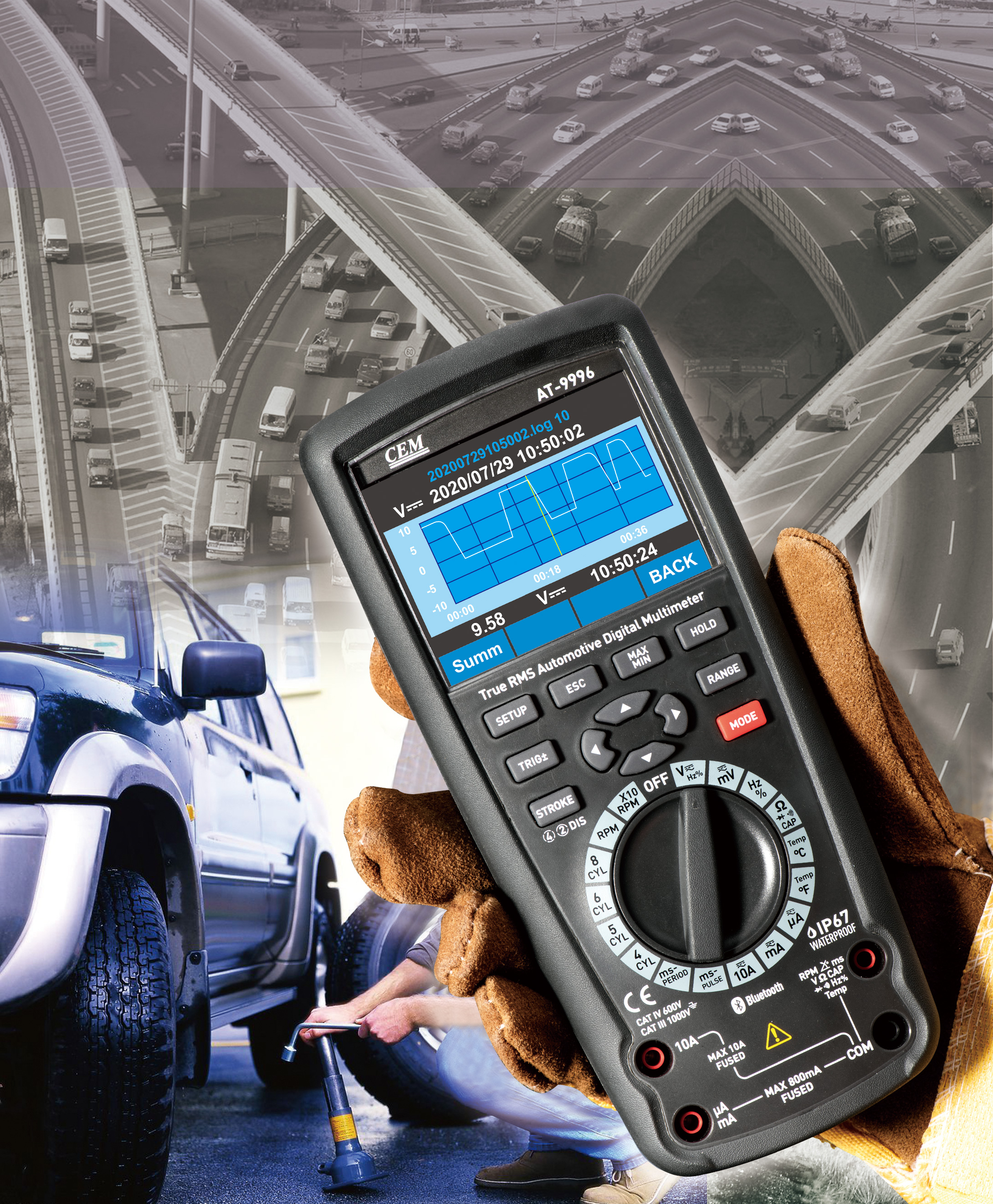

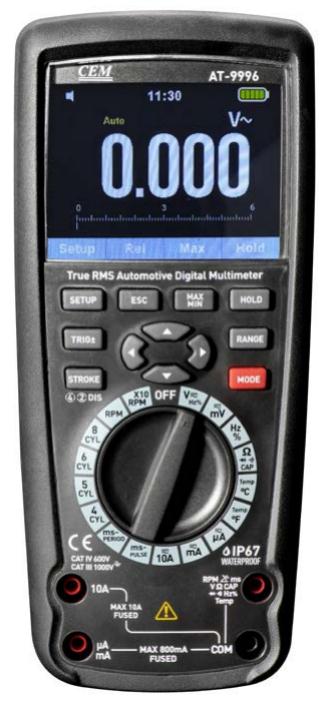

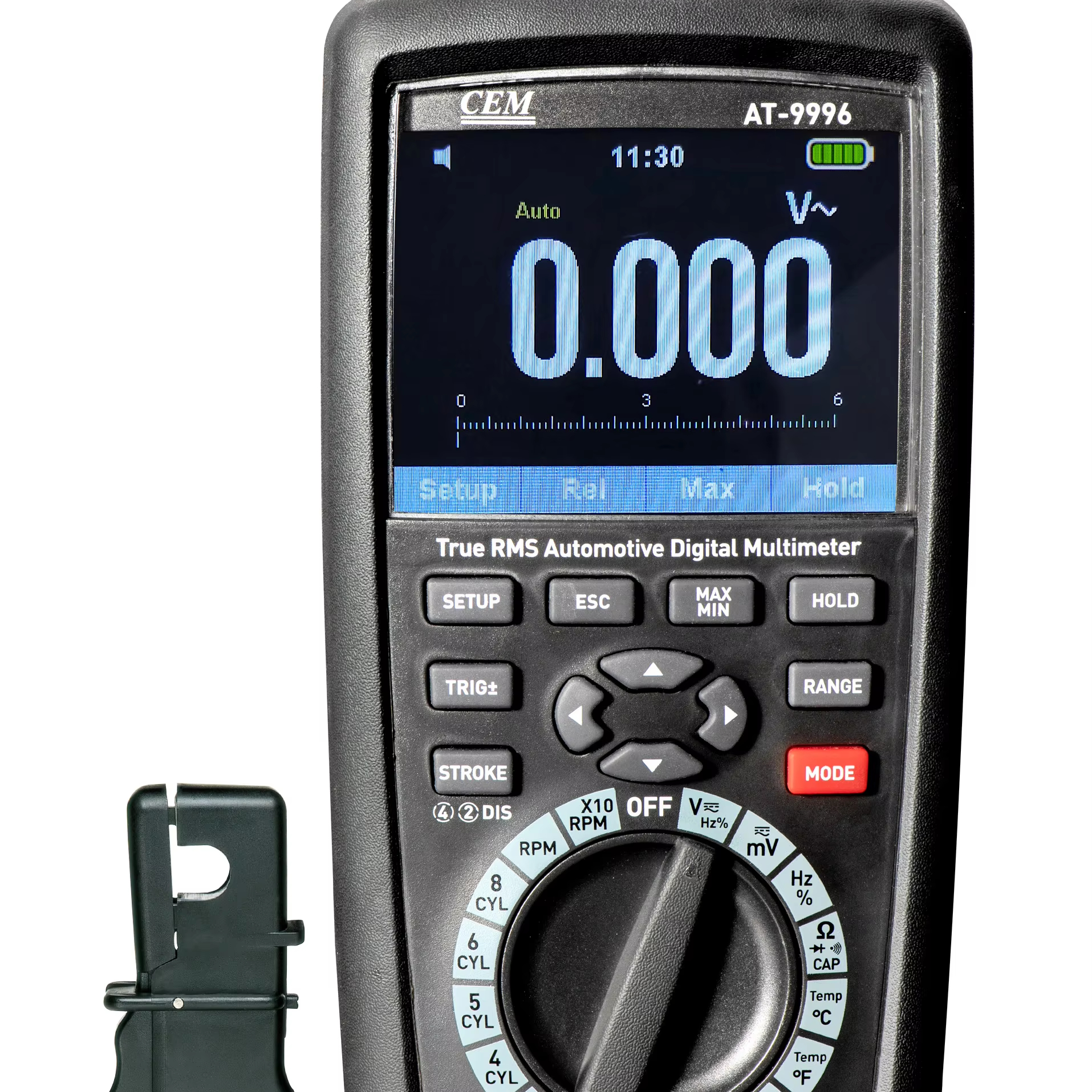

9996 is a Professional Automotive True RMS Digital Multimeter with oscilloscope functions and TFT color LCD display, providing fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features.
Safety Conformance
EN61010-1 CAT IV 600V, CAT III 1000V
1000V input protection on all ranges
10A/1000V & 0.5A/1000V fuses protection on current ranges

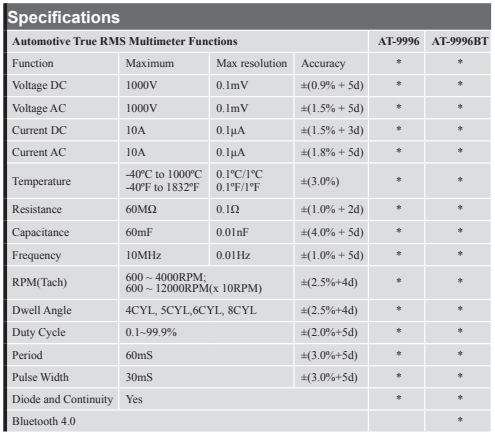

Specifications & Accessories
Size (HxWxD)220mm x 96mm x 60mm
Weight631g
Included AccessoriesTest leads, 6x1.5V AA batteries, Type K temperature probe, Software, gift box with carrying case.
Frequently Asked Questions
Q: What primary functions does the 9996 digital multimeter offer?
A: The 9996 is a Professional Automotive True RMS Digital Multimeter that integrates oscilloscope functions and features a high-definition TFT color LCD display.
Q: What are the key performance features of this device?

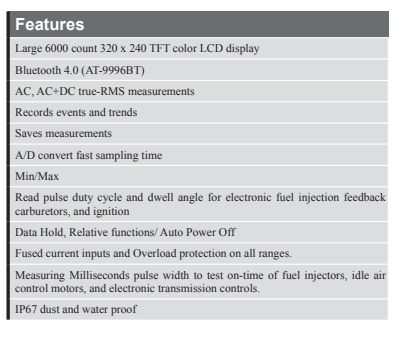

A: Key features include fast A/D converting sampling time, high measurement accuracy, built-in datalogging capabilities, and Trend Capture functionality.
Q: What safety standards does the 9996 comply with?
A: The device complies with safety conformance standards EN61010-1 CAT IV 600V and CAT III 1000V.
Q: What electrical safety protections are built into the device?
A: It features 1000V input protection on all measurement ranges, and is equipped with 10A/1000V & 0.5A/1000V fuses protection on the current ranges.
Q: What are the physical dimensions and weight of the multimeter?
A: The physical size is 220mm x 96mm x 60mm (HxWxD), and it weighs 631g.
Q: What standard accessories come with the product?
A: The product package includes test leads, 6x1.5V AA batteries, a Type K temperature probe, analysis software, and a gift box with a carrying case.
