| Function Available Options | |
|---|---|
| I | Switching input + $2 |
| O | Switching Outputs + $2 |
| T | RS485 Communication + $5 |
| D | Analog Output + $7 |
| Auxiliary Power | AD/DC85-265V + $2 |
| Code | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| Panel Size (mm) | 160*80 | 120*120 | 96*96 | 120*60 | 96*48 | 72*72 | 80*80 | 48*48 |
| Hole Size (mm) | 152*76 | 111*111 | 91*91 | 114*56 | 92*45 | 67*67 | 76*76 | 45*45 |

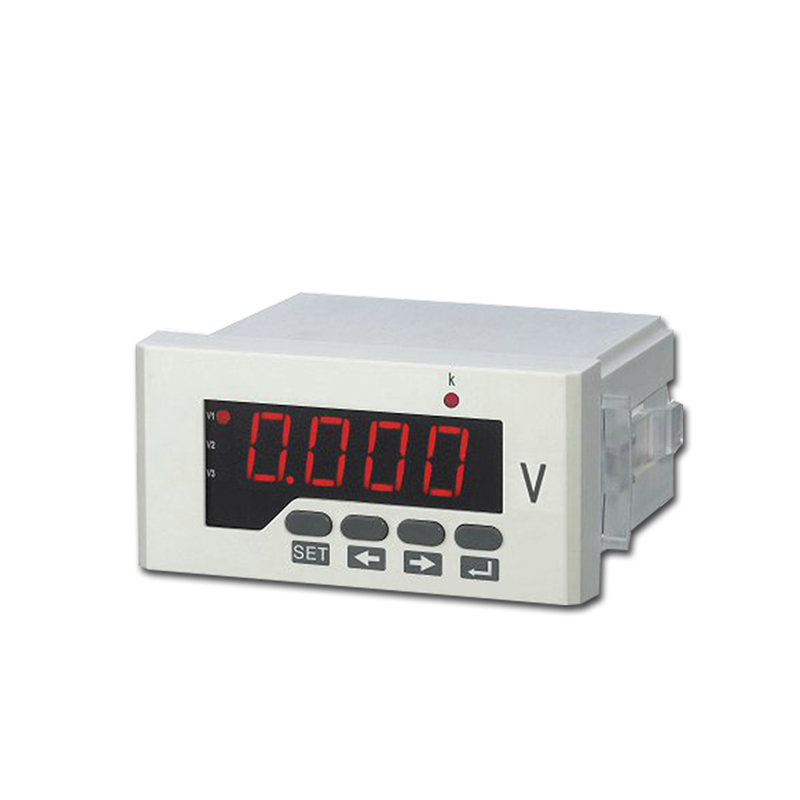

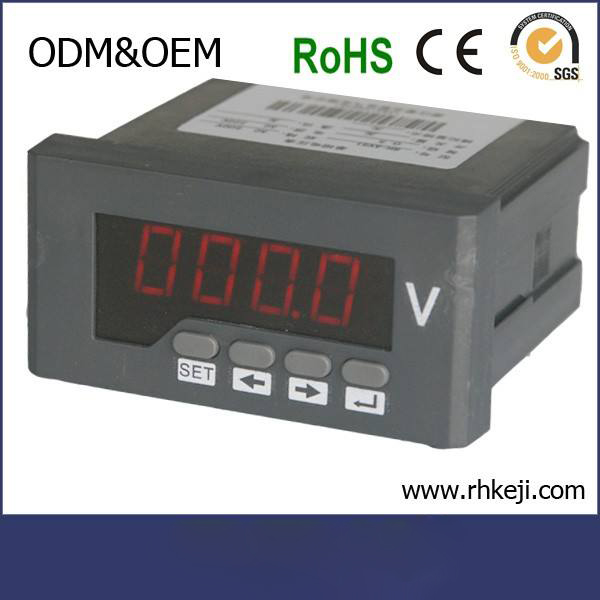

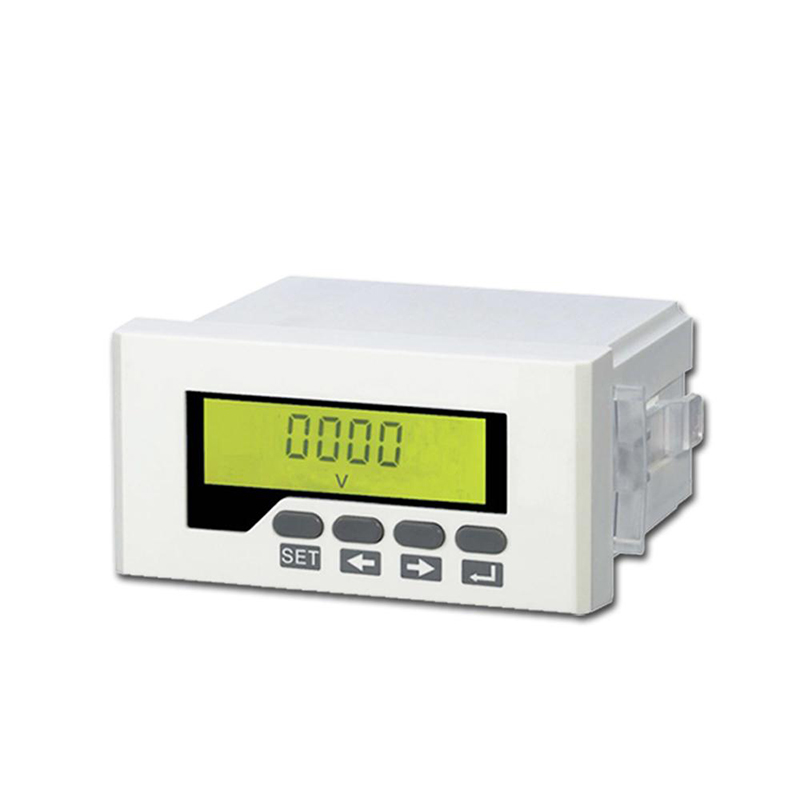

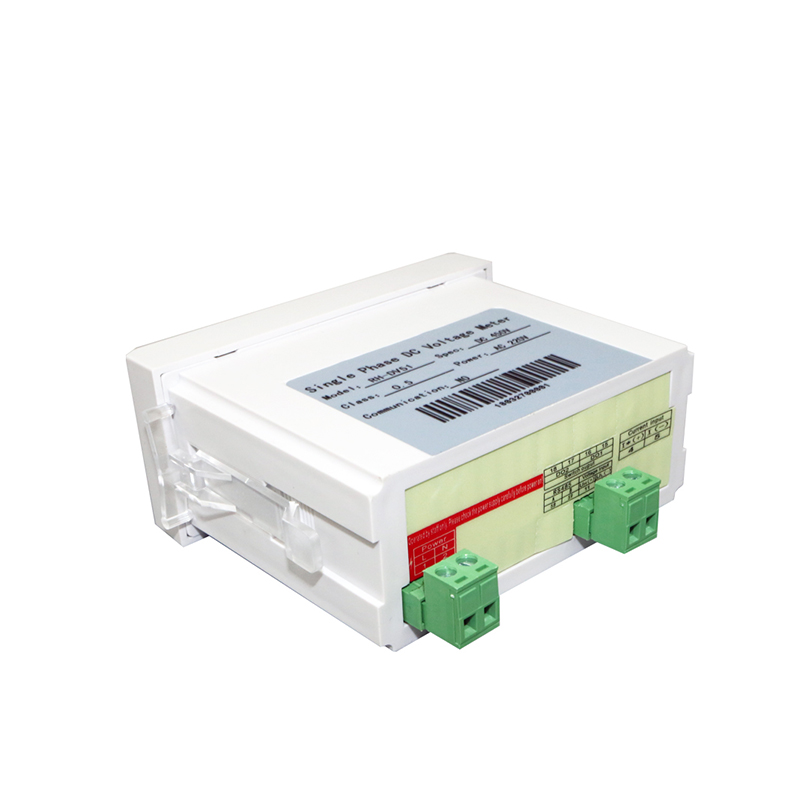

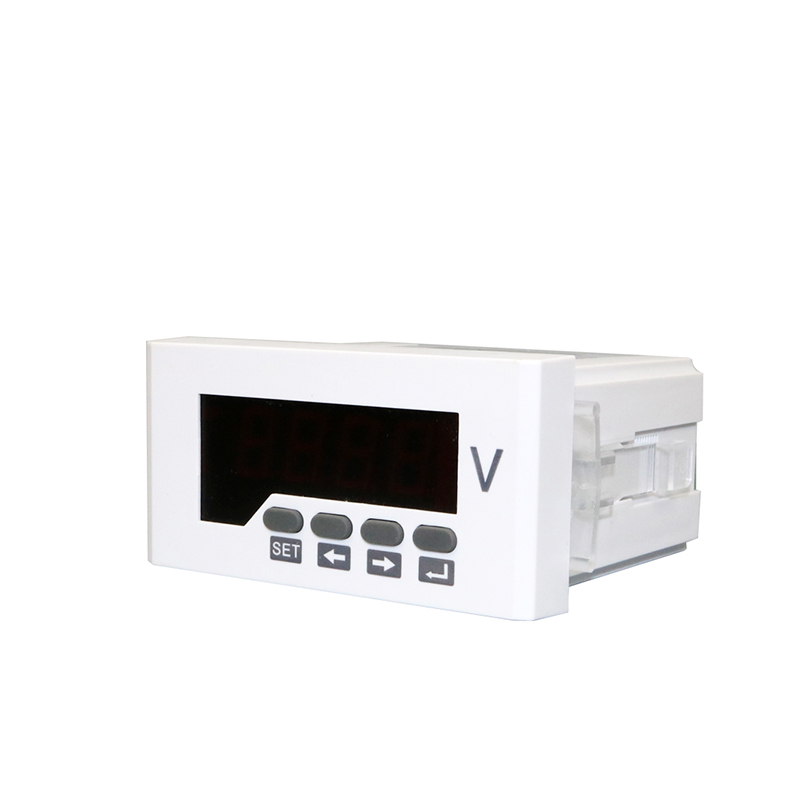

The device features high precision measurement of single phase AC current or DC current with an accuracy rating of current level 0.5.

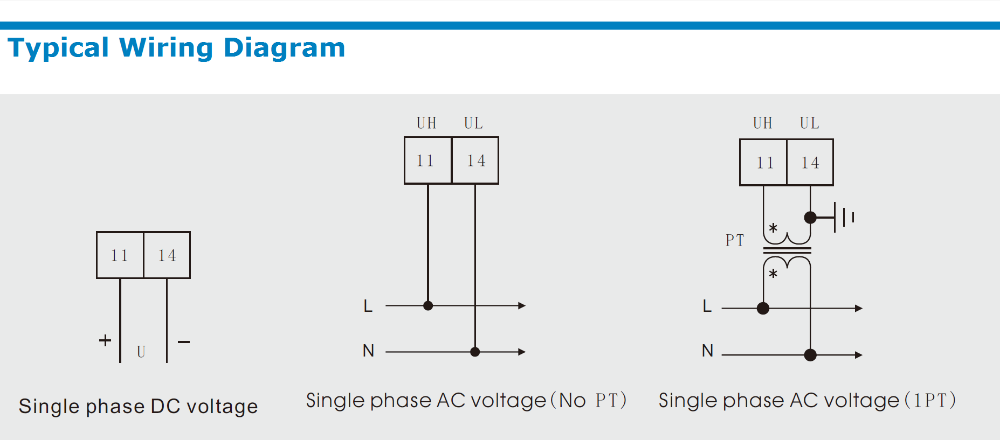

It supports a single-phase connection mode with rated currents of AC 1A, AC 5A, DC 20mA, DC 1A, DC 5A, and DC 75mV. It also supports an overload capacity of 1.2 times continuously and 10 times for 5 seconds instantaneously.
The supported working range for the auxiliary power supply includes AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, and DC 24V, with a total power consumption of less than 4VA.
Yes, it supports 1-way RS-485 communication using the Modbus-RTU protocol. The transmission speed features a baud rate range of 1200 to 9600bps, with 2400bps configured as the default.

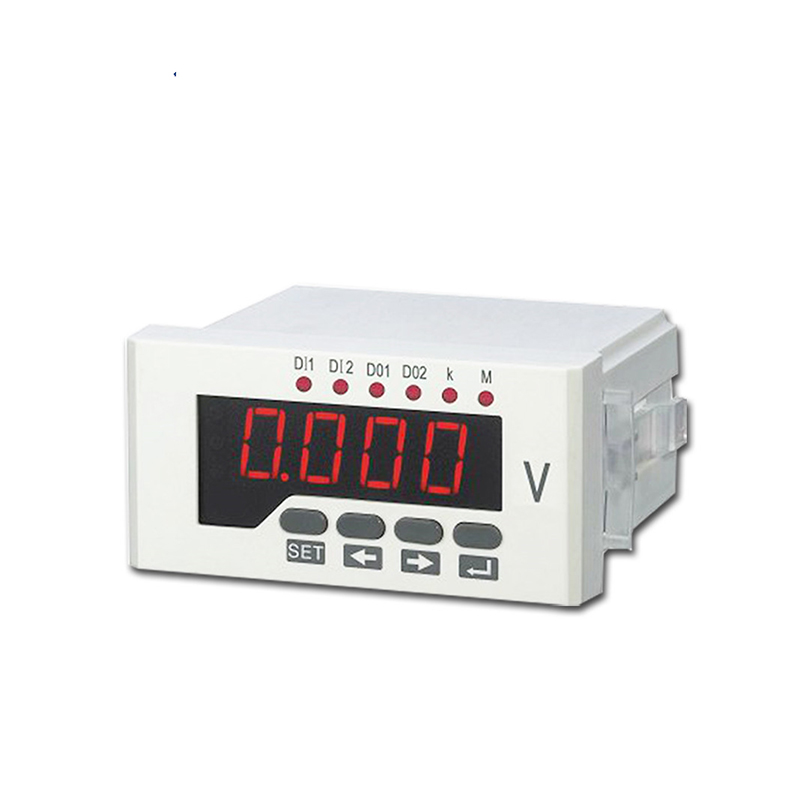

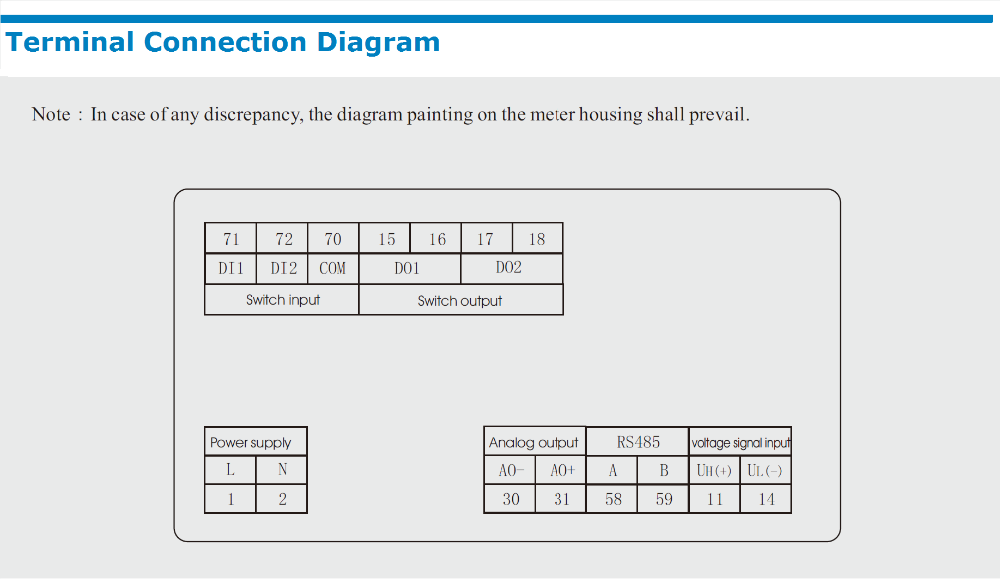

The device supports up to 2 stem node switch inputs, 2 relay outputs (AC 250V/5A, DC 30V/5A capacity), and 1 analog transmission output (options of 0/4~20mA or 0~5/10V).

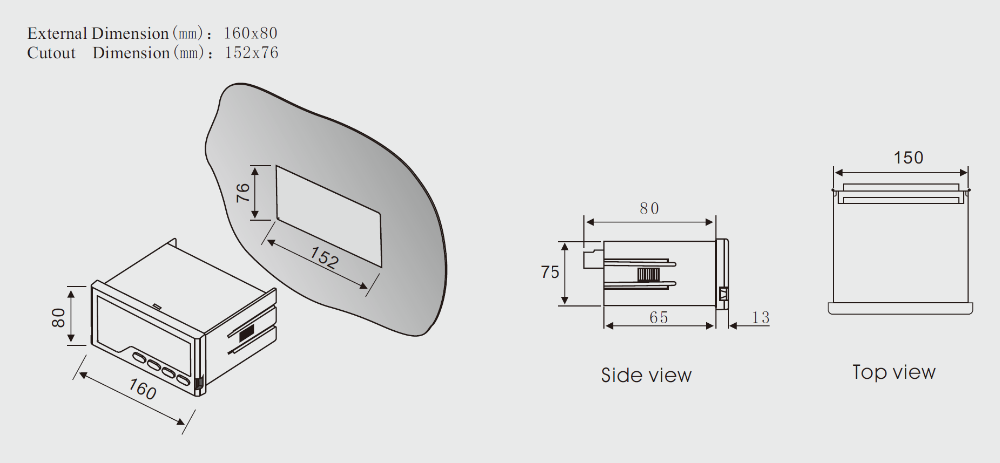

A variety of standard panel and hole configurations are available, ranging from code 1 (Panel: 160*80mm, Hole: 152*76mm) down to code 8 (Panel: 48*48mm, Hole: 45*45mm), to meet different electric cabinet circuit configurations.
