| Model | SATO1004 | SATO2002 |
| Bandwidth | 100MHz | 200MHz |
| Number of analog channels | 4 | 2 |
| Rise time | 3.5ns | 1.75ns |
| Real time sampling rate | 1GSa/s | |
| Storage depth | 70Mpts | |
| Maximum waveform capture rate | 130,000 times/Second | |
| Vertical resolution | 8 Bit | |

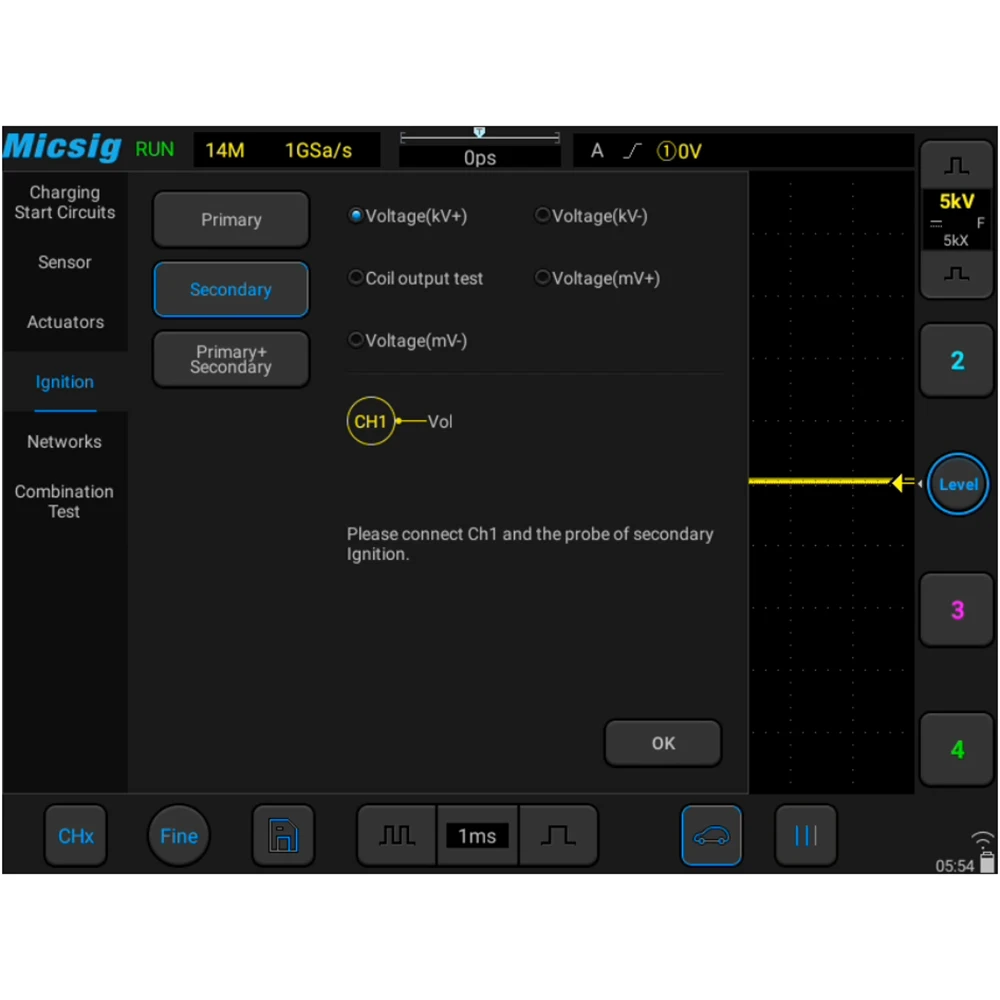

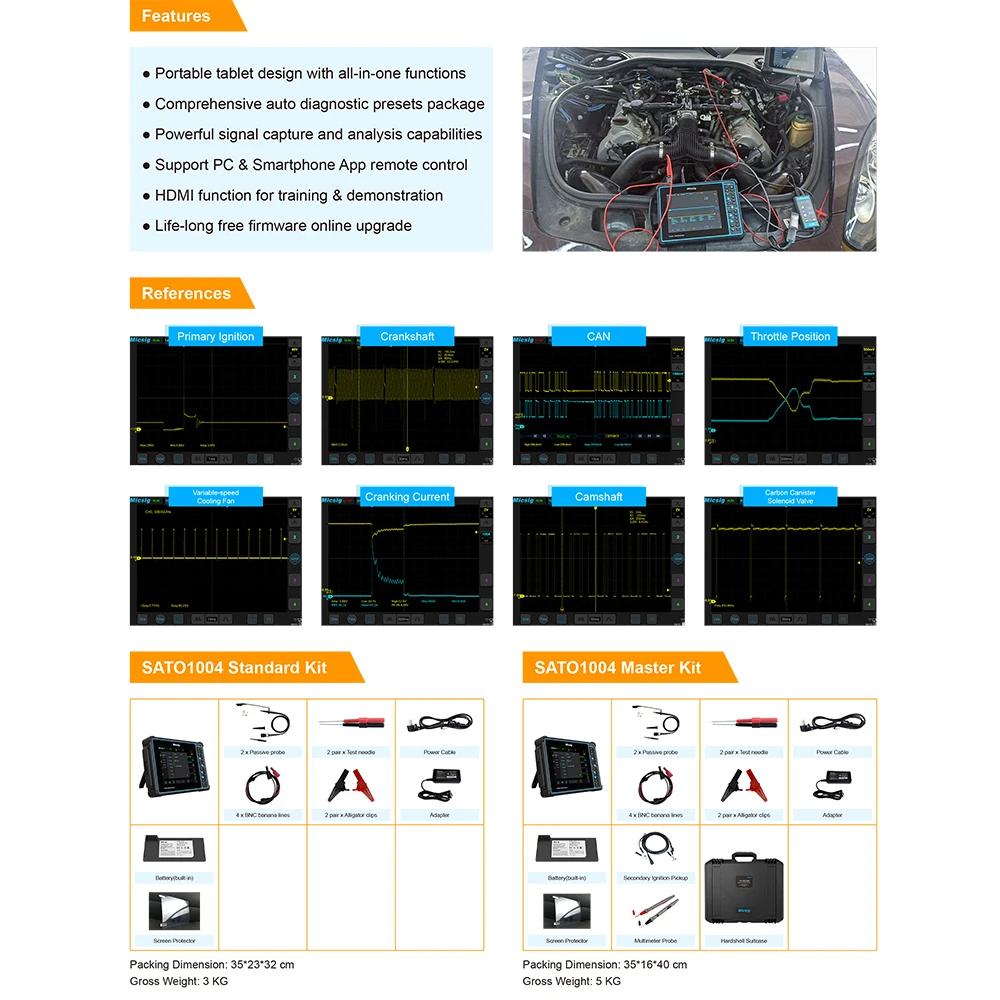

| Support testing | Charging circuit, starting circuit, sensor, actuator, ignition test, Communication test (including CAN, CAN FD, LIN, Flexray, K-Line, etc.), combined testing | |
| Bandwidth limits | Full bandwidth, low pass | |
| Interface | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger out | |

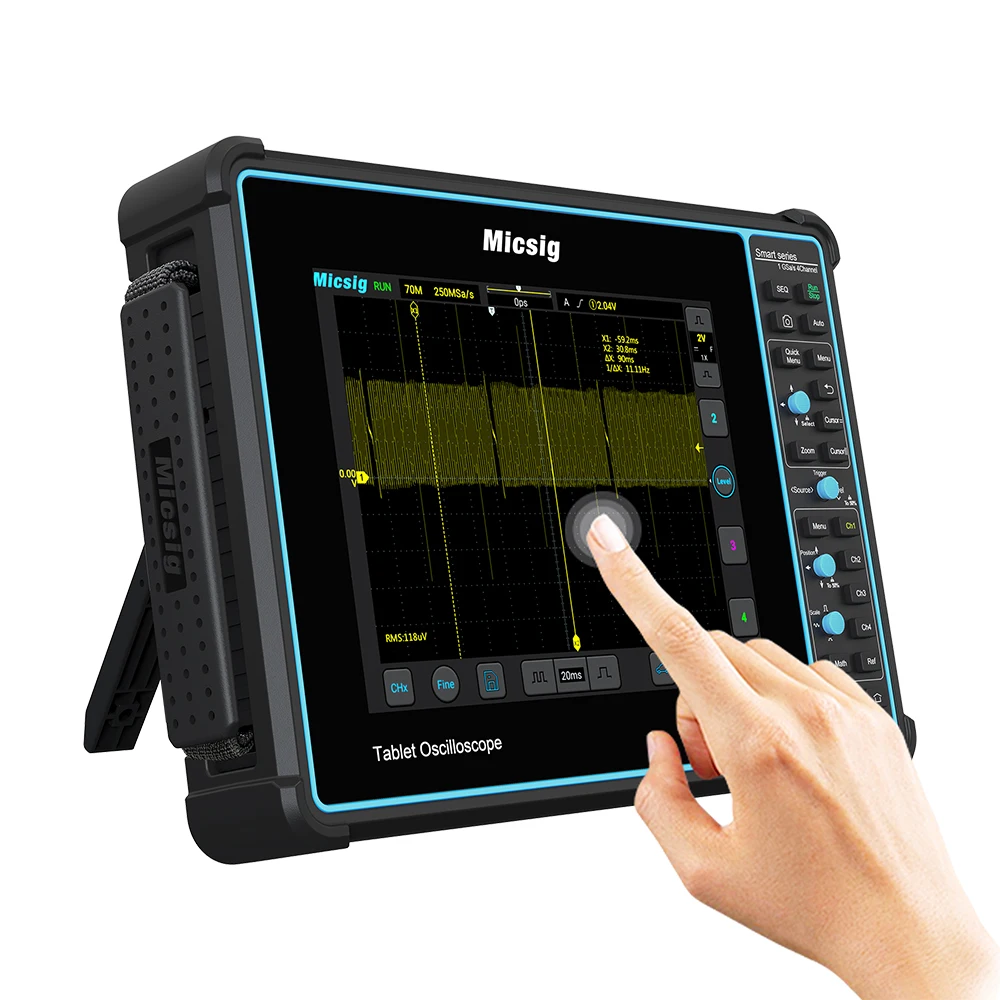

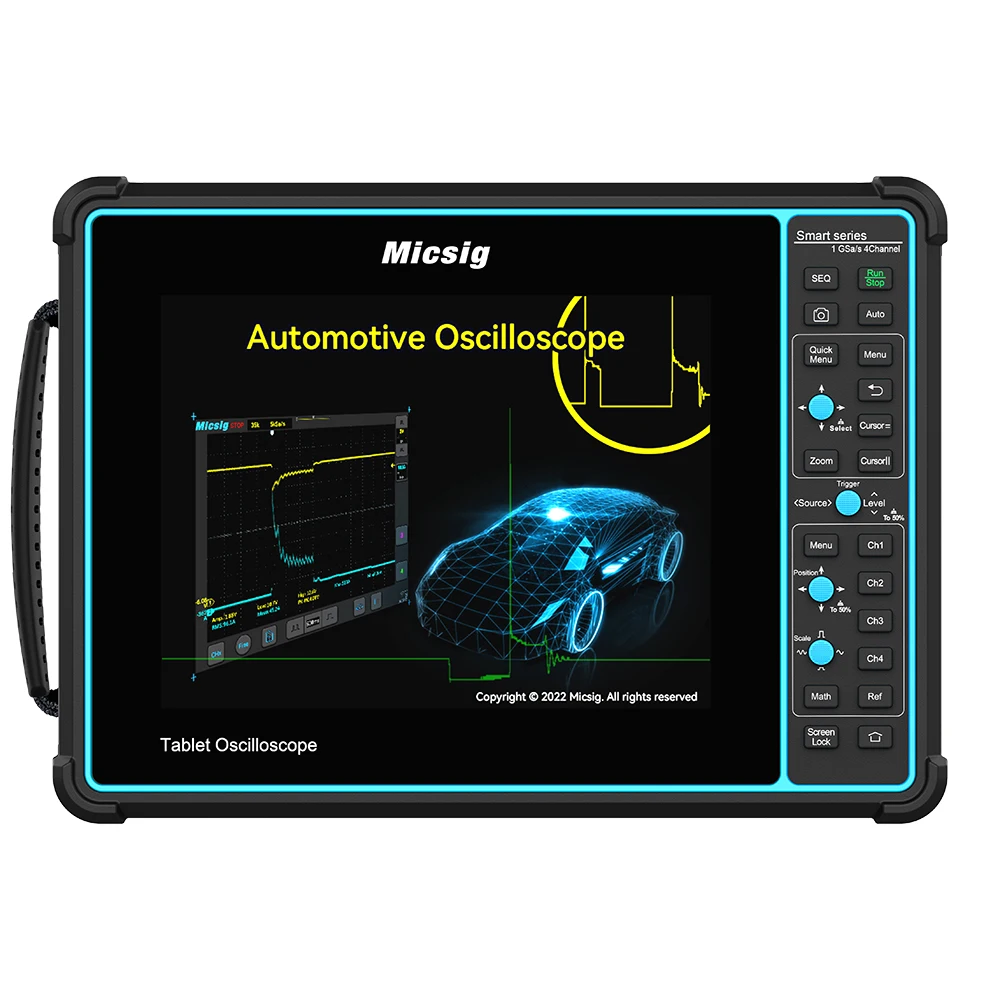

| Show | Industrial specifications 8 Inch TFT-LCD, 800*600 Resolution, 14*10 Grid | |
| Size/Net weight | 265*192*50mm / 1.9kg (battery included) | |

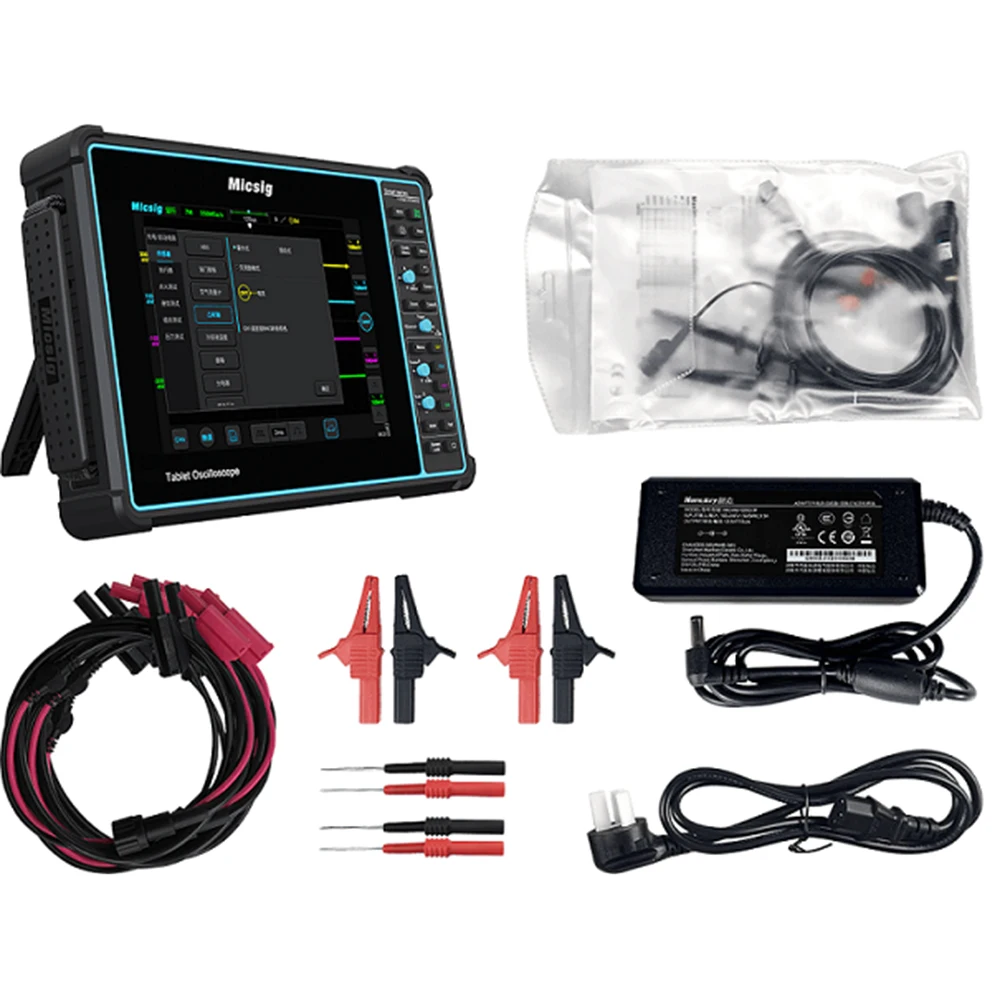

| Standard accessories | 2 passive probes, 4 BNC to banana head lines (2 lines for 2-channel version), 2 flexible needles (1 pair for 2-channel version), 2 alligator clips (1 pair for 2-channel version), power cord, adapter, built-in battery, protective film | |
