* All TO & ATO series oscilloscopes manufactured after July 5, 2023 are no longer have the UPI, only standard BNC interface.
The UPI can supply power to Micsig's active probes, such as CP503 (EOL), CP1003 (EOL), DP750-100, RCP500, and can configure the probe attenuation ratio with oscilloscope automatically.

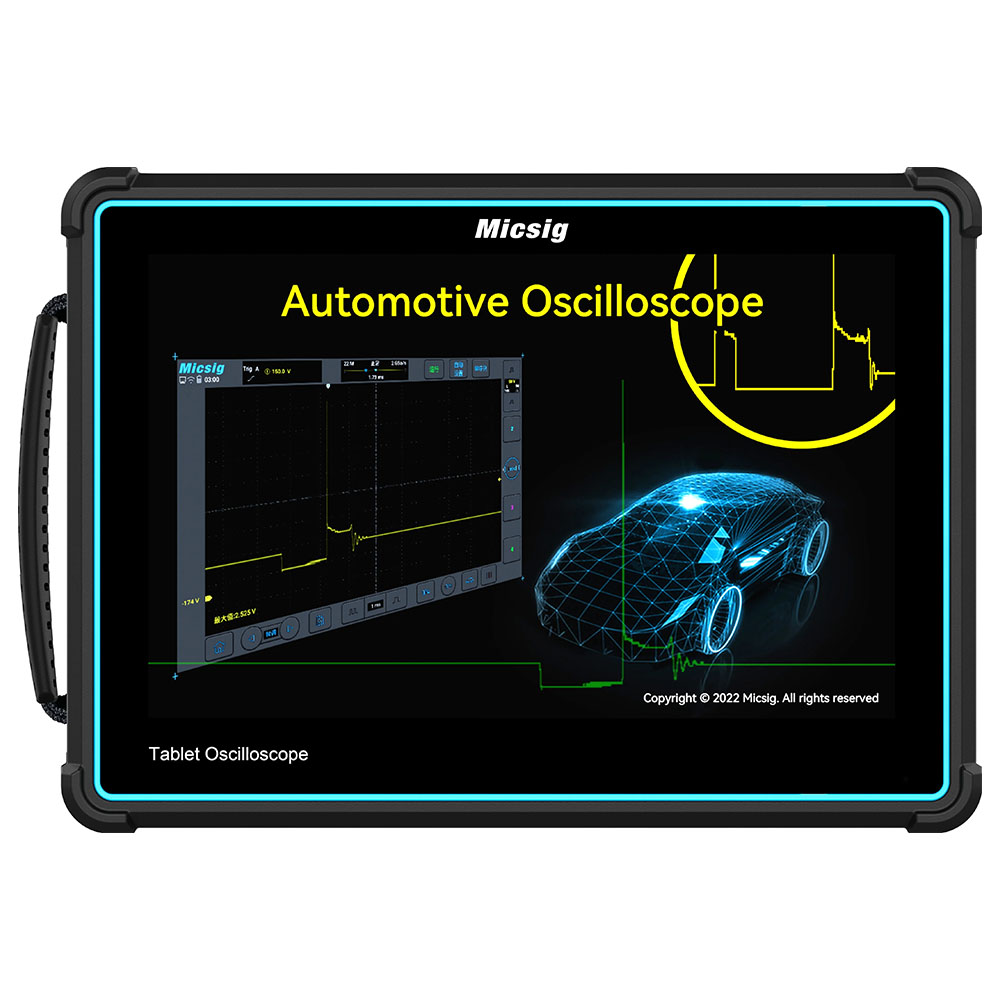

| Model | ATO3004 | ATO3002 (N/A) | ATO2004 | ATO2002 | ATO1004 |
|---|---|---|---|---|---|
| Bandwidth | 300MHz | 300MHz | 200MHz | 200MHz | 100MHz |
| Rise Time | ≤1.16ns | ≤1.16ns | ≤1.75ns | ≤1.75ns | ≤3.5ns |
| Analog channels | 4 | 2 | 4 | 2 | 4 |
| Real-time sampling rate | 2GSa/s | 2GSa/s | 2GSa/s | 1GSa/s | 1GSa/s |
| Memory Depth | 220Mpts | 220Mpts | 220Mpts | 110Mpts | 110Mpts |
| Max. waveform capture rate | 300,000 wfms/s | 300,000 wfms/s | 300,000 wfms/s | 78,000 wfms/s | 78,000 wfms/s |
| Input sensitivity range | 1mV/div ~ 10V/div (1MΩ); 1mV/div ~ 1V/div (50Ω) | 1mV/div ~ 10V/div | |||
| Bandwith Filter | 20MHz, Low Pass (to 30Hz) | 20MHz, Low Pass (to 30KHz) | |||
| Segmented Storage | Support, capture max 10,000 waveform events | Not Support | |||
| Timebase range | 1ns/div ~ 1ks/div | 2ns/div ~ 1ks/div | |||

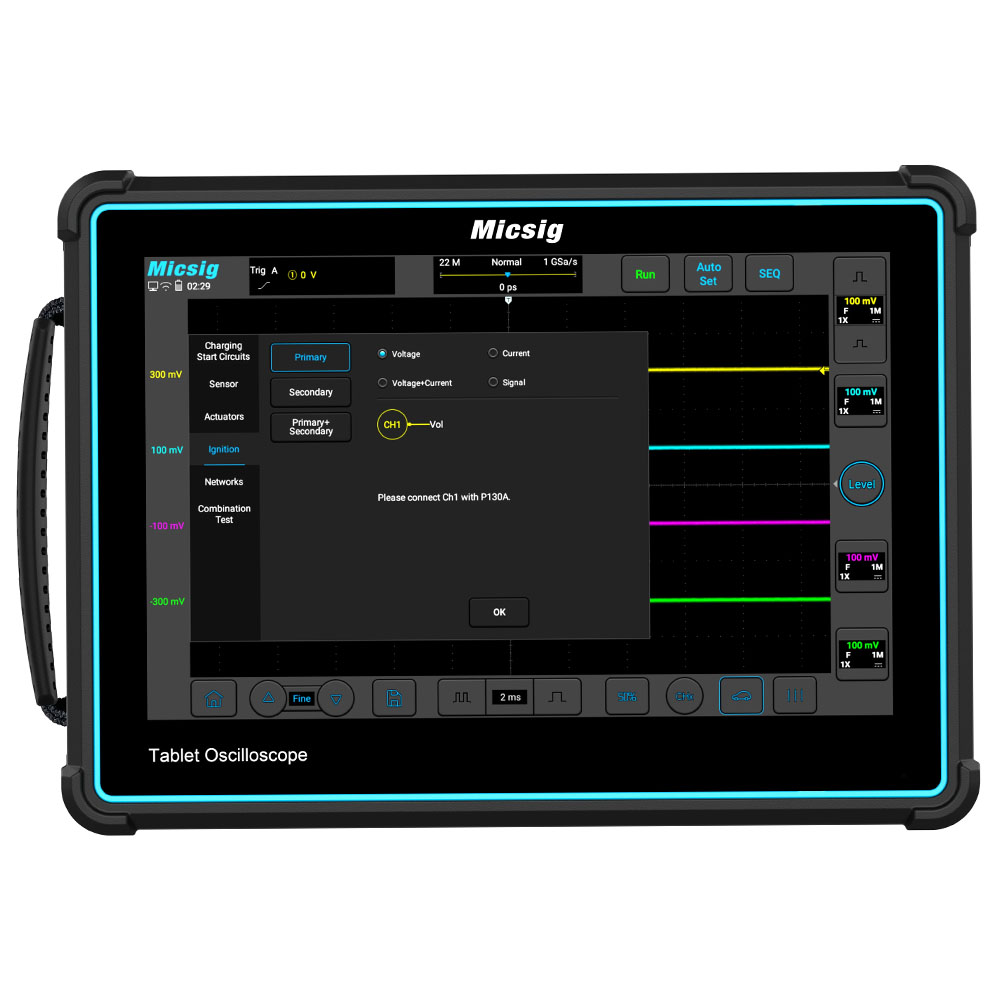

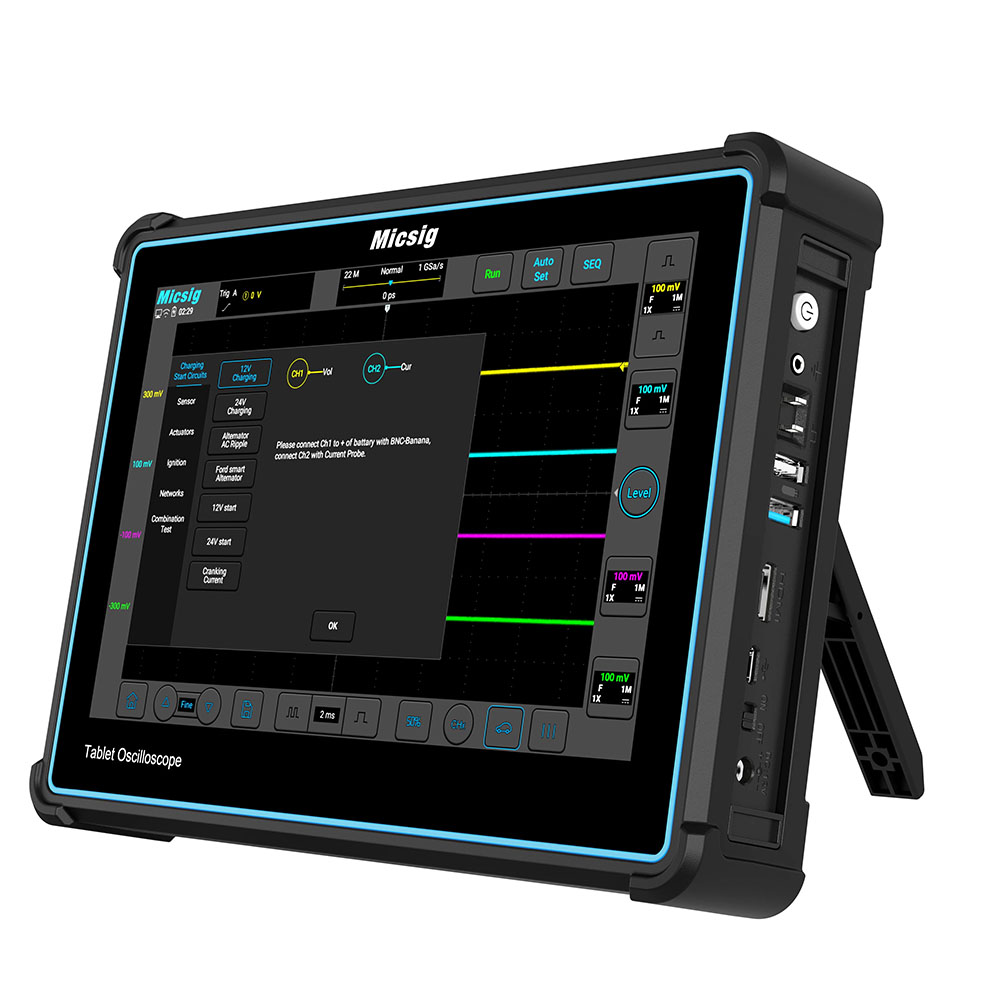

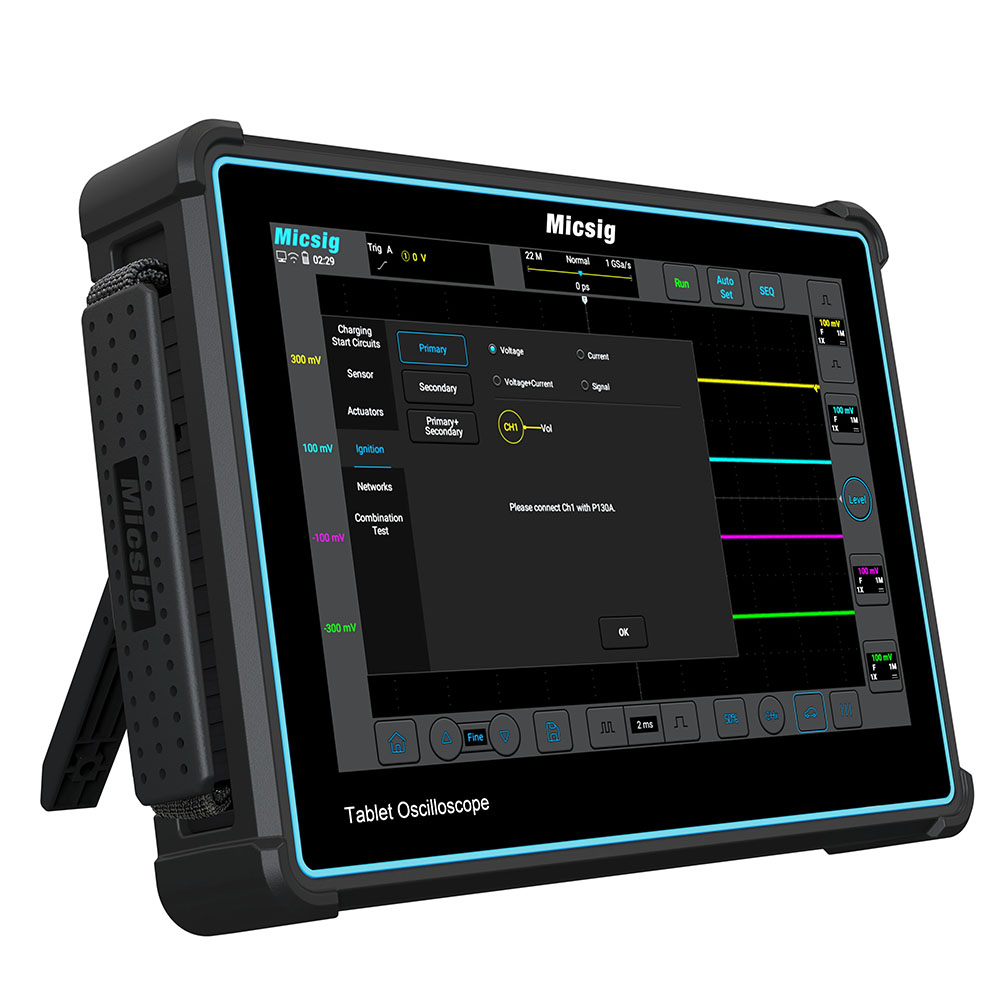

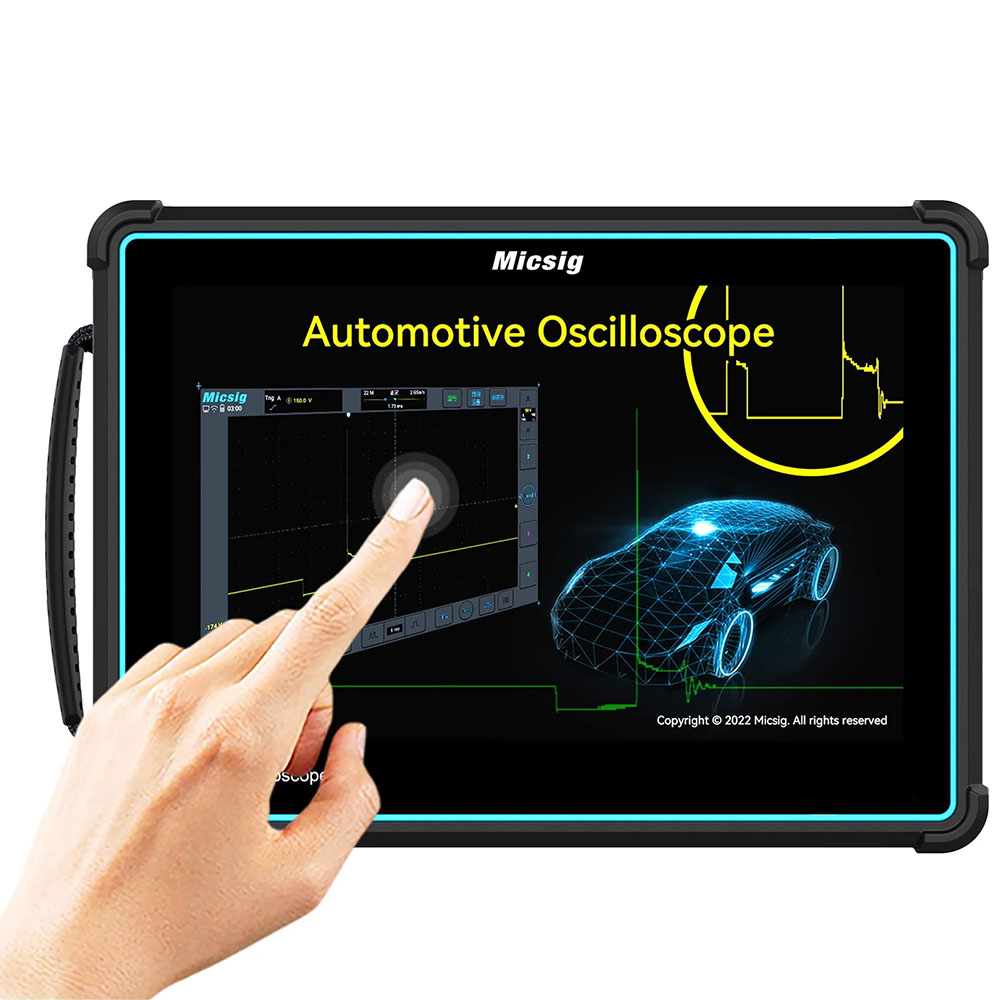

| Support Test | Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests | ||||
| Bus decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C | ||||
| Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out | ||||
| Storage | 32GB | ||||
| Display | 10.1 Inch LCD capacitive touch display, 1280*800 resolution, 11*10 grids | ||||
| Battery | 7.4V, 7500mAh Li-Ion battery | ||||
| Dimension / Net Weight | 265*192*50mm / 1.9kg (with battery) | ||||
