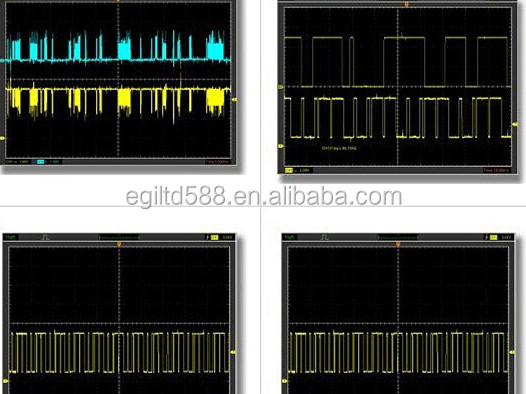

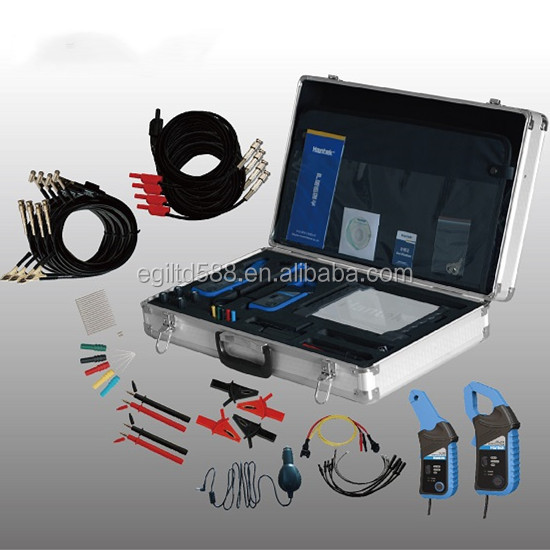

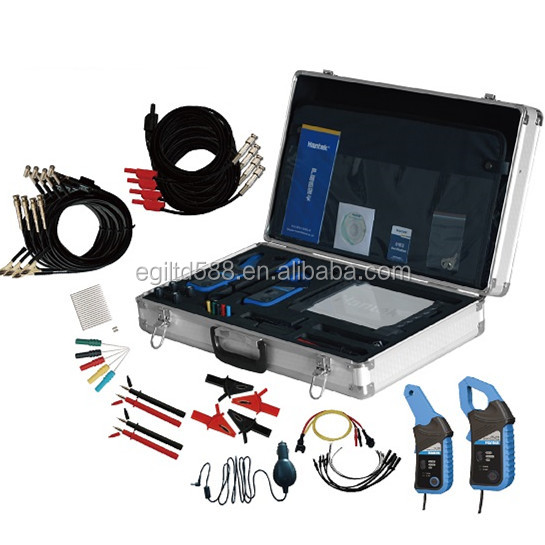

Vehicle Diagnosis:
Key Hardware & Software Features:

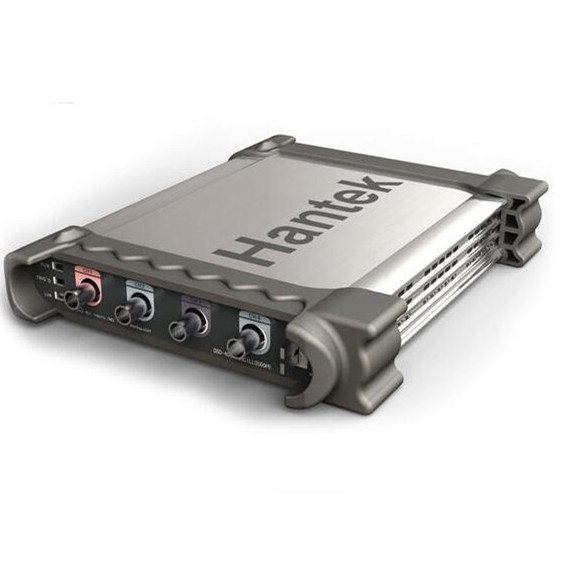

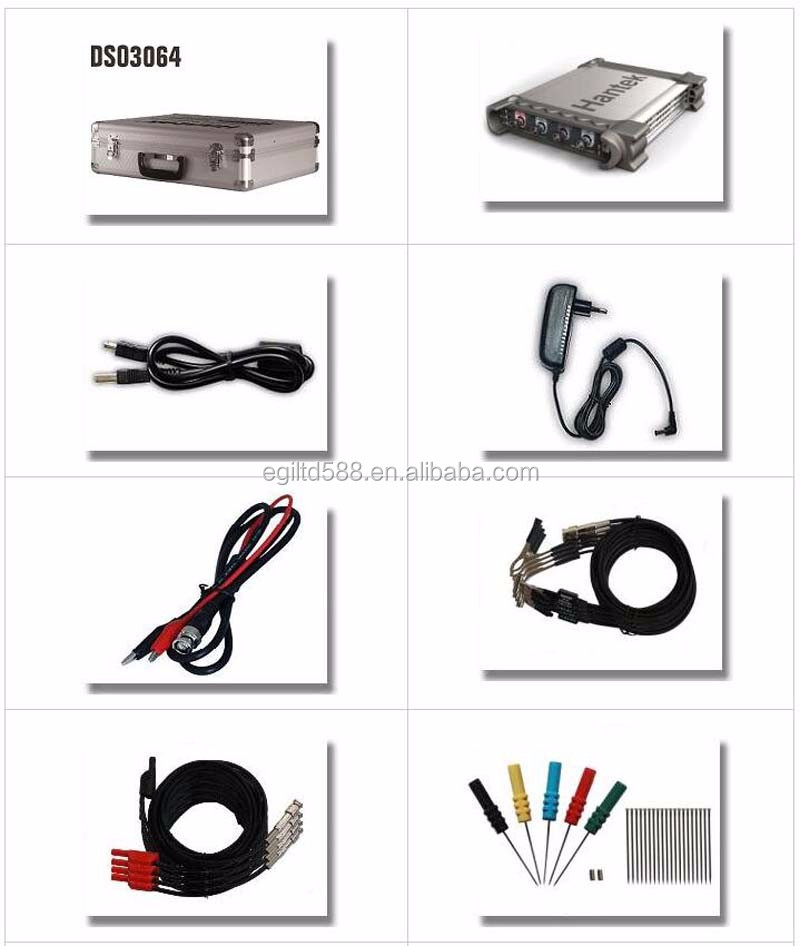

| SPECIFICATIONS | DSO3064 | |
|---|---|---|
| VERTICAL | Analog Channels | 4 |
| Bandwidth | 60MHz(-3dB) | |
| Rise Time | 5.8ns | |
| Input Impedance | Resistance: 1M ohm ; Capacitance: 25 pF | |
| Input Sensitivity | 10mV/div to 5V/div | |
| Input Coupling | AC/DC/GND | |
| Vertical Resolution | 8 bits | |
| Memory Depth | 10K-16M/CH | |
| Maximum Input | 400V (DC+AC Peak) | |
| HORIZONTAL | Real-Time Sampling Rate | 200MS/s |
| Time Base Range | 5ns/div to 1000s/div(1-2-5 sequences) | |
| Time Base Precision | +/-50ppm | |
| TRIGGER | Source | CH1, CH2, CH3, CH4, EXT |
| Mode | Edge, Pulse, Video, Alternative | |
| X-Y MODE | X-Axis Input | CH1 |
| Y-Axis Input | CH2 | |
| Phrase Shift | Max.3 degree | |
| CURSORS AND MEASUREMENT | Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot |
| Time Measurement | Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle | |
| Cursors Measurement | Horizontal, Vertical, Track, Auto Measure Modes | |
| Waveform Signal Process | +, -, x, ÷, FFT, Invert | |
| AUTO SET | - | yes |
| VOLTAGE RANGE | - | 10mV to 5V/div @ x 1 probe |
| 100mV to 50V/div @ x 10 probe | ||
| 1V to 500V/div @ x 100 probe | ||
| 10V to 5000V/div @ x 1000 probe | ||
| 100V to 50000V/div @ x 10000 probe | ||
| 200mV to 100V/div @ 20:1 | ||
| CURRENT RANGE | - | CC65(20A), CC65(60A), CC650, CC1100 |
| CURSOR | - | Time/frequency difference, voltage difference |
| FFT | - | Rectangular, Hanning, Hamming, Blackman Window |
| MATH | - | Addition, subtraction, multiplication, division |
| INTERFACE | - | USB 2.0 (Lan, WIFI Optional) |
| POWER SOURCE | - | 8--36V Wide range of input voltage, suitable for vehicle power test |
| MECHANICS | - | 255 x 190 x 45 (mm) |
| Dimension | 1Kg | |
| Weight | AC/DC/GND | |

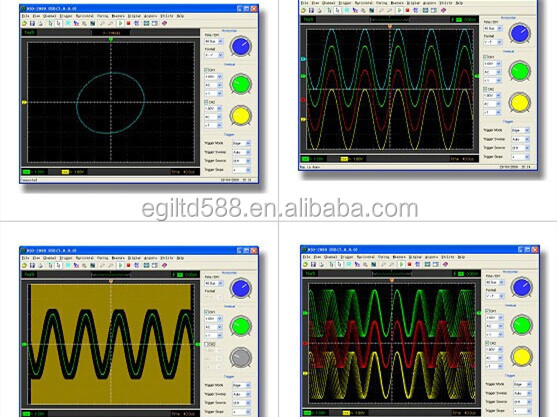

Operating system: Windows 2000, Windows XP, VISTA, Windows 7
SecondDesign: Supply DEMO code (VC, VB, LABVIEW) and technical support.
