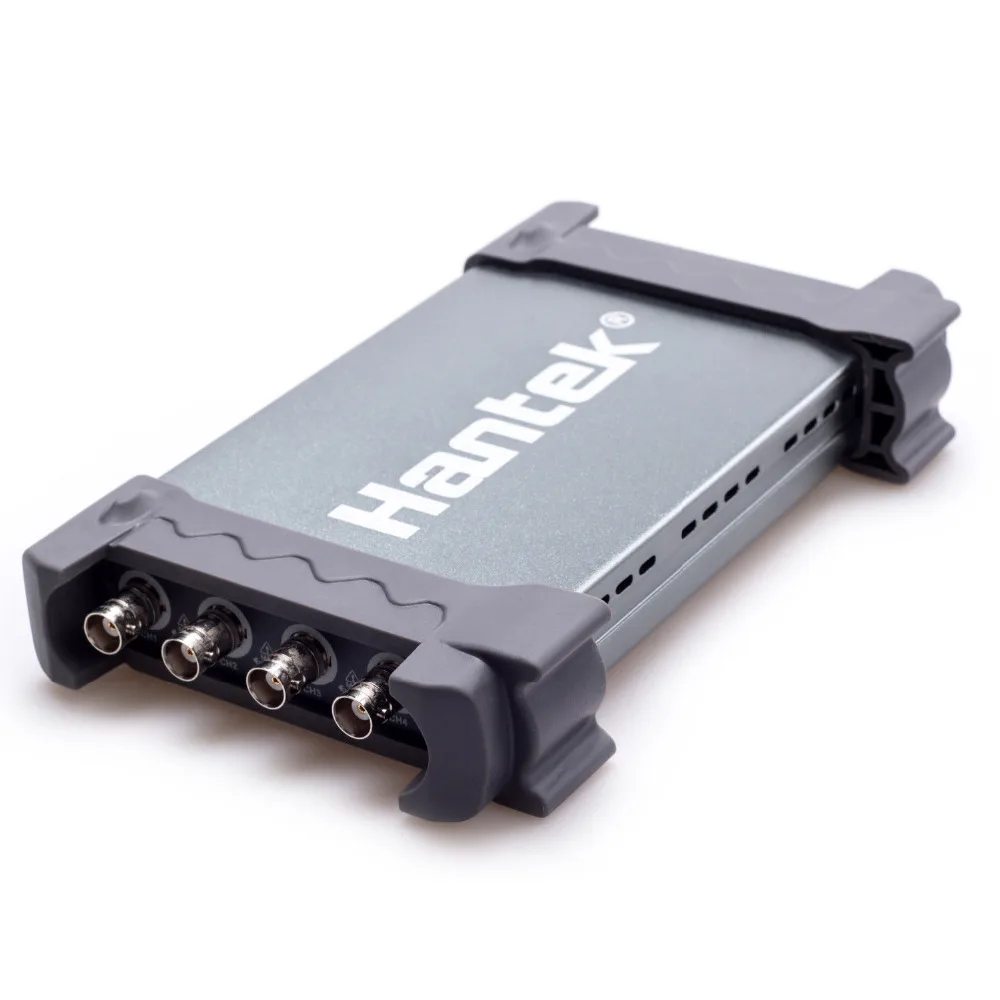

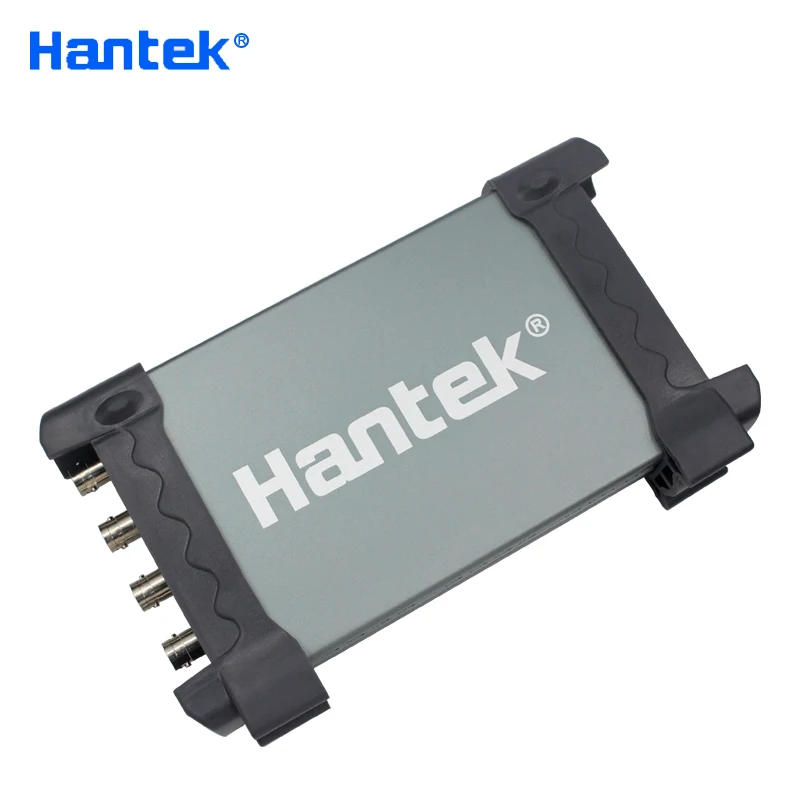

Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
| Brand Name | Hantek |
| Material | Aluminium Alloy + Plastic |
| Model | Hantek6254B |
| Bandwidth | 250MHz |
| Oscilloscope Probe Model | PP-250 |
| Item Size | Approx. 210 * 125 * 37mm / 8.3 * 4.9 * 1.5in |
| Item Weight | Approx. 453g / 16.0oz |
| Package Size | Approx. 25 * 18.5 * 11cm / 9.8 * 7.3 * 4.3in |
| Package Weight | Approx. 1310g / 46.2oz |
| Model | Hantek6254BE |
| Bandwidth | 250MHz |
| Channel | 4 CH |
| Real-time Sampling Rate | 1GSa/s |
| Memory Depth | 64K |
| Time Base Precision | ±50ppm |
| Time Base Range | 2ns/div-1000s/div (1-2-4 sequences) |
| Input Impedance | 1MΩ 25pF |
| Input Sensitivity | 2mV/div~10V/div |
| Vertical Resolution | 8Bit |
| Vertical Displacement Range |
2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe |
| DC Gain Accuracy | ±3% |
| Bandwidth Limit | 20MHz |
| Trigger Mode | Edge, Pulse, Video, Alternative |
| Trigger Source | CH1, CH2, CH3, CH4 |
| Waveform Signal Process | +, -, x, ÷, FFT, Invert |
| Cursors Measurement | Cross, Trace, Horizontal, Vertical |
| Auto Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Volume | 175mm * 105mm * 25mm |
What are the primary automotive diagnostic functions of the Hantek 6254BE?
The Hantek 6254BE is equipped with over 80 types of automotive measurement functions, covering Ignition Action, Sensors, Bus Diagnosis (such as CAN and LIN bus), Performers, and Startup & Charging circuits.
Does this oscilloscope require a separate external power supply?

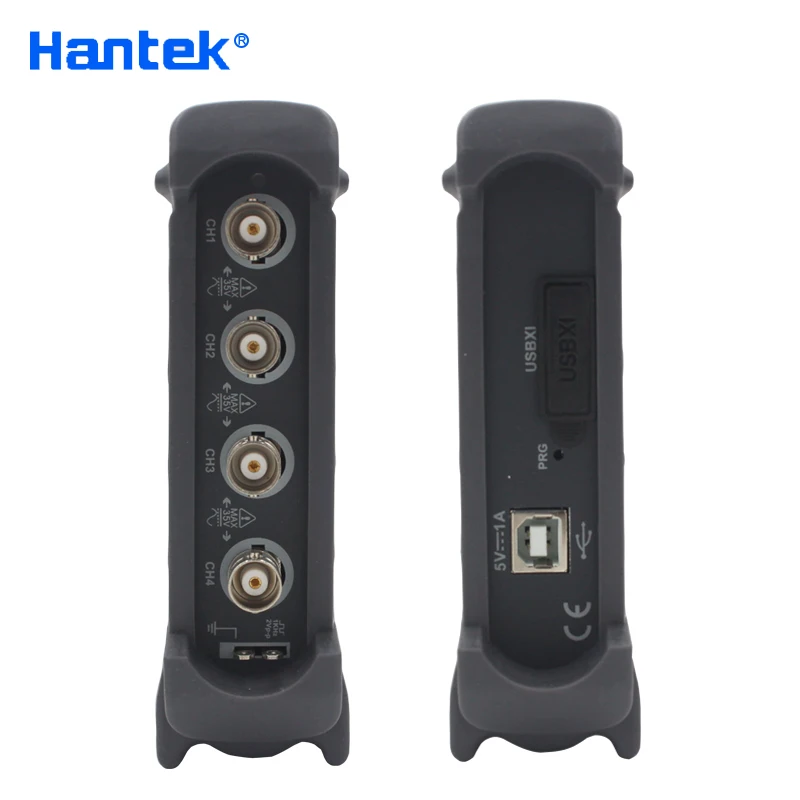

No, the device utilizes a standard USB 2.0 interface that supports plug-and-play operation and runs directly off the computer's USB port power supply.
Which computer operating systems are compatible with the software?
The diagnostic software is compatible with modern computer operating systems including Windows 10, Windows 8, and Windows 7.
Can I export the recorded waveform data for further analysis?

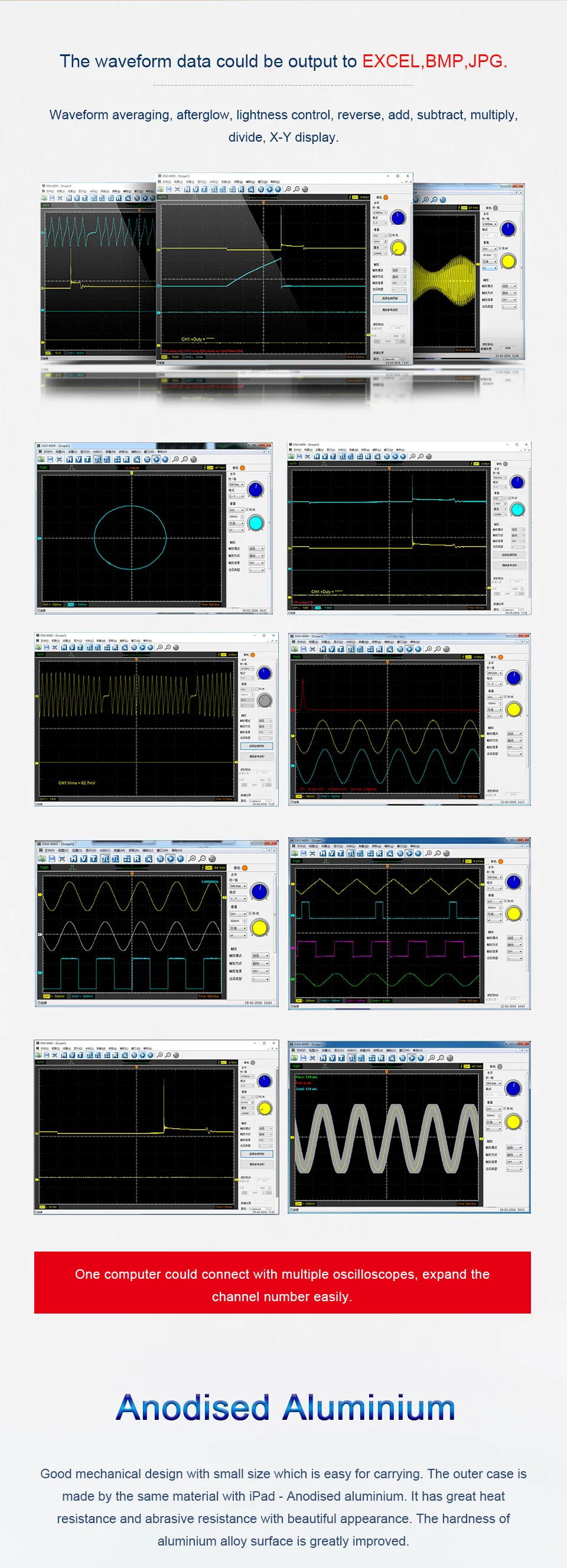

Yes, the waveform data can easily be exported to various common formats such as EXCEL, BMP, and JPG for storage, sharing, or additional analysis.
What components and accessories are included in this complete package?

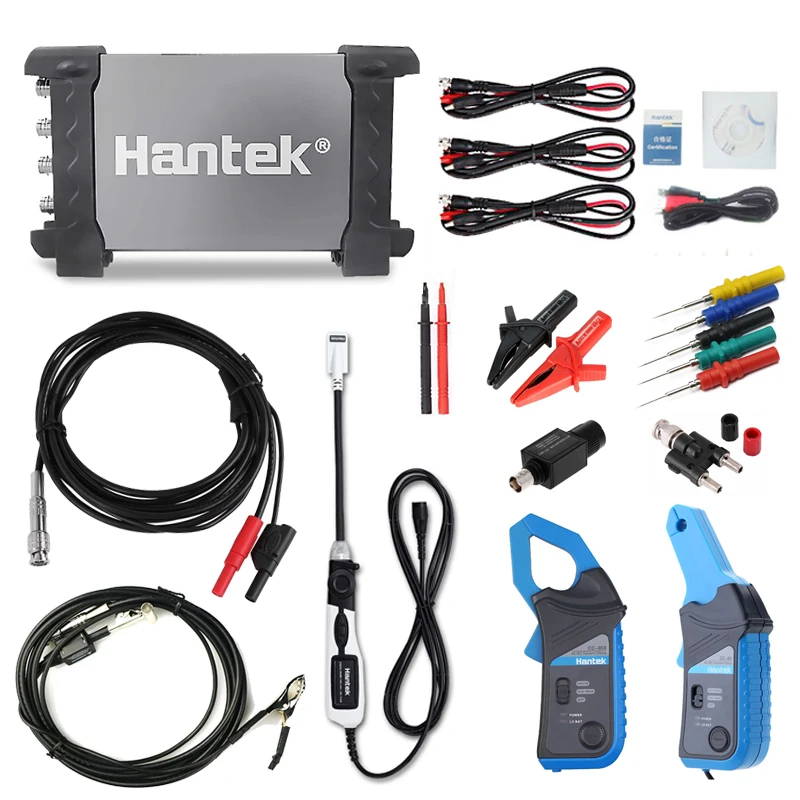

The package includes the Hantek 6254BE diagnostic oscilloscope, HT25COP ignition probe, CC650 and CC65 current clamps, various high-voltage probes, alligator clips, multi-purpose test lines, and the PC software CD with the user manual.
Does it support developer integration and custom applications?
Yes, it provides a secondary development library (DLL) and includes programming examples for various frameworks such as LabVIEW, Visual Basic (VB), Visual C++ (VC), and QT.
