From Factory Directly! Hantek 1008C 8CH USB Oscilloscope Professional Automotive Diagnostic Oscilloscope
Introduction
Cost-effective Hantek PC USB 8CH Automotive Diagnostic Oscilloscope/DAQ/Programmable Generator: Highly efficient and cost-effective;
8 channels oscilloscope for vehicle testing;
Auto Ignition Probe;
2.4MSa/s real time sampling rate, 12bit vertical resolution;
Spectrum analysis function;
10mV/div to 5V/div input sensitivity;
DAQ card function;
8 channels programmable generator which can analog signals of crankshaft, camshaft, etc.
Key Features
1Vehicle Testing
First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
Ignition: Primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Performer: Petrol/Diesel
Starter and charging circuits
2Oscilloscope Specs
8 channels oscilloscope
2.4MSa/s real time sampling rate
12 bits vertical resolution
Spectrum analysis function
3Programmable Generator
8 channels programmable generator
Can analog signals of crankshaft, camshaft, etc.
4Other Highlights
USB 2.0 interface plug and play, no extra power supply required
More than 20 types of automatic testing functions
Easy-to-use user interface similar to benchtop oscilloscopes
NOTE: Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7

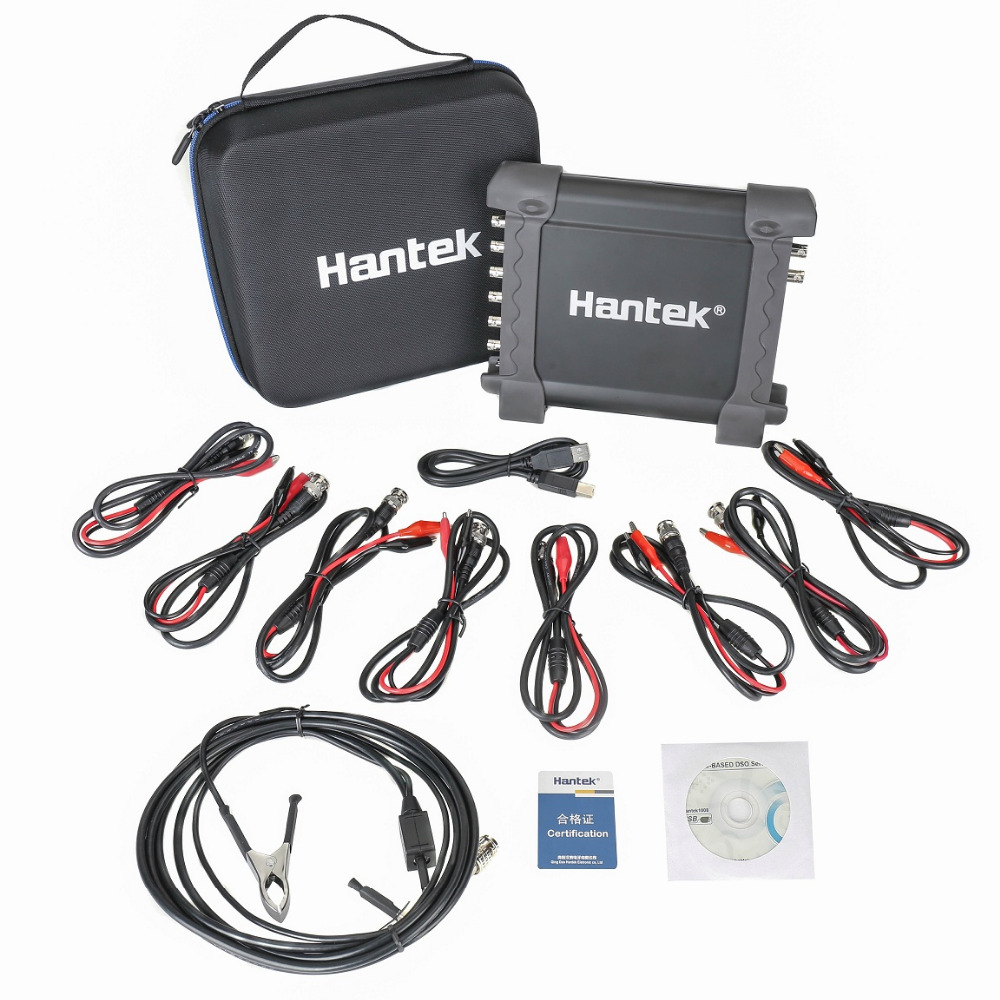

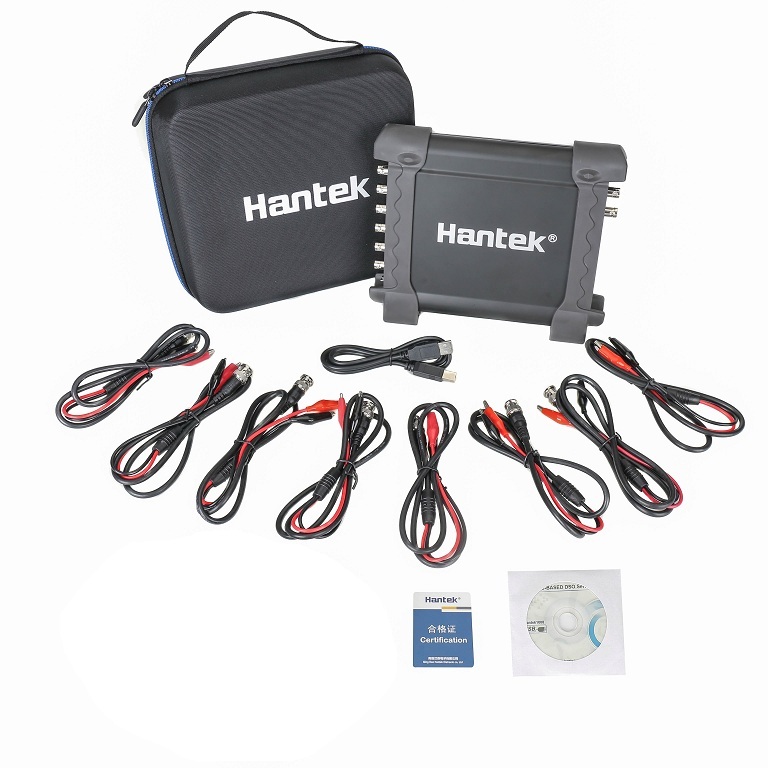

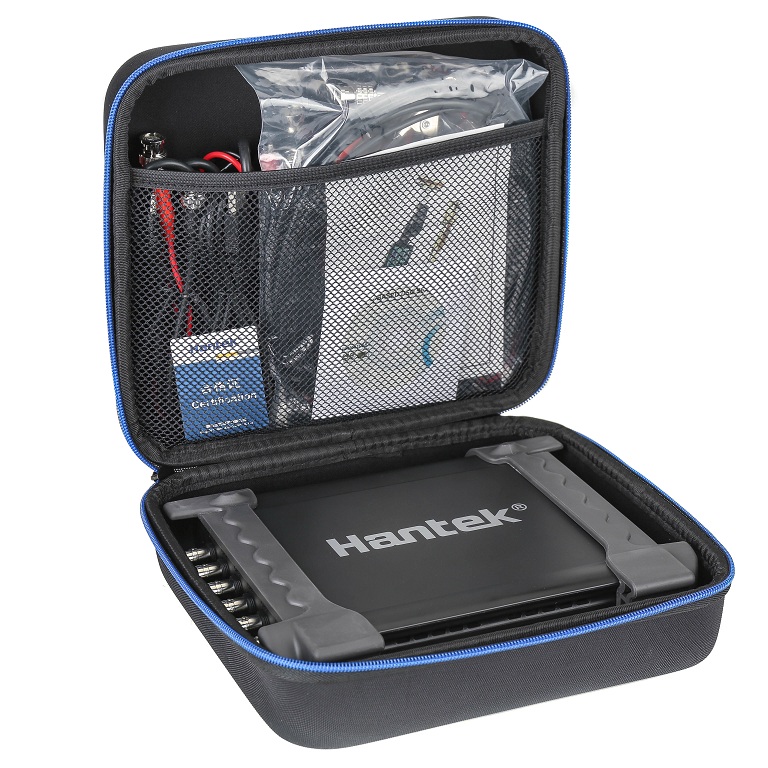

Package Content
1 x 1008C DAQ oscilloscope

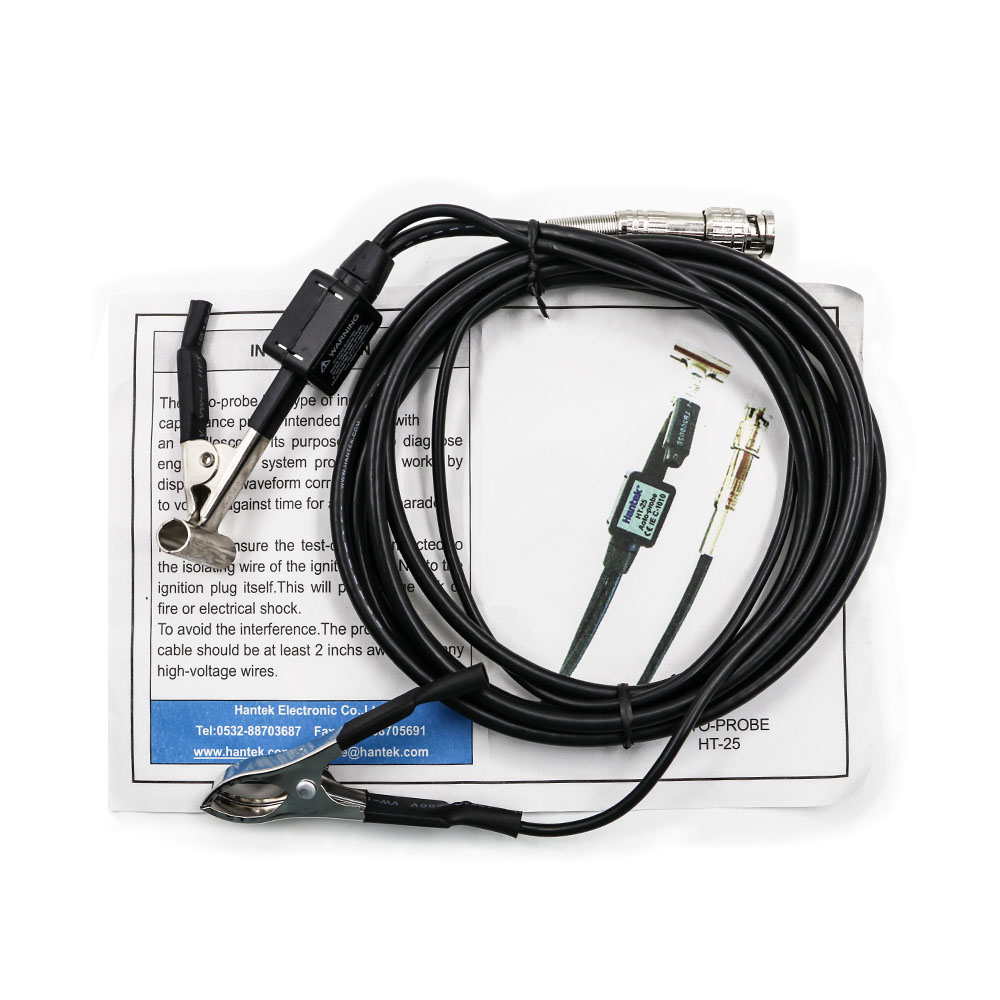

1 x Auto-probe
4 x Crocodile probes/cable
4 x BNC Connectors
1 x USB Cable
1 x CD (driver etc.)
Product Pictures
Related Products
Frequently Asked Questions
What are the primary diagnostic functions of the Hantek 1008C?
The Hantek 1008C is designed for vehicle diagnostic testing, covering systems such as primary and secondary ignition, intake manifold vacuum, sensors (including airflow meters, camshaft, and crankshaft sensors), bus signal integrity checks (CAN and LIN buses), as well as starter and charging circuit testing.
How many channels are available on this diagnostic oscilloscope?
This device features 8 independent diagnostic channels, allowing you to test and display multiple vehicle circuits or sensors simultaneously.
Does the device require an external power supply?
No. The Hantek 1008C is USB-powered. It connects directly to your PC via a USB 2.0 interface, providing standard plug-and-play capability without needing additional power adapters.
What operating systems are supported by the software?
The diagnostic software officially supports older Windows environments including Windows NT, Windows 2000, Windows XP, Windows VISTA, and Windows 7.
What is the vertical resolution and real-time sampling rate?
The oscilloscope operates at a 2.4MSa/s real-time sampling rate per channel and features a 12-bit vertical resolution alongside built-in spectrum analysis functions.
Can the Hantek 1008C generate simulated signals?
Yes, it features an 8-channel programmable signal generator function, which can analog signal waveforms for components like crankshafts and camshafts to support diagnostic procedures.
