Handheld Digital Oscilloscope Kit Portable Automotive Oscilloscope 2.8" TFT 200KHz Bandwidth Trigger Function

1 / 5

Handheld Digital Oscilloscope Kit Portable Automotive Oscilloscope 2.8" TFT 200KHz Bandwidth Trigger Function

Send Inquiry

Product Description

Our OEM Service

Specification

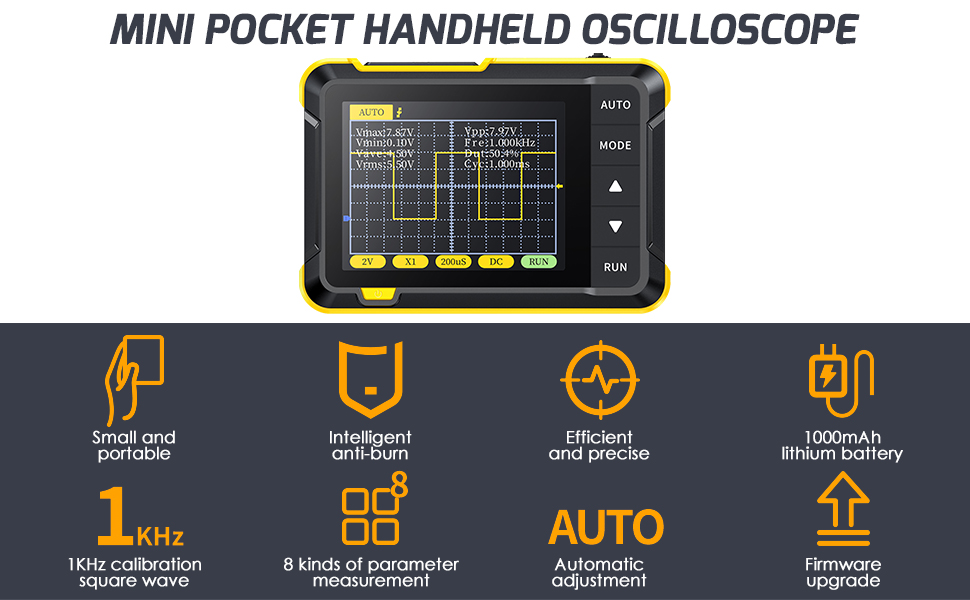

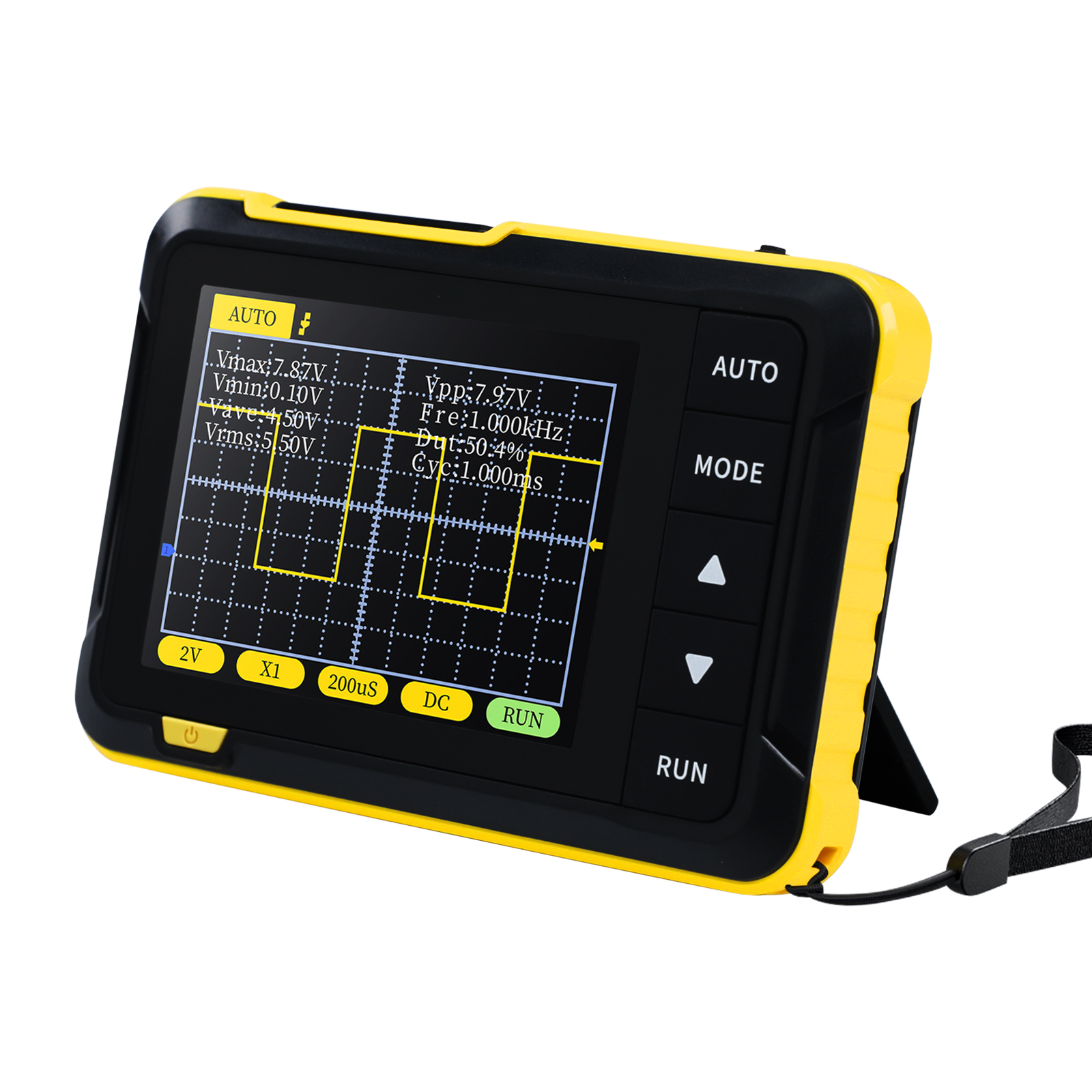

Portable Mini Automotive Oscilloscope

High-Speed, Efficient, and User-Friendly

Upgrade your diagnostics and testing with the Automotive Oscilloscope, designed for efficiency, portability, and precision. Featuring an intelligent one-key AUTO setting, this oscilloscope instantly optimizes parameters, displaying clear waveforms without the hassle of manual adjustments. Long-press the AUTO button for quick baseline calibration, ensuring fast and accurate measurements to enhance your workflow.

Sample rate	2.5MS/s
Bandwidth	200KHz
Vertical Sensitivity	10mV / Div-20V/Div(Progress according to the 1-2-5 way)
Time Base Range	10us / Div-50s/Div(Progress according to the 1-2-5 way)
Voltage range	X1: ±40V (Vpp: 80V) X10: ±400V (Vpp: 800V)
Trigger Method	Auto / Normal / Single
Coupling Method	AC/DC
Display	2.8 inches / PPI: 320*240
USB Charging	5V/1A
Lithium Battery Capacity	1000mAh
Square wave calibration	Frequency: 1K, Duty Cycle: 50%
Size	99x68.3x19.5mm
Weight	100g

Product Description

Handheld Pocket Oscilloscope Application

Key Features

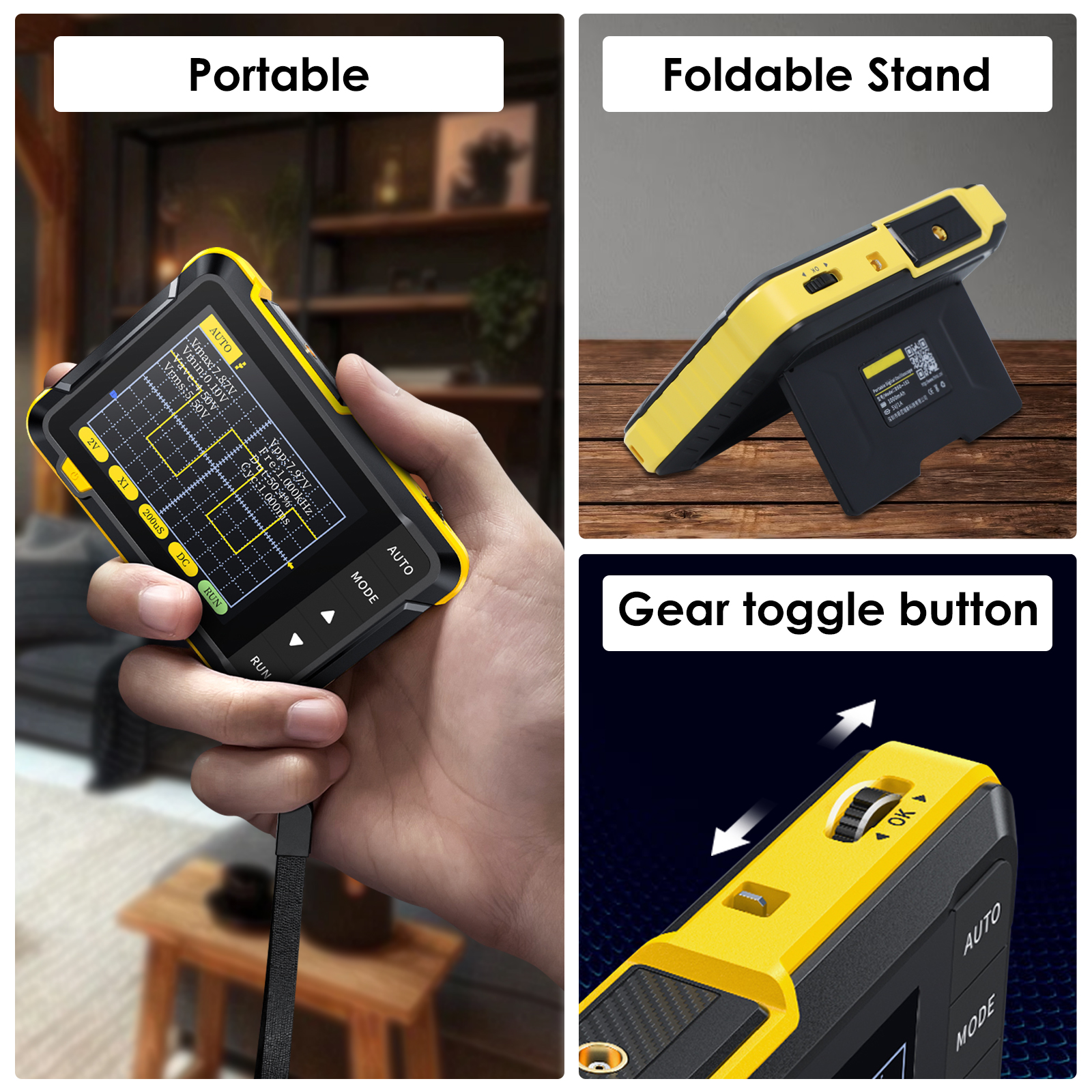

1. Compact & Ready to Use A fully assembled, lightweight pocket oscilloscope that eliminates the need for tedious setup, making it ideal for professionals in automotive diagnostics, electronics repair, and R&D education.
2. Fast & Powerful Performance With a real-time sampling rate of 2.5MS/s and a 200KHz bandwidth, the 10x probe supports voltage measurements up to 800VPP (280V AC) and a voltage range of -400V to +400V, offering exceptional accuracy for various applications.

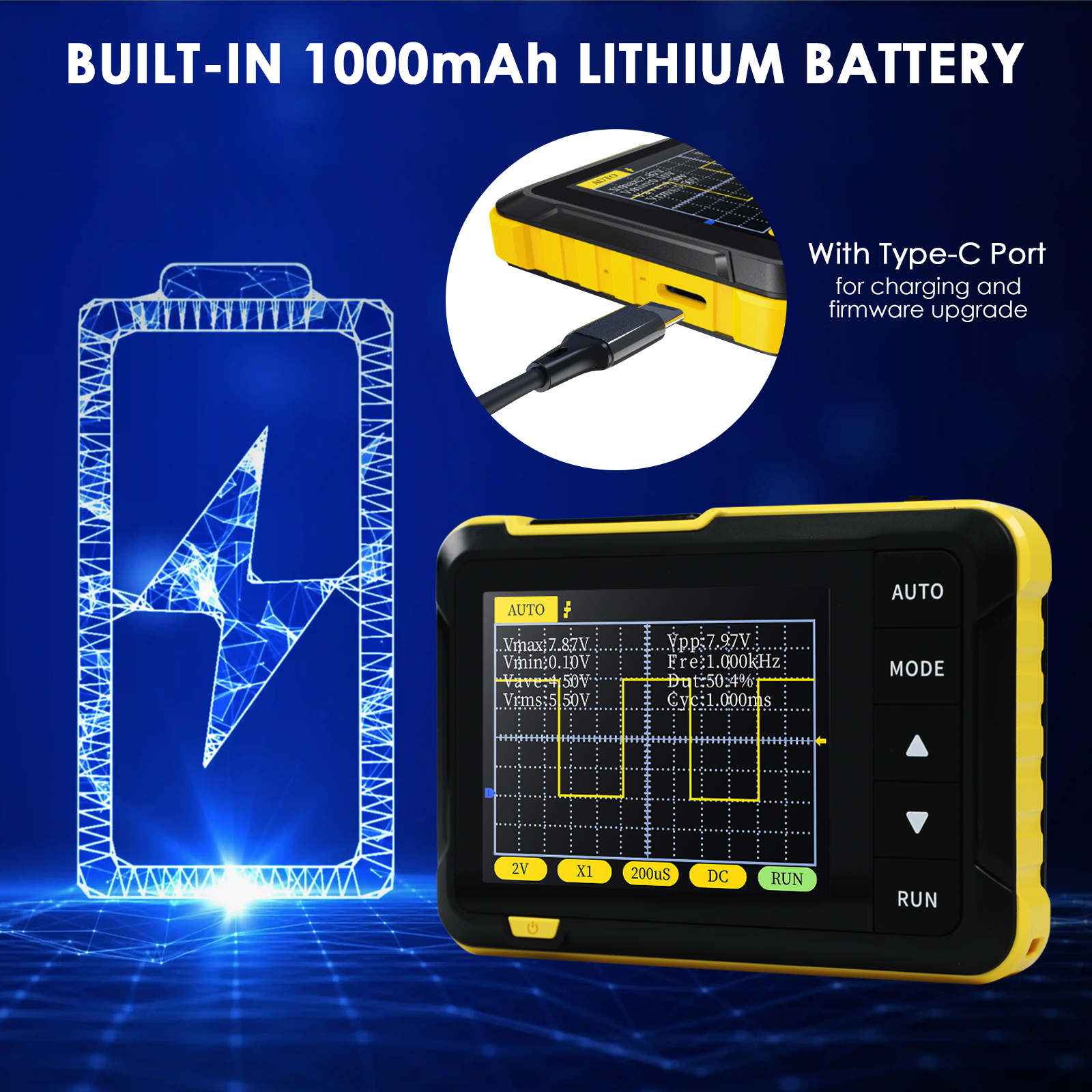

3. Long-Lasting Battery & Convenient Charging Equipped with a 1000mAh rechargeable battery, the oscilloscope delivers 4 hours of continuous use and supports Type-C charging for seamless operation, even while charging.

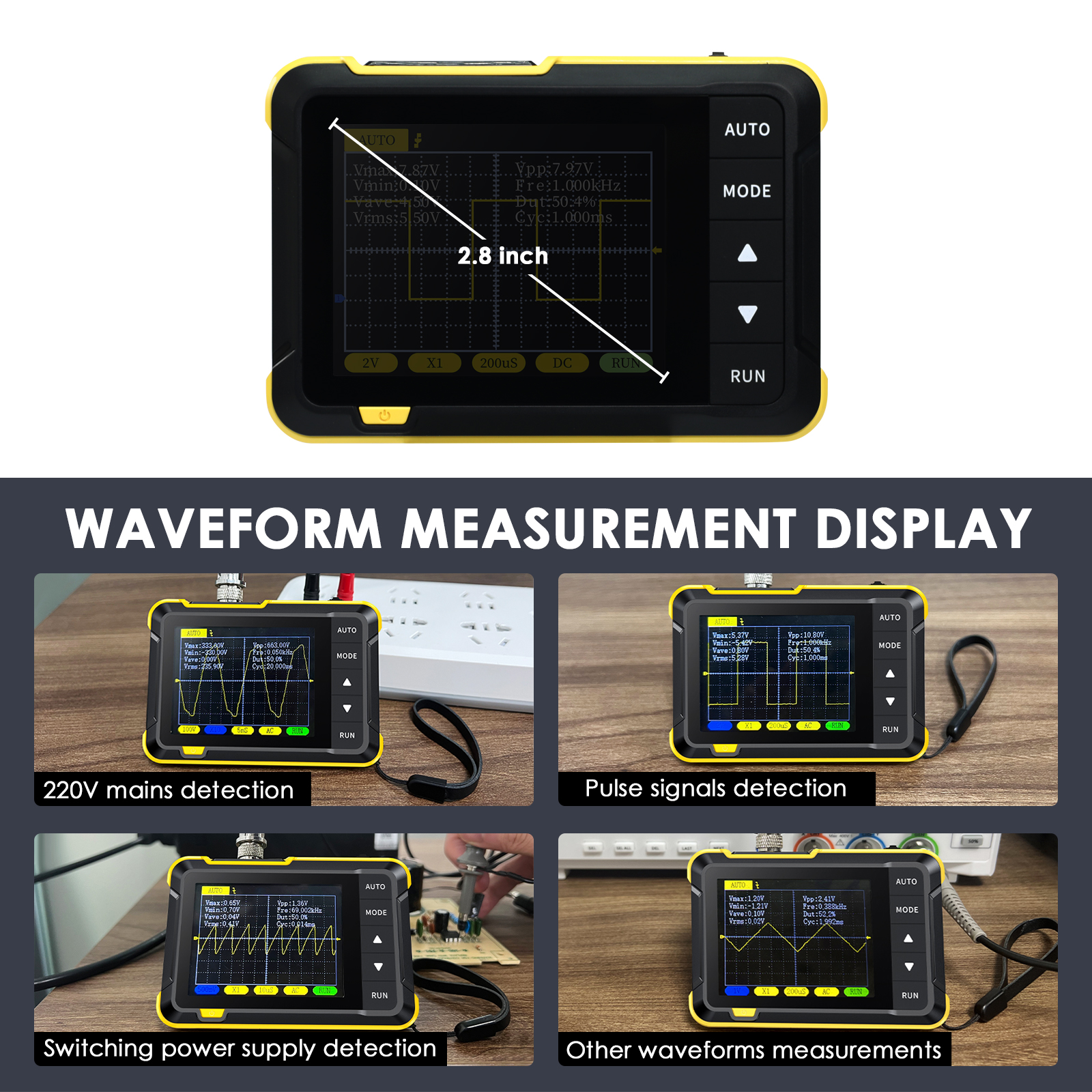

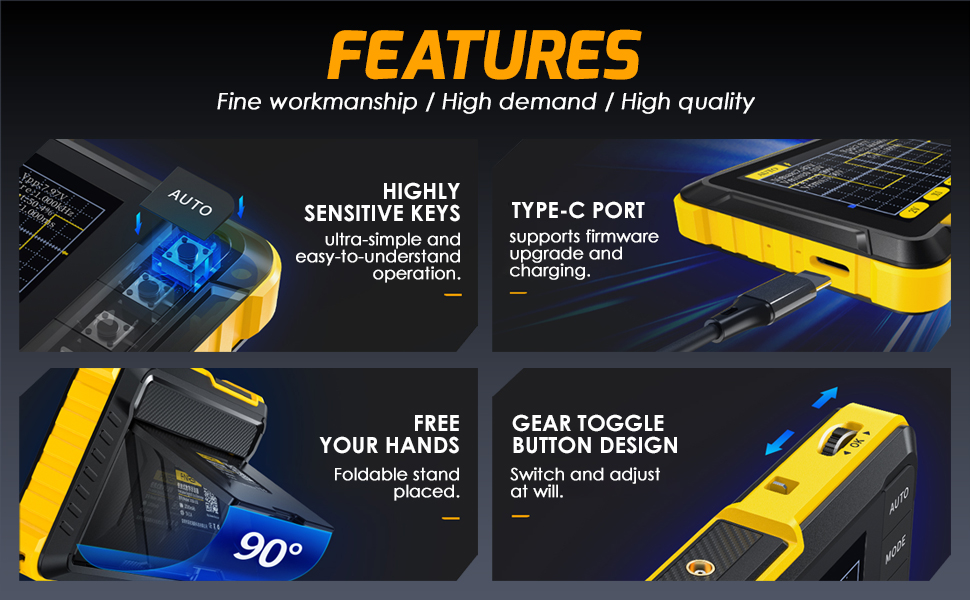

4. Advanced Features for Professionals Enjoy full trigger functionality (AUTO/Normal/Single), perfect for capturing both periodic analog and digital signals. The 2.8-inch HD LCD screen (320x240 resolution) ensures clear waveform display, while the Type-C interface allows for easy data transfer and firmware updates.

Wide Range of Application

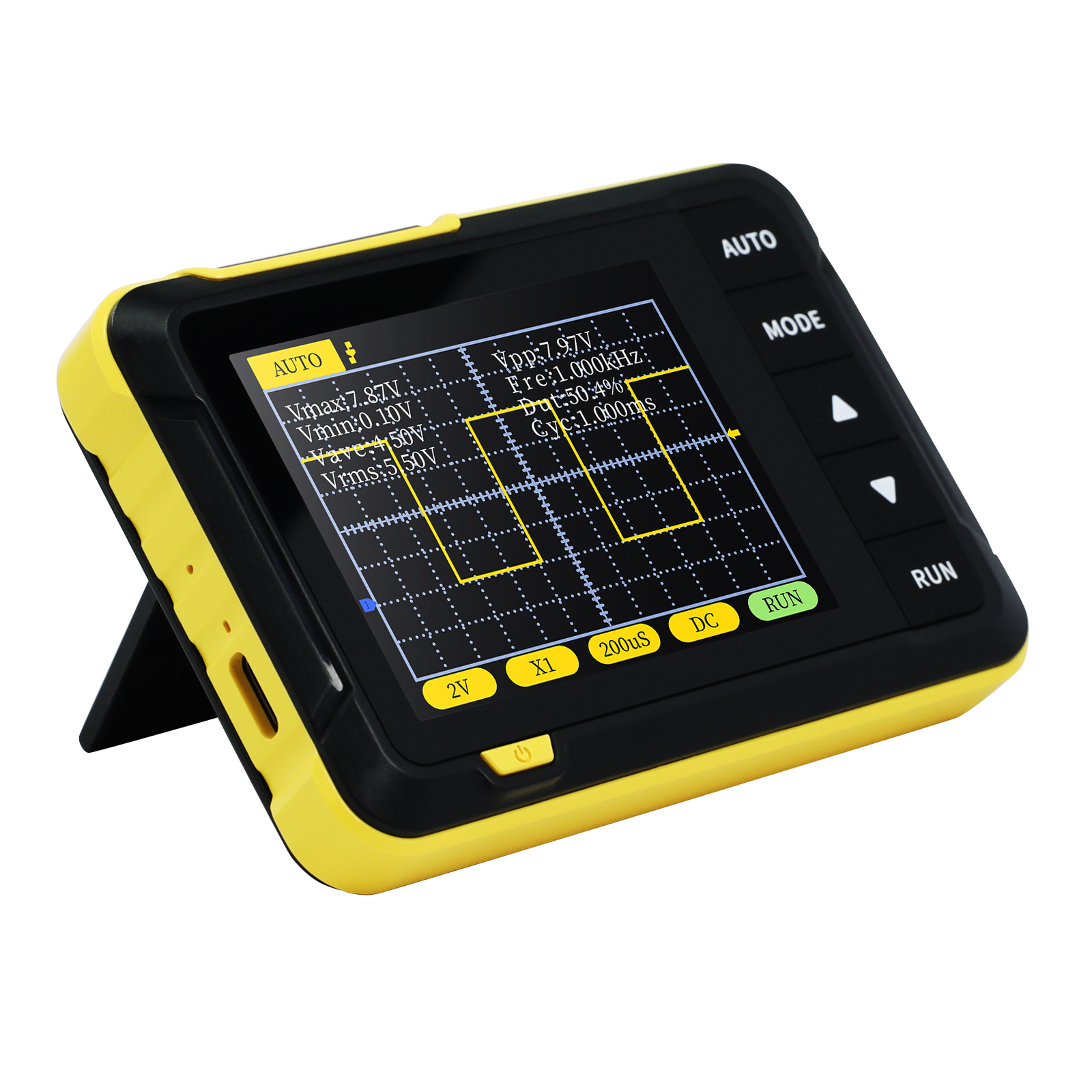

Perfect for automotive diagnostics, electronics testing, and educational use, the MUL-400 Mini Oscilloscope is your go-to tool for fast, reliable measurements.

Complete Set Includes

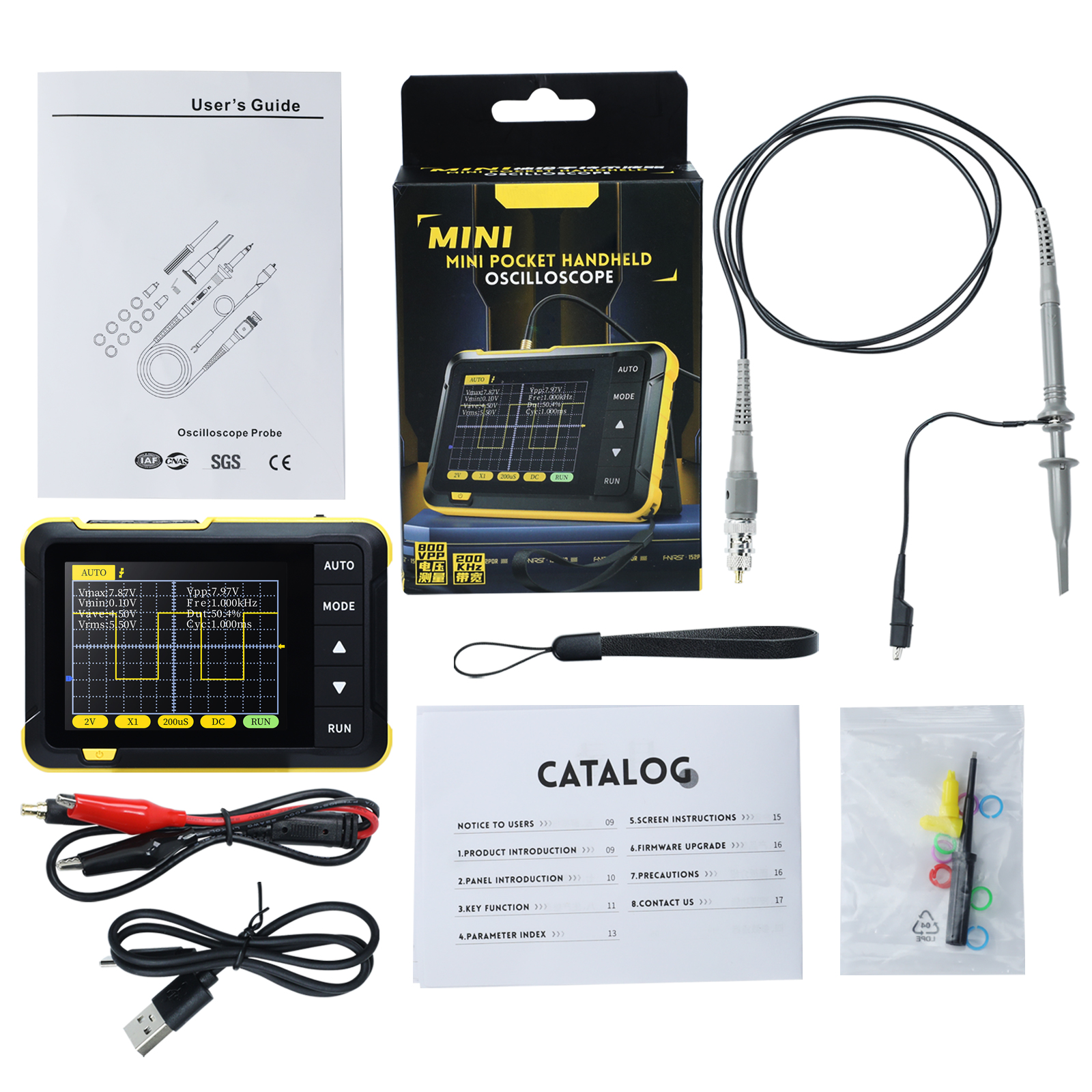

Complete Oscilloscope Package and Accessories

Host Device
Alligator Clip Probe
Charging Cable
Lanyard
Instruction Manual
Adapter

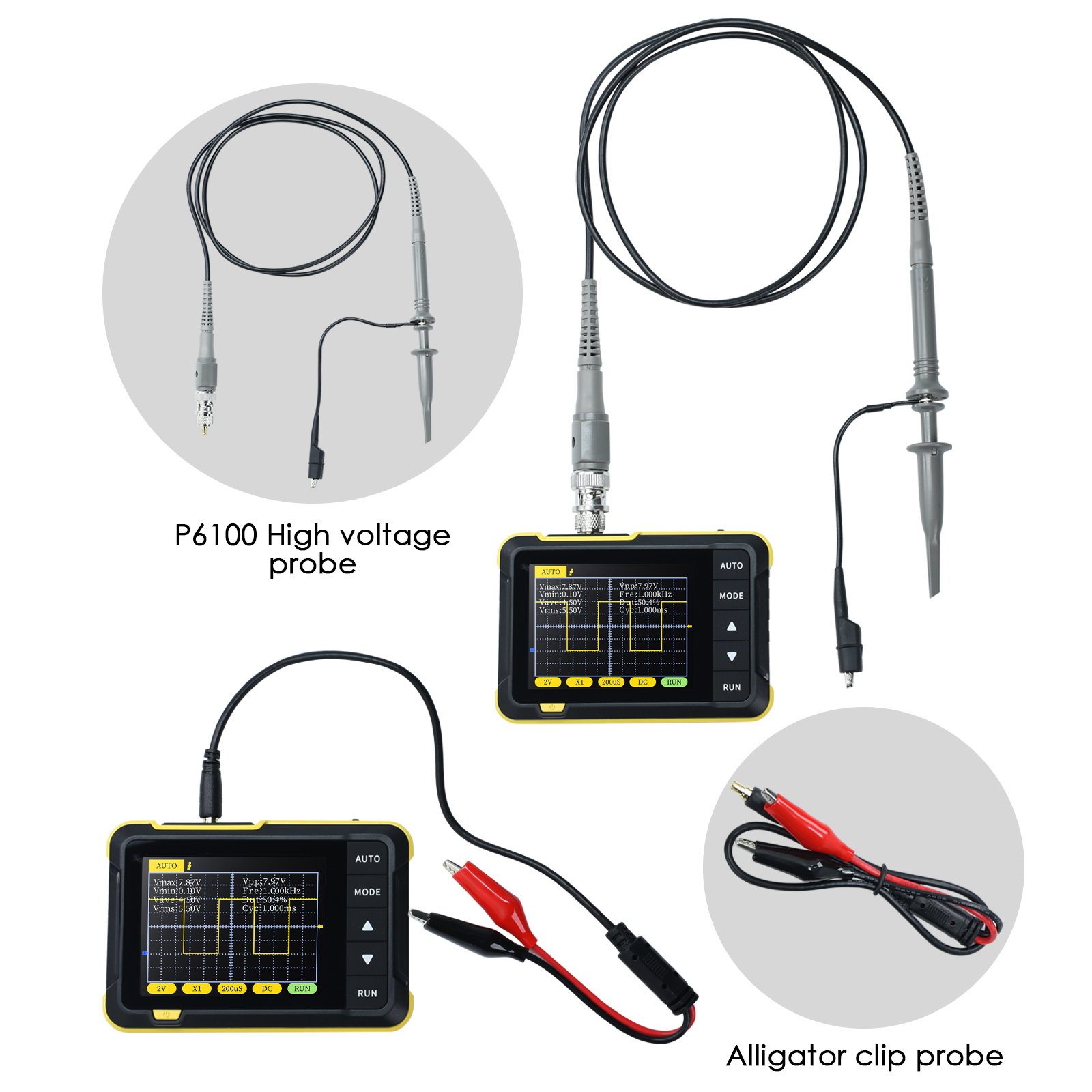

P6100 High Voltage Probe

Frequently Asked Questions

What is the bandwidth and sampling rate of this mini oscilloscope?

The mini oscilloscope provides a real-time sampling rate of 2.5MS/s and a 200KHz bandwidth, making it ideal for standard automotive diagnostics, R&D education, and electronic equipment repairs.

What is the maximum voltage this device can handle?

Using the X1 probe mode, it supports measurements up to ±40V (80V Vpp). When using the X10 probe mode, it supports high-voltage measurements up to ±400V (800V Vpp or 280V AC).

How does the one-key AUTO setting function?

The intelligent one-key AUTO configuration automatically adjusts and optimizes measurement parameters to capture and display clear waveforms. A long press on the AUTO button initiates quick baseline calibration for fast, accurate readings.

What is the battery capacity and how long does it run?

It is equipped with a 1000mAh rechargeable lithium battery that provides up to 4 hours of continuous use. The device supports Type-C USB charging (5V/1A) and can be operated while charging.

What trigger modes are available on this device?

The oscilloscope features three complete trigger modes: Auto (for periodic analog signals), Normal (for digital signals), and Single (for capturing non-periodic sudden waveforms).

Is the device highly portable for outdoor field services?

Yes. With compact dimensions of 99x68.3x19.5mm and weighing only 100g, this pocket oscilloscope is extremely lightweight and easy to carry for any on-site diagnostic testing.
