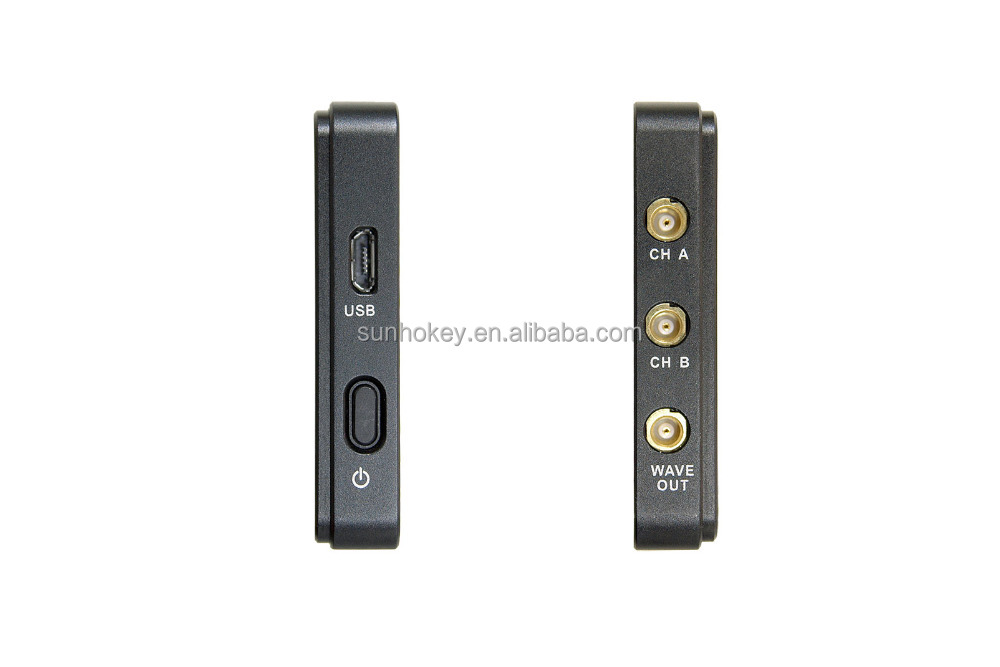

Digital Multimeter Oscilloscope DSO202 Touch Screen USB Portable DSO202 1MHz Pocket 8MB LCD Handheld Automotive Oscilloscope

Product Description

Product Introduction
Digital Storage Oscilloscope
Digital Multimeter Oscilloscope DSO202 Touch Screen USB Portable DS202 1MHz Pocket 8MB LCD Handheld Automotive Oscilloscope
DS202 is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements. It has a dual trace three lines, new kind of system interface, capacitive convenient operation. You can easily operate it with the gestures of one-click, double-click, press and slide. The Aluminum shell is very fashionable. It is equipped with 320*240 color display, 8M Memory Card (U Disk), and chargeable Lithium batteries. The thickness is 11mm only! The volume is small enough to take it anywhere. It can meet the demands in many fields, such as school experiment, electronic repairing and electric engineering.
Analog bandwidth
1MHz
Max sample rate
10MHz
Sample memory depth
8K
Input impedance
1MΩ
Max input voltage
±40v (×1 probe)
Coupling
AC/DC
Input sensitivity
10mV/Div~10V/Div (1-2-5 Step)
Vertical position
Adjustable with indicator
Horizontal sensitivity
1uS/Div~10S/Div (1-2-5 Step)
Horizontal position
Adjustable with indicator
Channel Display
-A, -B, A+B, A-B, RecA, RecB
Trig modes
Auto, Normal, Single, None, Scan
Trigger type
Rising/falling edge, Max/Min level
Auto measurement
Frequency, cycle, duty, peak/effective/Max/Min/average Voltage
Test signal
Built-in 10Hz~1MHz / 10~20kHz Analog sine/Triangle/Sawtooth Wave
Waveform storage
8MB Memory
Power / USB
600mAh Chargeable Lithium battery / USB
Display / Input
Color TFT LCD (320×240) / Capacitive touch & slide
Dimension
100mm X 56mm X 10mm
Package List:
  • 1x Oscilloscope
  • 1x MCX combined Probe
  • 1x User Manual

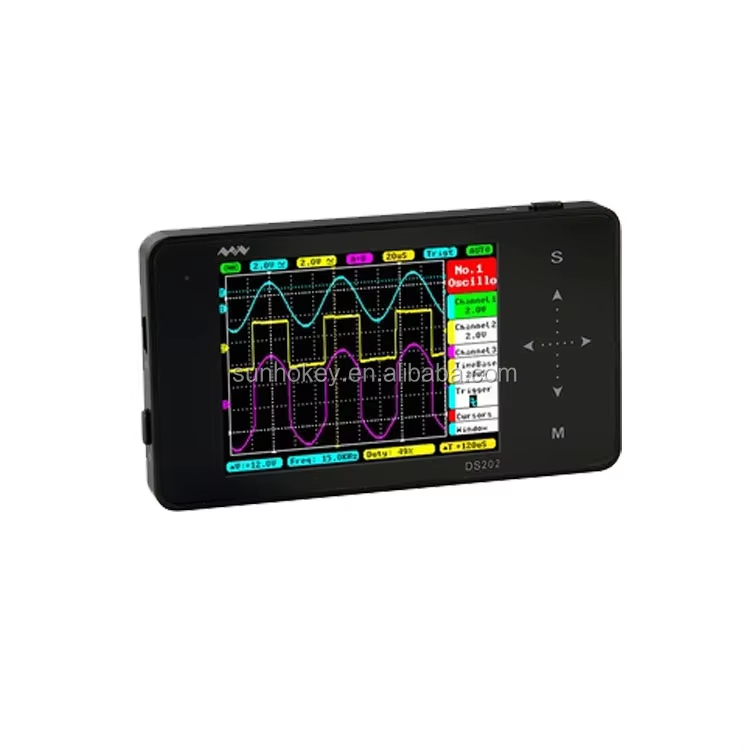

DSO202 Portable Oscilloscope View 1

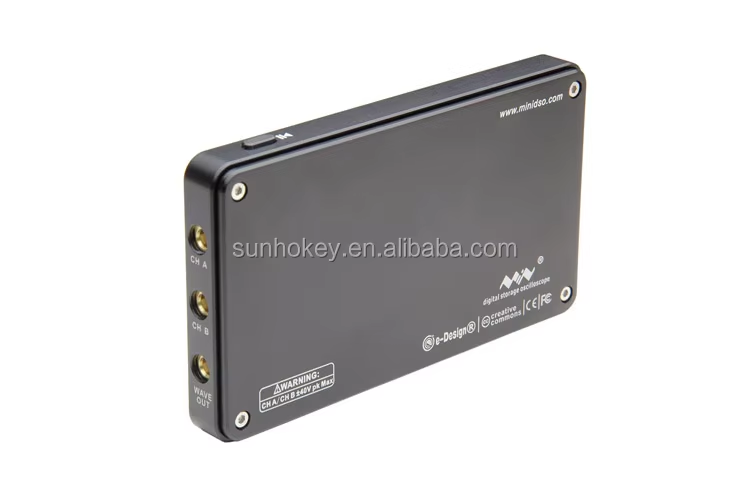

DSO202 Portable Oscilloscope View 2

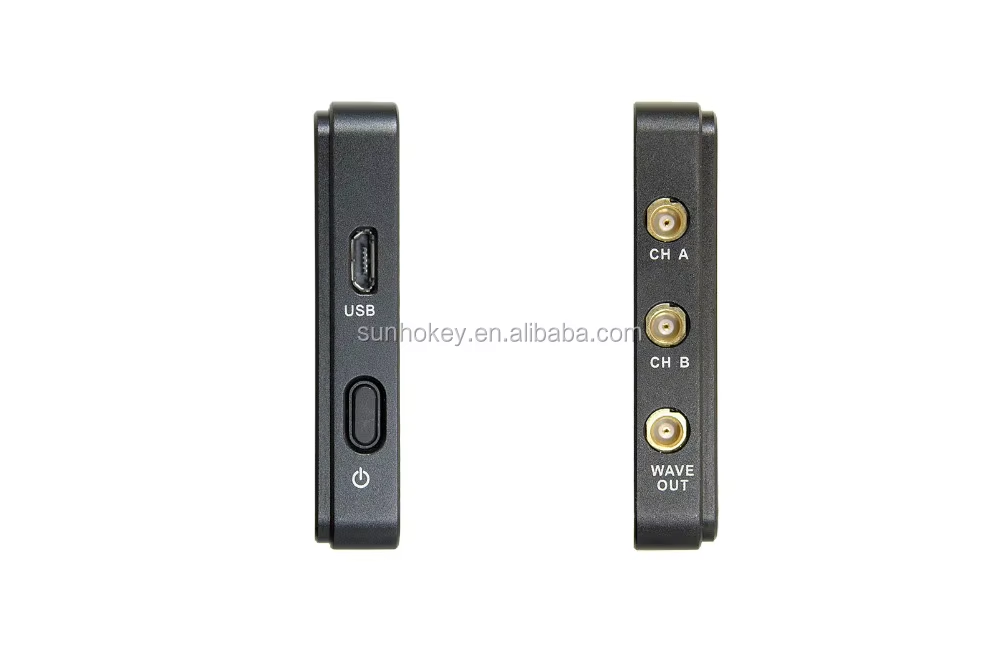

DSO202 Portable Oscilloscope View 3
Certification
Quality Standard Certification Document 1
Quality Standard Certification Document 2
Customer Feedback
The products have been widely praised by customers for a long time.
Customer Feedback Screenshot
Payment & Shipment
Payment Terms
1. Available payment terms: Paypal, T/T, Bank transfer, Western Union, Moneygram, Aliexpress & Alibaba Escrow.
2. Kindly choose the most convenient payment terms by yourself.
Shipping Terms
1. Shipping arrangement will begin once payment is finalized.
2. Standard shipping channels include UPS, DHL, TNT, EMS, Fedex, and Aramex. If EMS is unavailable in your location, alternative shipping routes can be selected.
3. Dispatch timeframe is typically within 1-3 days.
Shipping Logistics Options
FAQ
Q1. What payment methods are available?
Alibaba Trade Assurance, T/T, Paypal, and Western Union are supported.
Q2. What is your term of delivery?
We accept EXW, FOB Shenzhen, or FOB Guangzhou. You can select the option that is most convenient or cost-effective for you.
Q3. Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for the products.
Q4. Do you have certificates for the products?
Yes, the factory holds ISO9001, SGS, and TUV qualifications. Supported product components comply with RoHS, REACH, CE, and FCC standards.
Q5. Is it possible to arrange a customized order?
Yes, OEM and ODM orders are welcome. We specialize in customizing branding, logos, and packaging designs.
Q6. Can products be shipped globally?
Yes, delivery can be arranged worldwide. Please contact us directly to confirm specific delivery rates and logistics options for your location.

Related Products
