Note: This price does not include the memory card
Description

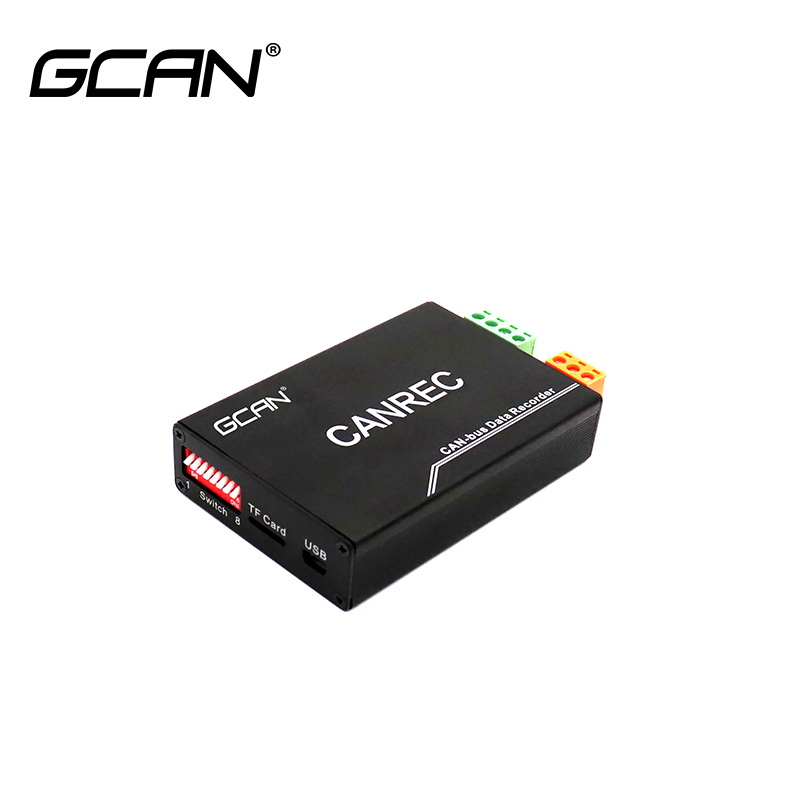

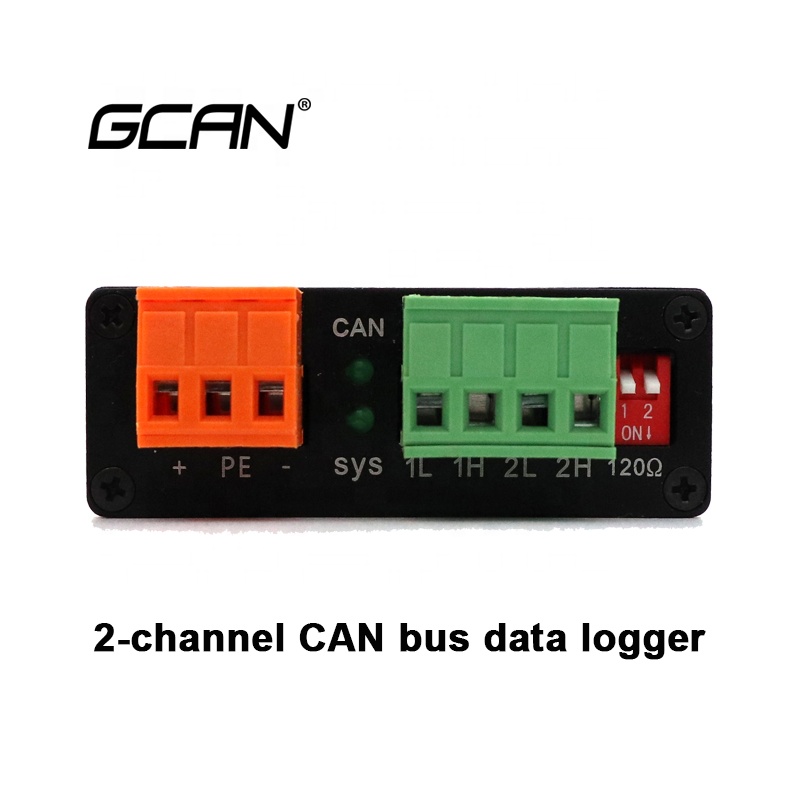

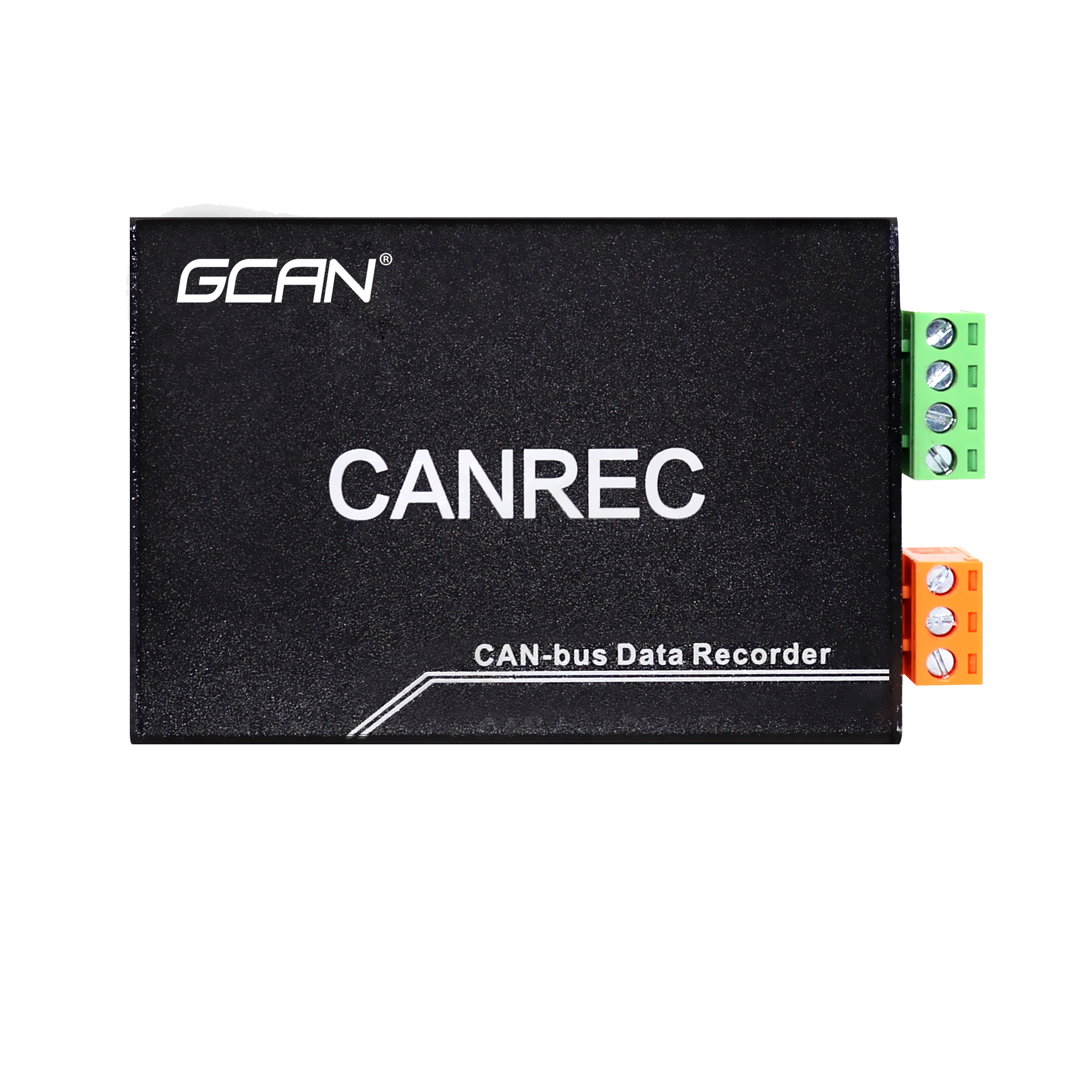

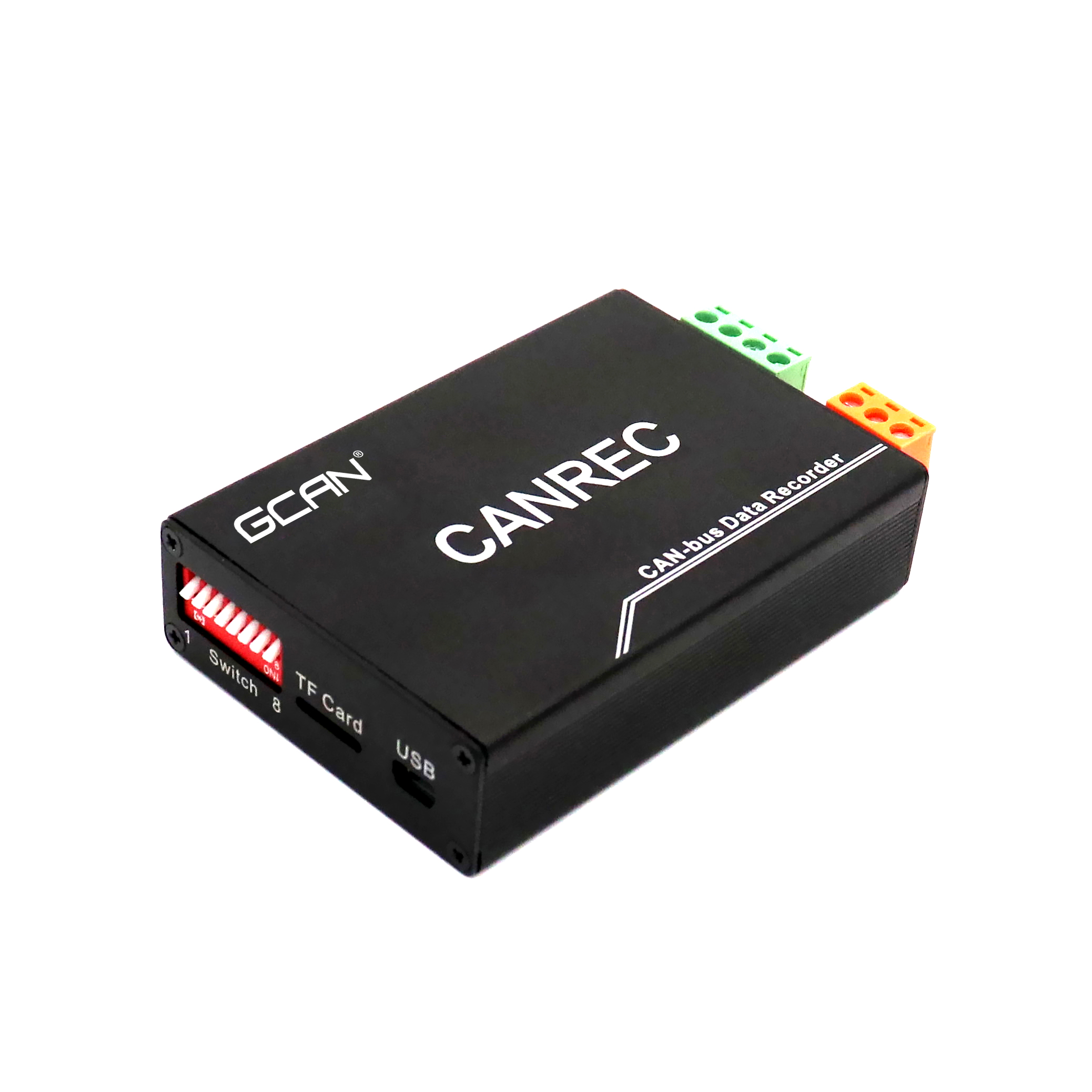

GCAN-402 two channel CAN-Bus data recorder is specially used for offline record CAN-Bus data. This adapter has integrated two CAN-bus interface and one TF card port. Users can use TF card record bus data real-time. GCAN-402 is suitable for historical data playback, error message analysis. That can be widely used in automobile, rail vehicle, industry control and others large amount of data and not easy to troubleshoot fault system.
Please note: GCAN-401/402/406 CAN recorder maximum support of 32G/128G/128G capacity TF memory card and the file system is FAT32 format, if your TF card is not this format, the memory card must be reformatted into FAT32 format. Formatting the memory card will remove all the data in card, please operate with caution.
GCAN-401/402/406 CAN recorder has been integrated with a system clock. It can manage data by date, which means it creates a new folder named by the date every day.
Technical data
| Functionality |
Data logger and real-time CAN interface |
| LEDs |
Logger status via three externally visible LEDs |
| Firmware |
Supports free firmware updates for adding features |
| Standard |
Compliant with physical layer standard ISO 11898-2 |
| Identifiers |
Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID) |
| Baud Rate |
10K~1Mbps |
| TF Card |
Maximum 128G |
| Real-Time Clock |
Yes (CAN messages are time-stamped with 0.1ms resolution) |
| File Format |

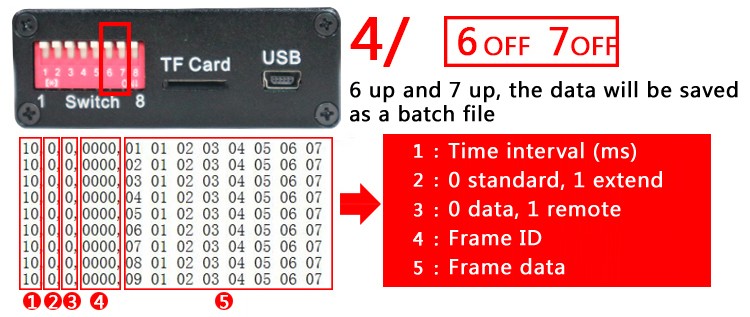

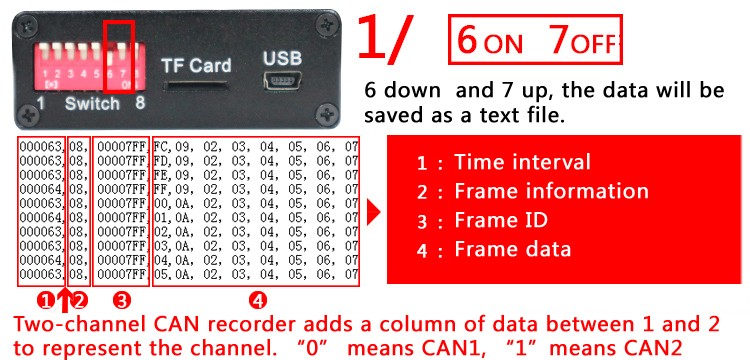

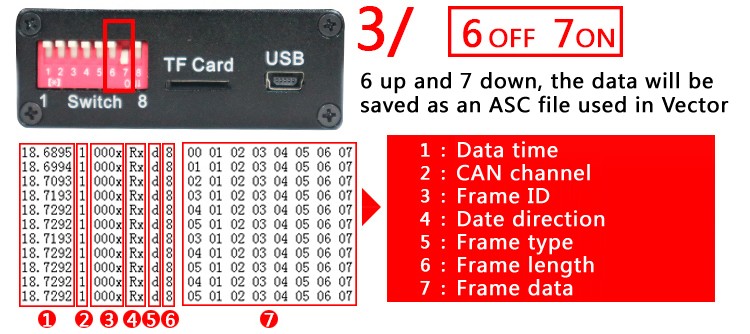

binary files (DAT), text file (TXT), files for Vector's software (ASC), batch file (CAN) |
| Voltage |
9~30V |
| Current |
24V 50mA, typical |
| Temperature |
-40°C ~ +85°C |
| Humidness |
15%~90%RH |
| Electronic Isolate |
1500V |
| EMC test |
EN 55024:2011-09 EN 55022:2011-12 |

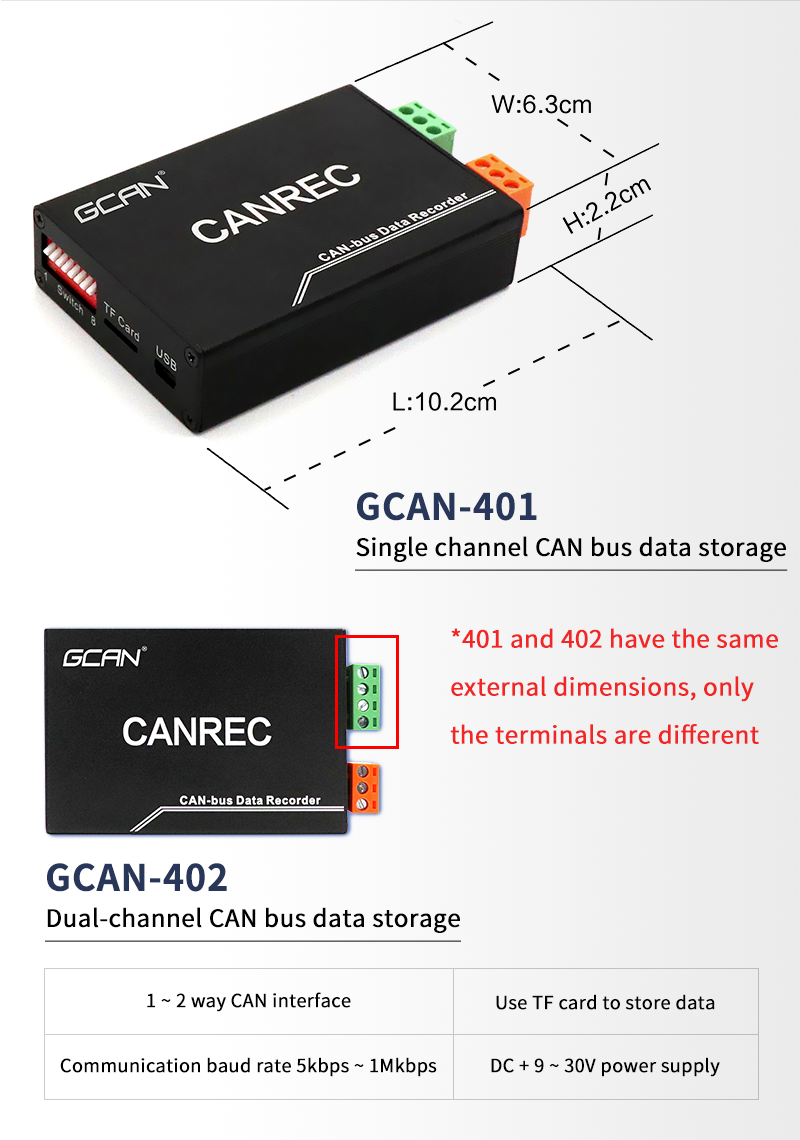

| Dimensions |

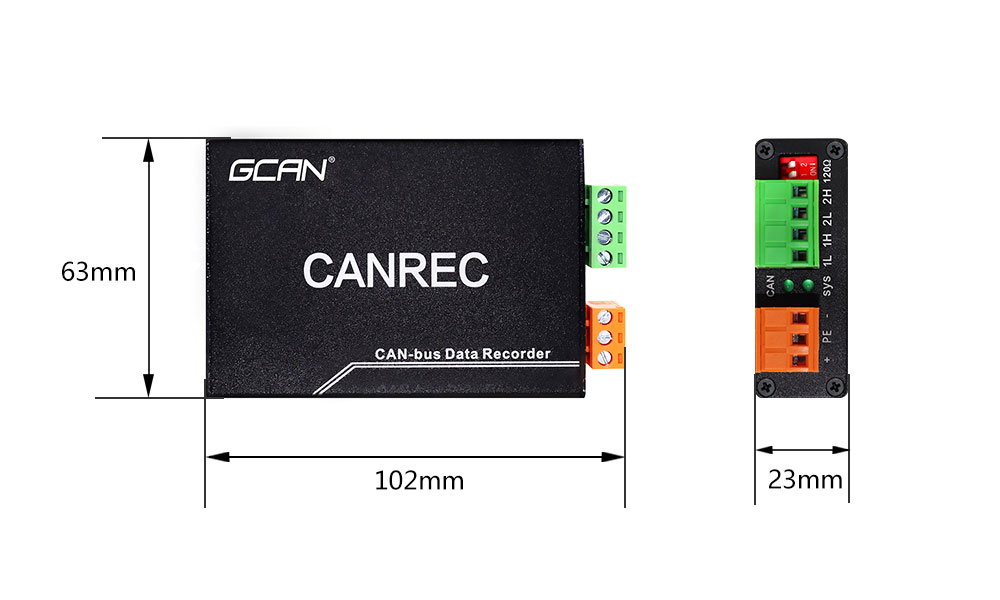

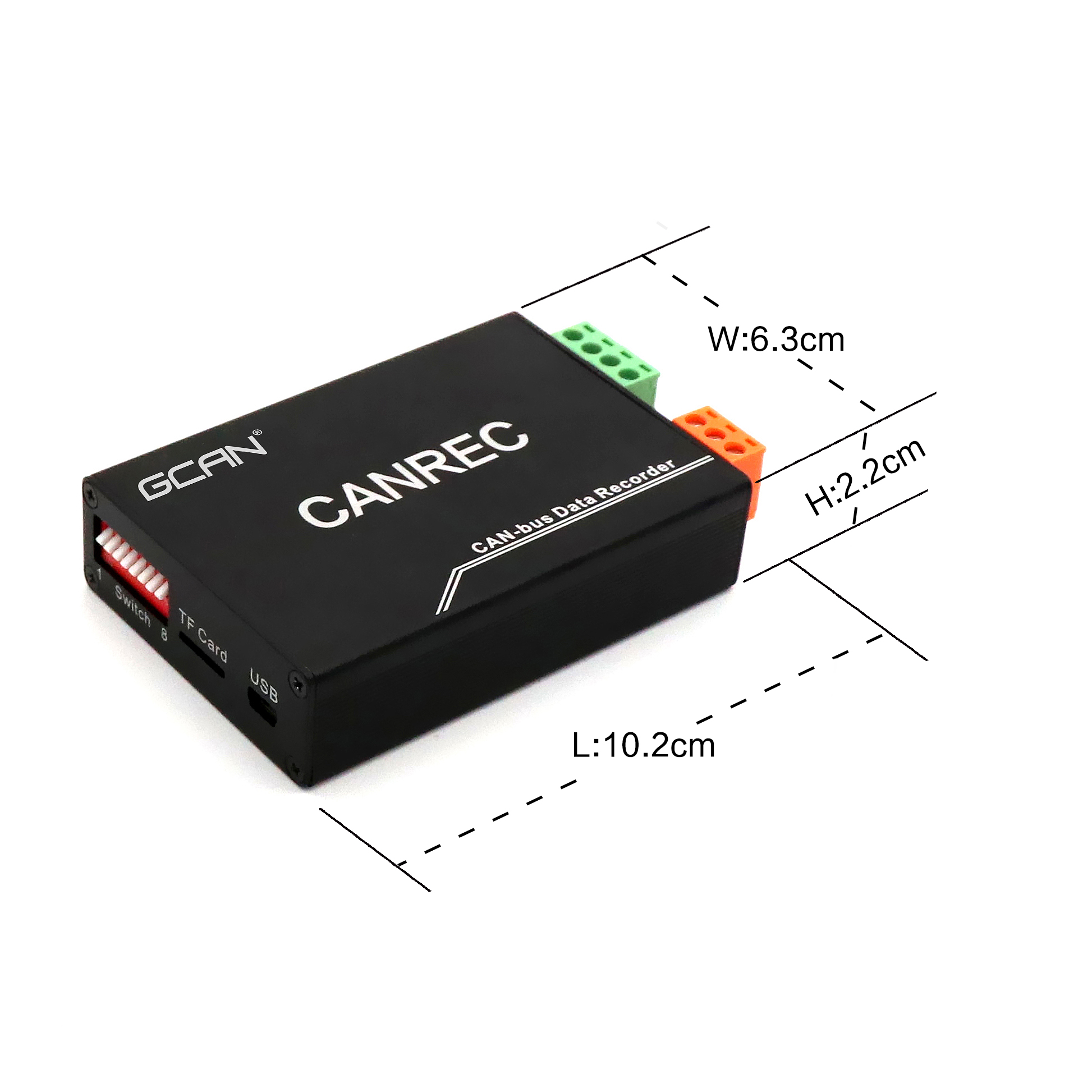

102mm * 63mm * 23mm |
| Weight |
130g |
Packing & Delivery

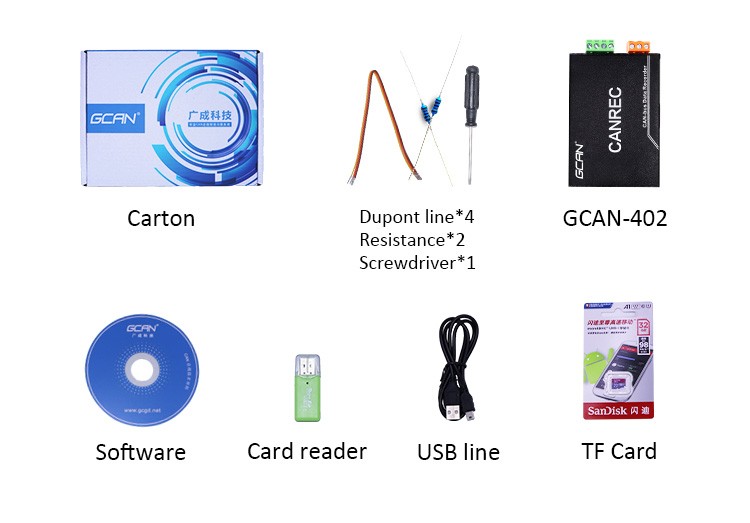

Package: Carton
Delivery time: In 3 days after payment.
Lead time: 3~7 days
Frequently Asked Questions
What is the primary function of the GCAN-402?
The GCAN-402 is a two-channel CAN-Bus data recorder designed for offline recording of CAN-Bus data. It is highly suitable for historical data playback, system error message analysis, and troubleshooting.
What memory card capacity and format does the device support?
The GCAN-401 supports up to 32G capacity, while the GCAN-402 and GCAN-406 support up to 128G capacity TF cards. The storage file system must be formatted to FAT32 before use.
How is the recorded data organized on the TF card?
The device features an integrated system clock. It manages data chronologically by automatically creating a new folder named after the current date every single day.
Which file formats can the logged CAN data be saved in?
Recorded files can be saved in multiple formats, including binary files (DAT), text files (TXT), Vector software compatible files (ASC), and batch files (CAN).
Does the GCAN-402 support high-temperature industrial environments?
Yes, the device is built for industrial-grade environments and supports a wide operating temperature range from -40°C to +85°C.
Is there electrical isolation in the GCAN-402?
Yes, the recorder provides electrical isolation protection up to 1500V, ensuring safe operation and protecting systems from voltage spikes.
