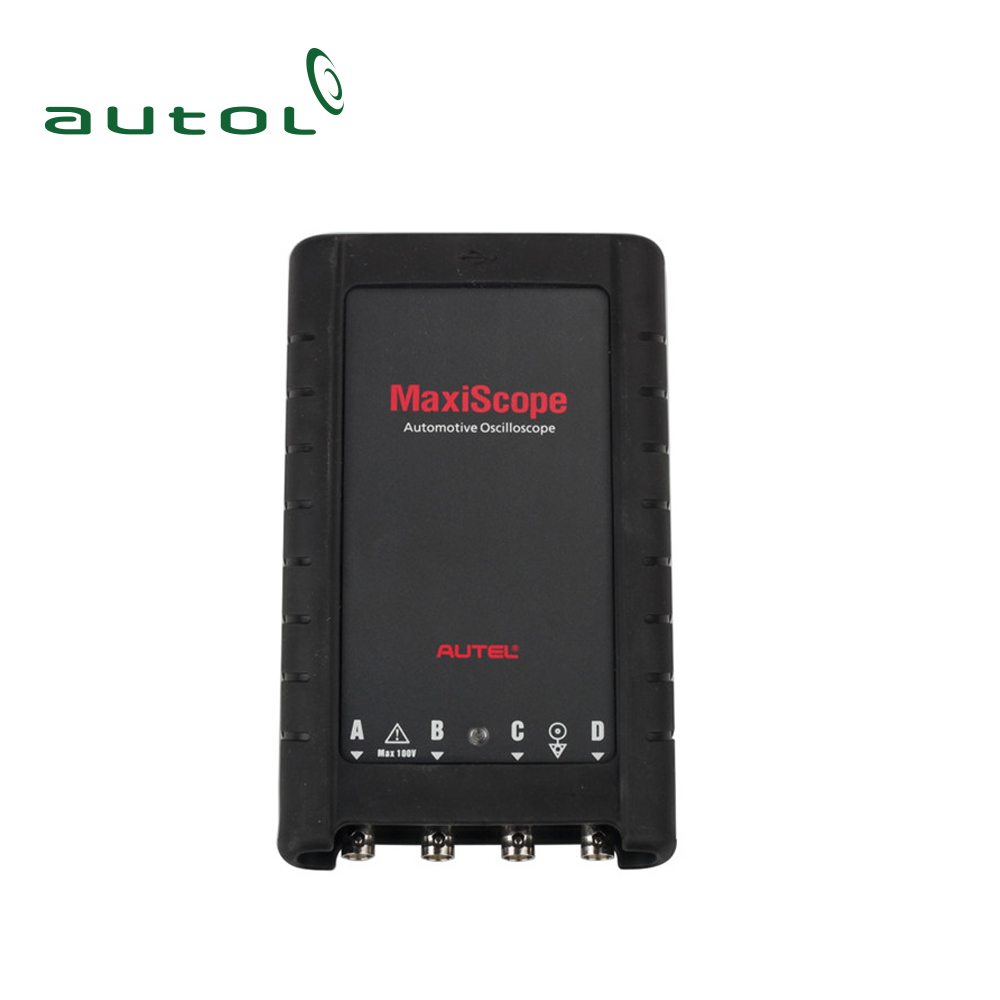

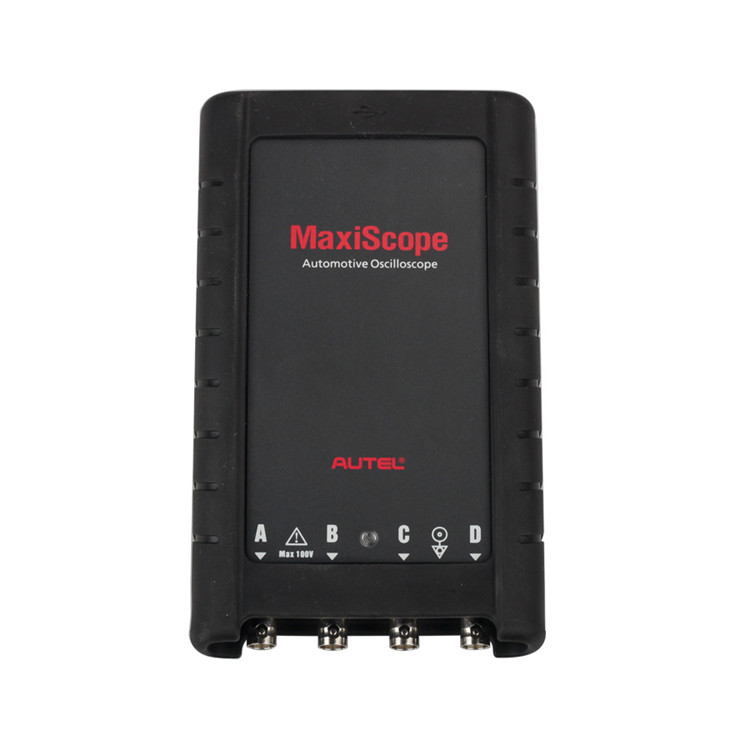

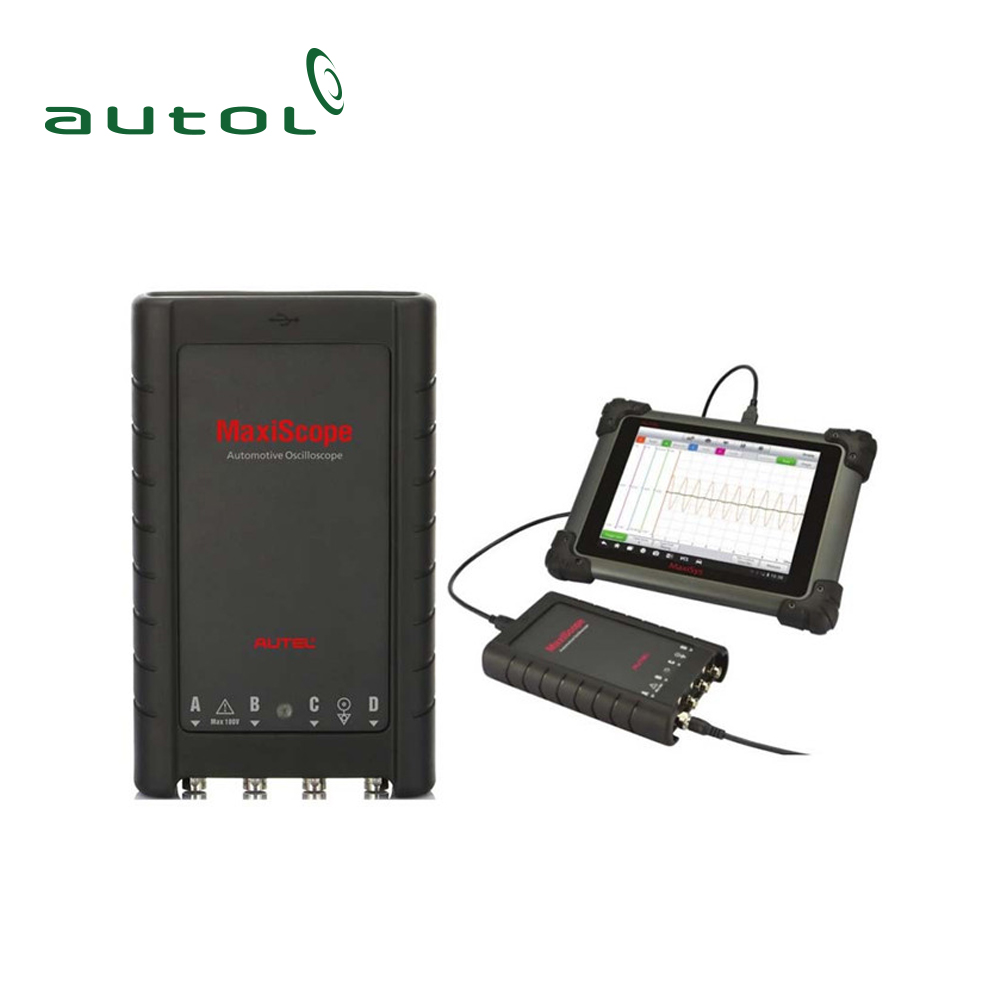

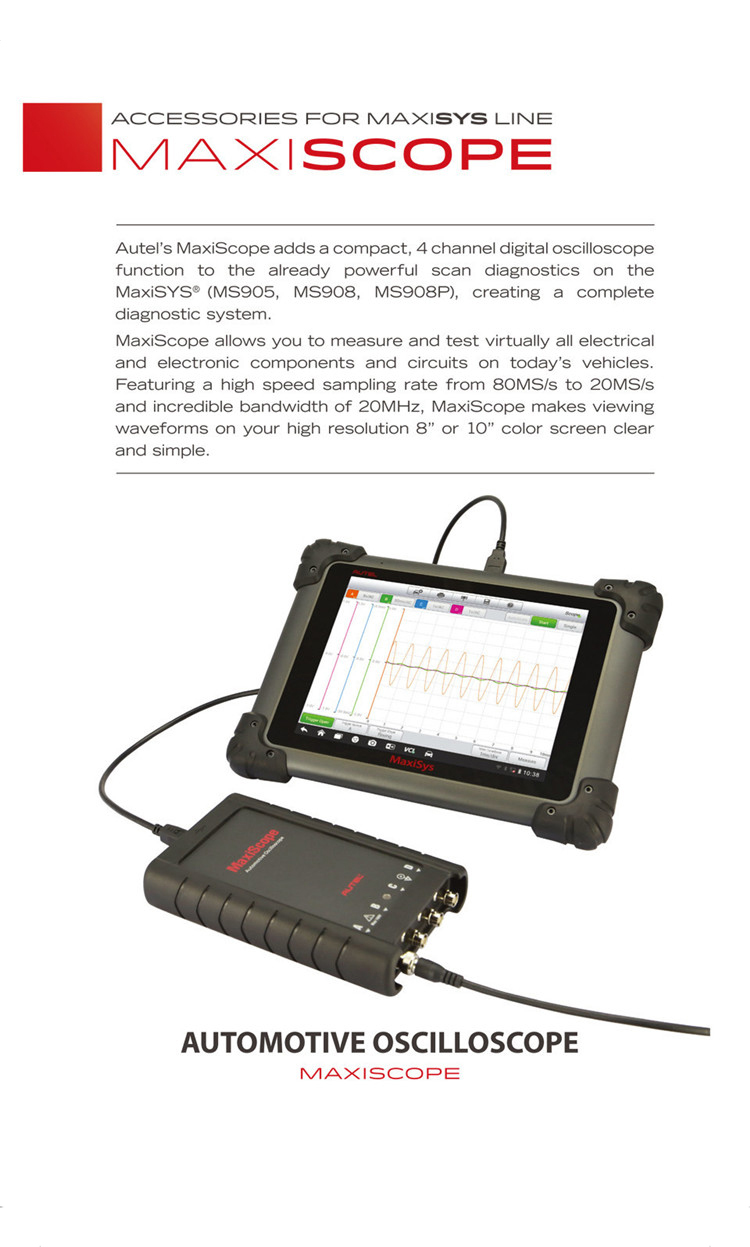

The MaxiScope MP408 is a PC based 4-channel automotive oscilloscope. It works in combination with your PC or MaxiSys Tablet, which turns into a powerful diagnostic tool, providing you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivalled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.

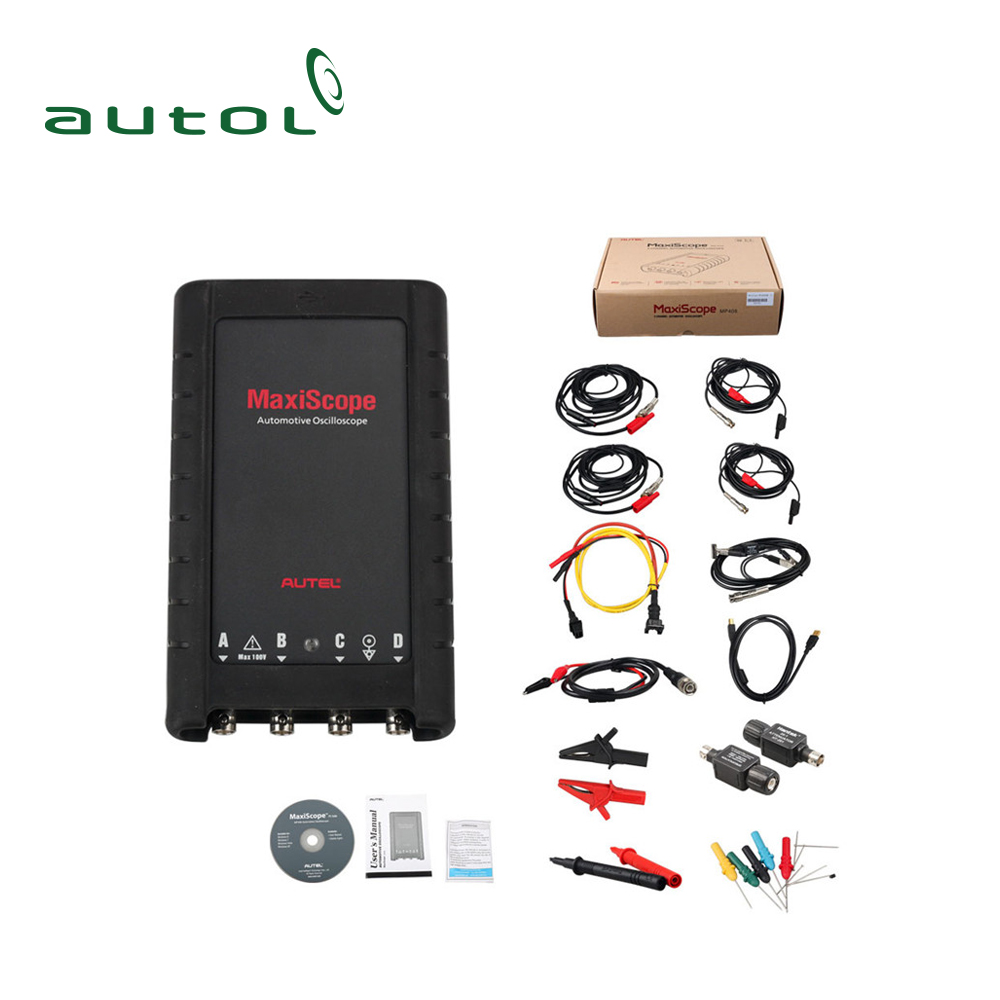

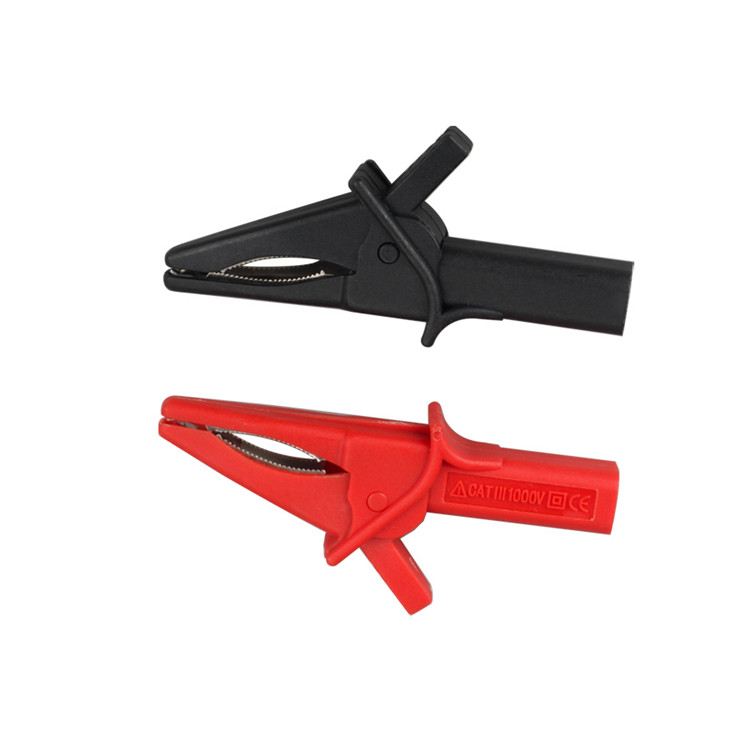

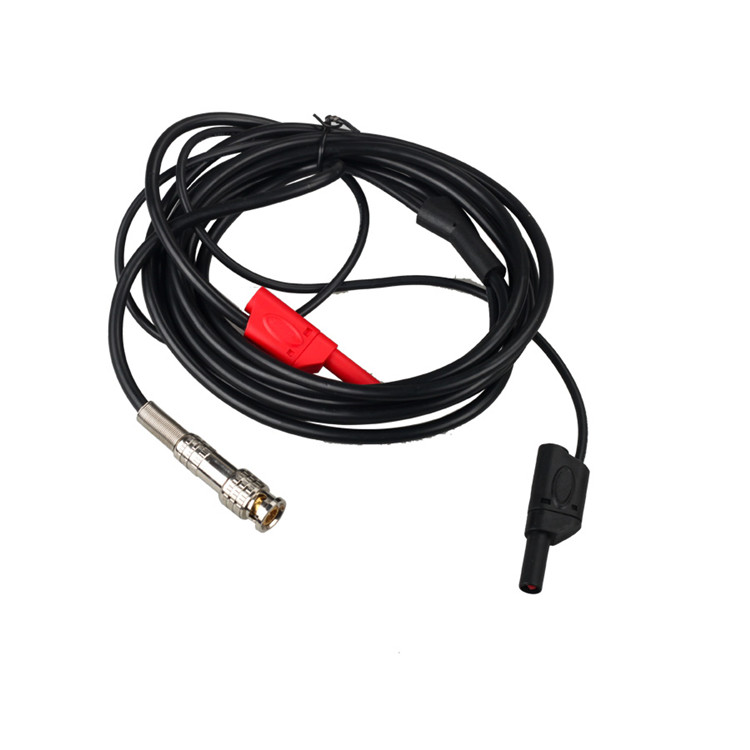

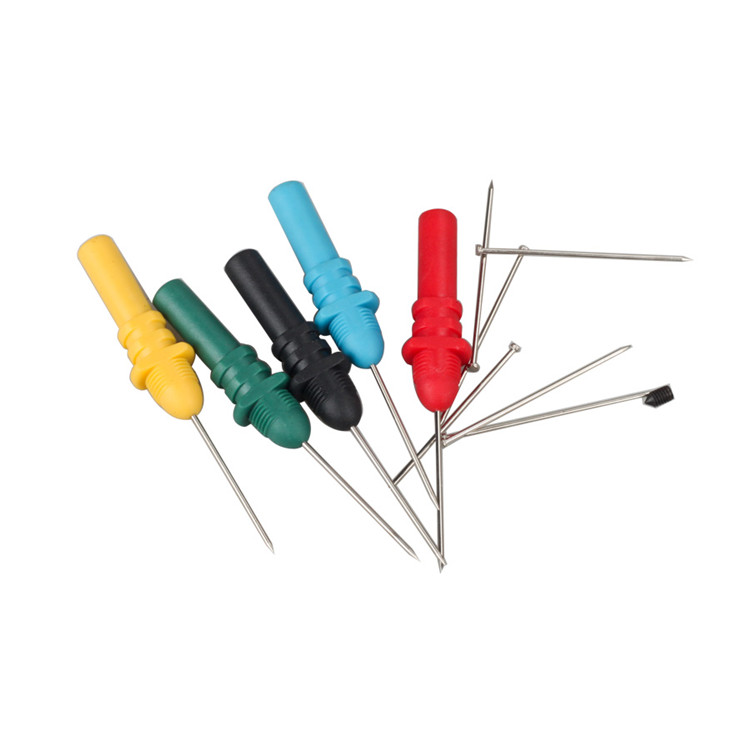

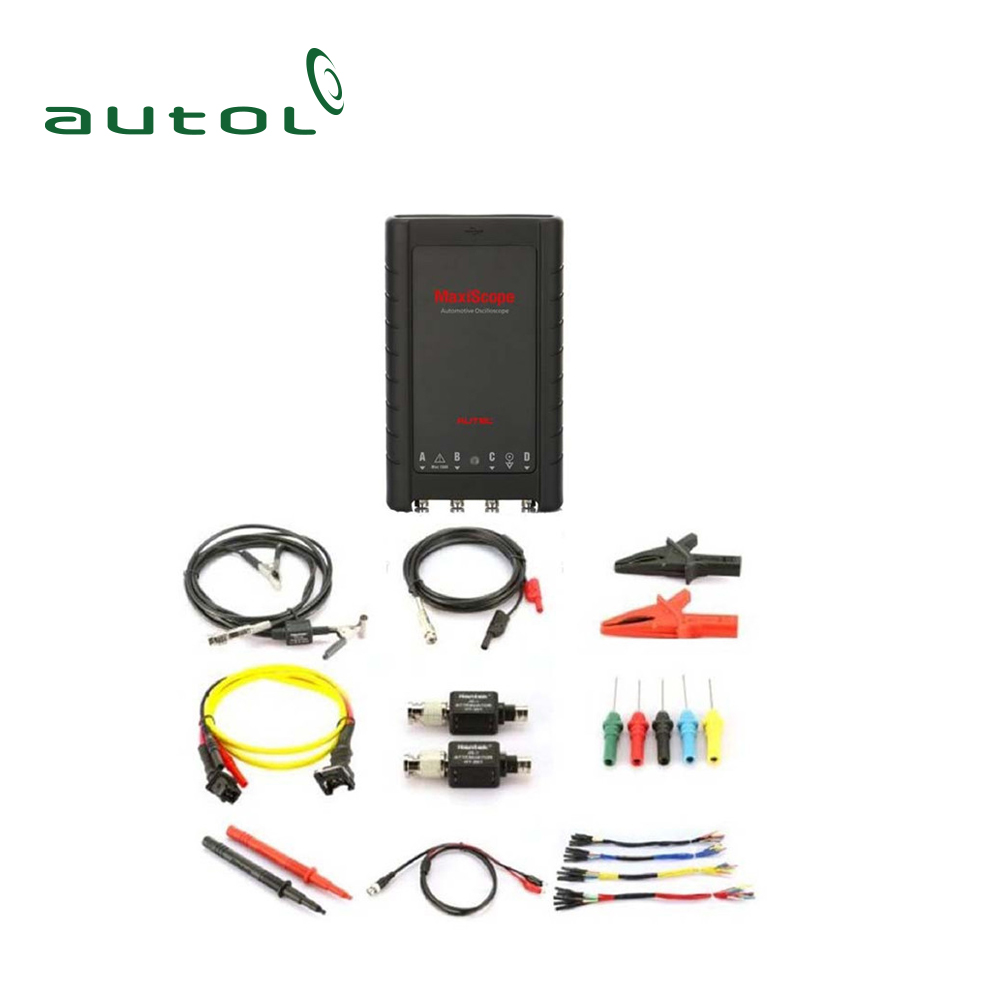

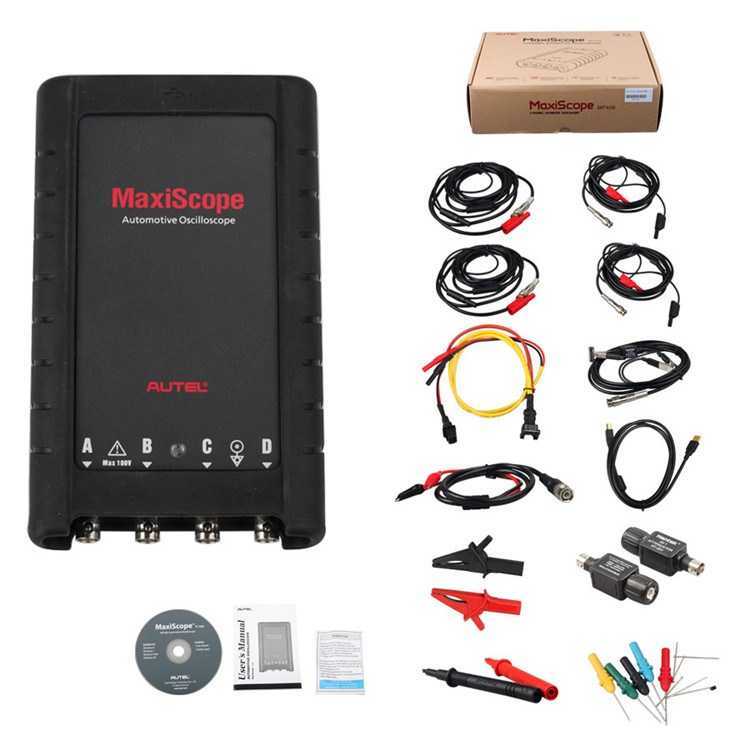

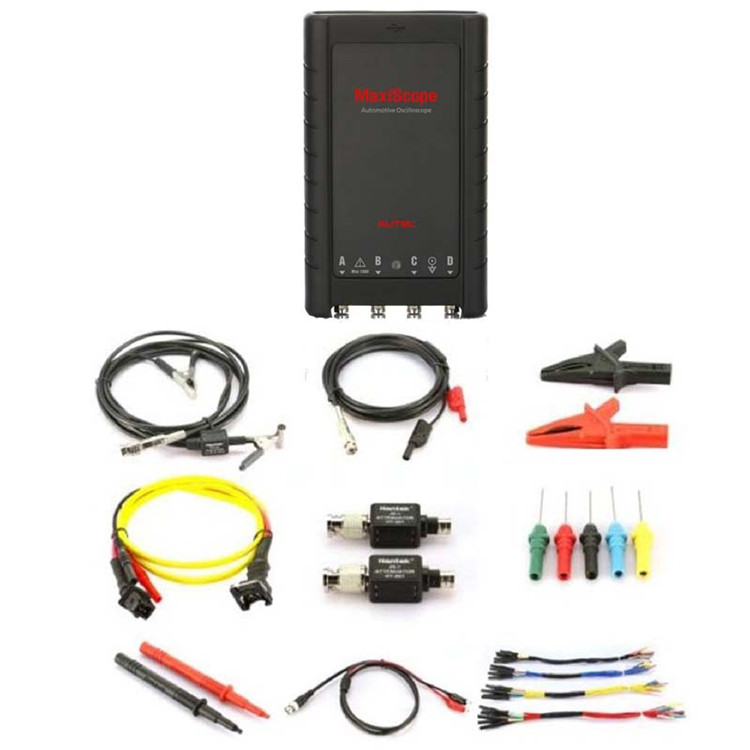

The MaxiScope MP408 Automotive Oscilloscope Kit is available with 2 versions - Basic and Advanced Kit - for your option. The table below gives descriptions of the hardware and accessories supplied with the package.

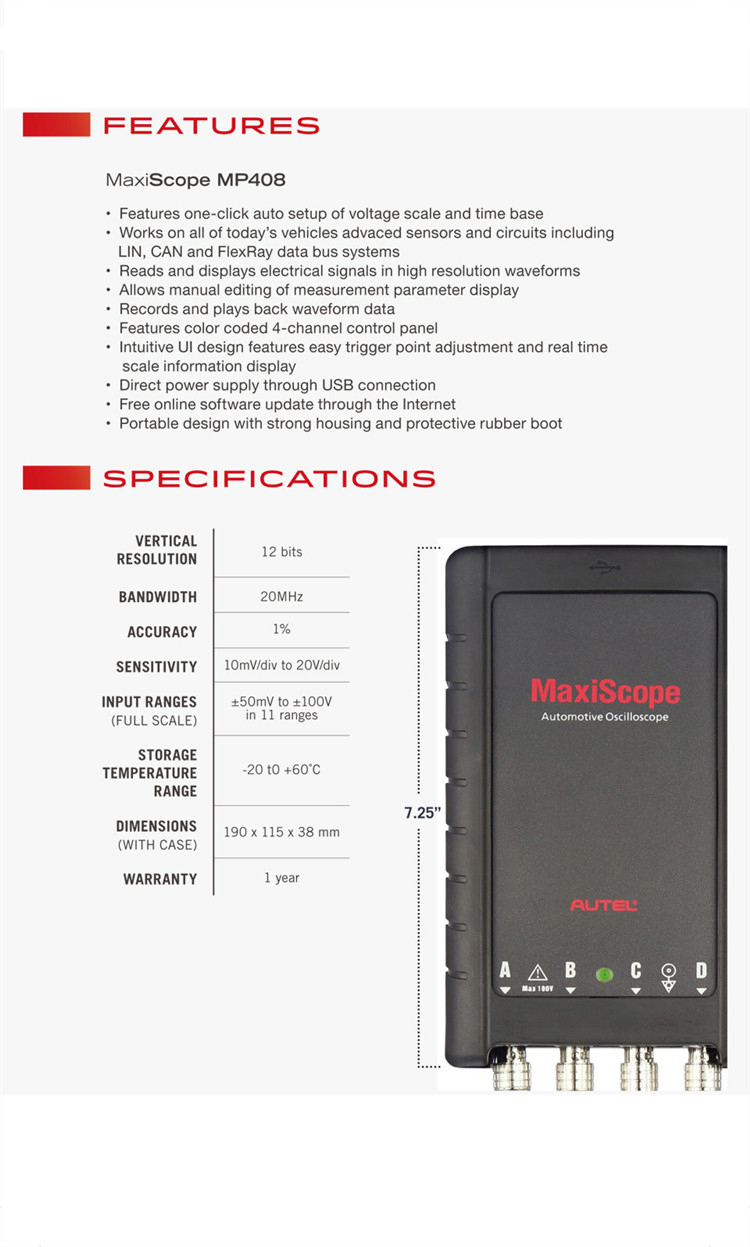

| Vertical resolution | 12 bits |
| Channels | 4 |
| Bandwidth | 20MHz |
| Accuracy | 1% |
| Sensitivity | 10mV/div to 20V/div |

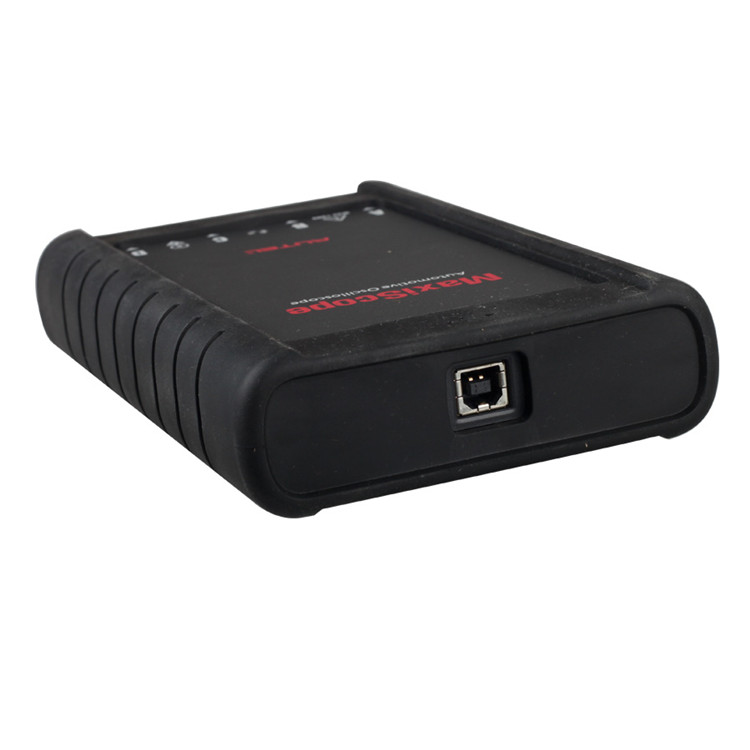

| PC Interface | USB 2.0 – Cable supplied |
| Power Requirements | Powered from USB port |
| Input Ranges (full scale) | ±v50mV to ±100V in 11 ranges |
| Input Impedance | 1MΩ in parallel with 22pF |

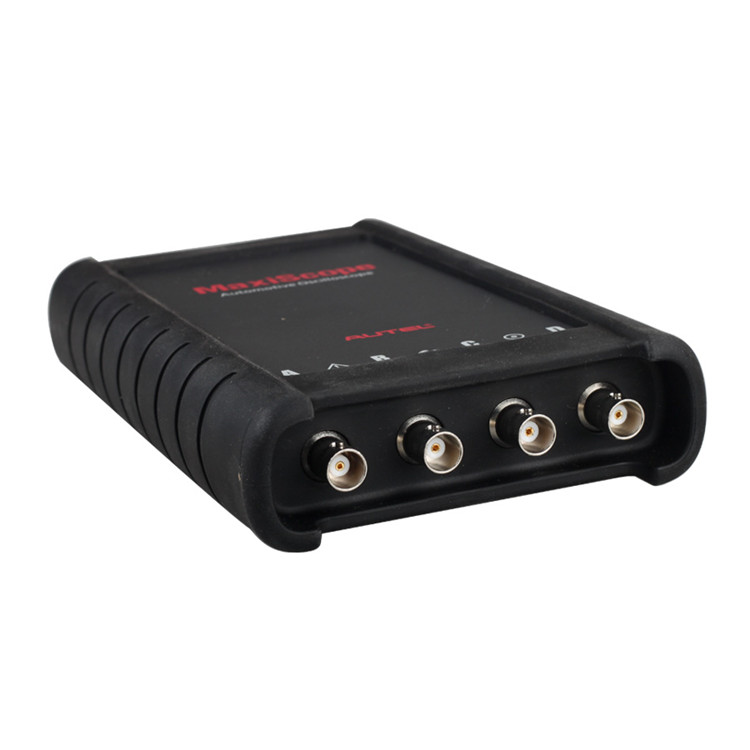

| Input Type | Single-ended, BNC connector |
| Input Coupling | Software selectable AC/DC |
| Overload Protection | ±200V on single input |
| Buffer Memory | 32M samples shared among active channels |
| Waveform Buffer | Up to 1000 waveforms |
| Timebase Ranges | 100ns/div to 1000s/div |
| Operating Temperature Range | 0°C to 50°C (15°C to 40°C for quoted accuracy) |
| Storage Temperature Range | -20°C to +60°C |
| Storage Humidity Range | 5% to 95%RH, Non-condensing |
| Dimensions | 190X115X38mm |
| Weight | < 0.5kg |
| Maximum Sampling Rate (Single Shot) | |
| 1 or 2 channels in use | 80MS/s |
| 3 or 4 channels in use | 20MS/s |
The Autel MaxiScope MP408 is a 4-channel automotive oscilloscope designed to measure, test, and analyze virtually all electrical and electronic components and circuits in modern vehicles by displaying high-resolution waveforms.
No, the MaxiScope MP408 does not need external batteries or power adapters. It draws power directly through the USB port of the connected PC or compatible MaxiSys tablet.

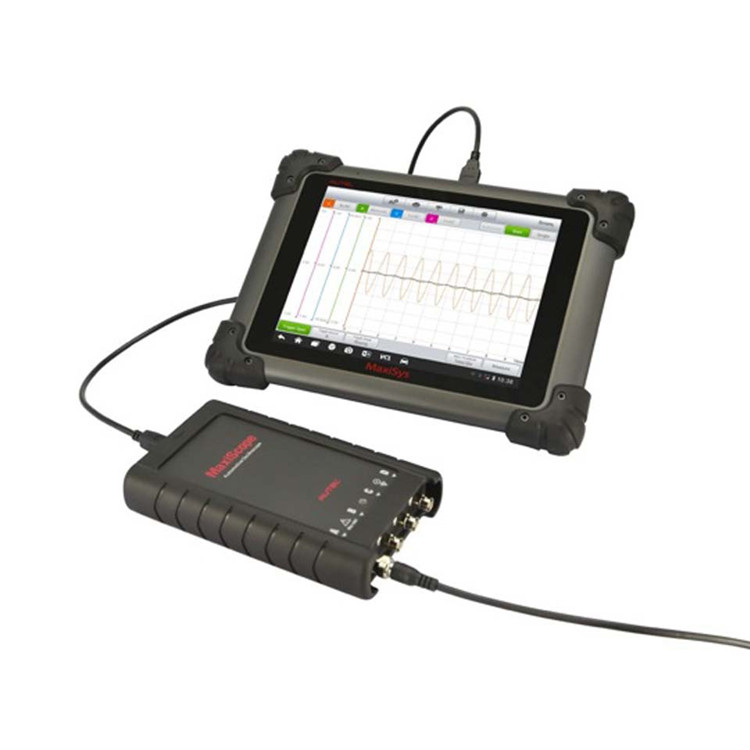

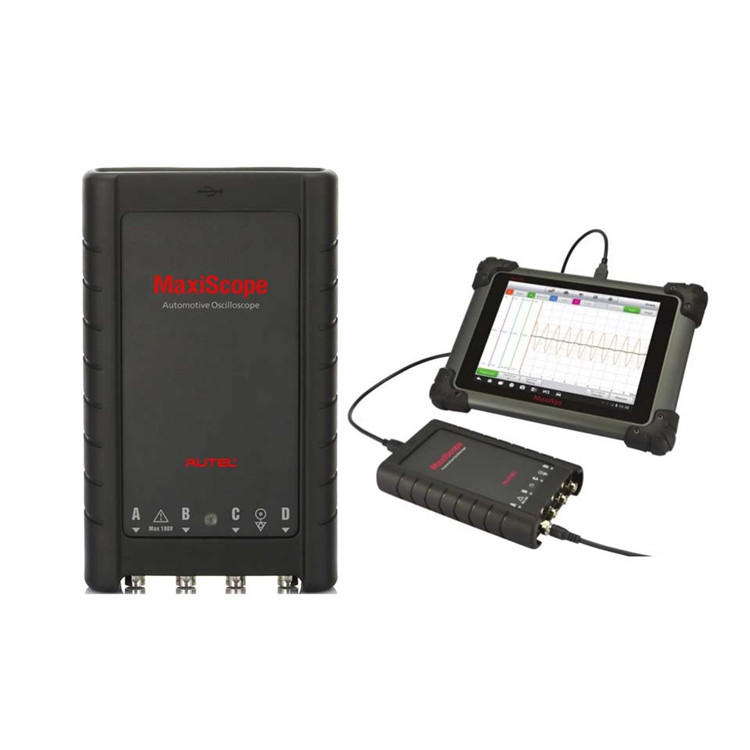

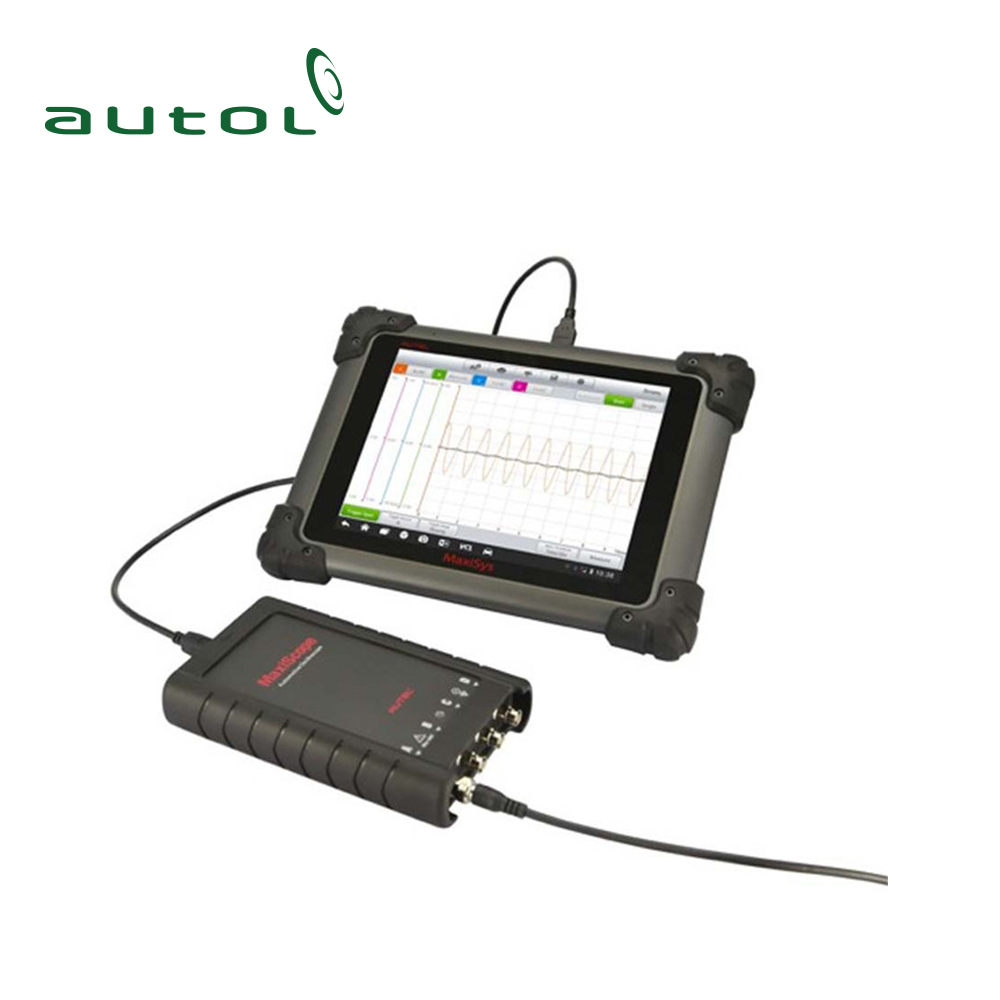

The MP408 works seamlessly in combination with your PC or Autel MaxiSys tablets, turning them into highly effective diagnostics systems for reading electrical signals.
The device is fully compatible with standard modern vehicle data bus networks, including LIN, CAN, and FlexRay bus configurations.
Yes, the MaxiScope MP408 system features record and playback functions, allowing you to capture, store, and carefully analyze waveform data at a later stage.
Software updates for the MaxiScope MP408 are provided free online. You can easily download and update the diagnostic software via the internet.
