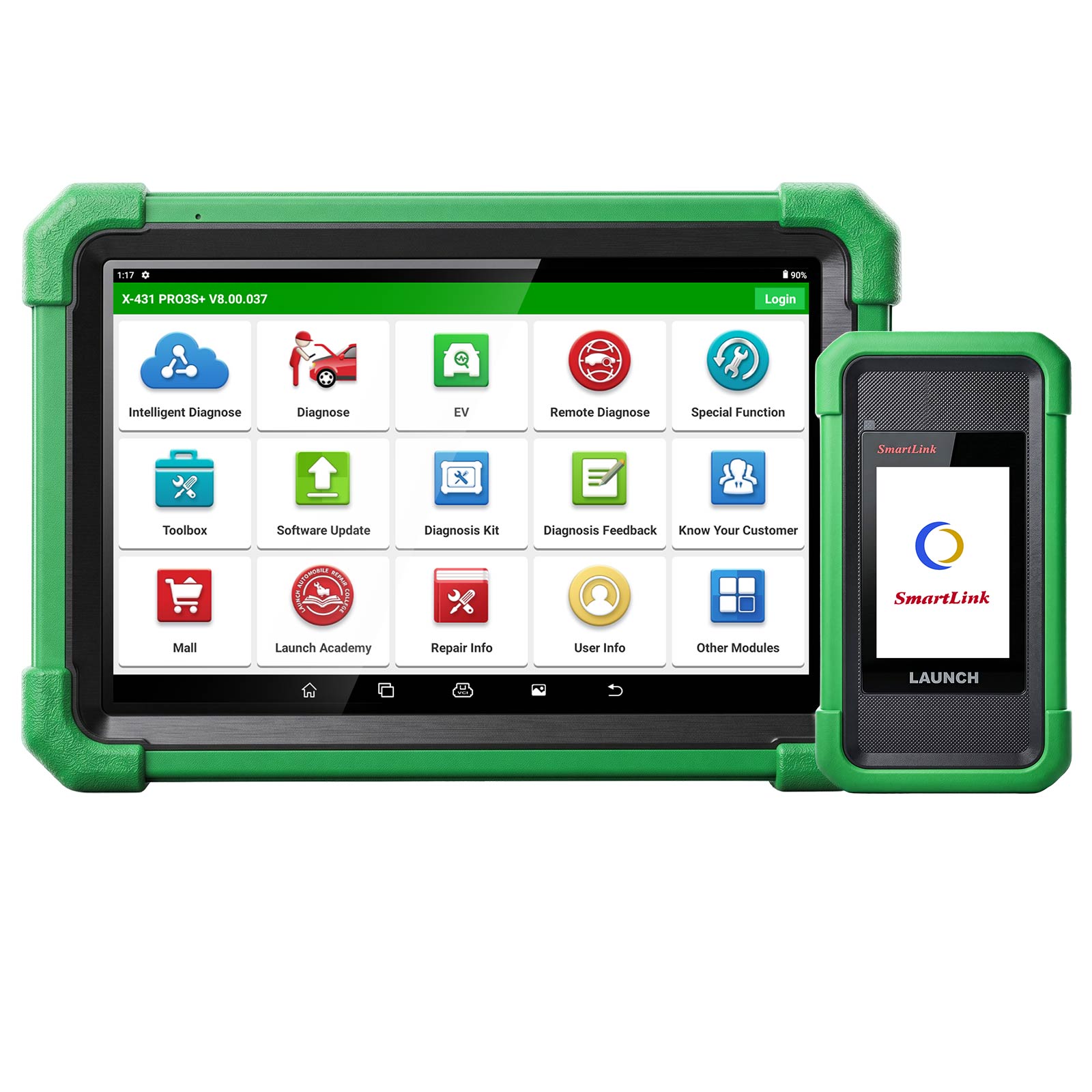

Launch X431 PRO3S+ New Energy EV Diagnostic Tool Battery Pack Tester All System Scanner SmartLink C V2 Remote ECU Coding

1 / 5

Launch X431 PRO3S+ New Energy EV Diagnostic Tool Battery Pack Tester All System Scanner SmartLink C V2 Remote ECU Coding

Send Inquiry

Product Description

Products Description

Operating System	Android 10.0
Processor	2.0GHz quad-core
Memory	4GB RAM
Storage	64GB
Display	10.1-inch, fully laminated, sunlight-readable screen
Resolution	1280×800
Camera	80 MP rear camera
Wi-Fi	Supports 2.4GHz & 5GHz dual band
Operating Temperature	0°C - 50°C
Interfaces	Type A and Type C
Dimensions	274×190.5×40.5 mm

LAUNCH X431 PRO3S+ EV Diagnostic Scanner

EV Diagnostics & Battery Pack Analysis

LAUNCH X-431 PRO3S+ EV diagnostic device integrates complete new EV diagnostics with battery pack analysis. Powered by the Android 10.0 operating system and featuring a 10.1-inch high-definition sunlight-readable screen, it comes standard with the SmartLink C V2 connector, supporting both local and remote diagnostic modes. It enables high-voltage system diagnostics for new energy vehicles and supports various battery pack diagnostic methods, accurately reading cell voltage and temperature data, intelligently calculating voltage differences, and quickly locating faults—making it an essential tool for new energy vehicle maintenance.

Details Images

Product Features

✓ Supports 95% new energy vehicle models diagnosis and 40+ service functions.
✓ Supports dual mode diagnosis: local diagnostics and super remote diagnosis.
✓ Supports AutoVIN, Guided Function, FCA AutoAuth, Topology mapping.

LAUNCH X431 PRO3S+ EV Scanner Highlights

🔹 Powerful Hardware Configuration

⚡ High-performance upgraded configuration: Running on Android 10.0 system with 4GB RAM and 64GB storage, it delivers ultra-quick diagnostic responses, steady multi-task operation and wide adaptability to various electric vehicles.
🖥️ Upgraded screen quality: Adopting a durable 10.1-inch strengthened display, it resists scratches well and remains clearly visible under sunlight, offering sharp viewing effects both indoors and outdoors at repair sites.
🔋 Improved battery performance: Equipped with a 7.6V 6300mAh combined battery pack, it supplies stronger power supply and longer working hours, ideal for prolonged professional detection on EV battery systems.
🔌 Wider peripheral adaptability: The newly added Type-A interface supports smooth linking with professional equipment including oscilloscopes, sensors and IMMO programmers, achieving integrated comprehensive vehicle maintenance.

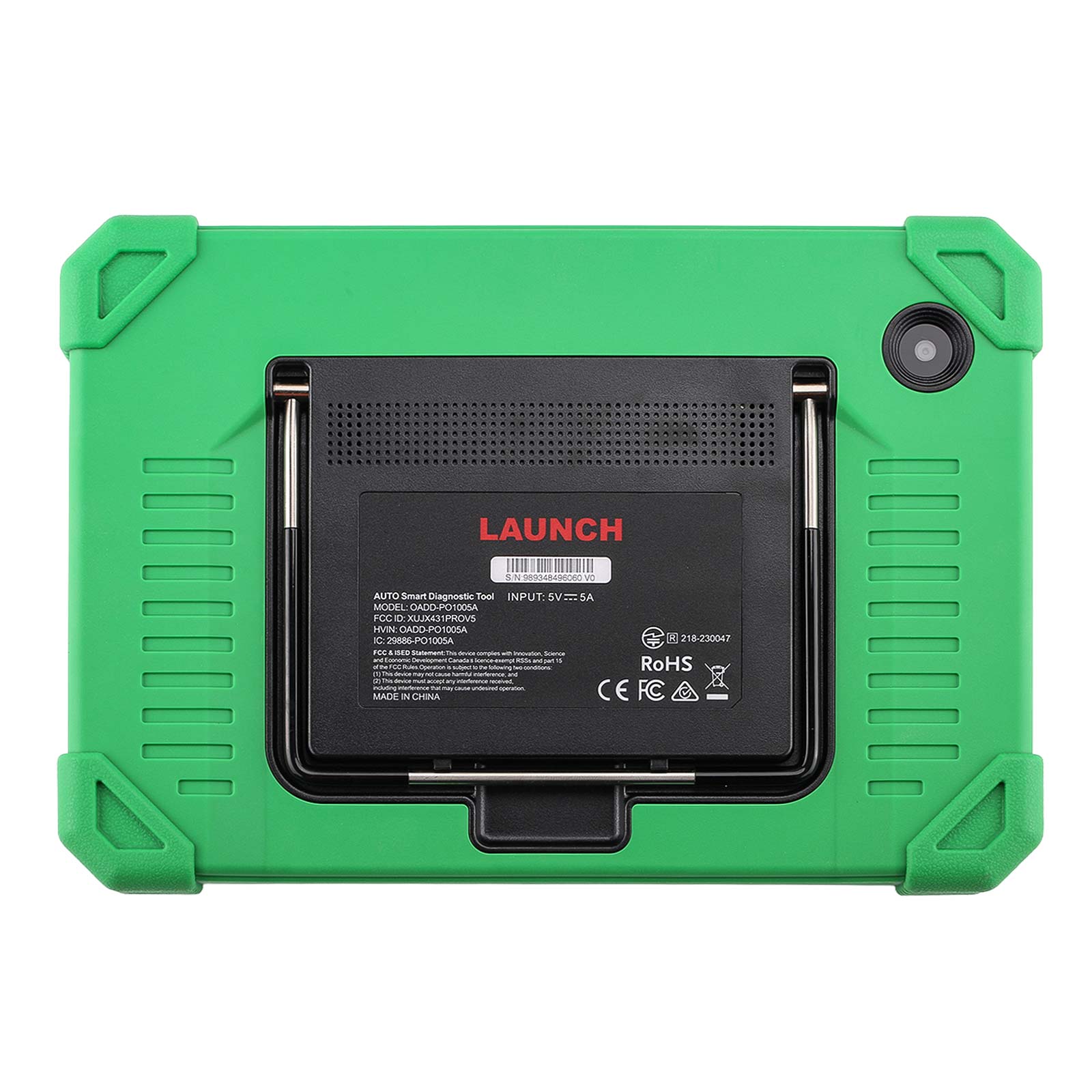

🛠️ Rugged Industrial Design: Specially designed for auto repair environments, it comes with shockproof borders, dustproof casing and a 180° rotatable bracket, convenient for wall mounting and flexible angle adjustment.

🔹 Reliable Functions & Protocols

⚙️ Optional X-431 FIX Database.
⚙️ Supports Topology mapping and CAN BUS PIN Detection.
⚙️ Supports AutoVIN, Guided Function, FCA AutoAuth.
⚙️ OE-level EV diagnostics and battery pack diagnostics supporting CAN FD, CAN 2.0, DoIP, J2534 and D-PDU protocols.
⚙️ Battery pack data stream enables precise fault detection and faster repair, helping guide repair decisions with cell voltage and temperature data.
⚙️ Supports dual mode diagnosis (local and super remote diagnosis) and fast reading of battery pack information (module count, SOC, SOH, temperature, etc.).
⚙️ Supports 95% new energy vehicle models with wide electric vehicle coverage and 20+ battery packs supported.
⚙️ Compatible with multiple add-on modules: TPMS, ADAS, videoscope, battery tester, sensorbox, scopebox, IMMO programmer, etc.

Add-on Modules Support

▪ Use With X-431 TSGUN: Support to activate TPMS sensors, Read sensor data, TPMS diagnose, Read/clear TPMS DTCs, Scan TPMS sensor ID, and program TPMS sensor.
▪ Use With ADAS software Calibration: Designed to improve safety by reducing the severity and overall number of motor vehicle accidents through system calibration.
▪ Use With S2-2 SensorBox: Test and simulate most vehicle sensors for quick troubleshooting of the ECU.
▪ Use With O2-2 ScopeBox: Analyzes data for all kinds of testing applications on automotive parts to resolve complex electrical faults.
▪ Use With VSP-600 VideoScope: Helps technicians view, record, and save images/videos of unreachable areas inside vehicles.
▪ Use With BTS360 Bluetooth Battery Tester: Measuring the actual Cold Cranking Ampere (CCA), analyzing battery health, and detecting the starting and charging systems.
▪ Use With Launch X431 Key Remote Maker: Able to read Transponders, Generate super chips and universal remote keys, Detect Frequency, and Detect Ignition switch coil signals.
▪ Use With LAUNCH X431 X-PROG3: Key programming interface matching Anti-theft type, Remote control, Key chip, password reading, and anti-theft component replacement (advanced functions require IMMO package authorization).
▪ Use With EM101N Scopebox / Multimeter: Ideal for measuring current, voltage, and resistance in high-voltage battery vehicles, including Current Clamp, ES Insulation, and O2-1 ScopeBox applications.

Product packaging

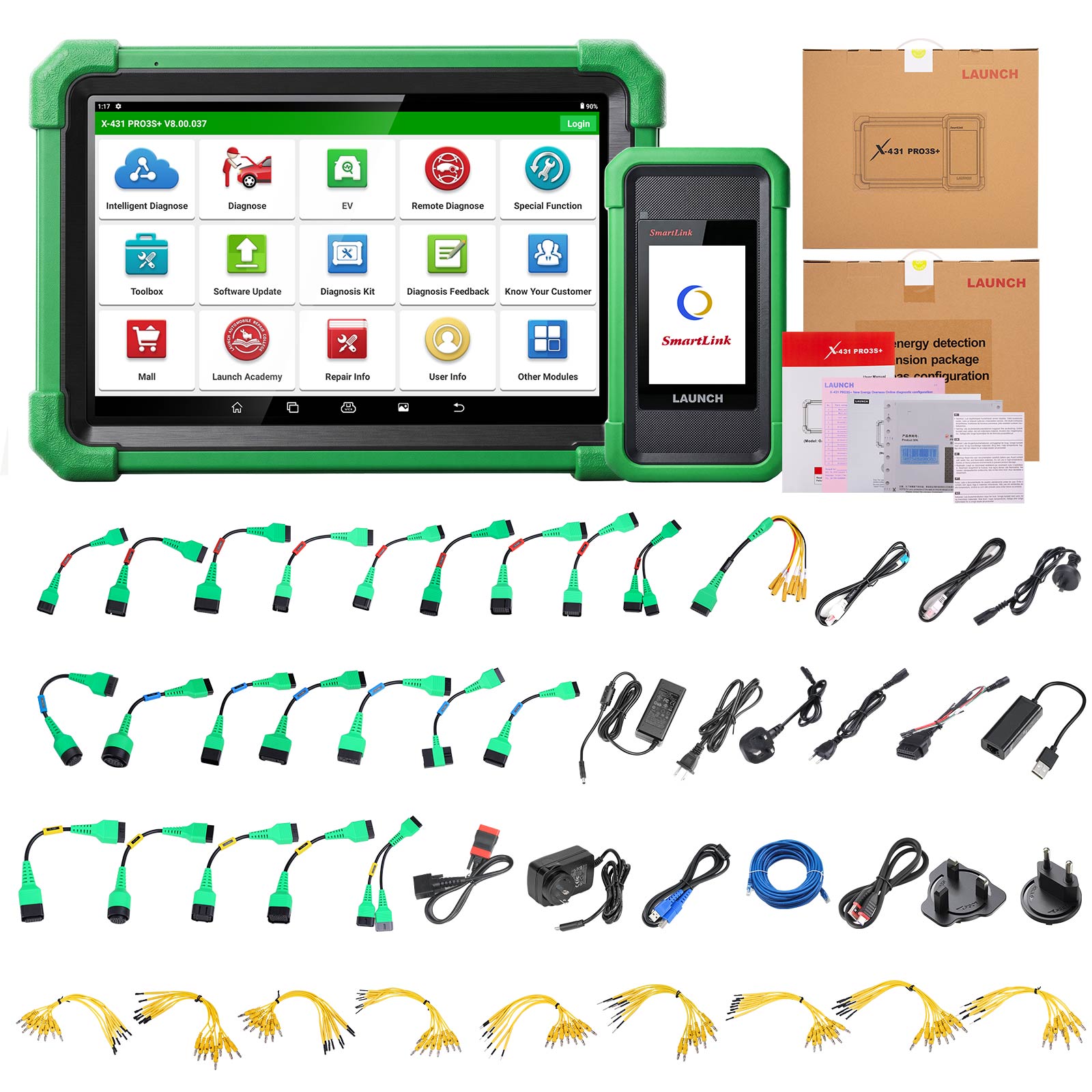

Packing Includes:

1pc x LAUNCH X-431 PRO3S+ Tablet

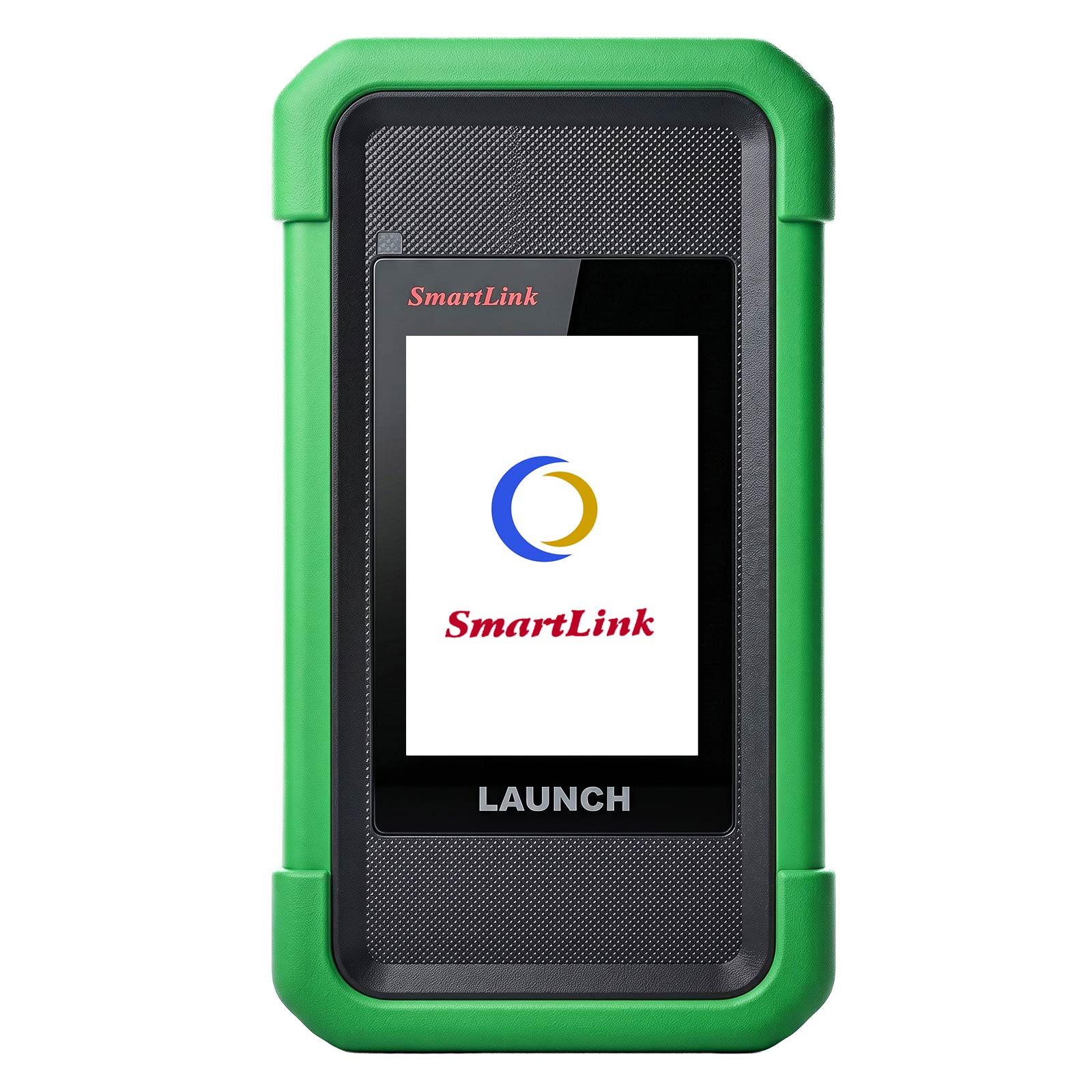

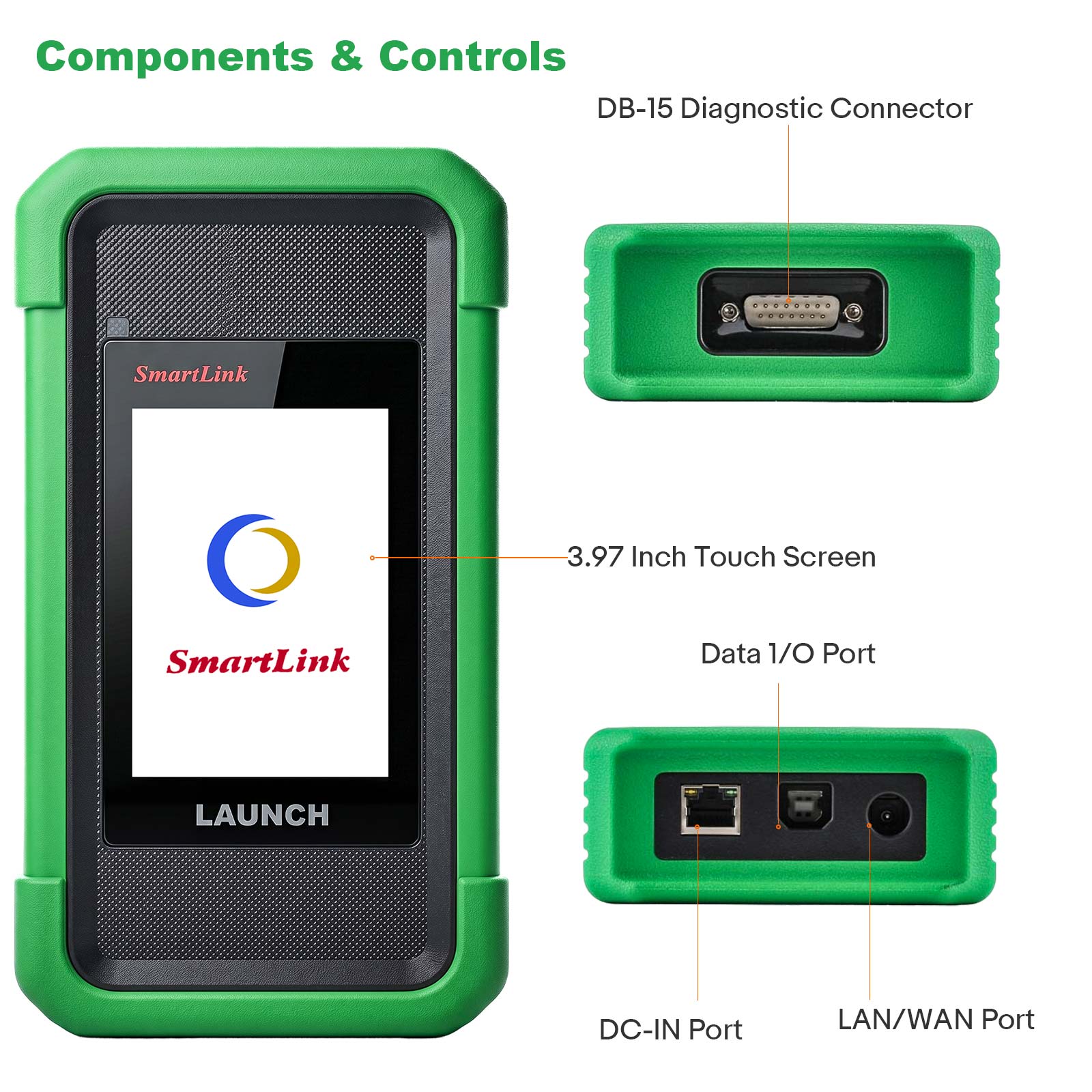

1pc x SmartLink C V2 Connector
1pc x remote diagnosis box V2.0 (New Energy)
1pc x DB15F to HD15F test mainline
1pc x Smartlink dedicated RJ45 to RJ45 connection cable
1pc x British standard conversion head
1pc x European gauge conversion head
1pc x Power Adapter(5V 5A)
1pc x Type A to type C USB data cable
1pc x USB A-type to B-type data cable

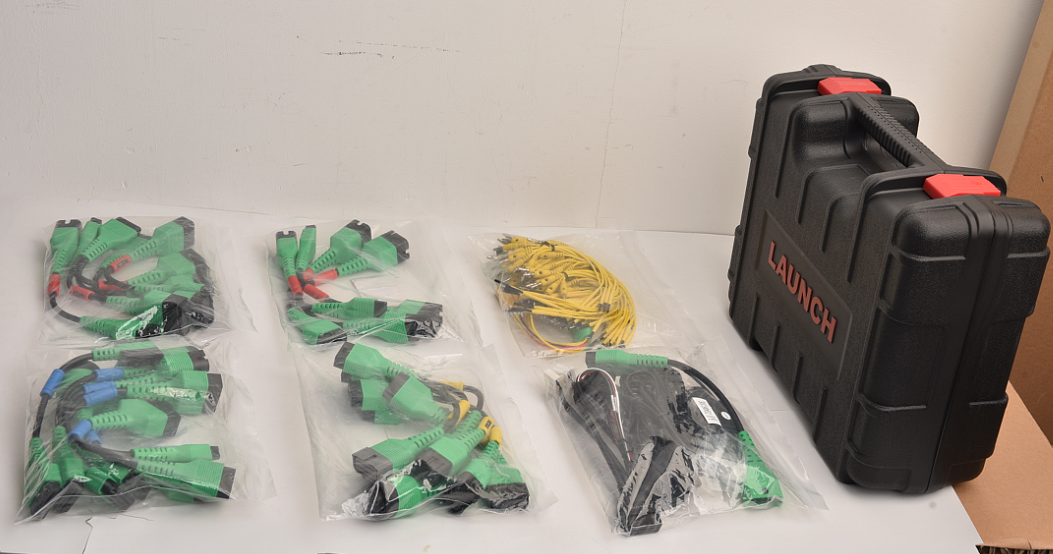

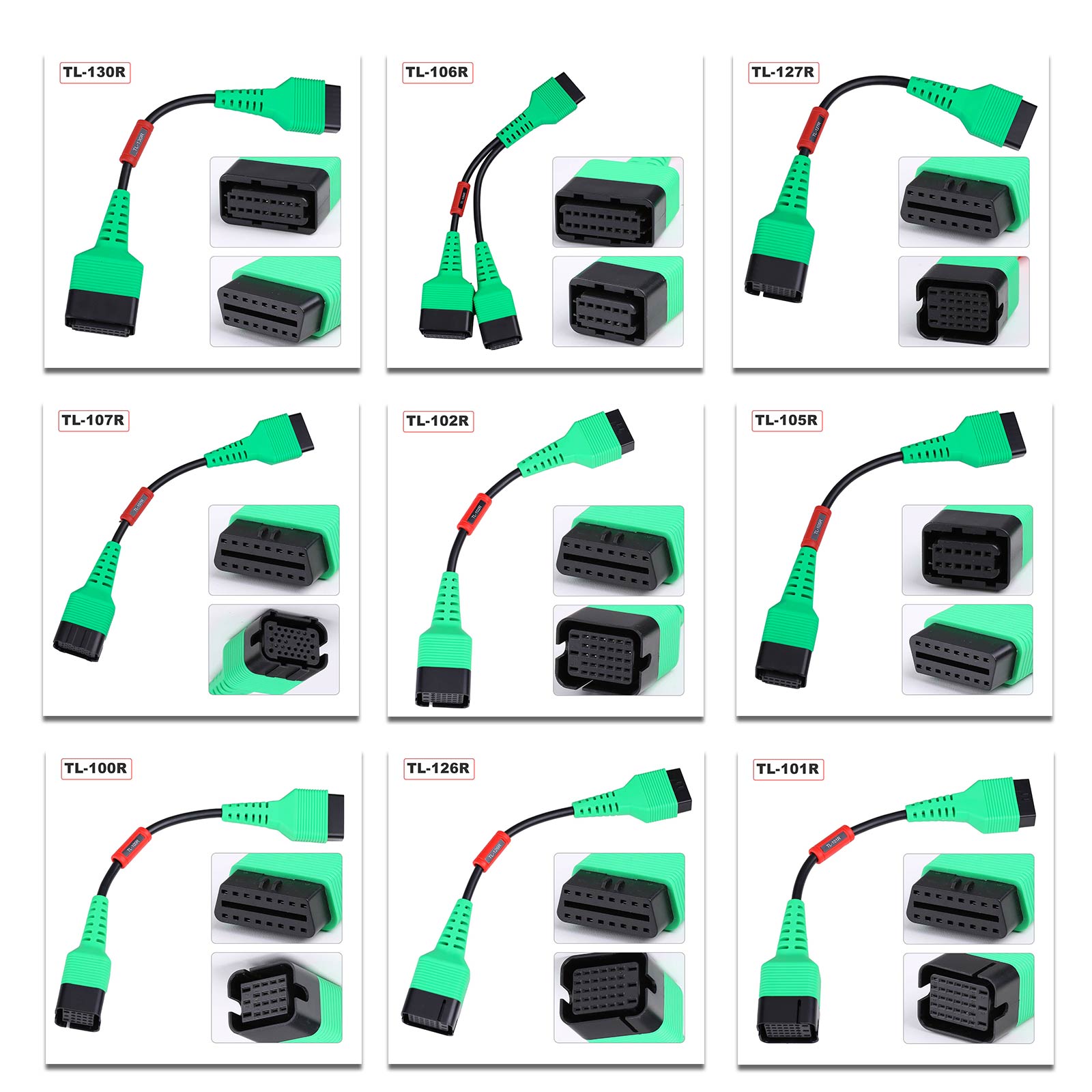

1pc x TL-130R cable | 1pc x TL-106R cable | 1pc x TL-127R cable
1pc x TL-107R cable | 1pc x TL-102R cable | 1pc x TL-105R cable
1pc x TL-100R cable | 1pc x TL-126R cable | 1pc x TL-101R cable

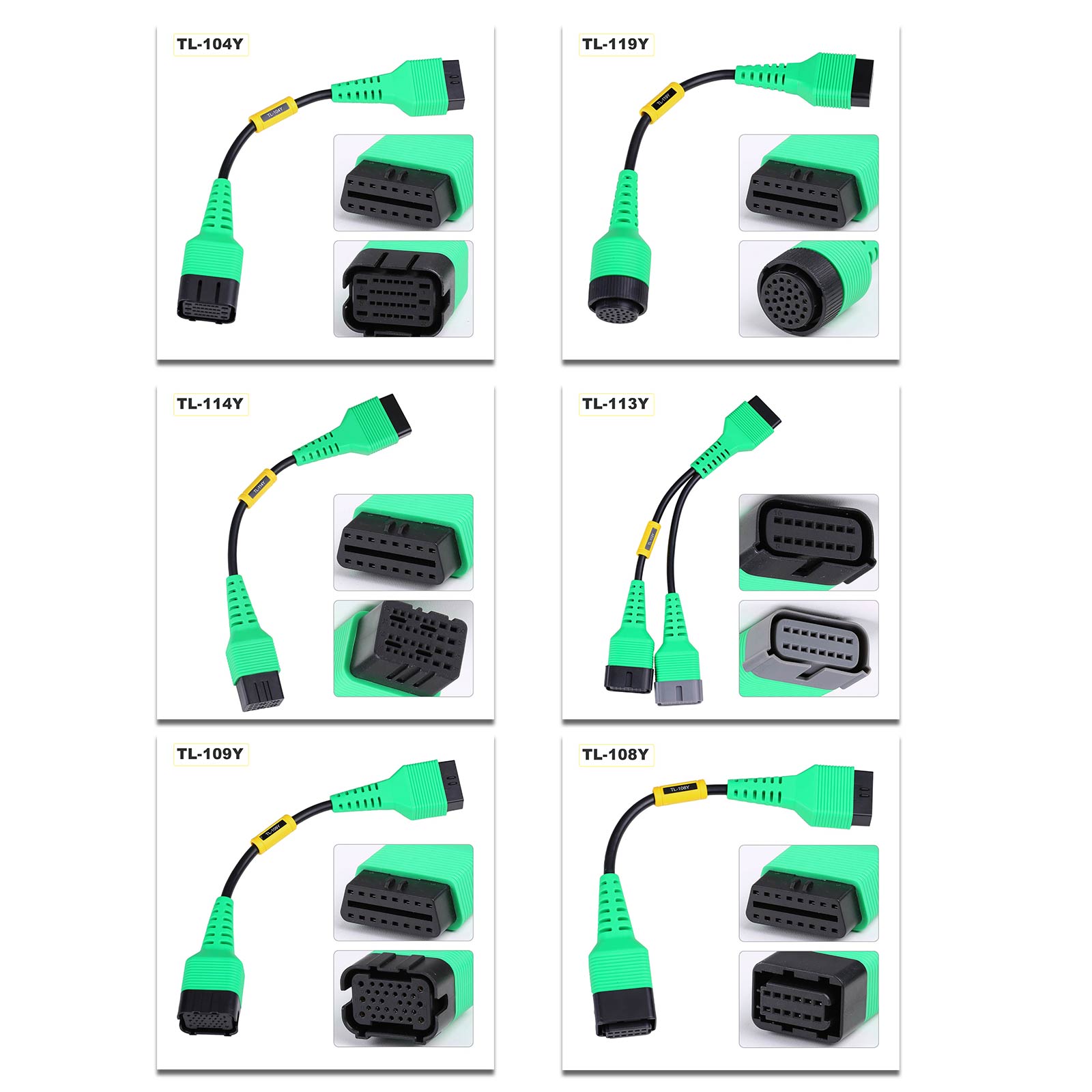

1pc x TL-104Y cable | 1pc x TL-119Y cable | 1pc x TL-114Y cable
1pc x TL-113Y cable | 1pc x TL-109Y cable | 1pc x TL-108Y cable

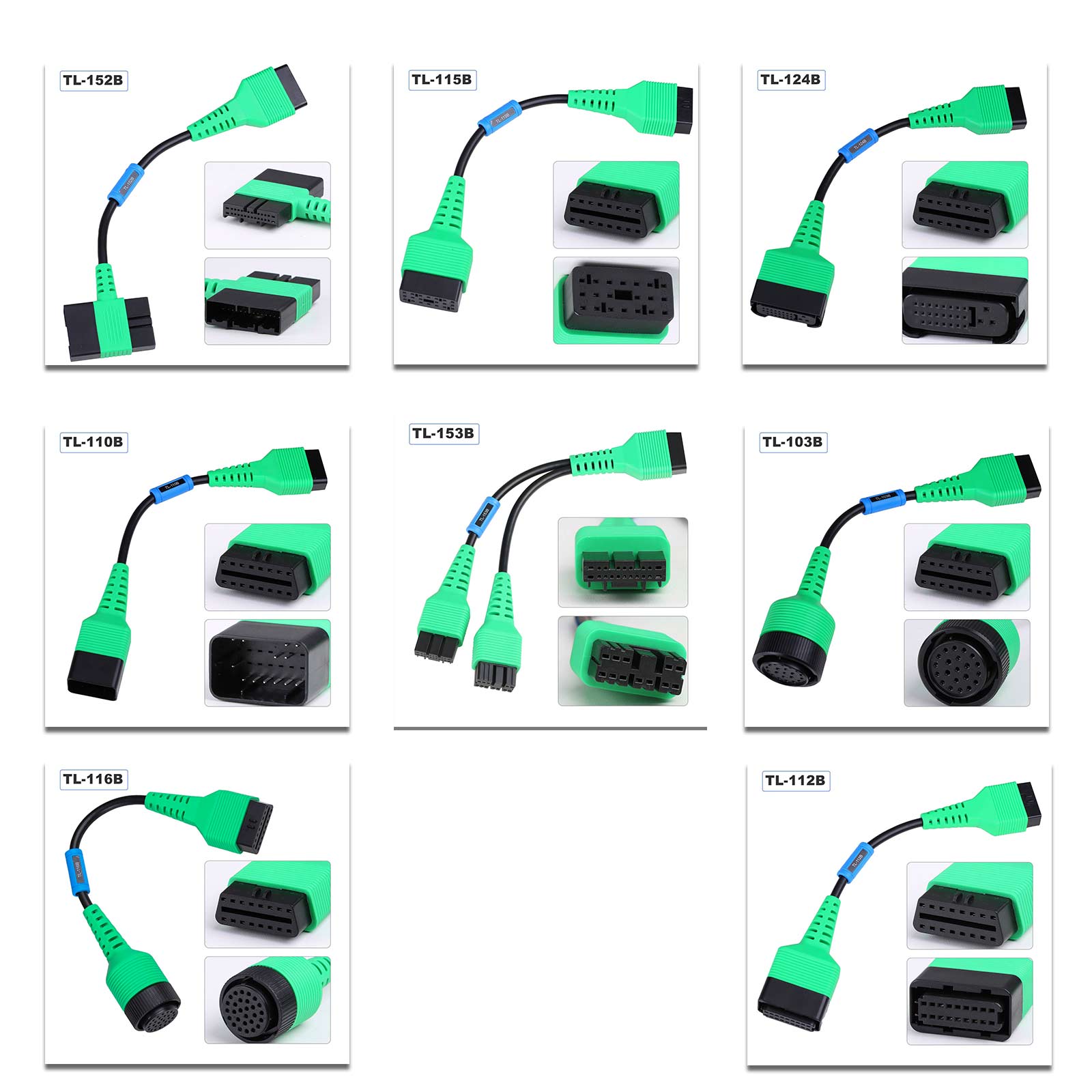

1pc x TL-152B cable | 1pc x TL-115B cable | 1pc x TL-124B cable
1pc x TL-110B cable | 1pc x TL-153B cable | 1pc x TL-103B cable
1pc x TL-116B cable | 1pc x TL-112B cable

Certifications

FAQ

🔹 Q1: What operating system does the LAUNCH X431 PRO3S+ EV run on?

A1: It operates on the Android 10.0 system, paired with a 2.0GHz quad-core processor, 4GB RAM, and 64GB storage for fast and responsive diagnostics.

🔹 Q2: Does it support diagnostics for electric vehicles and hybrid models?

A2: Yes, it is explicitly designed for EV diagnostics and battery pack analysis, supporting over 95% of new energy vehicle models alongside traditional systems.

🔹 Q3: What communication protocols does this scanner support?

A3: The scanner supports modern protocols including CAN FD, CAN 2.0, DoIP, J2534, and D-PDU for extensive vehicle communication.

🔹 Q4: What diagnostic modes are available on this scanner?

A4: It features dual-mode diagnostics, allowing you to run standard local diagnostics as well as super remote diagnostics.

🔹 Q5: Can I expand the functions of the LAUNCH X431 PRO3S+ EV?

A5: Yes, the system supports multiple add-on modules such as the X-431 TSGUN for TPMS, ADAS calibration software, VSP-600 VideoScope, Bluetooth battery testers, and more.

🔹 Q6: How does the battery pack diagnostics help technicians?

A6: It reads accurate cell voltage and temperature data, calculates voltage differences, and locates faults rapidly to assist in quick EV battery maintenance and decision-making.
