Smart Auto Cell Capacity Charge Discharge Balance System Reconditioning Equipment Prius Hybrid Battery Analyzer Tester

Product Description

Products Description
Revive & Maintain Popular Hybrid Batteries with Our HBC08 PRO (Version 4.0) Tester!
Our service includes thorough diagnostics, battery pack testing, and repair or replacement of faulty components. Our machine is capable of detecting and addressing common issues such as degraded cells, faulty modules, and other battery-related problems. We use advanced techniques to restore the battery to its optimal performance, ensuring that your hybrid vehicle operates efficiently and reliably.
Battery Cycle Testing
Supported Test Functions & Features
  • Battery circle life testing & capacity testing
  • Charging and discharging characteristic testing
  • Charge retention capability testing
  • Charge and discharge efficiency testing
  • Over charge or over discharge rate affordability testing

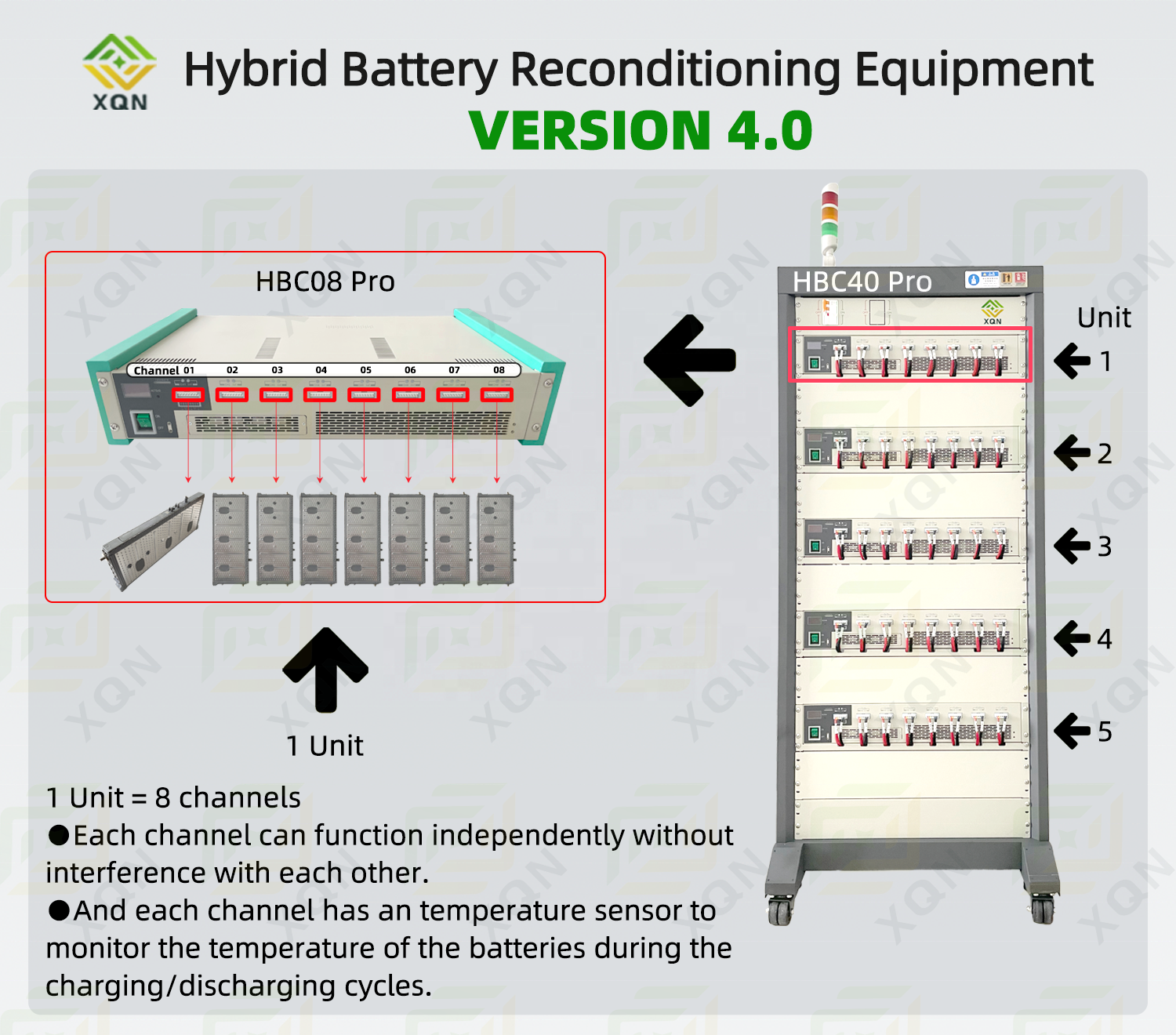

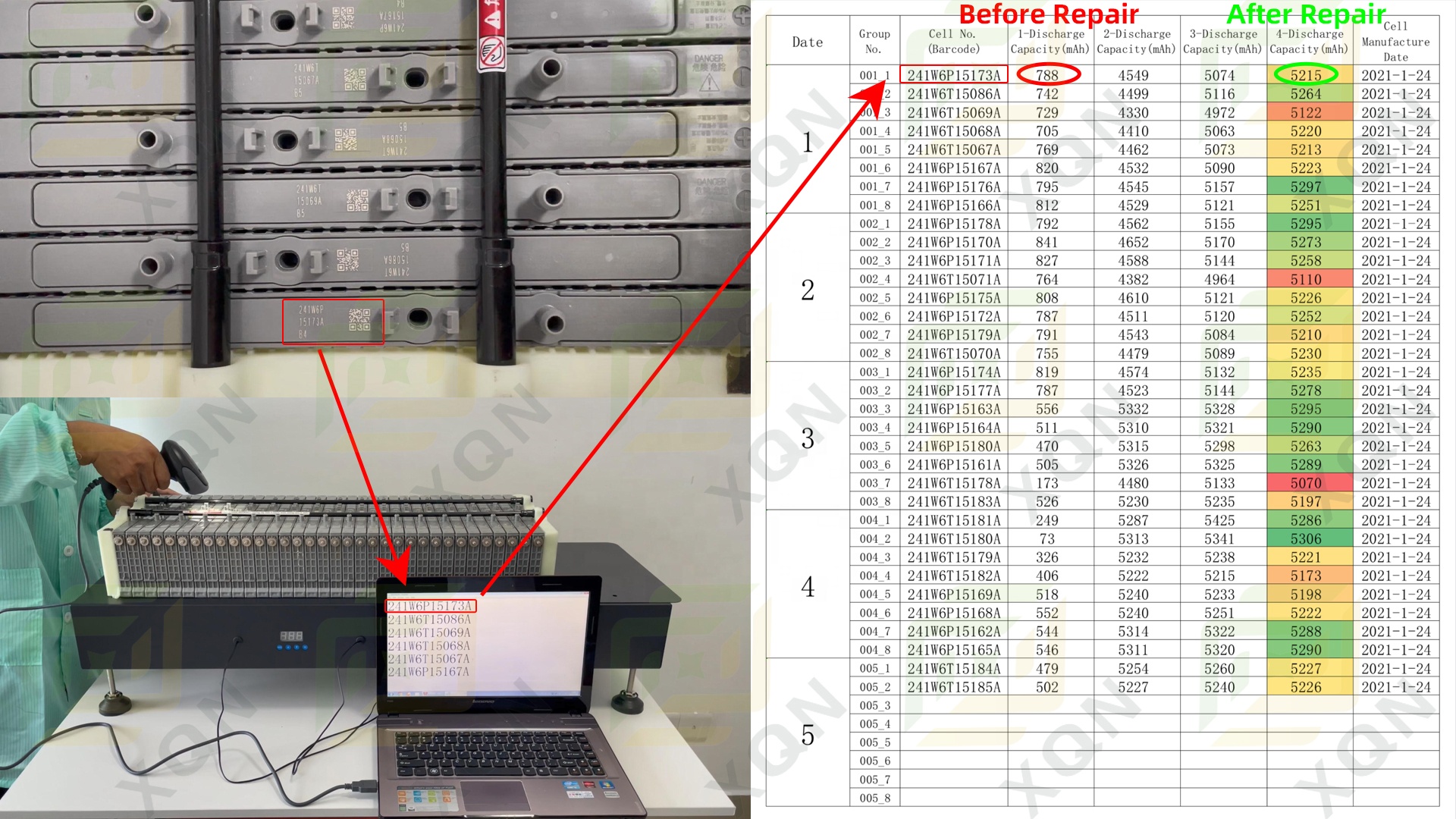

Each channel can function independently without interference with each other. And each channel has a temperature sensor to monitor the temperature of the batteries during the charging/discharging cycles. In addition, we have cooling tables for sale. We will provide professional software and training, which compares and sorts batteries for incorporation into remanufactured packs.
Battery Diagnostic Software
Hybrid battery service that keeps you moving
Hybrid Battery Unit Screen

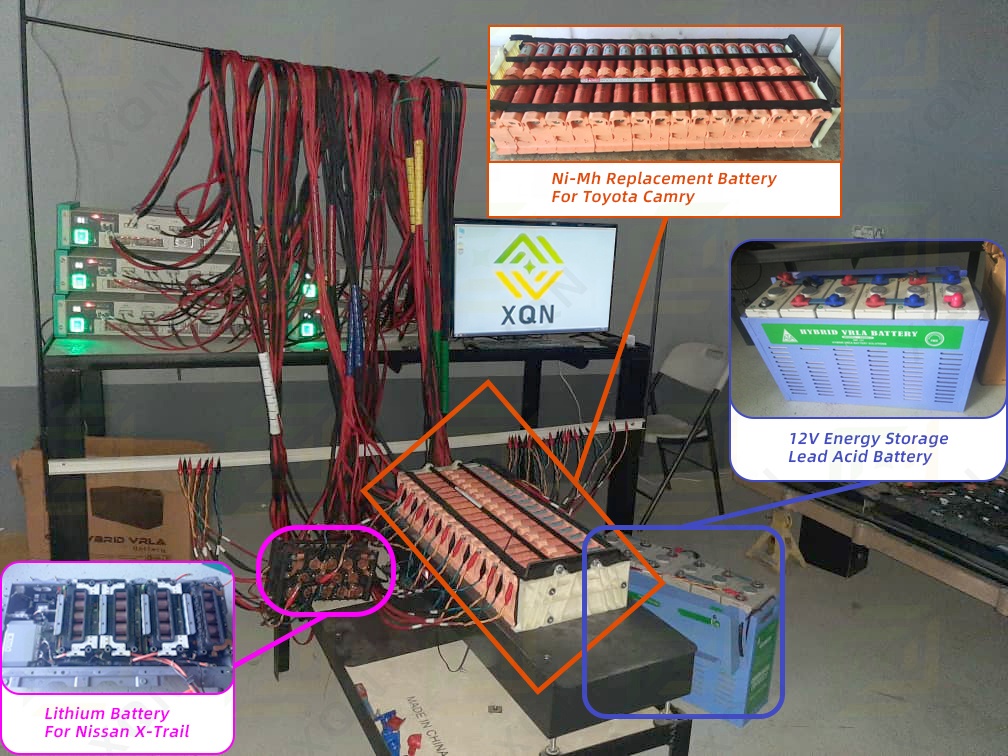

Hybrid Battery Tester Interface
Details & Specifications

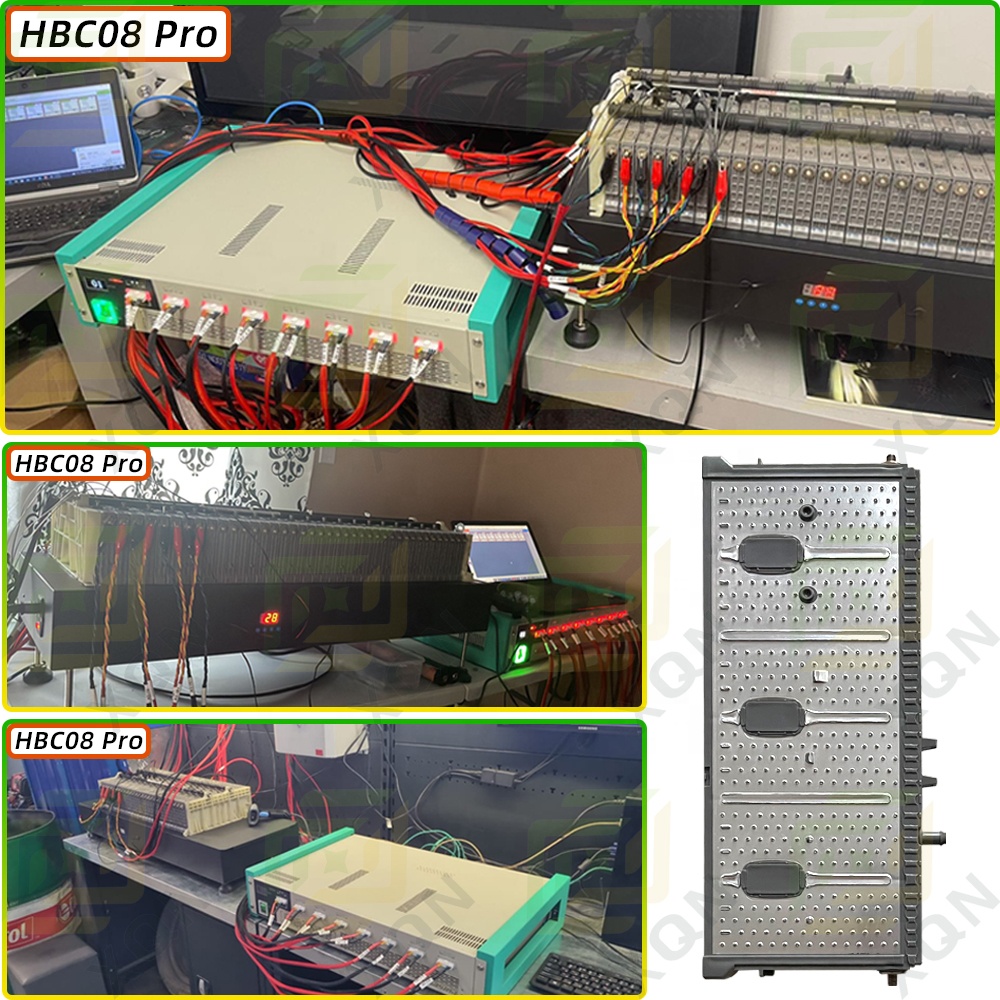

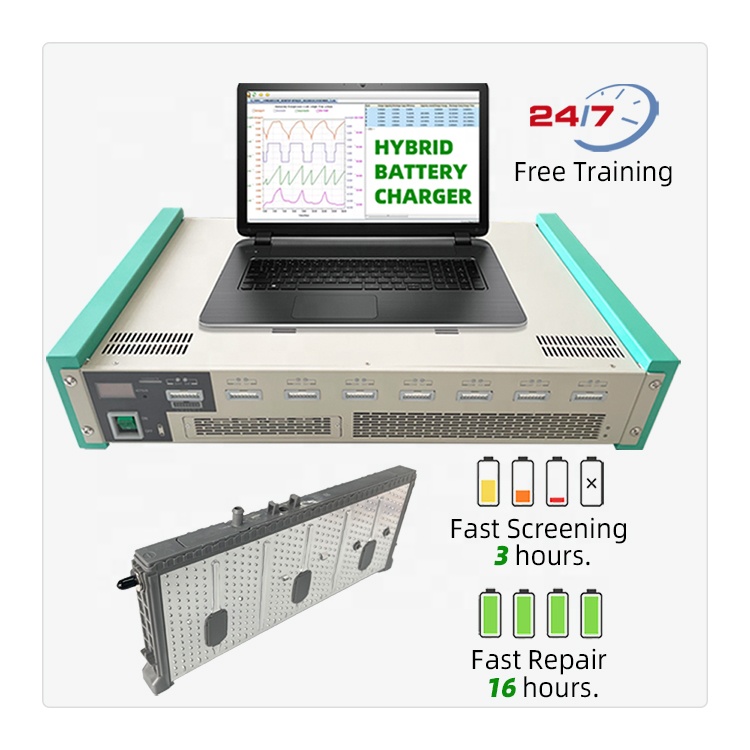

HBC08 PRO Detail Image
HBC08 PRO (Version 4.0) Parameters
Main channels 8 channels
Channels working mode Independently
Main channel test cutoff condition Time, total voltage, total current, capacity, -ΔV, Vcell, RSOC, etc.
Power supply AC 220V±10%, or Customized
Frequency 50HZ±5%, or customized
Working humidity Less than ≤ 85%R.H (non-condensing)
Testing Process 1
Testing Process 2

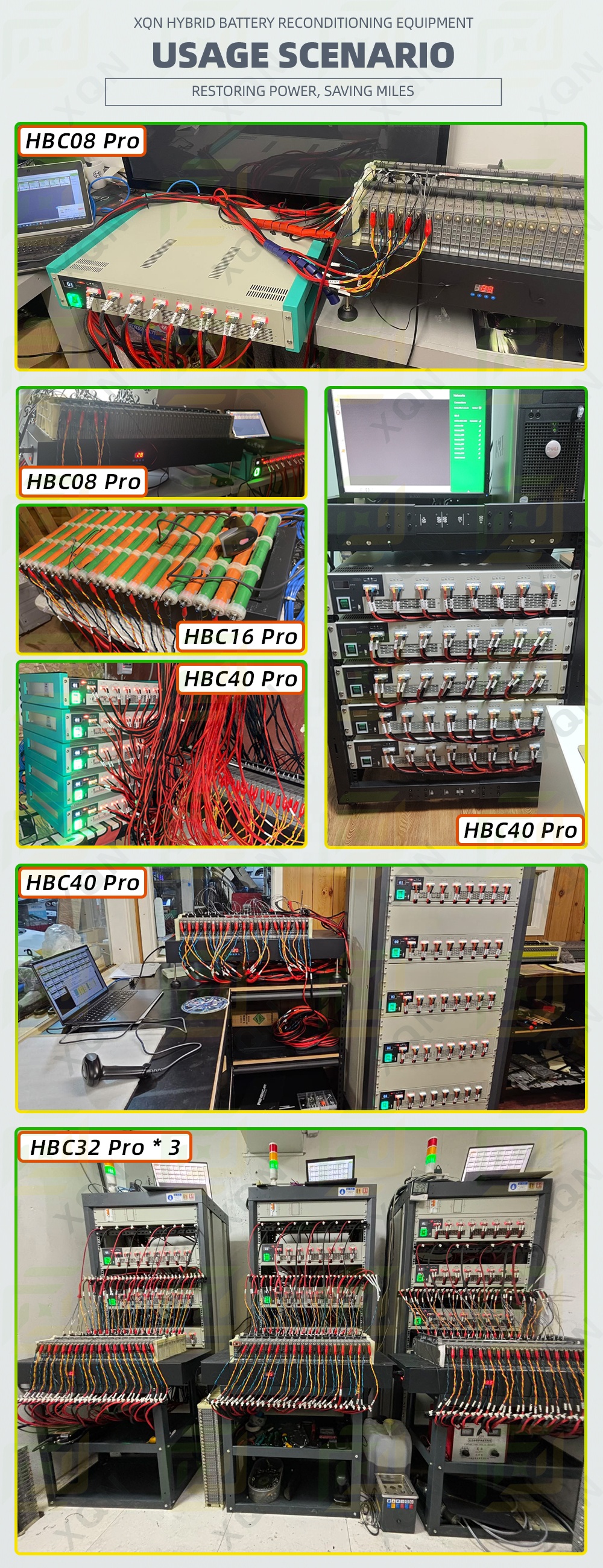

Equipment Setup
System Operation
Available Models & Channels Selection
We offer professional equipment configurations to match various capacity needs, ranging from standard testing units to high-volume multi-channel battery maintenance systems:
Supported Configurations: HBC08 Pro (8 channels), HBC16 Pro (16 channels), HBC24 Pro (24 channels), HBC32 Pro (32 channels), HBC40 Pro (40 channels), HBC48 Pro (48 channels), HBC56 Pro (56 channels), HBC64 Pro (64 channels), HBC72 Pro (72 channels), HBC80 Pro (80 channels).

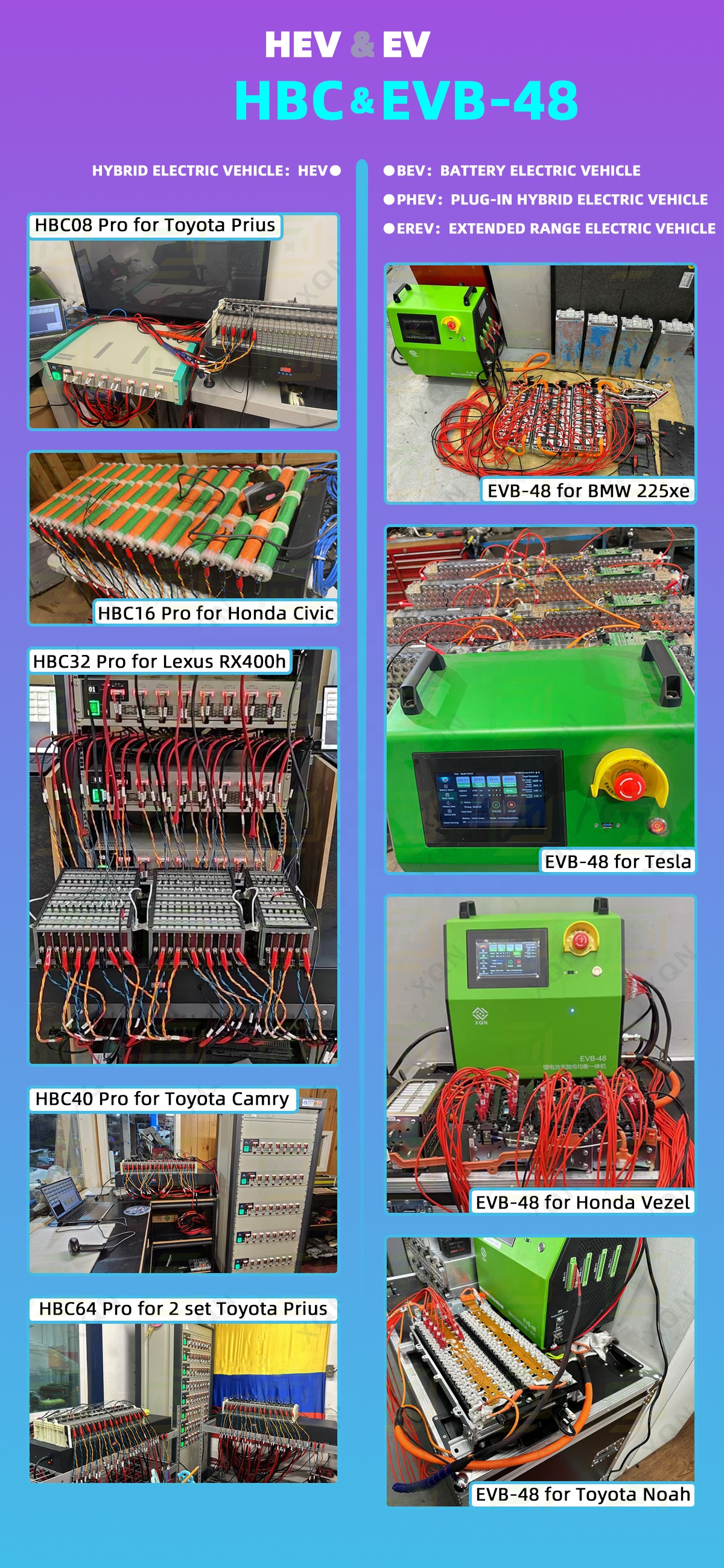

HBC Multi-channel Tester Models
Packing & Shipping
Packing and Shipping Details
Why Choose Us
Get A Quote
Frequently Asked Questions

How long does a hybrid battery typically last?

The lifespan of a hybrid battery can vary depending on various factors such as the make and model of the hybrid vehicle, driving conditions, and maintenance practices. On average, a hybrid battery may last anywhere from 8 to 10 years or more, but this can vary significantly. It's important to follow the manufacturer's recommended maintenance schedule and driving practices to maximize the lifespan of the hybrid battery.

Do I need to replace the entire hybrid battery or just the failed cells?

It depends on the specific issue with the hybrid battery. In some cases, only the failed cells can be replaced, while in others, the entire battery pack may need to be replaced.

How do I know if my hybrid battery is failing?

There are several signs that may indicate a failing hybrid battery, including: reduced fuel efficiency, decreased performance, warning lights or error messages related to the hybrid system, difficulty starting the vehicle, inability to maintain charge or hold a charge, and loss of hybrid features such as regenerative braking. If you notice any of these signs, it's best to have your hybrid battery diagnosed by a qualified hybrid technician to determine if it needs repair or replacement.

How can I extend the lifespan of my hybrid battery?

To extend the lifespan of your hybrid battery, you can follow some best practices such as regular maintenance, avoiding extreme temperatures, driving in hybrid mode as much as possible, and avoiding deep discharges or overcharging.

What do I need to prepare to use this machine?

You will need the following items: a computer or laptop, and used hybrid batteries. We will guide you remotely through the software installation and provide training on how to operate the machine.

What is the lead time for orders?

We have a lot of stock. Sample orders need 2-10 workdays, while mass production time needs 2-4 weeks, depending on the order quantity.
