To start using the extension kit, follow the activation steps outlined below. Please ensure you have received your Activation Card and diagnostic adapter cables before proceeding.

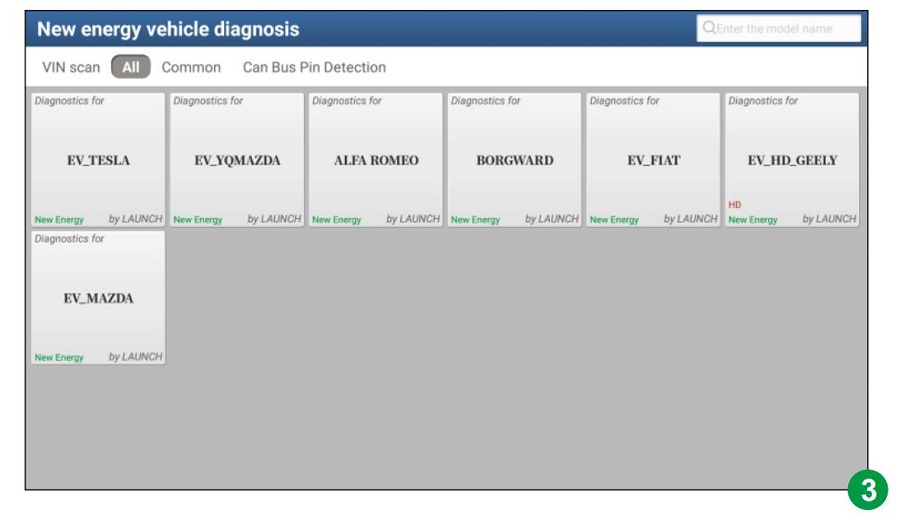

Vehicle Diagnosis covers all new energy vehicle diagnostic software included in the original product configuration.

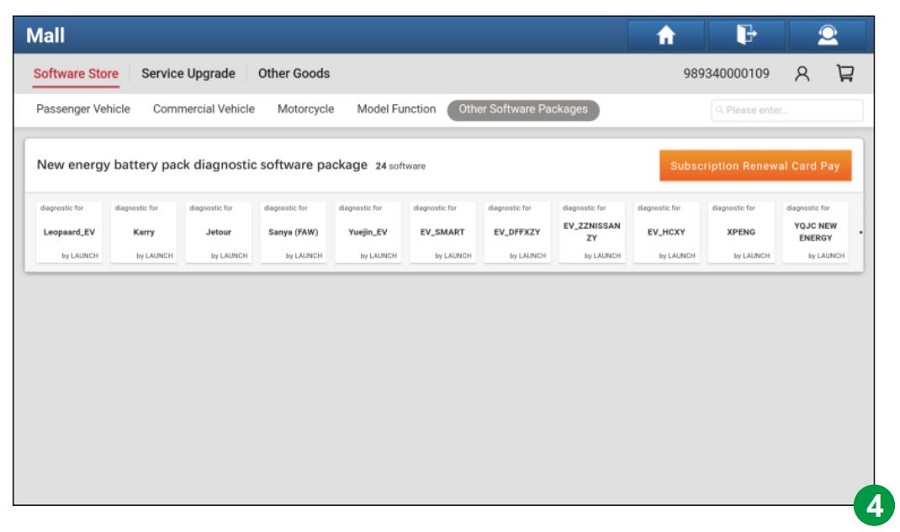

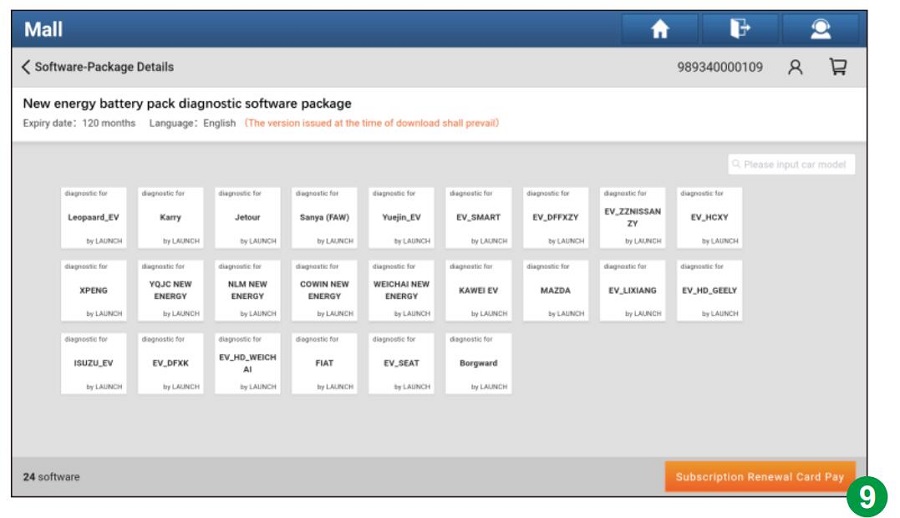

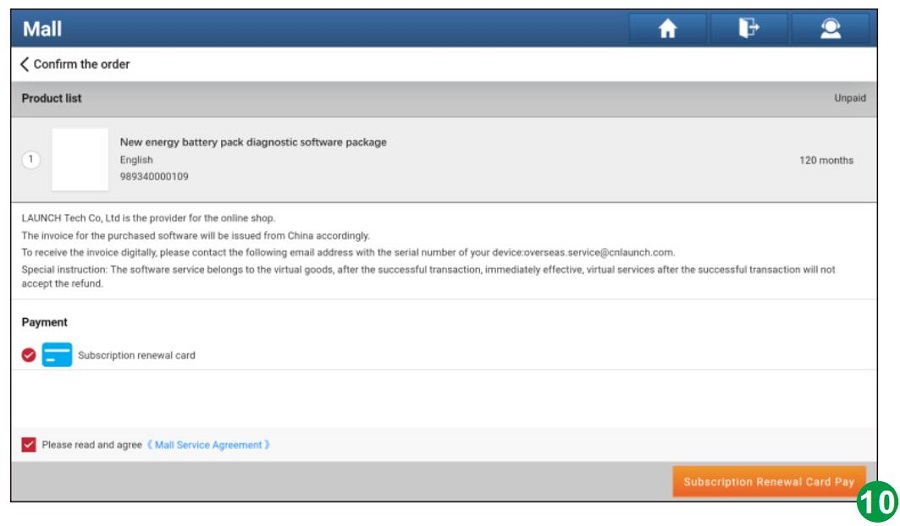

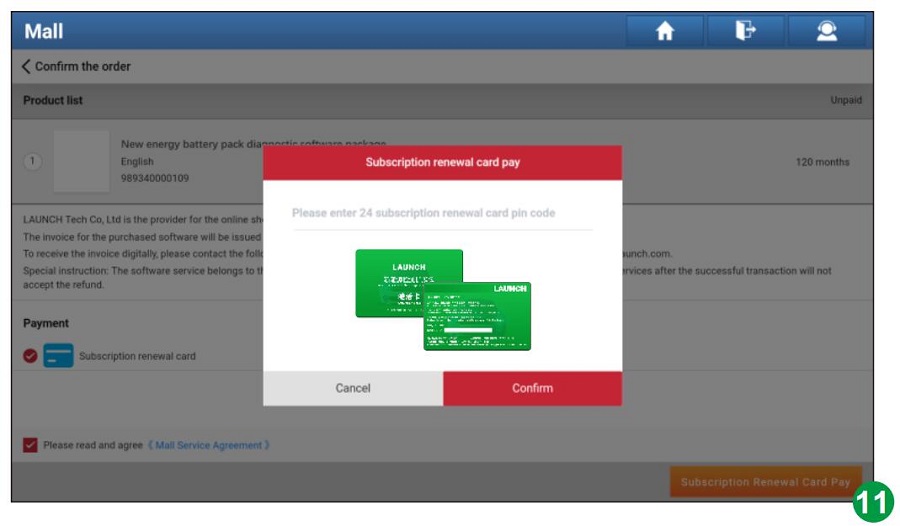

A. If not activated: It will navigate to the Mall module directly. Tap "Subscription Renewal Card Pay" and enter the 24-digit password to activate. After activation, go to Software Update to download and install the diagnostic software.
B. If activated but not downloaded: It will redirect to Software Update for download.

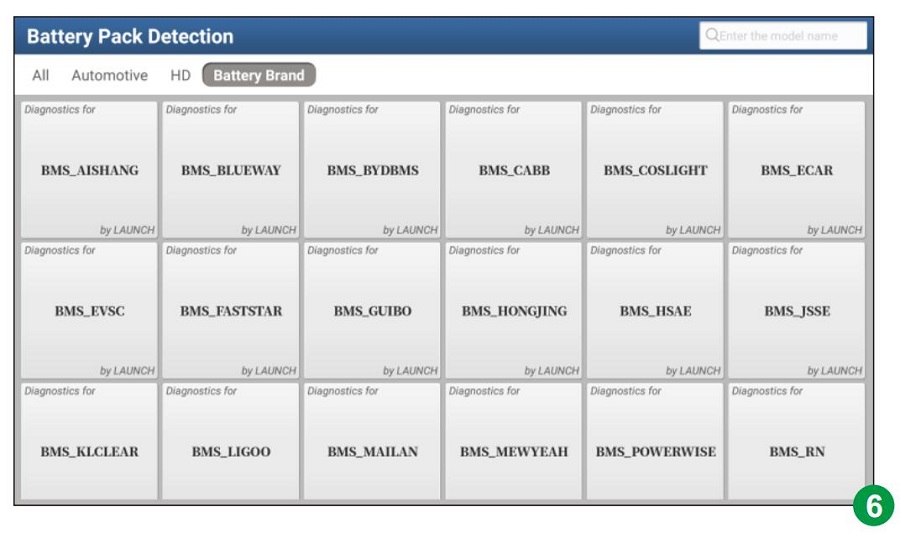

C. If activated and downloaded: It will enter the battery pack brand selection screen directly.
All illustrations and descriptions in this operation instruction are based on the latest information available at the time of publication. Due to continuing improvements, actual product may differ slightly.

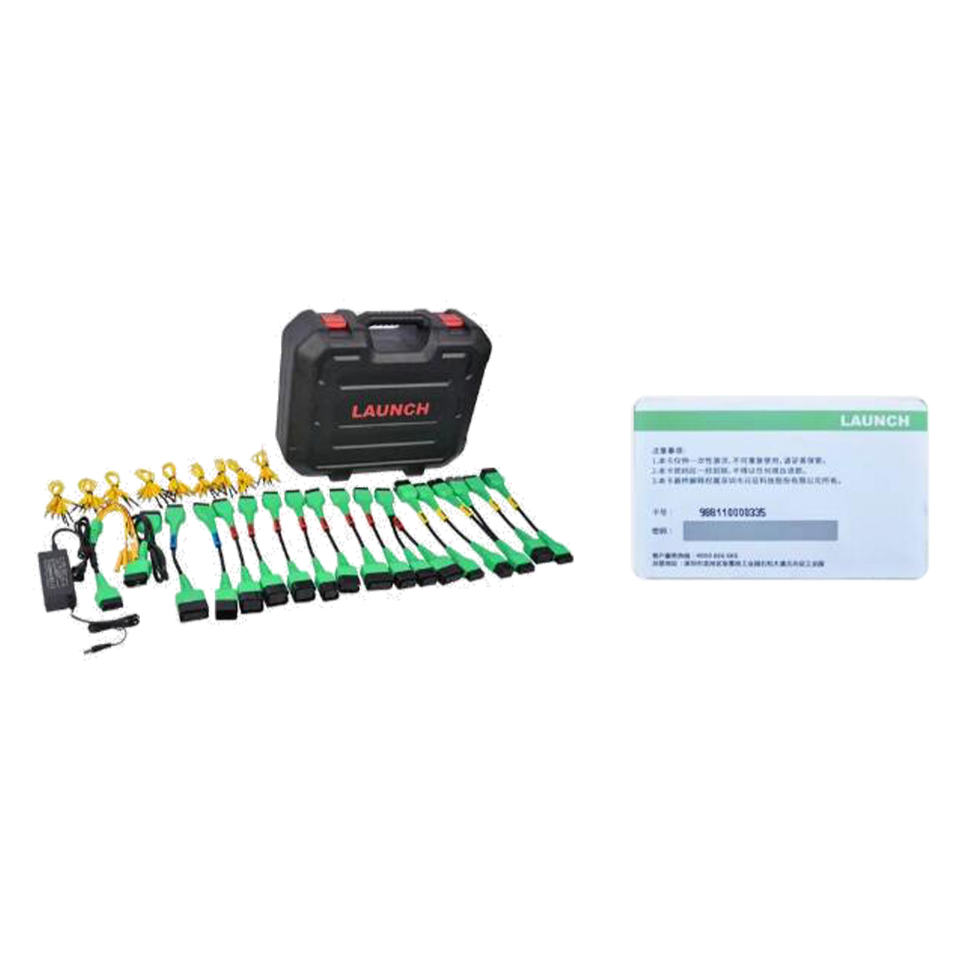

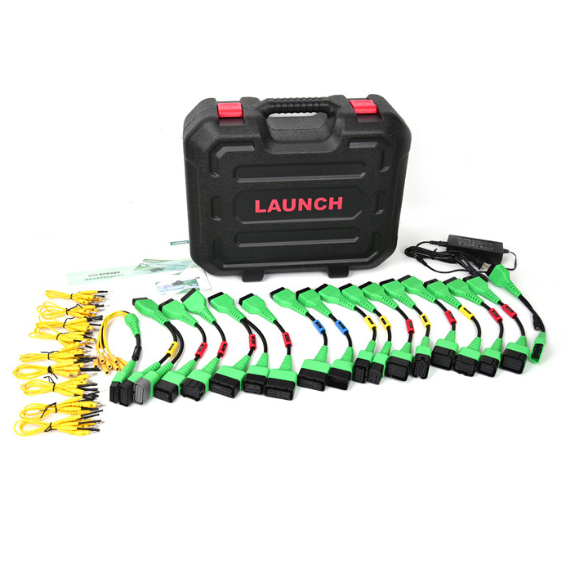

| Item Description | Qty. |
|---|---|
| Tesla-12+20 connector, RoHS | 1pc |
| Special connector for Tesla airbag repair, RoHS | 1pc |
| (PAD VII) 220V/1.3A, 8-suffix British AC wire, 1M, RoHS | 1pc |
| OBD16 male to female new energy extension cable, with DC cable, RoHS | 1pc |
| X431 EV MAX battery pack detection 8PIN diagnostic connector, RoHS | 1pc |
| X-431 PAD IV electric control adapter cable 1, RoHS | 1pc |
| X-431 PAD IV electric control adapter cable 10, RoHS | 1pc |
| X-431 PAD IV electric control adapter cable 11, RoHS | 1pc |
| X-431 PAD IV electric control adapter cable 12, RoHS | 1pc |
| X-431 PAD IV electric control adapter cable 2, RoHS | 1pc |
| X-431 PAD IV electric control adapter cable 3, RoHS | 1pc |
| X-431 PAD IV electric control adapter cable 6, RoHS | 1pc |
| X-431 PAD IV electric control adapter cable 7, RoHS | 1pc |
| X-431 PAD IV electric control adapter cable 8, RoHS | 1pc |
| Battery pack test line 100 models, RoHS | 1pc |
| Battery pack test line 101, RoHS | 1pc |
| Battery pack test line 102, RoHS | 1pc |
| Battery pack test line 103, RoHS | 1pc |
| Battery pack test line 104, RoHS | 1pc |
| Battery pack test line 105, RoHS | 1pc |
| Battery pack test line 106, RoHS | 1pc |
| Battery pack test line 107, RoHS | 1pc |
| Battery pack test line 108, RoHS | 1pc |
| Battery pack test line 109, RoHS | 1pc |
| Battery pack test line 110 models, RoHS | 1pc |
| Battery pack test line 112 models, RoHS | 1pc |
| Battery pack test line 113, RoHS | 1pc |
| Battery pack test line 114, RoHS | 1pc |
| Battery pack test line 115 models, RoHS | 1pc |
| Battery pack test line 116, RoHS | 1pc |
| Battery pack test line 119, RoHS | 1pc |
| Battery pack test line 124 types, RoHS | 1pc |
| Battery pack test line 126 models, RoHS | 1pc |
| Battery pack test line 127 models, RoHS | 1pc |
| Battery pack test line 130 models, RoHS | 1pc |
| Battery pack test line 152 models, RoHS | 1pc |
| (PAD VII), 8-suffix Australian standard AC wire, 1M, RoHS | 1pc |
| (PAD VII) 220V/1.3A, 8-suffix European standard AC wire, 1M, RoHS | 1pc |
| Power adapter, 12V4A, 48W desktop, 8-suffix DC connector 5.5, US standard AC cable, 2M, RoHS | 1pc |
| New Energy Detection Extension Pack Overseas Configuration Operation Guide, RoHS | 1pc |
| Activation Card | 1pc |
The EV New Energy Battery Diagnostics Upgrade Test Kit is fully compatible with the X-431 PAD V and X-431 PAD VII diagnostic scanners.
You can analyze the battery pack State of Charge (SOC) and State of Health (SOH) on Tesla, BYD, and many other leading electric vehicle models.

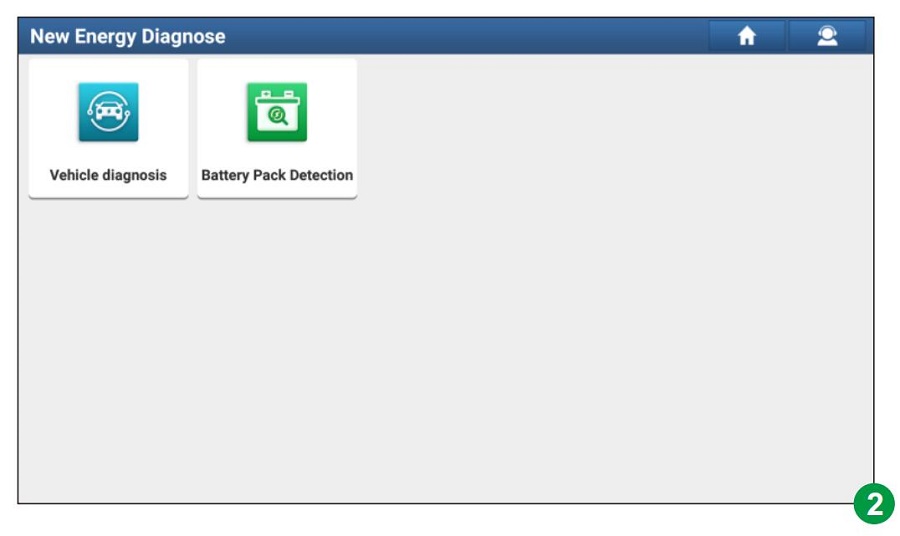

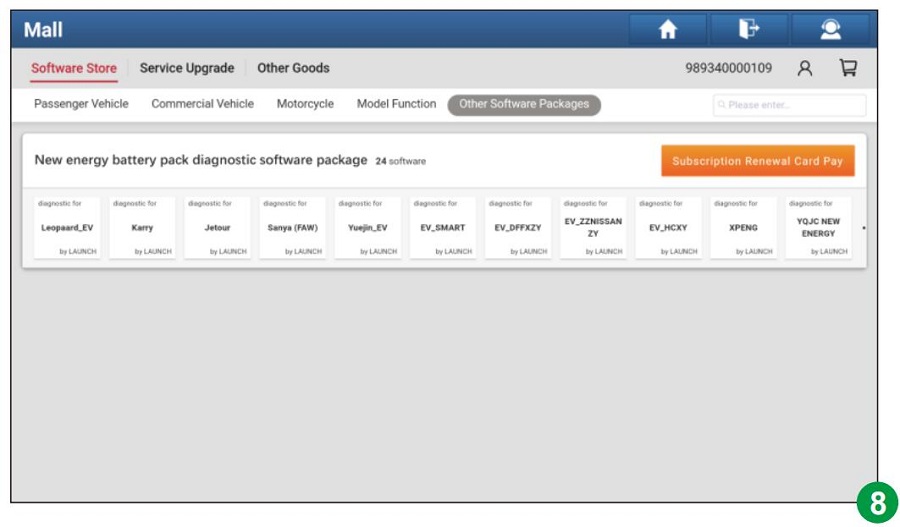

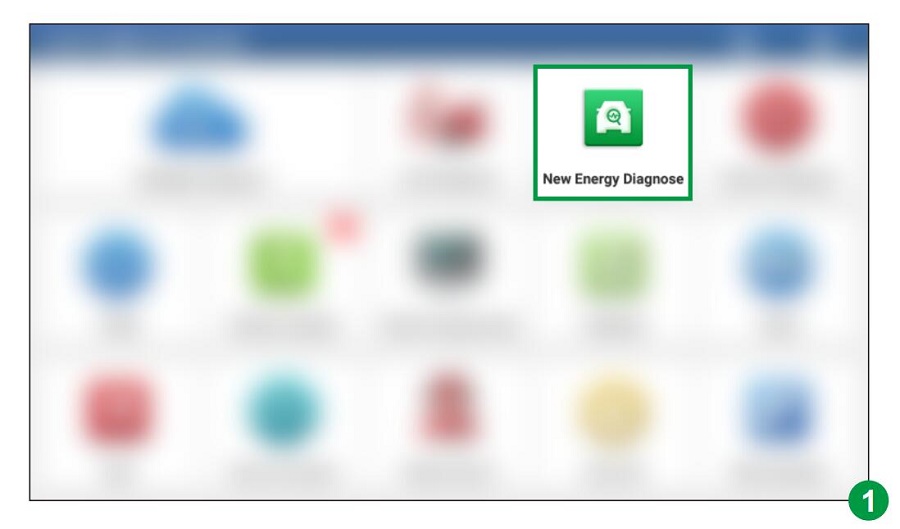

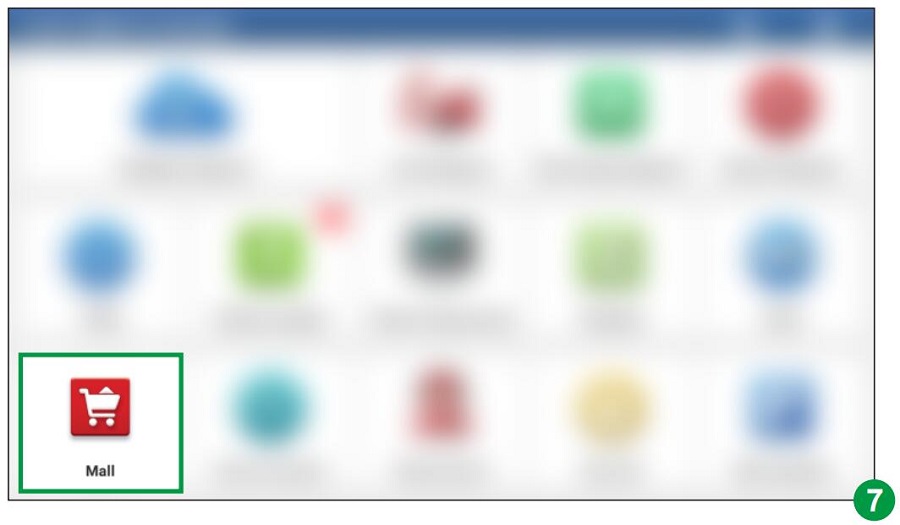

You can activate it using either Method 1 through the "New Energy Diagnose" module on the Job Menu, or Method 2 via the "Mall" menu. Both methods require entering the 24-digit activation password from your Activation Card.
To use the activation module, you must update the main diagnostic application to V7.03.025 or above for X-431 PAD V, and V7.00.021 or above for X-431 PAD VII.

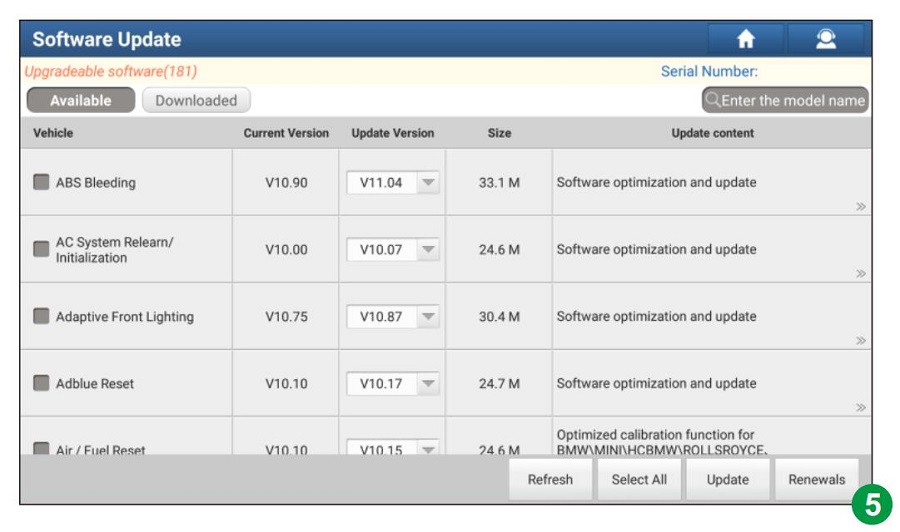

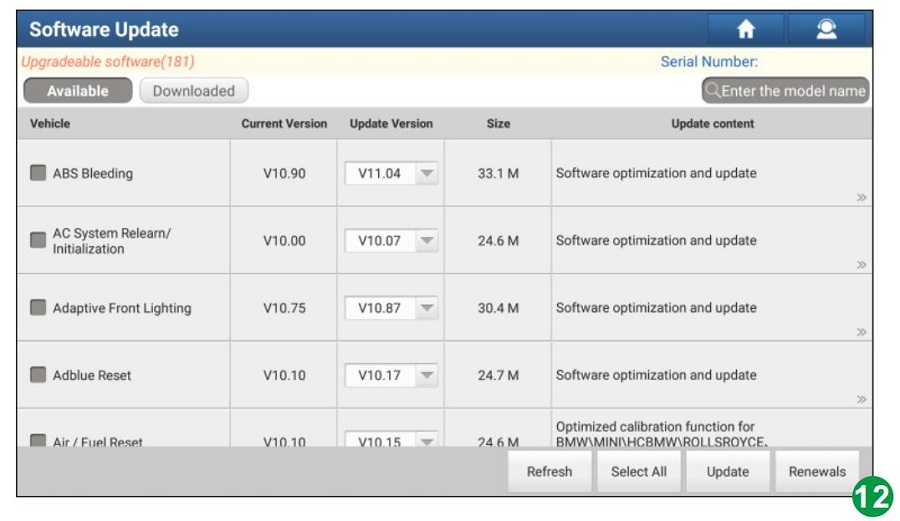

After entering the 24-digit activation password and confirming activation, go to the "Software Update" screen to download and install the required battery pack diagnostic software.
Yes, the package includes specialized connectors such as the Tesla-12+20 connector and the Tesla airbag repair connector alongside other specific adapter test cables.
