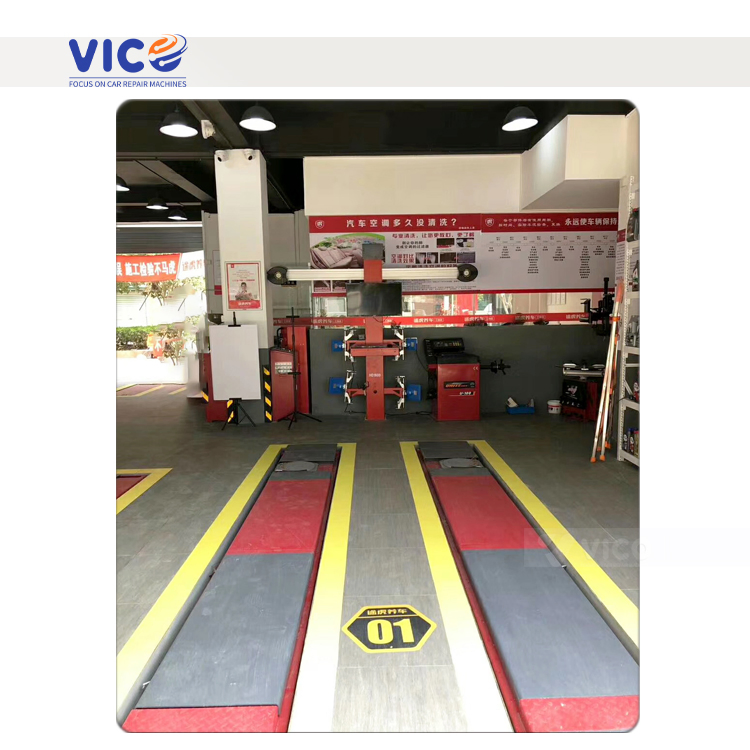

Vico Car Wheel Alignment Machine Wheel Aligner Equipment

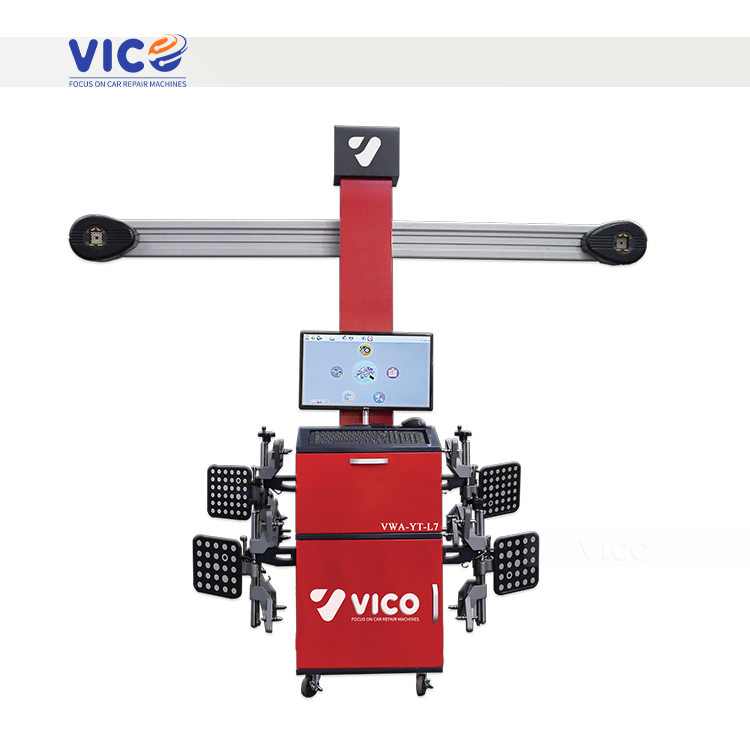

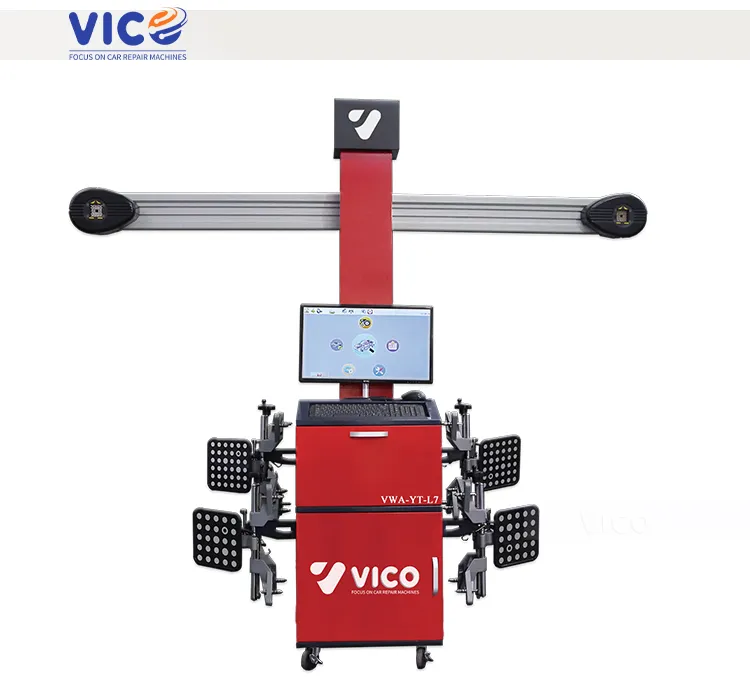

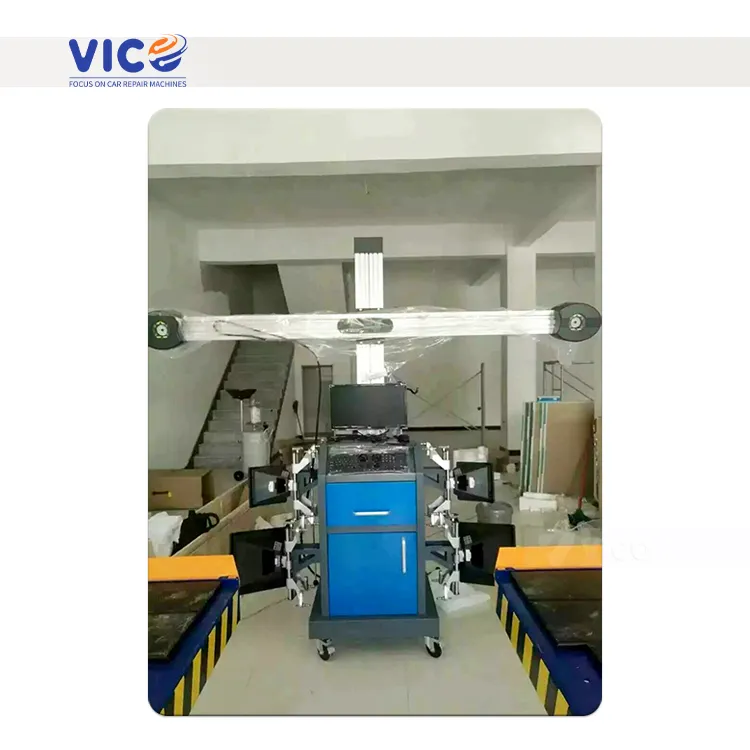

1. Hardware Configuration

Dedicated high-definition industrial camera
Patented epoxy glass fiber target disk
High-performance computer with 24" LCD monitor
Hanger and hanger bracket
Steering wheel holder and brake fixation regulator
Wedge block, corner disc, and corner disc transition block
Voltage stabilizer

2. Measuring Software Features

Basic Functions: Toe angle, camber angle, kingpin caster angle, kingpin inclination angle, wheelbase, axle offset measurement, wheel offset measurement, retreat angle, thrust angle.

Extensions: Single wheel measurement, steering wheel adjustment function, vehicle lift measurement.

Technical Specifications

Post Maximum Height	2550mm
Beam Maximum Length	2760mm
Box unit size	5405501000mm
Gross weight	160kgs

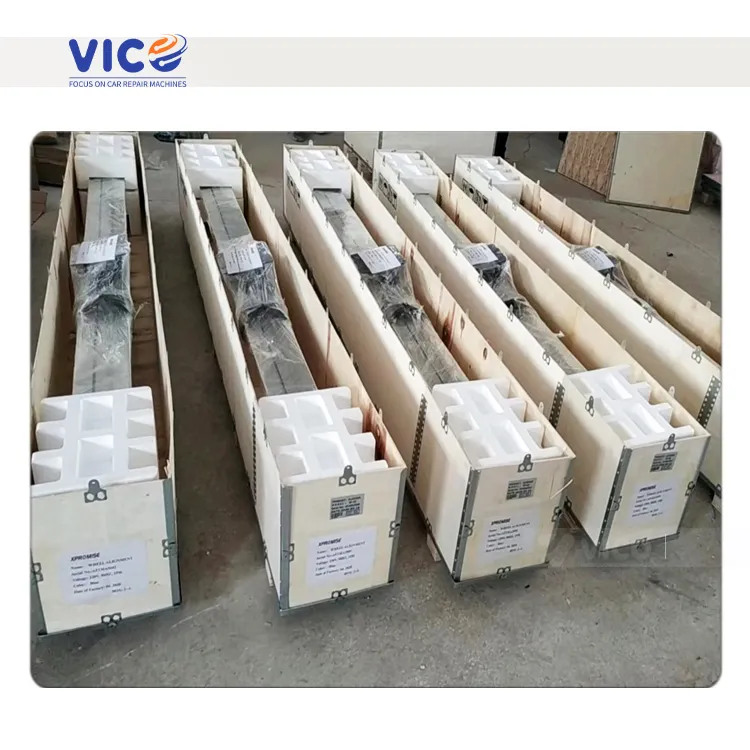

Packing and volume	2pkgs/1.4cbm

Accuracy & Measuring Range

Item	Accuracy	Range
Display Accuracy	0.01mm / 0.01°	/
SAI	±0.02°	±20°
Caster	±0.05°	±20°
Camber	±0.02°	±10°
Toe	±0.02°	±20°
Thrust Angle	±0.02°	±5°
Setback	±0.02°	±5°
Total Toe	±0.02°	±40°
Max Turn Angle	±0.08°	±50°
Axle Distance	±2mm	4200mm

Car Wheel Alignment Machine Wheel Aligner Equipment

We can offer New auto body shop equipment solutions

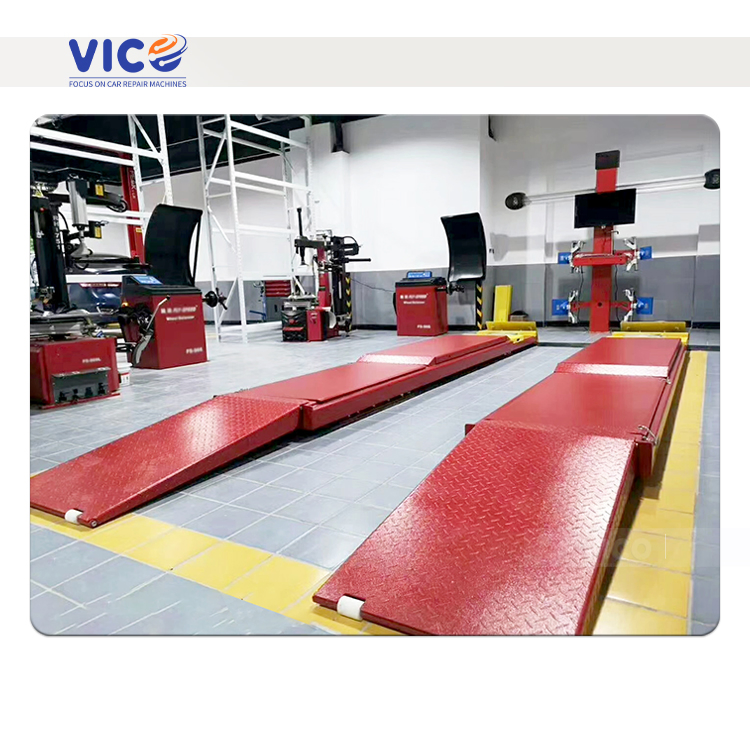

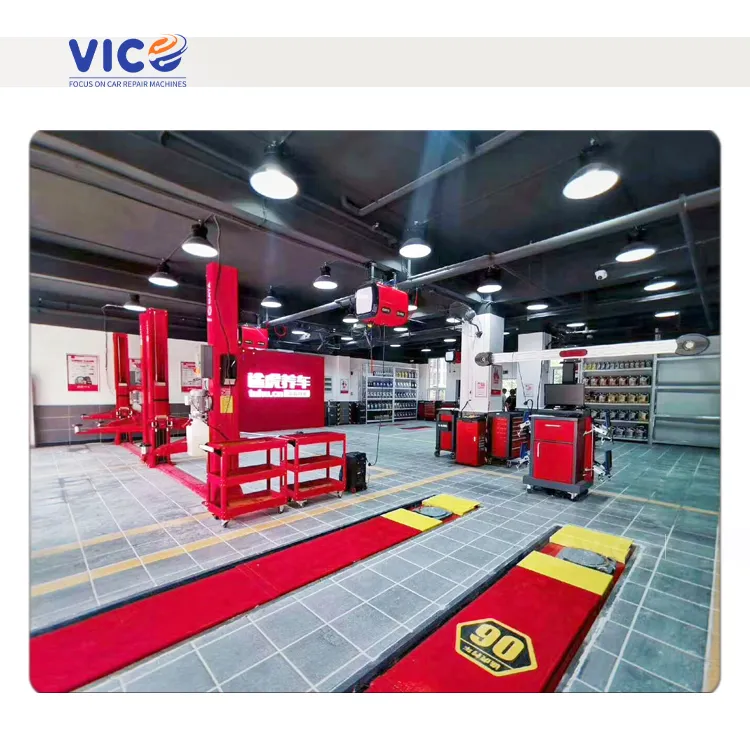

We have a variety of vehicle lifting models, which can be used with wheel alignment. We can provide you with customized designs according to your special requirements. You can look through our website or contact our sales directly, we will reply you in 12 hours and free offer your solution design and help you choose right machine for your shop.

Frequently Asked Questions (FAQ)

Q: What are the core components of the hardware configuration?

The setup includes a dedicated high-definition industrial camera, a patented epoxy glass fiber target disk, a high-performance computer with a 24" LCD monitor, standard hangers, steering wheel holder, brake fixation regulator, and a dedicated voltage stabilizer to ensure safe operation.

Q: What parameters can this wheel aligner measure?

It supports basic alignment functions including toe angle, camber angle, kingpin caster, kingpin inclination, wheelbase, axle offset, wheel offset, retreat angle, and thrust angle. Extension functions like single wheel measurement and vehicle lift measurement are also supported.

Q: What is the measuring accuracy of this system?

The display accuracy is 0.01mm / 0.01°. Essential values like SAI, Camber, Toe, Thrust Angle, and Setback feature an industry-standard accuracy of ±0.02°.

Q: Can I customize this equipment setup for my specific auto body shop?

Yes, customized designs can be provided based on your workshop layout and vehicle lifting requirements. Our sales team offers free design planning to help you select the ideal combination of lifting models and wheel aligners.

Q: How are the target disks constructed?

The target disks are made from a patented epoxy glass fiber material, which is highly durable, lightweight, and designed to withstand the typical demands of a busy automotive workshop.
