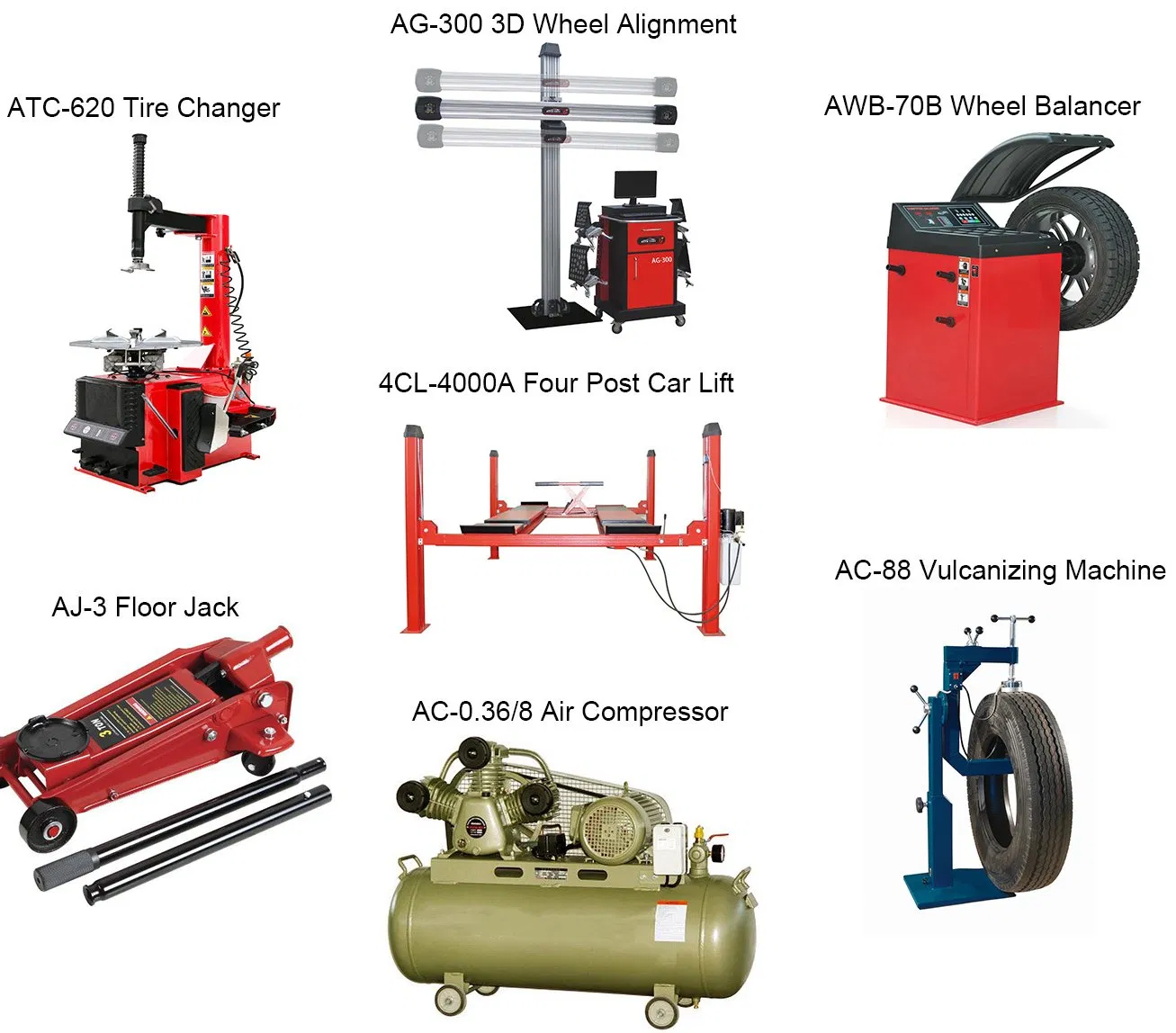

Product Description

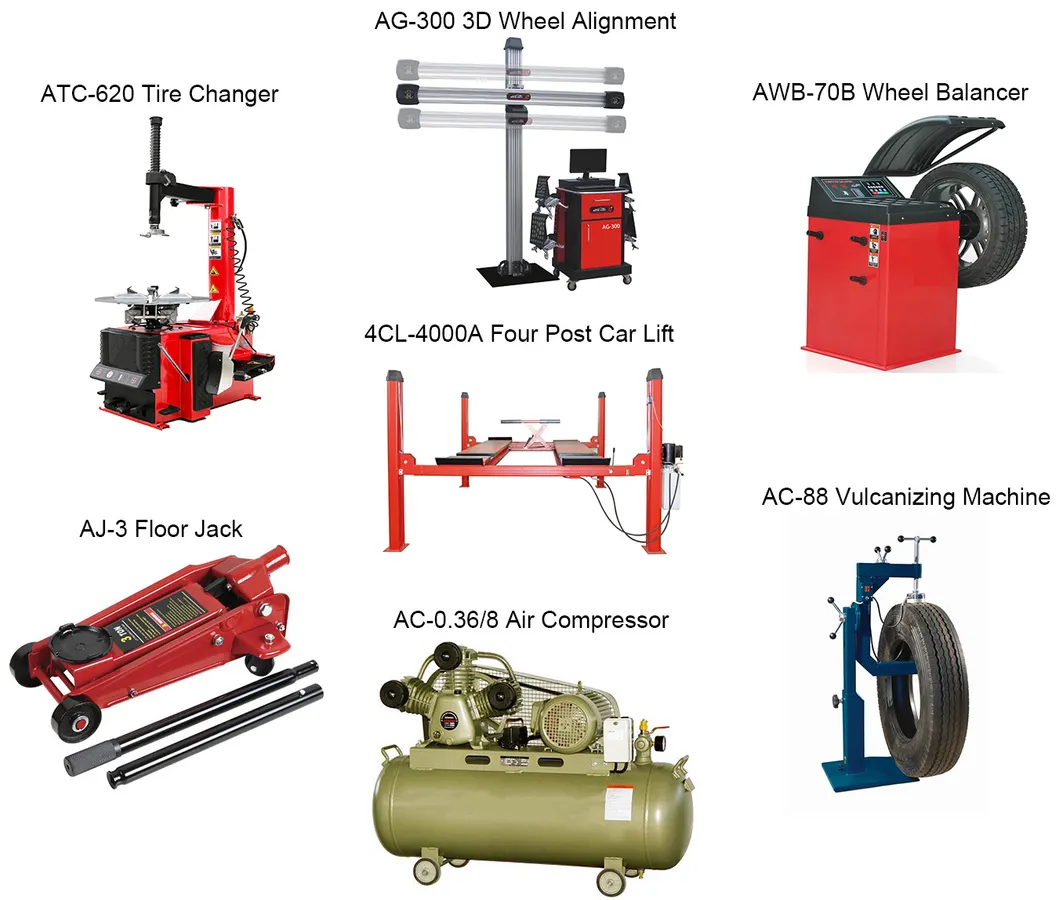

Top valued Car Wheel Changer Alignment Lift with CE approved

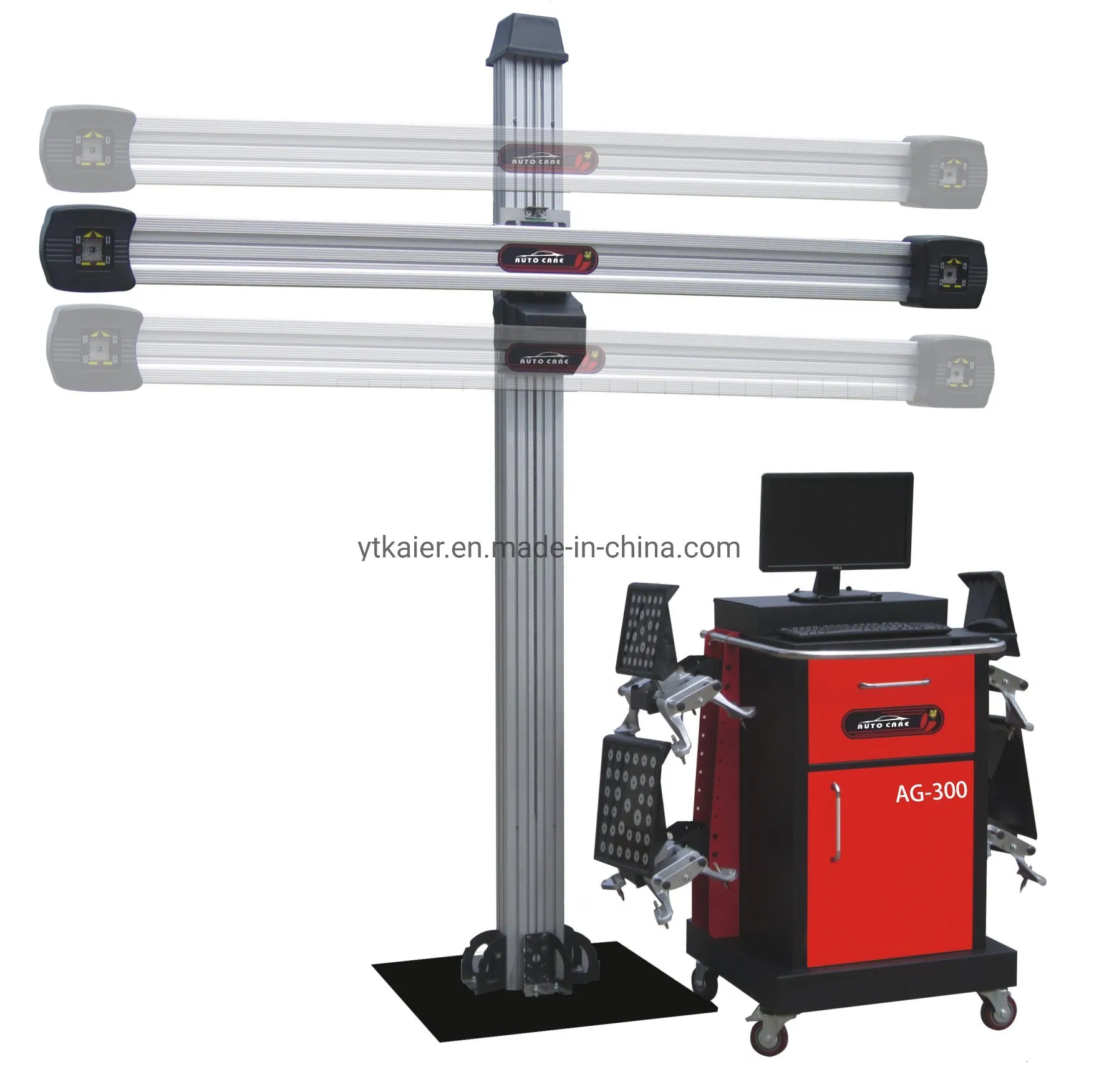

Specification for 3D Wheel Alignment
| Items |
Front wheel measurement precision |
Measurement range |
Rear wheel measurement precision |
Measurement range |
| Toe |
±0.02 |
±20° |
±0.02 |
±20° |
| Camber |
±0.02 |
±15° |
±0.02 |
±15° |
| S.A.I |
±0.02 |
±26° |
x |
x |
| Caster |
± |
± |
x |
x |
| Thrust Angle |
x |
x |
±0.02 |
±5° |

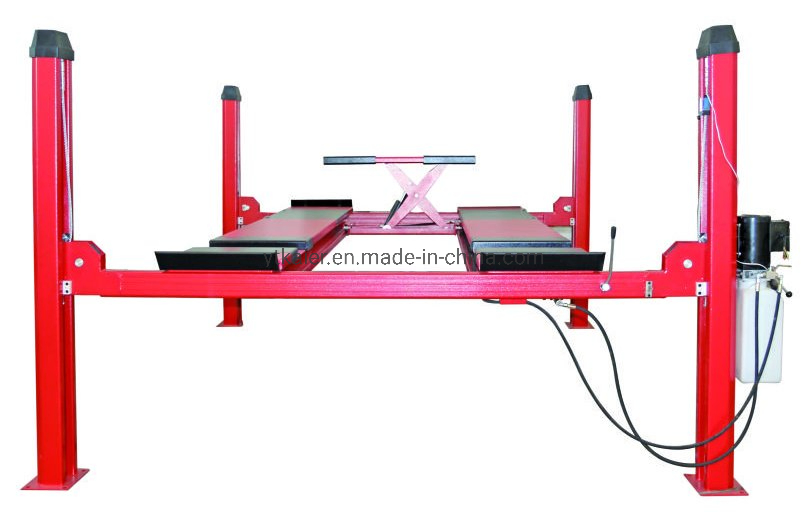

Specification for 4CL-4000A Four Post Car Lift
| Lifting Capacity |
4000 kgs |
| Lifting Height |
1800 mm |
| Lowest Height |
210 mm |
| Runway Length |
4200-4500mm |
| Width between Post |
810mm -1130 mm |
| Width between Column |
2850 mm |
| Rolling Jack Lifting Height |
160mm - 515 mm |
| Lifting Time |
50s |
| Motor Power |
2.2 kw |
| Power Supply |
220v/380v, 1/3 phase |

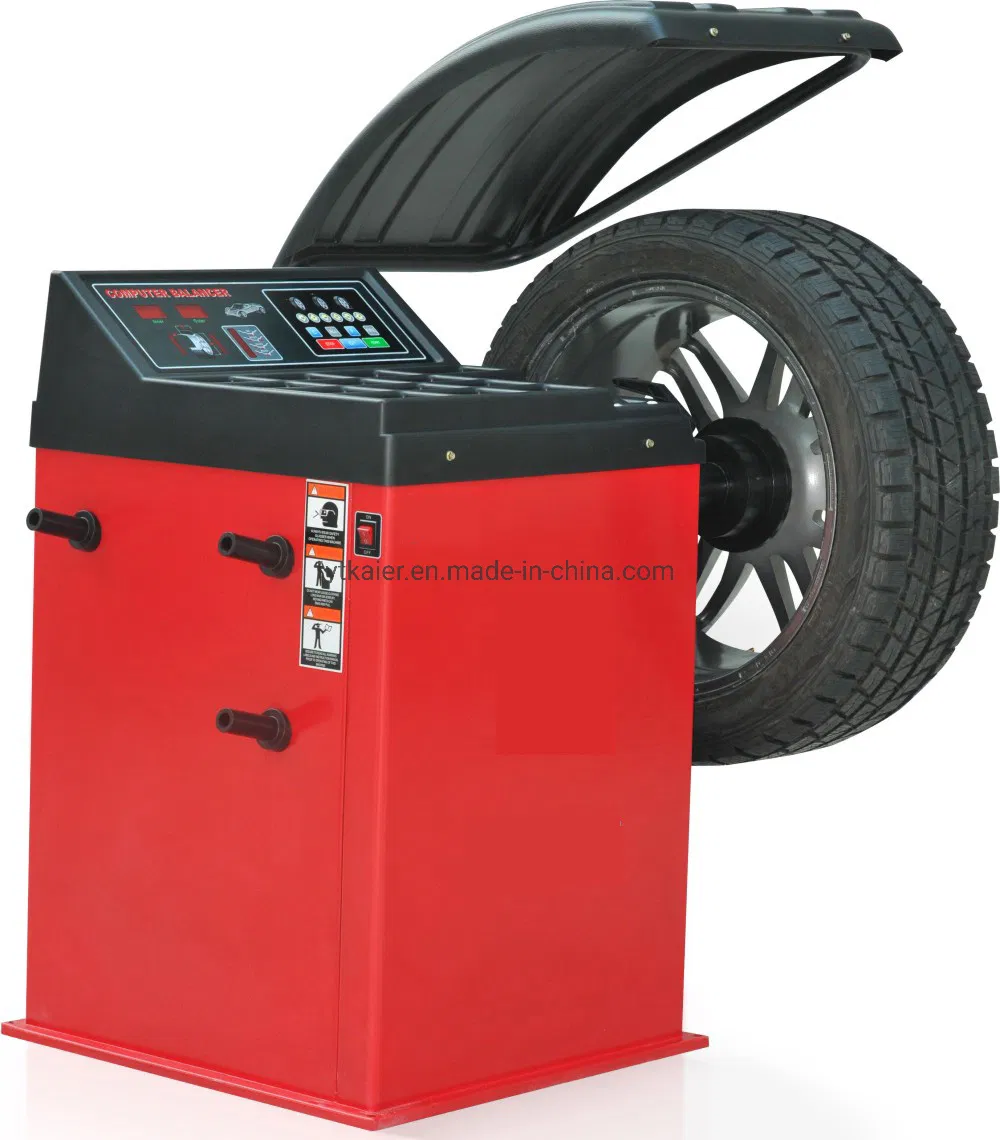

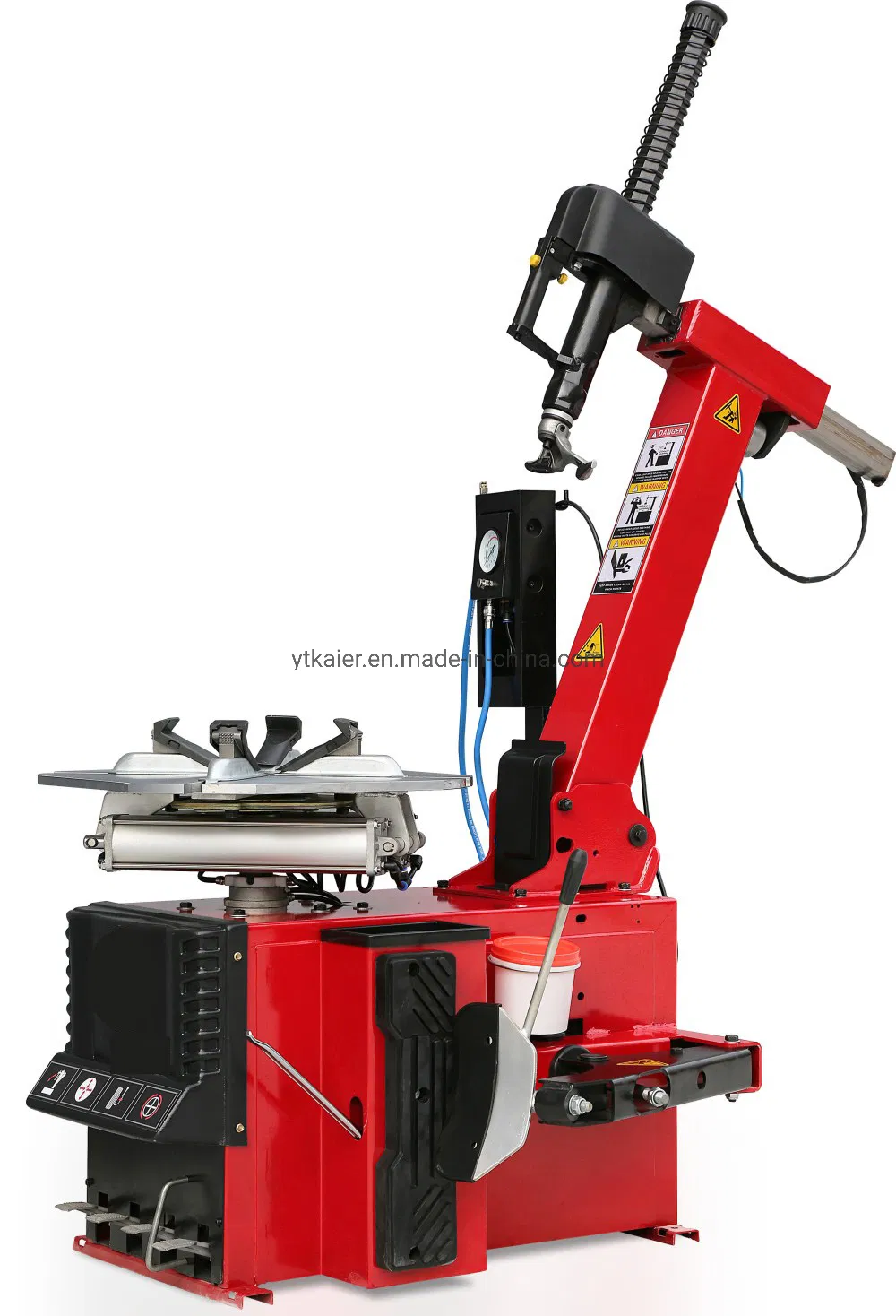

Specification for Tire Changer and Wheel Balancer Combo
| ATC-620 Tire Changer |
AWB-70 Wheel Balancer |
| Rim Clamping from Outside |
10"-22" |
Rim diameter |
10"-24" |
| Rim Clamping from Inside |
12"-24" |
Rotation speed |
200r/min |
| Max. Wheel Diameter |
1040mm |
Max. tire diameter |
1000mm |
| Tire Width |
3"-15" |
Tire width |
1.5"-16" |
| Working Pressure |
8-10 Bar |
Max. tire weight |
70kg |
| Voltage |
110v/220v/380v |
Balance precision |
±1g |
| Power |
0.75kw / 1.1 kw |
Power |
250w |
| Machine Weight |
186kg |
Machine weight |
90kg |
| Package Size |
1120*750*860mm |
Package Size |
980*720*1090mm |
Specification for 3kw-7.5kw Air Compressor
| Power |
Tank(L) |
Model |
Voltage |
Motor Material |
| 4HP/3KW |
90 |
AC-0.36/8 |
380v/50hz/3phase |
Copper |
| 5.5HP/4KW |
120 |
AC-0.45/8 |
| 7.5HP/5.5KW |
120 |
AC-0.67/8 |
| 10HP/7.5KW |
230 |
AC-1.05/12.5 |
Specification for AC-88 Overturn Vulcanizing Machine
| Supply voltage |
220v/1phase/50hz |
| Power |
800W |
| Vulcanizing temperature |
Auto Controlled |
| Applicable range |
From 7.50 To 10.00-20.00Tires |
| Package Size |
600*300*1150mm |
| Machine Weight |
50kg |
Specification for Floor Jack
| Model No. |
Capacity |
Package |
Min. H(mm) |
Lifting H(mm) |
Net Wt(kg) |
Qty(set) |
Measurement(mm) |
| AJ-2 |
2T |
Color Box |
85 |
385 |
13 |
1 |
570*220*85 |
| AJ-3 |
3T |
|
135 |
490 |
28 |
1 |
620*370*195 |
| AJ-4 |
4T |
|
75 |
500 |
36 |
1 |
770*380*165 |
| AJ-5 |
5T |
|
100 |
520 |
50 |
1 |
800*415*215 |

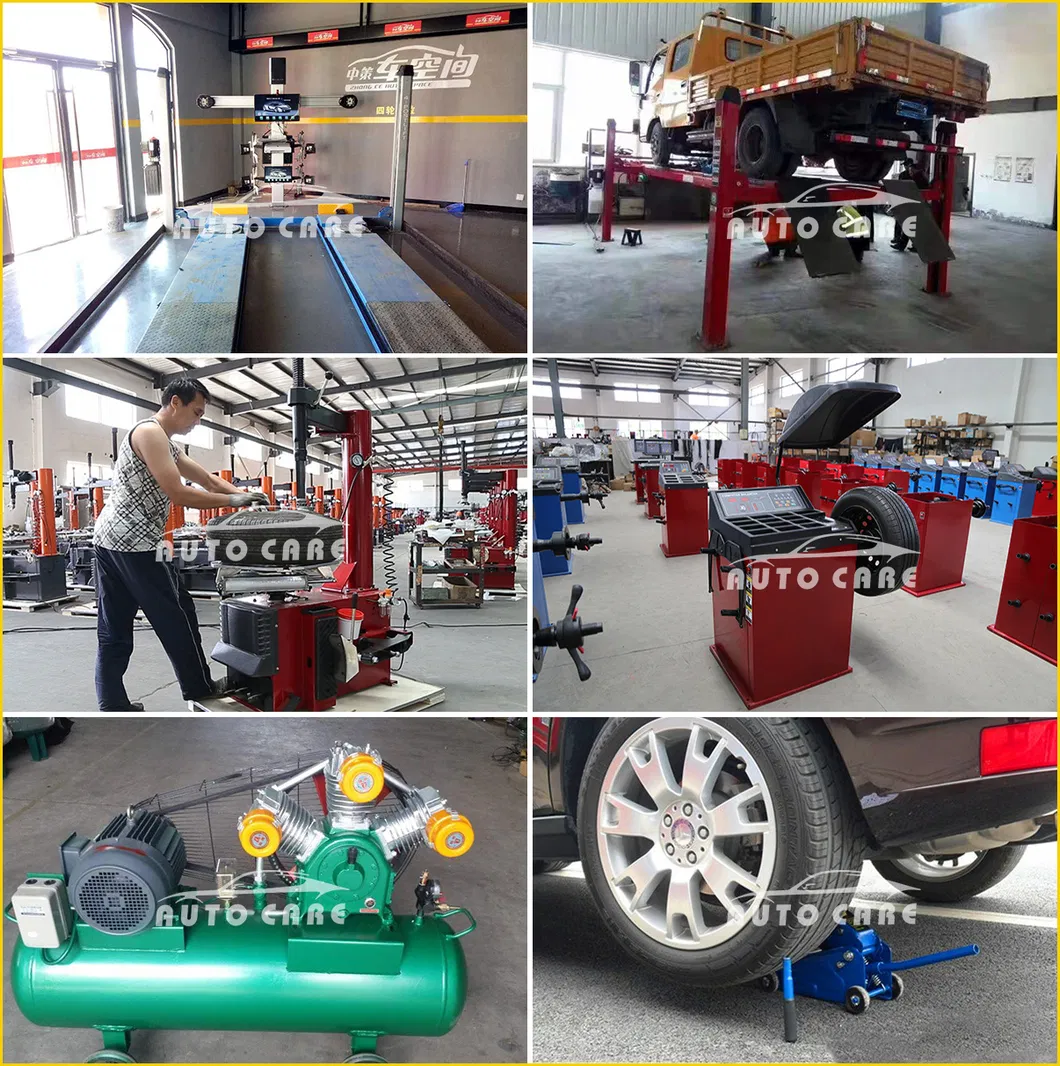

User Instance

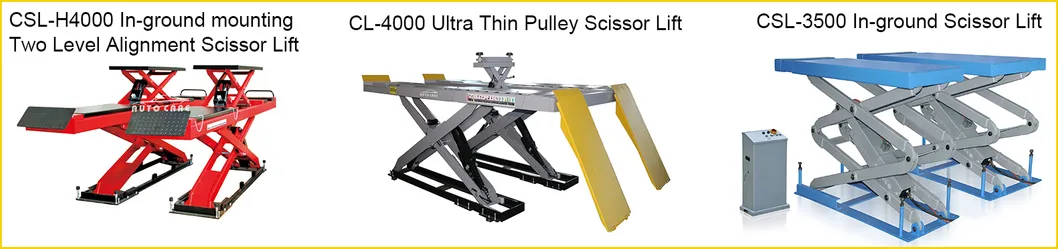

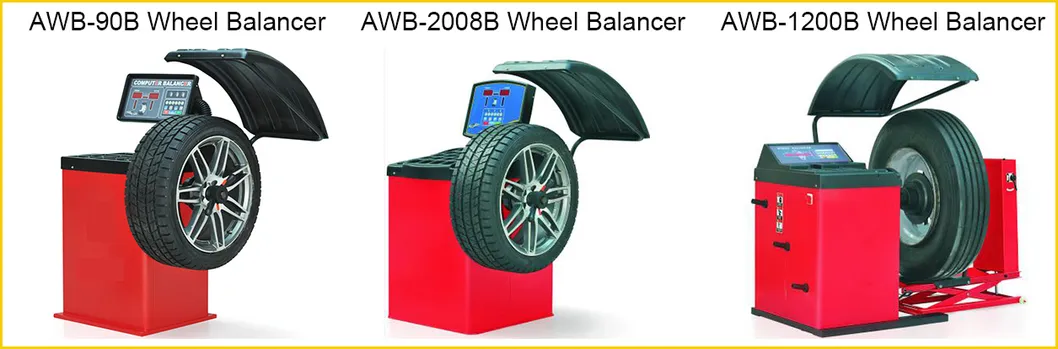

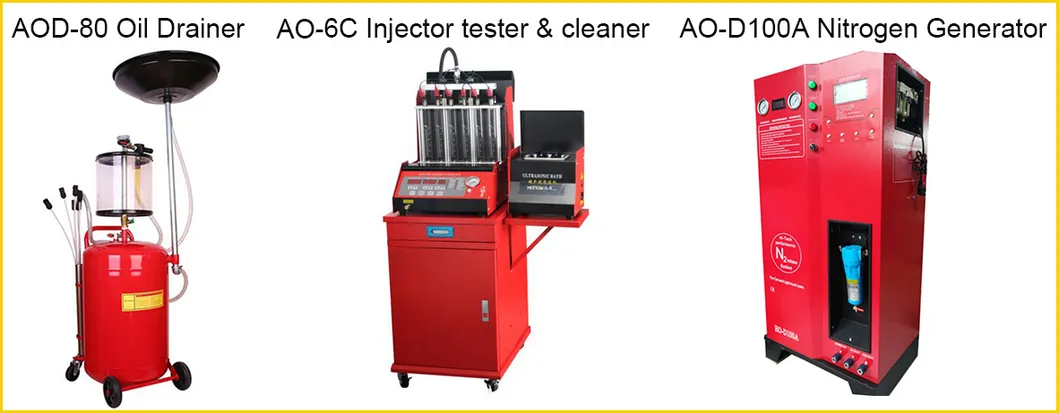

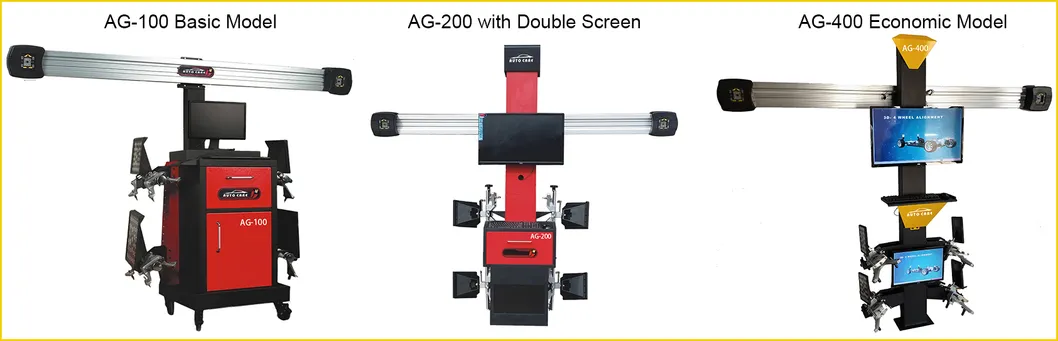

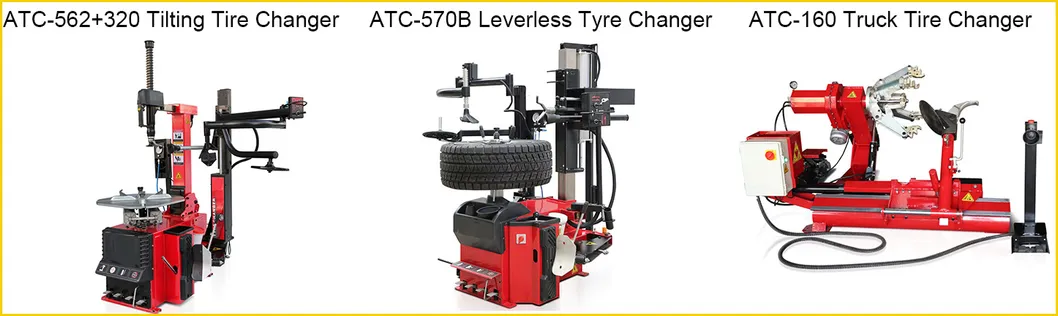

Optional Products
Package & Loading

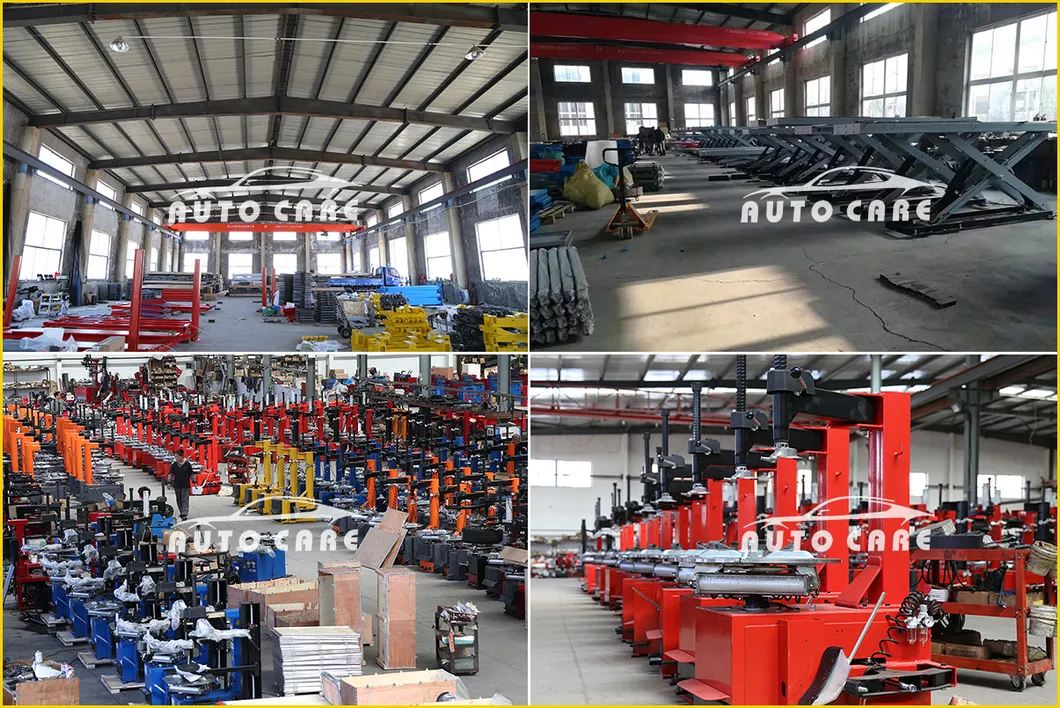

Our Factory
FAQ
Q1Are you Manufacturer or Trading company?
We are a professional manufacturer with our own sales team, possessing 6 years of experience in the auto repair field. We are highly skilled in offering tailored project plans according to client requests.
Q2Do you support factory visits?
Yes, all clients from home and abroad are warmly welcomed to visit our production facilities. You can visit us by air to the nearest airport, and we will arrange pick-up services.
Q3How about the quality of the products?
With advanced machines, a strong and professional R&D team, and premium material sources, our products provide excellent performance and craftsmanship, earning positive feedback from customers in more than 96 countries.
Q4Can we customize our product?
Yes, you can. Customized materials and standards are acceptable. We can provide different configurations according to your market regulations and preferences.
Q5What's the MOQ for each item?
We accept orders starting from 1 set of each machine.
Q6What's the delivery time?
Once the order is confirmed, standard configurations typically ship within 7-10 working days.
