1. Hardware configuration:
Dedicated high-definition industrial camera, patented epoxy glass fiber target disk, brand computer, 32" LCD TV + 19" LCD monitor, hanger, hanger bracket, steering wheel holder, brake fixation regulator, wedge block, corner disc, corner disc transition block, voltage stabilizer.
2. Measuring software features:
(1) Basic functions: toe angle, camber angle, kingpin caster angle, kingpin inclination angle, wheelbase, wheelbase, axle offset measurement, wheel offset measurement, retreat angle, thrust angle.
(2) Extensions: Single wheel measurement, steering wheel adjustment function, vehicle lift measurement.
| Parameter Item | Specification Value |
|---|---|
| Post Maximum Height | 2550mm |
| Beam Maximum Length | 2760mm |
| Box Unit Size | 500*240*540mm |
| Gross Weight | 170kgs |
| Packing and Volume | 2pkgs/1.2cbm |
Measuring Data Information:
| Item | Accuracy | Range |
|---|---|---|
| Display Accuracy | 0.01mm / 0.01° | / |
| SAI | ±0.02° | ±20° |
| Caster | ±0.05° | ±20° |
| Camber | ±0.02° | ±10° |
| Toe | ±0.02° | ±20° |
| Thrust Angle | ±0.02° | ±5° |
| Setback | ±0.02° | ±5° |
| Total Toe | ±0.02° | ±40° |
| Max Turn Angle | ±0.08° | ±50° |
| Axle Distance | ±2mm | 4200mm |

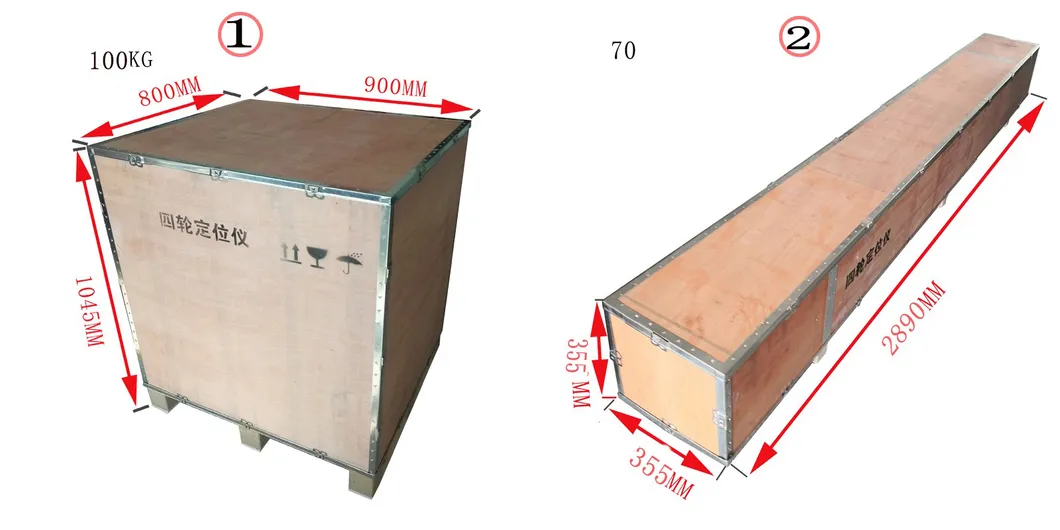

Standard Export Package
We are manufacturer and wholesaler of Automotive Equipment, experience over 10+ years. Including Autobody frame machine, Painting booth, Car lifts, wheel alignment, tyre changer, balancer. Jacks, AC machine, Baking lamp, Welding spotter… We sell standard products to final users, and we offer shop design solutions for auto body shop starter/owner and OEM for world whole seller and distributors.
Our sales team can offer 24H x 7D online consultation service. We make sure order products qualified, test before delivery, well packaged with professional shipping. Most of our products with 3 years warranty and whole life after sale service. We offer competitive price with quantity order. We take care every inquiry and treat it with patience, we aim to be best buy of automotive equipment supplier!
Q1: What are the primary measurements this wheel alignment machine can perform?
A1: The machine measures fundamental alignment indexes including toe-in, camber, caster, kingpin inclination, wheelbase offset, axle offset, setback, and thrust angle.
Q2: What computer and display configuration does this equipment include?
A2: The standard system package contains a brand computer, a primary 32" LCD TV display, and a secondary 19" LCD monitor for optimized diagnostic viewing.
Q3: How durable are the alignment target disks?
A3: The target disks are constructed from patented epoxy glass fiber material, designed for high durability and resistance to wear and impact in tough workshop environments.
Q4: Does the software support measurement on vehicle lifts?
A4: Yes, the system includes extended software features that support single wheel measurement, steering wheel adjustment, and vehicle lift measurements.
Q5: What is the warranty and after-sales service policy?
A5: We offer a 3-year warranty on most of our products along with lifetime after-sales technical support to ensure your equipment runs smoothly.
