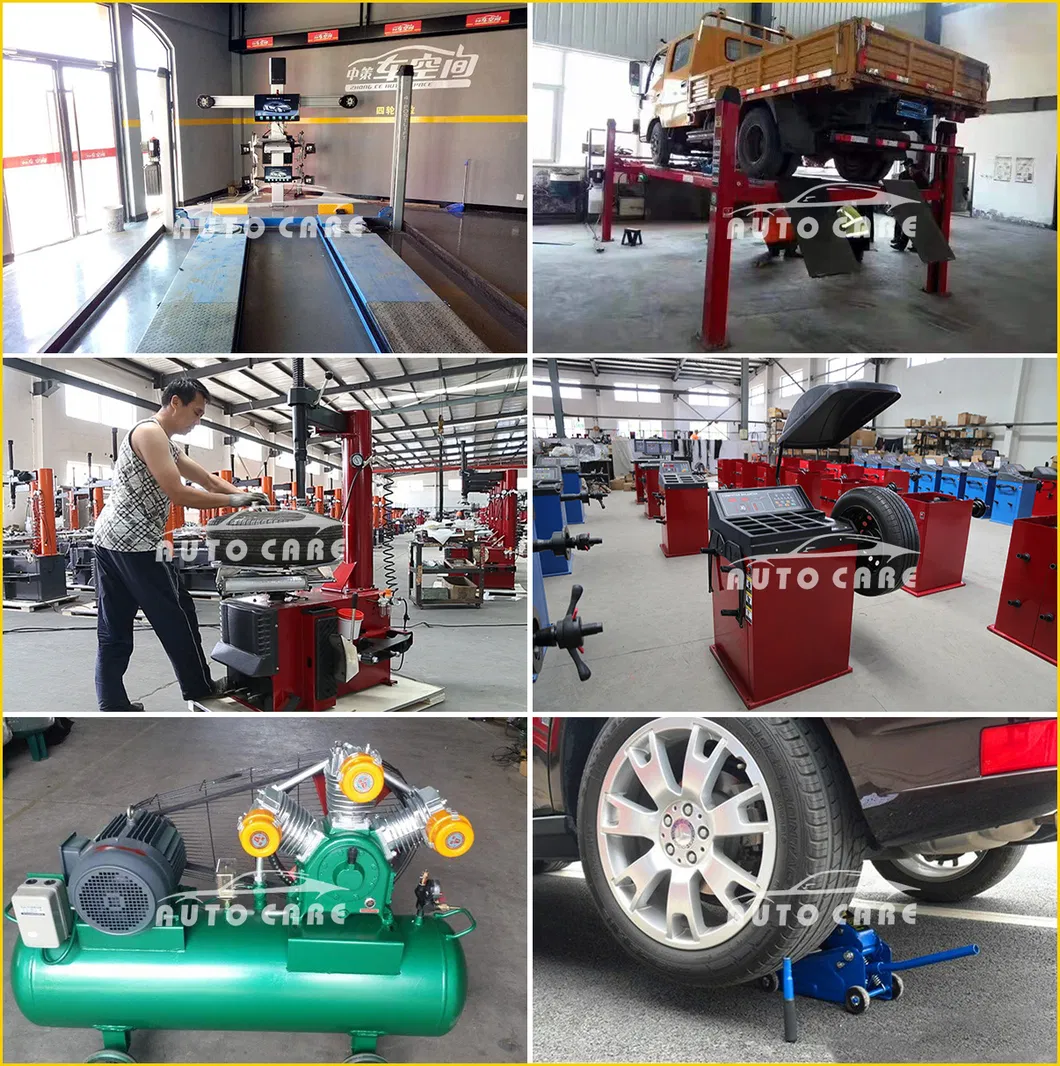

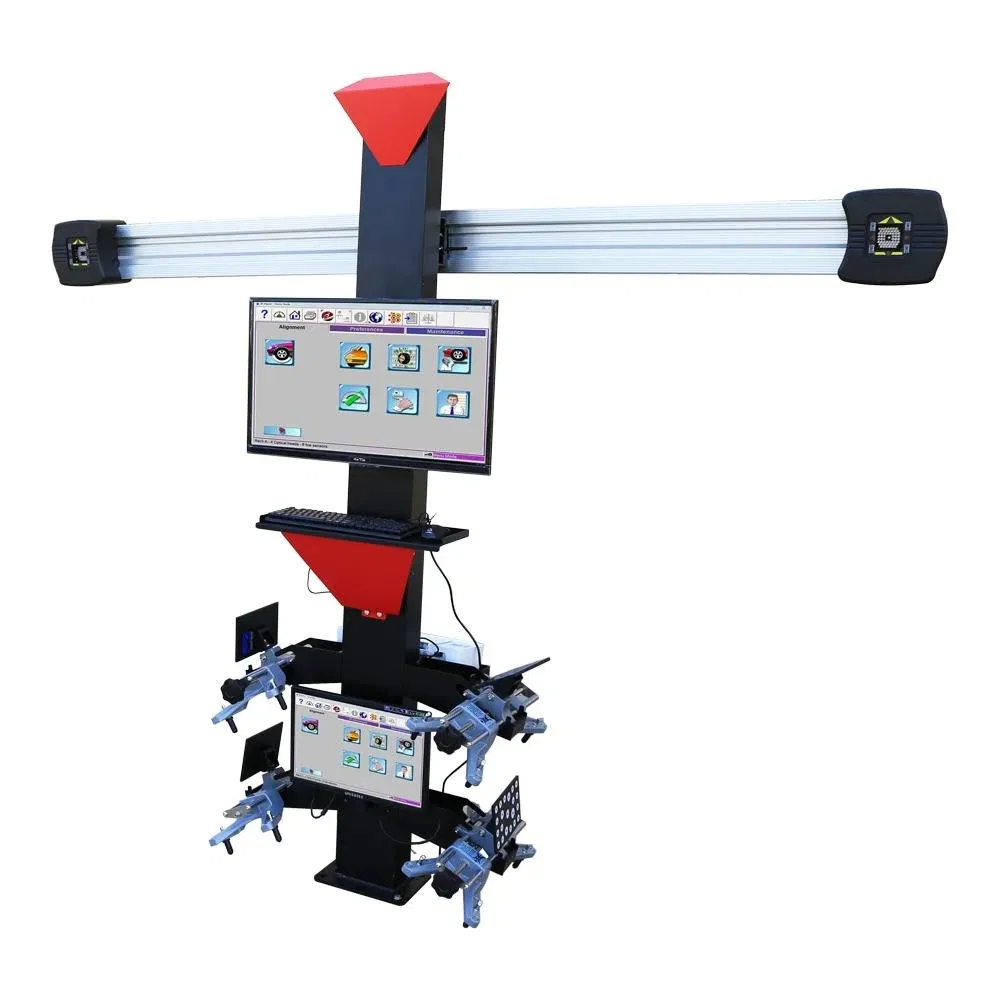

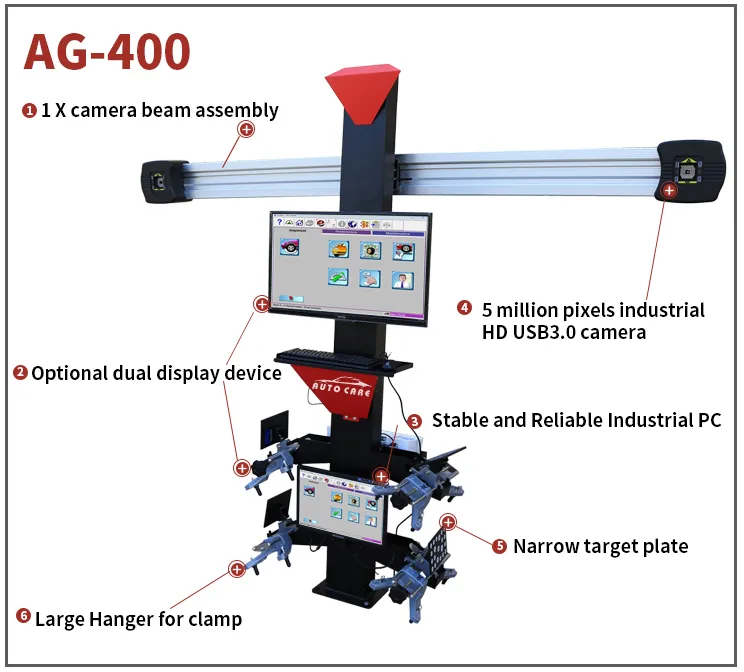

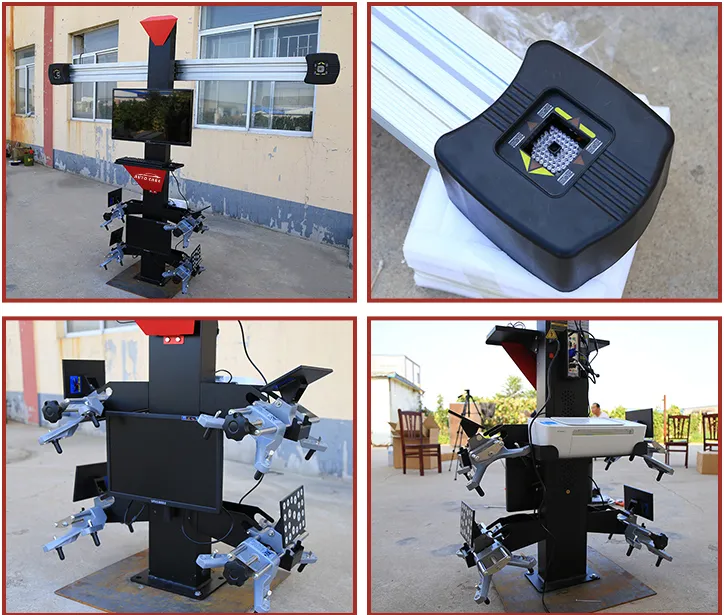

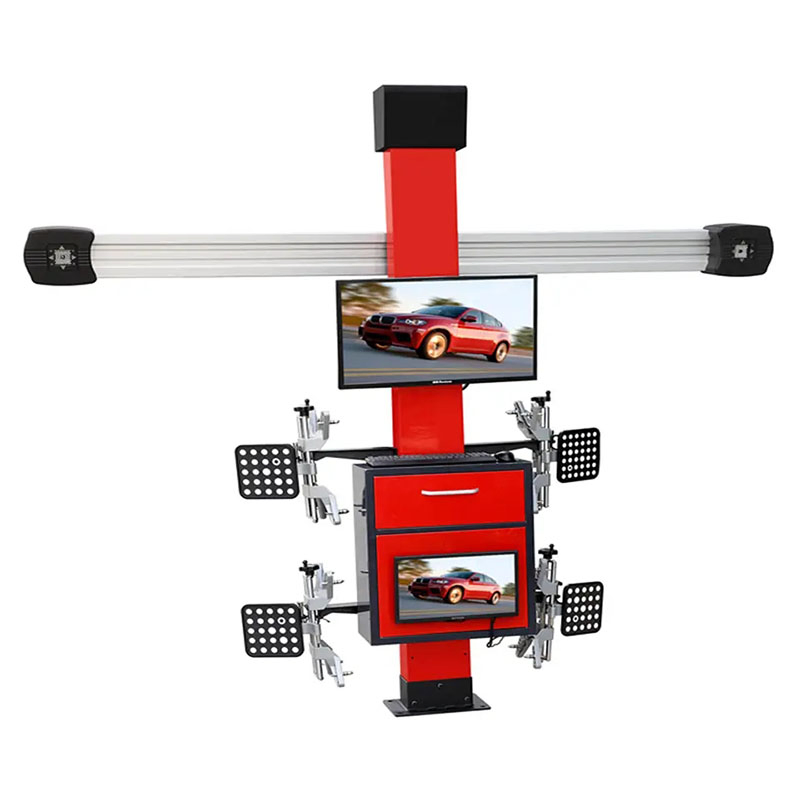

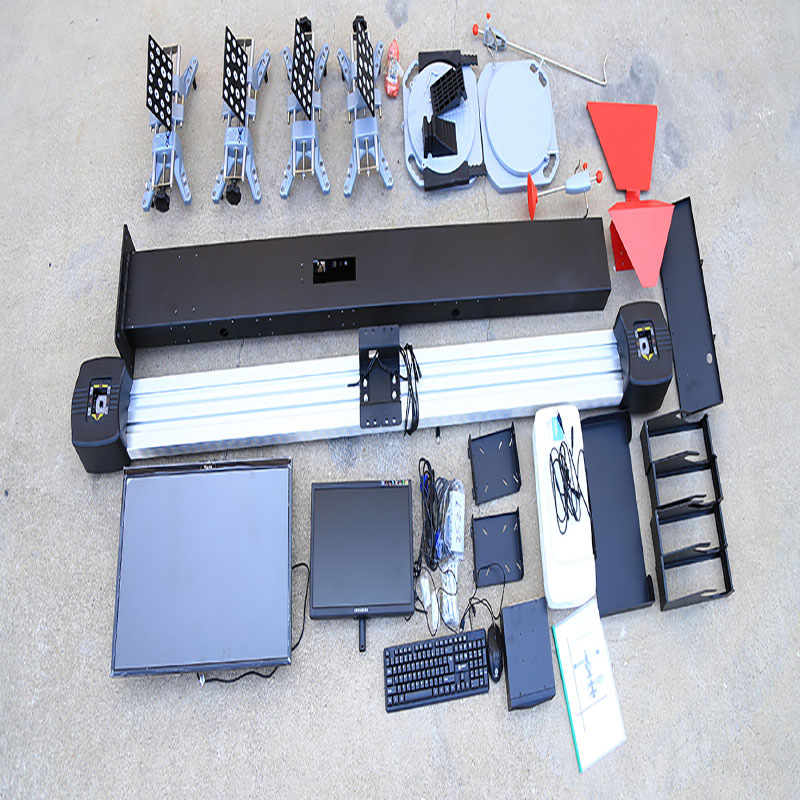

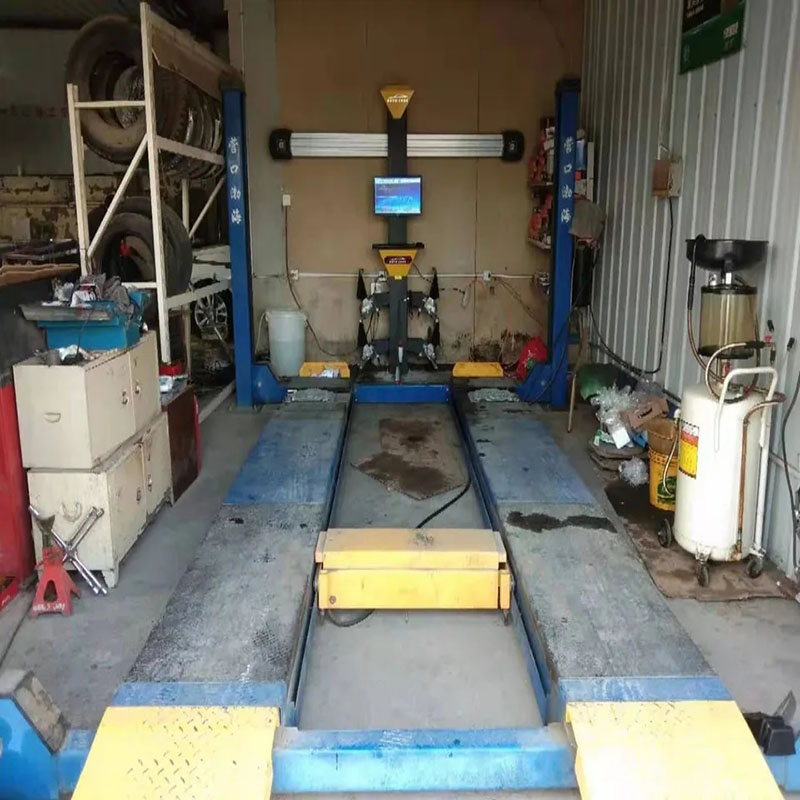

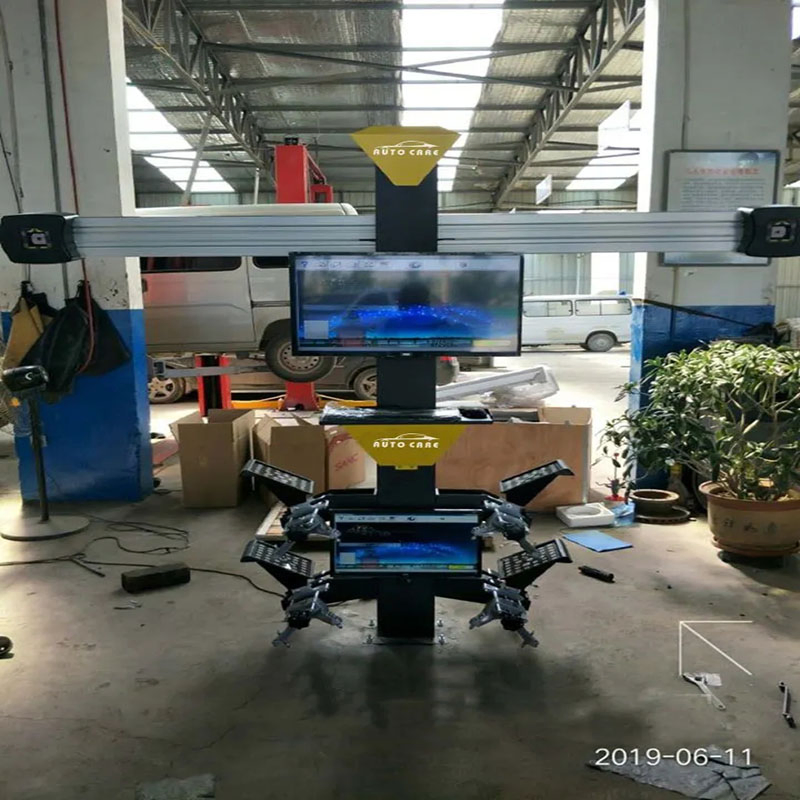

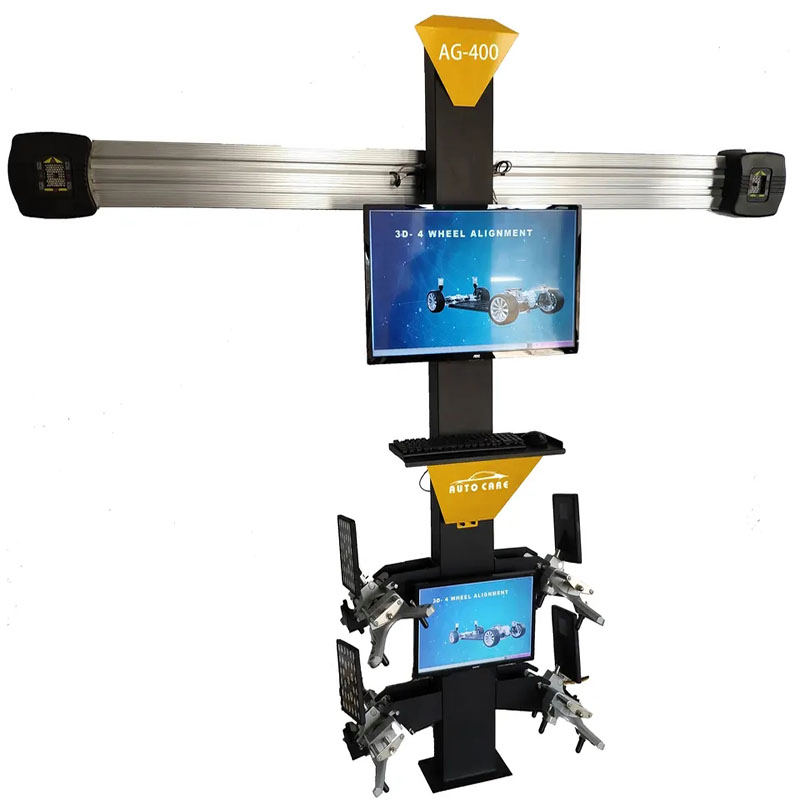

Autocare 3d wheel alignment & car lift & balancing machine for tyre repair workshop
| Items | Front wheel measurement precision | Measurement range | Rear wheel measurement precision | Measurement range |
|---|---|---|---|---|
| Toe | ±0.02 | ±20° | ±0.02 | ±20° |
| Camber | ±0.02 | ±15° | ±0.02 | ±15° |
| S.A.I | ±0.02 | ±26° | x | x |
| Caster | ± | ± | x | x |
| Thrust Angle | x | x | ±0.02 | ±5° |
| Parameter Item | Specification Details |
|---|---|
| Lifting Capacity | 4000 kgs |
| Lifting Height | 1800 mm |
| Lowest Height | 210 mm |
| Runway Length | 4200-4500mm |
| Width between Post | 810mm -1130 mm |
| Width between Column | 2850 mm |
| Rolling Jack Lifting Height | 160mm - 515 mm |
| Lifting Time | 50s |
| Motor Power | 2.2 kw |
| Power Supply | 220v/380v, 1/3 phase |

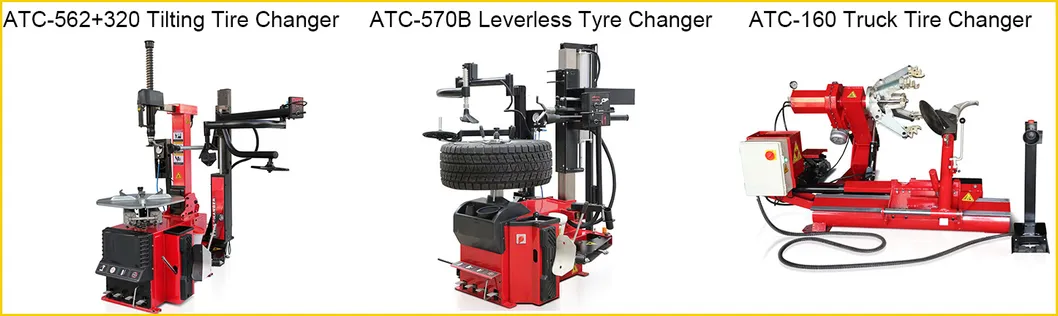

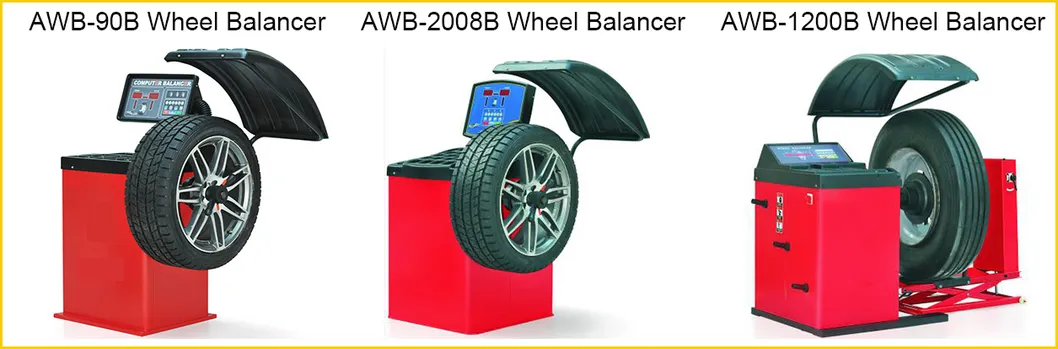

| ATC-620 Tire Changer | AWB-70 Wheel Balancer | ||
|---|---|---|---|
| Rim Clamping from Outside | 10"-22" | Rim diameter | 10"-24" |
| Rim Clamping from Inside | 12"-24" | Rotation speed | 200r/min |
| Max. Wheel Diameter | 1040mm | Max. tire diameter | 1000mm |
| Tire Width | 3"-15" | Tire width | 1.5"-16" |
| Working Pressure | 8-10 Bar | Max. tire weight | 70kg |
| Voltage | 110v/220v/380v | Balance precision | ±1g |
| Power | 0.75kw / 1.1 kw | Power | 250w |
| Machine Weight | 186kg | Machine weight | 90kg |
| Package Size | 1120*750*860mm | Package Size | 980*720*1090mm |
| Power | Tank(L) | Model | Voltage | Motor Material |
|---|---|---|---|---|
| 4HP/3KW | 90 | AC-0.36/8 | 380v/50hz/3phase | Copper |
| 5.5HP/4KW | 120 | AC-0.45/8 | ||
| 7.5HP/5.5KW | 120 | AC-0.67/8 | ||
| 10HP/7.5KW | 230 | AC-1.05/12.5 |
A: We are a professional manufacturer with our own sales team, possess the experience of auto repair field for 6 years, More skillful to offer you a project plan according to clients' request.
A: With the advanced machines, strong and professional R&D team and material sources, our products are excellent in performance and craftsmanship, got a good feedbacks by customers from more than 96 countries.
A: Yes, you can. Customized material and standard are acceptable. We can provide different standards according to your market and favor.
A: We accept 1 set of each machine once time.
A: When order confirmed, the machine with our standard configurations, it's 7-10 workdays.
