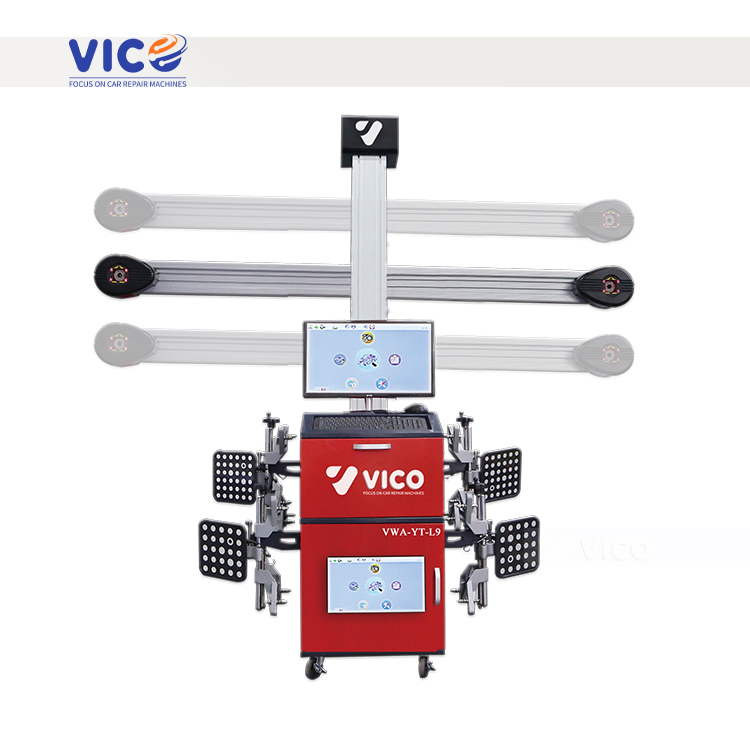

Manata Scanner
1 / 5
Dedicated high-definition industrial camera, patented epoxy glass fiber target disk, brand computer, 24" LCD TV + 19" LCD monitor, hanger, hanger bracket, steering wheel holder, brake fixation regulator, wedge block, corner disc, corner disc transition block, voltage stabilizer.
| Parameter Item | Specification Details |
|---|---|
| Post Maximum Height | 2760mm |
| Beam Maximum Length | 2760mm |
| Box Unit Size | 540*550*100mm |
| Weight | 260kgs |
| Packing | 3pkgs/1.8cbm |
| Item | Accuracy | Range |
|---|---|---|
| Display Accuracy | 0.01mm / 0.01° | / |
| SAI | ±0.02° | ±20° |
| Caster | ±0.05° | ±20° |
| Camber | ±0.02° | ±10° |
| Toe | ±0.02° | ±20° |
| Thrust Angle | ±0.02° | ±5° |
| Setback | ±0.02° | ±5° |
| Total Toe | ±0.02° | ±40° |
| Max Turn Angle | ±0.08° | ±50° |
| Axle Distance | ±2mm | 4200mm |

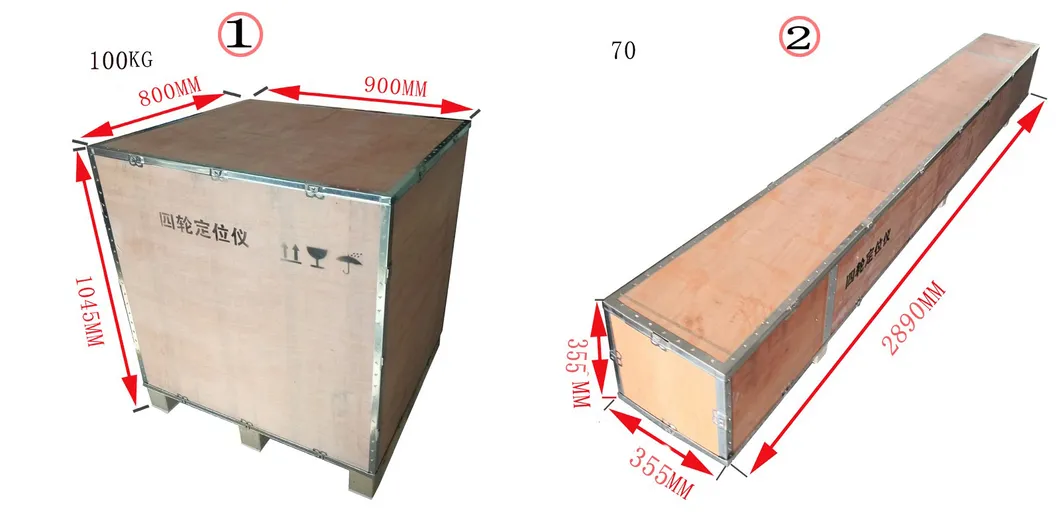

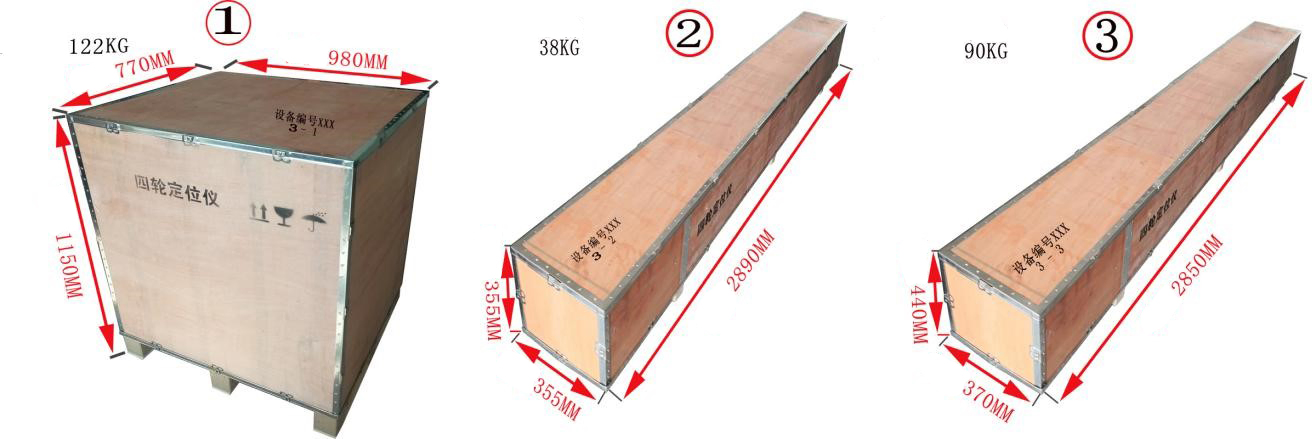

Package Standard: Standard Export Package
We are a manufacturer and wholesaler of Automotive Equipment with over 10+ years of industry experience. Our comprehensive catalog includes Autobody frame machines, Painting booths, Car lifts, wheel alignments, tyre changers, and balancers. We also supply Jacks, AC machines, Baking lamps, Welding spotters, and more. In addition to selling standard products directly to users, we offer professional shop design solutions for auto body shop startups and owners, as well as OEM manufacturing services for global wholesalers and distributors.
The display accuracy is 0.01mm // 0.01°. Measurement parameters like Camber, Toe, and Thrust Angle feature high accuracy tolerances up to ±0.02°.
The hardware system includes a dedicated high-definition industrial camera, patented epoxy glass fiber target disks, a brand computer, a 24" LCD TV and 19" LCD monitor, hangers, steering wheel holder, brake fixation regulator, wedge block, and corner discs.
Yes, in addition to basic functions (toe, camber, caster, thrust angle), it supports advanced extensions including single wheel measurement, steering wheel adjustment, and vehicle lift measurement.
The standard export packaging size is 54.00cm * 55.00cm * 100.00cm, with a total gross weight of 260.00kg.
We offer a 3-year warranty on most of our products, backed by lifetime after-sales support and 24/7 online technical consultations.
Yes, we provide full shop design layouts and configuration suggestions for auto service starters and owners, along with OEM solutions for distributors.
