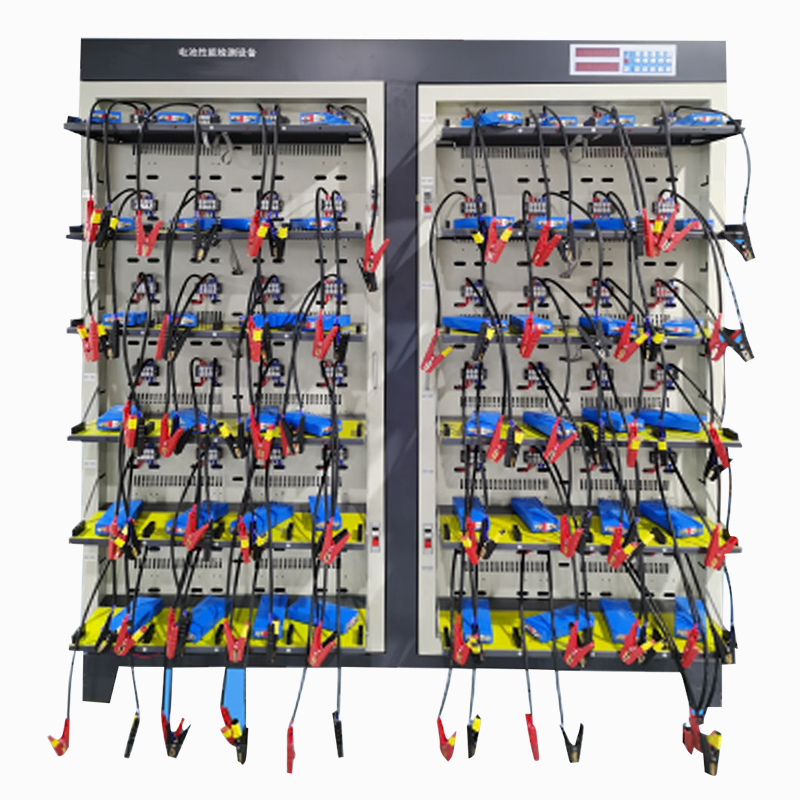

Control Mode
Software installation, computer connection, equipment work, whole cabinet control
Communication Mode
Serial port, baud rate 57600
Process Setting
Up to 32 steps and 256 cycles can be set
Charging Mode
Constant current, constant voltage, constant current and constant voltage
Charging Cut-off Conditions
Voltage, current, time, capacity
Discharge Mode
Constant current
Discharge Cut-off Conditions
Voltage, time, capacity
Protection Function
Over voltage, under voltage, over current, under current, over capacity protection, power-off protection, data breakpoint recovery
Time Range & Precision
0-30000 minutes (unit: min) / Precision: ≤±1‰
Sampling & Recording Frequency
Sampling: ≤ 3S / Min Data Recording: ≤5S
Battery Sorting
Sorting according to capacity, time, open circuit voltage, discharge platform, etc
Data Processing
Records voltage, current, time, capacity; calculates ratios, loss, efficiency, average/median voltage; outputs curves/diagrams to txt, Excel, Word, or MDB database.
