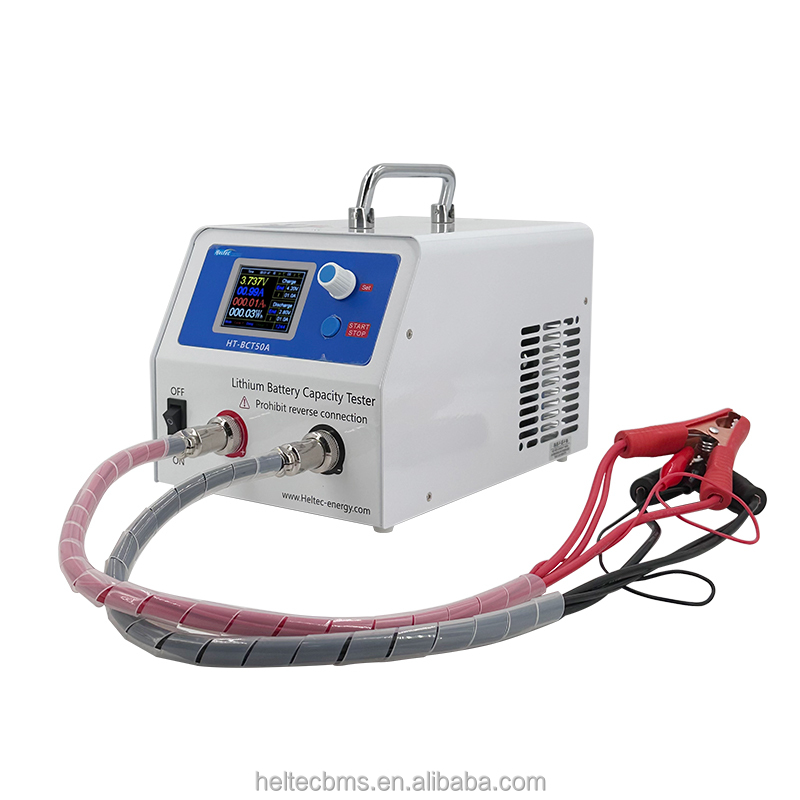

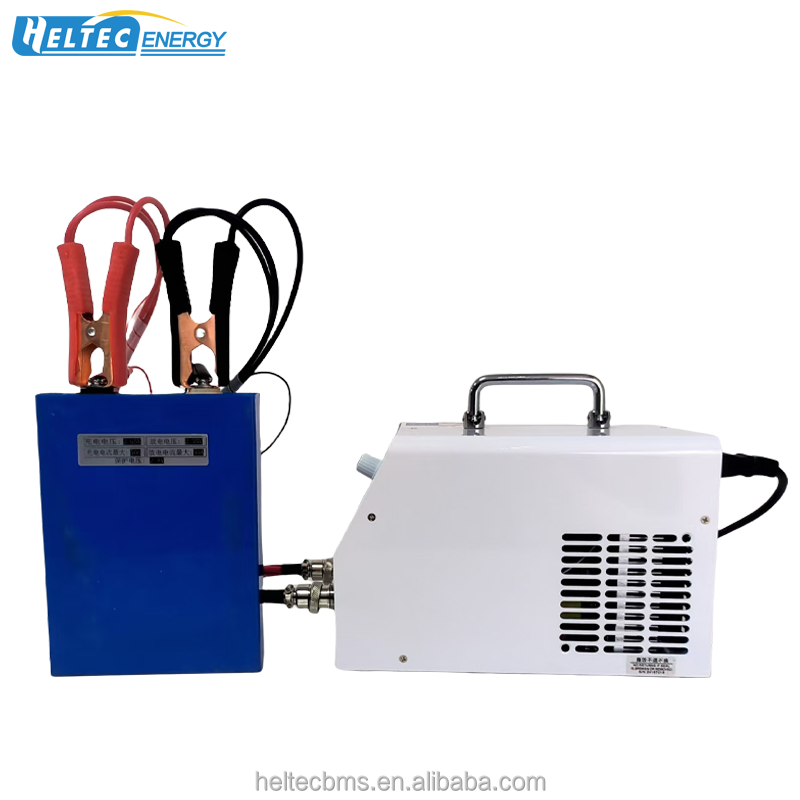

| Model | HT-BCT50A |
| Power | AC200-240V 50/60HZ (If you need 110V version, please inform us in advance) |

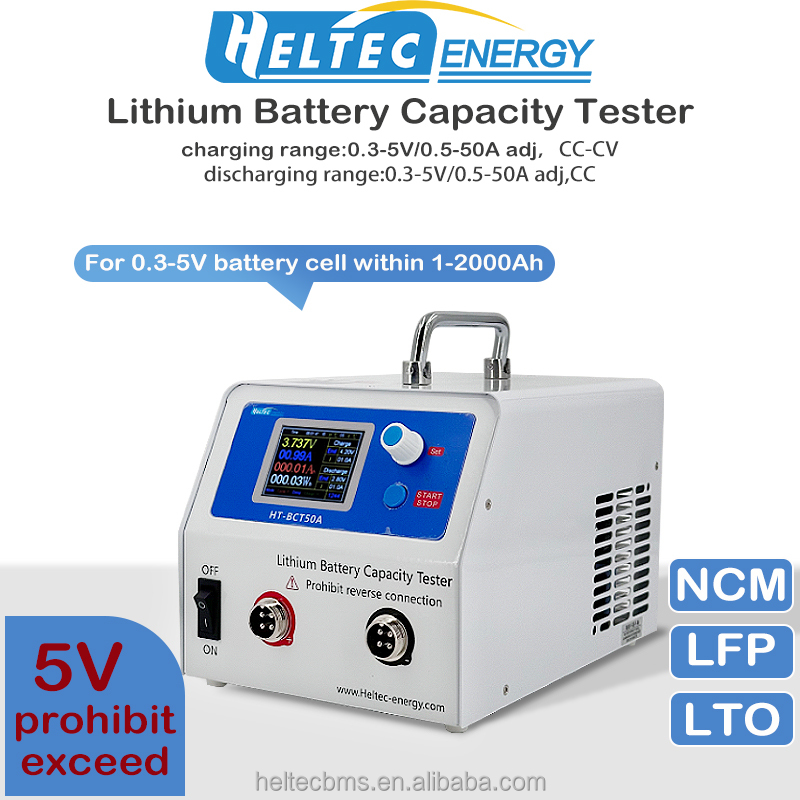

| Charging range | 0.3-5V / 0.3-50A Adjustable, CC-CV |
| Discharge range | 0.3-5V / 0.3-50A Adjustable, CC |

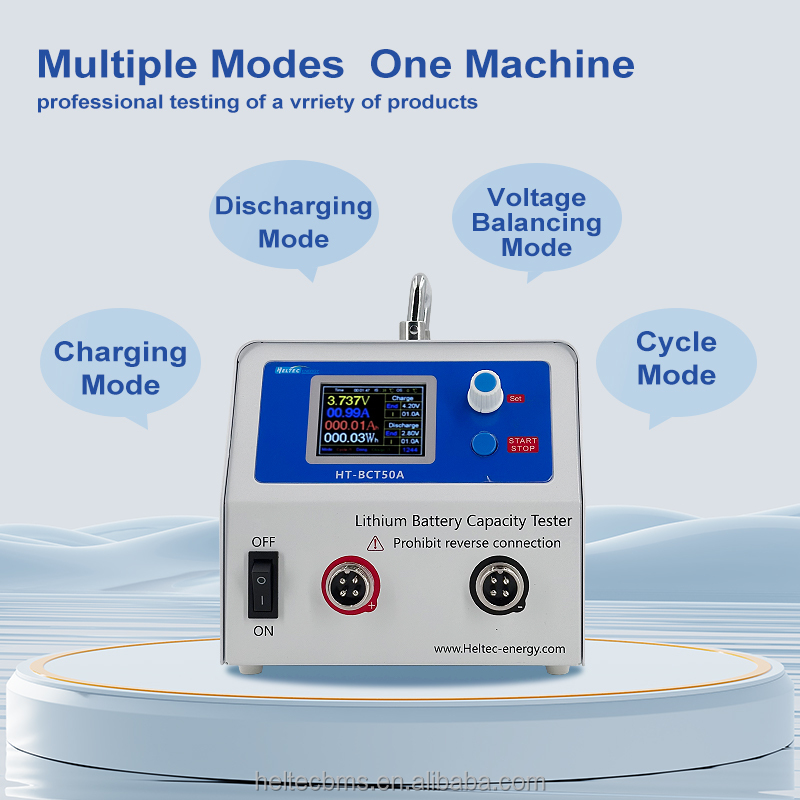

| Work step | Charge / Discharge / Rest time / Cycle (up to 9999 times) |
| Auxiliary functions | Voltage balancing (CV Discharge) |
| Protective function | Battery overvoltage / Battery reverse connection / Battery disconnection / Fan failure protection |
| Calibration equipment | Voltage: Fluke 8845A, Current: Gwinstek PCS-1000I |
| Accuracy | V: ±0.1%, A: ±0.1% (Accuracy guarantee valid for one year from purchase date) |
| Cooling | Cooling fans activate at 40°C, system high-temp protection at 83°C (please inspect and maintain the fans regularly) |
| Working environment | 0-40°C, requires clean air circulation; do not block airflow around the machine |
| Warning | It is strictly forbidden to test batteries exceeding 5V! |
| Size and weight | Dimensions: 167 * 165 * 240 mm, Net Weight: 2.6 Kg |

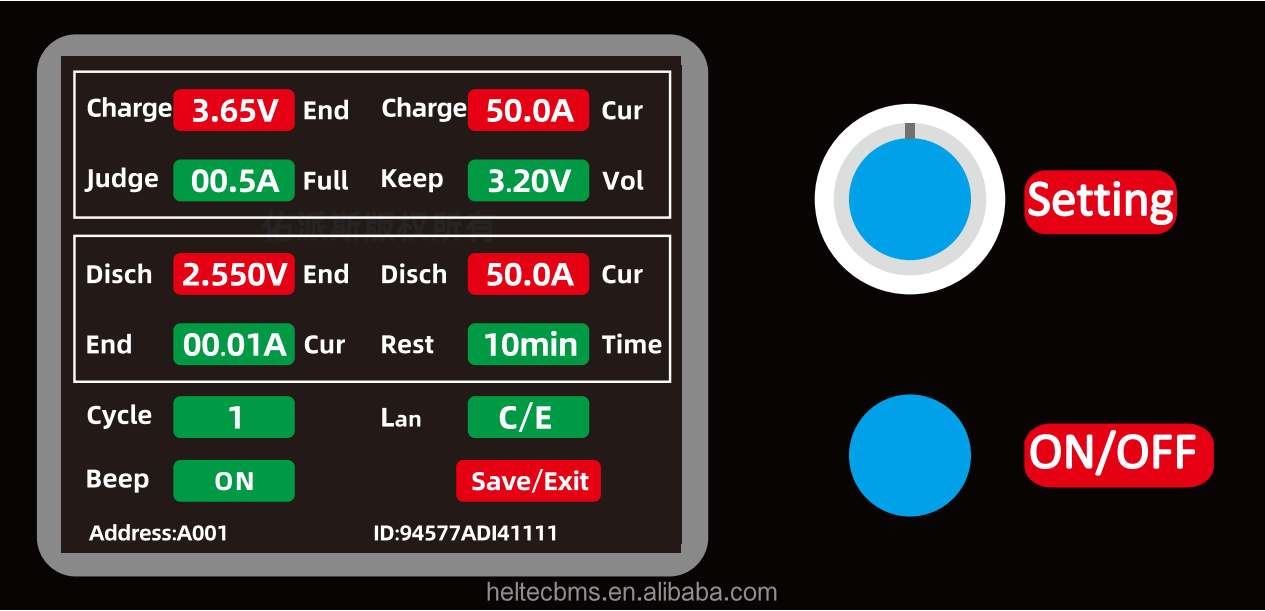

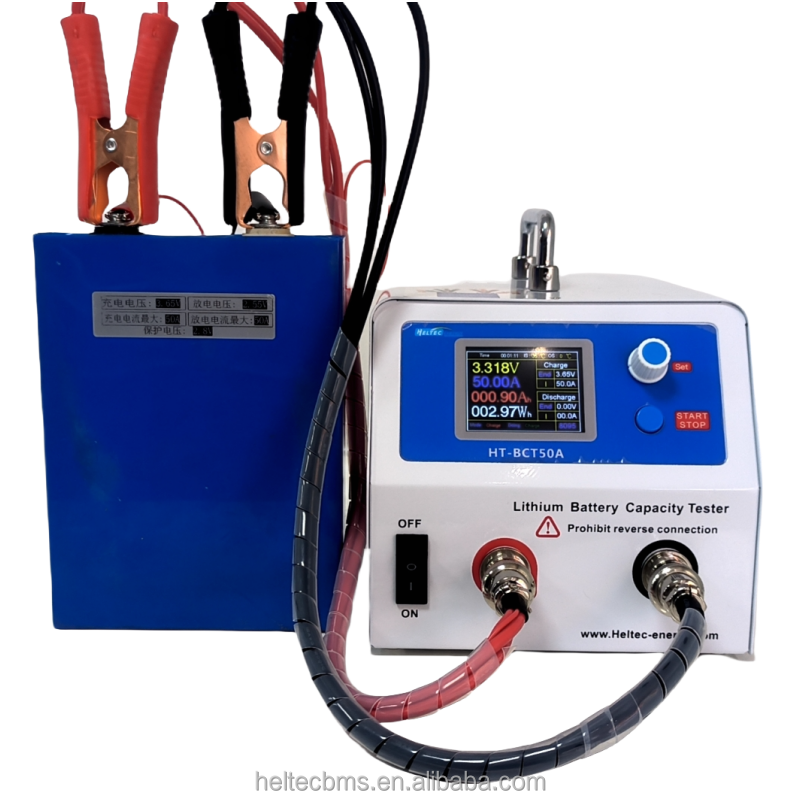

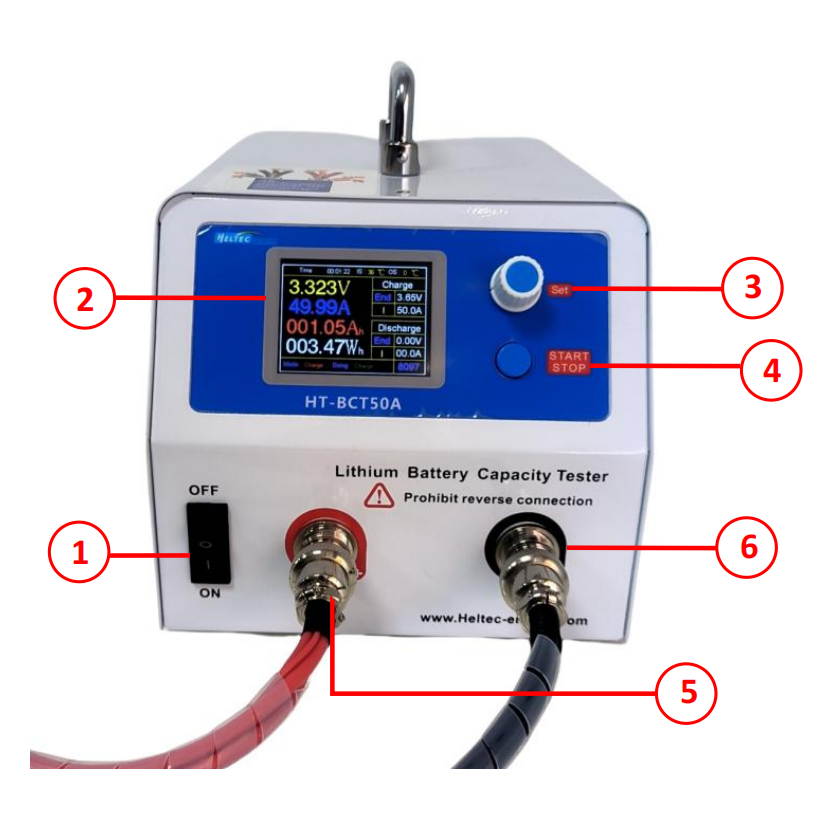

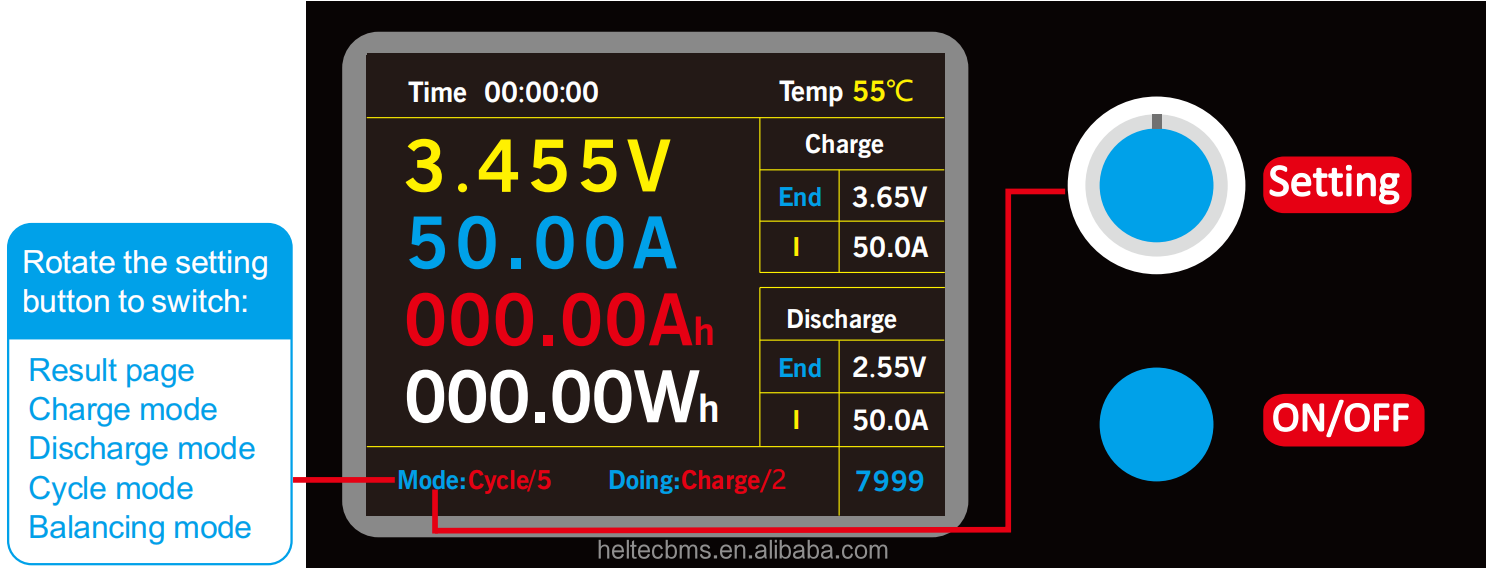

Power on the unit first, then clip to the battery. Press the setting knob to enter the configuration menu. Rotate left or right to adjust, press to confirm, and exit to save settings.
Return to the home screen. Rotate the knob to choose the active mode. Press the start/stop button to run the program. Press again if pausing is required.

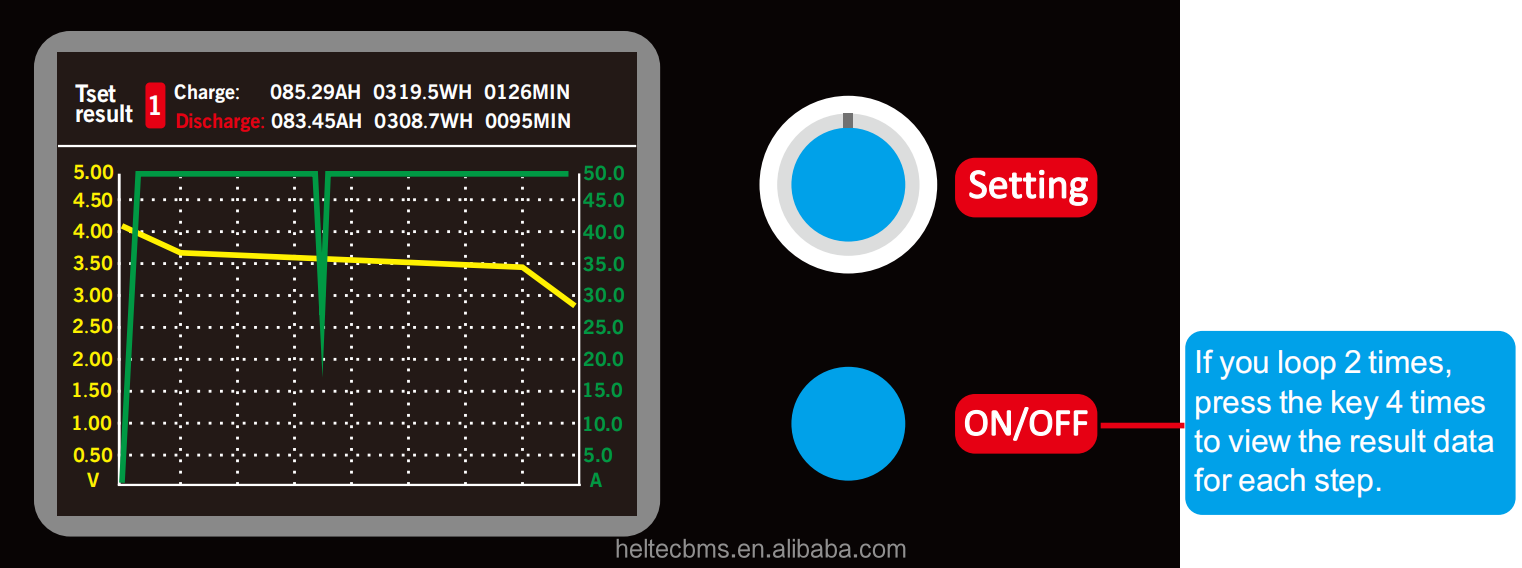

Once the cycle completes, the results page automatically triggers. Press any key to stop the finish alarm. Log results manually before moving to the next battery.
Warranty Service Period: 1 Year from the date of purchase.
Warranty coverage applies strictly to normal use conditions. Damages resulting from human error, self-disassembly, modification, unauthorized repairs, usage violations, or external force majeure events fall outside the scope of free warranty repair.

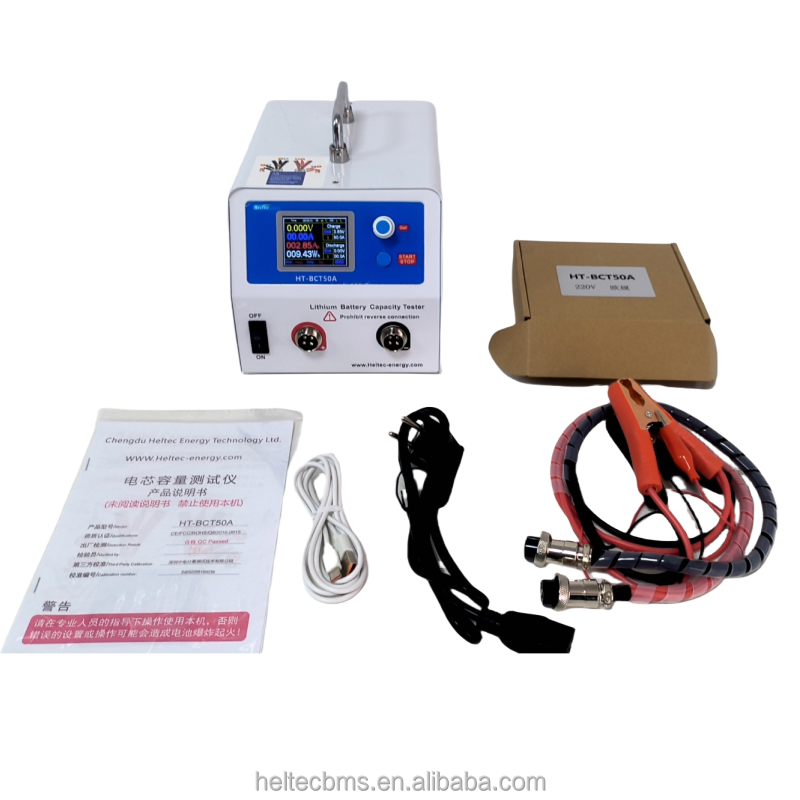

Accessories such as testing fixtures are subject to wear and tear and are categorized as consumables with no warranty.
For support and claims processing, please get in touch with your local distributor or reach out to our service team. If there is no local customer service center in your region, the product must be shipped to our central facility for service. Note that shipping expenses for both ways are the responsibility of the customer.
We are a leading enterprise specializing in battery energy storage and power management solutions. We manage a full structural cycle including design, custom development, strict testing, mass production, and distribution. Our catalog includes an extensive range of products, including battery management systems (BMS), active balancers, battery maintenance and testing instruments, and precision spot welding machinery.

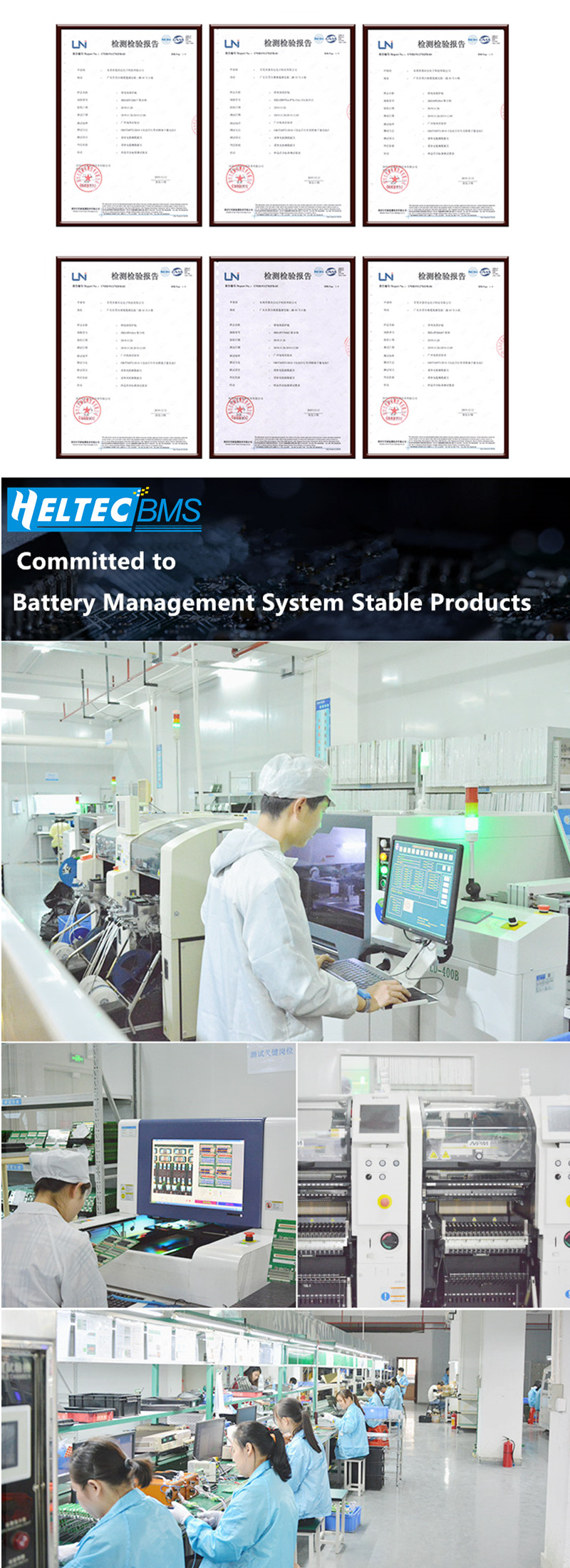

Supported by a skilled R&D engineering team, modern manufacturing structures, and high-standard quality assurance processes, we provide a full scale of services including custom designs, rapid prototype testing, OEM/ODM orders, and bulk manufacturing. Our commitment to green energy and reliability drives us to deliver environmental-friendly, highly efficient, and long-lasting products to customers globally.
